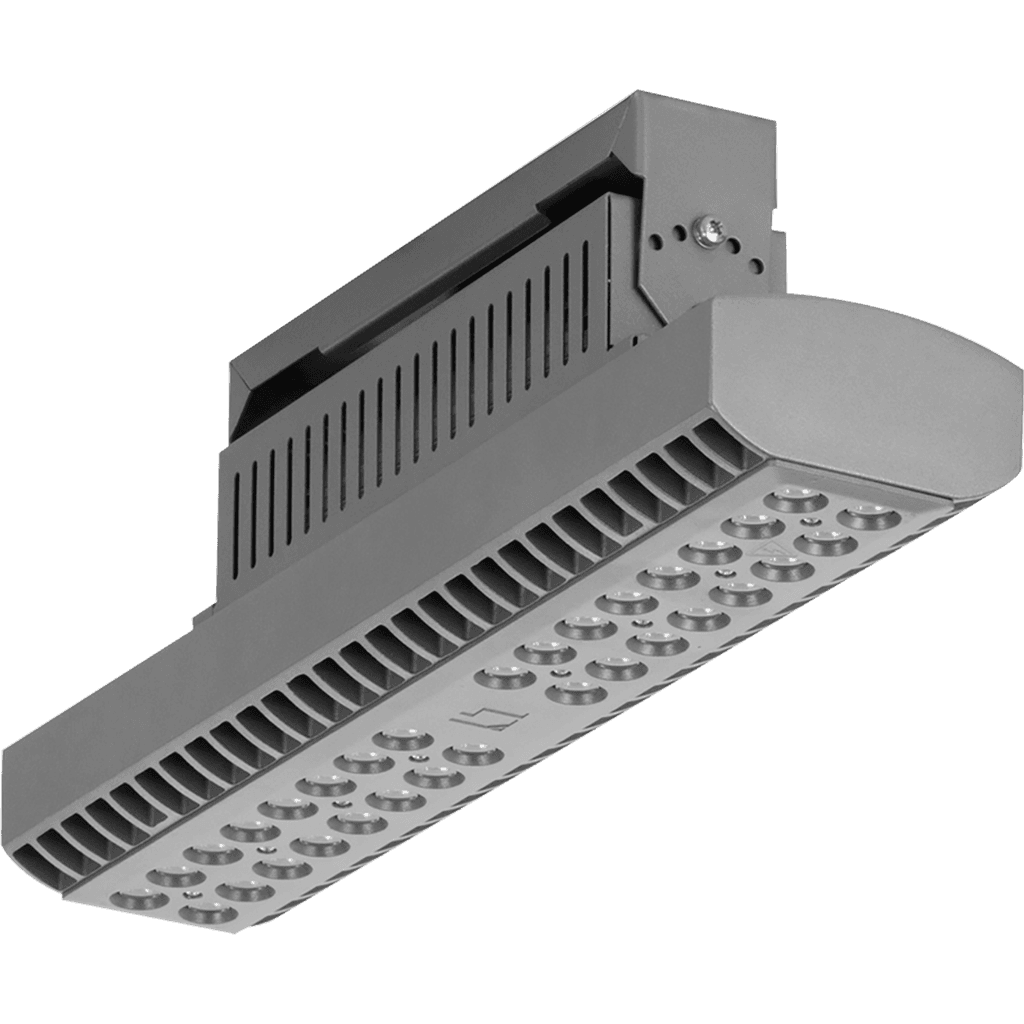

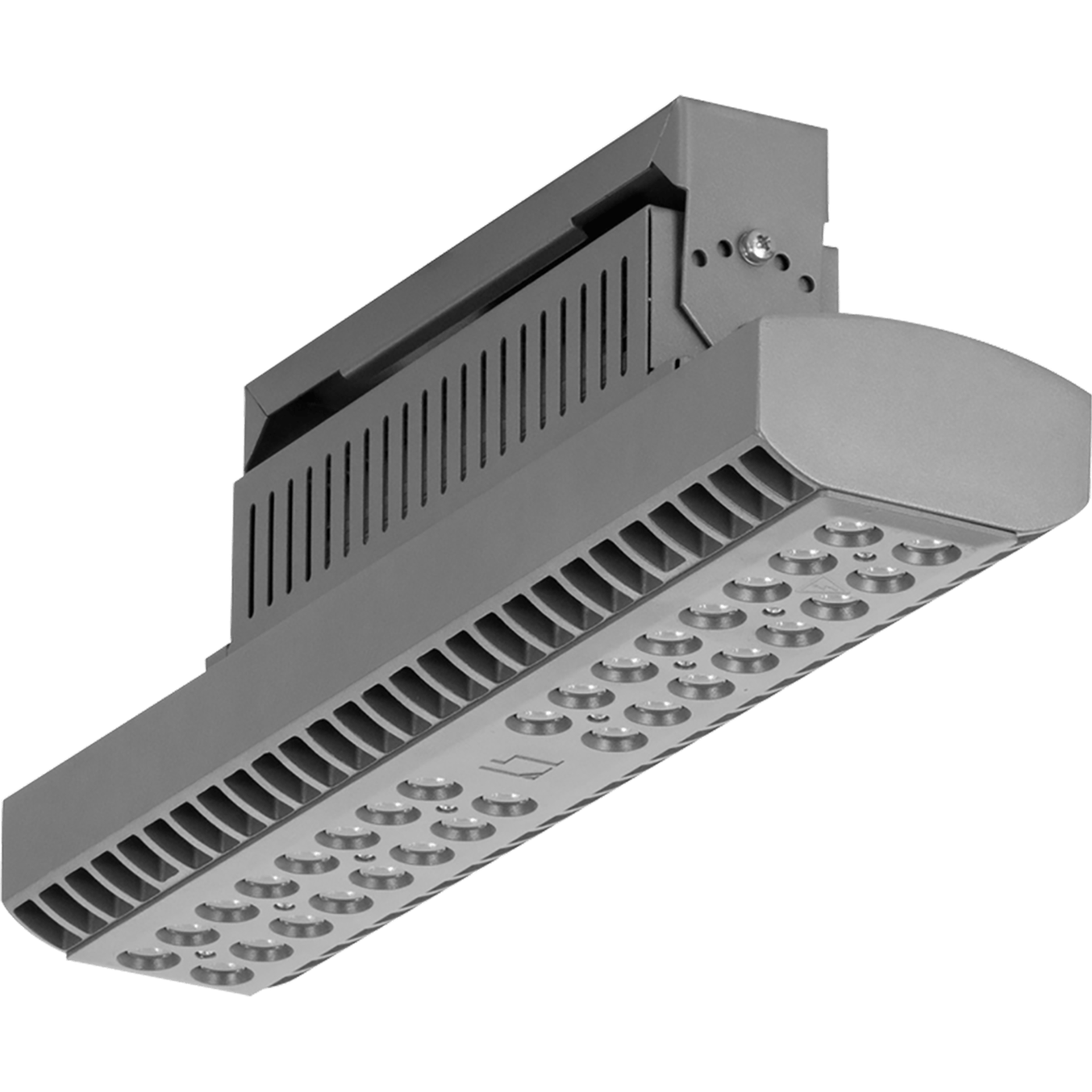

HB LED 75 D60 4000K
HB LED 75 D60 4000K
68 Wluminaire power
8800 lmlight flow
129 lm/Wenergy efficiency
code1224002160
color temperature4000 K

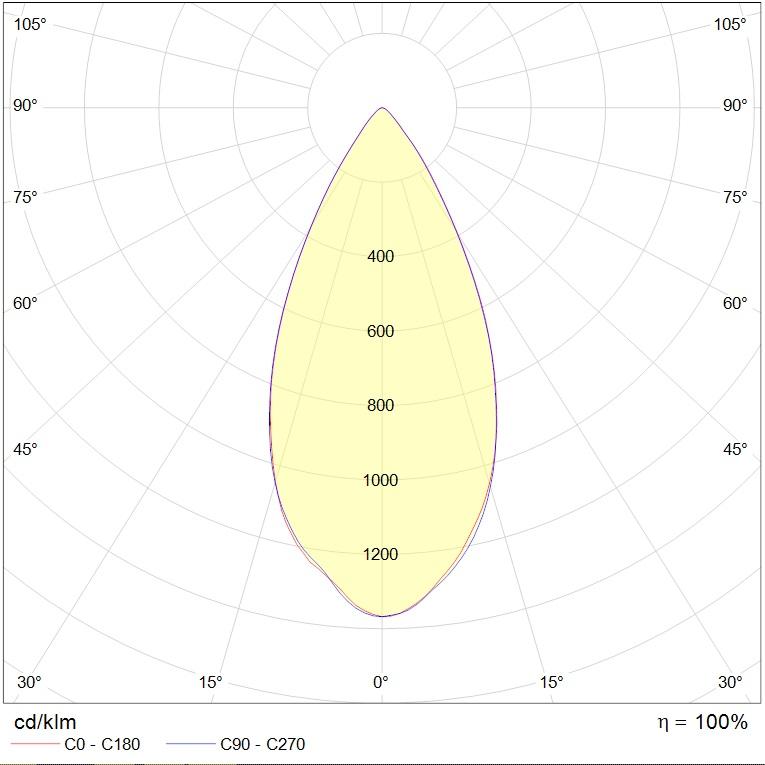

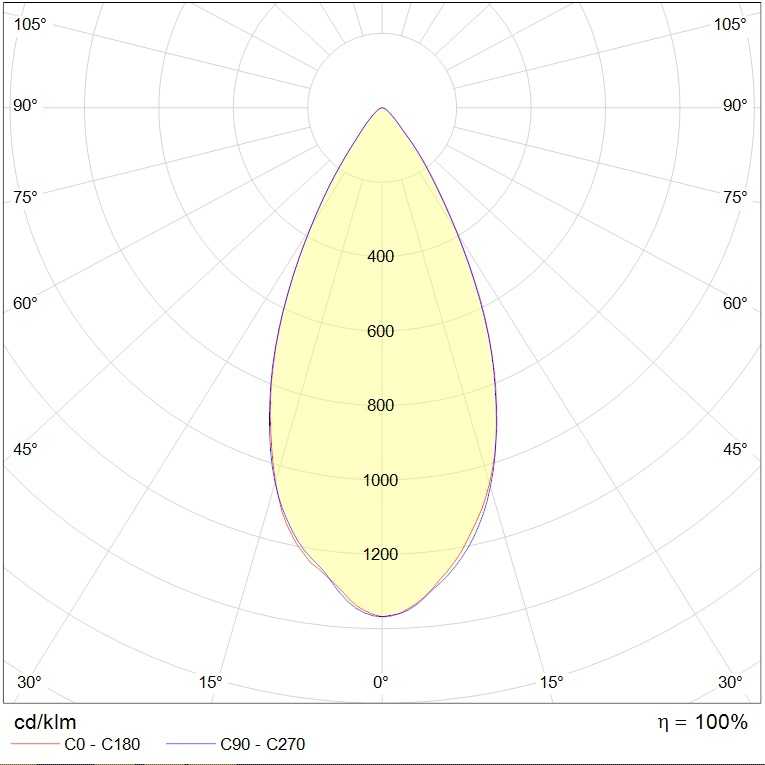

beam angleD60
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
129 lm/Wcolor rendition index (CRI)
>70light flow
8800 lmflickering factor
<1%beam angle
D60color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
129 lm/W
color rendition index (CRI)
>70
light flow
8800 lm
flickering factor
<1%
beam angle
D60
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
380 µs
power factor
> 0,95
luminaire power
68 W
electric shock protection
II
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
33 A
constructional
length
463 mm
width
110 mm
height
160 mm
installation length
180 mm
weight
3.5 kg
ingress protection (IP)
IP66
shock resistance (IK)
IK10/20 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
temperature range
от -40 до +45 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A+
code
1224002160
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax636 kB
photometric files
ies263.2 kB
jpg88.6 kB
ldt144.9 kB
documents
passport2.1 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
