HB LED 75 D100 5000K
HB LED 75 D100 5000K
72 Wluminaire power
8400 lmlight flow
117 lm/Wenergy efficiency
code
1224005310
color temperature
5000 K
beam angle
D100
performance factor
100
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
energy efficiency
117 lm/Wcolor rendition index (CRI)
>70light flow
8400 lmflickering factor
<1%beam angle
D100color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
117 lm/W
color rendition index (CRI)
>70
light flow
8400 lm
flickering factor
<1%
beam angle
D100
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
160 µs
power factor
> 0,96
luminaire power
72 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
starting current
57 A
constructional
length
463 mm
width
110 mm
height
160 mm
installation length
180 mm
weight
3.7 kg
ingress protection (IP)
IP66
shock resistance (IK)
IK10/20 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Алюминий
housing color
Металлик
mounting type
На скобу
lamp socket
LED
number of lamps
1
ballast
Драйвер
тип потолка
нет значения
emergency
emergency power supply
Нет
common
temperature range
от -40 до +45 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A+
code
1224005310
model files
model files
photometric files
documents
сертификаты

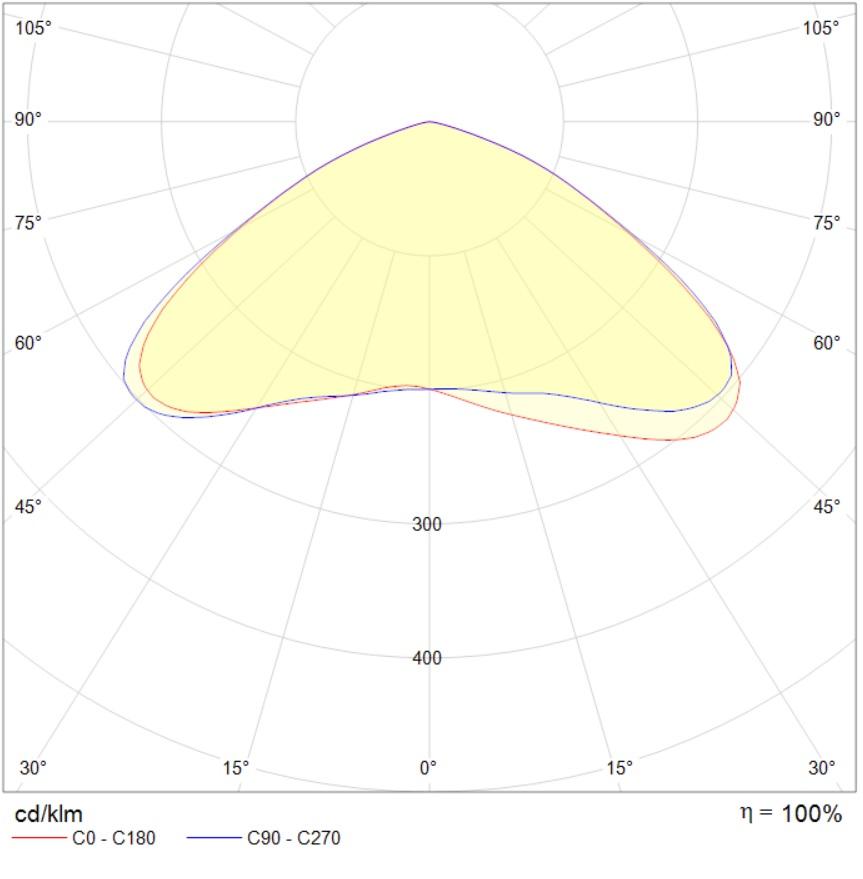

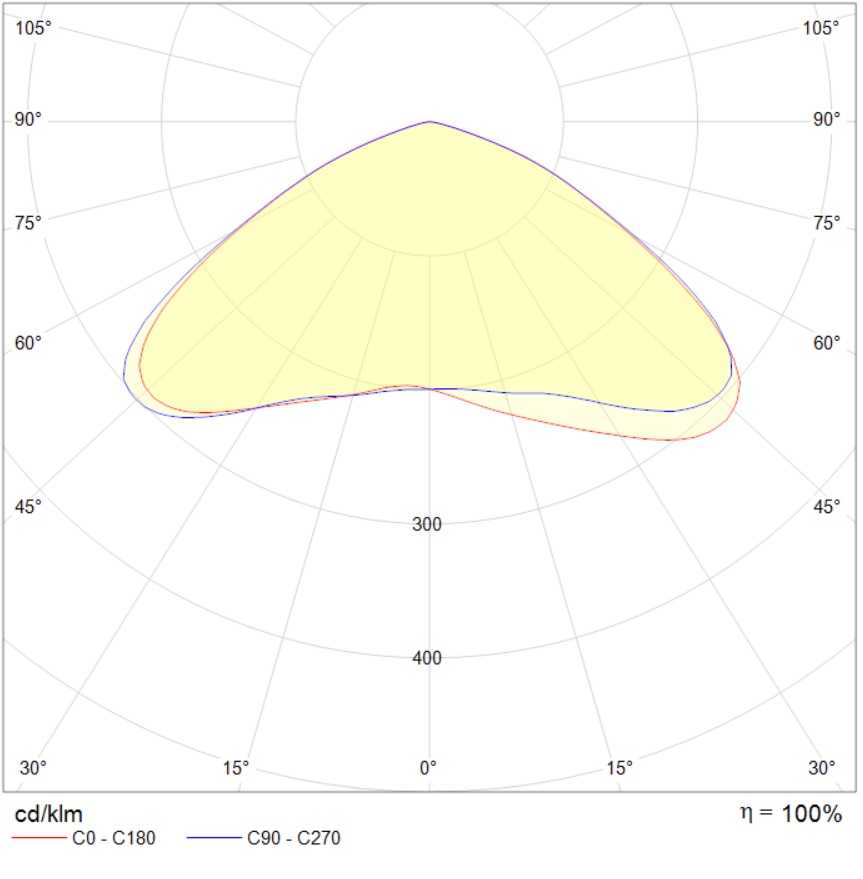

photometric files
ies107 kB
jpg78.2 kB
ldt71.7 kB
documents
passport2.1 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
