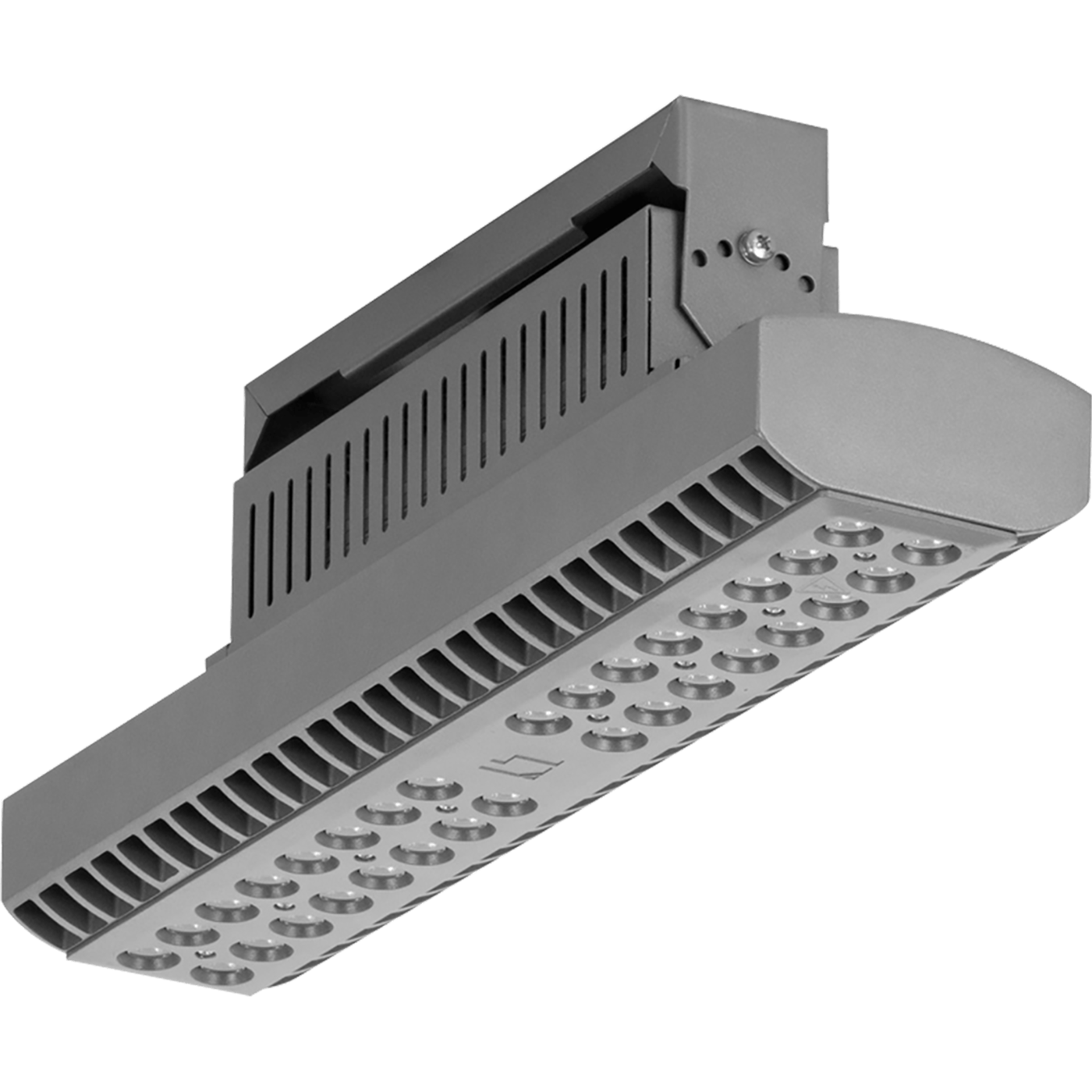

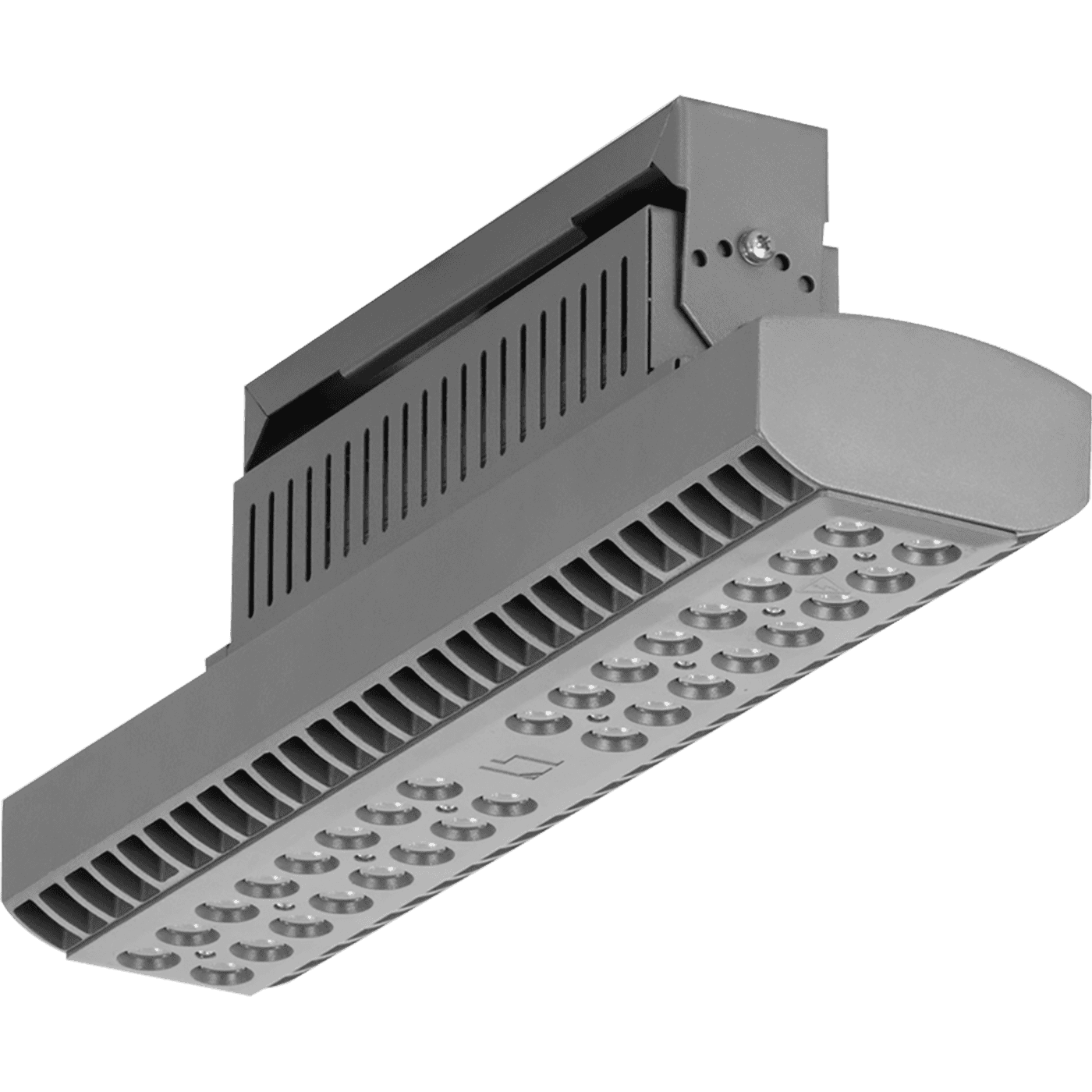

HB LED 100 D60 5000K (II class)

model is discontinued
model is discontinued
HB LED 100 D60 5000K (II class)
add to favorites
104 Wluminaire power
11400 lmlight flow
110 lm/Wenergy efficiency
code1224005160
color temperature5000 K
beam angleD60
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. for high spans
  6. HB LED 75-100
  7. HB LED 100 D60 5000K (II class)
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
110 lm/W
color rendition index (CRI)
>70
light flow
11400 lm
flickering factor
<1%
beam angle
D60
color temperature
5000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
110 lm/W
color rendition index (CRI)
>70
light flow
11400 lm
flickering factor
<1%
beam angle
D60
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
104 W
electric shock protection
II
supply voltage
230 V
maximum cross-section of the connected cable
4 mm2
constructional
length
463 mm
width
110 mm
height
160 mm
installation length
180 mm
weight
3.7 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK10/20 Дж
climatic performance
УХЛ1
fire safety class
П-ІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
temperature range
от -30 до +40 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A+
code
1224005160
