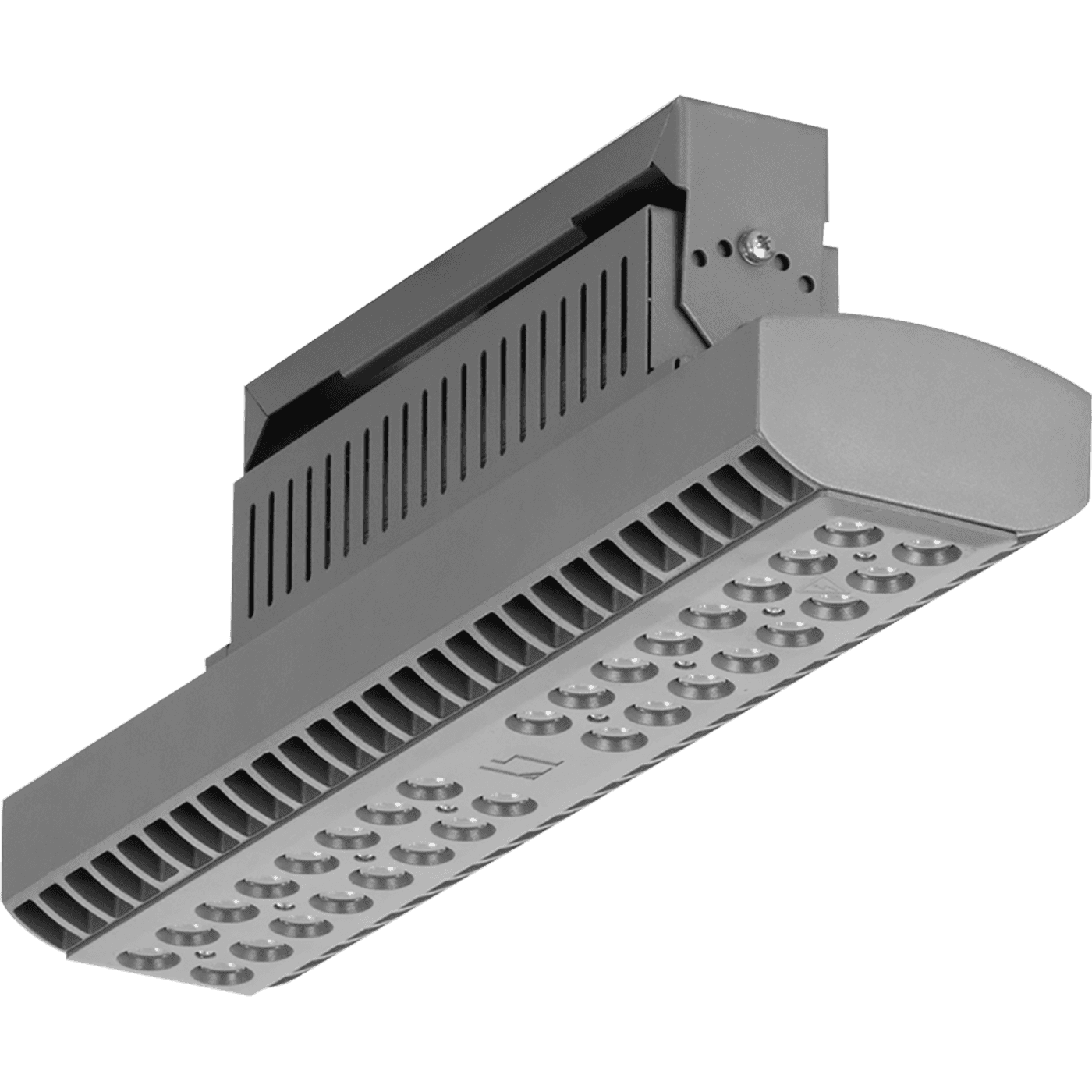

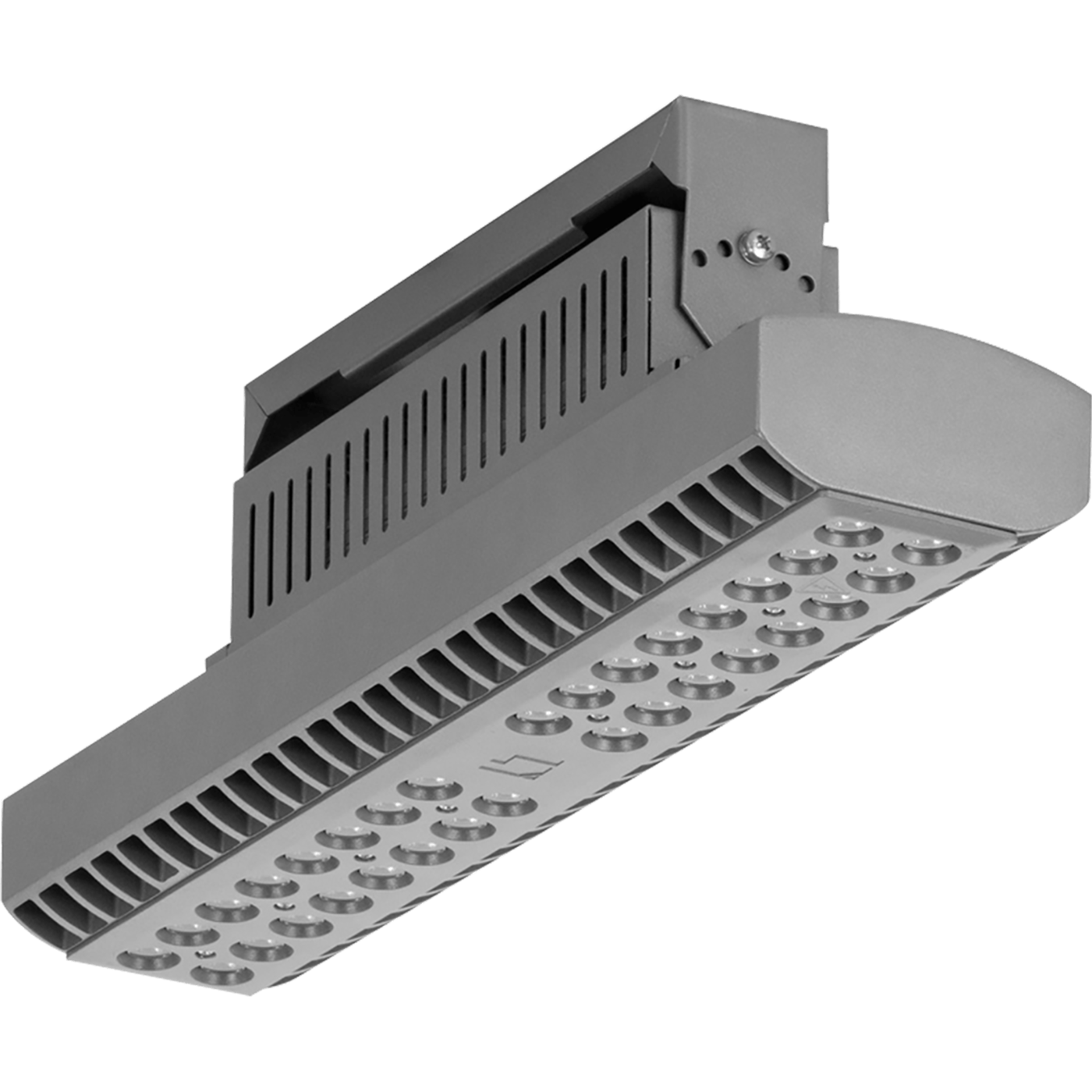

HB LED 100 D40 5000K
model is discontinued
model is discontinued
HB LED 100 D40 5000K
100 Wluminaire power
12800 lmlight flow
128 lm/Wenergy efficiency
code1224002480
color temperature5000 K
beam angleD40
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
128 lm/Wcolor rendition index (CRI)
>80light flow
12800 lmflickering factor
<2%beam angle
D40color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
128 lm/W
color rendition index (CRI)
>80
light flow
12800 lm
flickering factor
<2%
beam angle
D40
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
500 µs
power factor
> 0,96
luminaire power
100 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
50 A

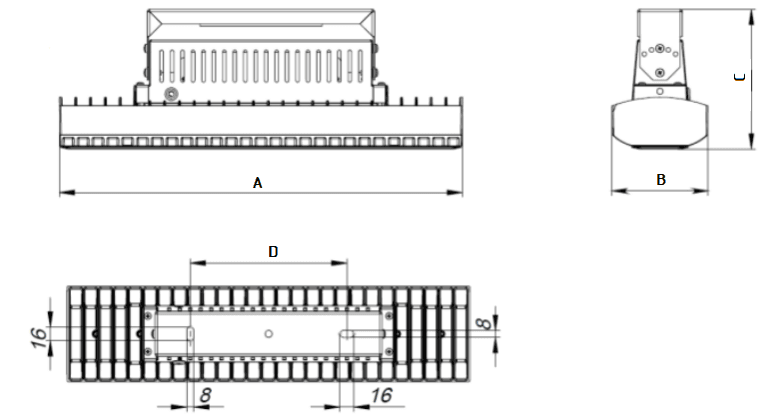

constructional
length
463 mm
width
110 mm
height
155 mm
installation length
180 mm
weight
4 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK07/2 Дж
climatic performance
УХЛ1
fire safety class
П-I,II,ІІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
temperature range
от -40 до +55 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A+
code
1224002480
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax636 kB
photometric files
csv
documents
passport901.5 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
