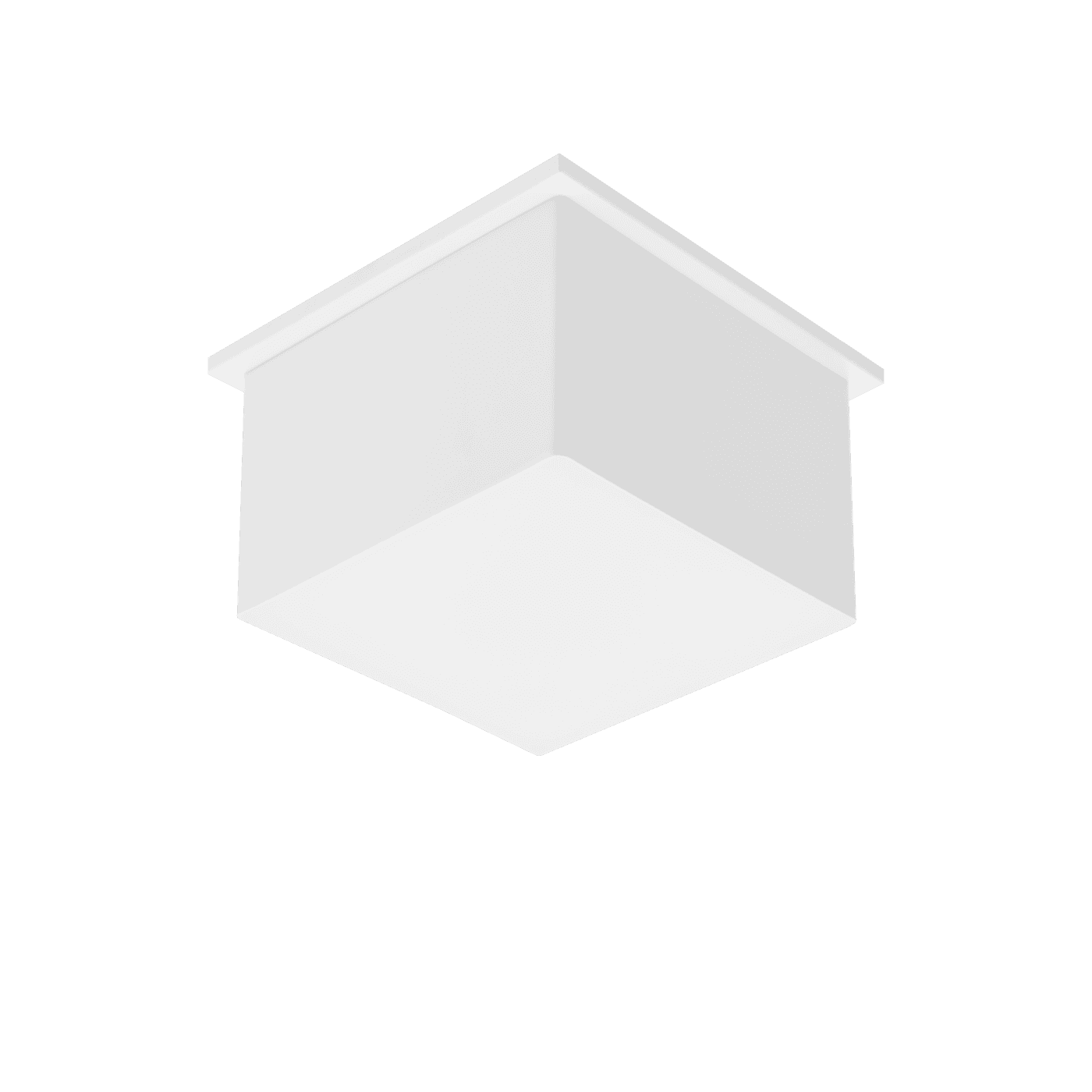

GRILDOT FLD (100x100) 40W 6M 840 WH (89x89x40)
GRILDOT FLD (100x100) 40W 6M 840 WH (89x89x40)
38 Wluminaire power
3800 lmlight flow
100 lm/Wenergy efficiency
code1749000530
color temperature4000
beam angleD120
old nameGRILDOT FLD (100x100) 40W 6M 840 WH
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
60 Astarting current pulse time, µs
400 mksrated supply voltage, alternating current
230 Vsupply voltage, alternating current
198-264 Vluminaire power
38 Welectric shock protection
IIpower factor
> 0,95supply voltage
230 Velectrical
starting current
60 A
starting current pulse time, µs
400 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
198-264 V
luminaire power
38 W
electric shock protection
II
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
0.75
ingress protection (IP)
IP40/IP20
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Сталь
weight
2.5 kg
length, mm
99 mm
width, mm
99 mm
height, mm
65 mm
housing color
Белый
installation length, mm
89 mm
installation width, mm
89 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1749000530
illuminating
color rendition index (CRI)
>80
light flow
3800 lm
flickering factor
<5%
energy efficiency
100 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
