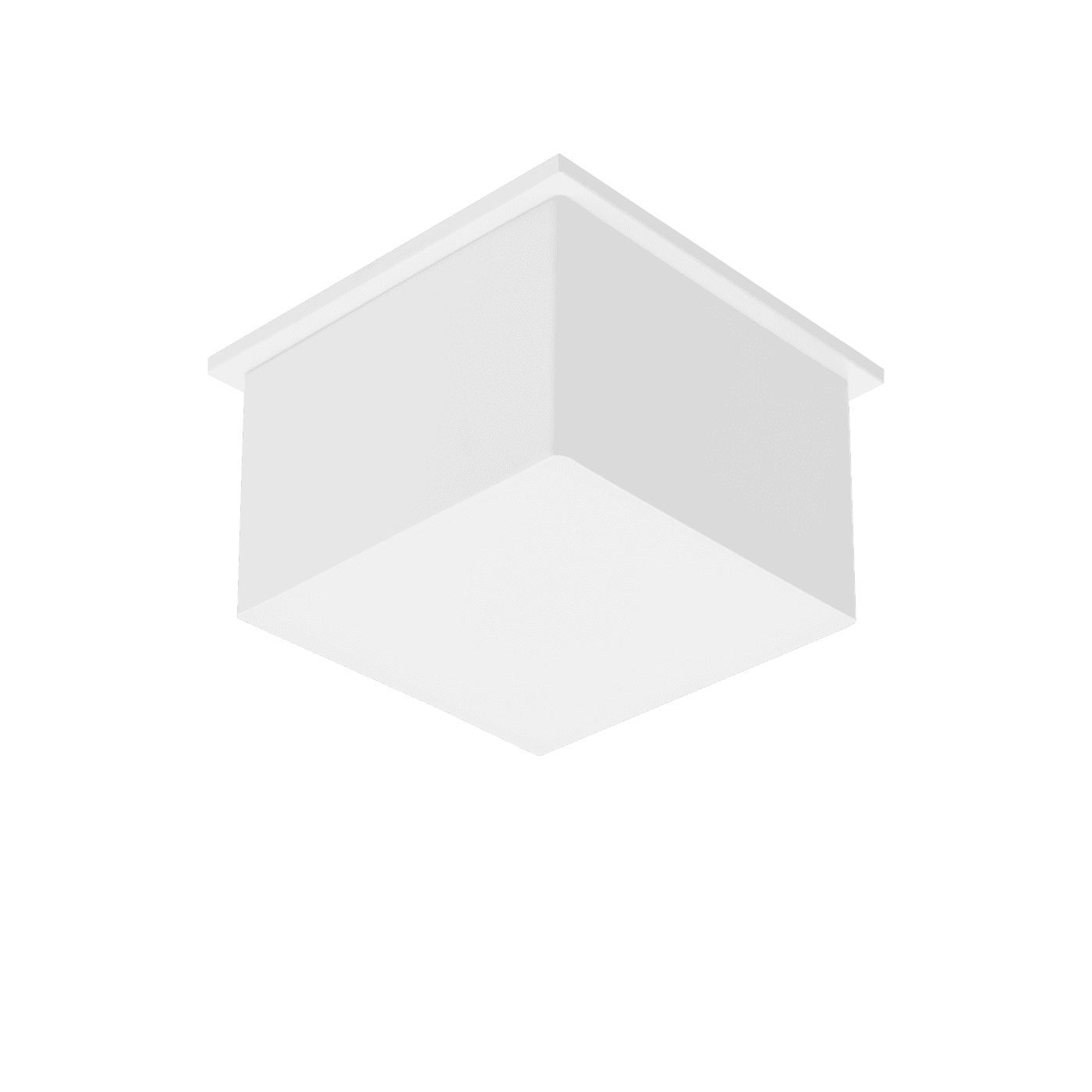

GRILDOT FLD (100x100) 20W 3M 840 WH (89x89x40)
_20w_3m_840_wh_(89x89x40).jpg&w=1920&q=50)
_20w_3m_840_wh_(89x89x40).jpg&w=1024&q=50)
GRILDOT FLD (100x100) 20W 3M 840 WH (89x89x40)
20 Wluminaire power
2100 lmlight flow
105 lm/Wenergy efficiency
code1749000330
color temperature4000
beam angleD120
old nameGRILDOT FLD (100x100) 20W 3M 840 WH
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
43 Astarting current pulse time, µs
2.28 mksrated supply voltage, alternating current
230 Vsupply voltage, alternating current
198-264 Vluminaire power
20 Welectric shock protection
IIpower factor
> 0,90supply voltage
230 Velectrical
starting current
43 A
starting current pulse time, µs
2.28 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
198-264 V
luminaire power
20 W
electric shock protection
II
power factor
> 0,90
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
0.75
ingress protection (IP)
IP40/IP20
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Сталь
weight
0.75 kg
length, mm
99 mm
width, mm
99 mm
height, mm
65 mm
housing color
Белый
installation length, mm
89 mm
installation width, mm
89 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1749000330
illuminating
color rendition index (CRI)
>80
light flow
2100 lm
flickering factor
<5%
energy efficiency
105 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
photometric files
documents
сертификаты
photometric files
ies107 kB
jpg78.3 kB
ldt72.2 kB
documents
passport600.3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
