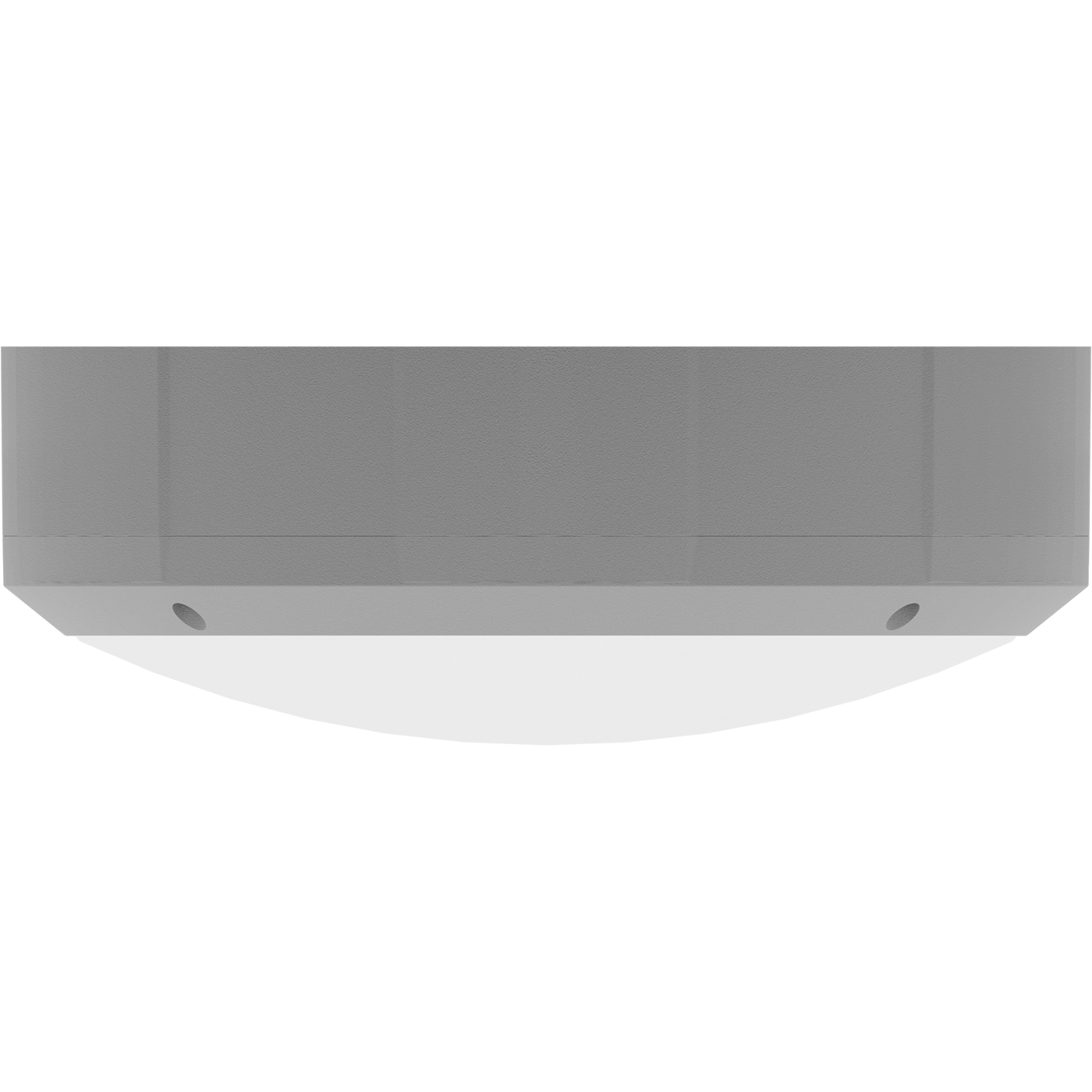

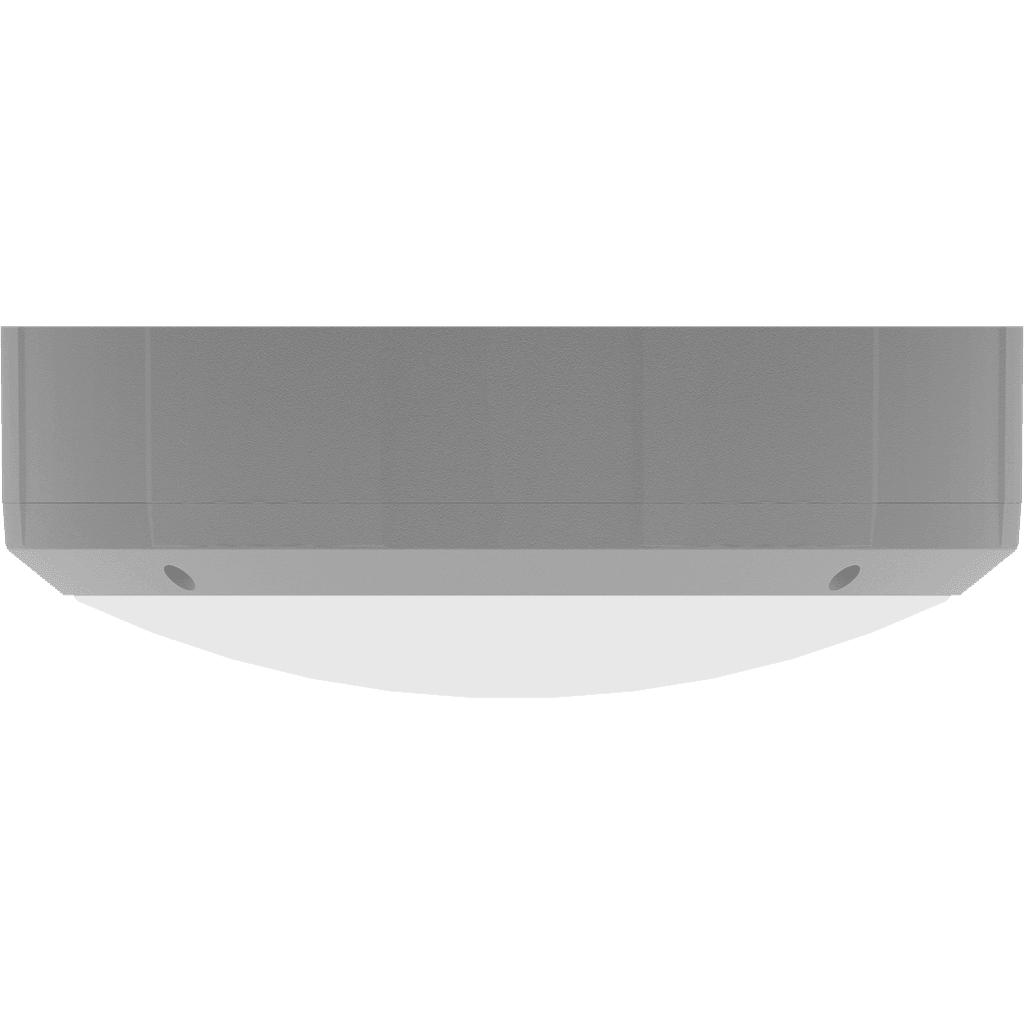

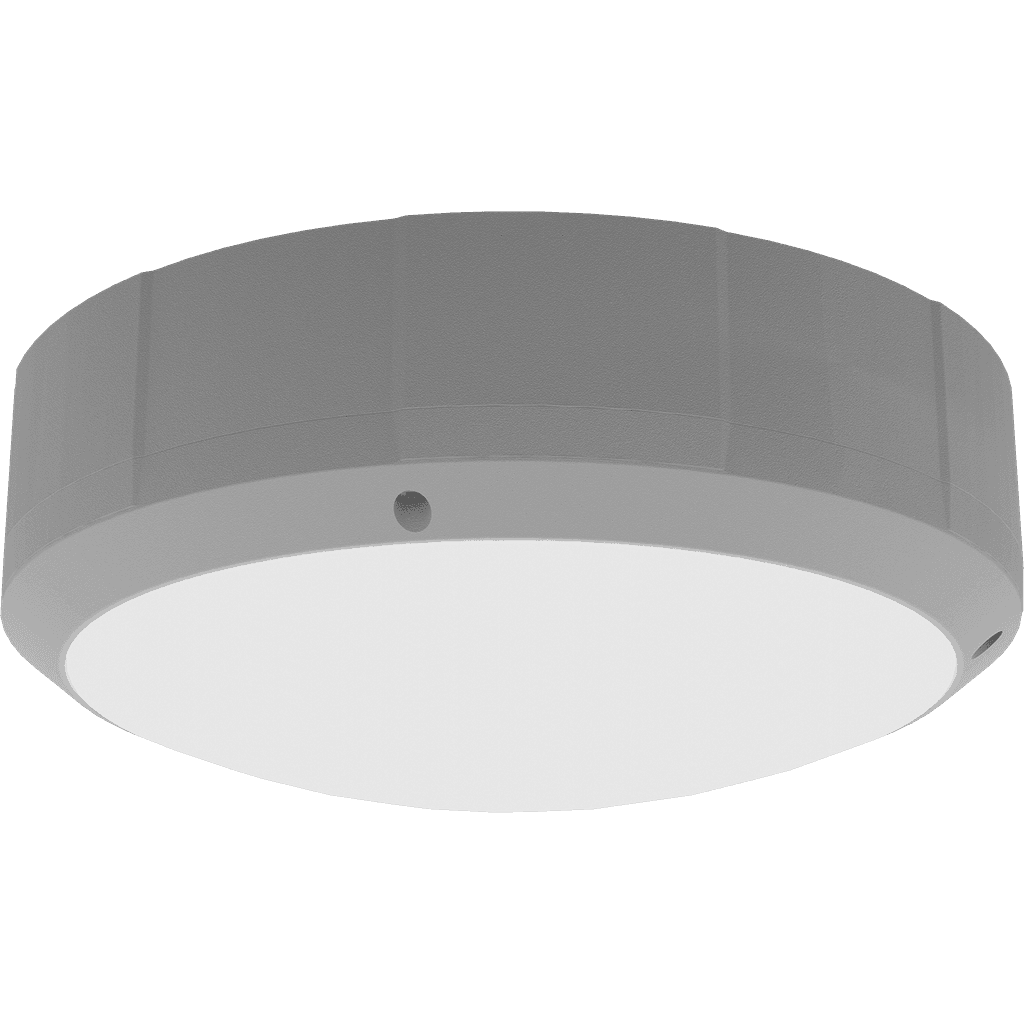

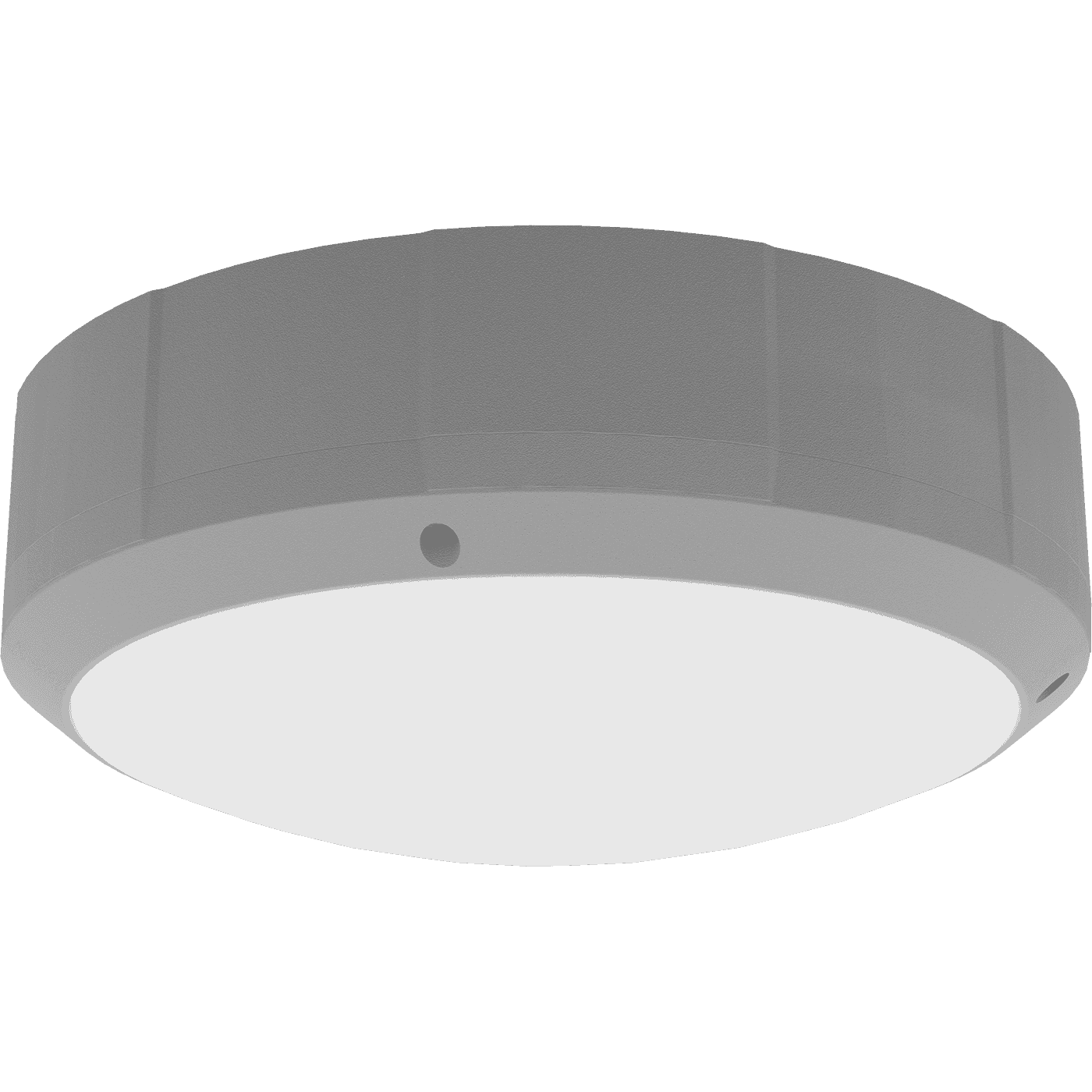

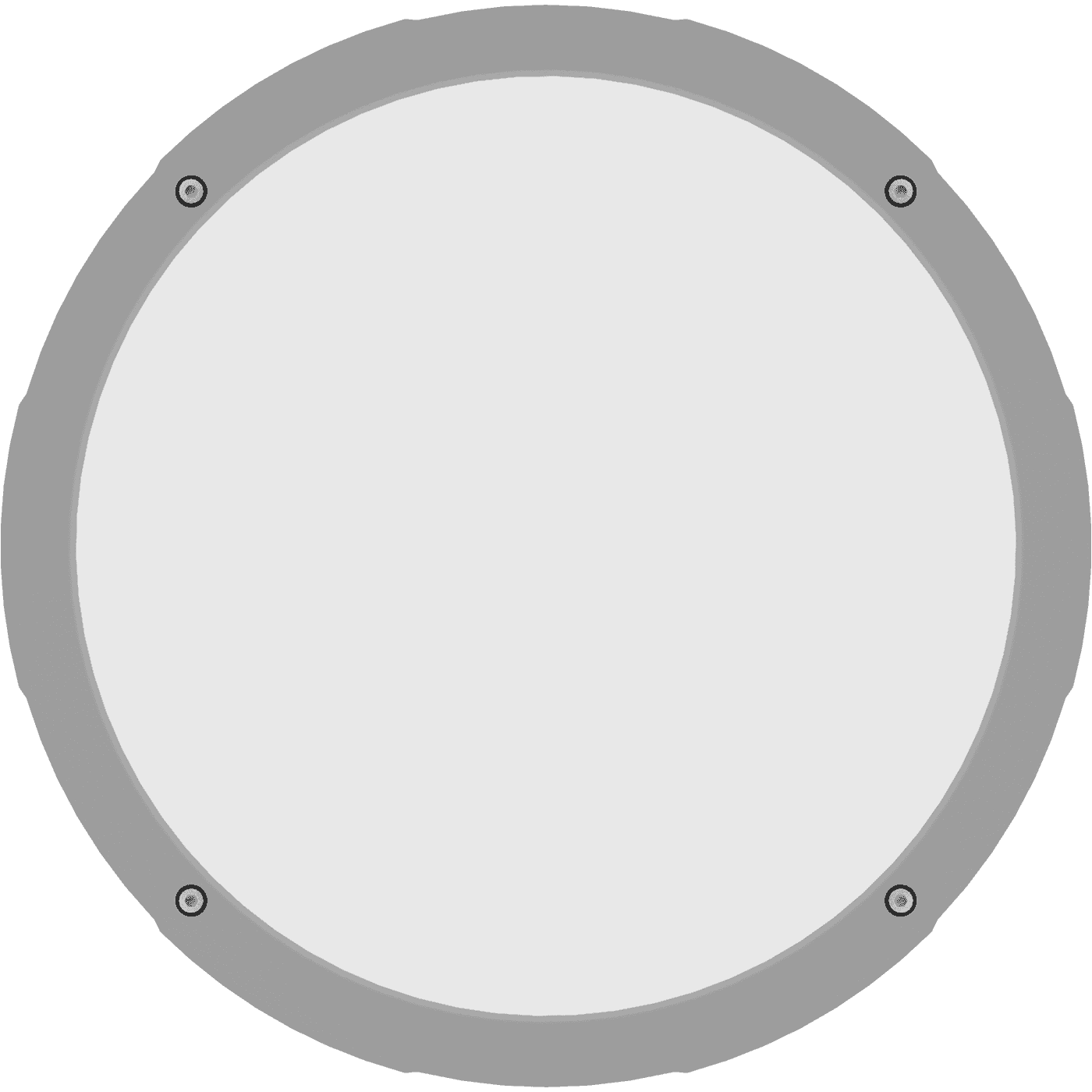

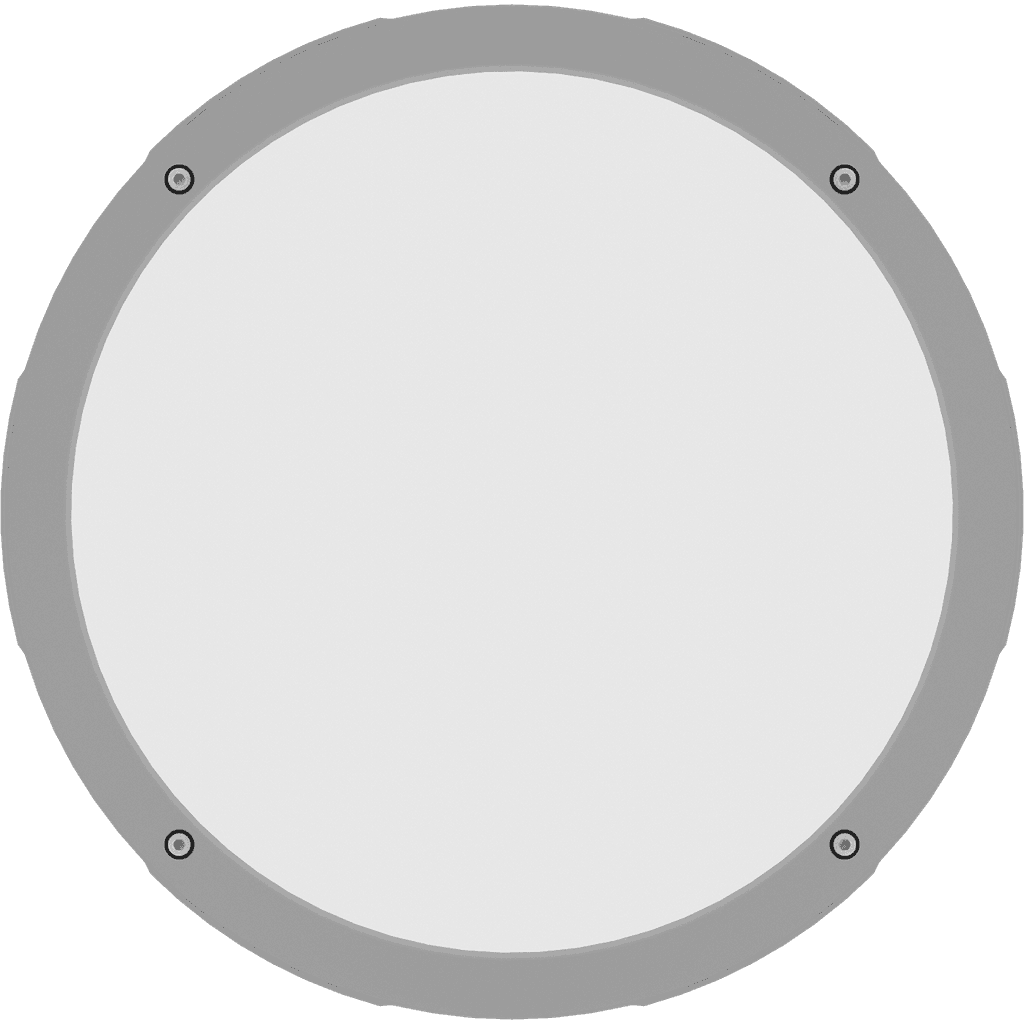

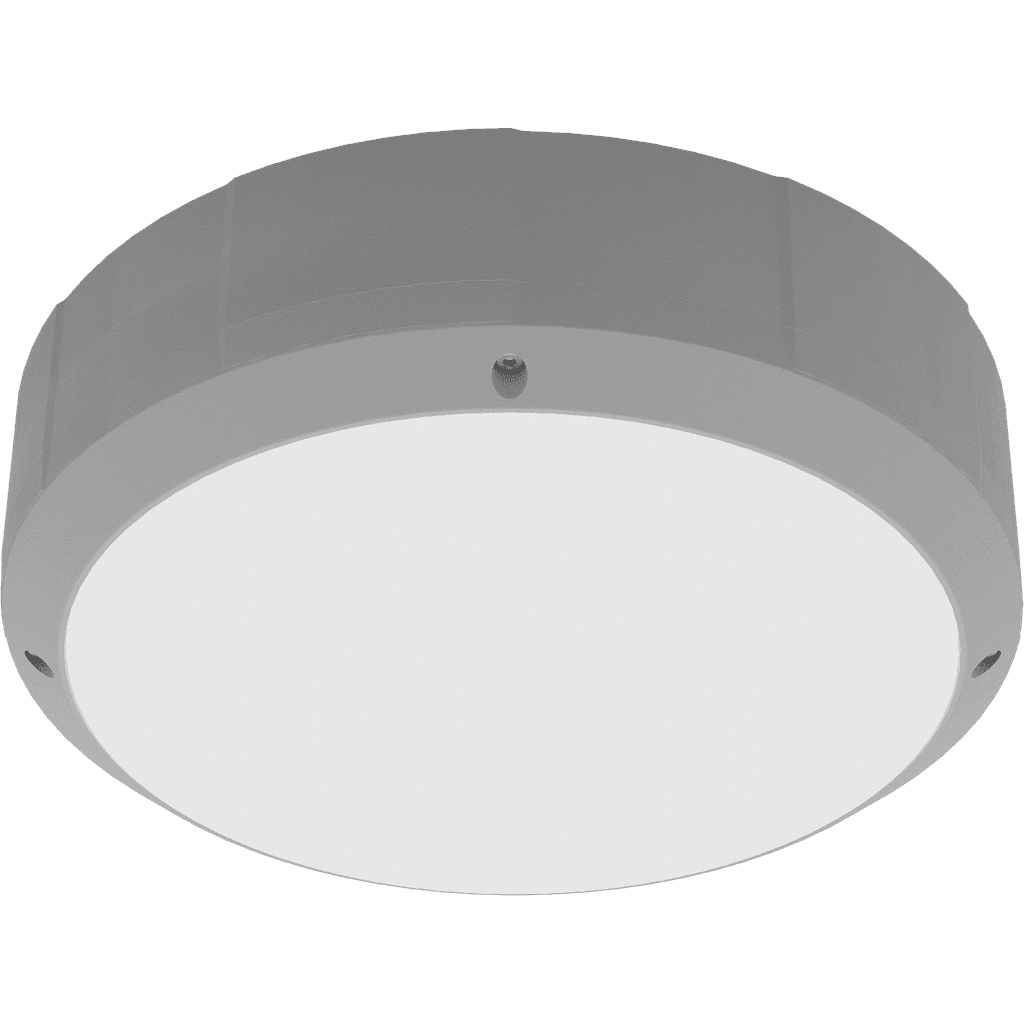

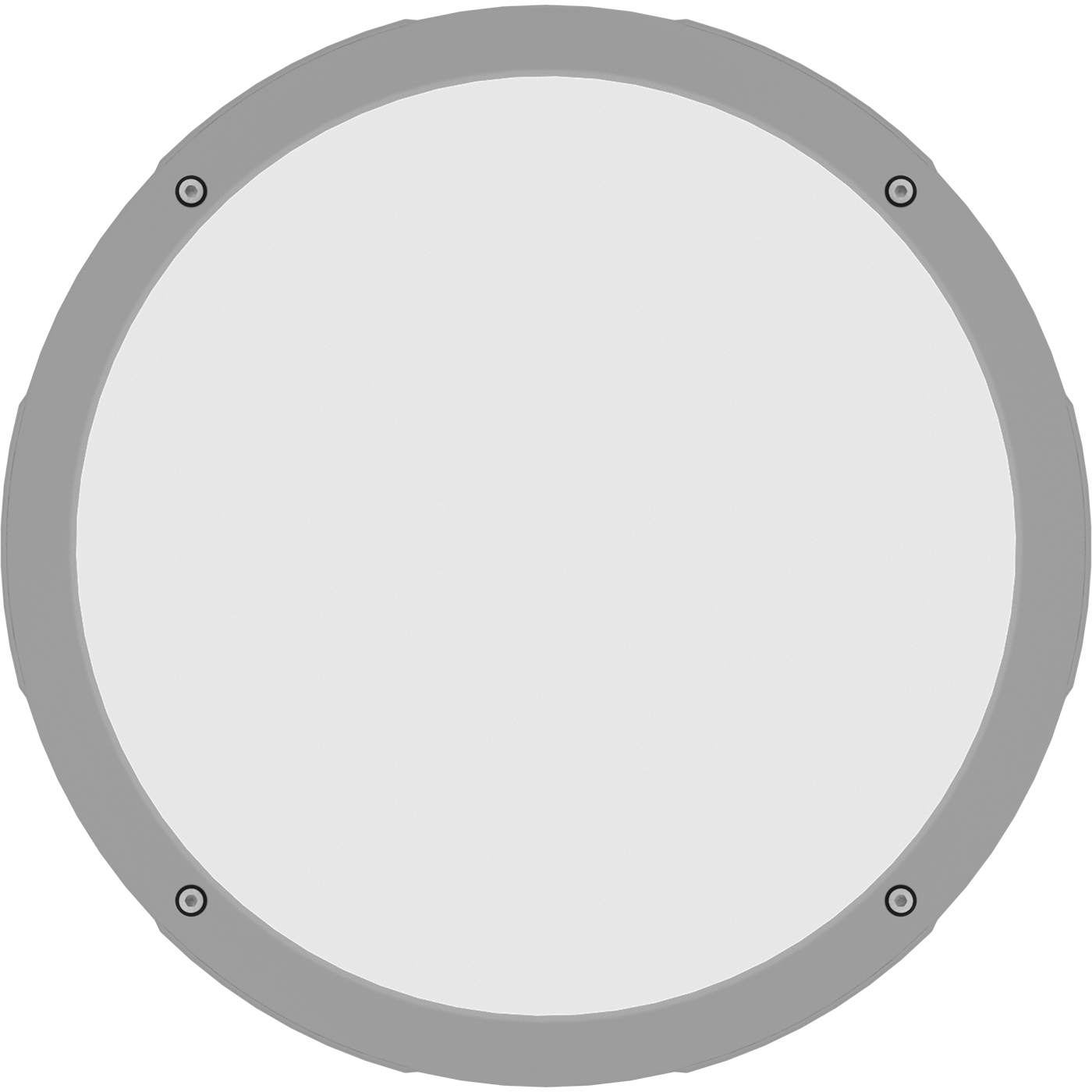

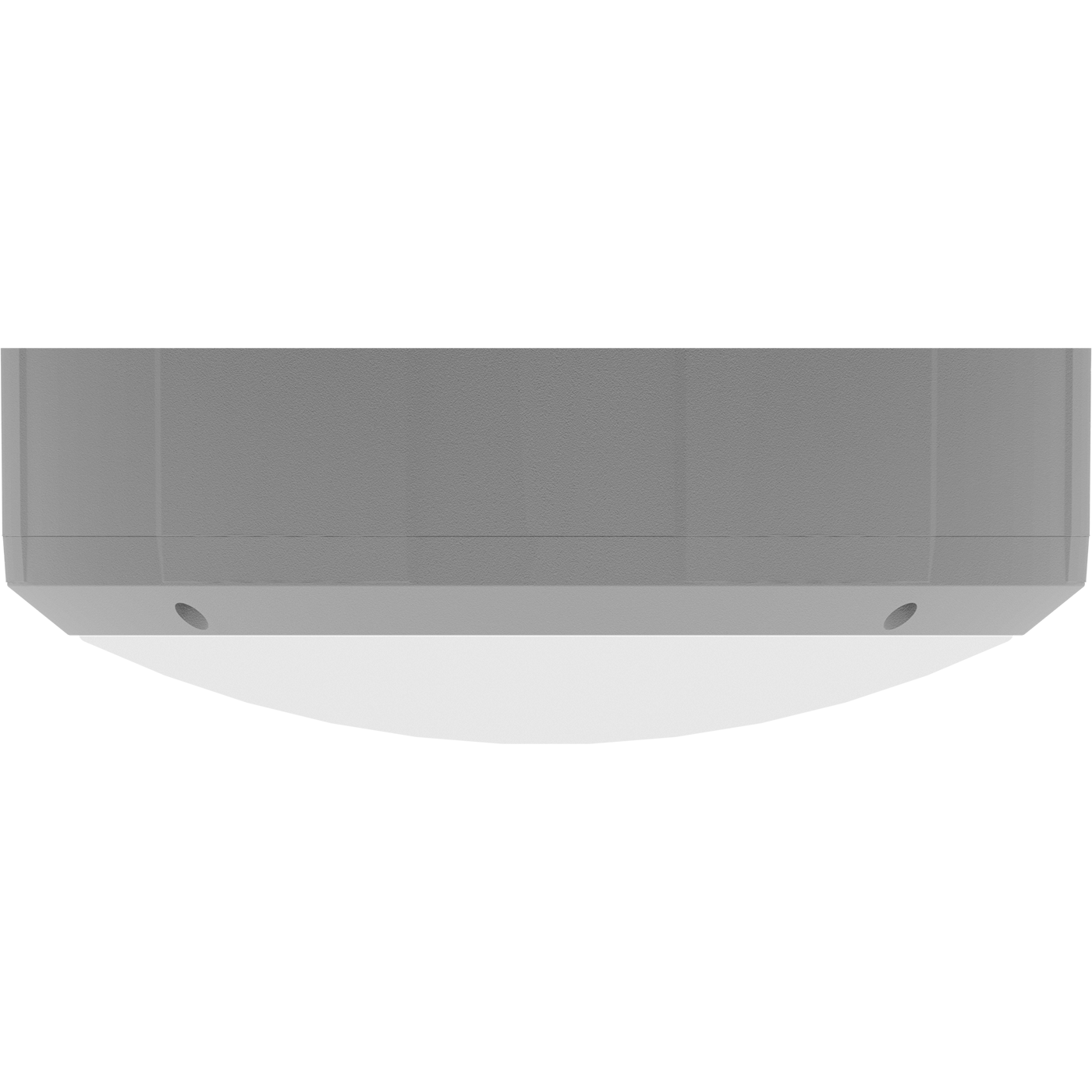

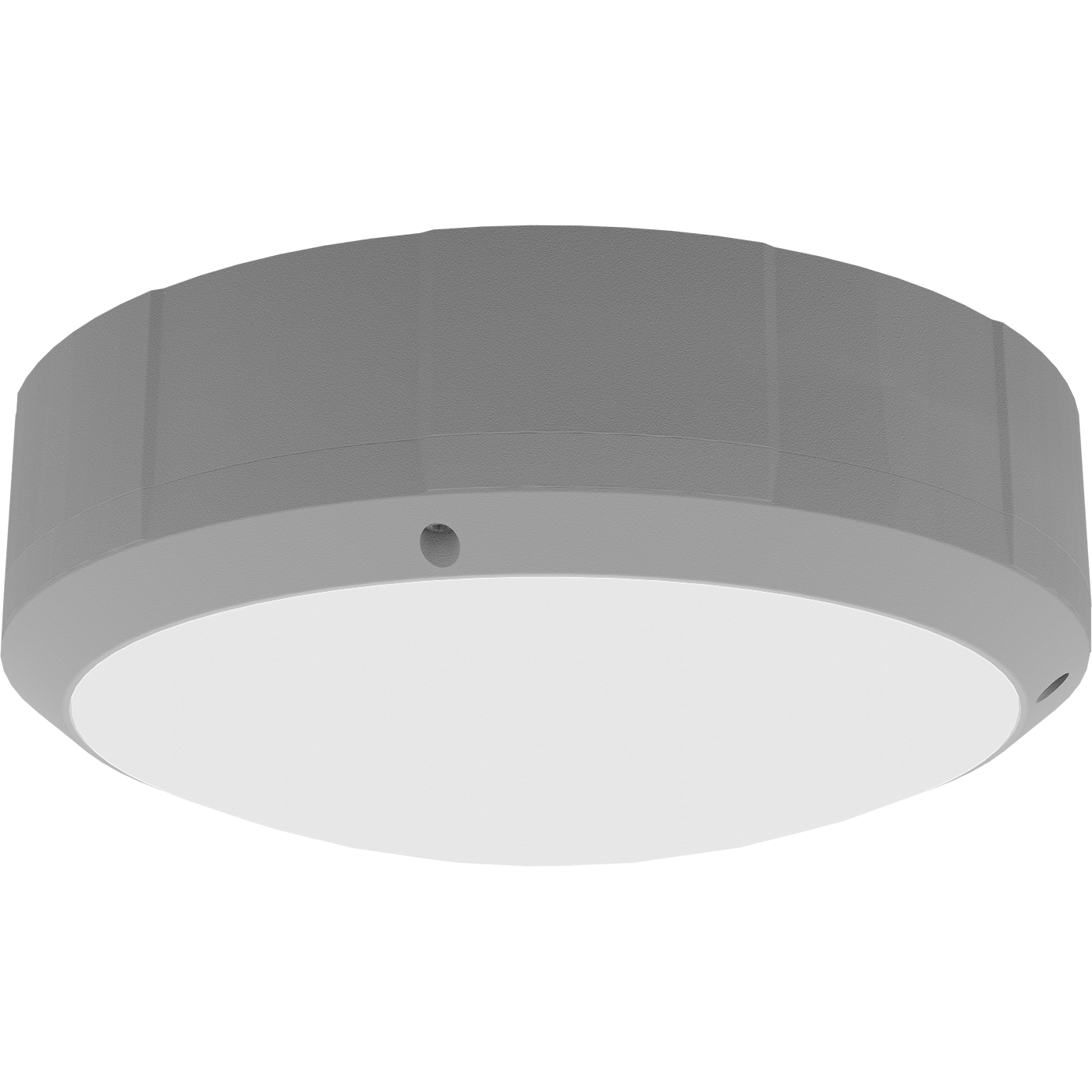

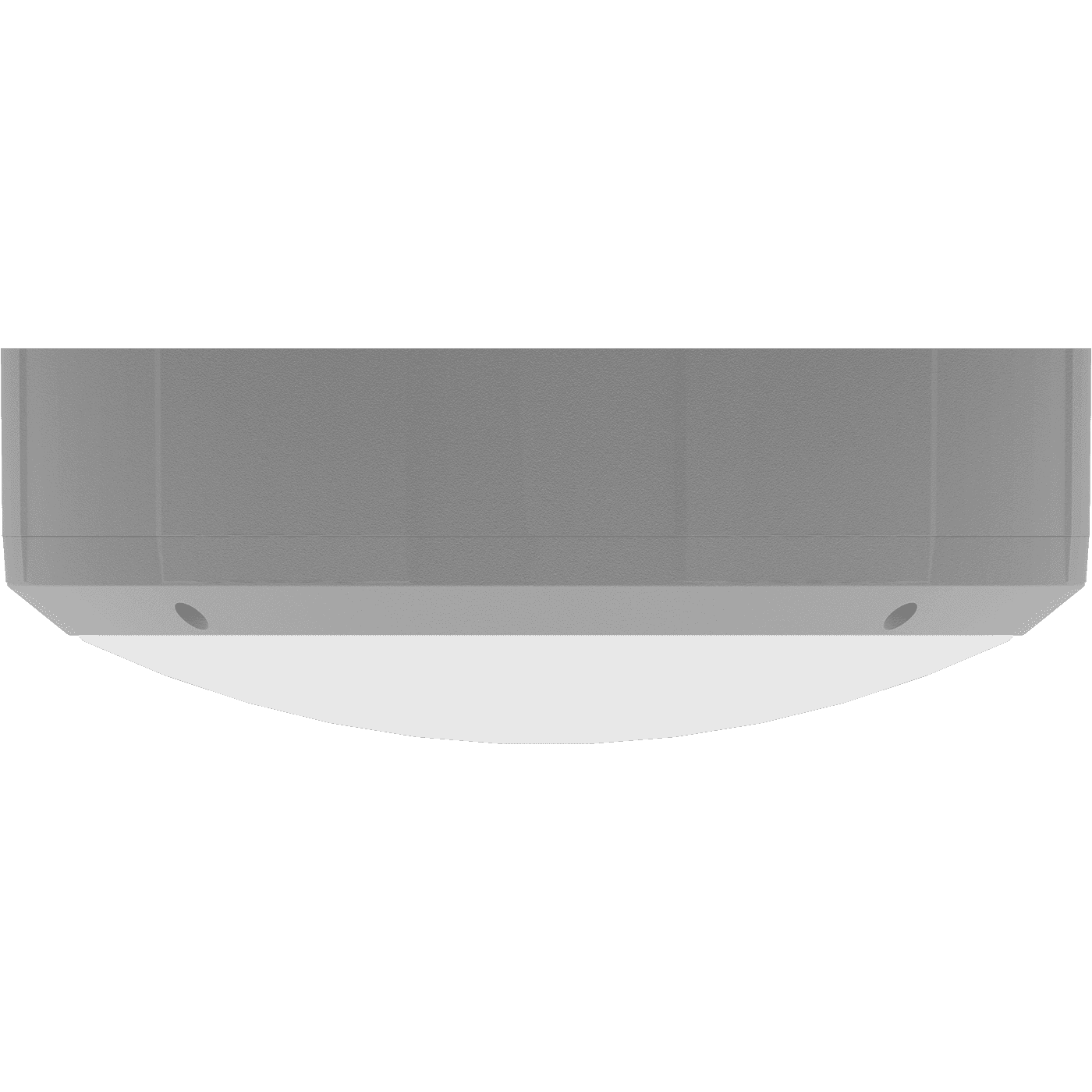

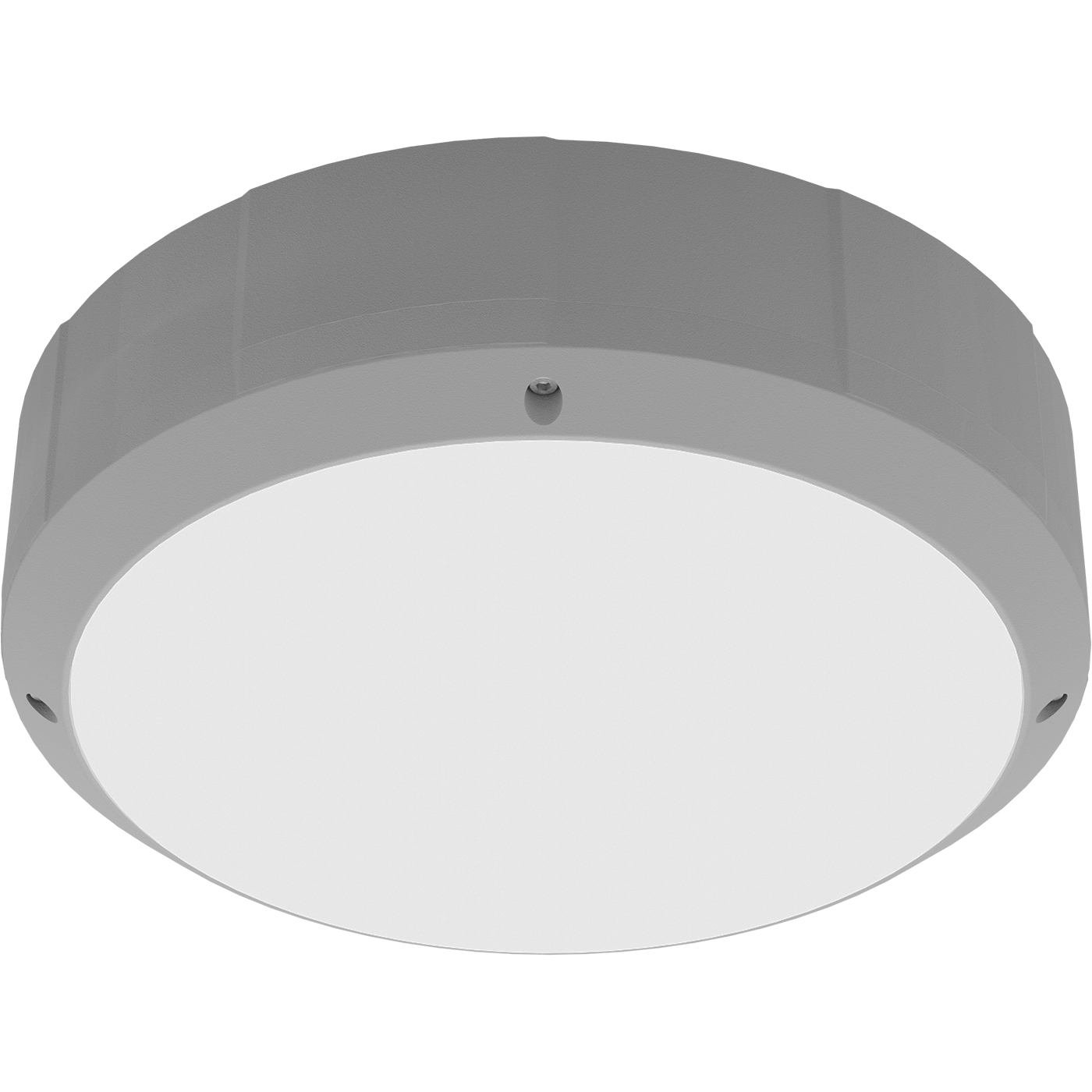

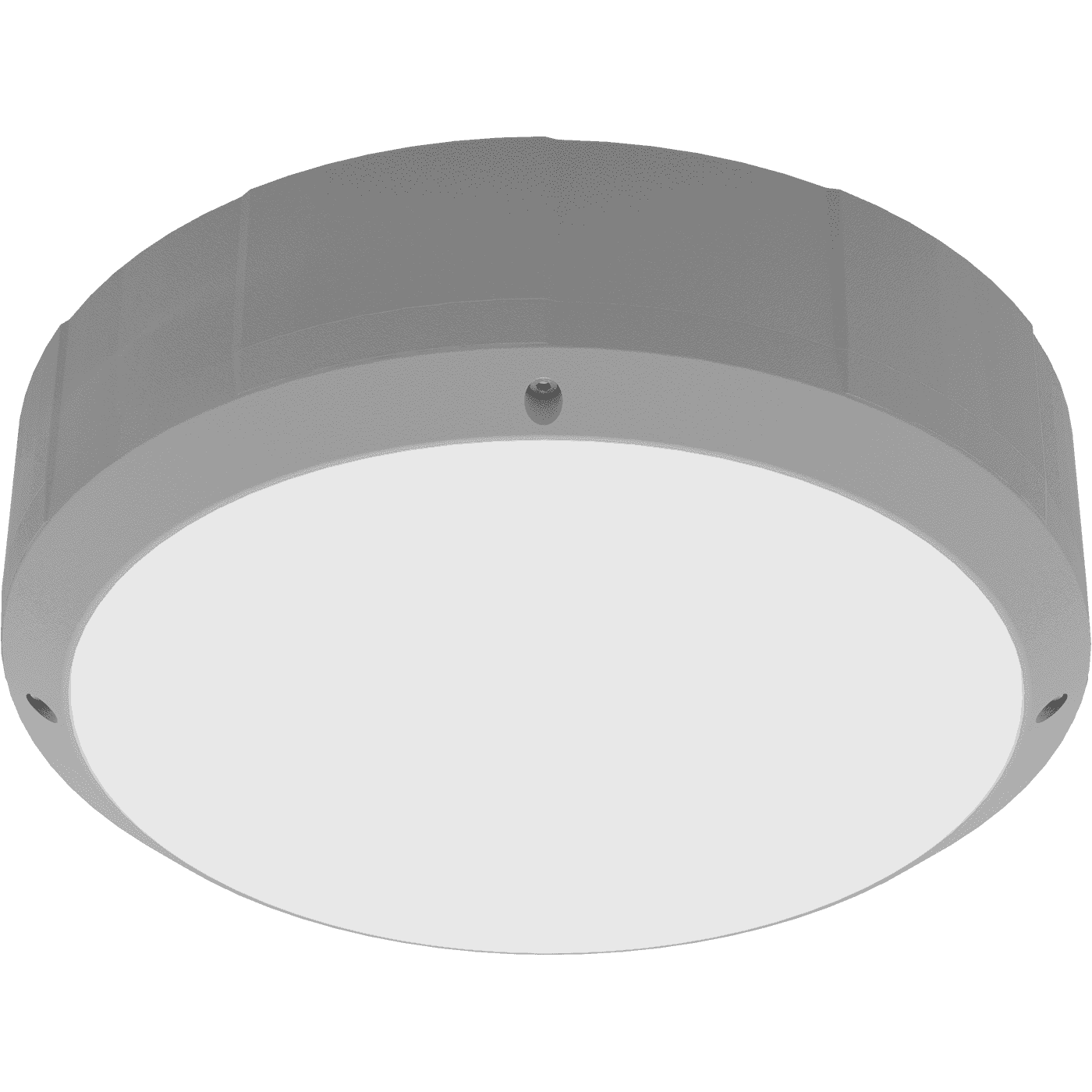

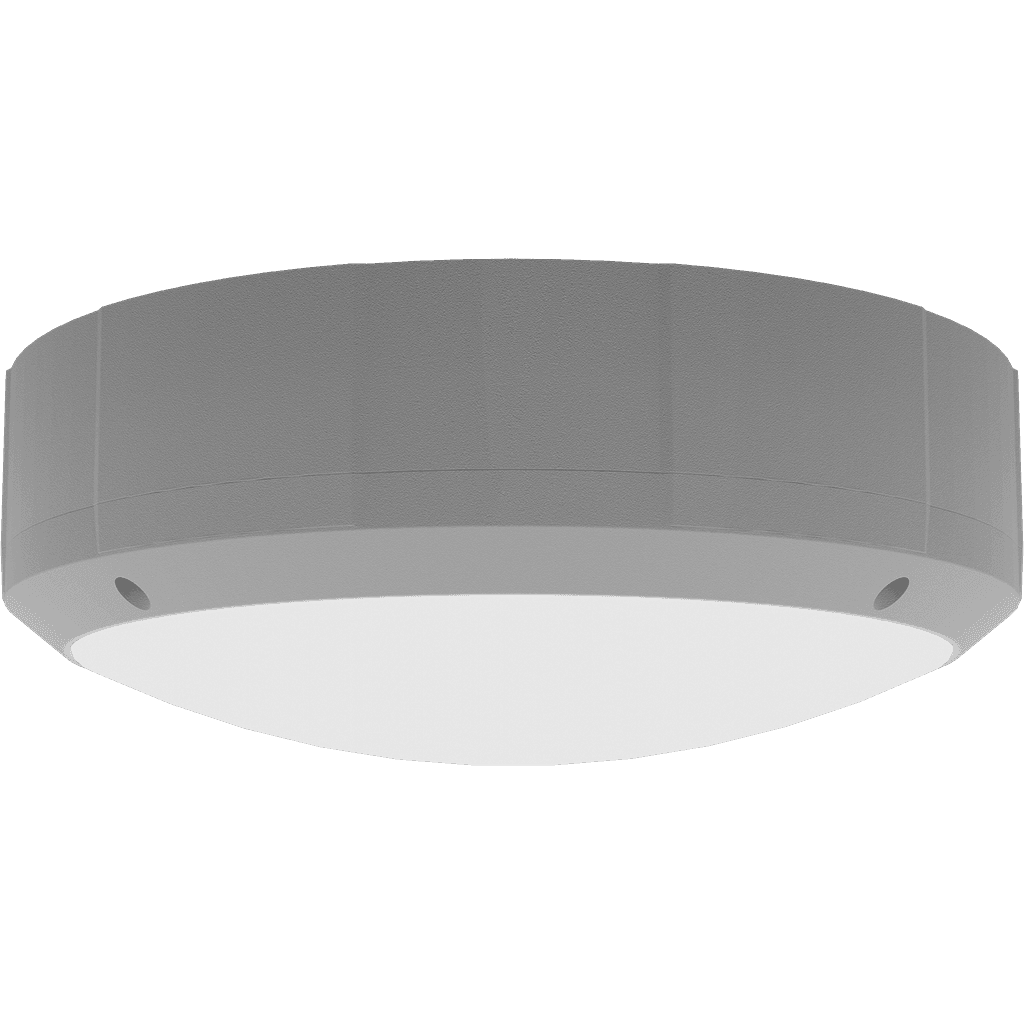

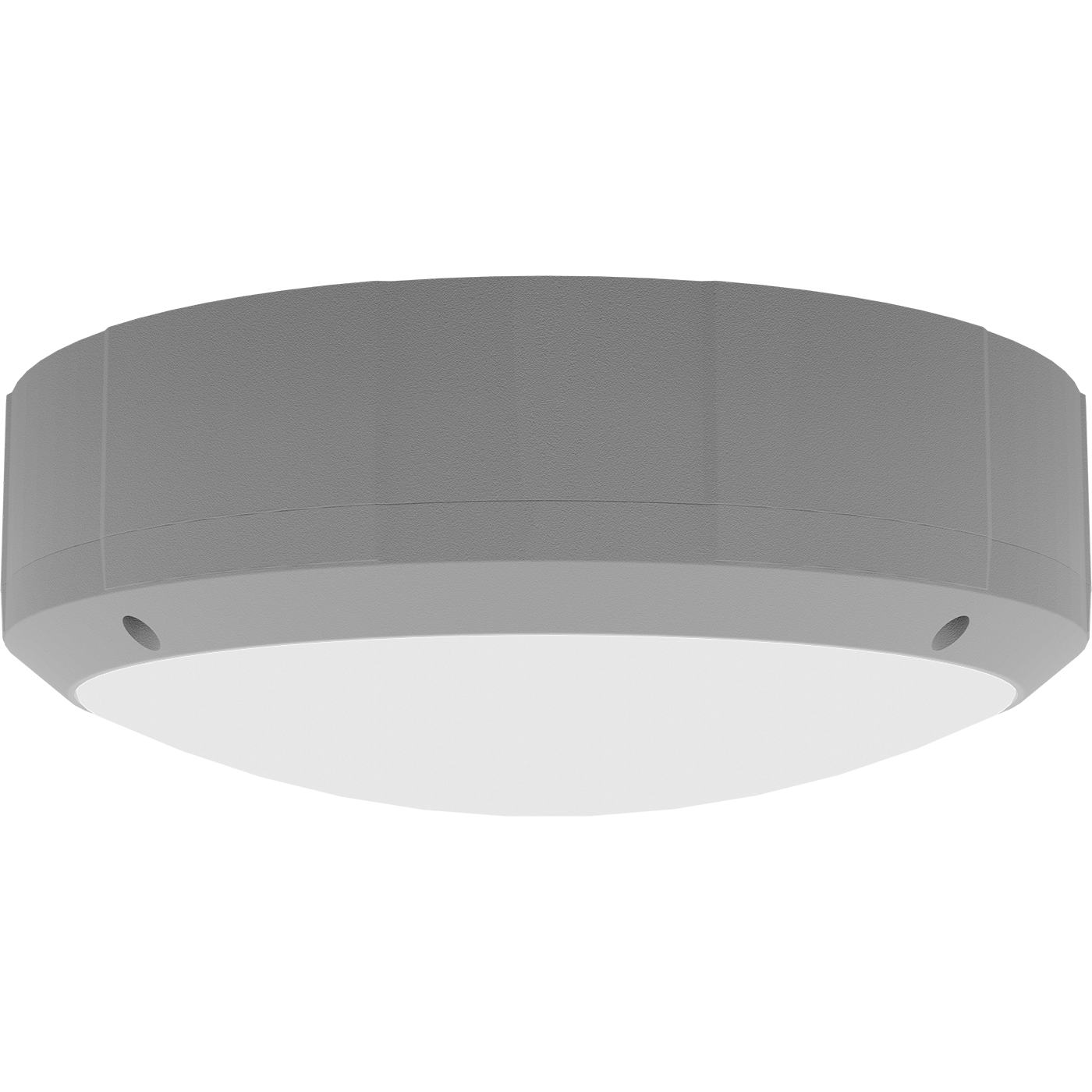

GRANDA LED 26W 840 SL EMT3
GRANDA LED 26W 840 SL EMT3
28 Wluminaire power
2500 lmlight flow
89 lm/Wenergy efficiency
code1441000090
beam angleD120
color temperature4000
weight3.1 kg
options
свернуть все
constructionalelectricalcommonilluminatingemergency
ingress protection (IP)
IP65housing color
Металликdiameter, mm
359 mmheight, mm
131 mmweight
3.1 kgclimatic performance
УХЛ4*maximum cross-section of the connected cable, sq. mm
2.5material
Алюминийshock resistance (IK)
IK10/20 Джinstallation length, mm
270 mmlamp socket
LEDnumber of lamps
1ballast
Драйверconstructional
ingress protection (IP)
IP65
housing color
Металлик
diameter, mm
359 mm
height, mm
131 mm
weight
3.1 kg
climatic performance
УХЛ4*
maximum cross-section of the connected cable, sq. mm
2.5
material
Алюминий
shock resistance (IK)
IK10/20 Дж
installation length, mm
270 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
electrical
electric shock protection
I
starting current
7 A
starting current pulse time, µs
50 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
198-264 V
supply voltage, direct current
176-280 V
luminaire power
28 W
power factor
> 0,90
supply voltage
230 V
common
code
1441000090
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от 0 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>80
light flow
2500 lm
energy efficiency
89 lm/W
flickering factor
<1%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
emergency
operating time in emergency mode, hours
3 h
luminous flux in emergency mode
350 lm
model files
model files
photometric files
documents
сертификаты

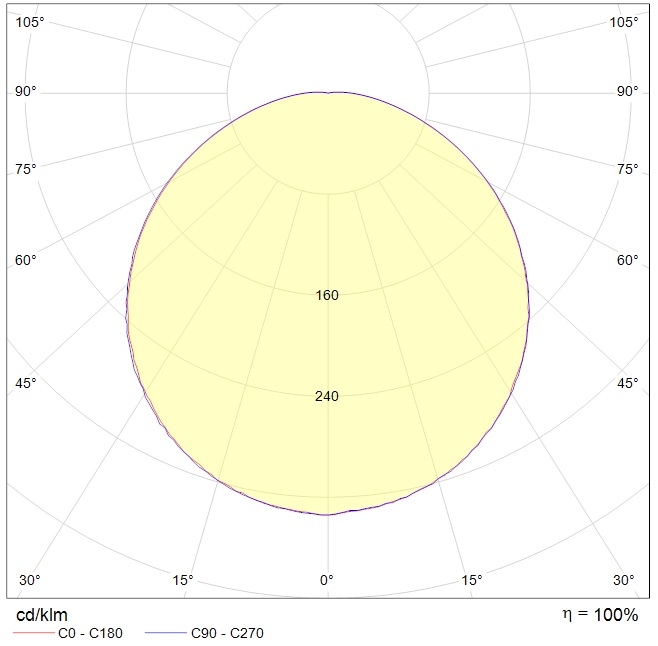

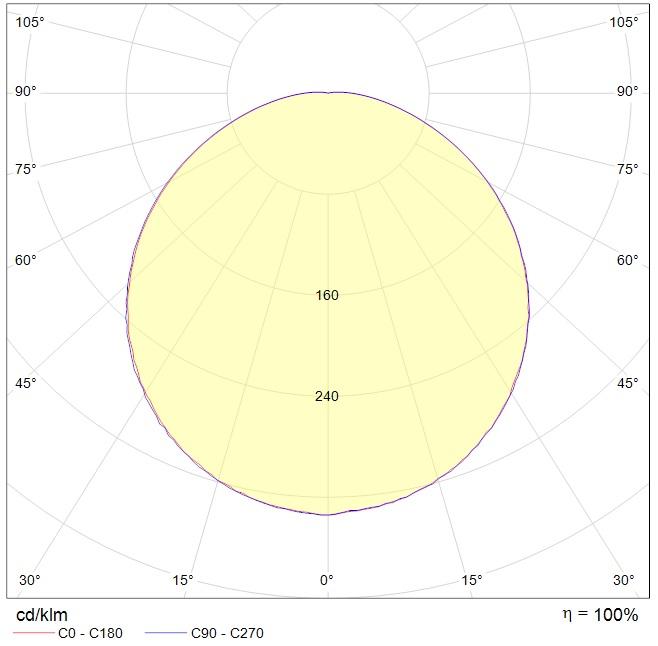

photometric files
ies263.2 kB
jpg60.1 kB
ldt198 kB
documents
passport2.2 mB
сертификаты
Russian origin626.7 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
