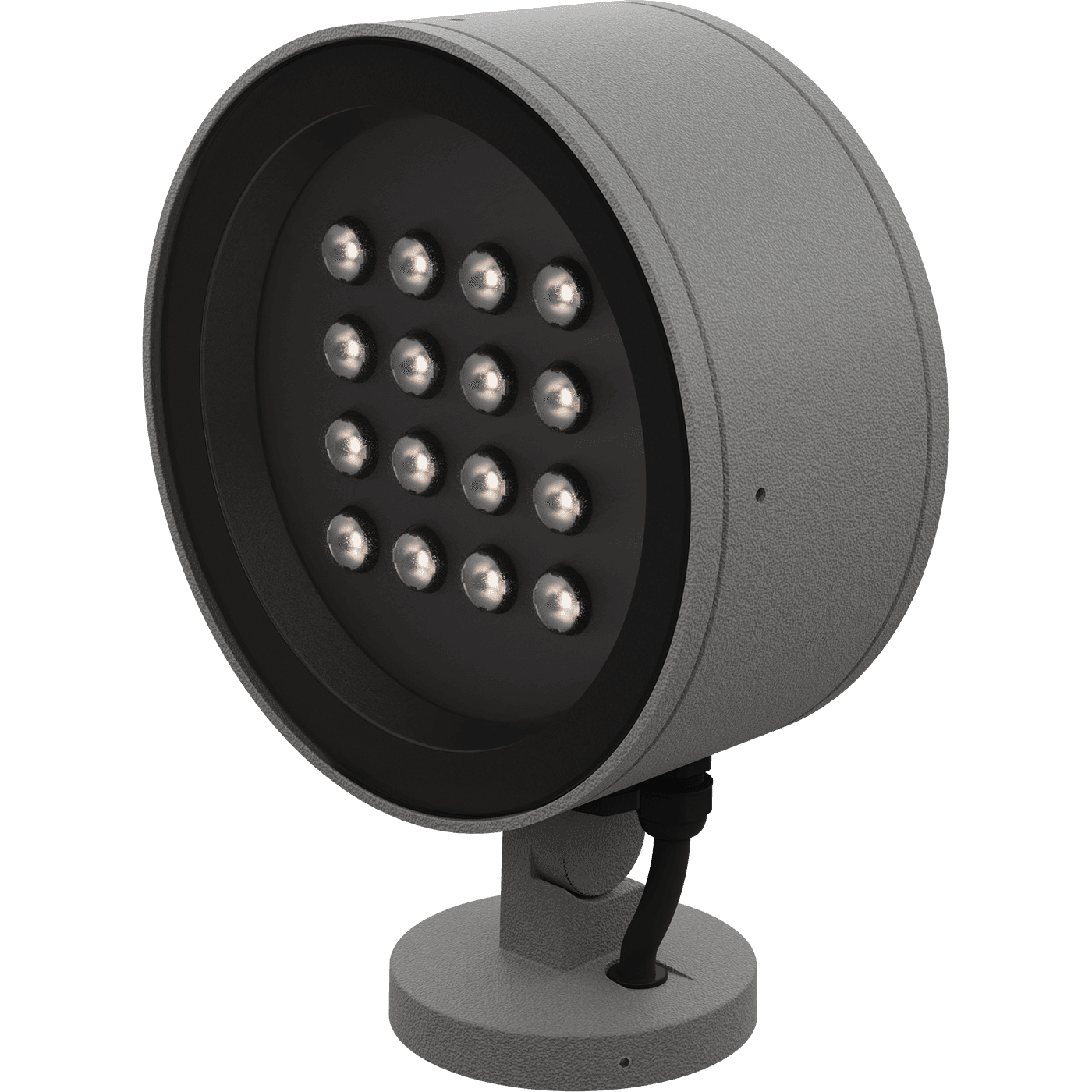

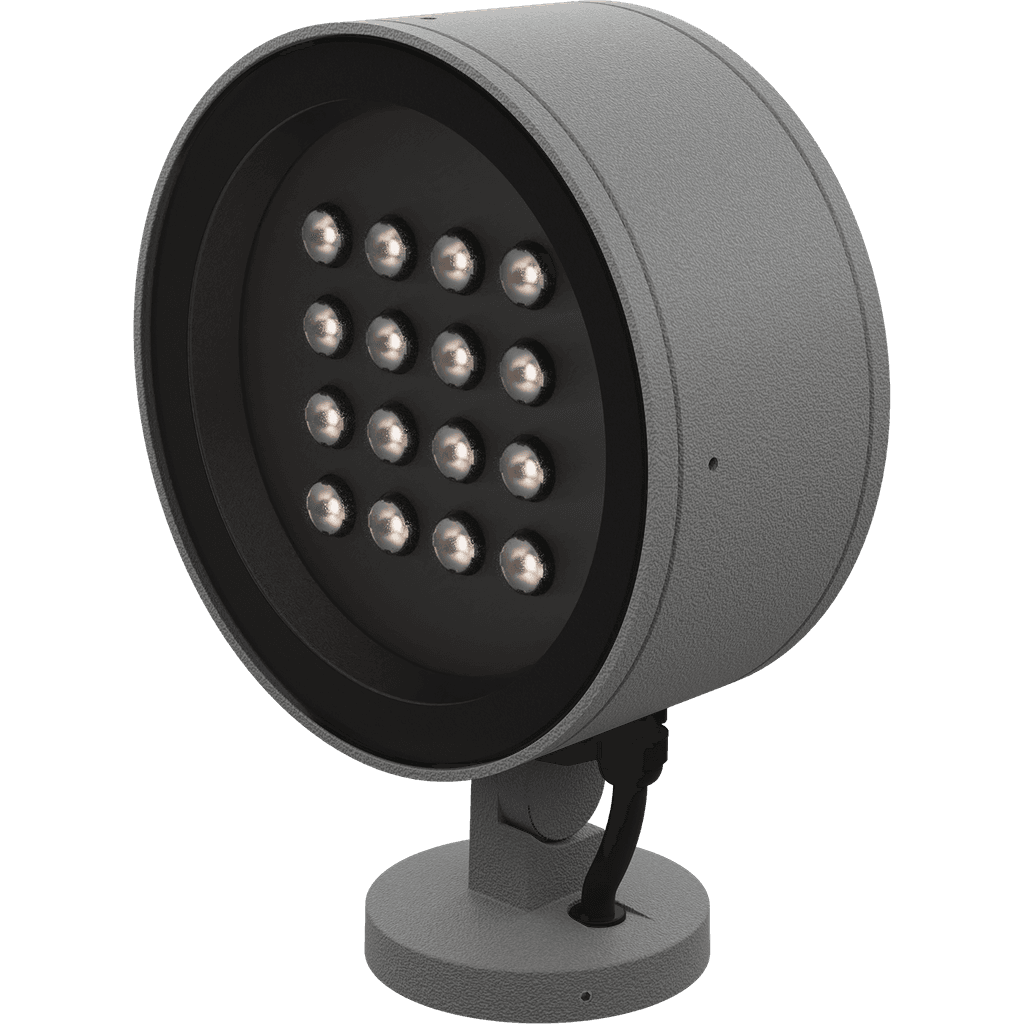

GLOSS LED 20W A15 827 SL

зарегистрирована в реестре российской промышленной продукции
GLOSS LED 20W A15 827 SL
add to favorites
19 Wluminaire power
1750 lmlight flow
92 lm/Wenergy efficiency
code
1101800570
number from the register of Russian industrial products
10521982
beam angle
A15
color temperature
2700 K
weight
3.1 kg
  1. main page
  2. catalog
  3. by product type
  4. outdoor lighting
  5. spotlights
  6. architectural
  7. GLOSS LED
  8. GLOSS LED 20W A15 827 SL
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
92 lm/W
color rendition index (CRI)
>80
light flow
1750 lm
flickering factor
<1%
beam angle
A15
color temperature
2700 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
92 lm/W
color rendition index (CRI)
>80
light flow
1750 lm
flickering factor
<1%
beam angle
A15
color temperature
2700 K
light source type
LED
emission color
Белый
electrical
luminaire power
19 W
electric shock protection
I
starting current pulse time
350 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
50 A
maximum cross-section of the connected cable
1 mm2
supply voltage, direct current
142-431 V
supply voltage, alternating current
90-305 V
power factor
> 0,75
constructional
fire safety class
П-ІІІ
length
273 mm
height
110 mm
installation diameter
50 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
width
200 mm
mounting type
material
Алюминий
climatic performance
УХЛ1*
ingress protection (IP)
IP66
shock resistance (IK)
IK08/6,5 Дж
weight
3.1 kg
emergency
emergency power supply
Нет
common
code
1101800570
warranty
36 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Прожектор / Светильник направленного света
package
Package contents
Светильник - 1 шт. Паспорт - 1 шт. Упаковка - 1 шт. Втулка (в версиях светильников RGB, TW,HFD,DALI DT8 отсутствует). - 1 шт.
model files
model files

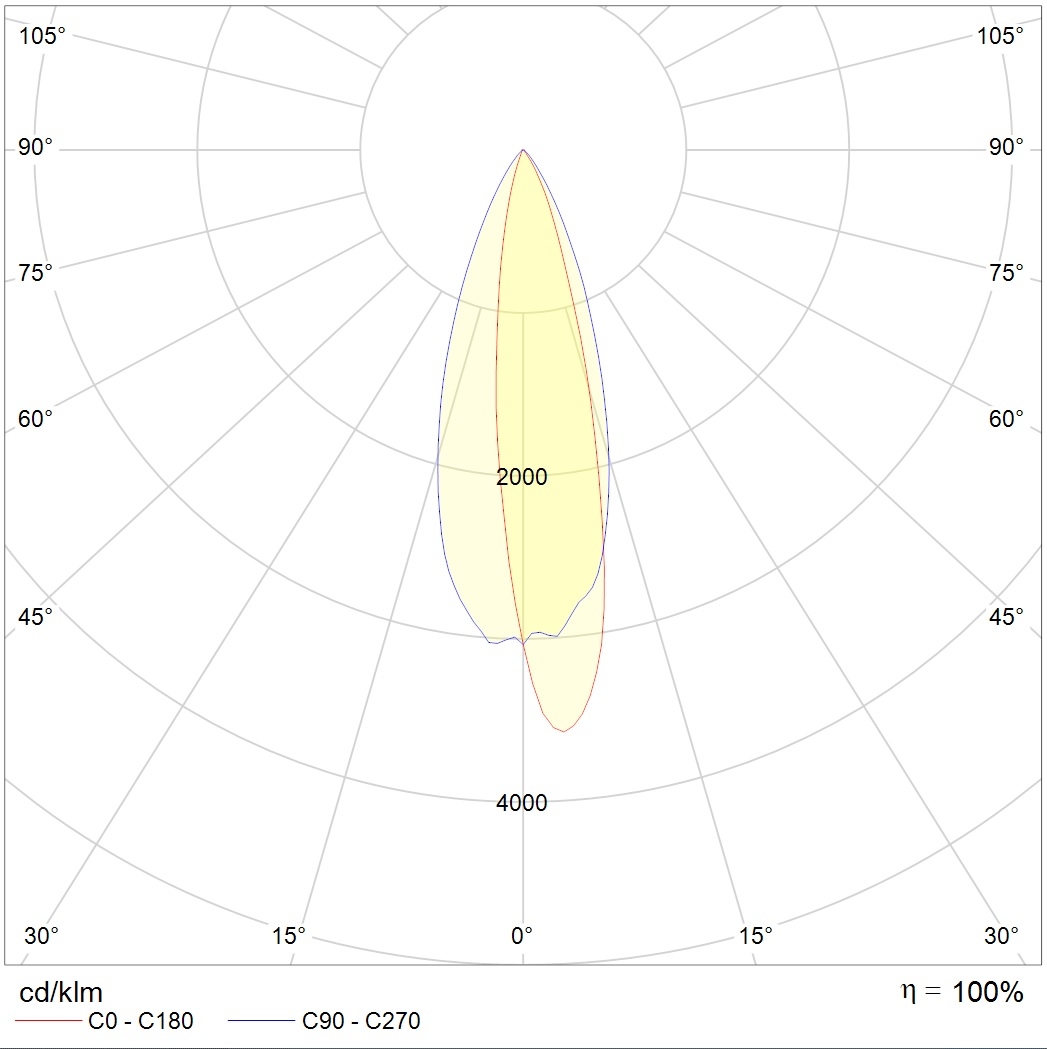

photometric files
