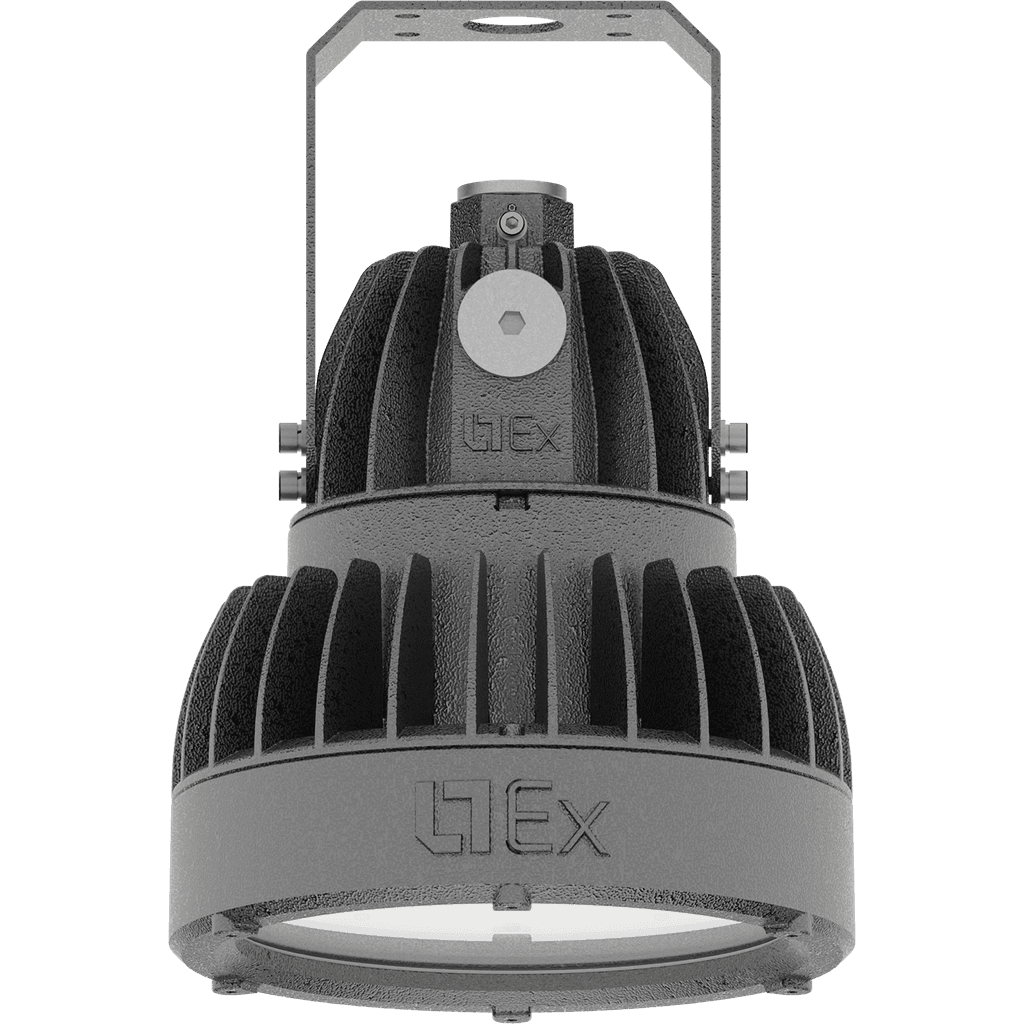

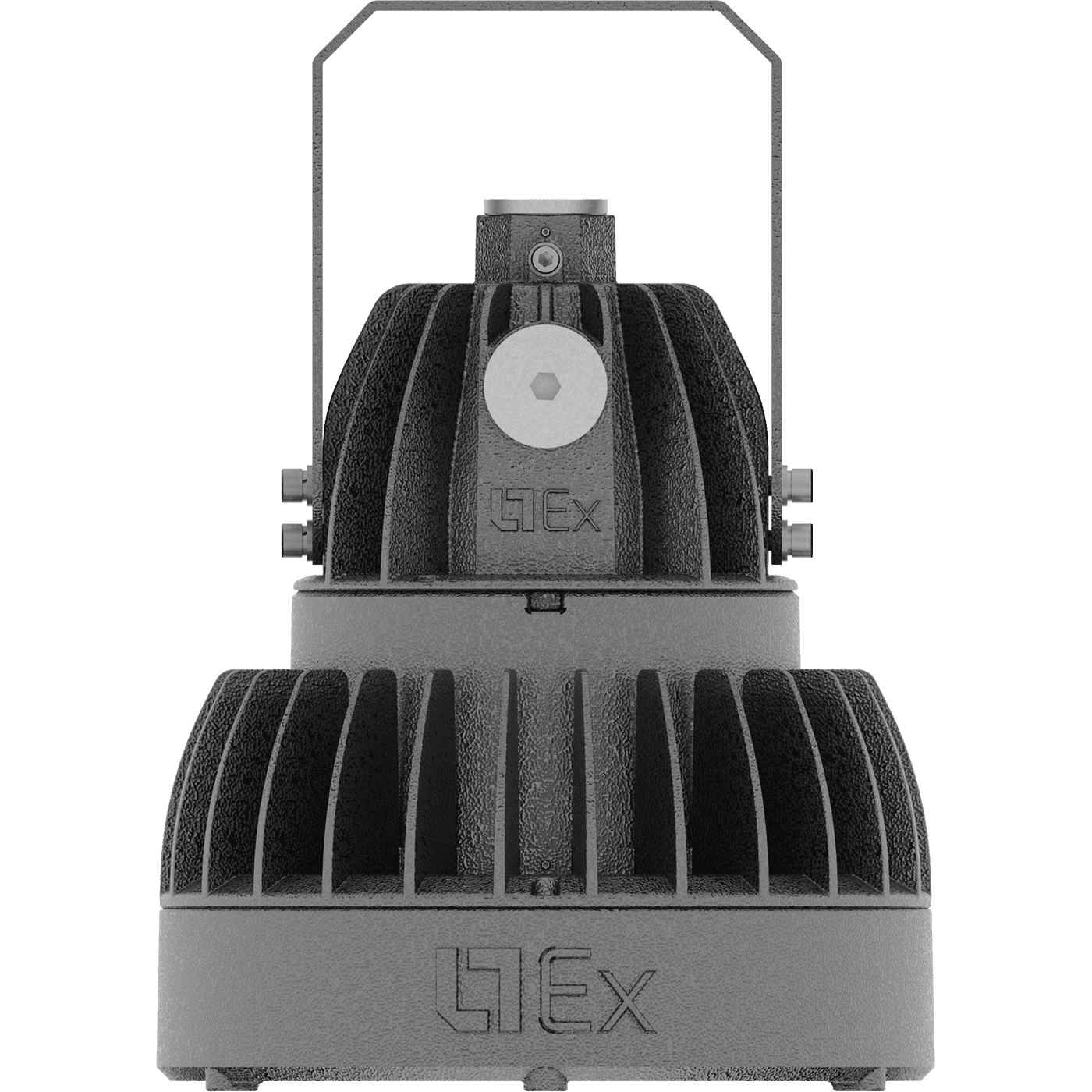

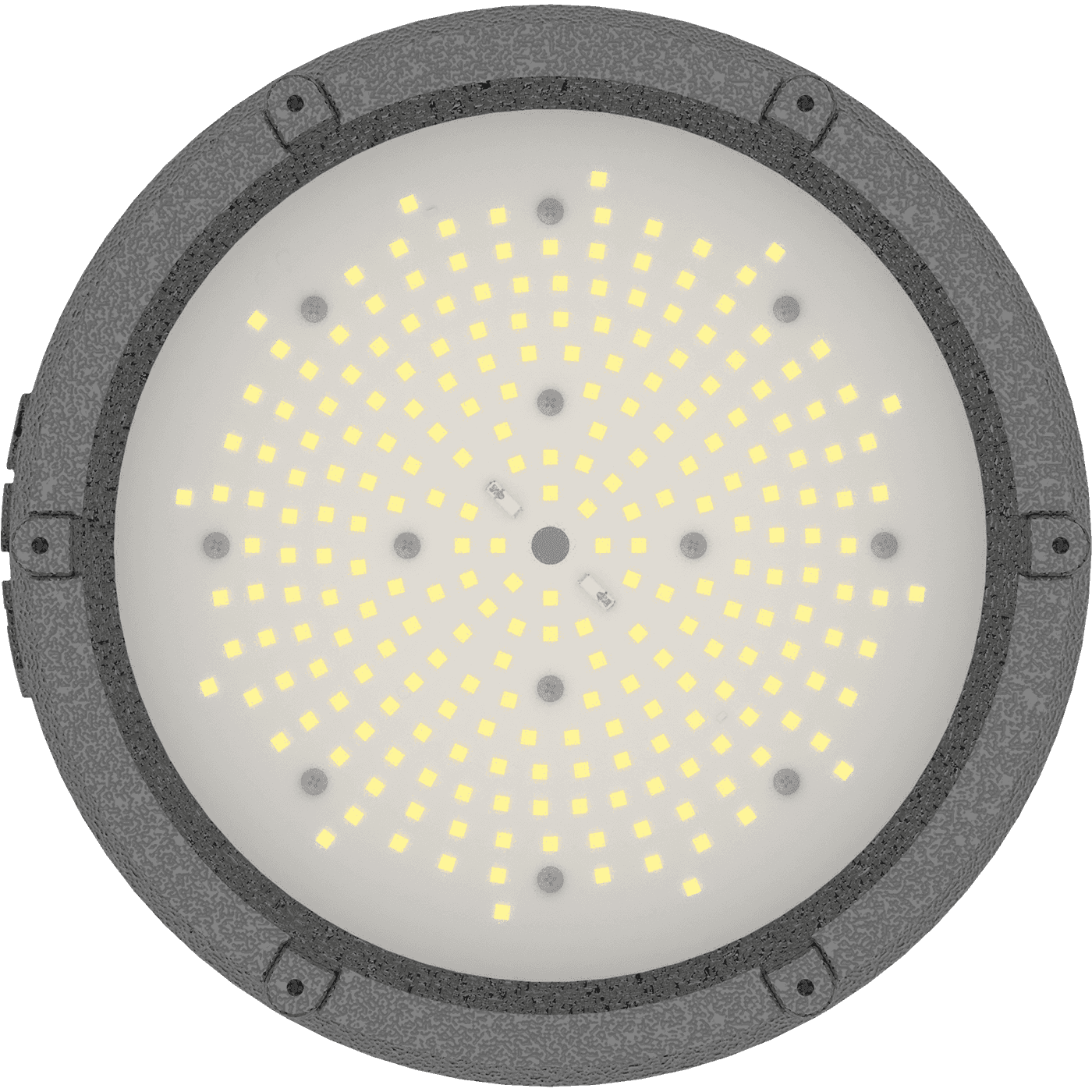

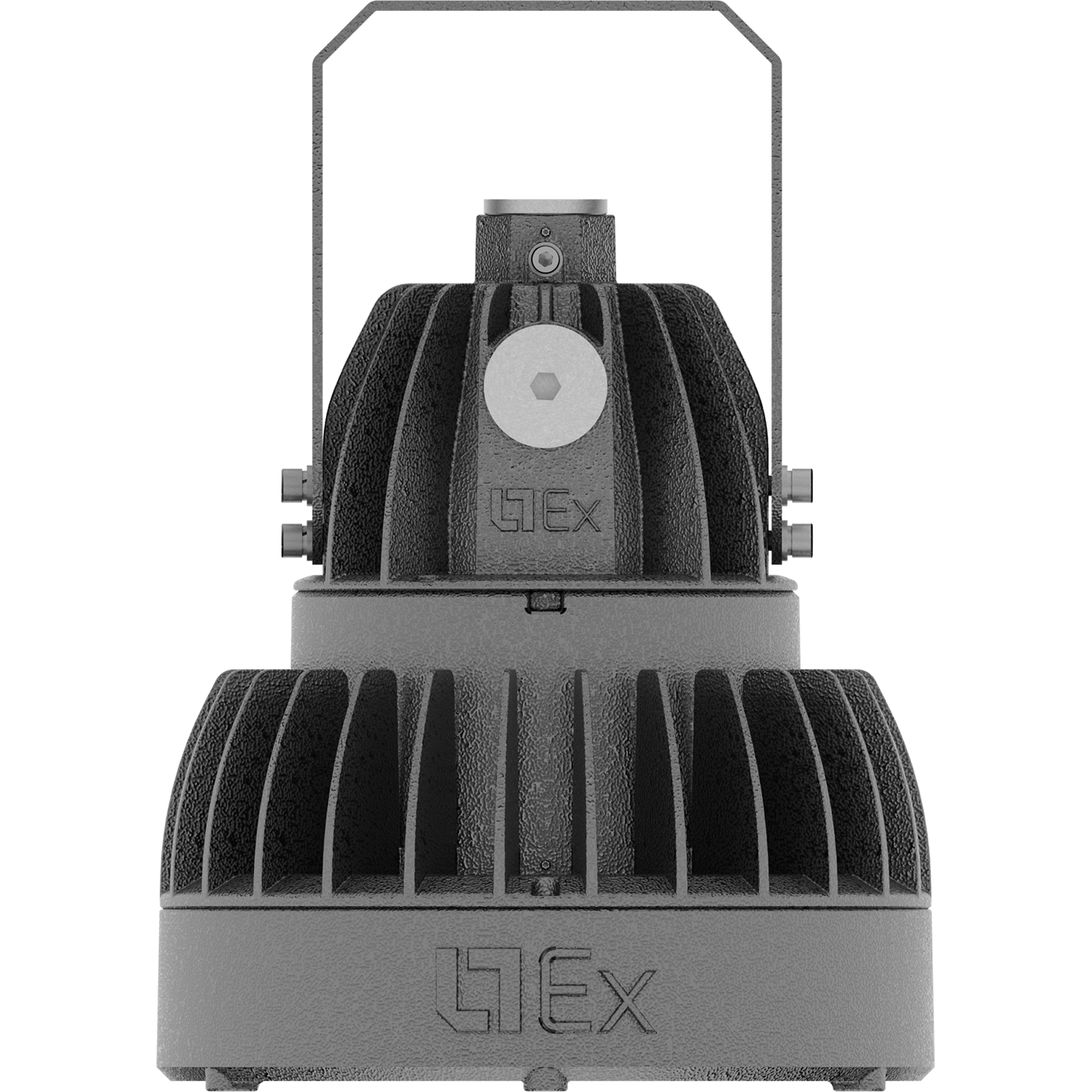

GLOBUS LED 90 D120 G Ex
GLOBUS LED 90 D120 G Ex
80 Wluminaire power
11400 lmlight flow
143 lm/Wenergy efficiency
code1388000250
color temperature5000 K
beam angleD120
options
свернуть все
illuminatingelectricalconstructionalcommon
emission color
Белыйlight source type
LEDlight flow
11400 lmcolor rendition index (CRI)
>80flickering factor
<1%energy efficiency
143 lm/Wbeam angle
D120color temperature
5000 Killuminating
emission color
Белый
light source type
LED
light flow
11400 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
143 lm/W
beam angle
D120
color temperature
5000 K
electrical
luminaire power
80 W
electric shock protection
I
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
starting current
5 A
supply voltage
230 V
starting current pulse time
3300 µs
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK08/7 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІа
length
227 mm
width
227 mm
height
310 mm
material
Сплав алюминиевый
housing color
Серый
weight
6.9 kg
common
code
1388000250
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
energy efficiency class
A++
service life
50 000 h
temperature range
от -60 до +55 C
model files
model files
photometric files
documents
сертификаты

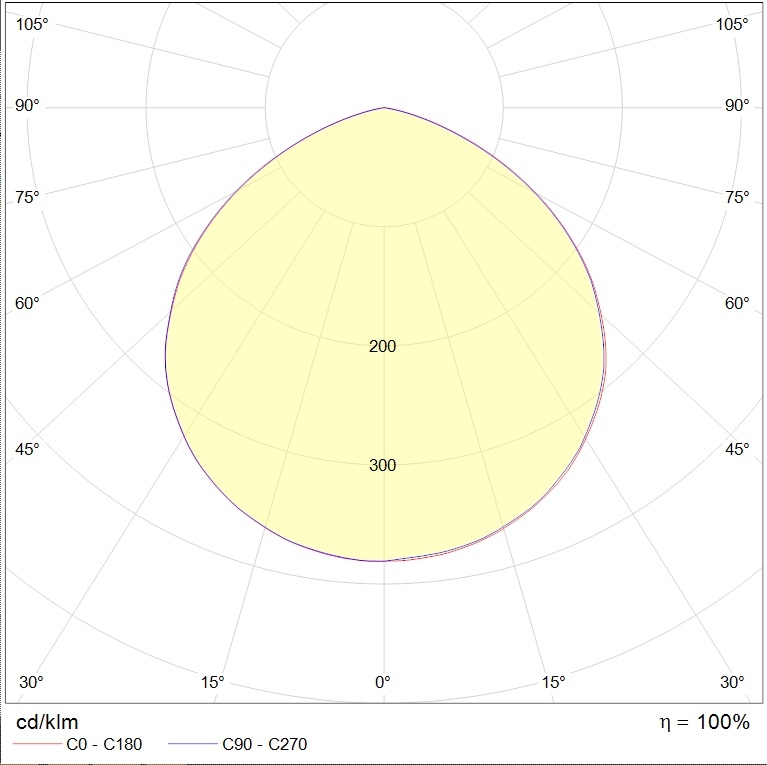

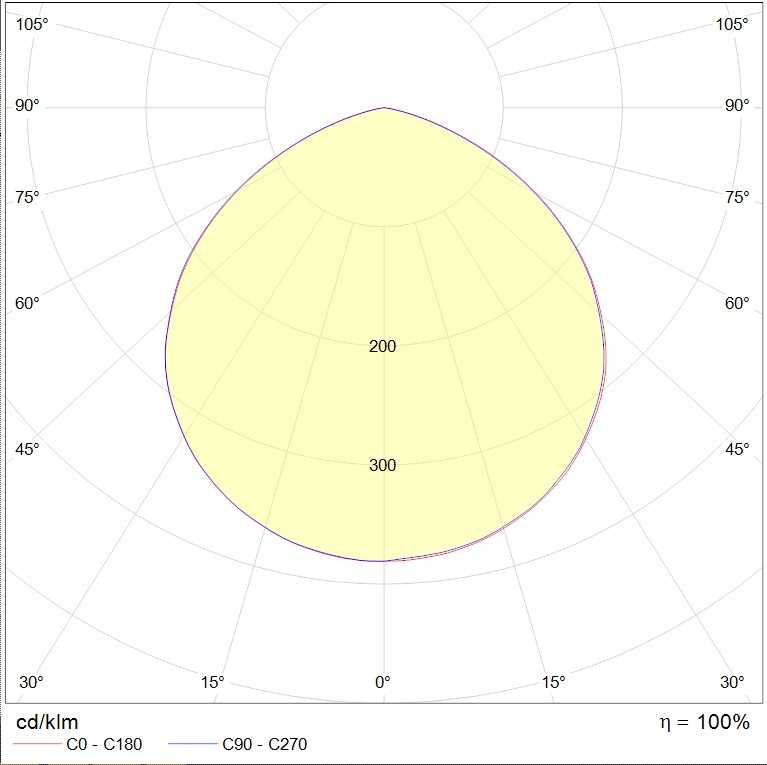

photometric files
ies107 kB
jpg79.2 kB
ldt65.7 kB
documents
passport1.1 mB
сертификаты
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
accessories
Cable entry explosion-proof М25х1,5 DSA2SMBNS0.19kgarticle: 2327017400color: Неокрашенныйø cable internal: 10,0-14,5ø cable external: 12,5-20,5
Cable entry explosion-proof М25х1,5 NA2MBNS0.05kgarticle: 2327009380color: Неокрашенныйø cable internal: 11,3-19,9
Cable entry explosion-proof М25х1,5 DSA2MBNS0.164kgarticle: 2327010070color: Неокрашенныйø cable internal: 11,3-19,9ø cable external: 19,9-26,2
