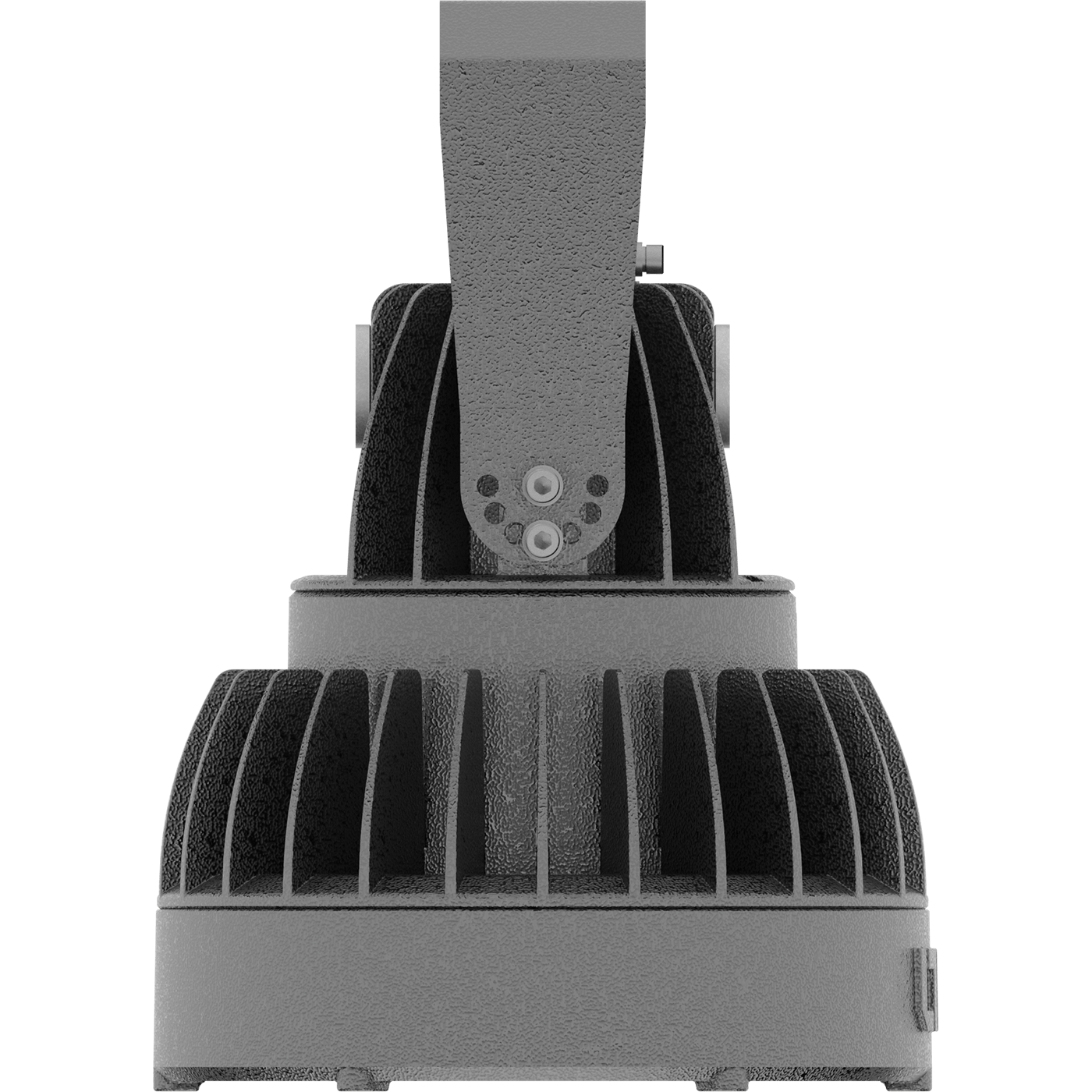

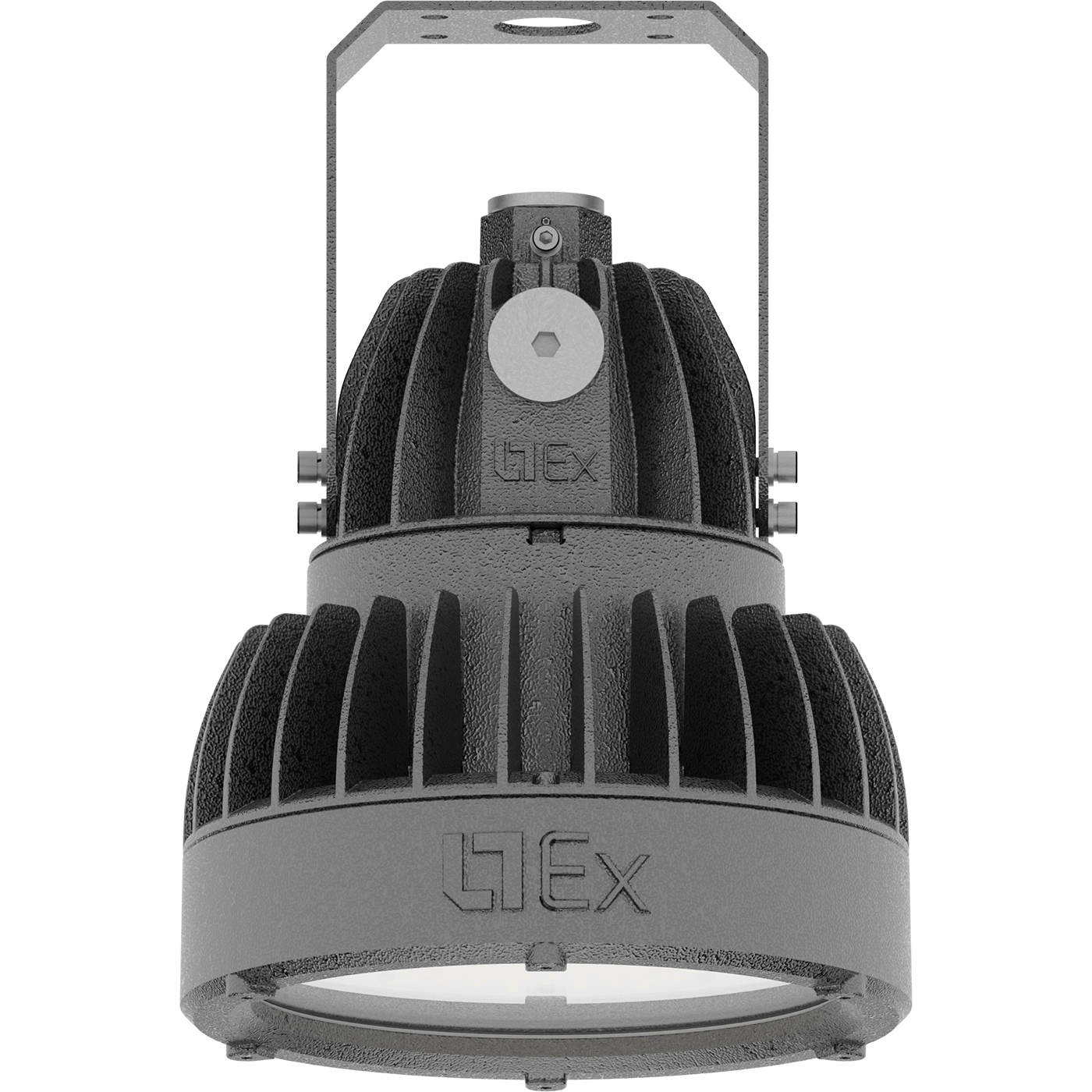

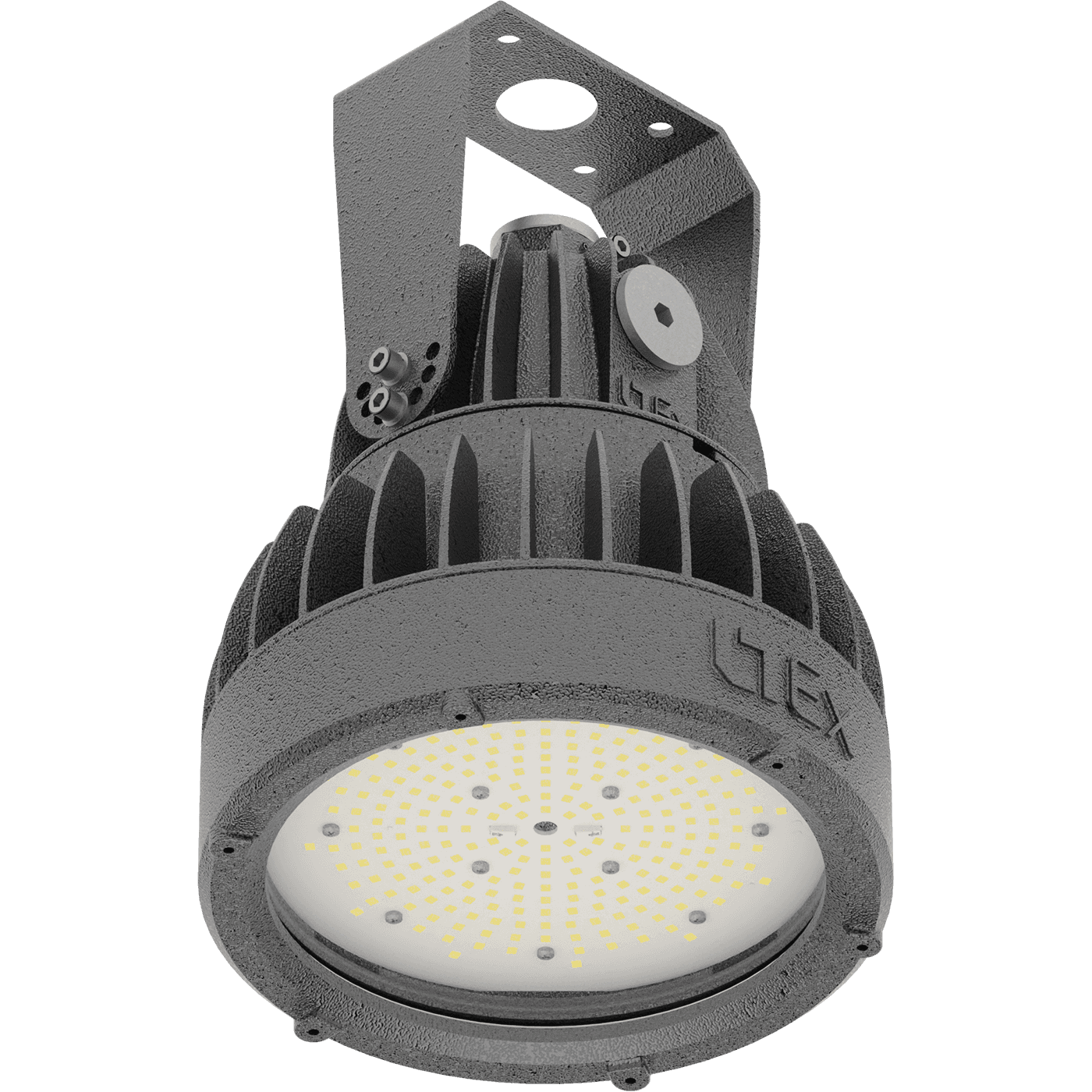

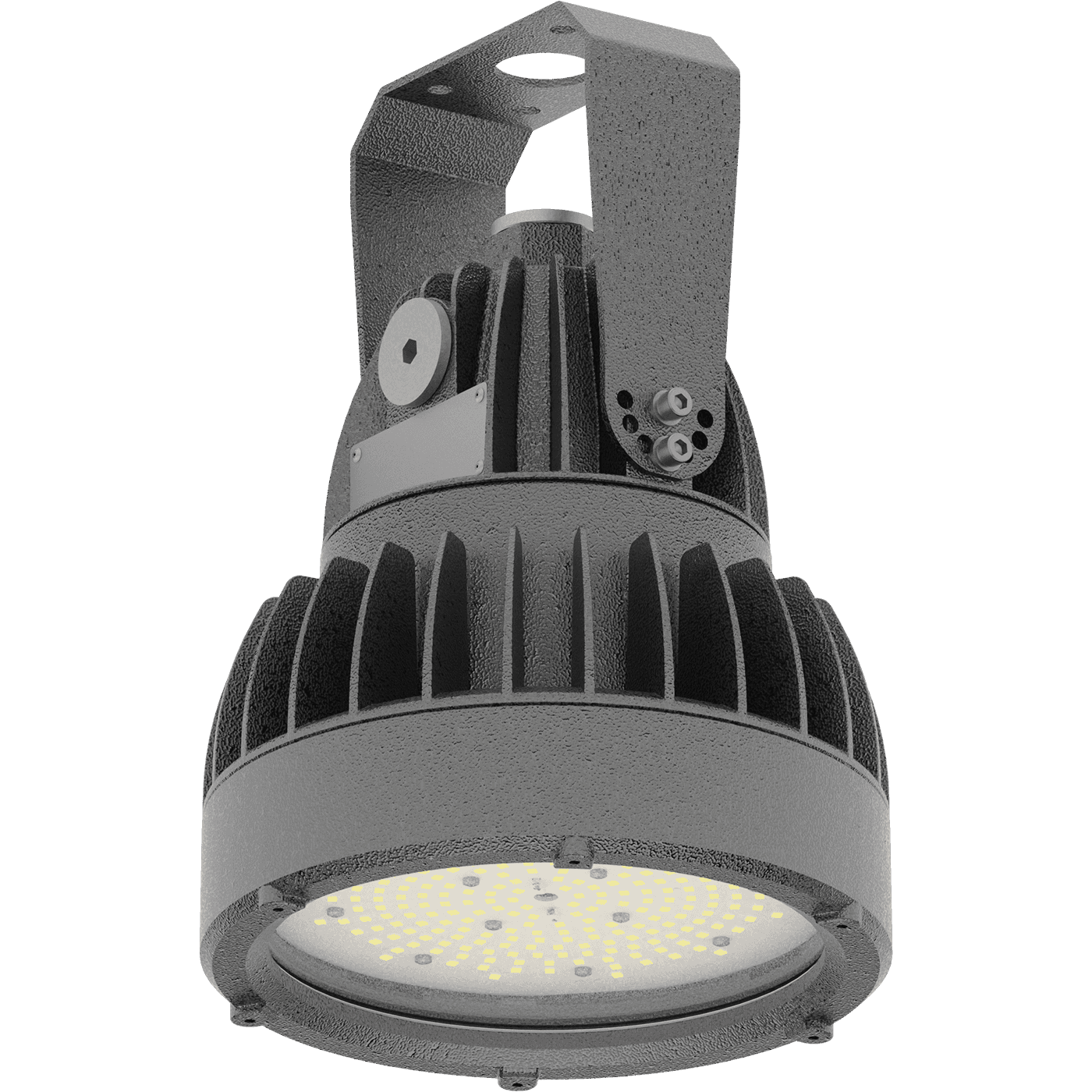

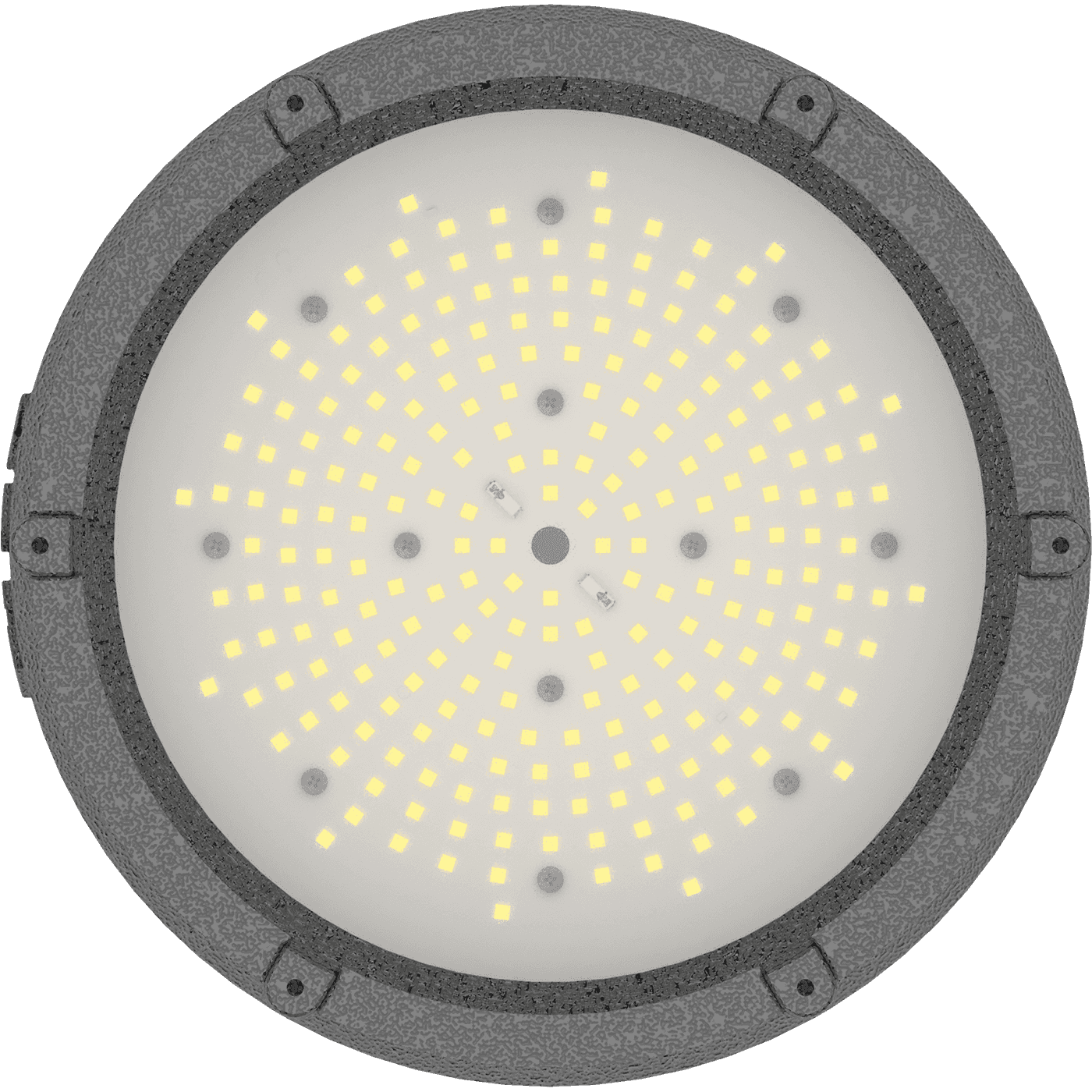

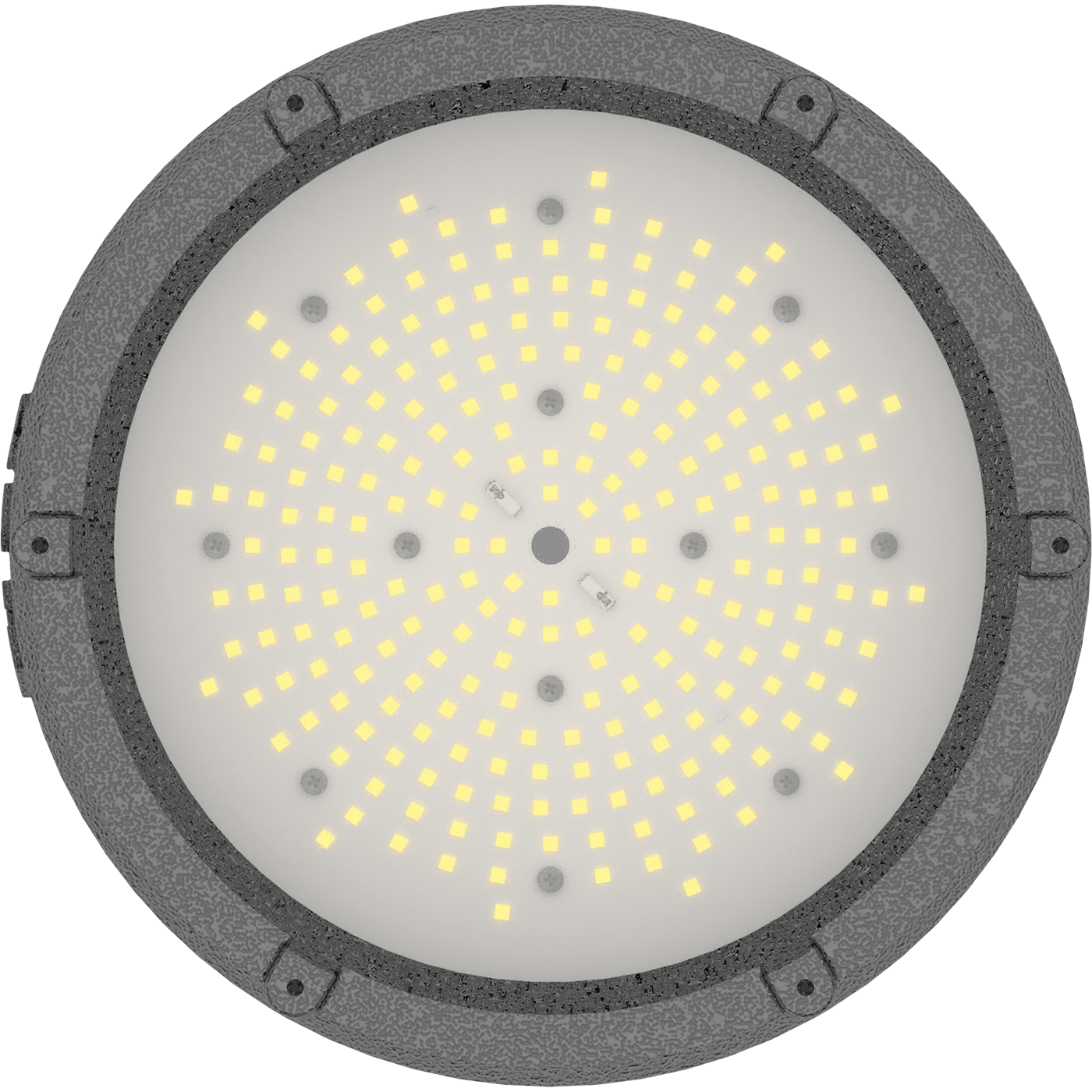

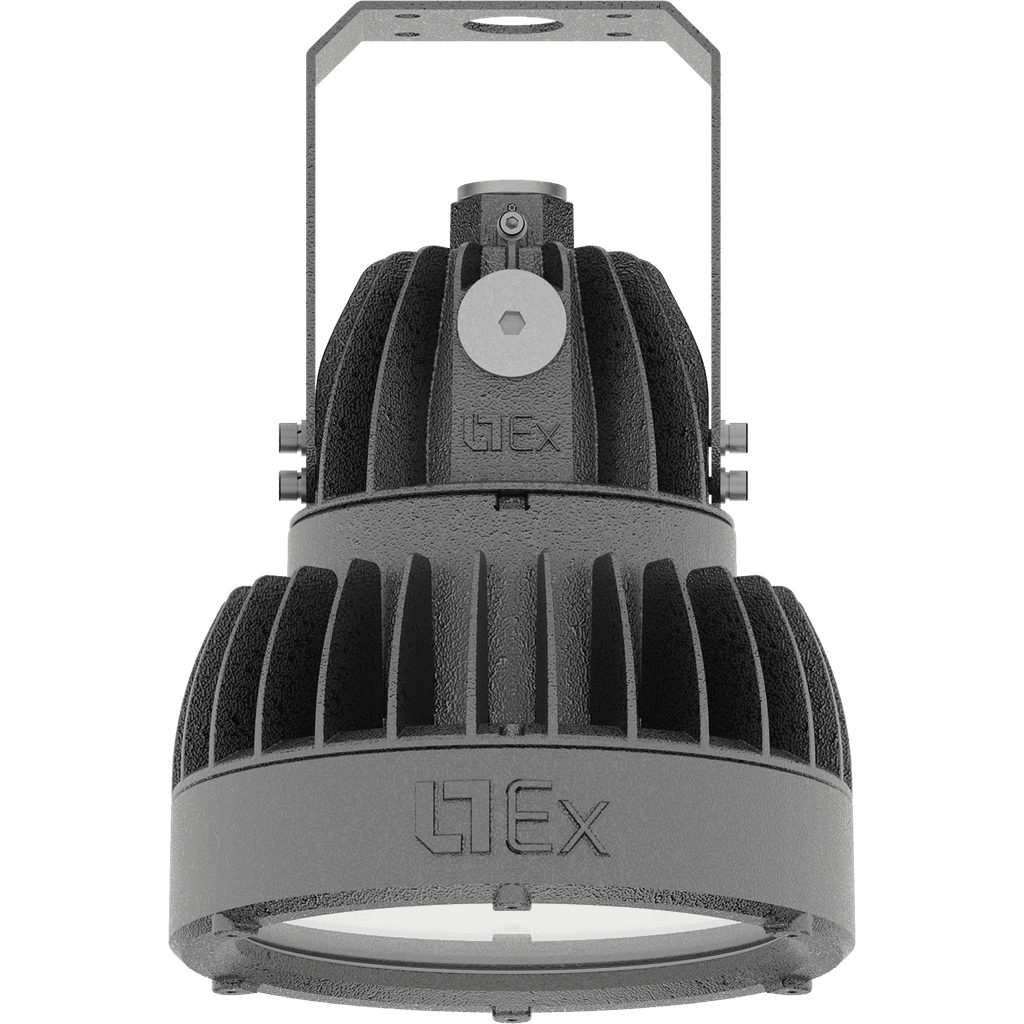

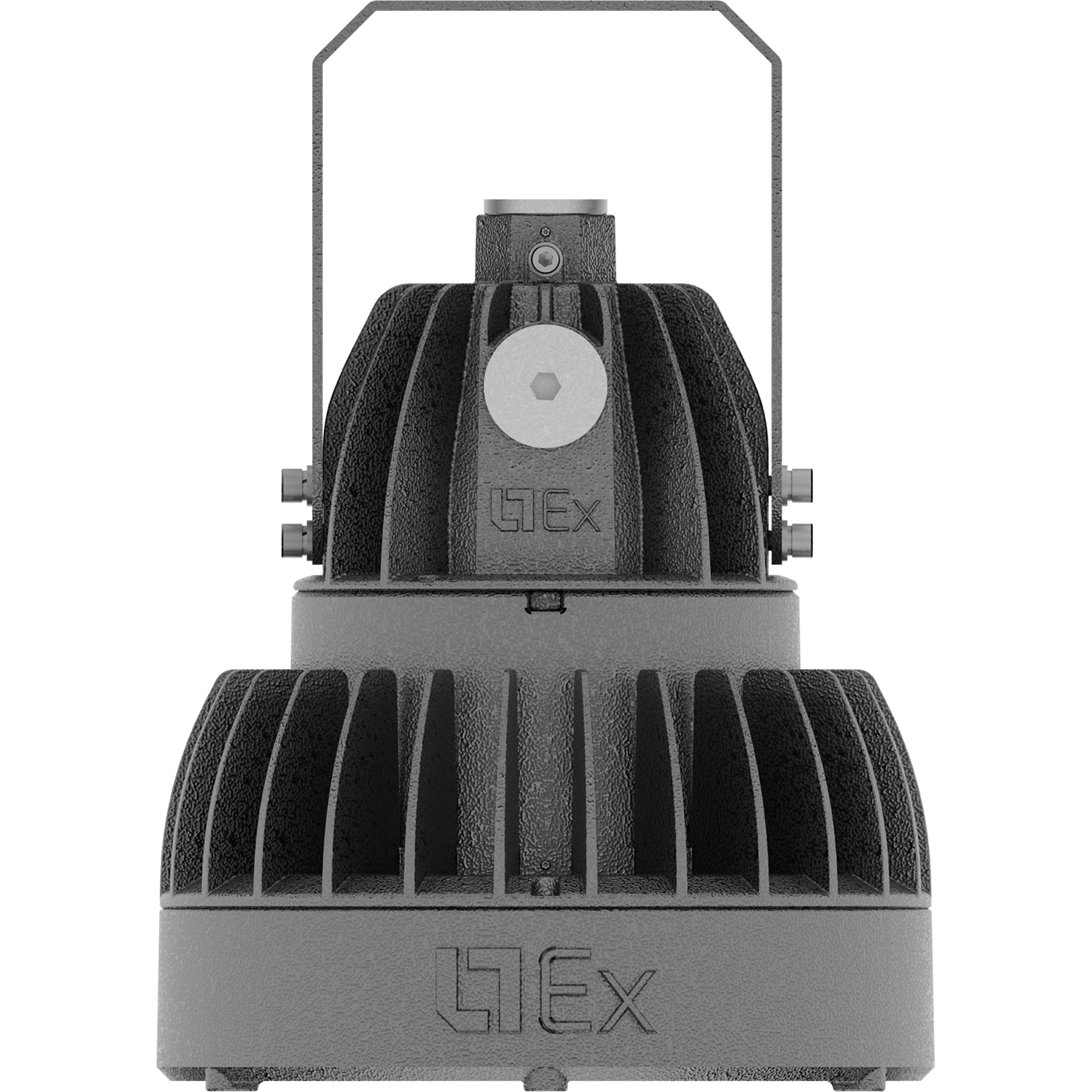

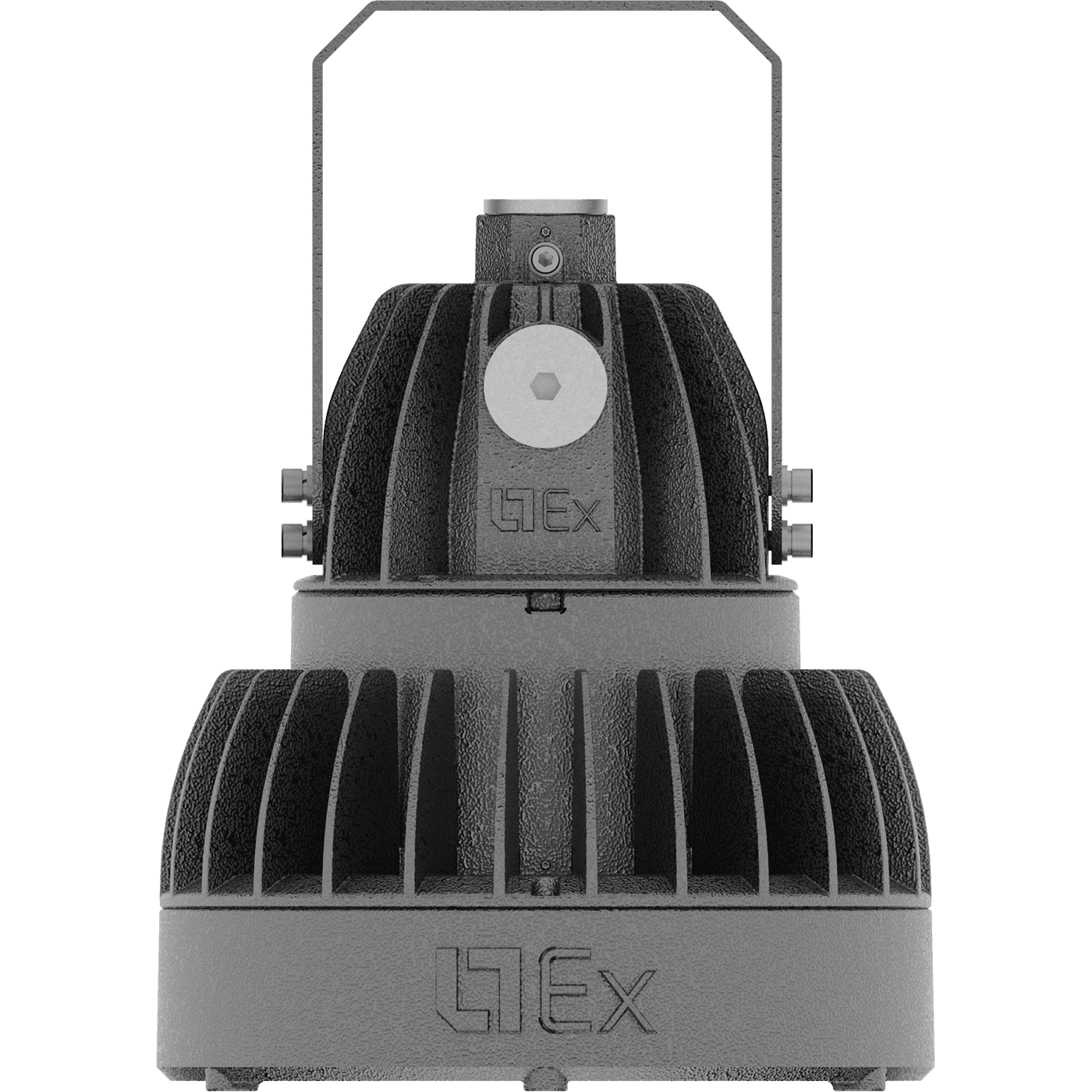

GLOBUS LED 90 D120 B Ex

GLOBUS LED 90 D120 B Ex
add to favorites
80 Wluminaire power
11400 lmlight flow
143 lm/Wenergy efficiency
code
1388000270
color temperature
5000 K
beam angle
D120
  1. main page
  2. catalog
  3. by product type
  4. special application
  5. intergazcert
  6. explosion-proof luminaires
  7. GLOBUS LED
  8. GLOBUS LED 90 D120 B Ex
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
emission color
Белый
light source type
LED
light flow
11400 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
143 lm/W
beam angle
D120
color temperature
5000 K
illuminating
emission color
Белый
light source type
LED
light flow
11400 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
143 lm/W
beam angle
D120
color temperature
5000 K
electrical
luminaire power
80 W
electric shock protection
I
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
starting current
5 A
supply voltage
230 V
starting current pulse time
3300 µs
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK08/7 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІа
length
227 mm
width
227 mm
height
320 mm
installation width
35 mm
material
Сплав алюминиевый
housing color
Серый
mounting type
На скобу
weight
7.1 kg
emergency
emergency power supply
Нет
common
code
1388000270
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
energy efficiency class
A++
service life
50 000 h
temperature range
от -60 до +55 C
model files
model files

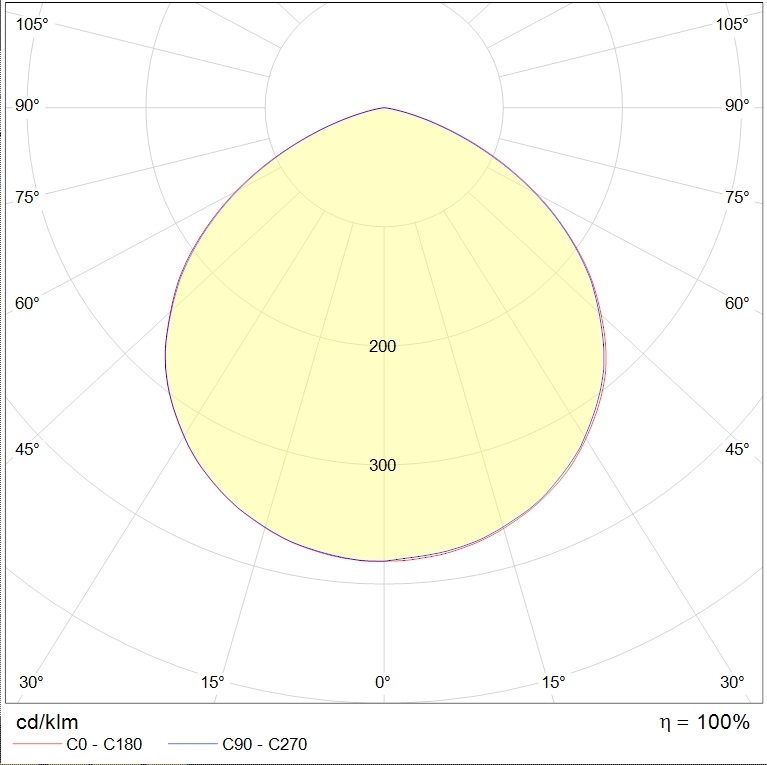

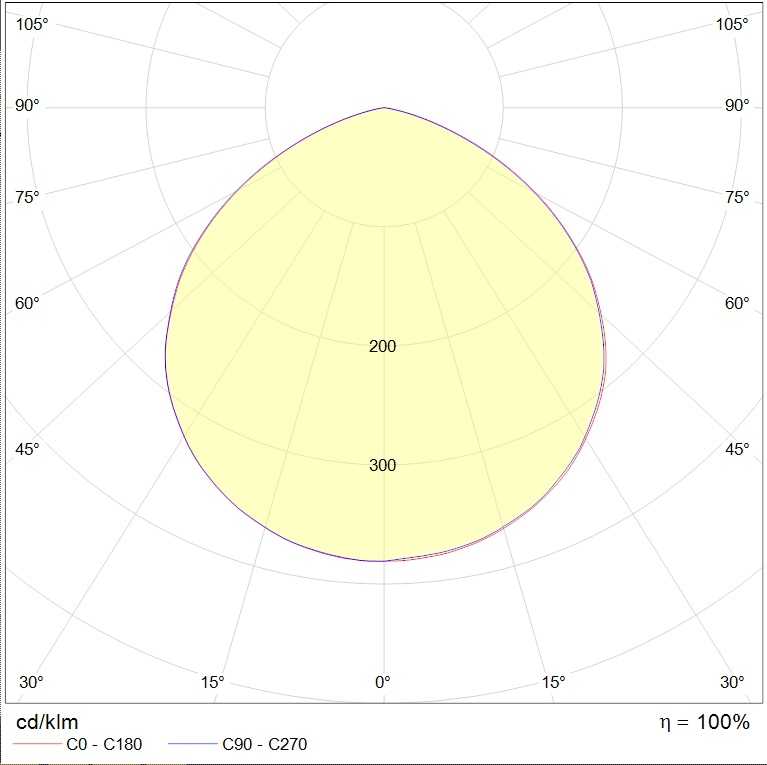

photometric files
ies107 kB
jpg79.2 kB
ldt65.7 kB
documents
passport1.1 mB
сертификаты
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011298.8 kB
Declaration of Conformity EAEU TR 037/2016295.1 kB
photometric files
ies107 kB
jpg79.2 kB
ldt65.7 kB
documents
passport1.1 mB
сертификаты
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011298.8 kB
Declaration of Conformity EAEU TR 037/2016295.1 kB
accessories
Cable entry explosion-proof М25х1,5 DSA2SMBNS0.19kgarticle: 2327017400color: Неокрашенныйø cable internal: 10,0-14,5ø cable external: 12,5-20,5
Cable entry explosion-proof М25х1,5 NA2MBNS0.05kgarticle: 2327009380color: Неокрашенныйø cable internal: 11,3-19,9
Cable entry explosion-proof М25х1,5 DSA2MBNS0.164kgarticle: 2327010070color: Неокрашенныйø cable internal: 11,3-19,9ø cable external: 19,9-26,2
