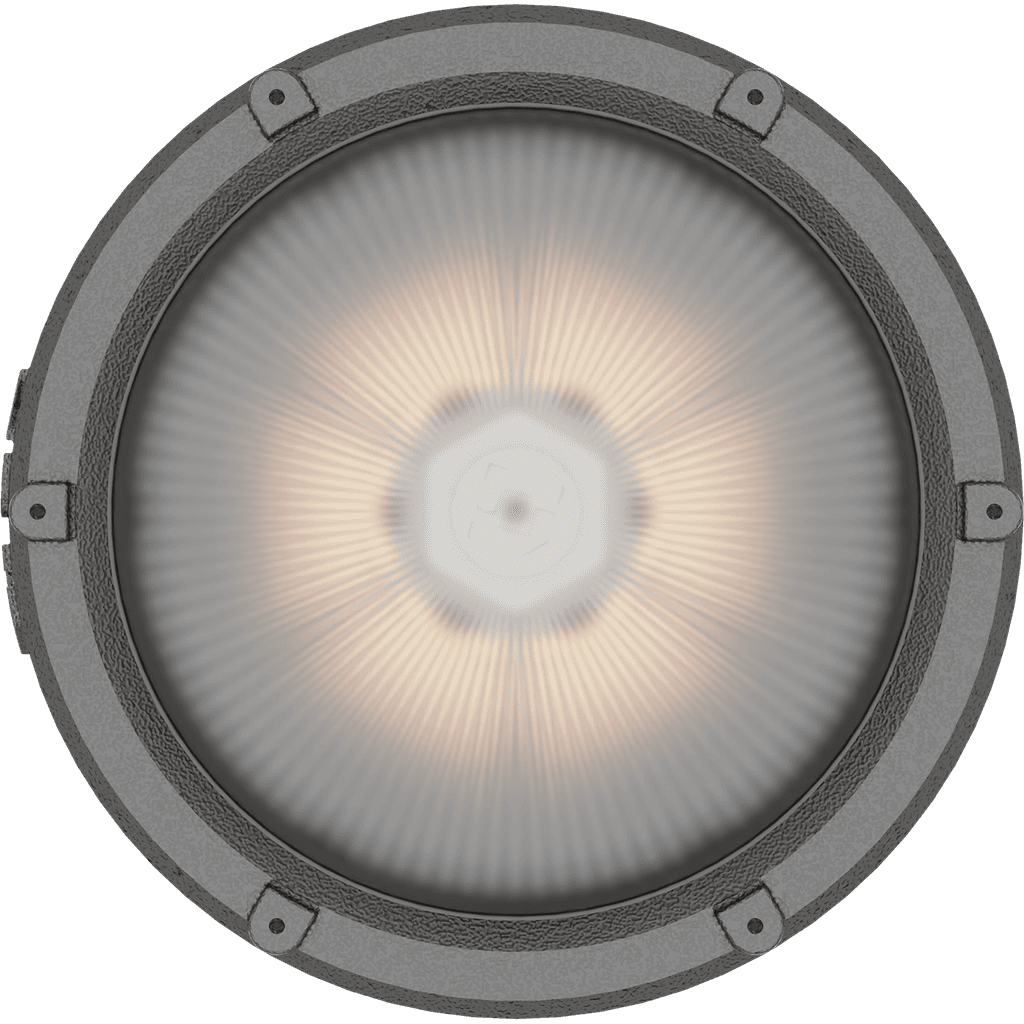

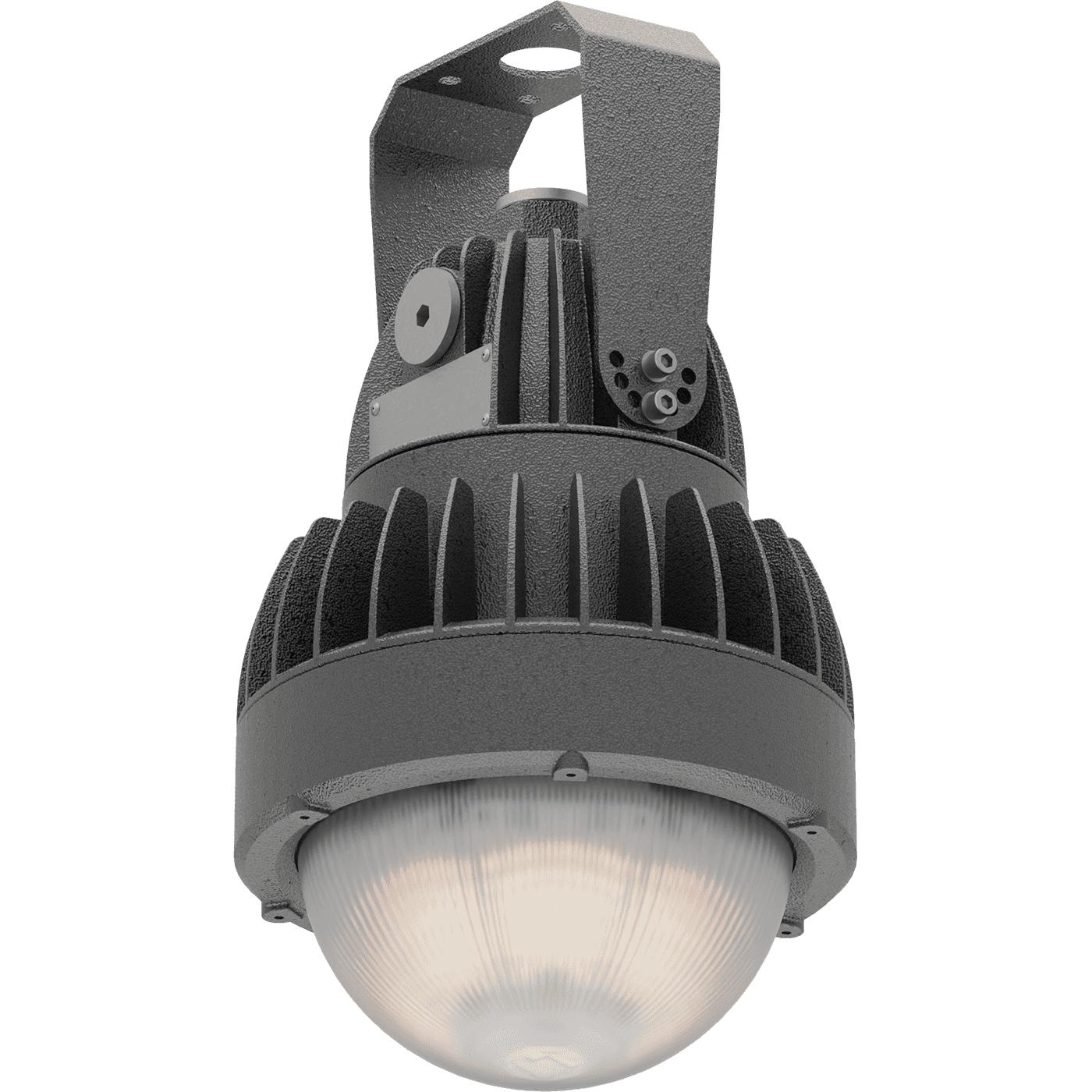

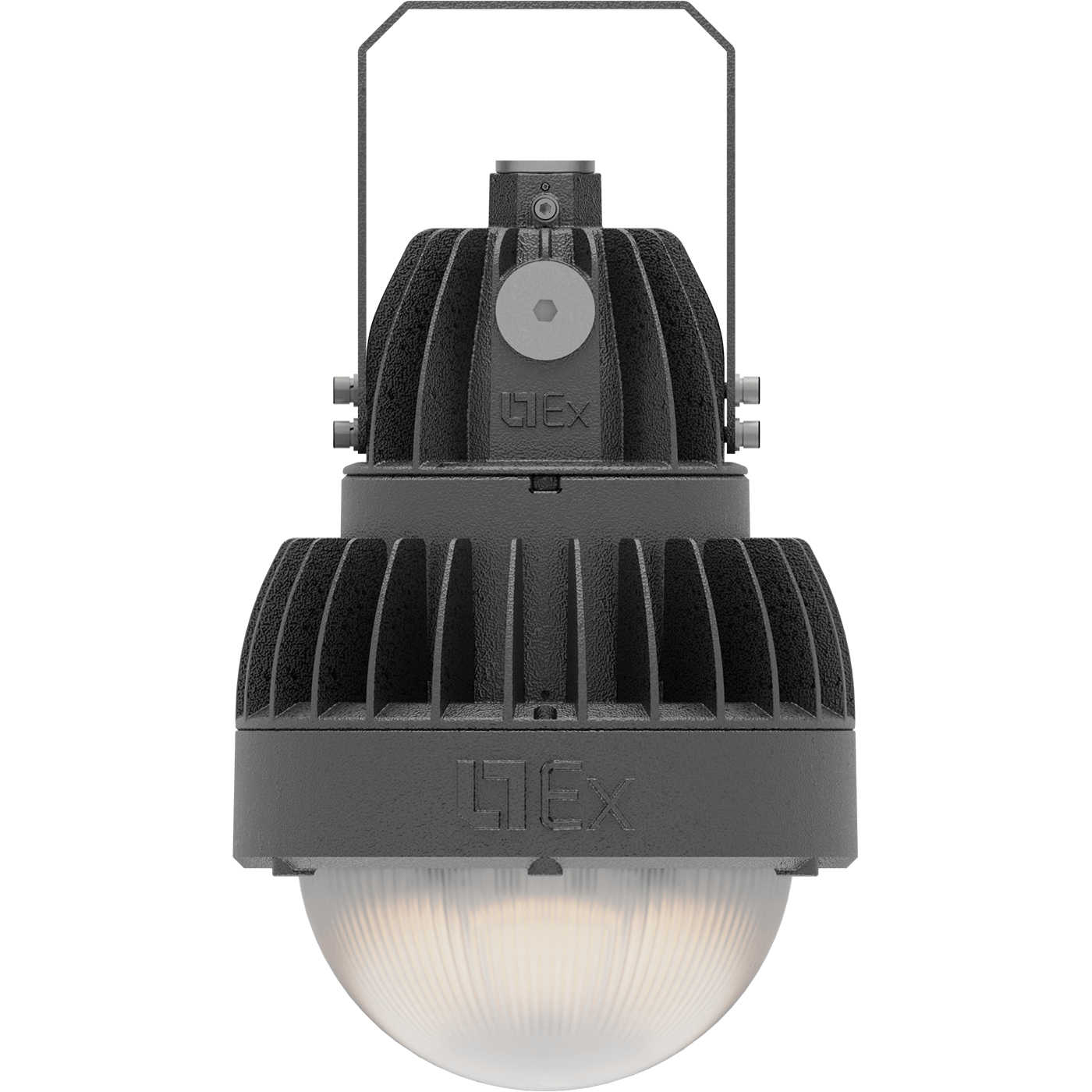

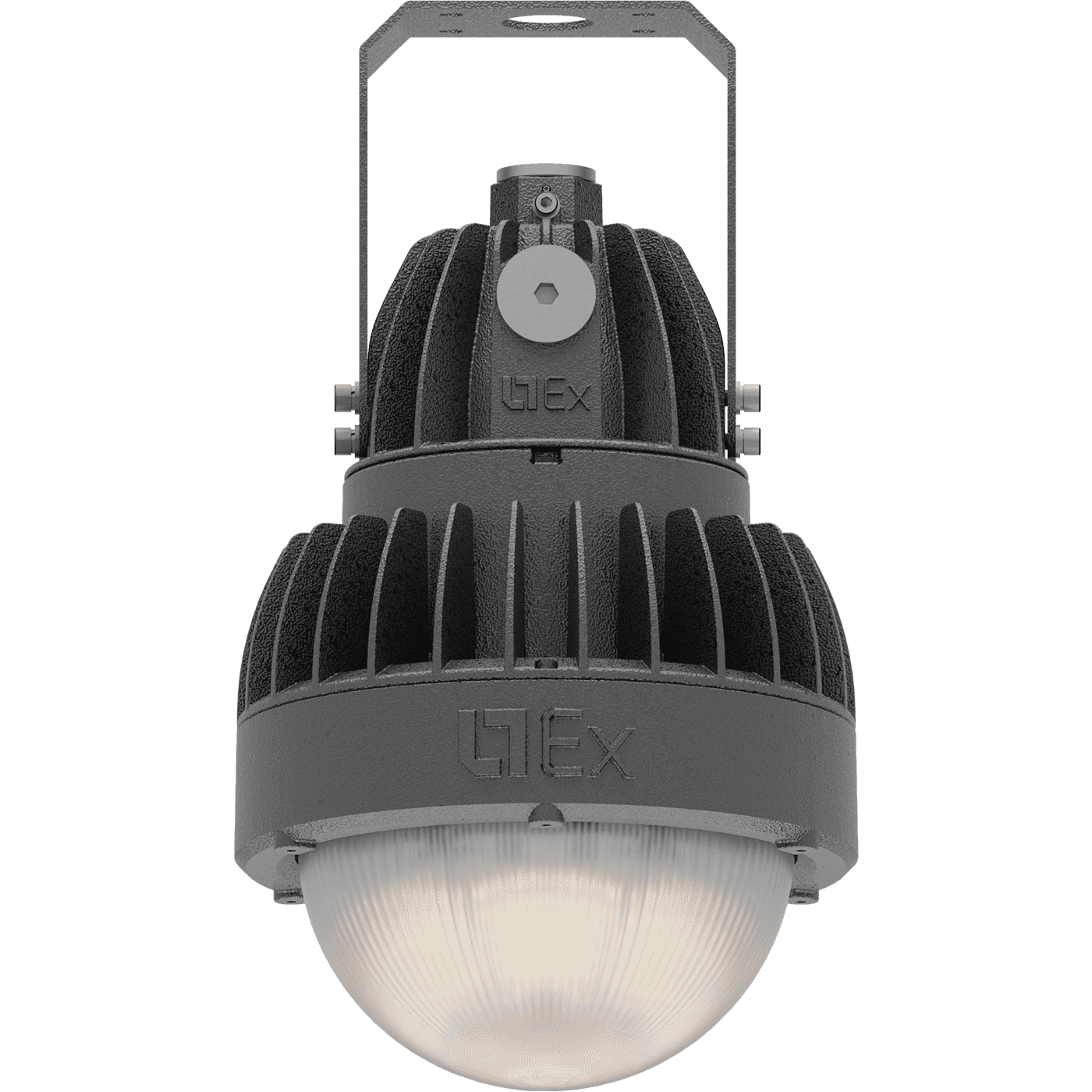

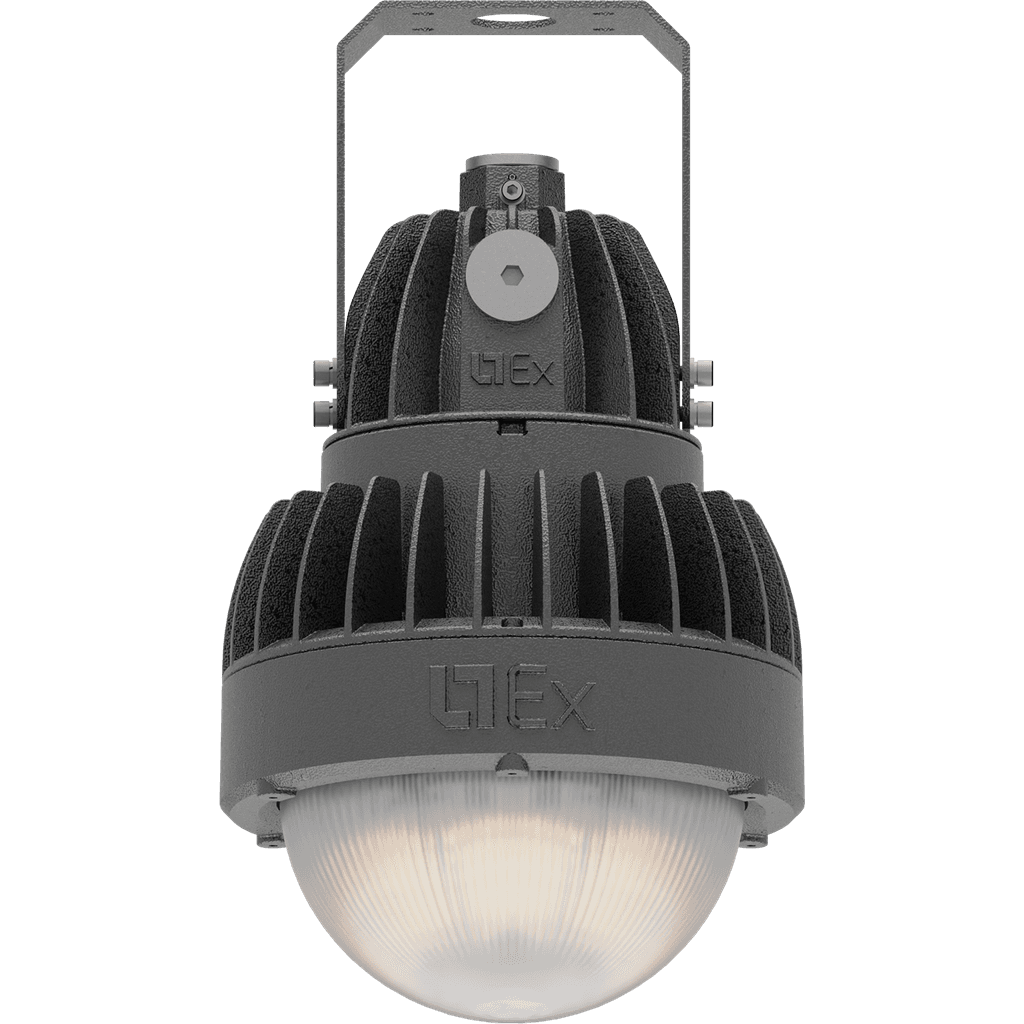

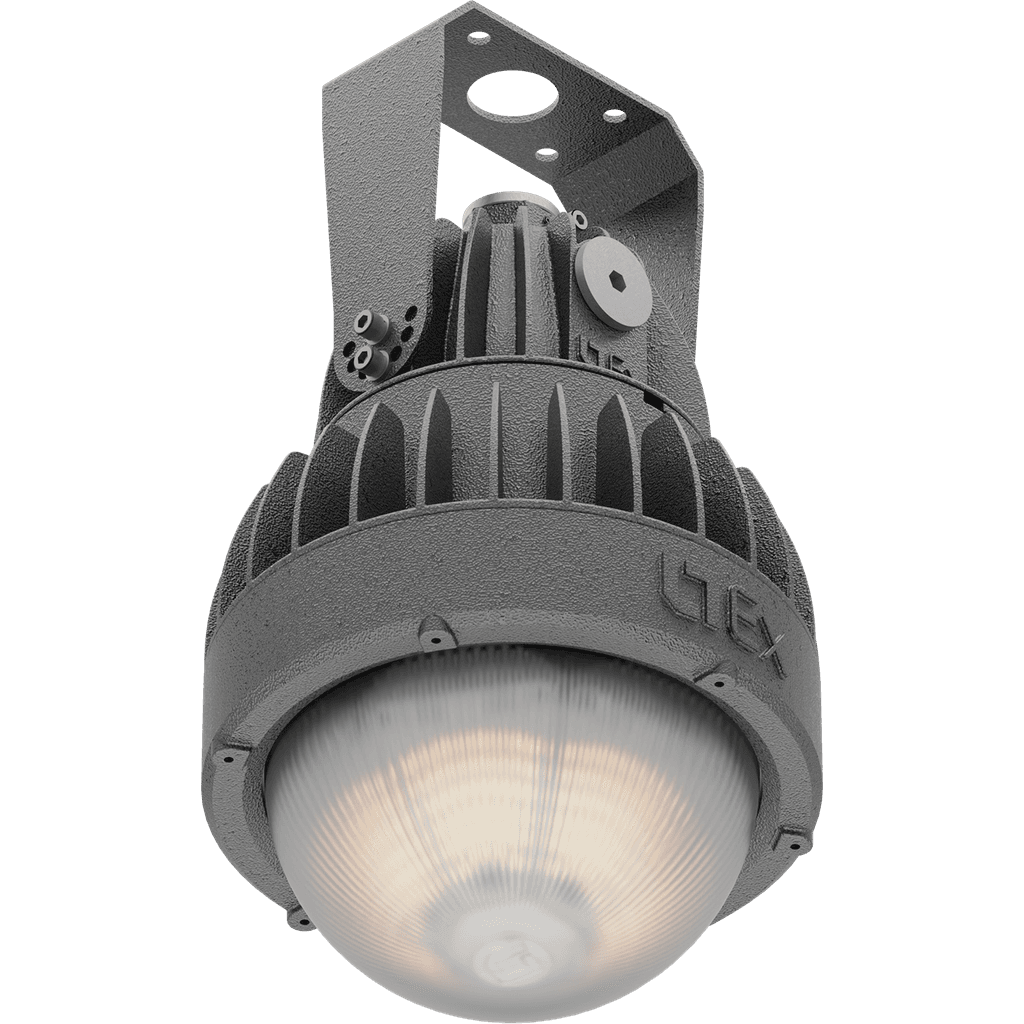

GLOBUS LED 70 D270 G Ex

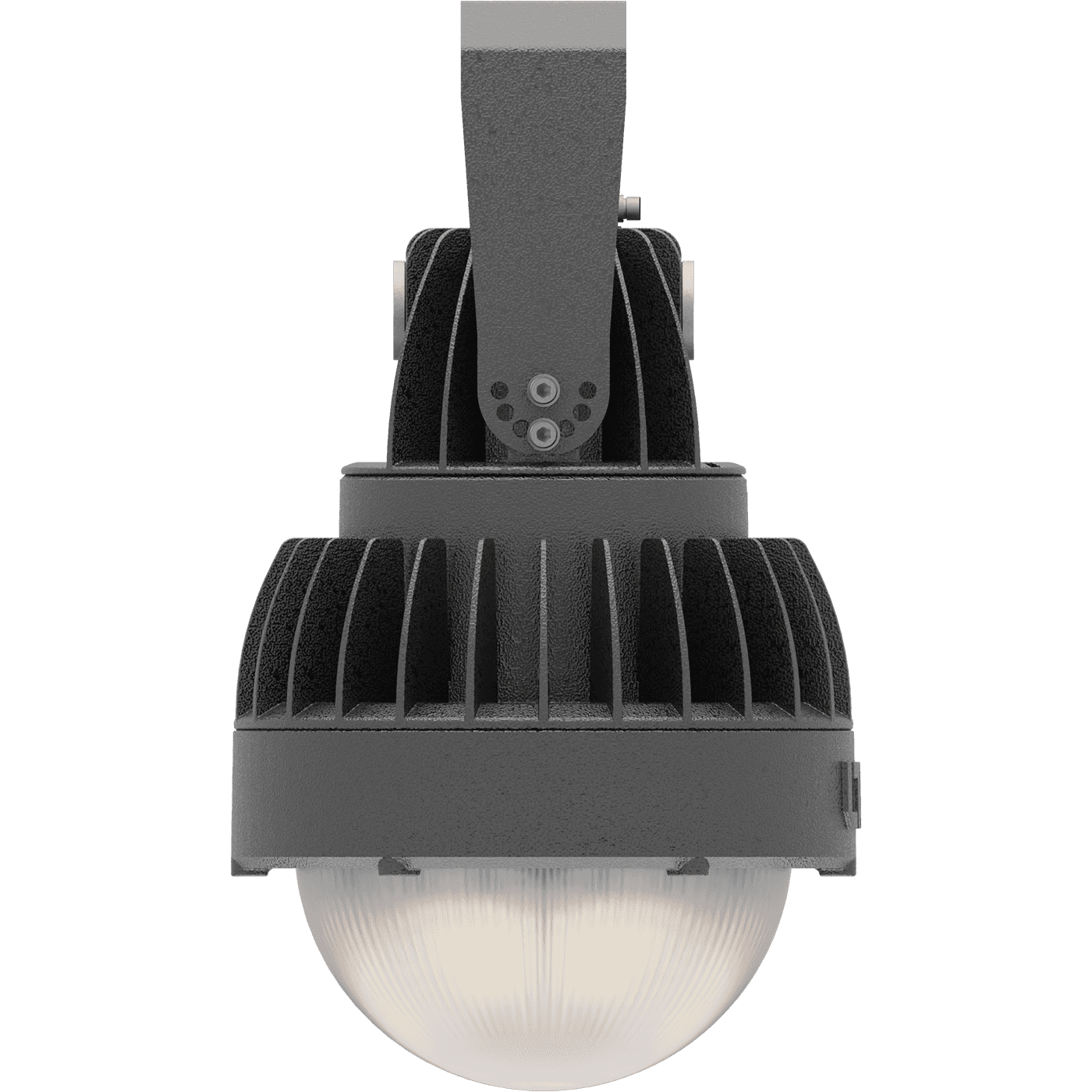

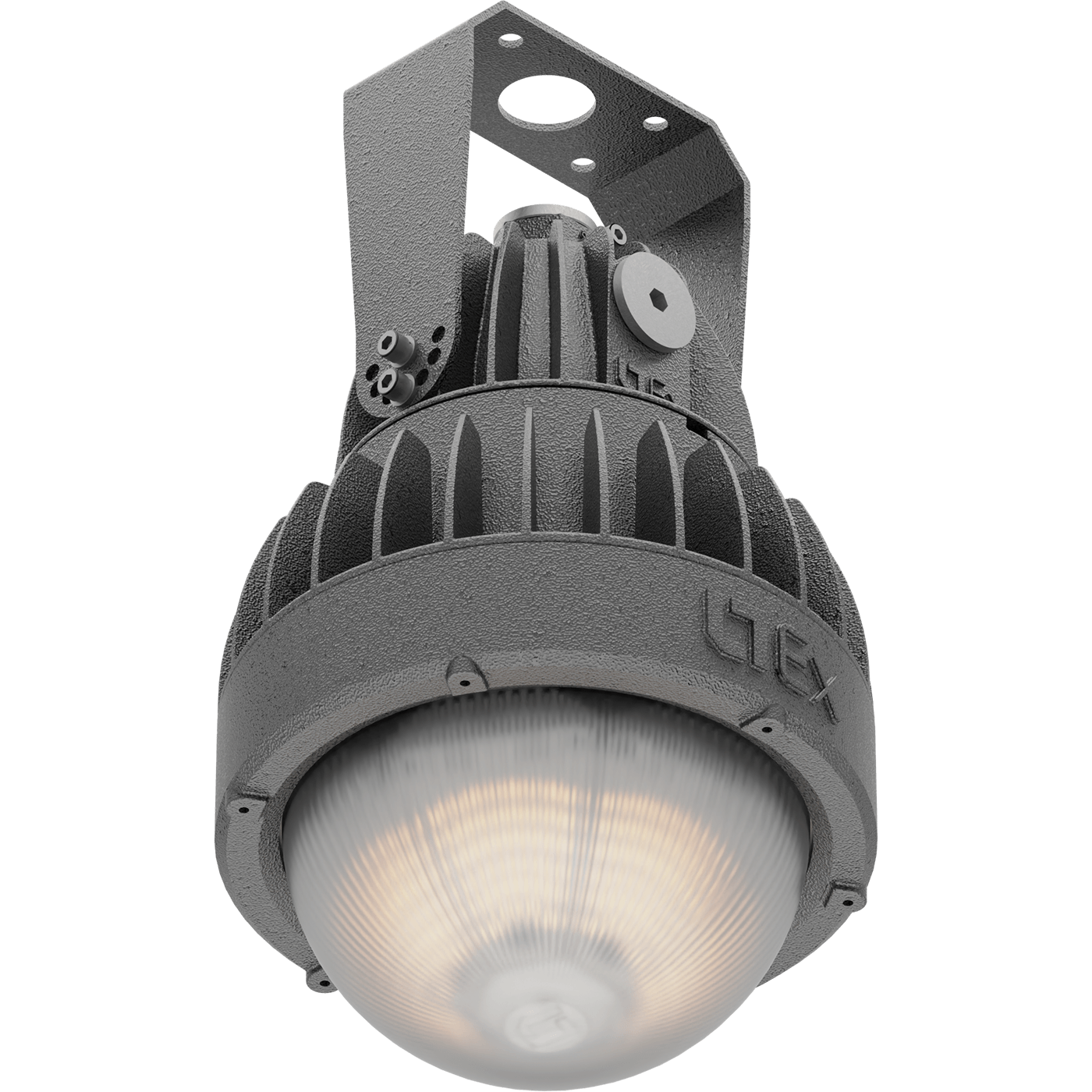

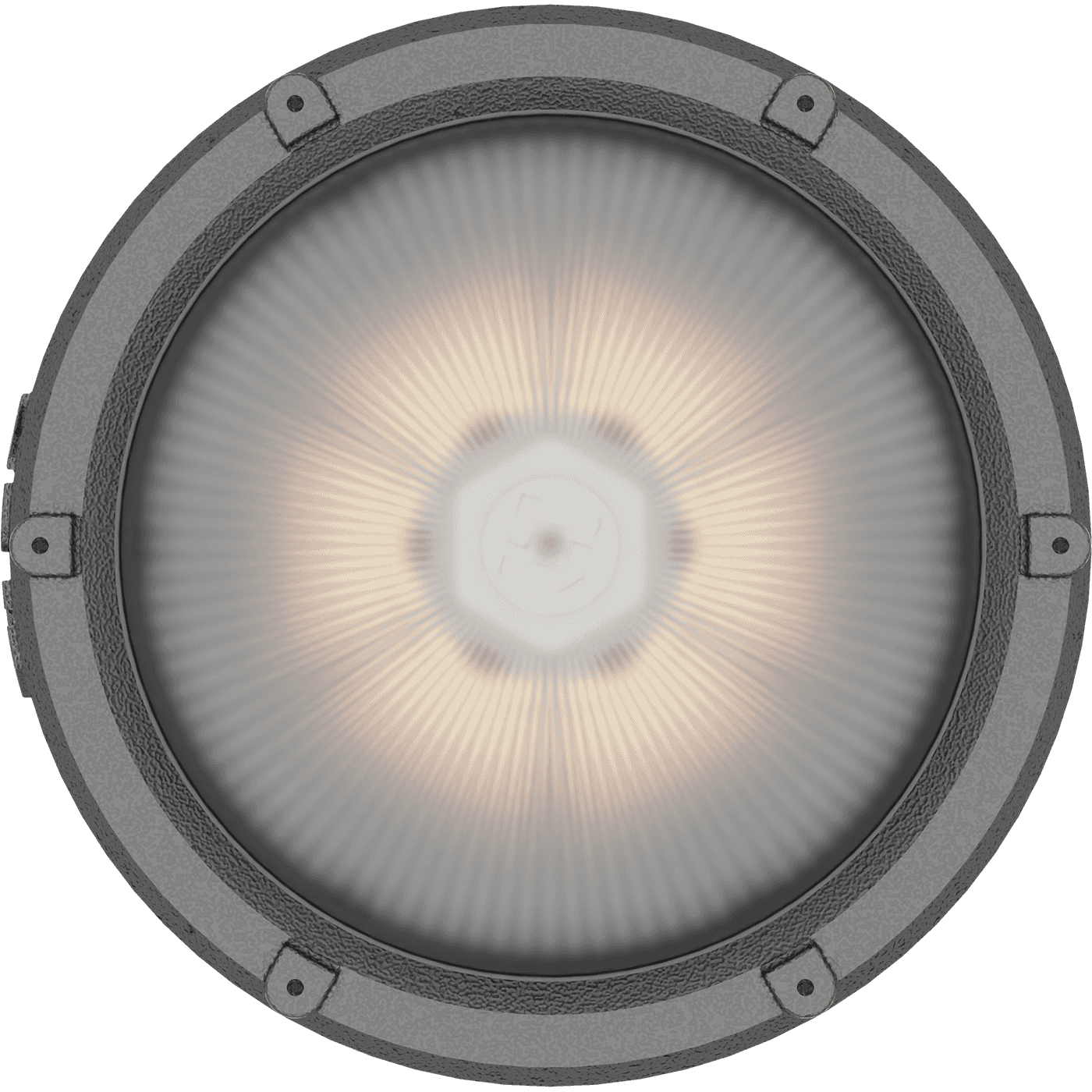

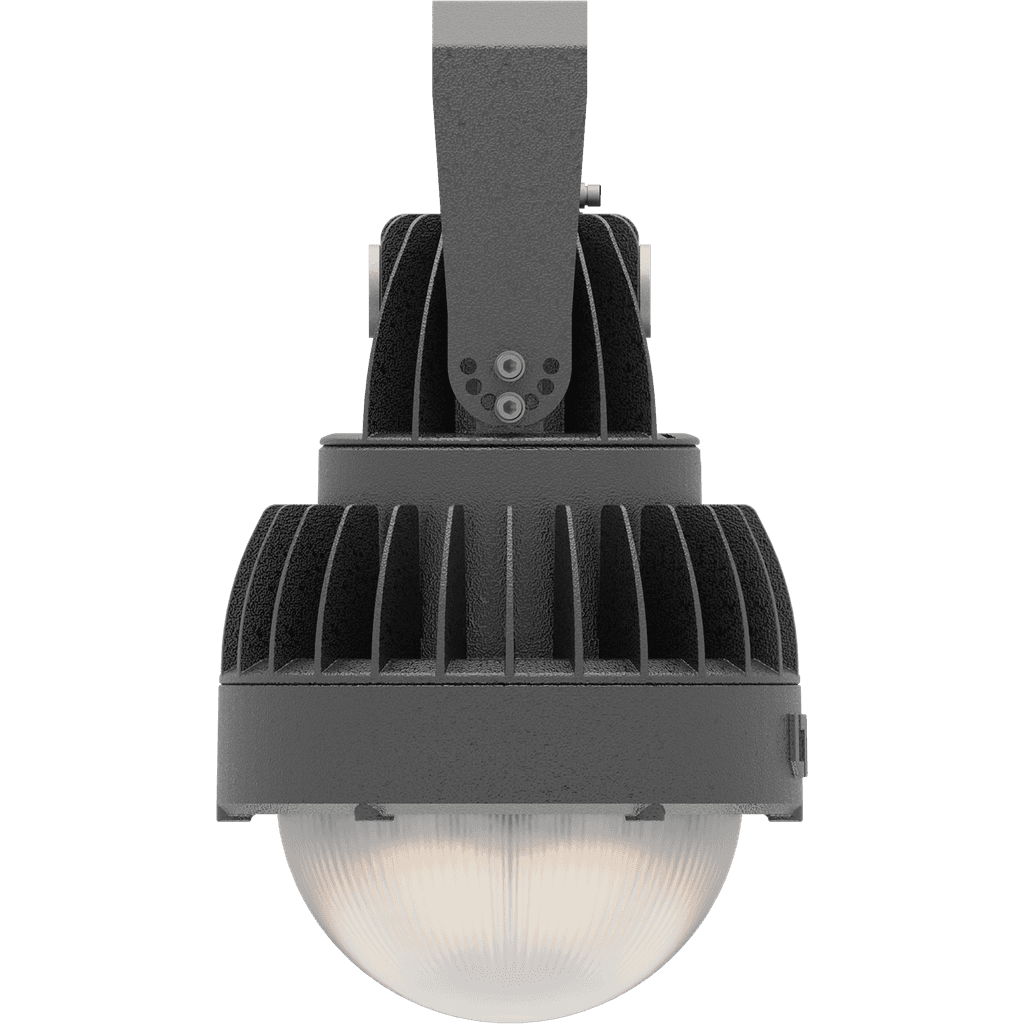

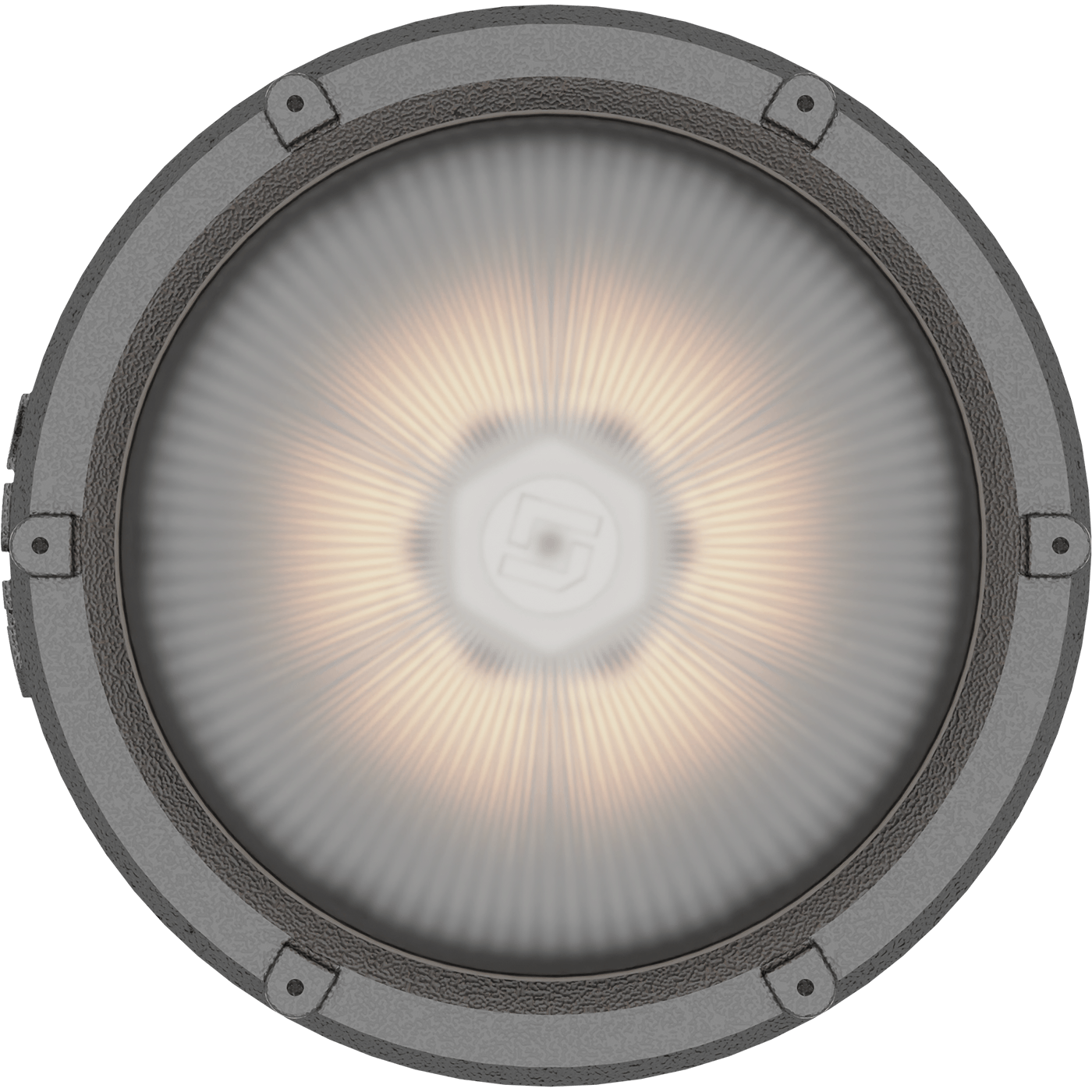

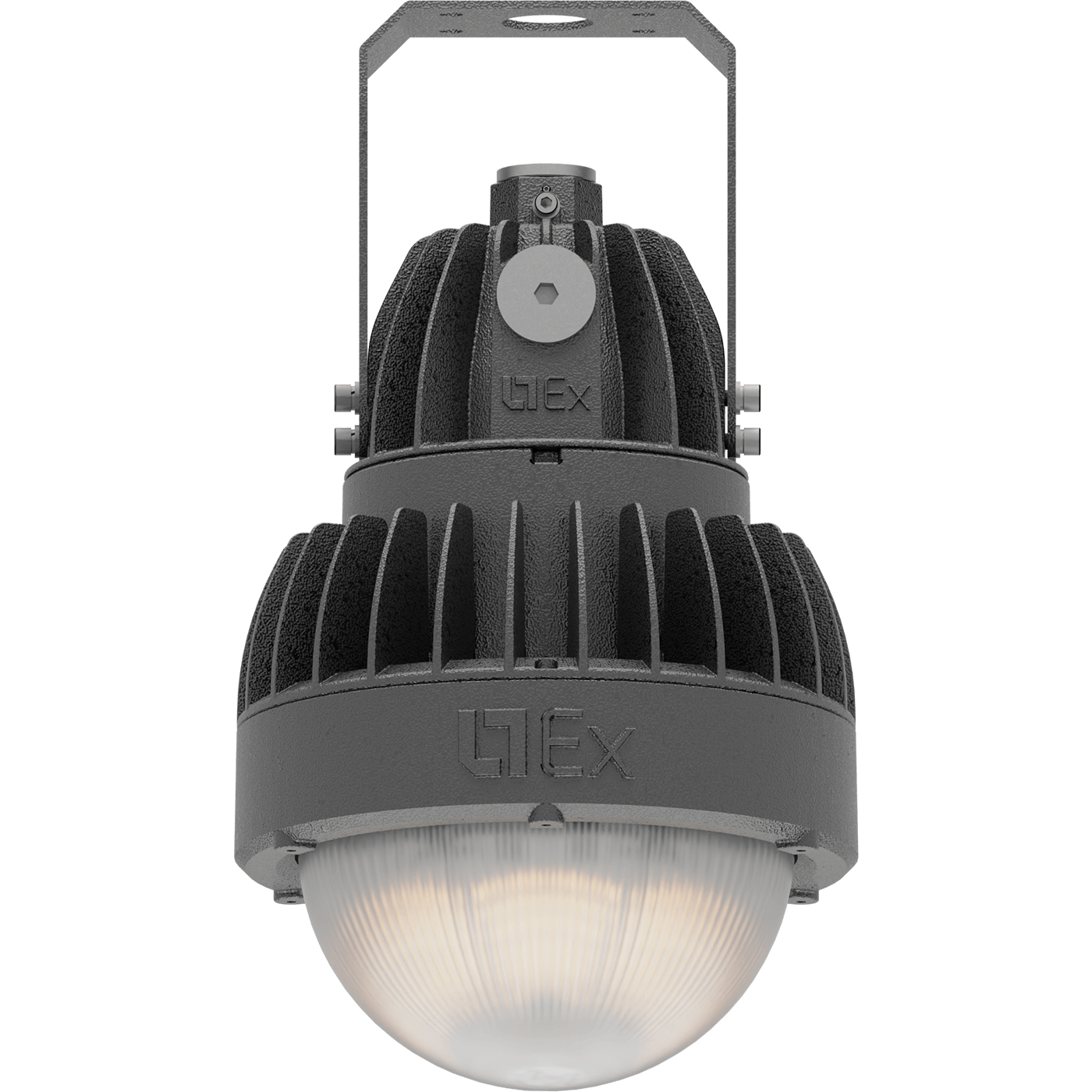

GLOBUS LED 70 D270 G Ex
add to favorites
52 Wluminaire power
8200 lmlight flow
158 lm/Wenergy efficiency
code
1388000340
color temperature
5000 K
beam angle
D270
  1. main page
  2. catalog
  3. by product type
  4. special application
  5. intergazcert
  6. explosion-proof luminaires
  7. GLOBUS LED
  8. GLOBUS LED 70 D270 G Ex
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
emission color
Белый
light source type
LED
light flow
8200 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
158 lm/W
beam angle
D270
color temperature
5000 K
illuminating
emission color
Белый
light source type
LED
light flow
8200 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
158 lm/W
beam angle
D270
color temperature
5000 K
electrical
luminaire power
52 W
electric shock protection
I
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
starting current
5 A
supply voltage
230 V
starting current pulse time
2800 µs
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІа
length
227 mm
width
227 mm
height
390 mm
material
Сплав алюминиевый
housing color
Серый
mounting type
На трубу
weight
7.5 kg
emergency
emergency power supply
Нет
common
code
1388000340
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
energy efficiency class
A++
service life
50 000 h
temperature range
от -60 до +55 C
model files
model files

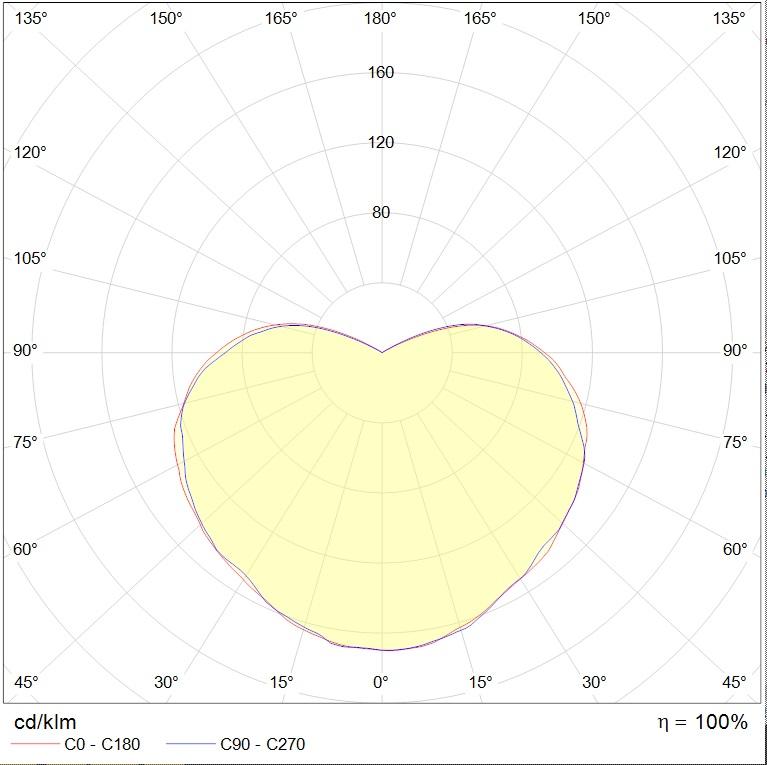

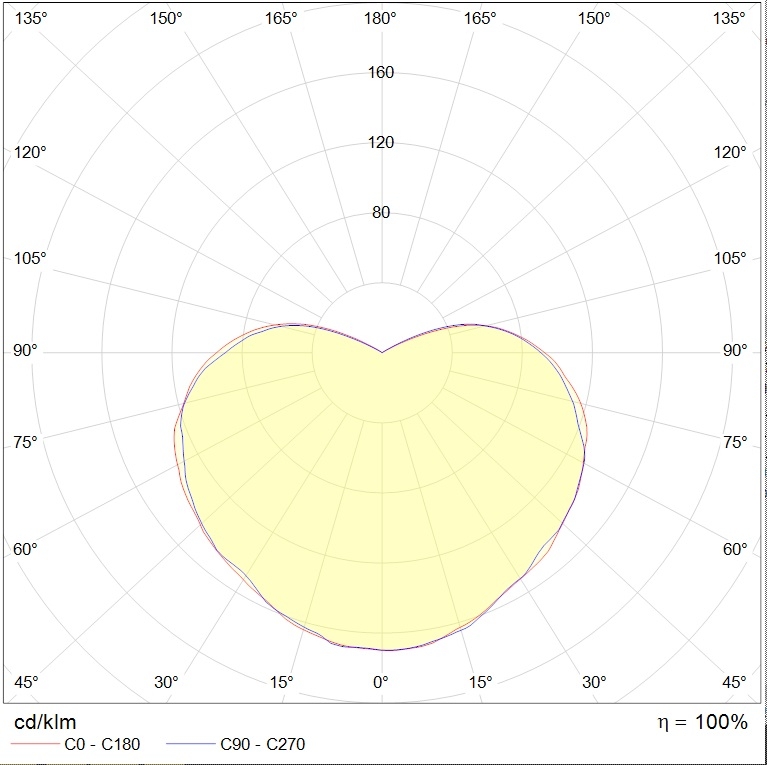

photometric files
ies107 kB
jpg100.4 kB
ldt80.2 kB
documents
passport1.1 mB
сертификаты
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011298.8 kB
Declaration of Conformity EAEU TR 037/2016295.1 kB
photometric files
ies107 kB
jpg100.4 kB
ldt80.2 kB
documents
passport1.1 mB
сертификаты
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011298.8 kB
Declaration of Conformity EAEU TR 037/2016295.1 kB
accessories
Cable entry explosion-proof М25х1,5 DSA2SMBNS0.19kgarticle: 2327017400color: Неокрашенныйø cable internal: 10,0-14,5ø cable external: 12,5-20,5
Cable entry explosion-proof М25х1,5 NA2MBNS0.05kgarticle: 2327009380color: Неокрашенныйø cable internal: 11,3-19,9
Cable entry explosion-proof М25х1,5 DSA2MBNS0.164kgarticle: 2327010070color: Неокрашенныйø cable internal: 11,3-19,9ø cable external: 19,9-26,2
