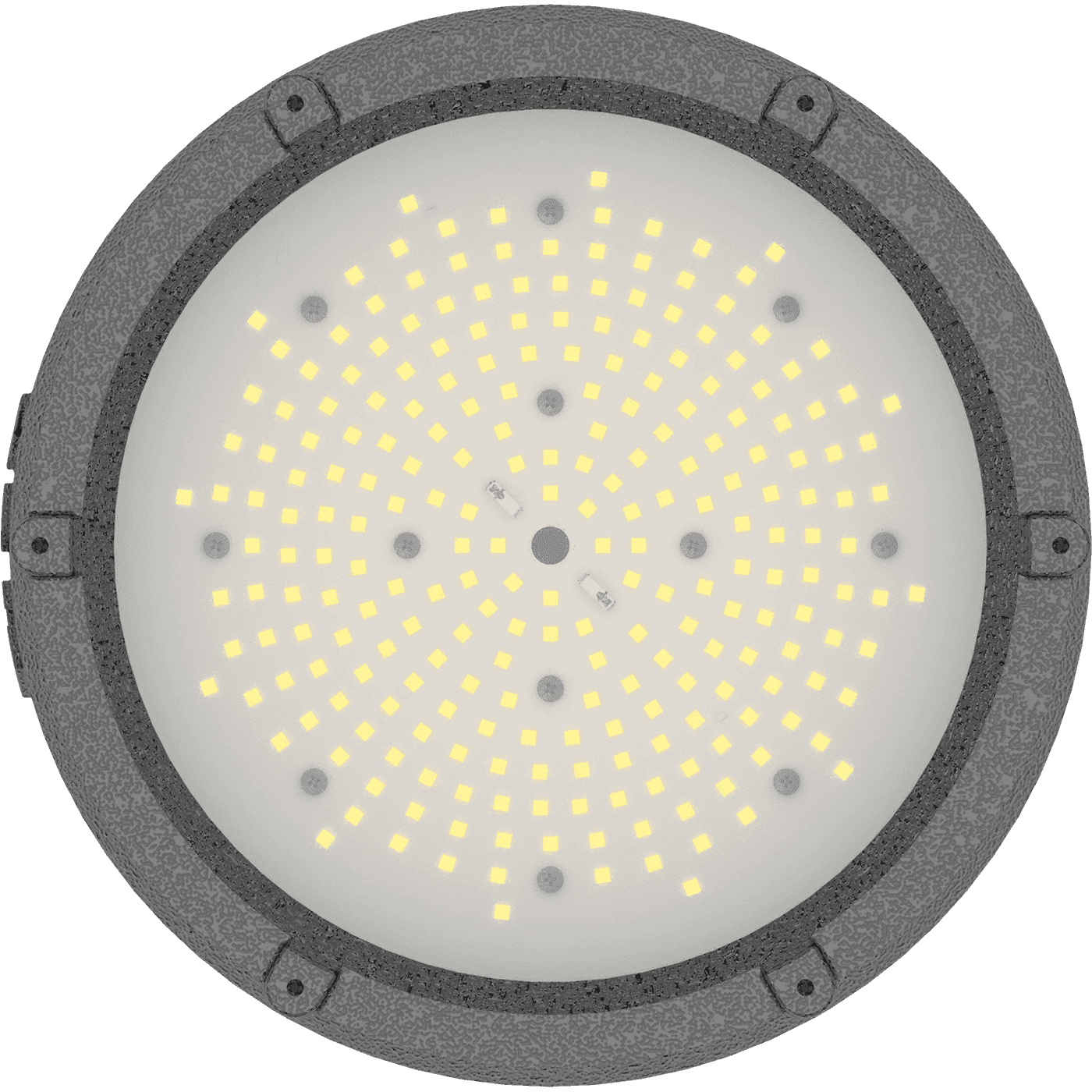

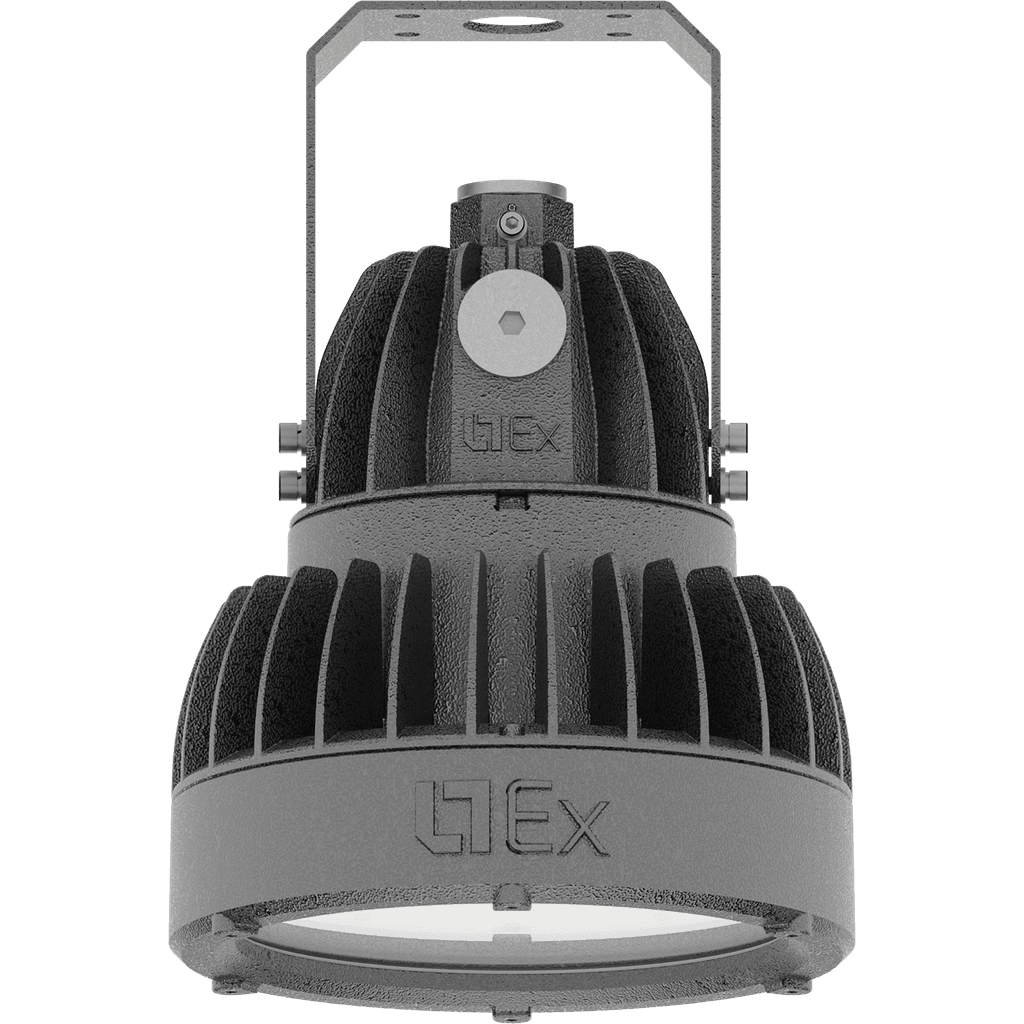

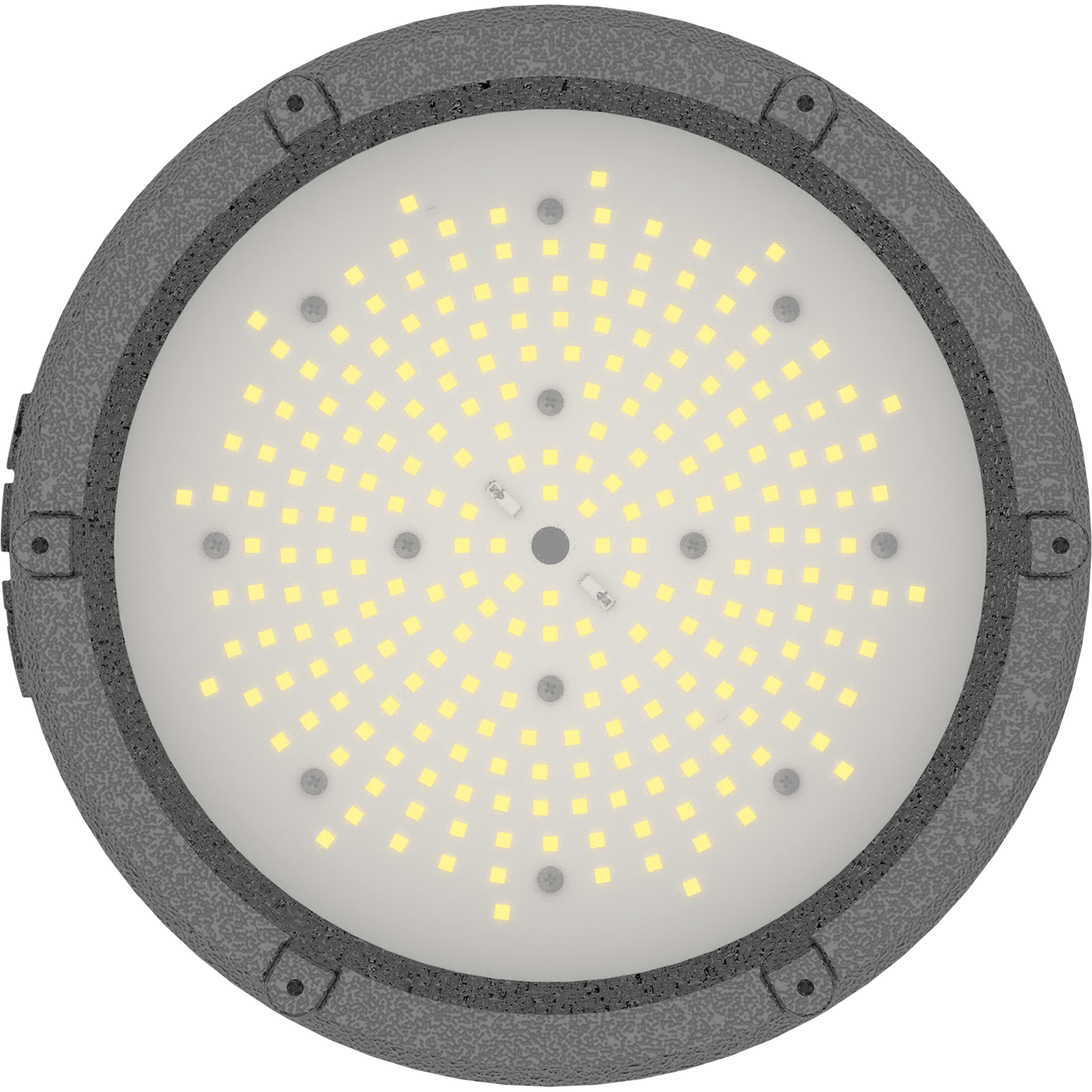

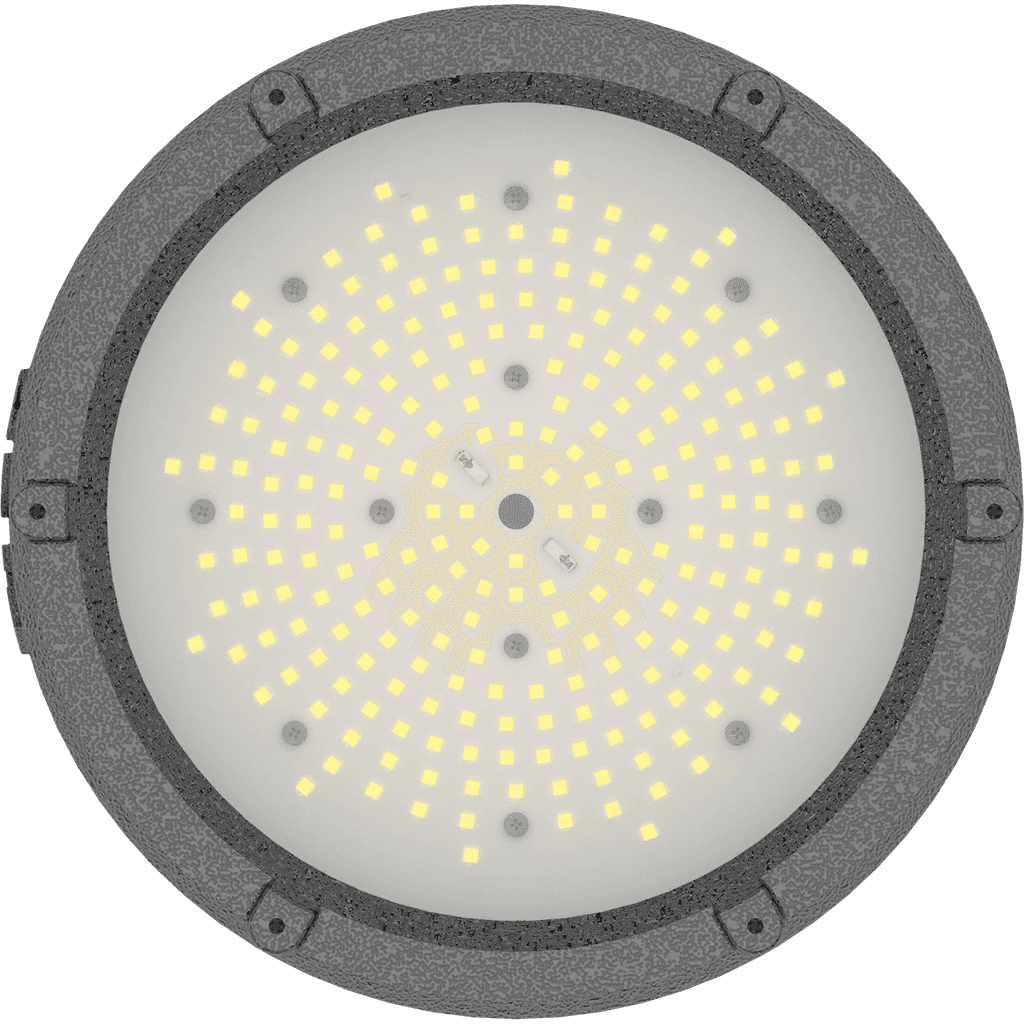

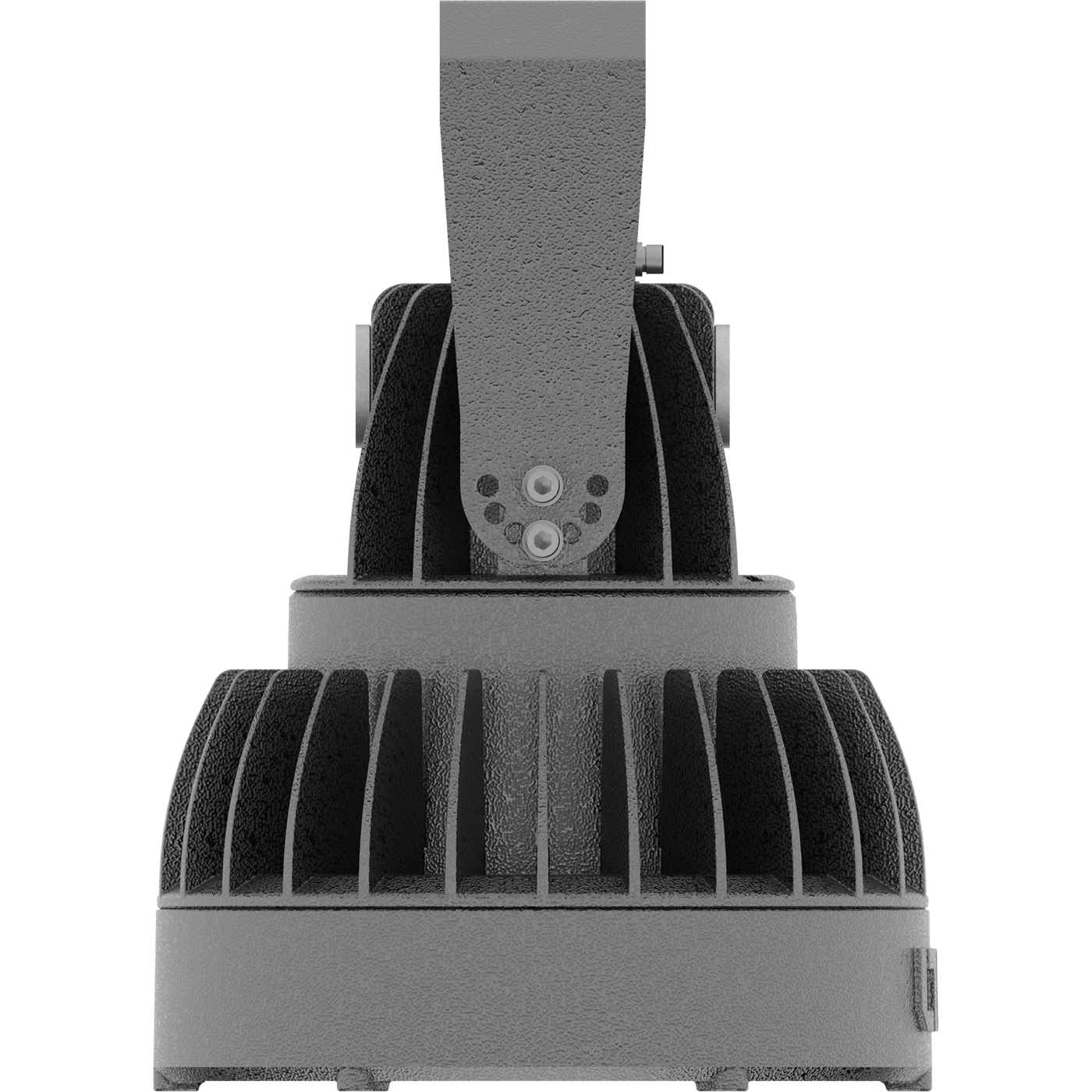

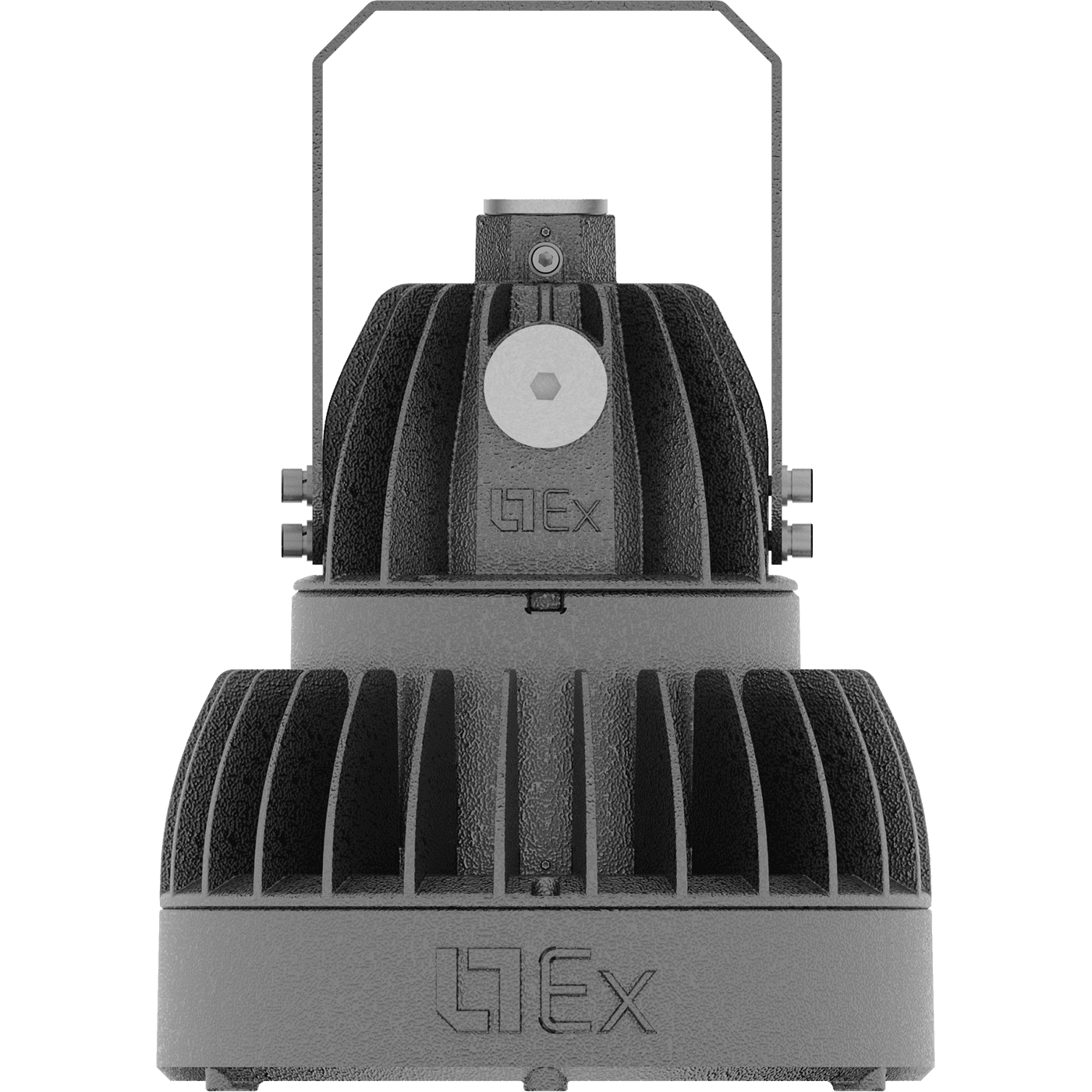

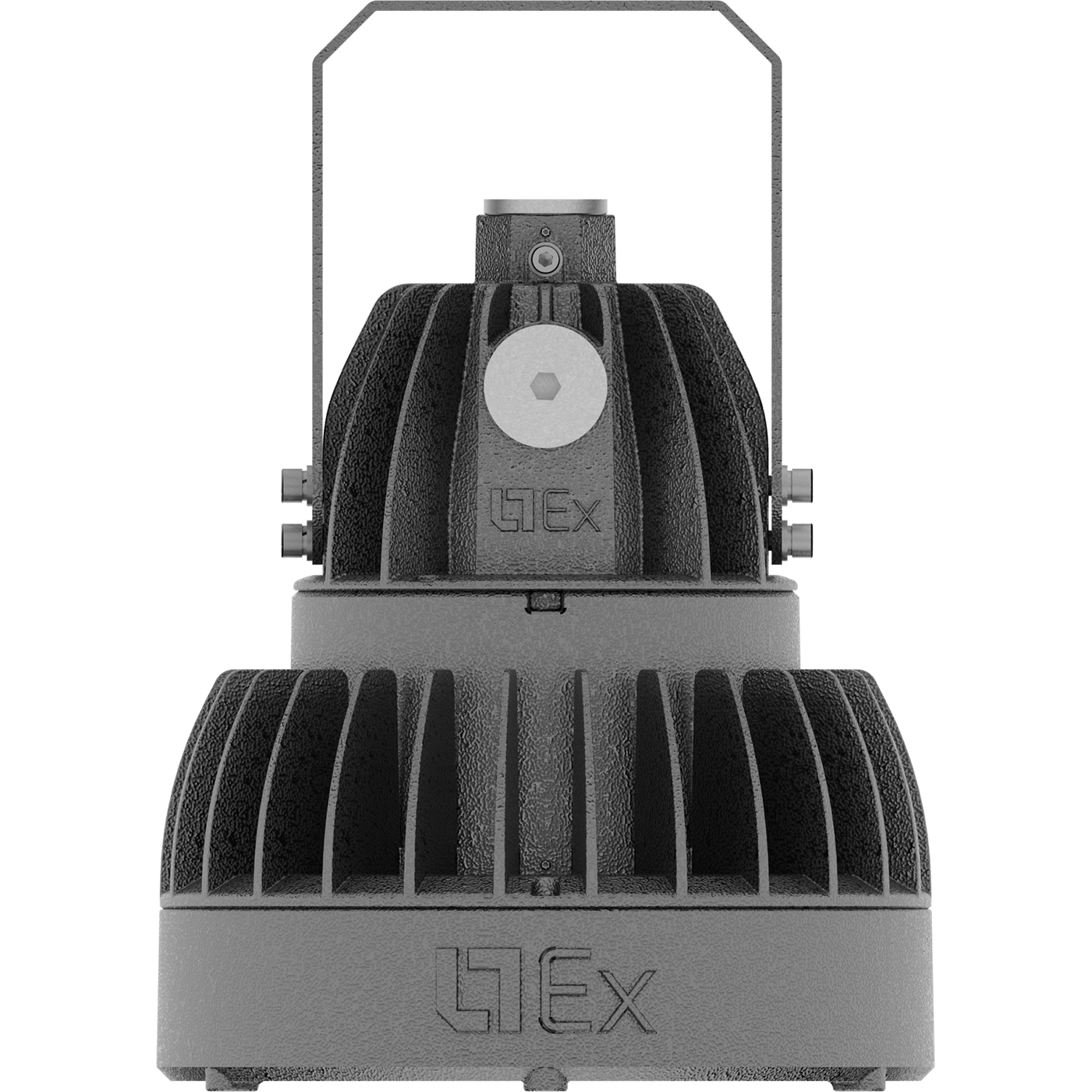

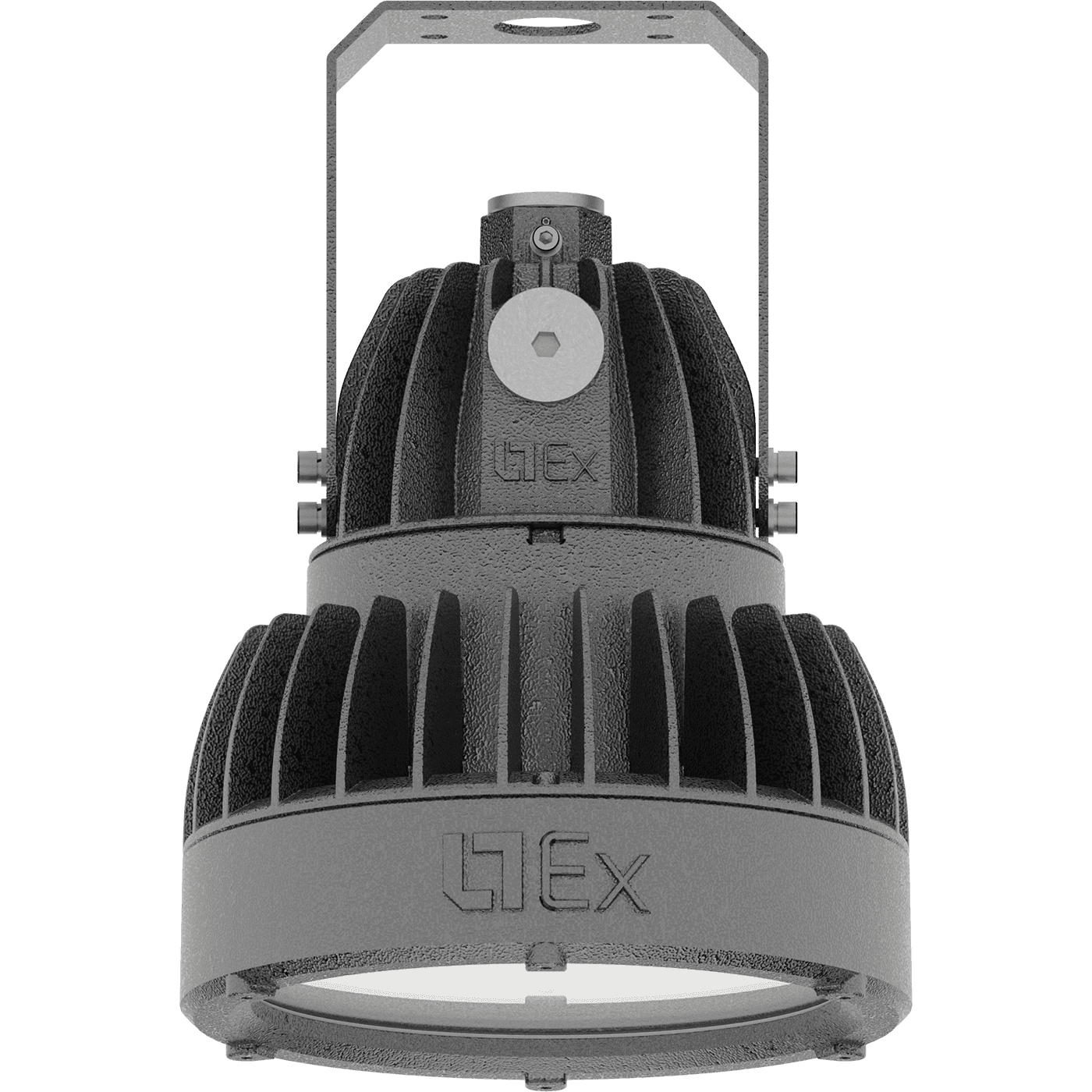

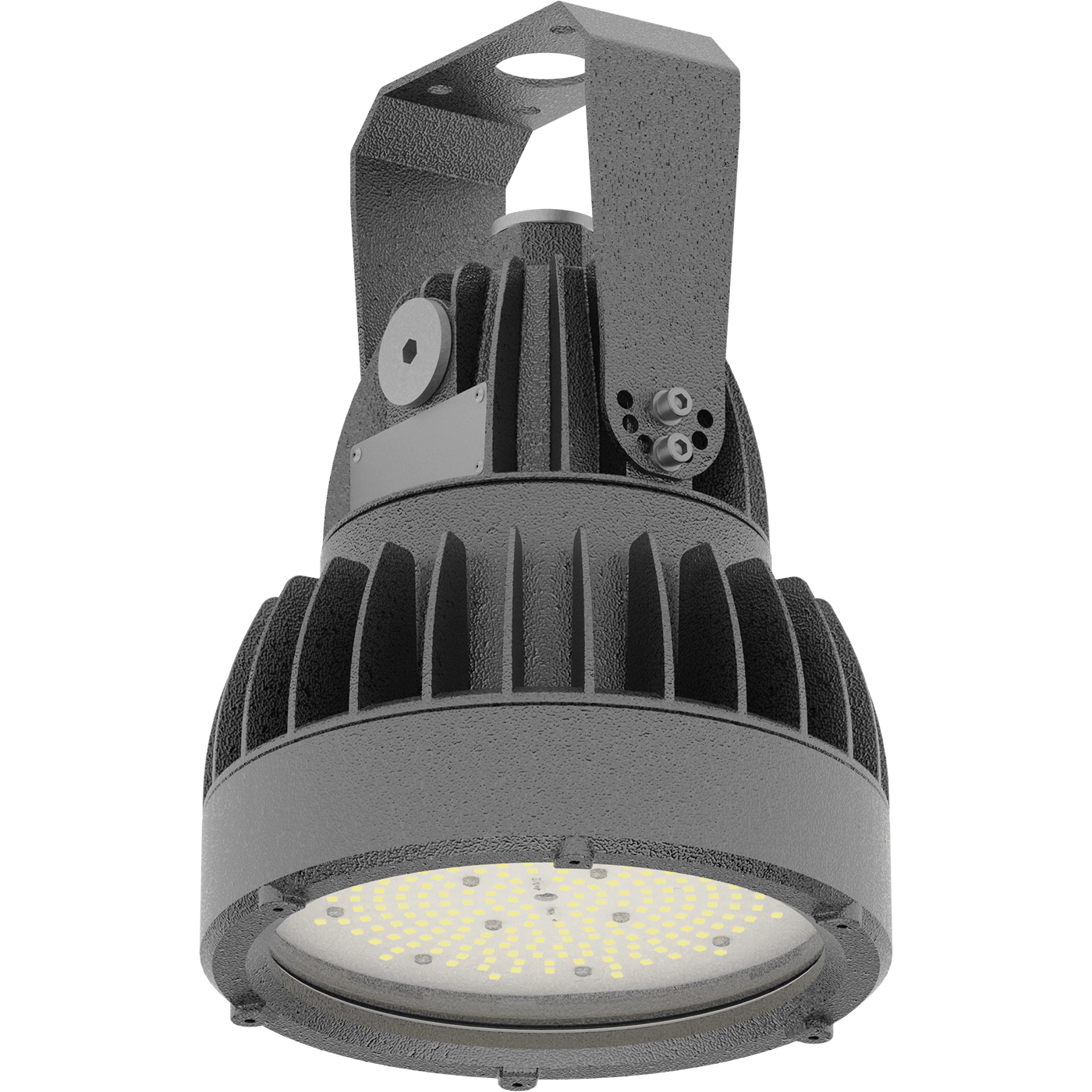

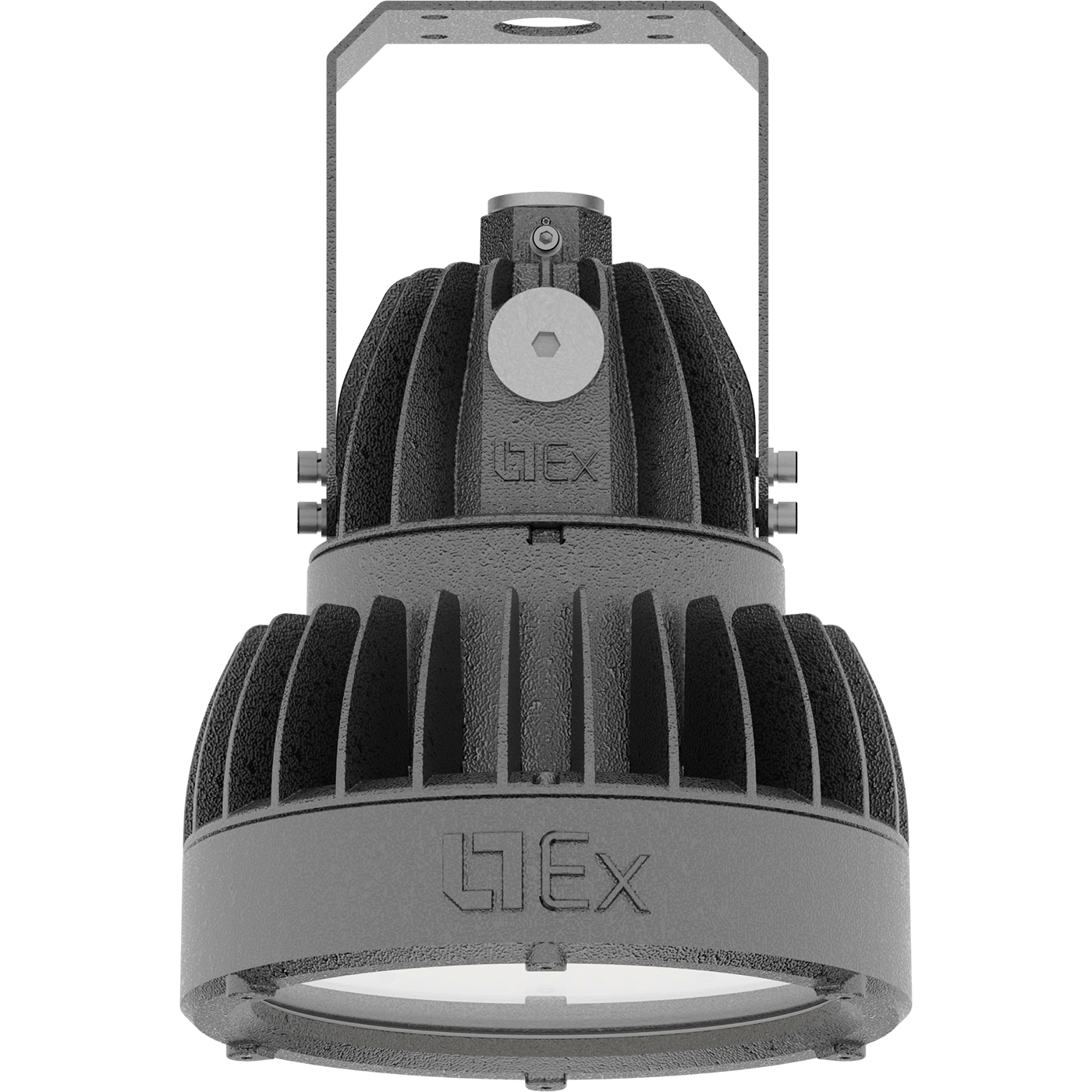

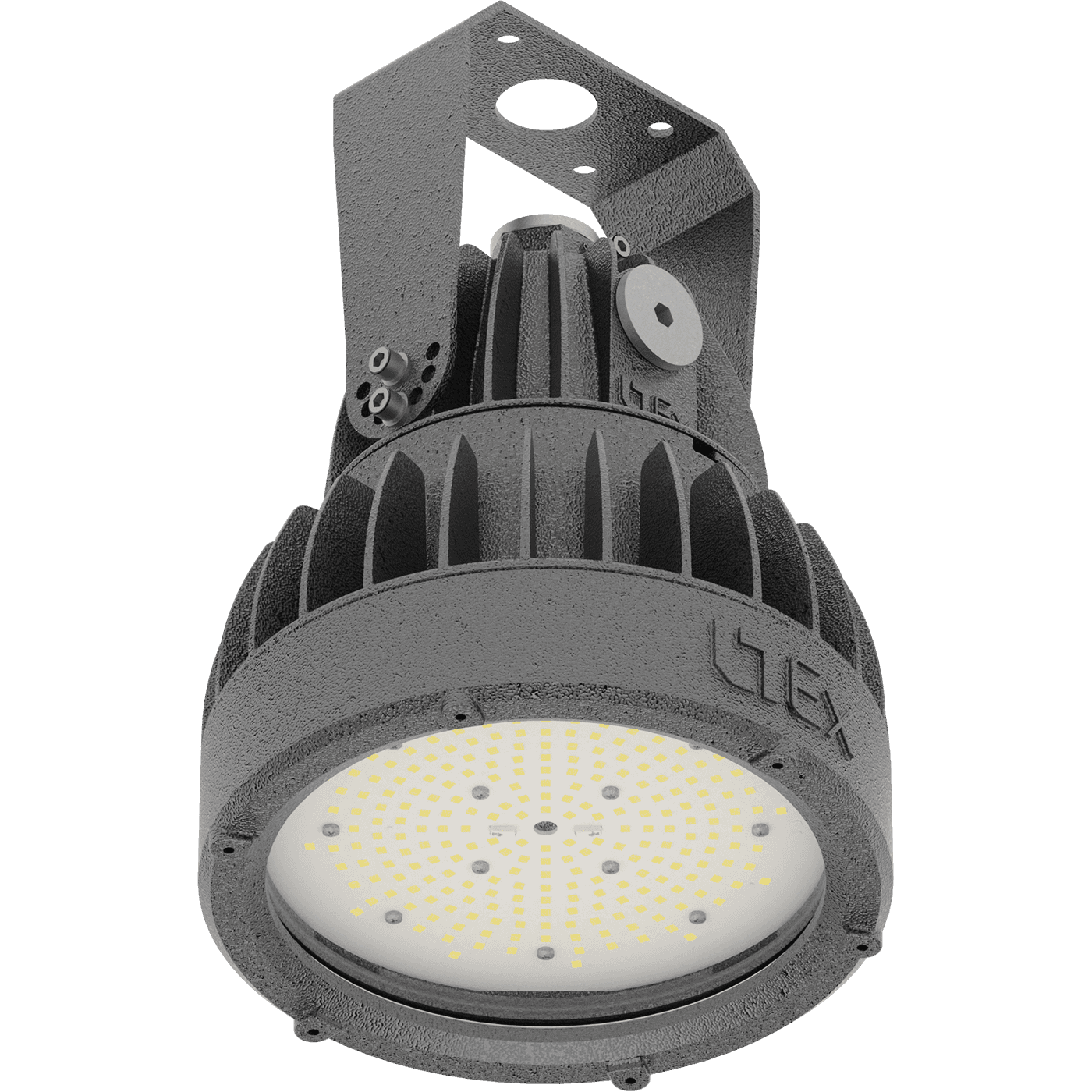

GLOBUS LED 50 D120 BT Ex
GLOBUS LED 50 D120 BT Ex
42 Wluminaire power
6000 lmlight flow
143 lm/Wenergy efficiency
code
1388000200
color temperature
5000 K
beam angle
D120
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
emission color
Белыйlight source type
LEDlight flow
6000 lmcolor rendition index (CRI)
>80flickering factor
<1%energy efficiency
143 lm/Wbeam angle
D120color temperature
5000 Killuminating
emission color
Белый
light source type
LED
light flow
6000 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
143 lm/W
beam angle
D120
color temperature
5000 K
electrical
luminaire power
42 W
electric shock protection
I
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
starting current
5 A
supply voltage
230 V
starting current pulse time
2000 µs
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK08/7 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІа
length
227 mm
width
227 mm
height
325 mm
material
Сплав алюминиевый
housing color
Серый
mounting type
weight
6.9 kg
emergency
emergency power supply
Нет
common
code
1388000200
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
energy efficiency class
A++
service life
50 000 h
temperature range
от -60 до +55 C
model files
model files

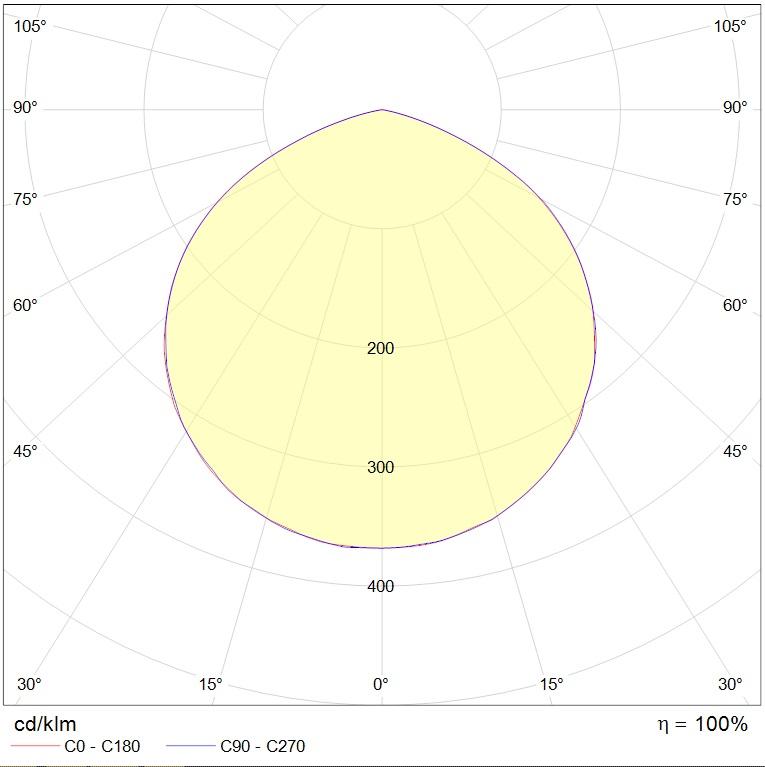

photometric files
documents
сертификаты

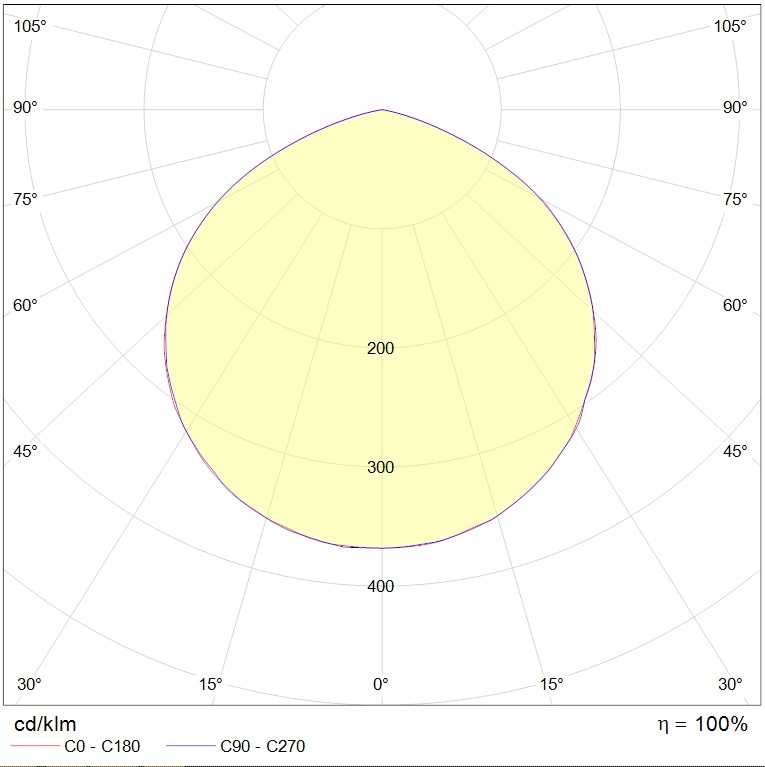

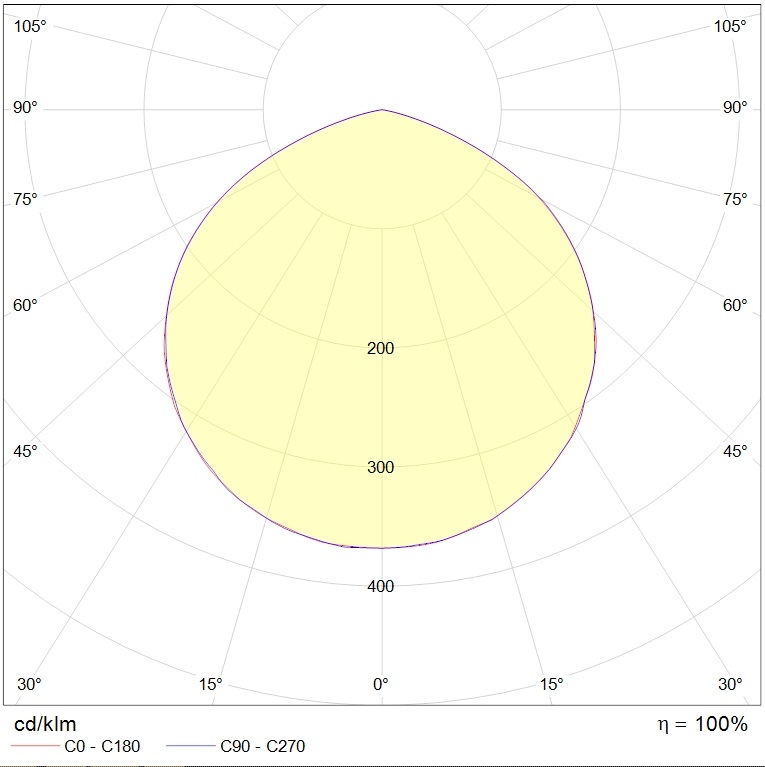

photometric files
ies107 kB
jpg77.7 kB
ldt64.2 kB
csv432 B
documents
passport1.1 mB
сертификаты
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011298.8 kB
Declaration of Conformity EAEU TR 037/2016295.1 kB
accessories
Cable entry explosion-proof М25х1,5 DSA2SMBNS0.19kgarticle: 2327017400color: Неокрашенныйø cable internal: 10,0-14,5ø cable external: 12,5-20,5
Cable entry explosion-proof М25х1,5 NA2MBNS0.05kgarticle: 2327009380color: Неокрашенныйø cable internal: 11,3-19,9
Cable entry explosion-proof М25х1,5 DSA2MBNS0.164kgarticle: 2327010070color: Неокрашенныйø cable internal: 11,3-19,9ø cable external: 19,9-26,2
