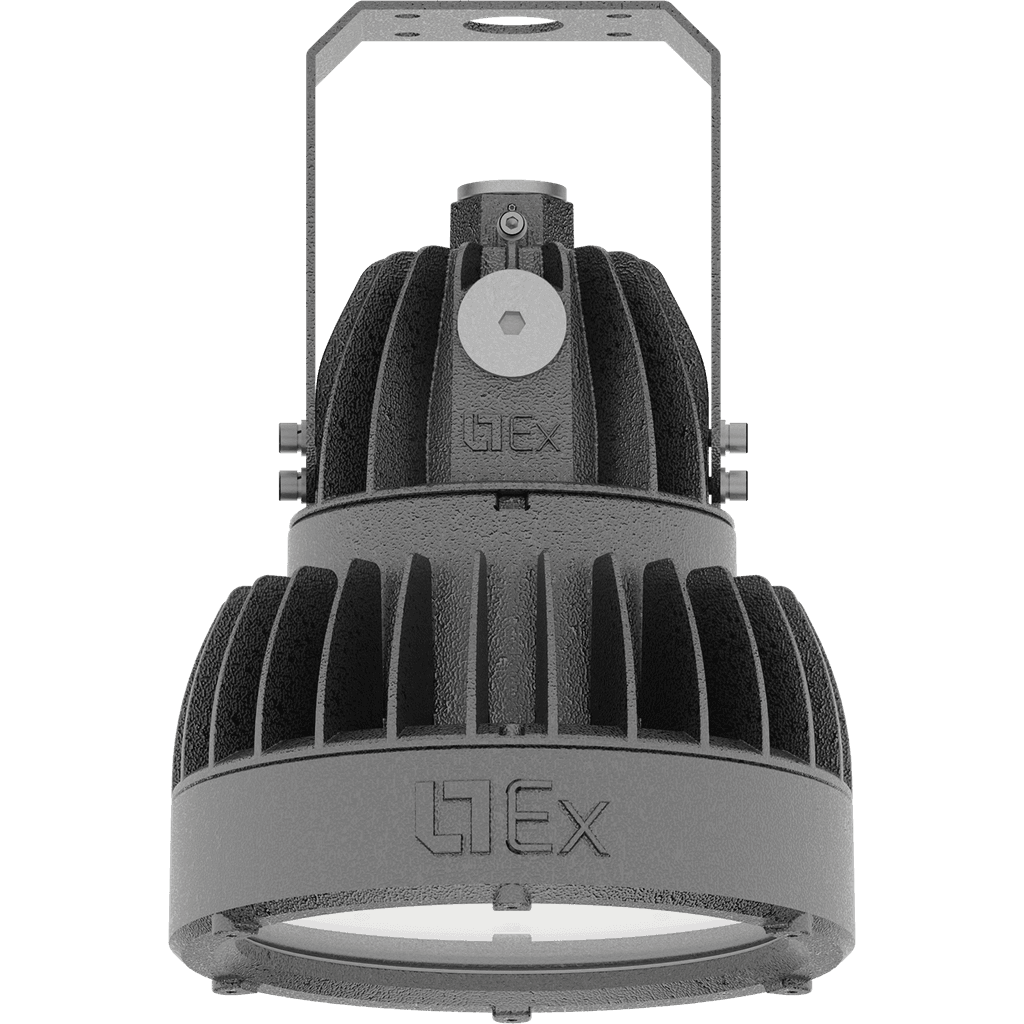

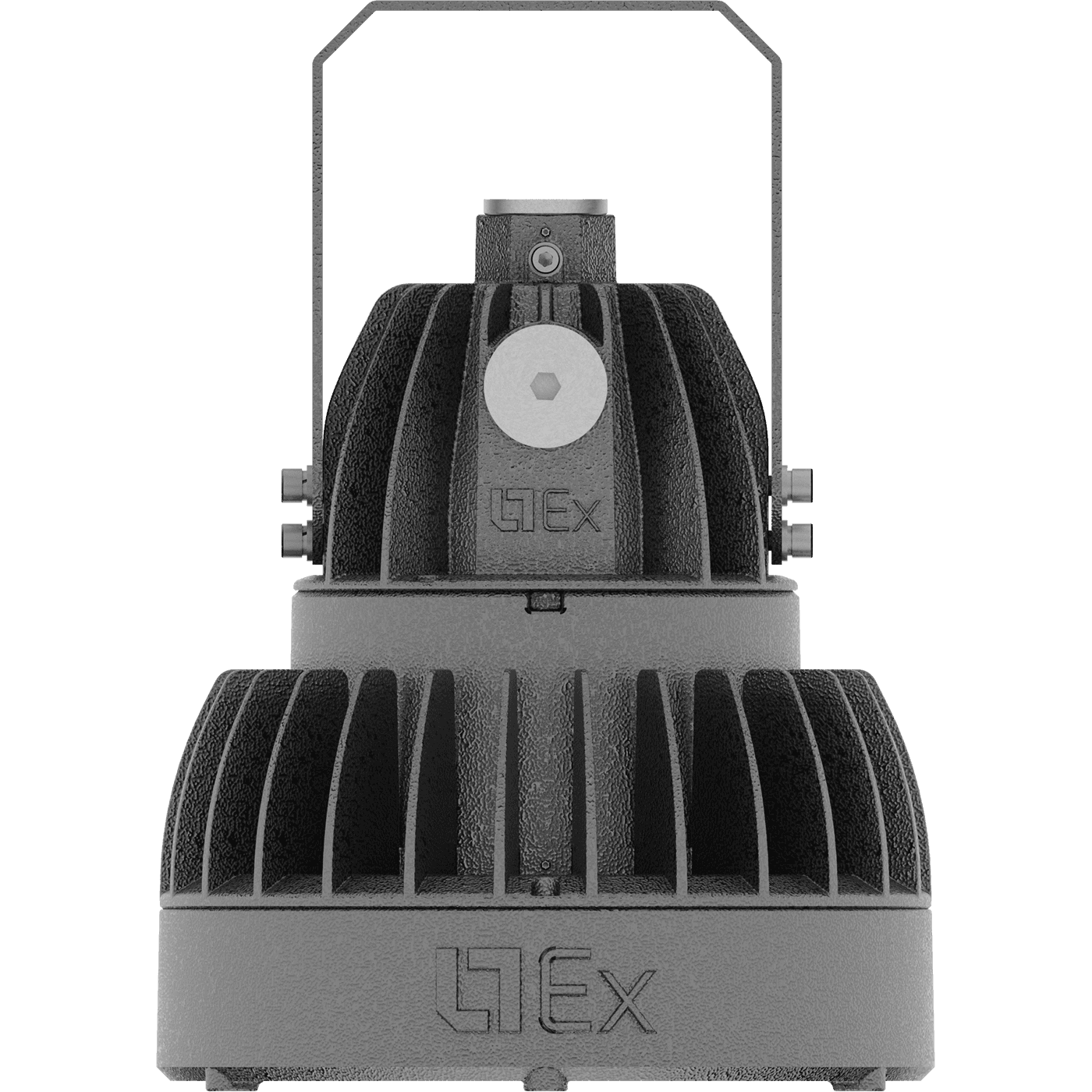

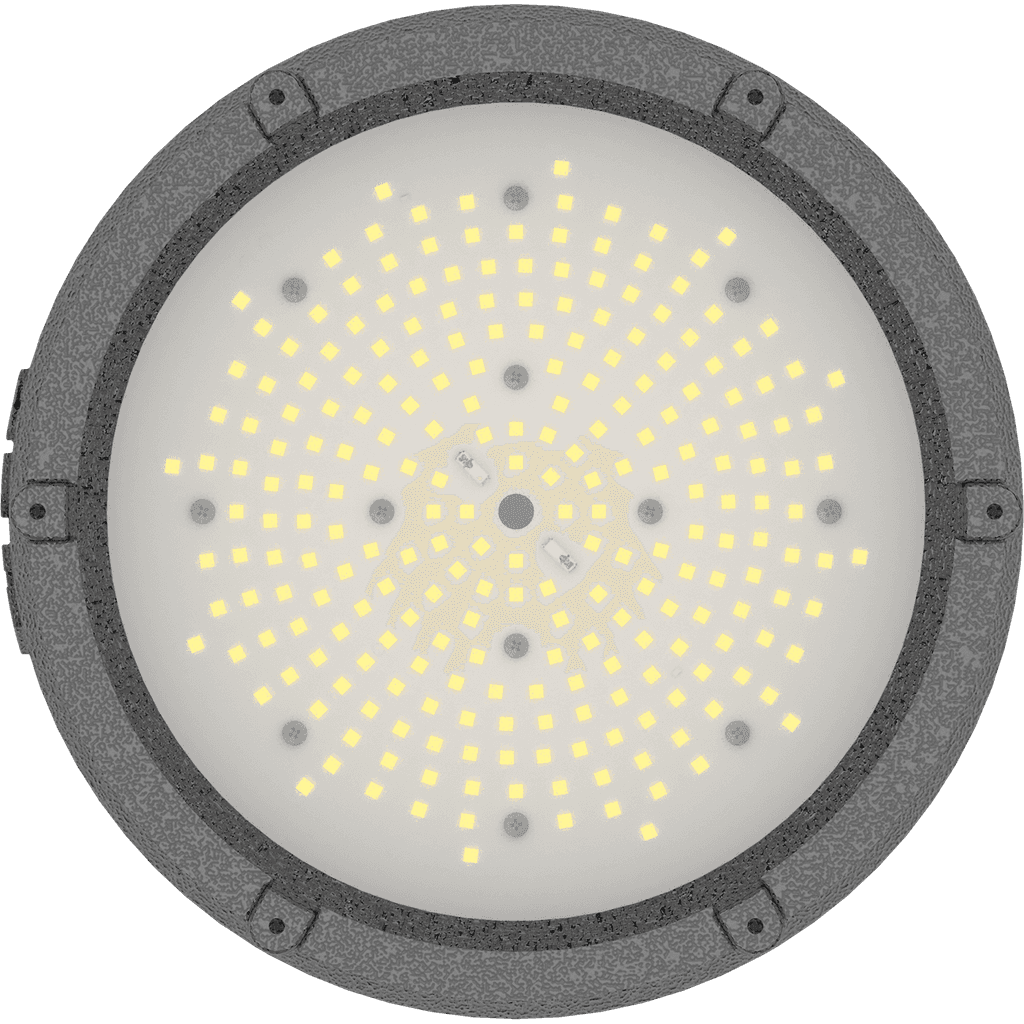

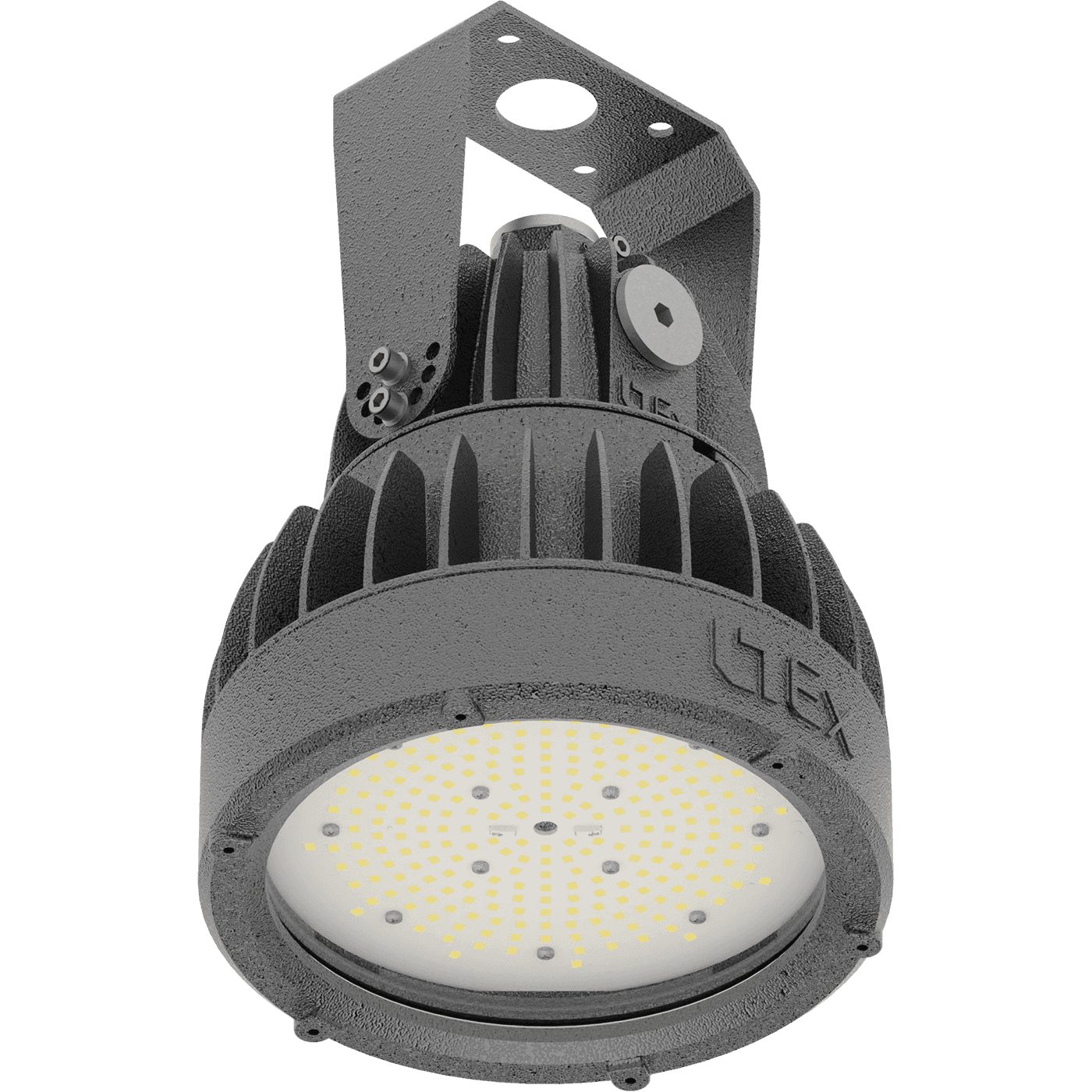

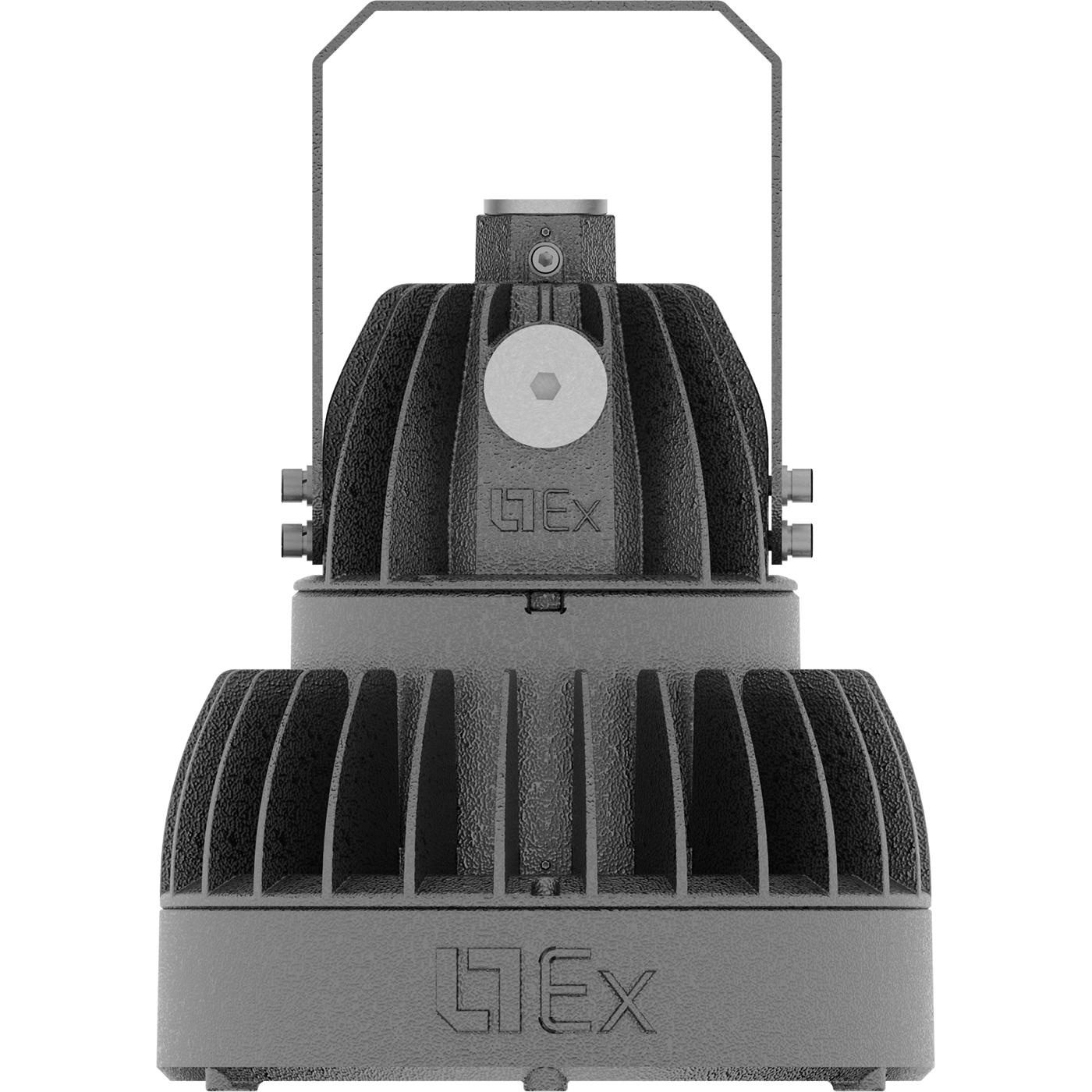

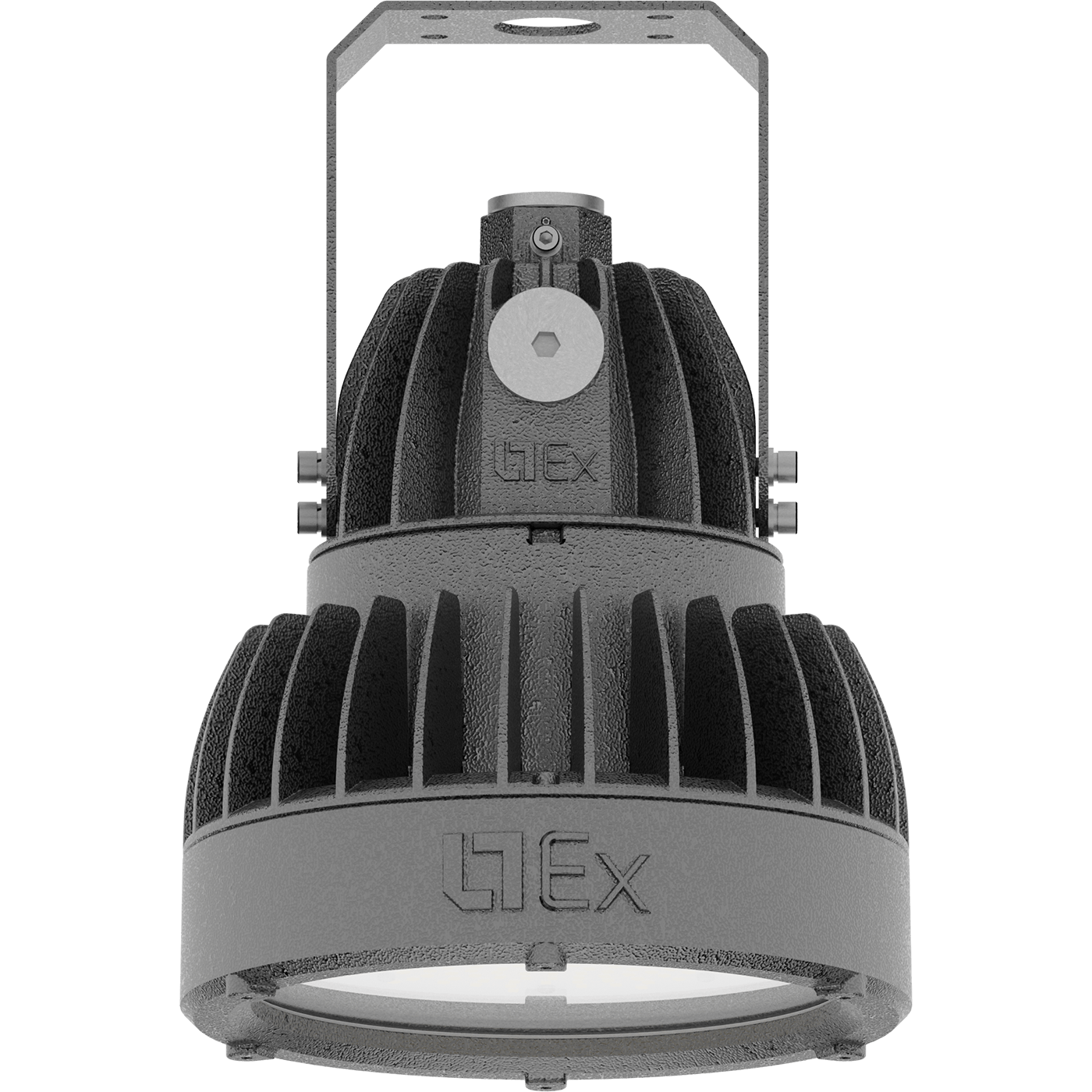

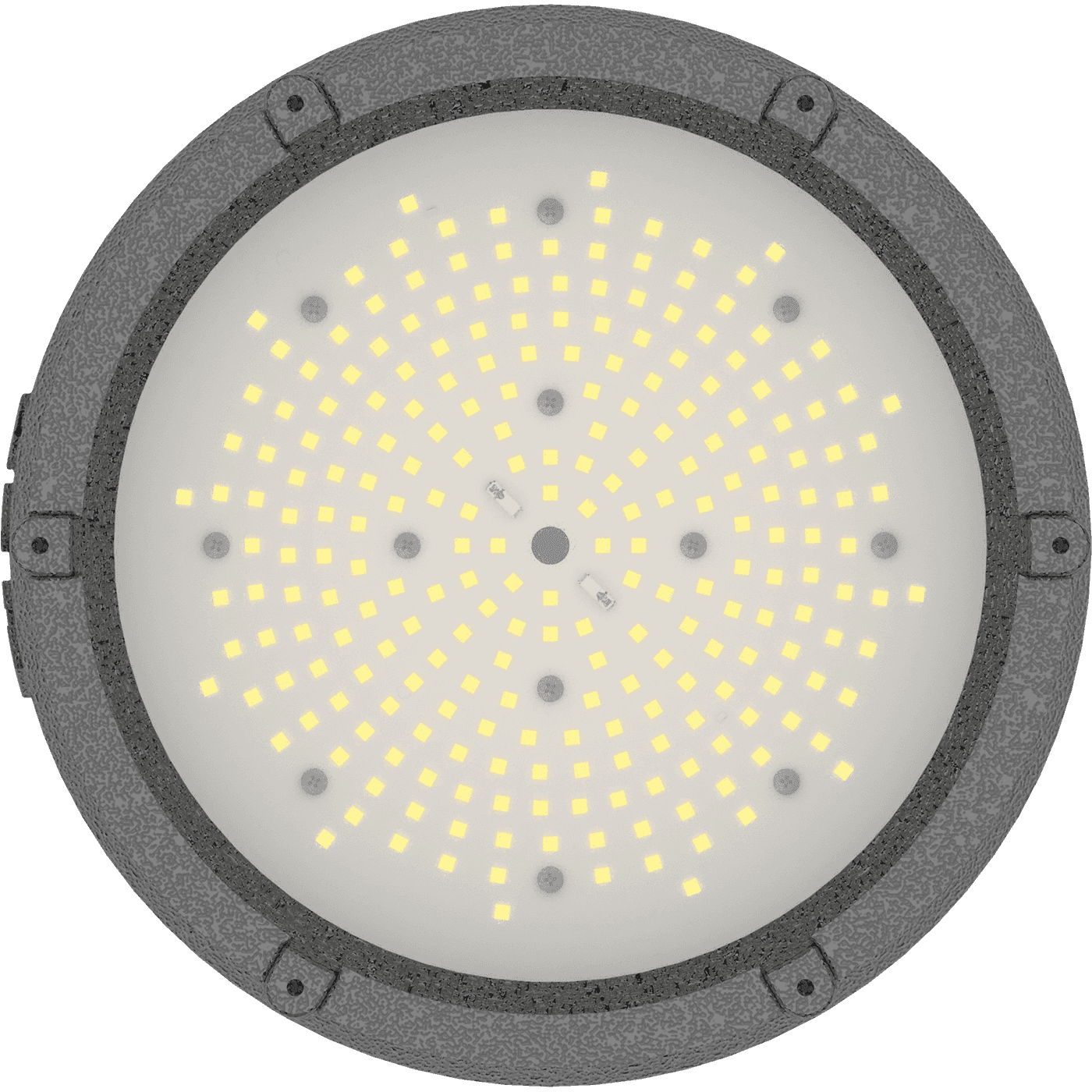

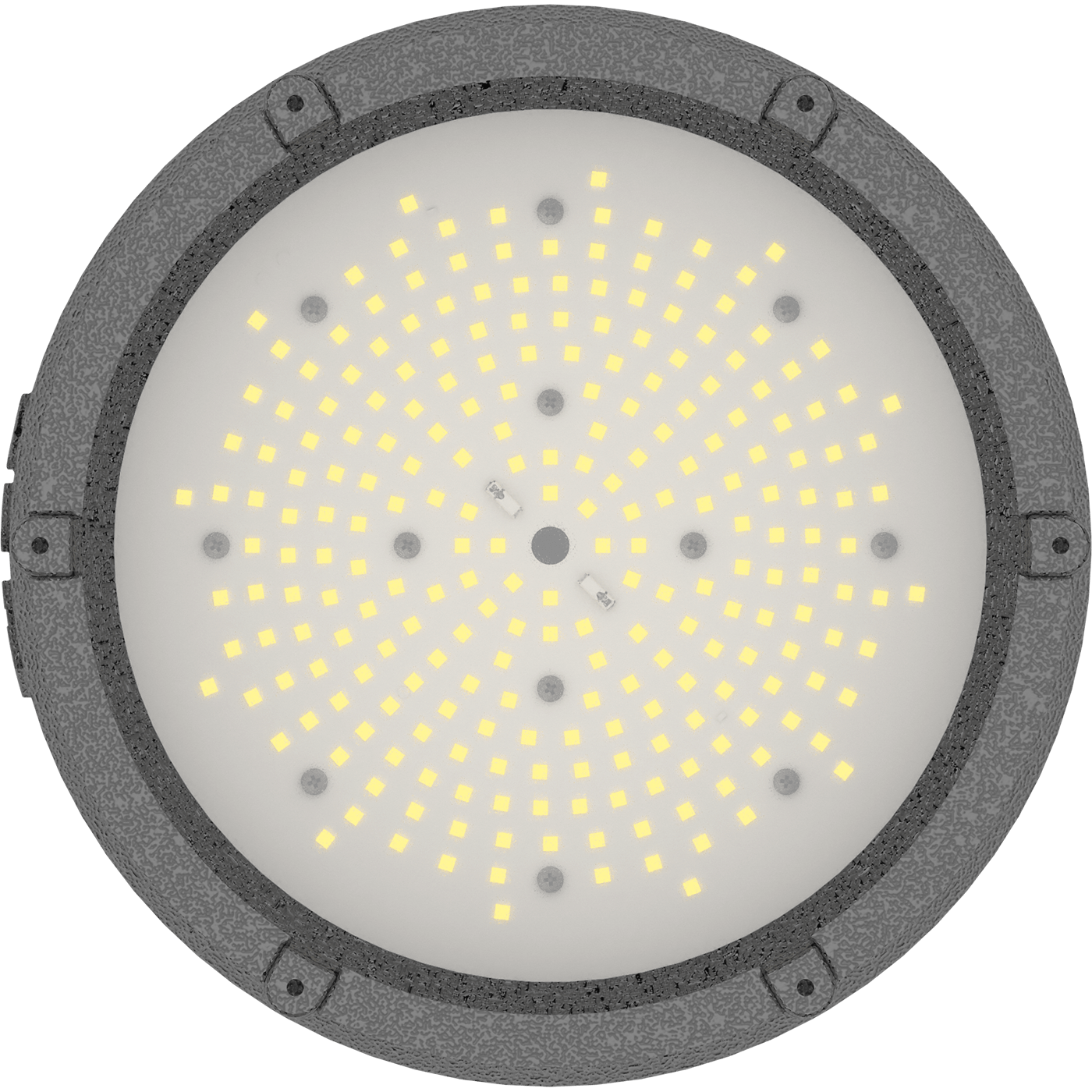

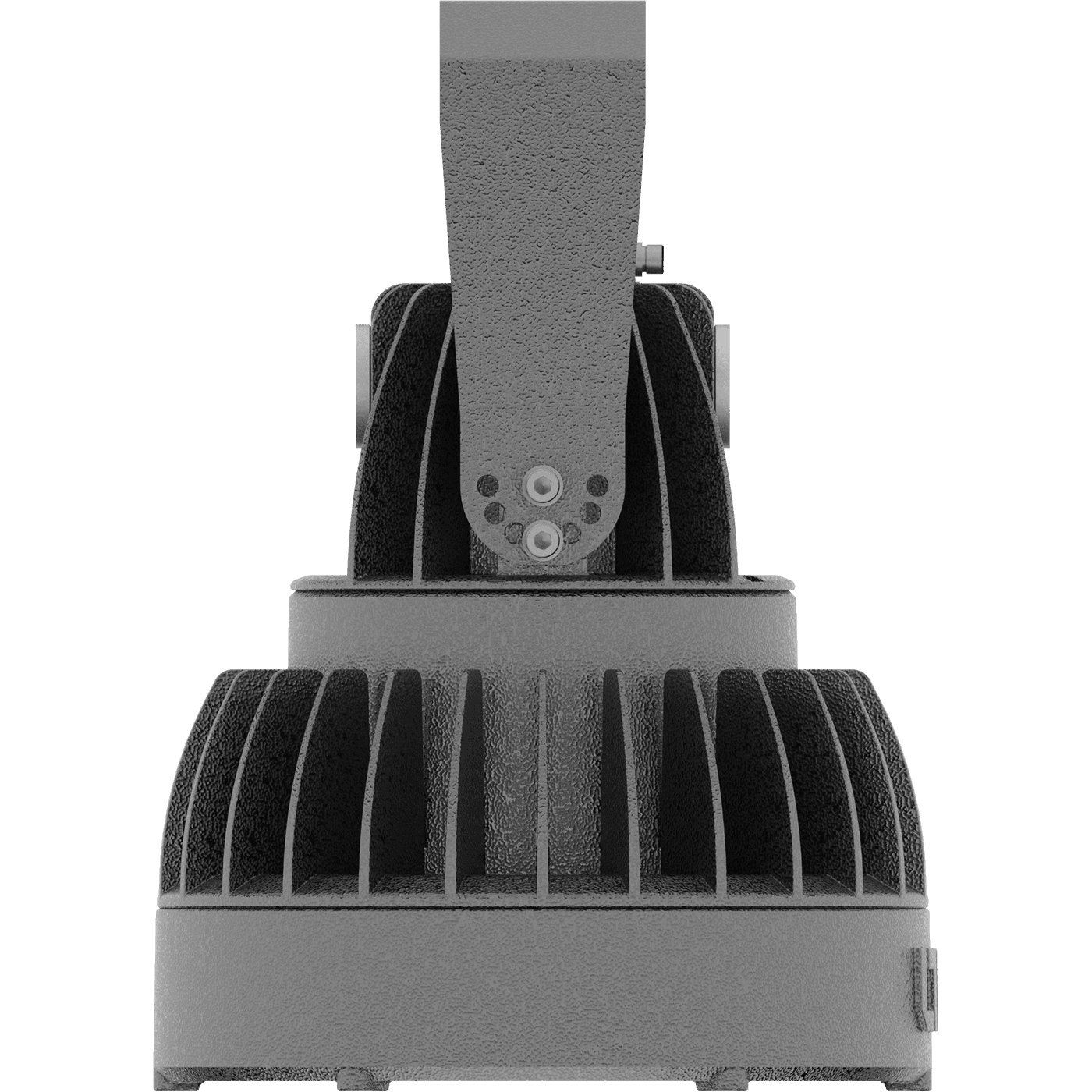

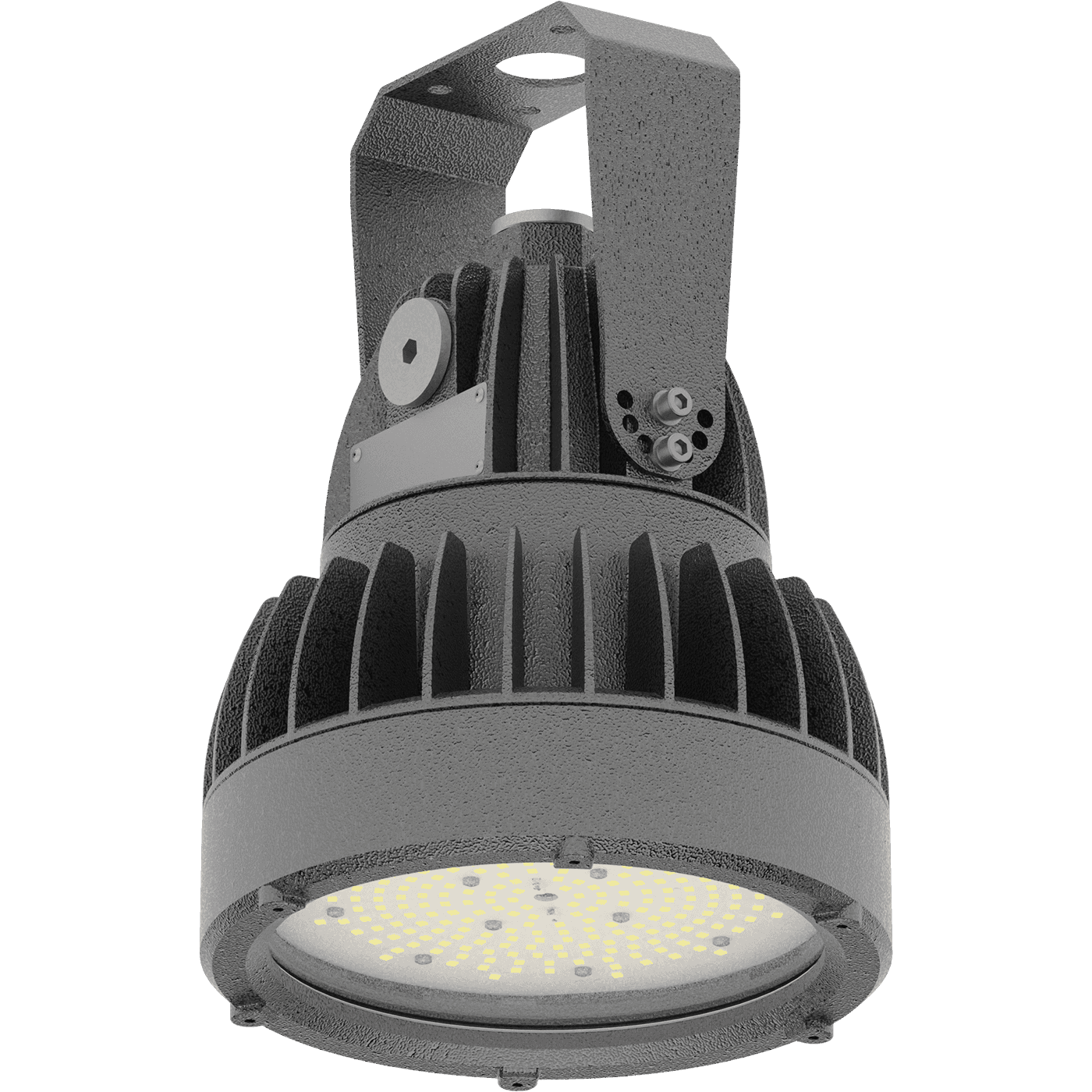

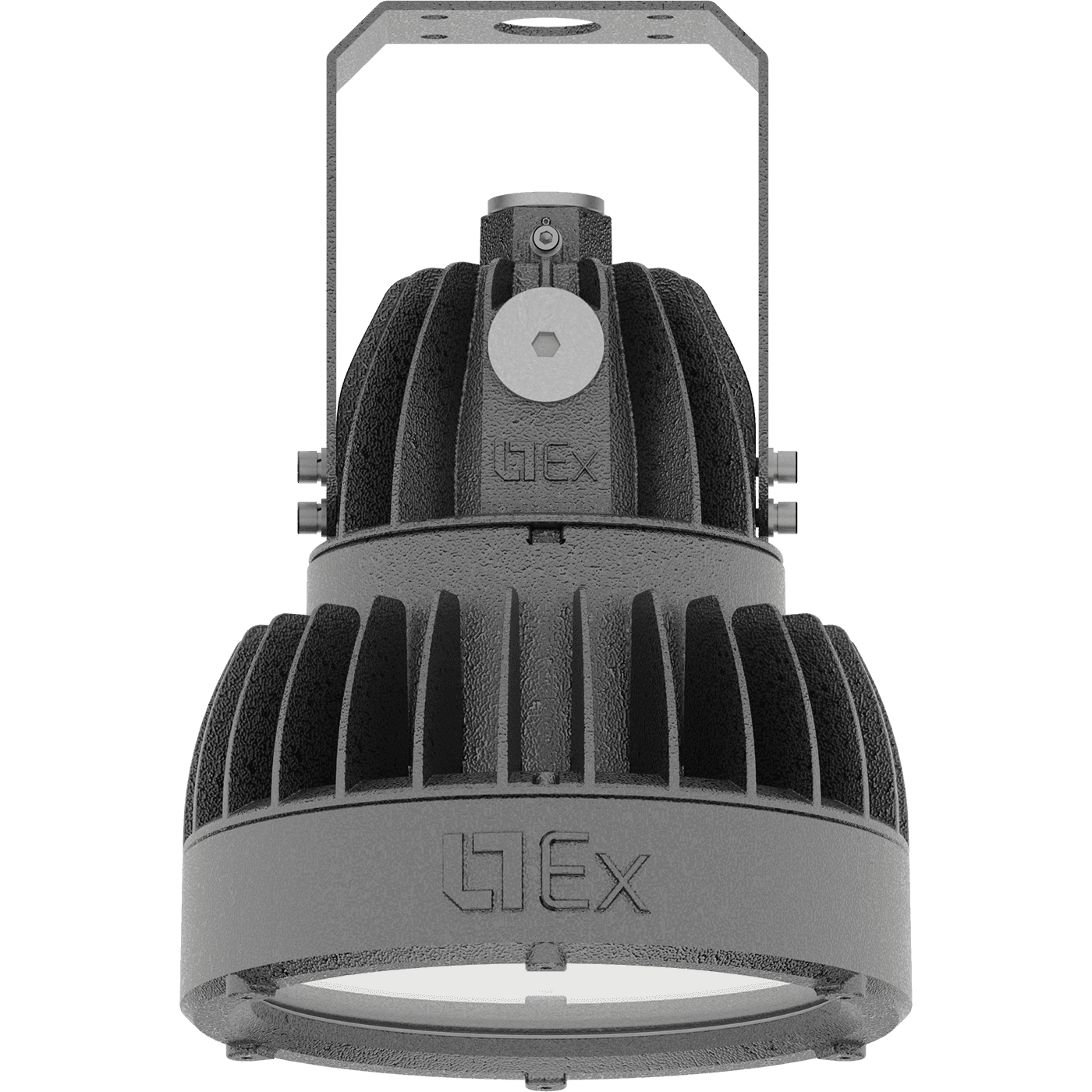

GLOBUS LED 30 D120 BT Ex
GLOBUS LED 30 D120 BT Ex
32 Wluminaire power
4800 lmlight flow
150 lm/Wenergy efficiency
code1388000510
color temperature5000 K
beam angleD120
options
свернуть все
illuminatingelectricalconstructionalcommon
emission color
Белыйlight source type
LEDlight flow
4800 lmcolor rendition index (CRI)
>80flickering factor
<1%energy efficiency
150 lm/Wbeam angle
D120color temperature
5000 Killuminating
emission color
Белый
light source type
LED
light flow
4800 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
150 lm/W
beam angle
D120
color temperature
5000 K
electrical
luminaire power
32 W
electric shock protection
I
power factor
> 0,97
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK08/7 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІа
length
227 mm
width
227 mm
height
397 mm
installation width
59 mm
material
Сплав алюминиевый
housing color
Серый
weight
7 kg
common
code
1388000510
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
energy efficiency class
A++
service life
50 000 h
temperature range
от -60 до +55 C
model files
model files

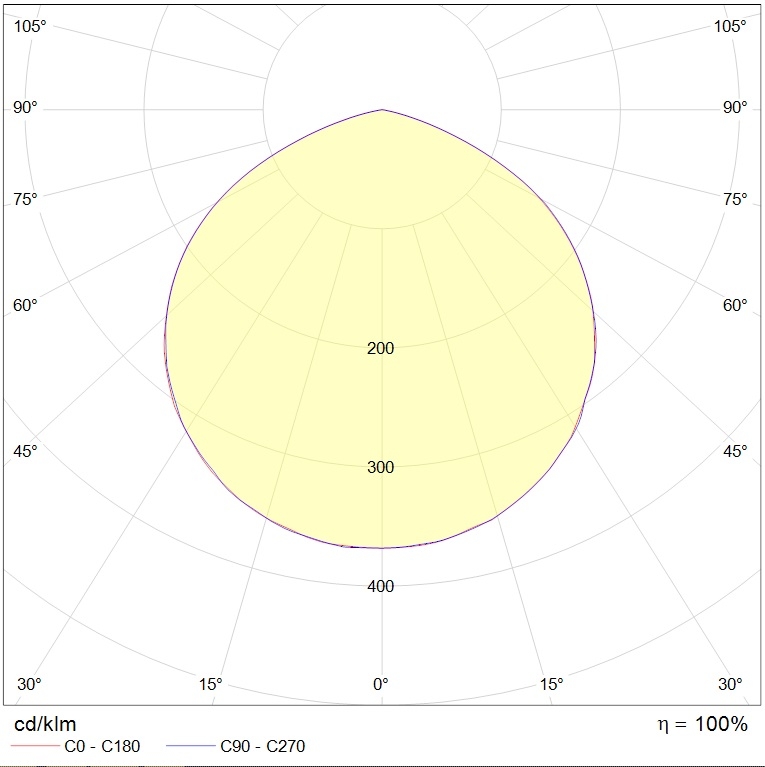

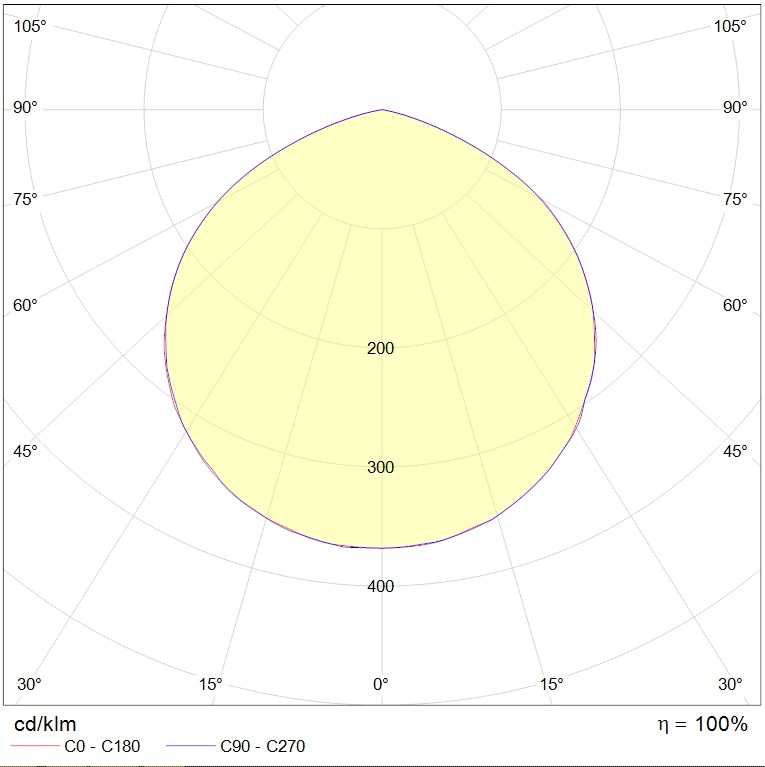

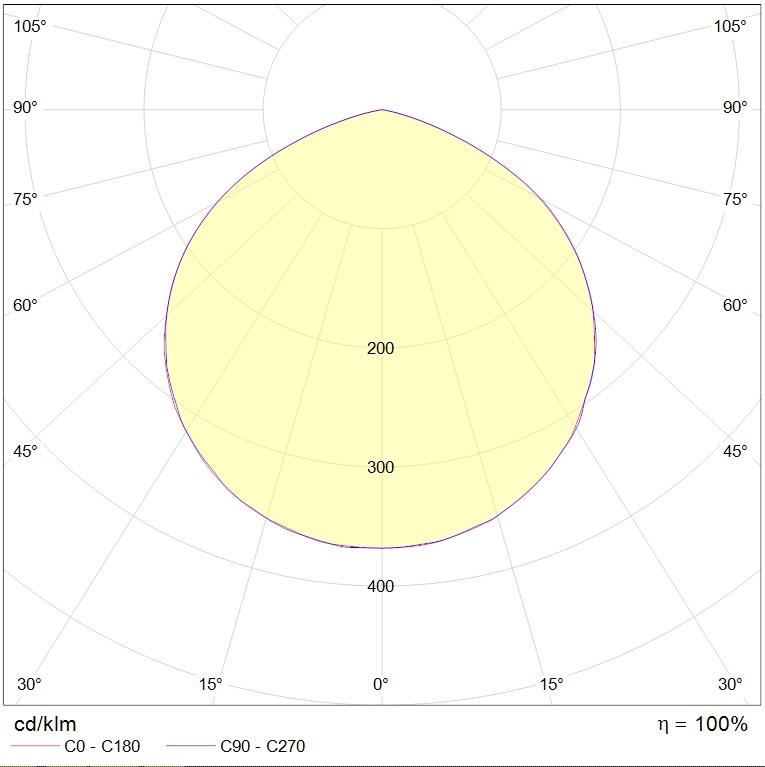

photometric files
сертификаты
photometric files
ies107 kB
jpg77.7 kB
ldt64.2 kB
сертификаты
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
