GLOBUS LED 25 D270 B Ex
GLOBUS LED 25 D270 B Ex
28 Wluminaire power
3800 lmlight flow
136 lm/Wenergy efficiency
code1388000450
color temperature5000 K
beam angleD270
options
свернуть все
illuminatingelectricalconstructionalcommon
emission color
Белыйlight source type
LEDlight flow
3800 lmcolor rendition index (CRI)
>80flickering factor
<1%energy efficiency
136 lm/Wbeam angle
D270color temperature
5000 Killuminating
emission color
Белый
light source type
LED
light flow
3800 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
136 lm/W
beam angle
D270
color temperature
5000 K
electrical
luminaire power
28 W
electric shock protection
I
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
starting current
30 A
supply voltage
230 V
starting current pulse time
500 µs
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK08/7 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІа
length
160 mm
width
150 mm
height
365 mm
installation width
35 mm
material
Сплав алюминиевый
housing color
Серый
weight
4.2 kg
common
code
1388000450
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
energy efficiency class
A+
service life
50 000 h
temperature range
от -60 до +55 C
model files
model files

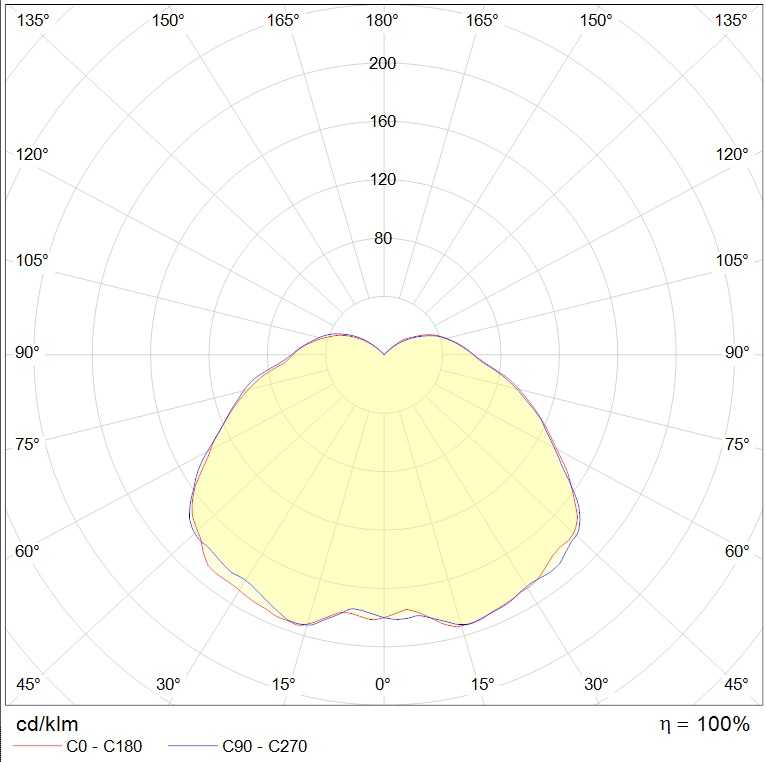

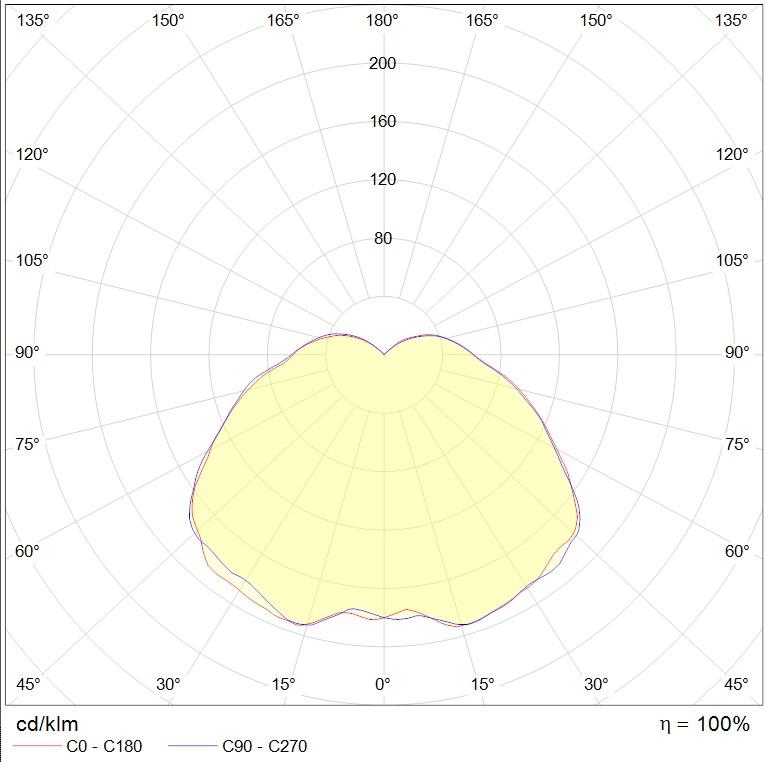

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg100.9 kB
ldt87 kB
documents
passport1.1 mB
сертификаты
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
accessories
Cable entry explosion-proof М25х1,5 DSA2SMBNS0.19kgarticle: 2327017400color: Неокрашенныйø cable internal: 10,0-14,5ø cable external: 12,5-20,5
Cable entry explosion-proof М25х1,5 DSA2MBNS0.164kgarticle: 2327010070color: Неокрашенныйø cable internal: 11,3-19,9ø cable external: 19,9-26,2
