GLOBUS LED 15 D270 B Ex

GLOBUS LED 15 D270 B Ex
add to favorites
14 Wluminaire power
2000 lmlight flow
143 lm/Wenergy efficiency
code
1388000430
color temperature
5000 K
beam angle
D270
  1. main page
  2. catalog
  3. by product type
  4. special application
  5. intergazcert
  6. explosion-proof luminaires
  7. GLOBUS LED
  8. GLOBUS LED 15 D270 B Ex
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
emission color
Белый
light source type
LED
light flow
2000 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
143 lm/W
beam angle
D270
color temperature
5000 K
illuminating
emission color
Белый
light source type
LED
light flow
2000 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
143 lm/W
beam angle
D270
color temperature
5000 K
electrical
luminaire power
14 W
electric shock protection
I
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
starting current
30 A
supply voltage
230 V
starting current pulse time
500 µs
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK08/7 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІа
length
160 mm
width
150 mm
height
365 mm
installation width
35 mm
material
Сплав алюминиевый
housing color
Серый
mounting type
weight
4.2 kg
emergency
emergency power supply
Нет
common
code
1388000430
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
energy efficiency class
A++
service life
50 000 h
temperature range
от -60 до +55 C
model files
model files

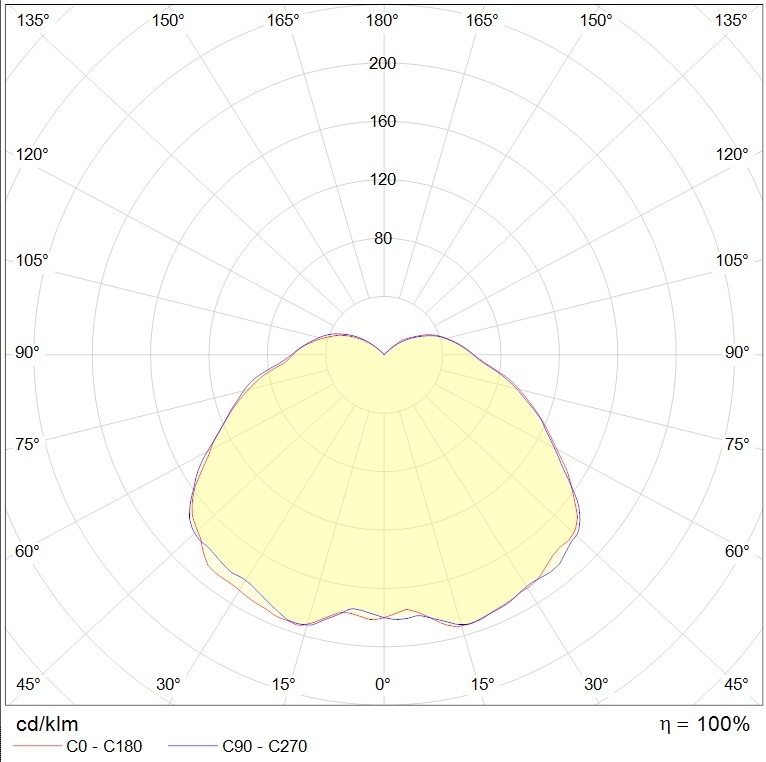

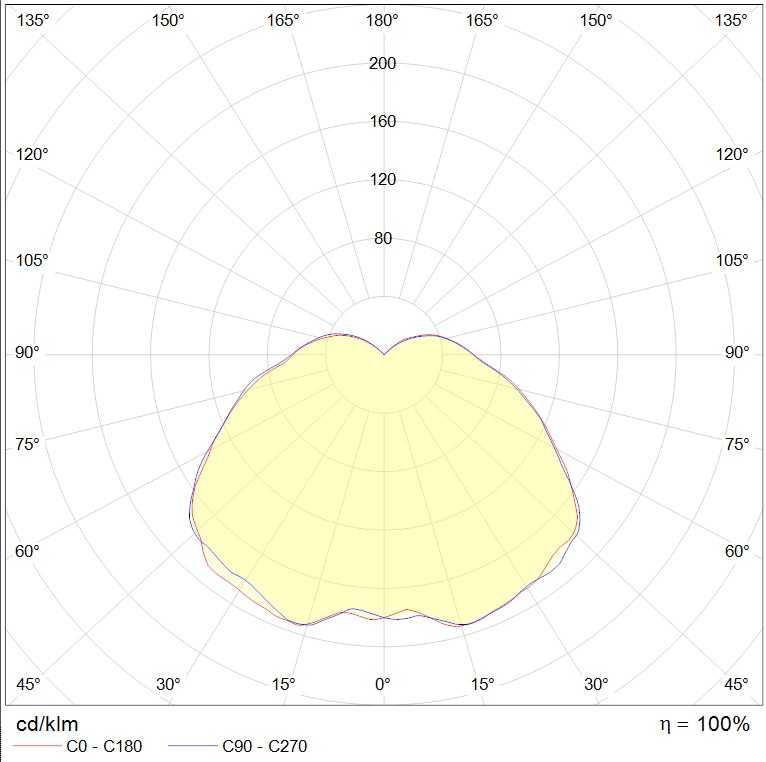

photometric files
ies107 kB
jpg100.9 kB
ldt87 kB
csv415 B
documents
passport1.1 mB
сертификаты
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011298.8 kB
Declaration of Conformity EAEU TR 037/2016295.1 kB
photometric files
ies107 kB
jpg100.9 kB
ldt87 kB
csv415 B
documents
passport1.1 mB
сертификаты
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011298.8 kB
Declaration of Conformity EAEU TR 037/2016295.1 kB
accessories
Cable entry explosion-proof М25х1,5 DSA2SMBNS0.19kgarticle: 2327017400color: Неокрашенныйø cable internal: 10,0-14,5ø cable external: 12,5-20,5
Cable entry explosion-proof М25х1,5 DSA2MBNS0.164kgarticle: 2327010070color: Неокрашенныйø cable internal: 11,3-19,9ø cable external: 19,9-26,2
