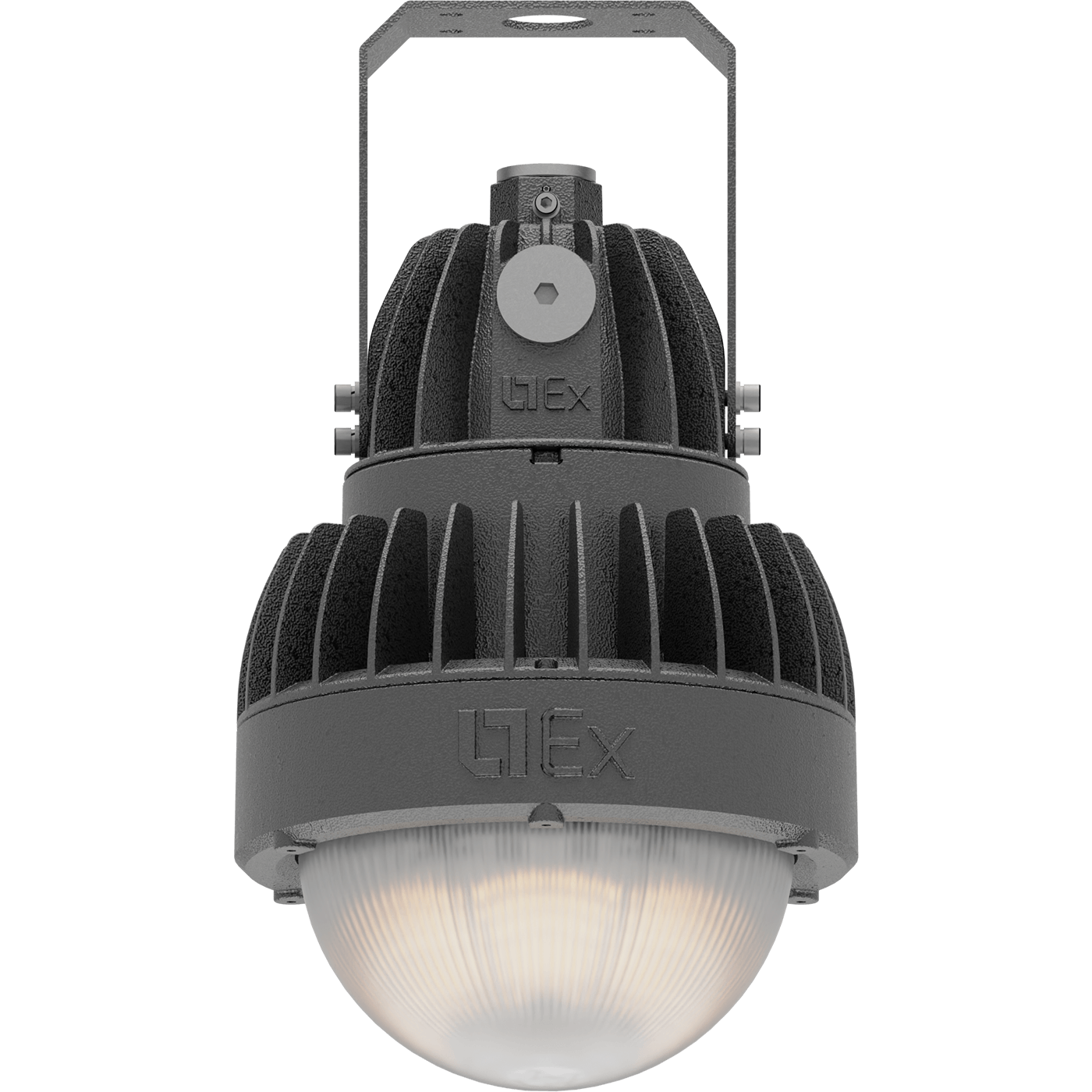

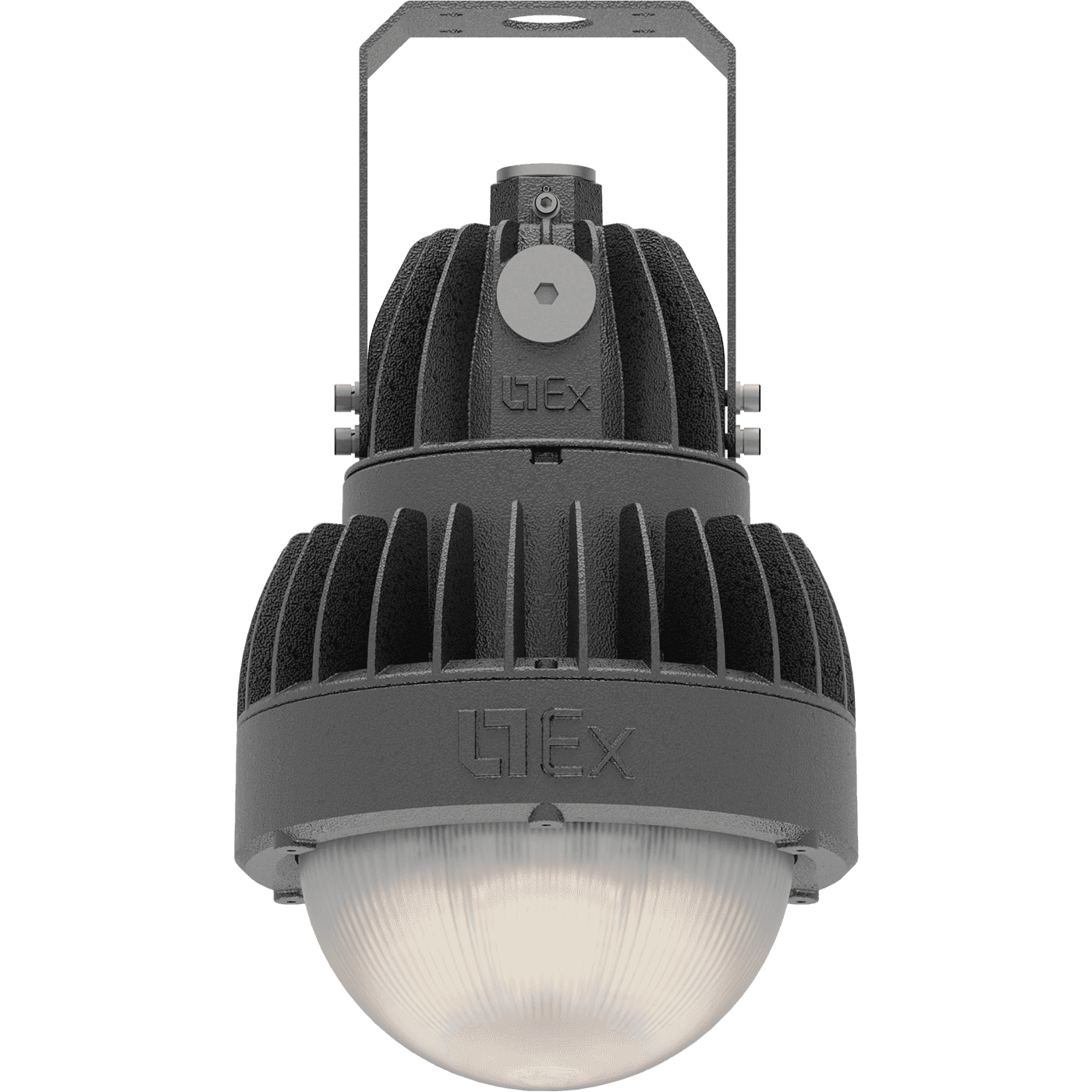

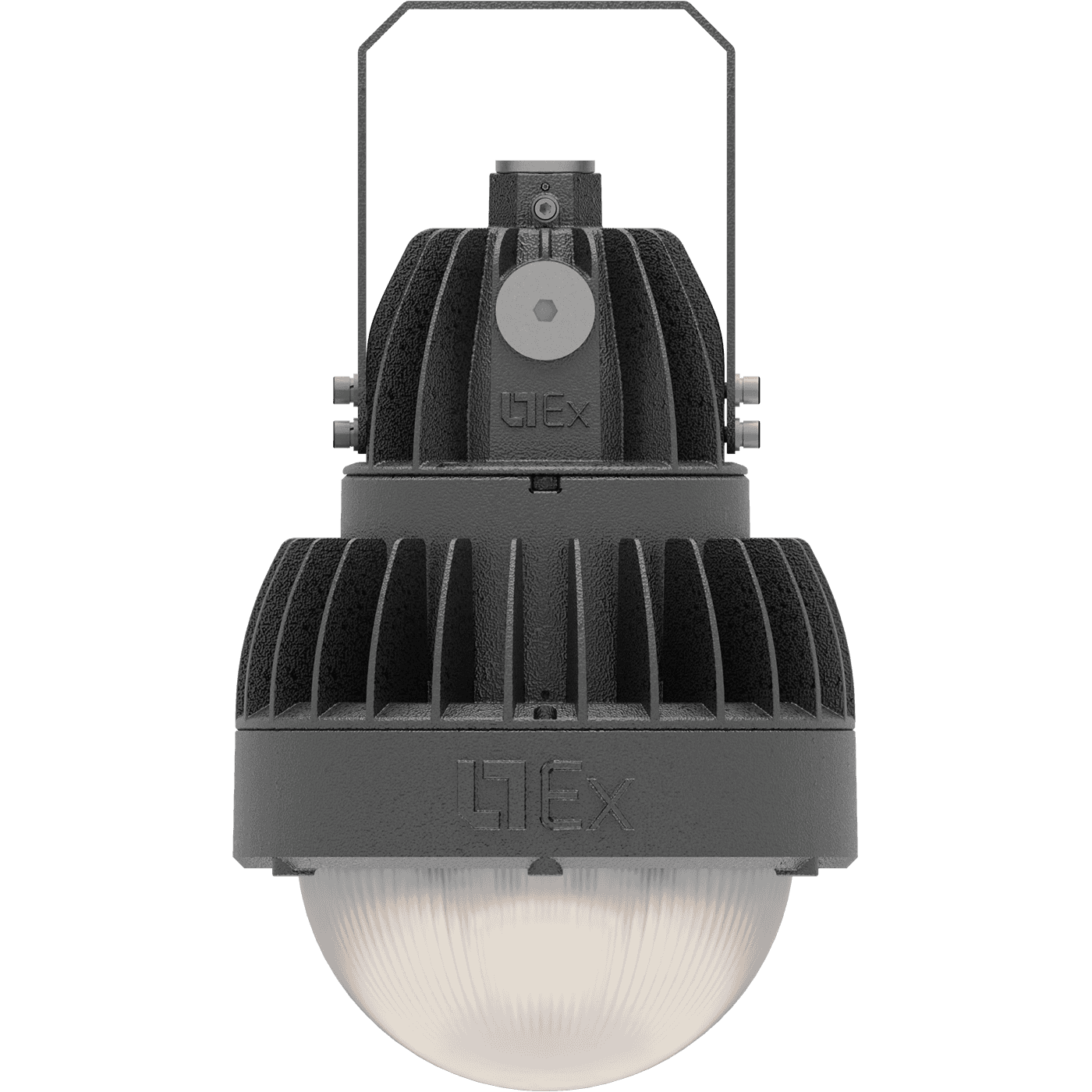

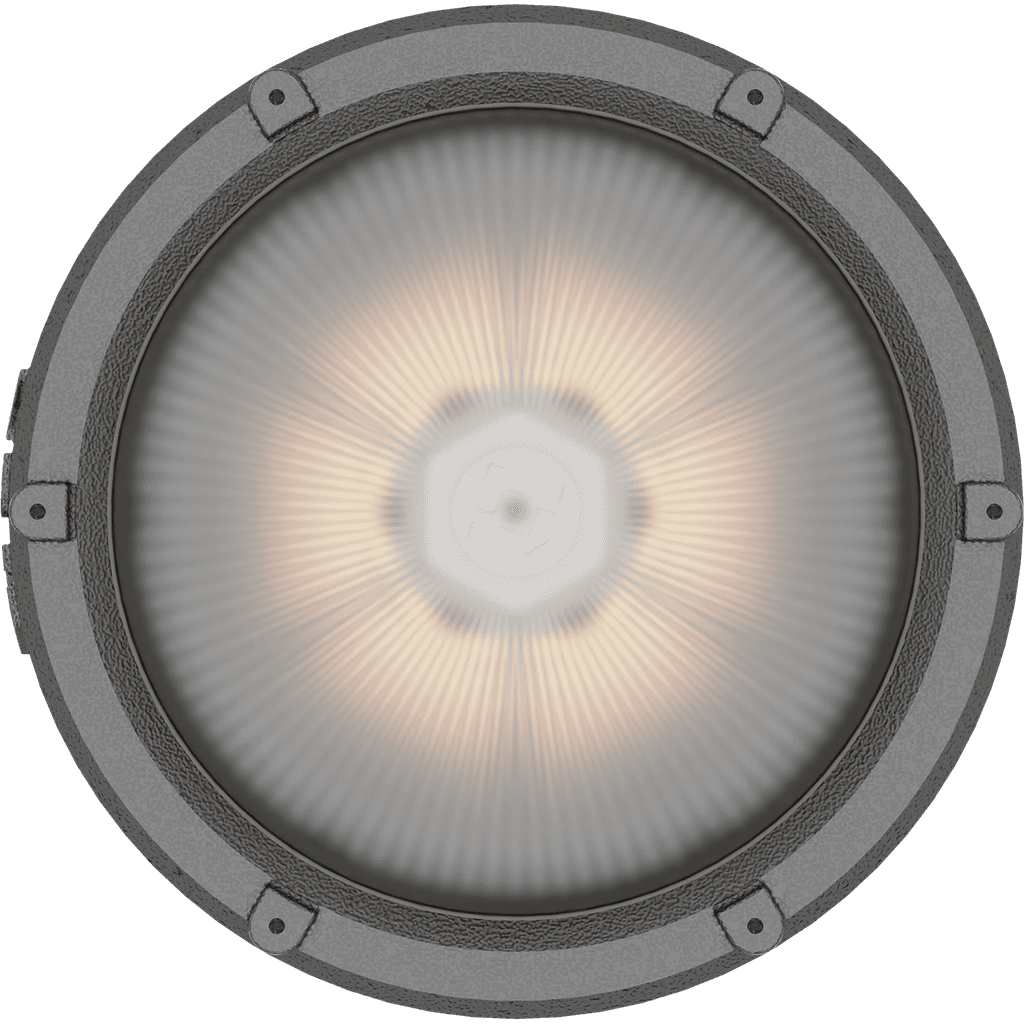

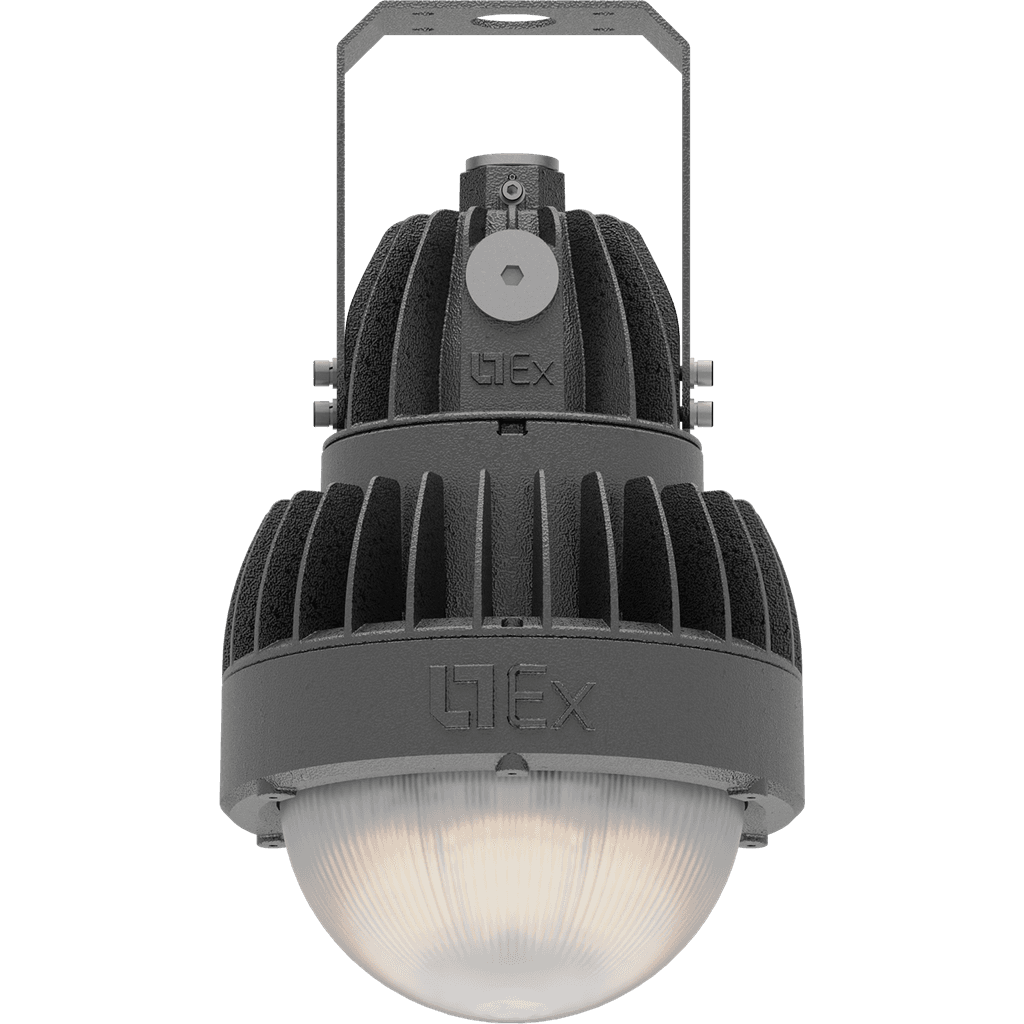

GLOBUS LED 130 D270 B Ex

GLOBUS LED 130 D270 B Ex
add to favorites
118 Wluminaire power
18000 lmlight flow
153 lm/Wenergy efficiency
code1388000420
color temperature5000 K
beam angleD270
  1. main page
  2. catalog
  3. by product type
  4. special application
  5. intergazcert
  6. explosion-proof luminaires
  7. GLOBUS LED
  8. GLOBUS LED 130 D270 B Ex
options
свернуть все
illuminatingelectricalconstructionalcommon
emission color
Белый
light source type
LED
light flow
18000 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
153 lm/W
beam angle
D270
color temperature
5000 K
illuminating
emission color
Белый
light source type
LED
light flow
18000 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
153 lm/W
beam angle
D270
color temperature
5000 K
electrical
luminaire power
118 W
electric shock protection
I
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
starting current
5 A
supply voltage
230 V
starting current pulse time
3300 µs
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK08/7 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІа
length
325 mm
width
258 mm
height
240 mm
installation width
59 mm
material
Сплав алюминиевый
housing color
Серый
weight
7.7 kg
common
code
1388000420
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
energy efficiency class
A++
temperature range
от -60 до +55 C
model files
model files

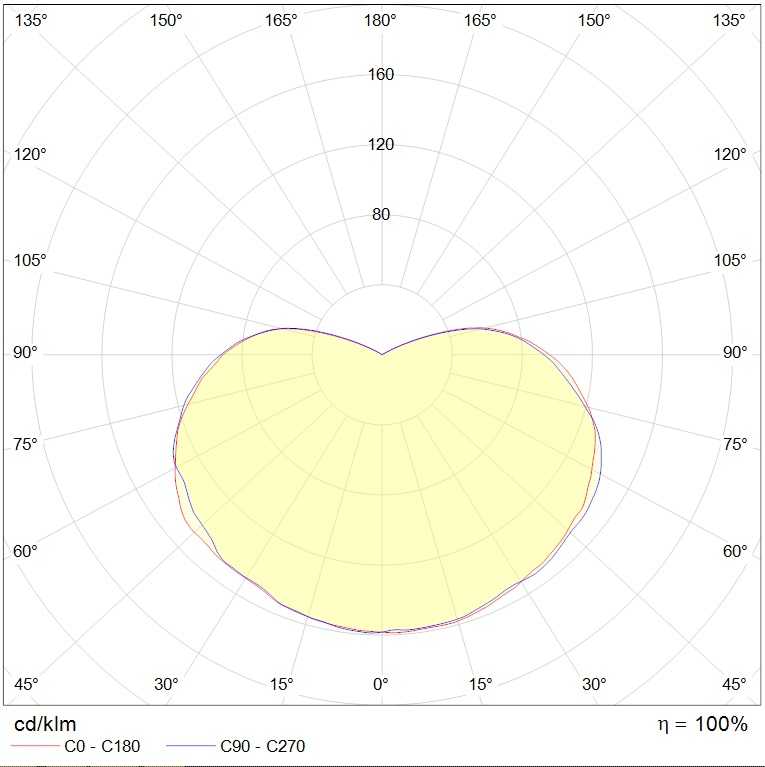

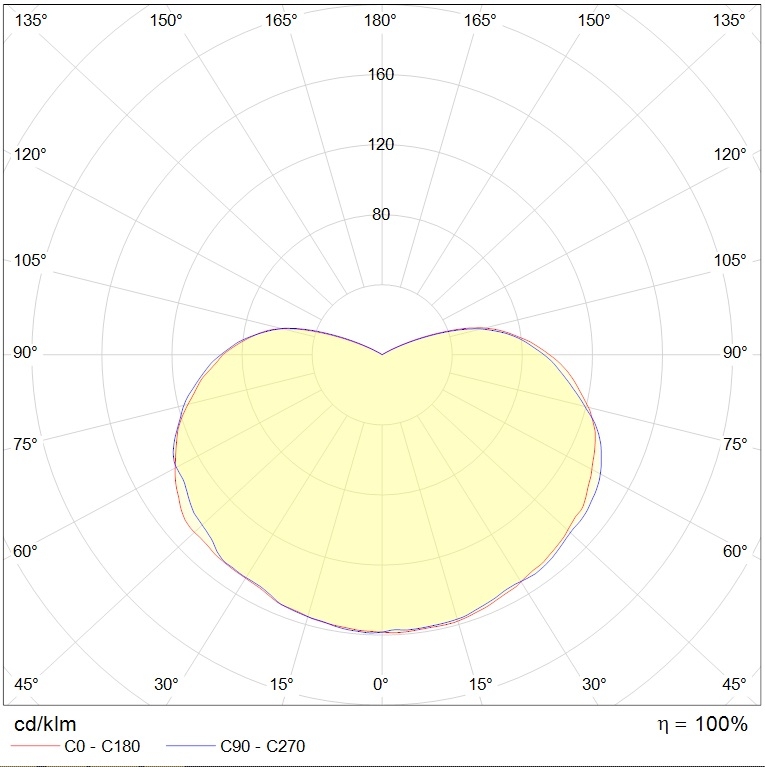

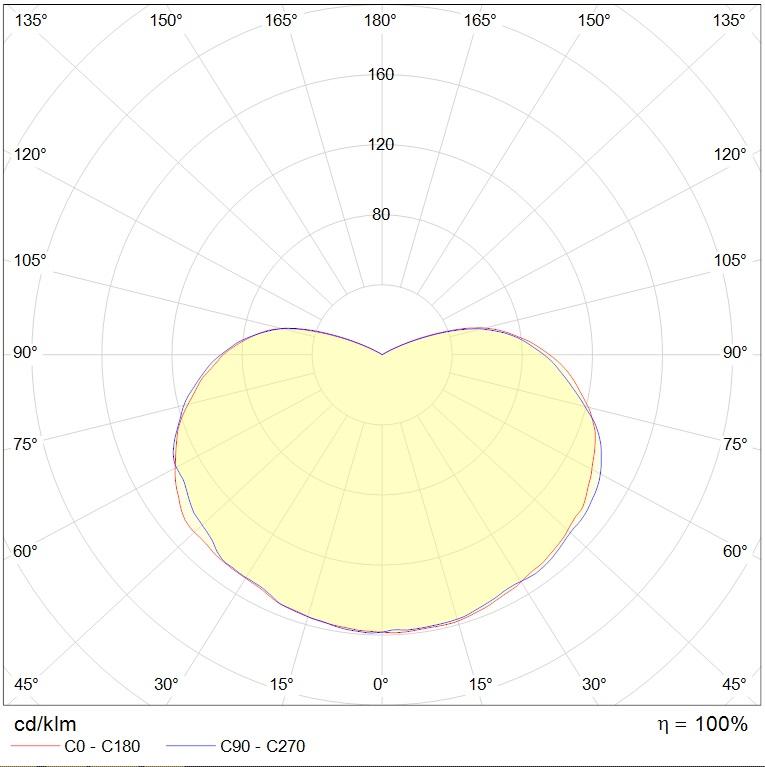

photometric files
ies107 kB
jpg99.8 kB
ldt80.4 kB
сертификаты
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
photometric files
ies107 kB
jpg99.8 kB
ldt80.4 kB
сертификаты
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
accessories
Cable entry explosion-proof М25х1,5 DSA2SMBNS0.19kgarticle: 2327017400color: Неокрашенныйø cable internal: 10,0-14,5ø cable external: 12,5-20,5
Cable entry explosion-proof М25х1,5 NA2MBNS0.05kgarticle: 2327009380color: Неокрашенныйø cable internal: 11,3-19,9
Cable entry explosion-proof М25х1,5 DSA2MBNS0.164kgarticle: 2327010070color: Неокрашенныйø cable internal: 11,3-19,9ø cable external: 19,9-26,2
