GALAXY LED 55W DW 740 RAL9005
GALAXY LED 55W DW 740 RAL9005
56 Wluminaire power
7300 lmlight flow
130 lm/Wenergy efficiency
code1730000100
beam angleD150/80
color temperature4000
weight3.7 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
50 Astarting current pulse time, µs
300 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Vluminaire power
56 Welectric shock protection
Ipower factor
> 0,98supply voltage
230 Velectrical
starting current
50 A
starting current pulse time, µs
300 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
56 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІІ
material
Алюминий
weight
3.7 kg
length, mm
530 mm
width, mm
172 mm
height, mm
84 mm
housing color
Черный
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK10/20 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1730000100
ETIM class
Светильник для освещения улиц и площадей
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
130 lm/W
color rendition index (CRI)
>70
light flow
7300 lm
flickering factor
<1%
beam angle
D150/80
color temperature
4000
light source type
LED
emission color
Белый
model files
model files

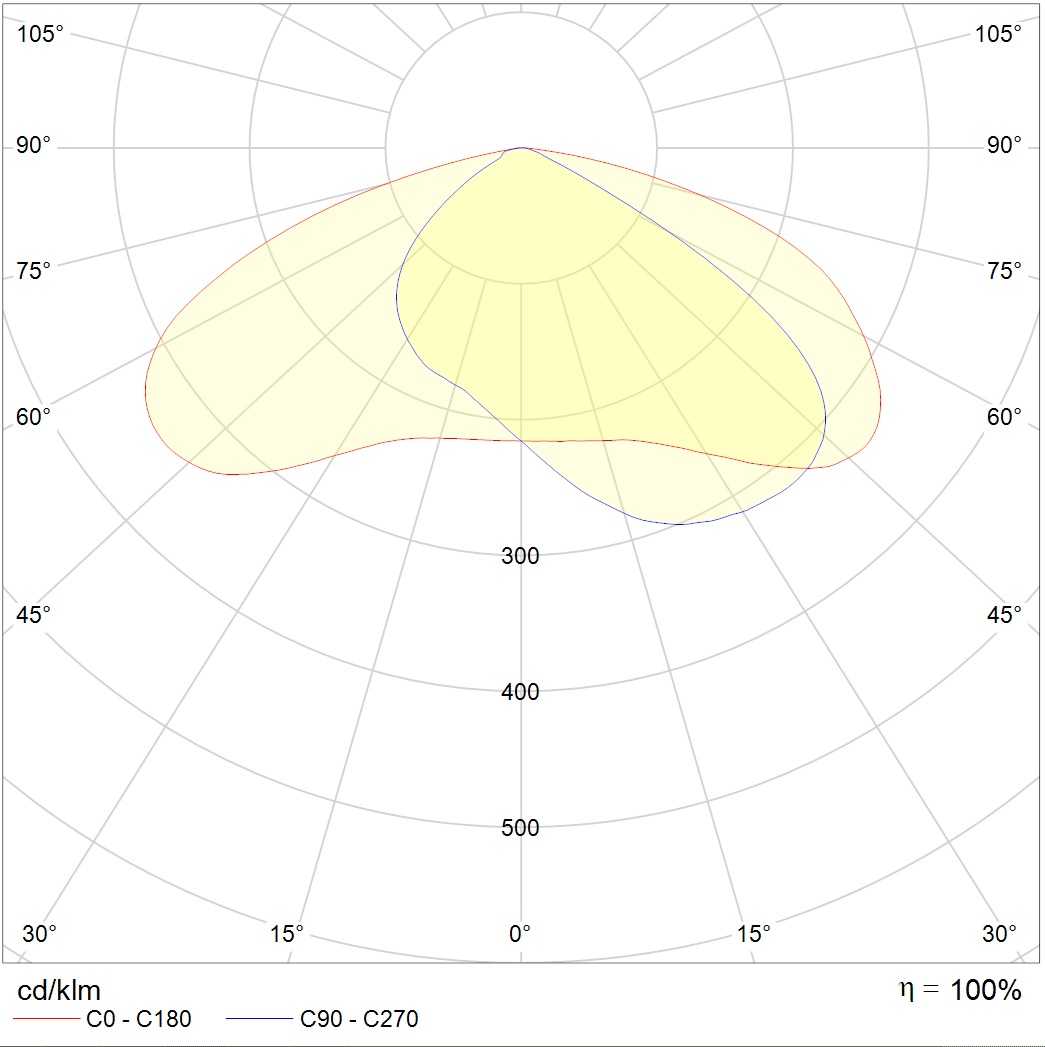

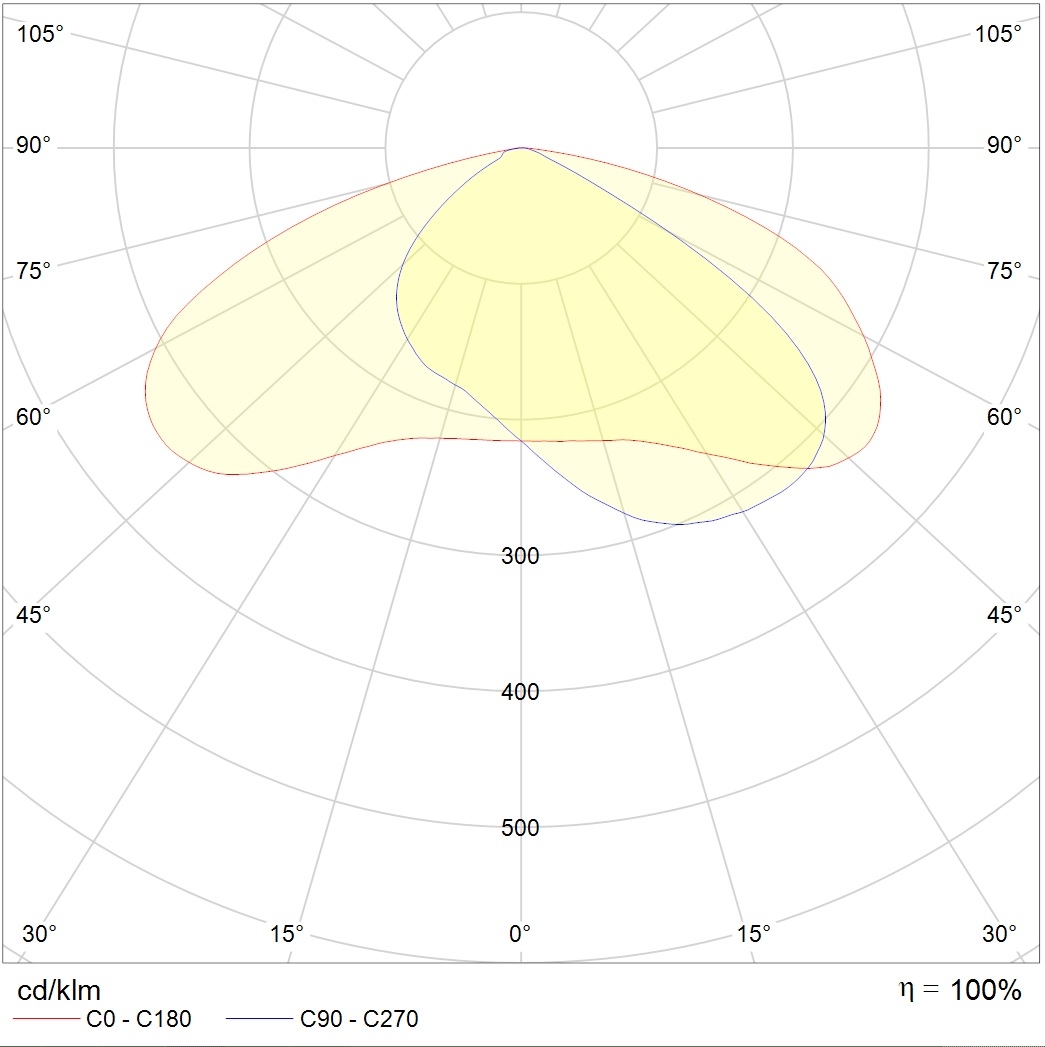

photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg128.8 kB
ldt172.7 kB
documents
passport2.6 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
