FREGAT LED 90W DW 730 RAL9006 ASTRODIM

archive
archive

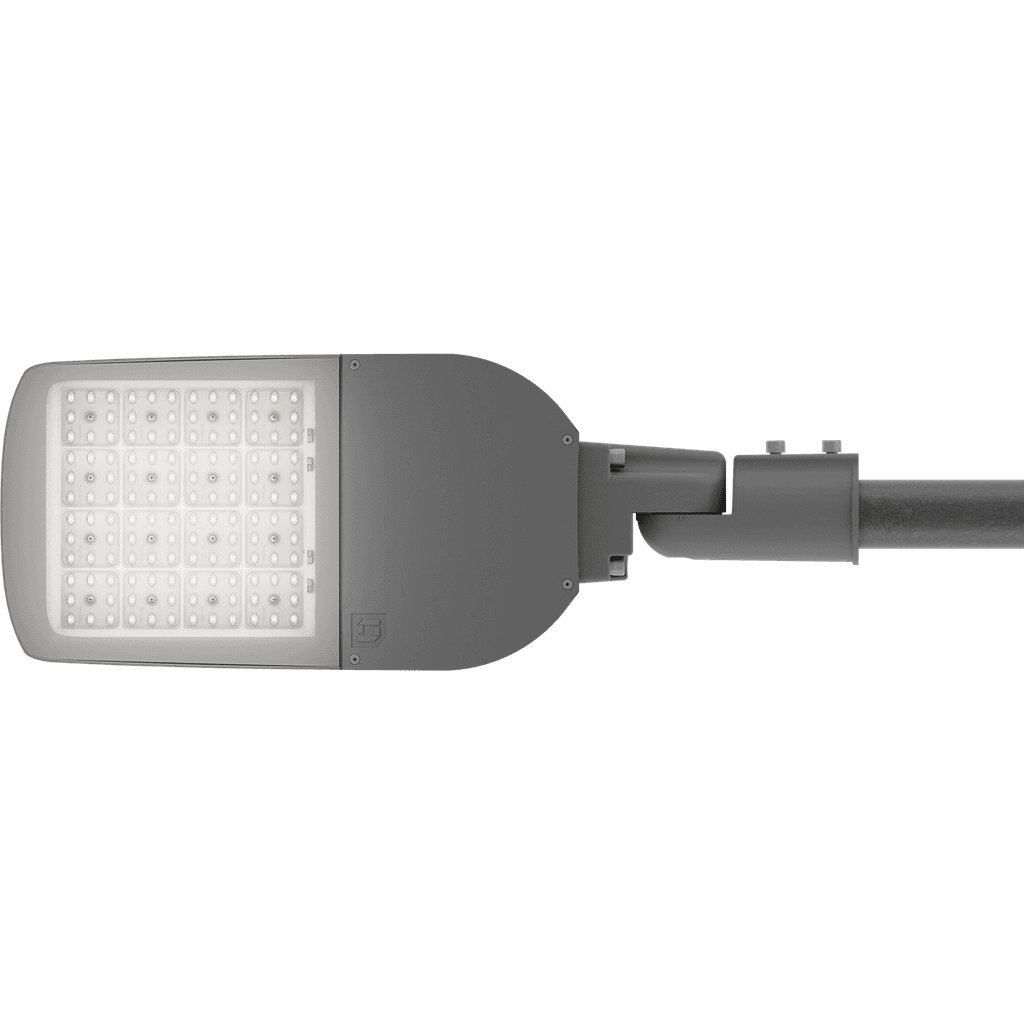

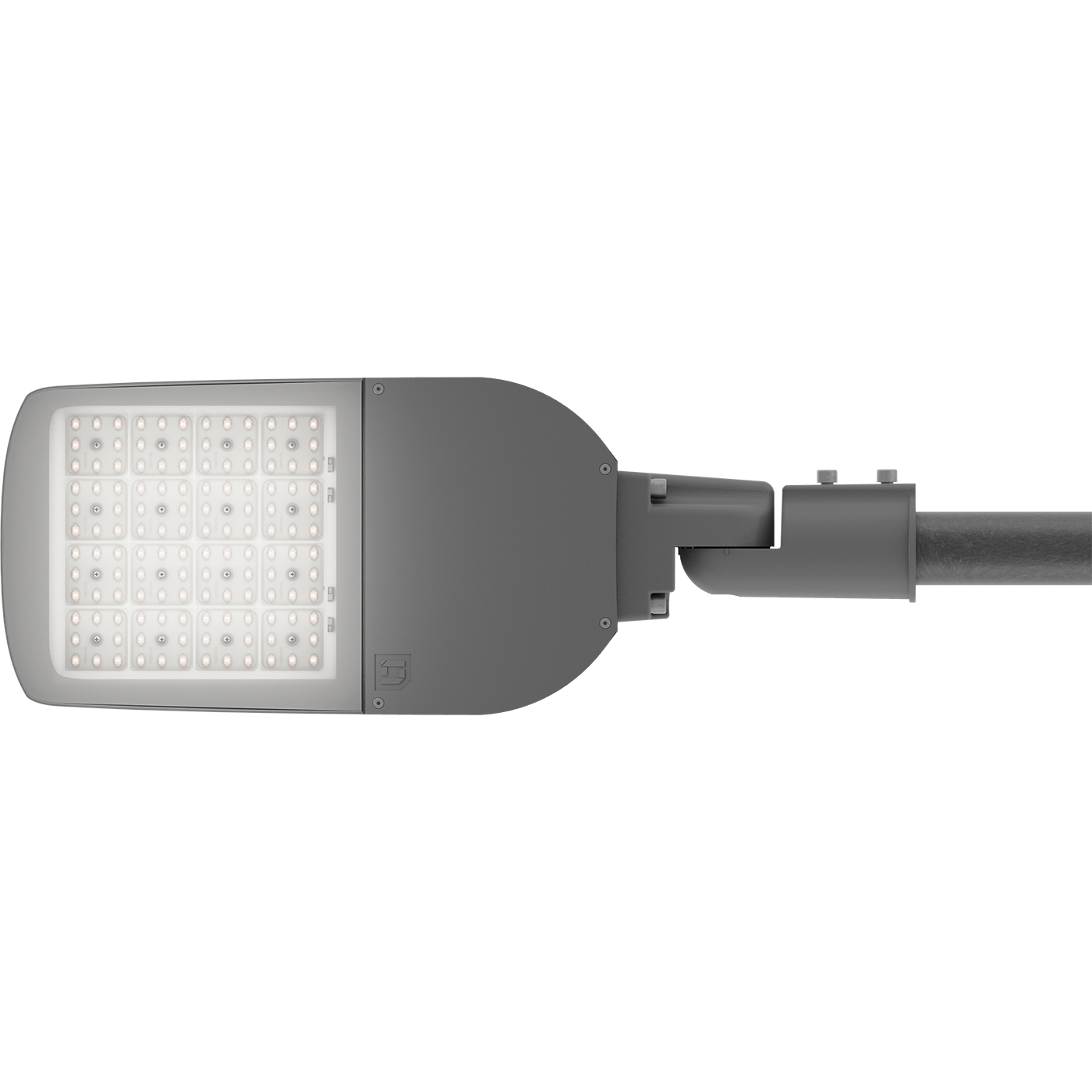

FREGAT LED 90W DW 730 RAL9006 ASTRODIM
add to favorites
86 Wluminaire power
11000 lmlight flow
128 lm/Wenergy efficiency
code1426002080
beam angleD150/80
color temperature3000
weight10.7 kg
  1. main page
  2. catalog
  3. by product type
  4. outdoor lighting
  5. console
  6. магистральные
  7. FREGAT LED
  8. FREGAT LED 90W DW 730 RAL9006 ASTRODIM
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
supply voltage, alternating current
140-305 V
luminaire power
86 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
electrical
supply voltage, alternating current
140-305 V
luminaire power
86 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІІ
material
Алюминий
weight
10.7 kg
length, mm
722 mm
width, mm
265 mm
height, mm
91 mm
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK09/10 Дж
installation diameter, mm
60 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1426002080
ETIM class
Светильник для освещения улиц и площадей
warranty
60 month
temperature range
от -40 до +60 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
128 lm/W
color rendition index (CRI)
>70
light flow
11000 lm
flickering factor
<1%
beam angle
D150/80
color temperature
3000
light source type
LED
emission color
Белый
LMS options
dimming
Dimming
model files
model files

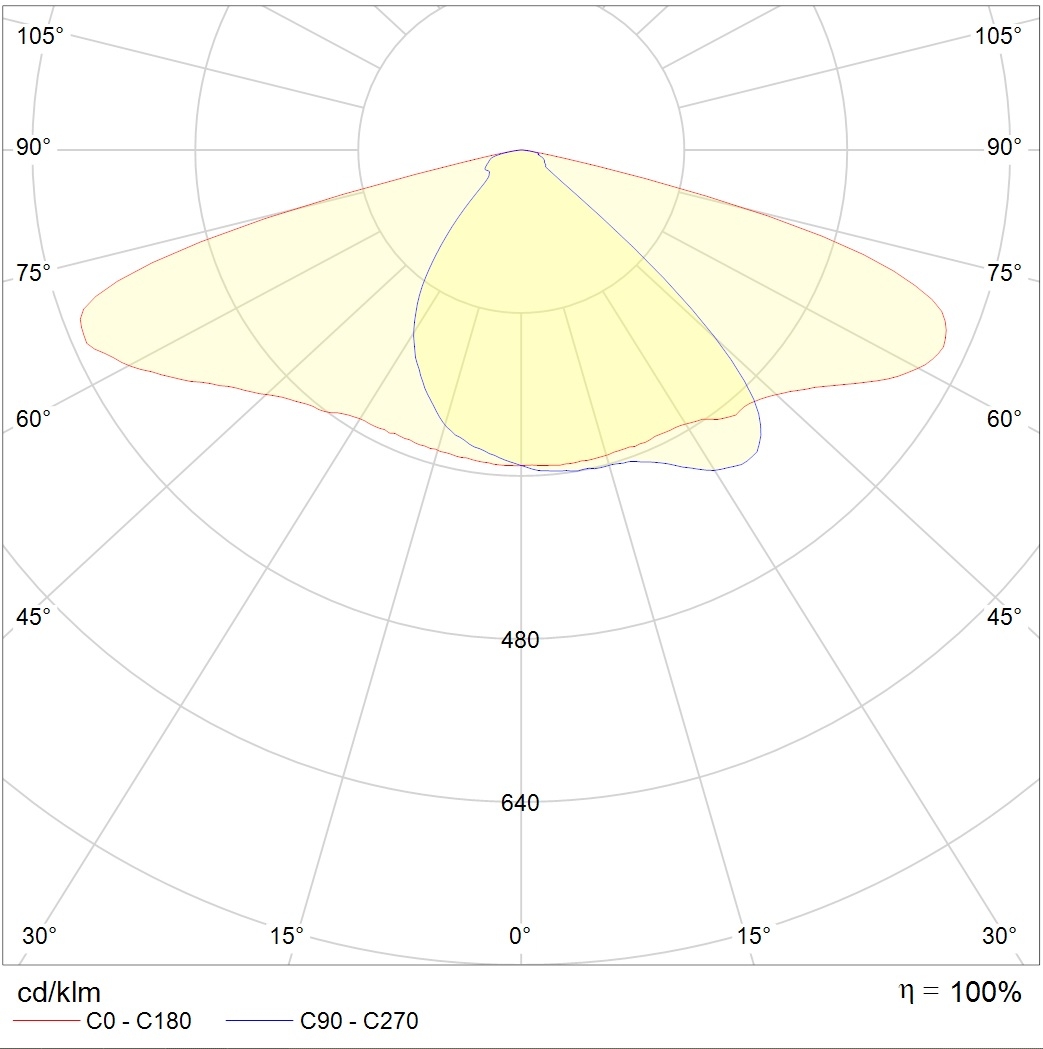

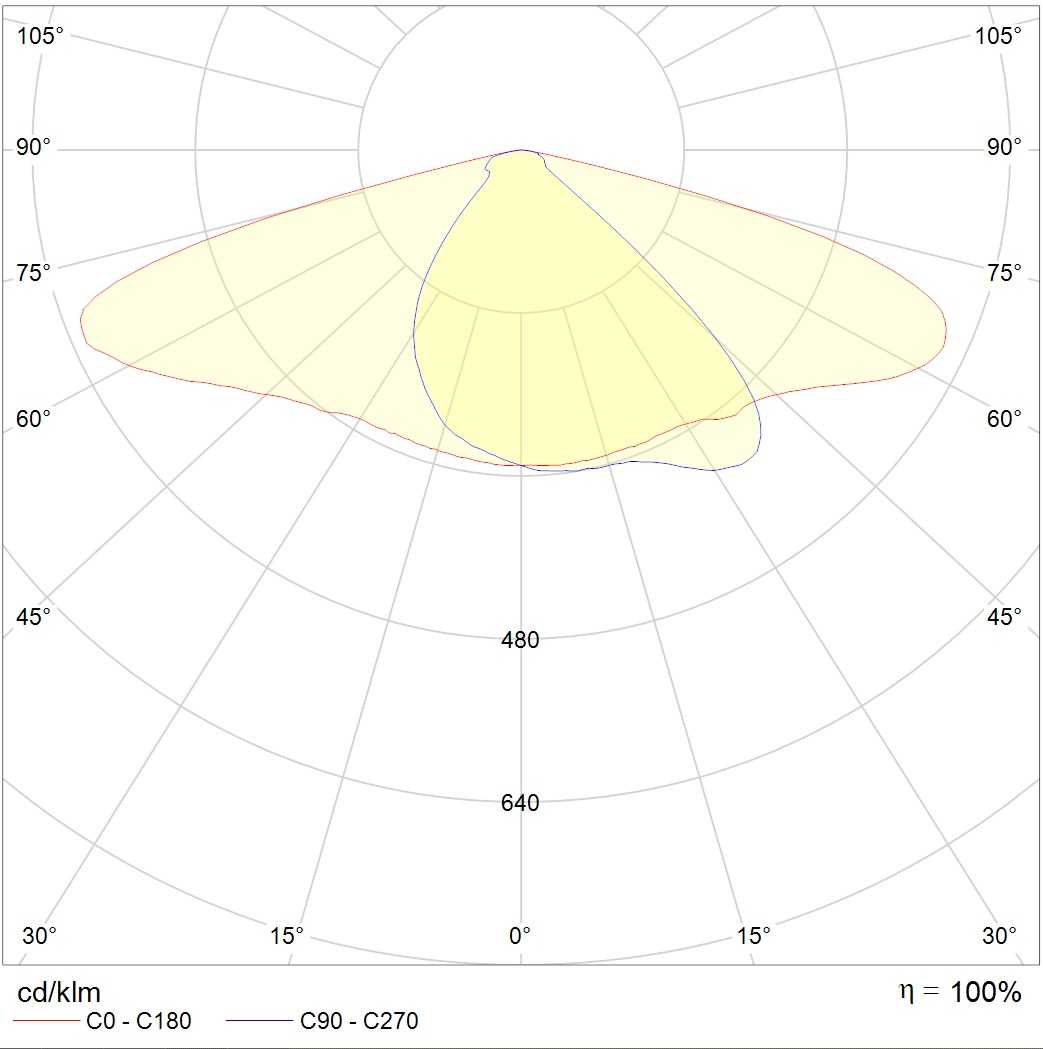

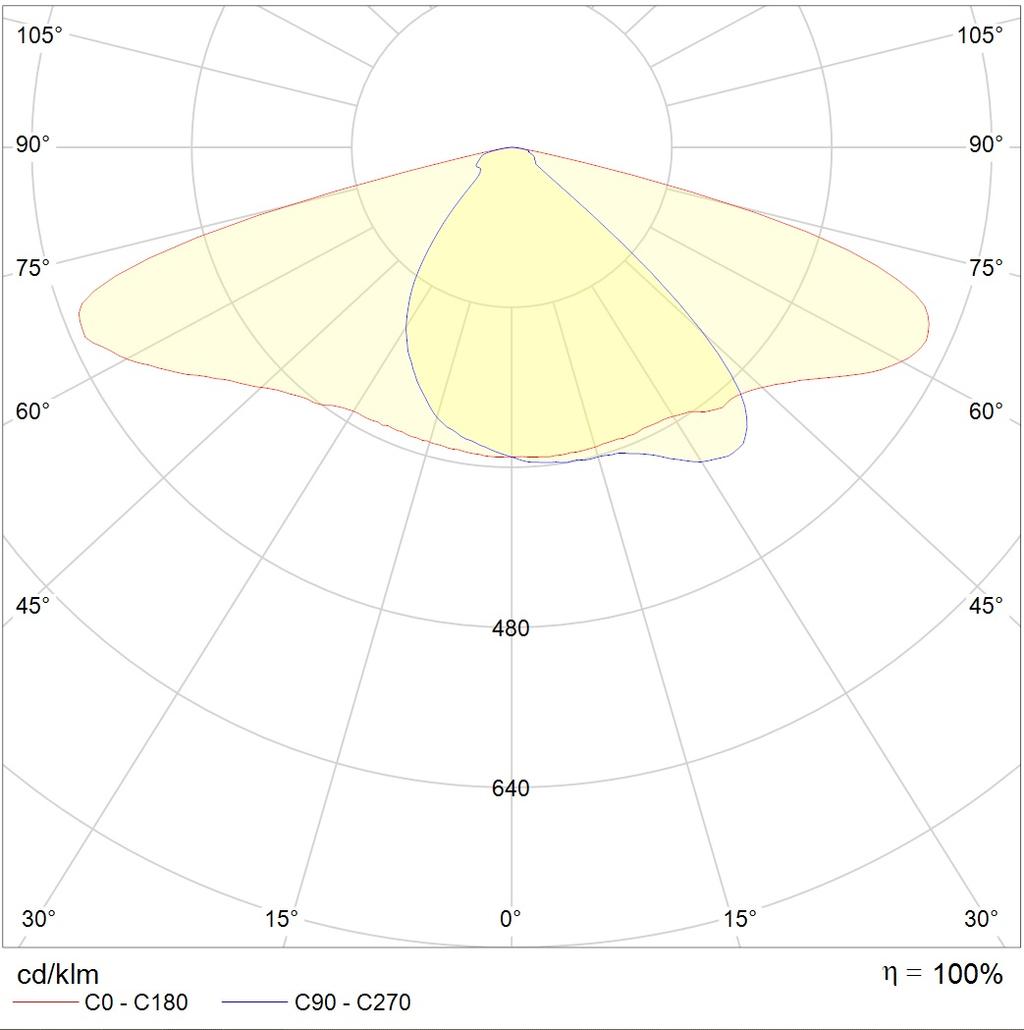

photometric files
ies263.2 kB
jpg120.9 kB
ldt156.9 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
photometric files
ies263.2 kB
jpg120.9 kB
ldt156.9 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
