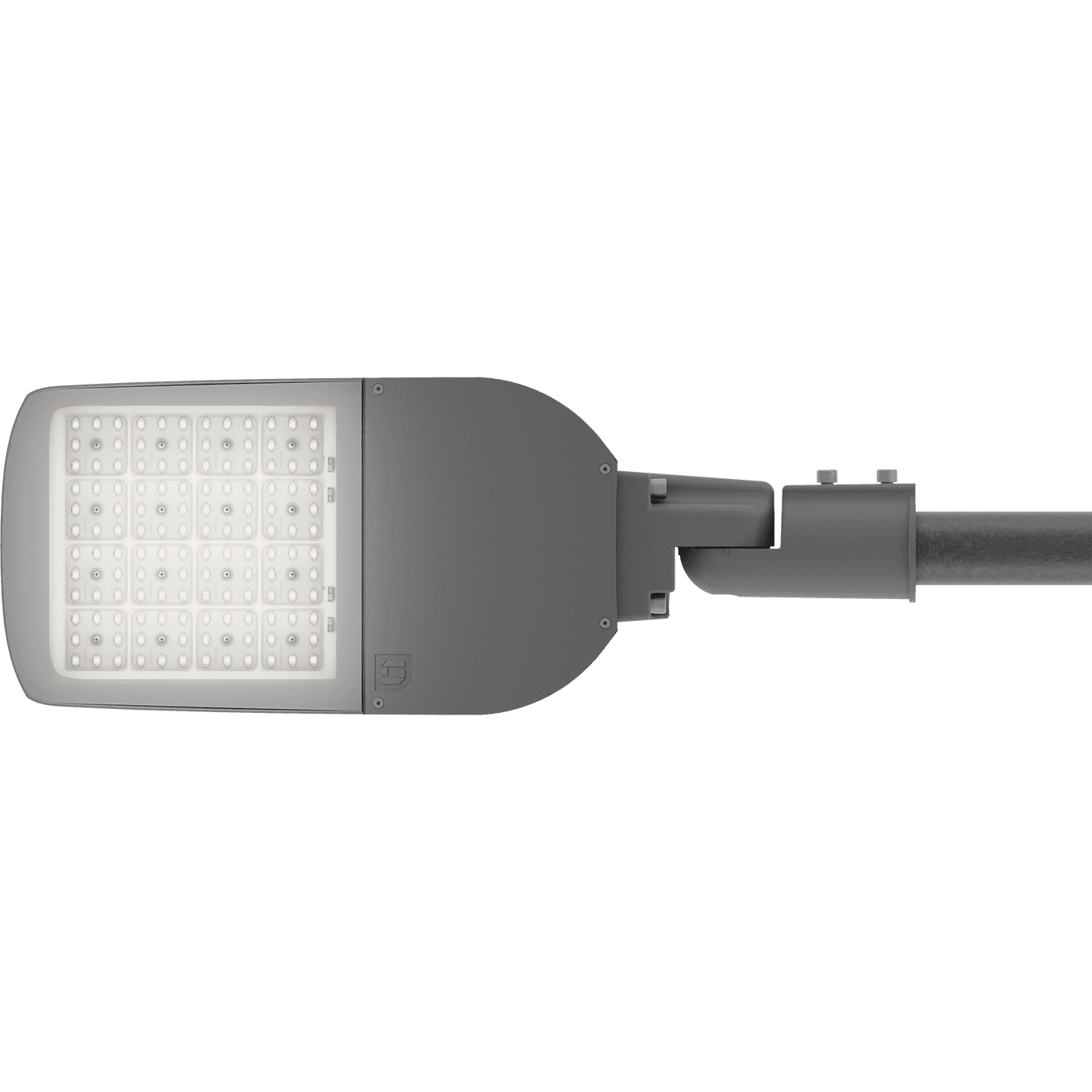

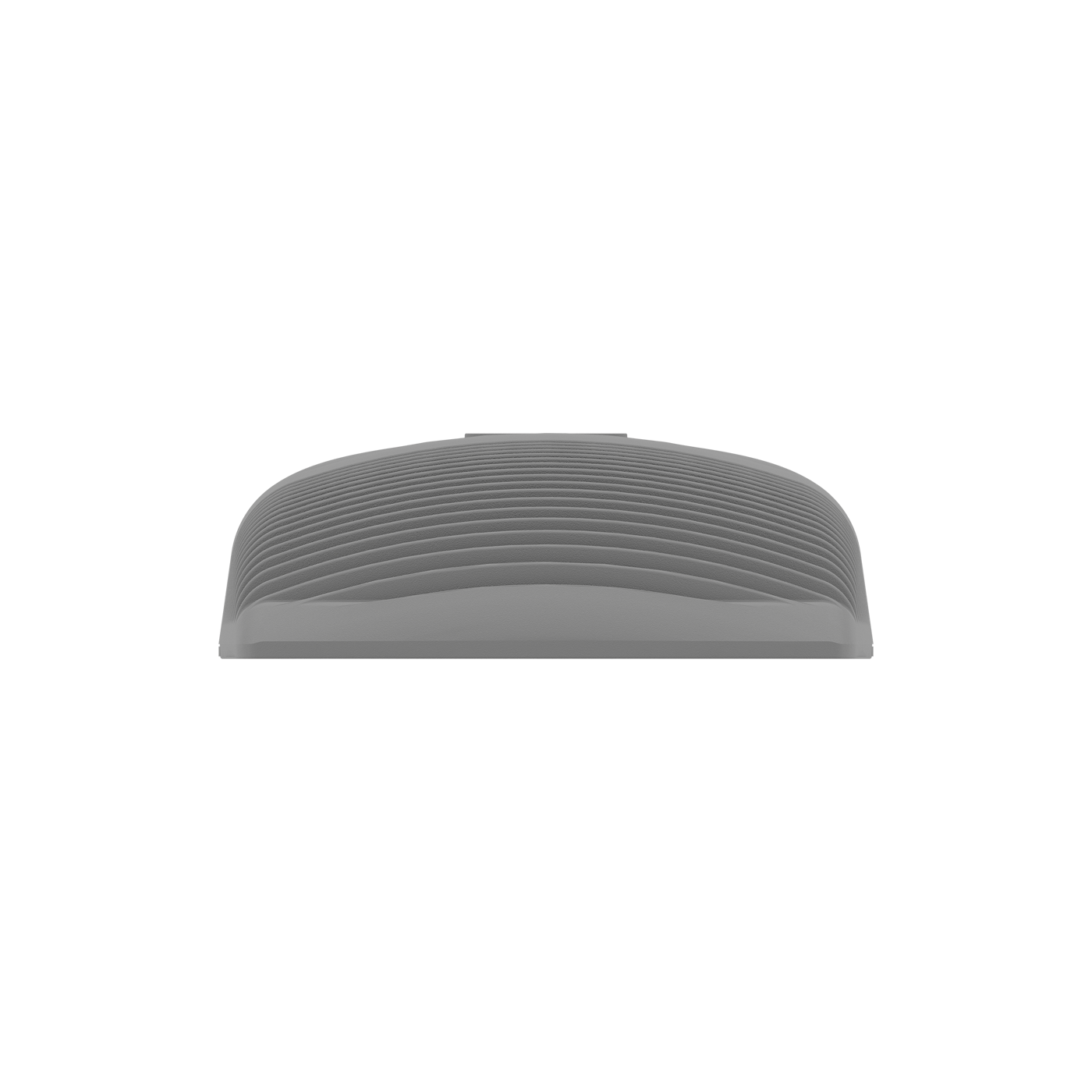

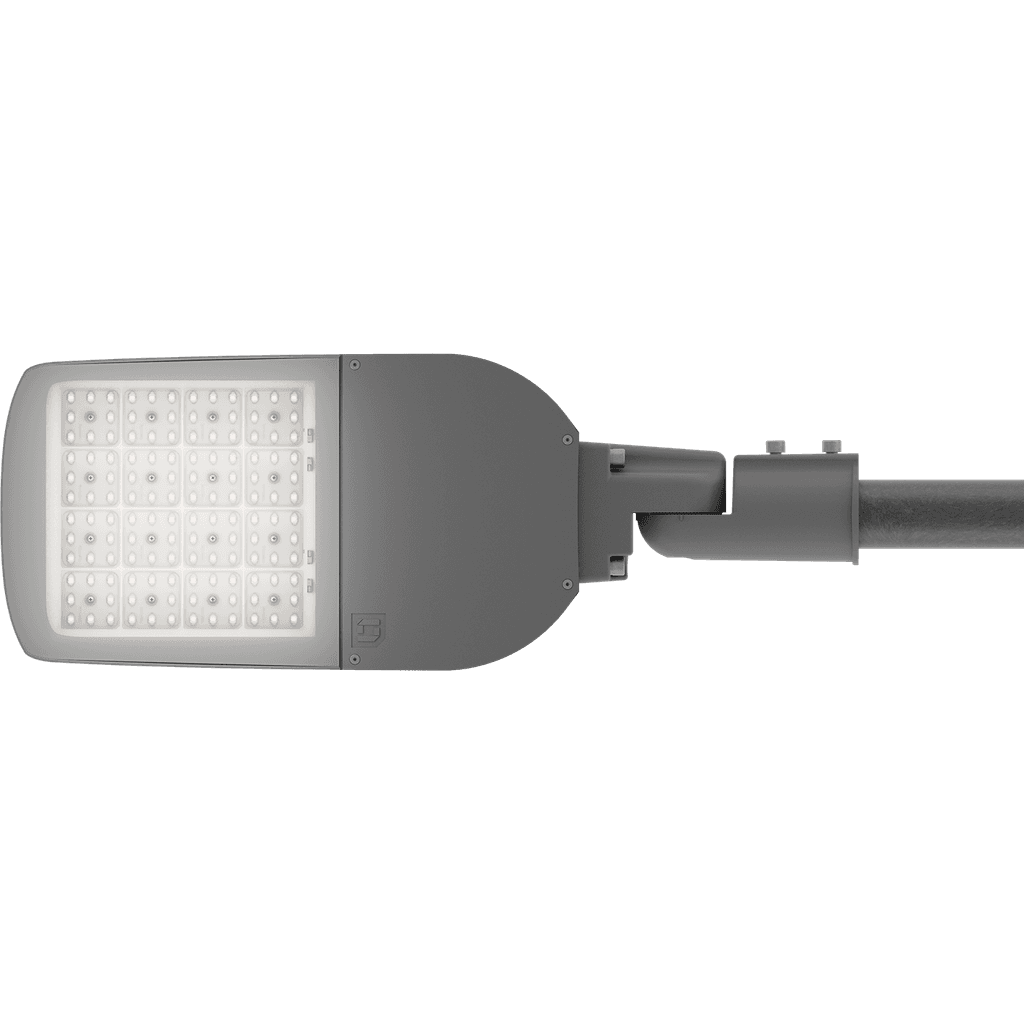

FREGAT LED 75W DW 740 RAL9006 ASTRODIM
archive
archive
FREGAT LED 75W DW 740 RAL9006 ASTRODIM
72 Wluminaire power
9600 lmlight flow
133 lm/Wenergy efficiency
code1426001900
beam angleD150/80
color temperature4000
weight10.7 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
65 Astarting current pulse time, µs
500 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
140-305 Vsupply voltage, direct current
220-420 Vluminaire power
72 Welectric shock protection
Ipower factor
> 0,98supply voltage
230 Velectrical
starting current
65 A
starting current pulse time, µs
500 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
140-305 V
supply voltage, direct current
220-420 V
luminaire power
72 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІІ
material
Алюминий
weight
10.7 kg
length, mm
722 mm
width, mm
265 mm
height, mm
91 mm
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK09/10 Дж
installation diameter, mm
60 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер 0-10В
common
code
1426001900
ETIM class
Светильник для освещения улиц и площадей
warranty
60 month
temperature range
от -40 до +60 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
133 lm/W
color rendition index (CRI)
>70
light flow
9600 lm
flickering factor
<5%

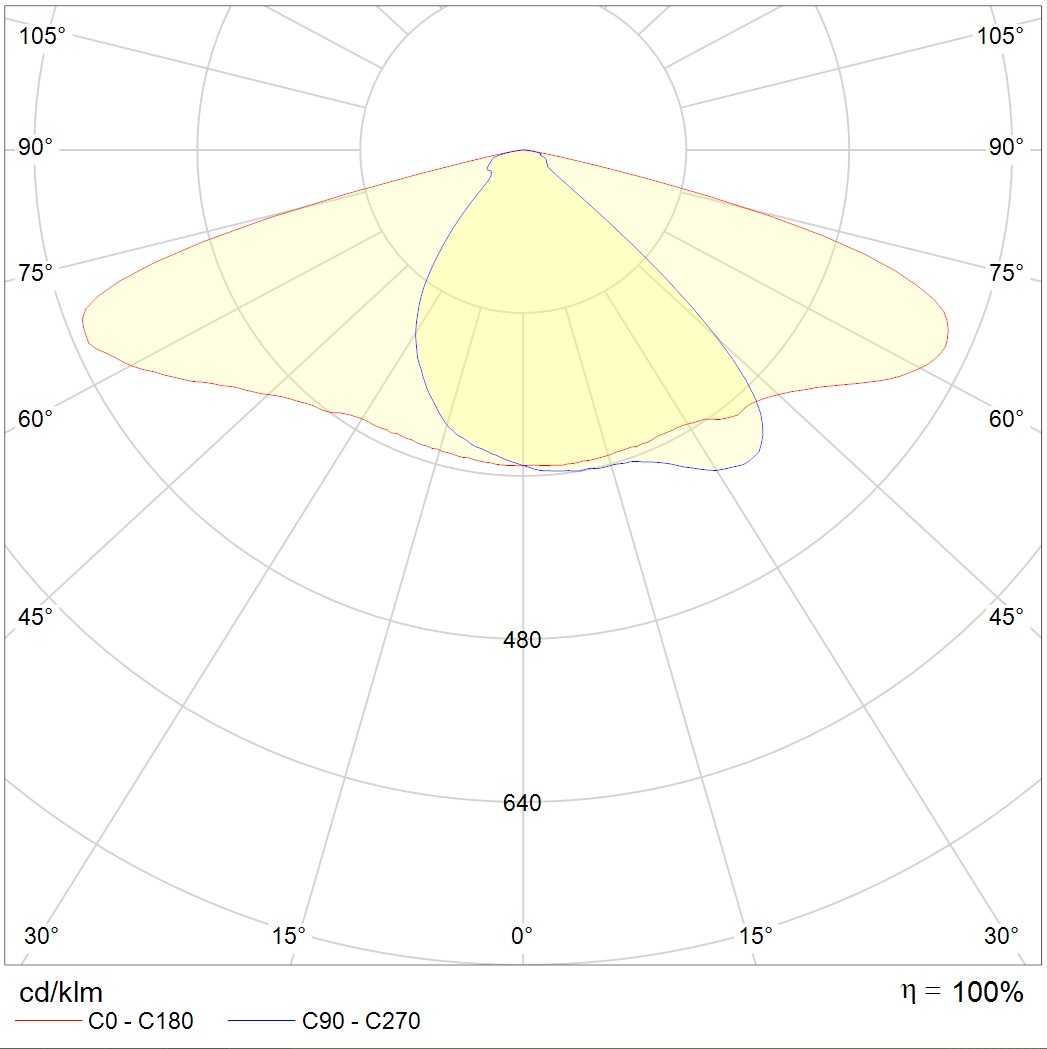

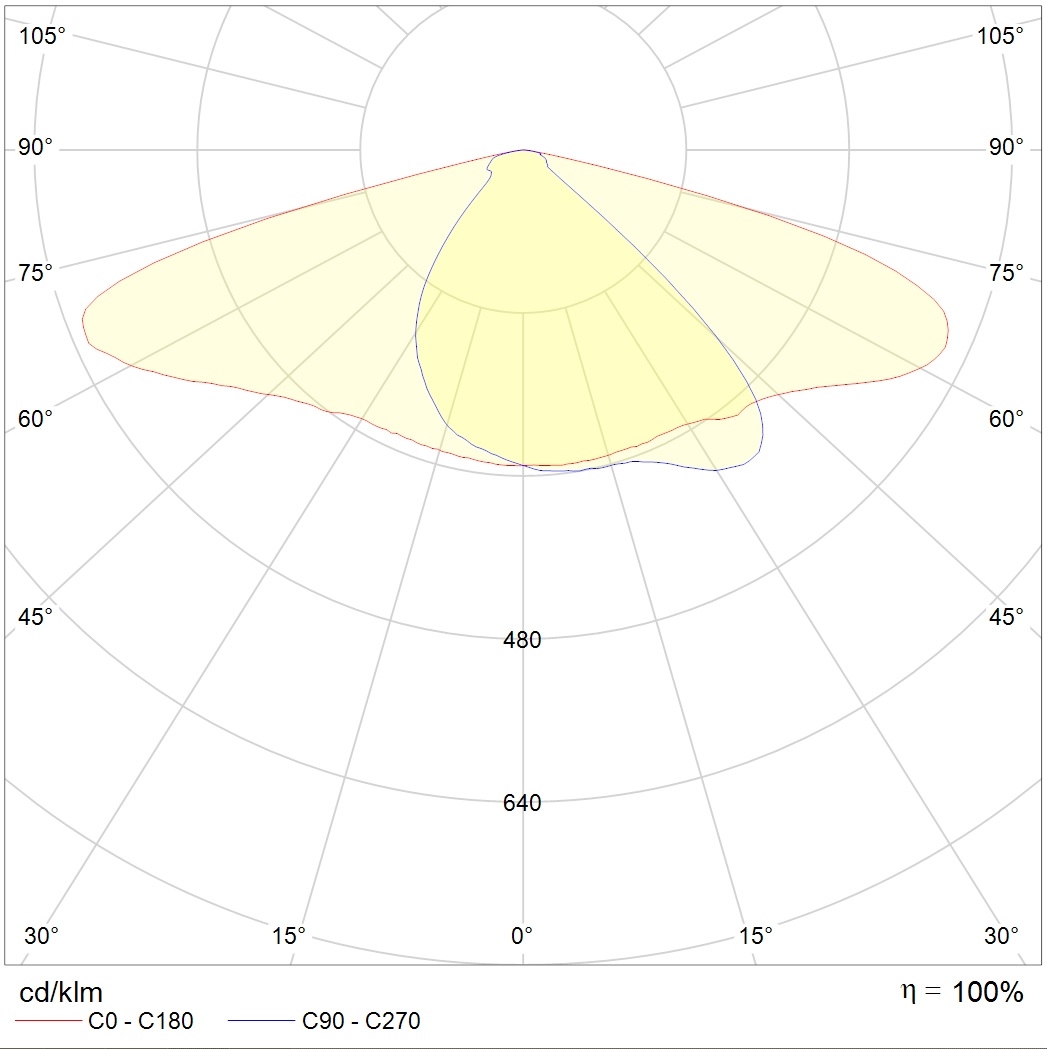

beam angle
D150/80
color temperature
4000
light source type
LED
emission color
Белый
LMS options
dimming
Dimming
model files
model files
photometric files
documents
сертификаты

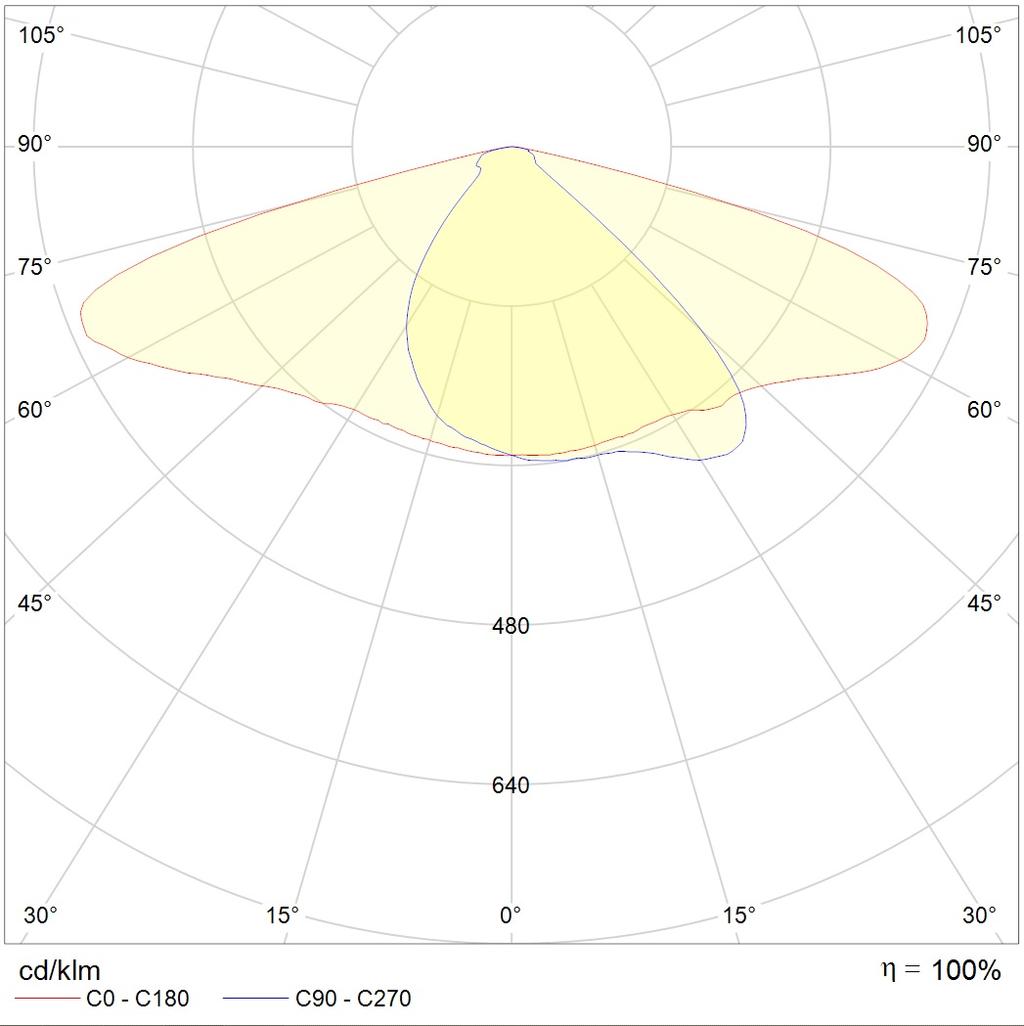

photometric files
ies263.2 kB
jpg119.4 kB
ldt156.9 kB
documents
passport1.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
