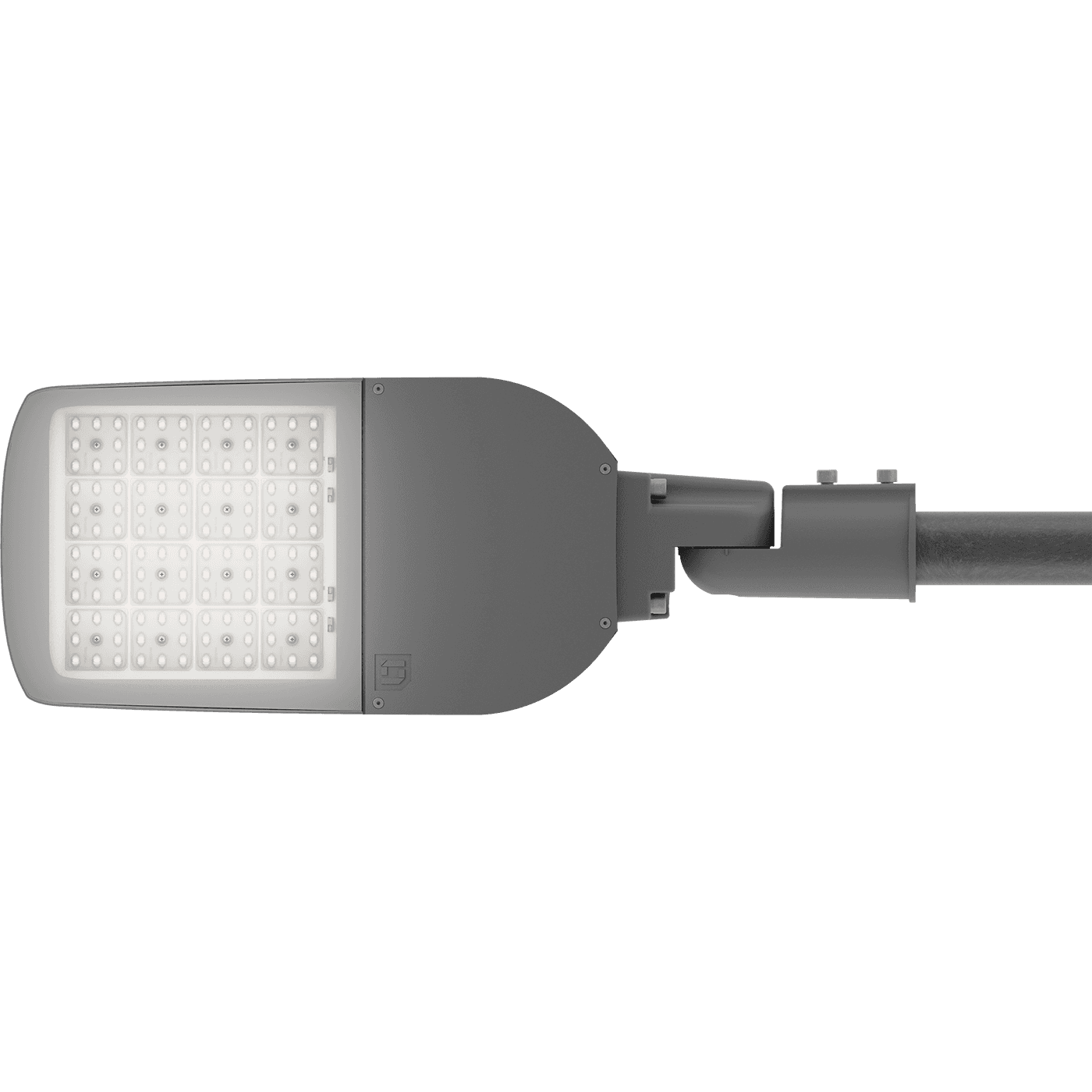

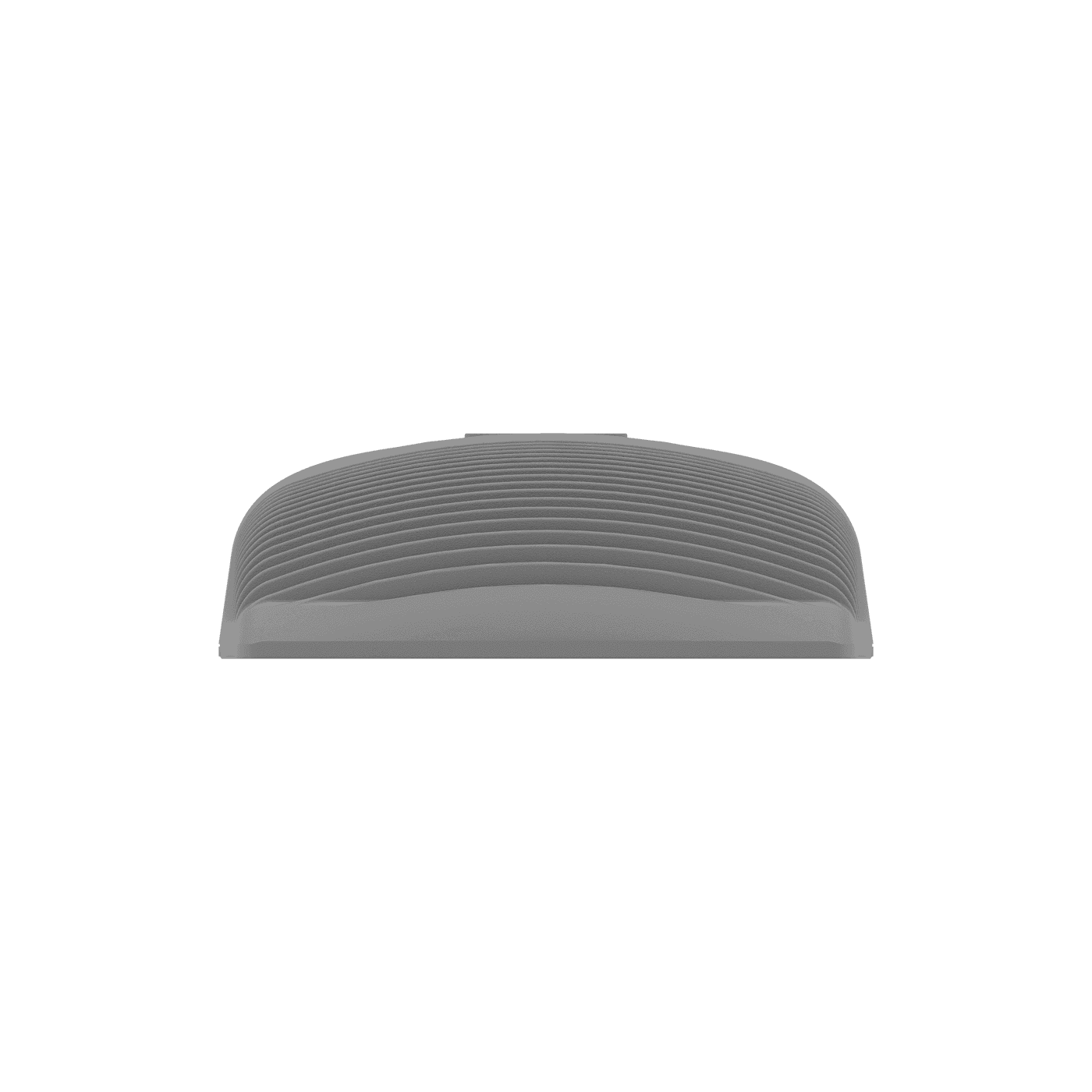

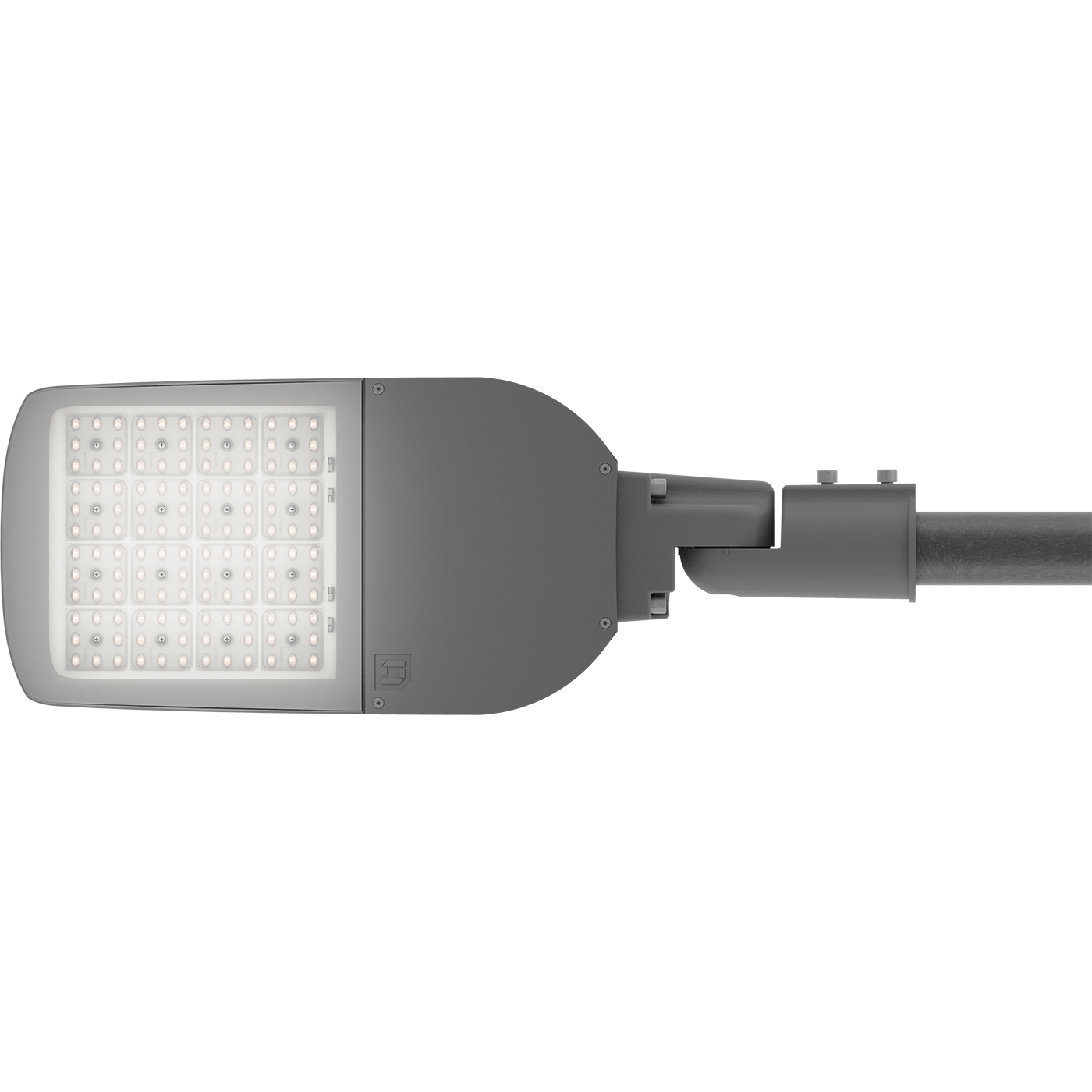

FREGAT LED 55W DW 750 RAL9006

archive
archive

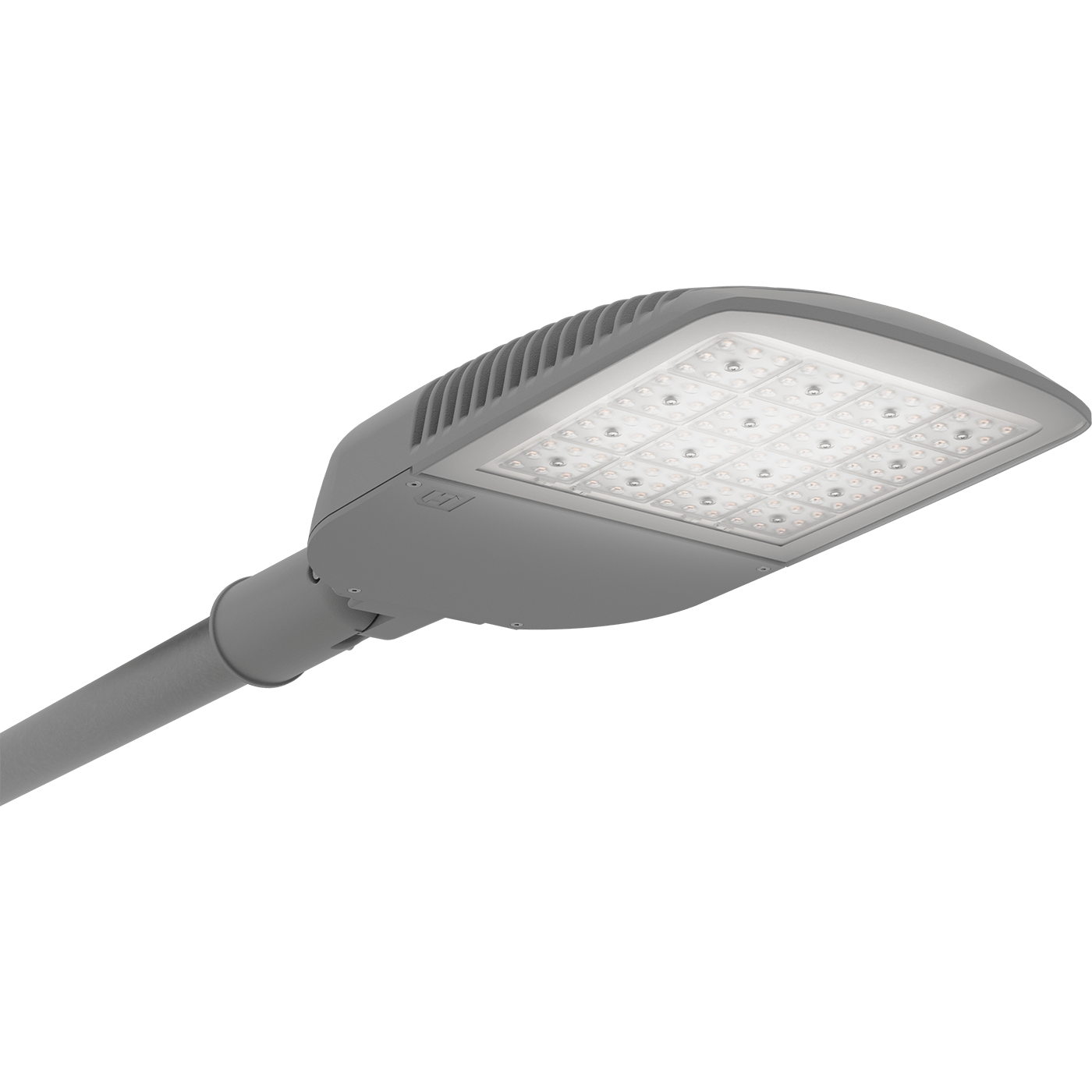

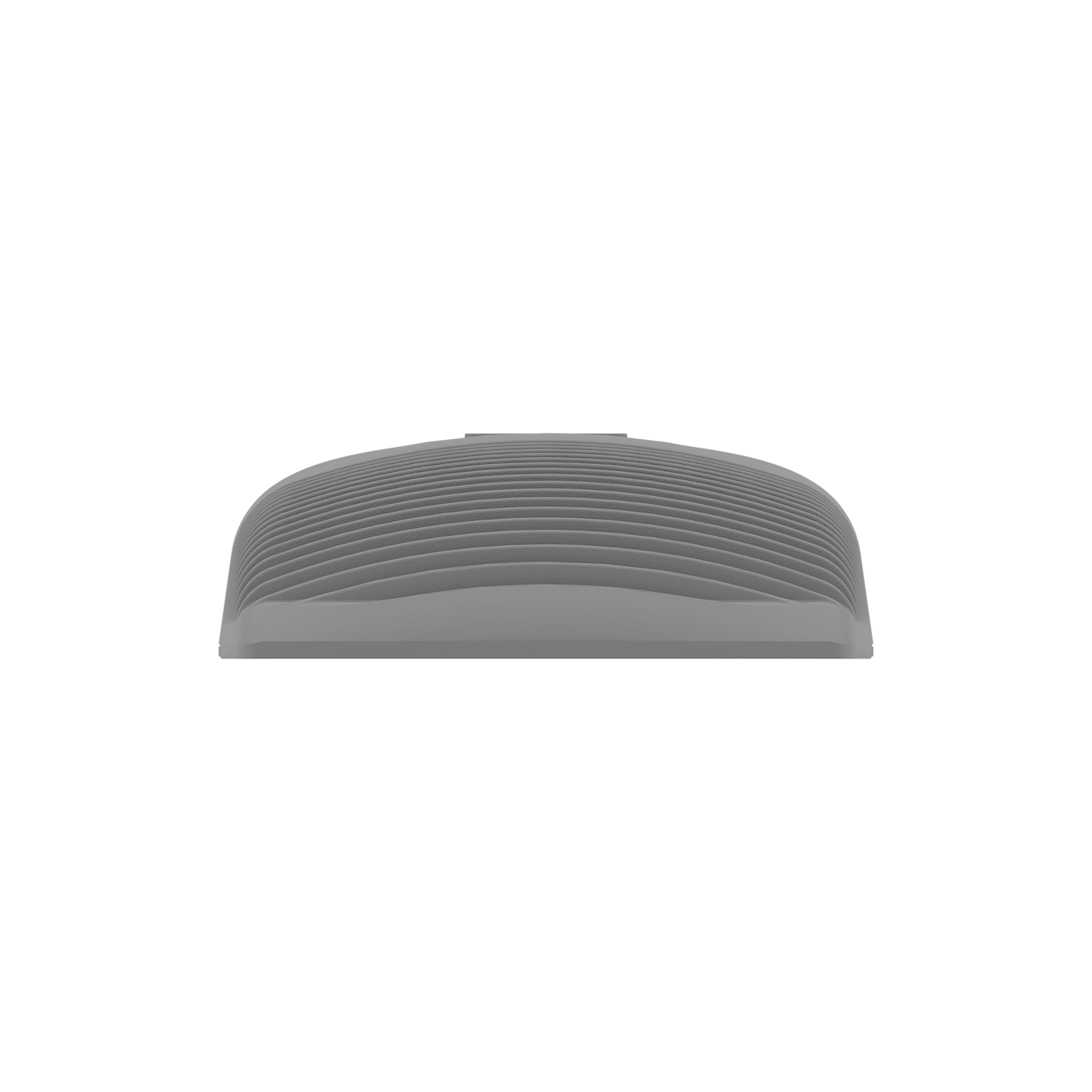

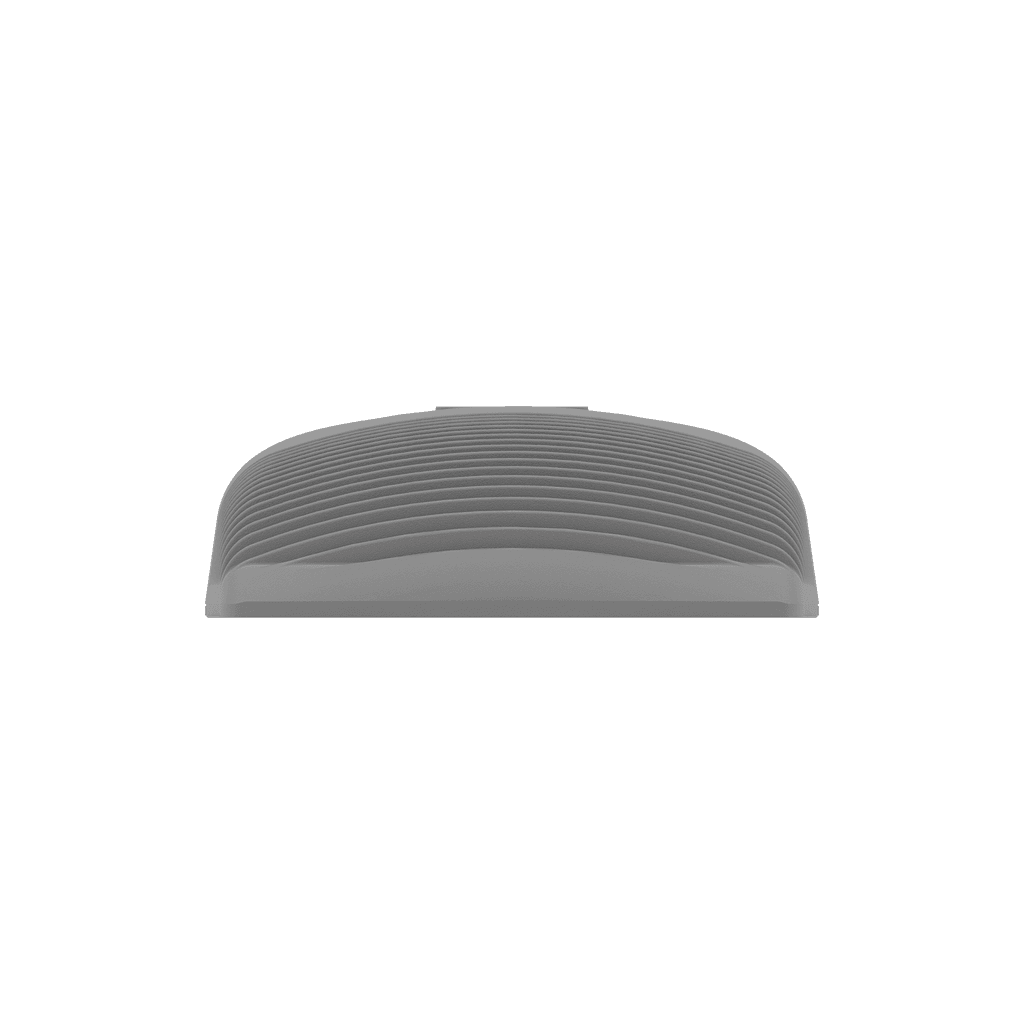

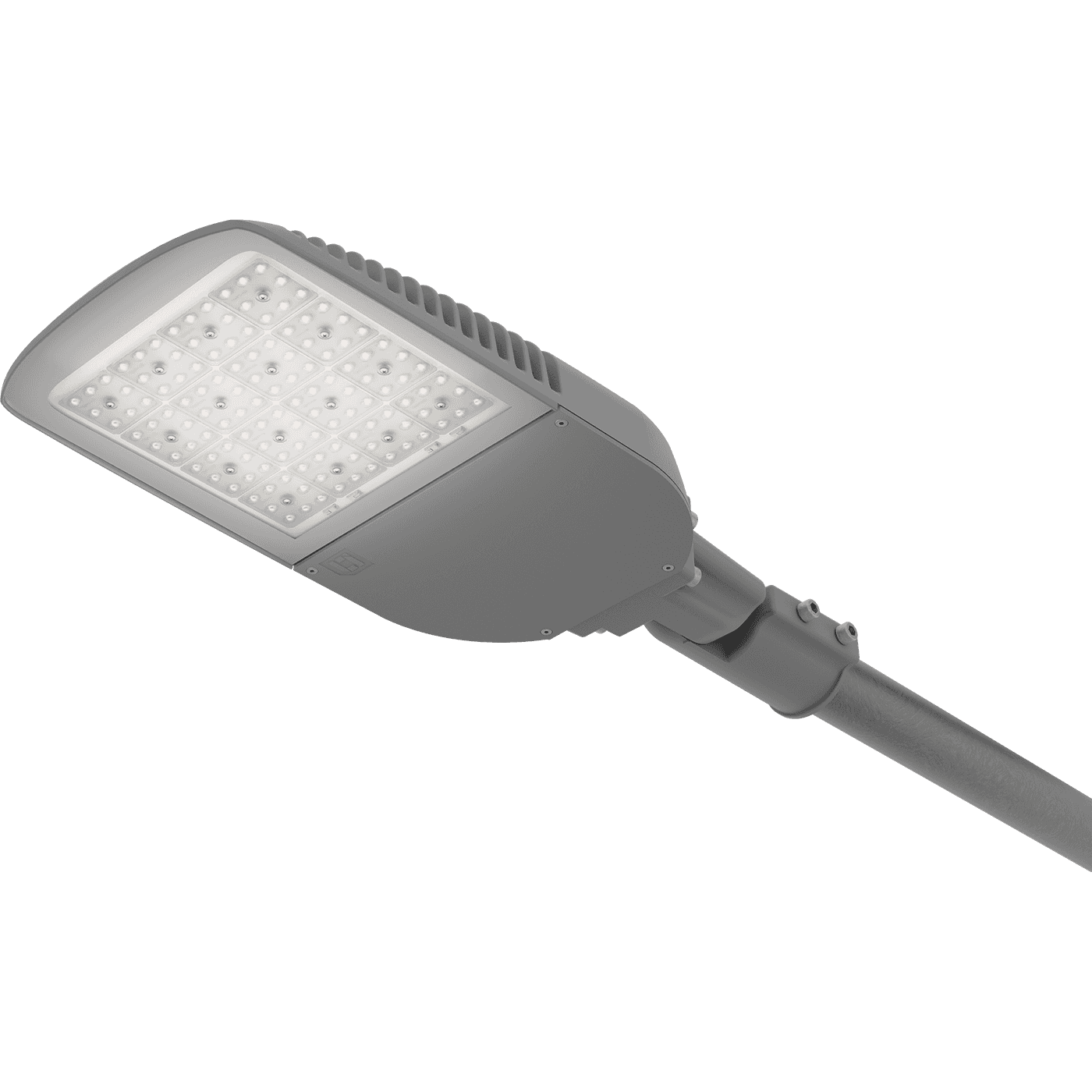

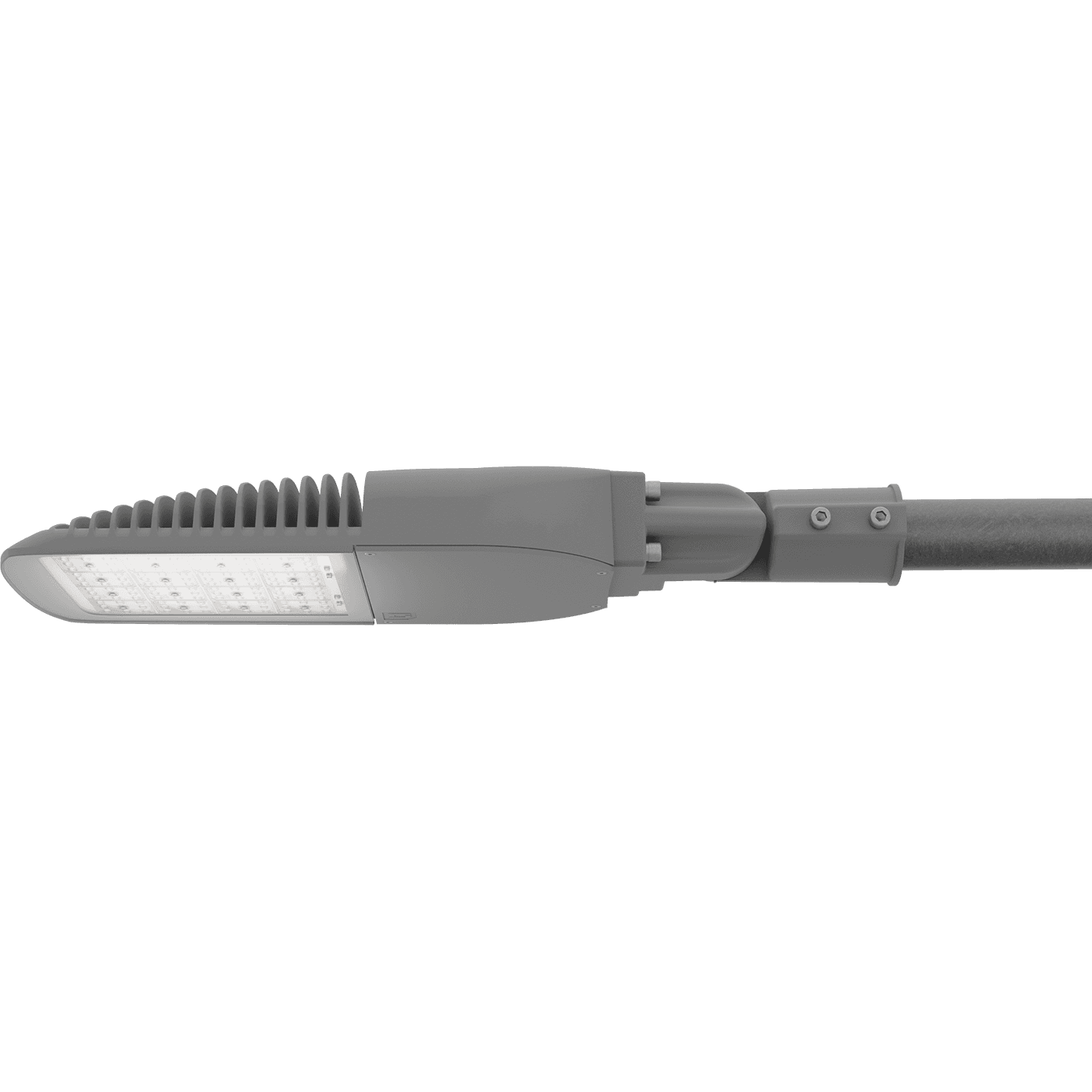

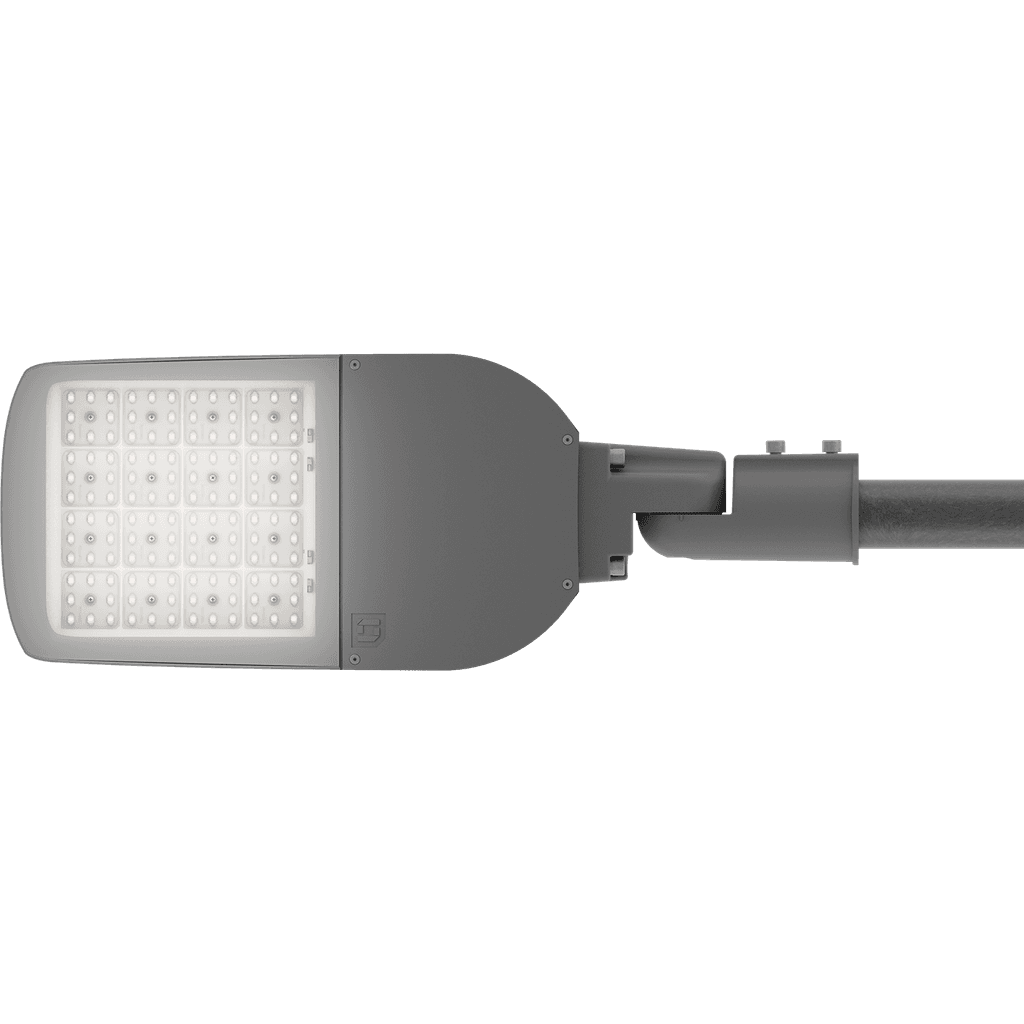

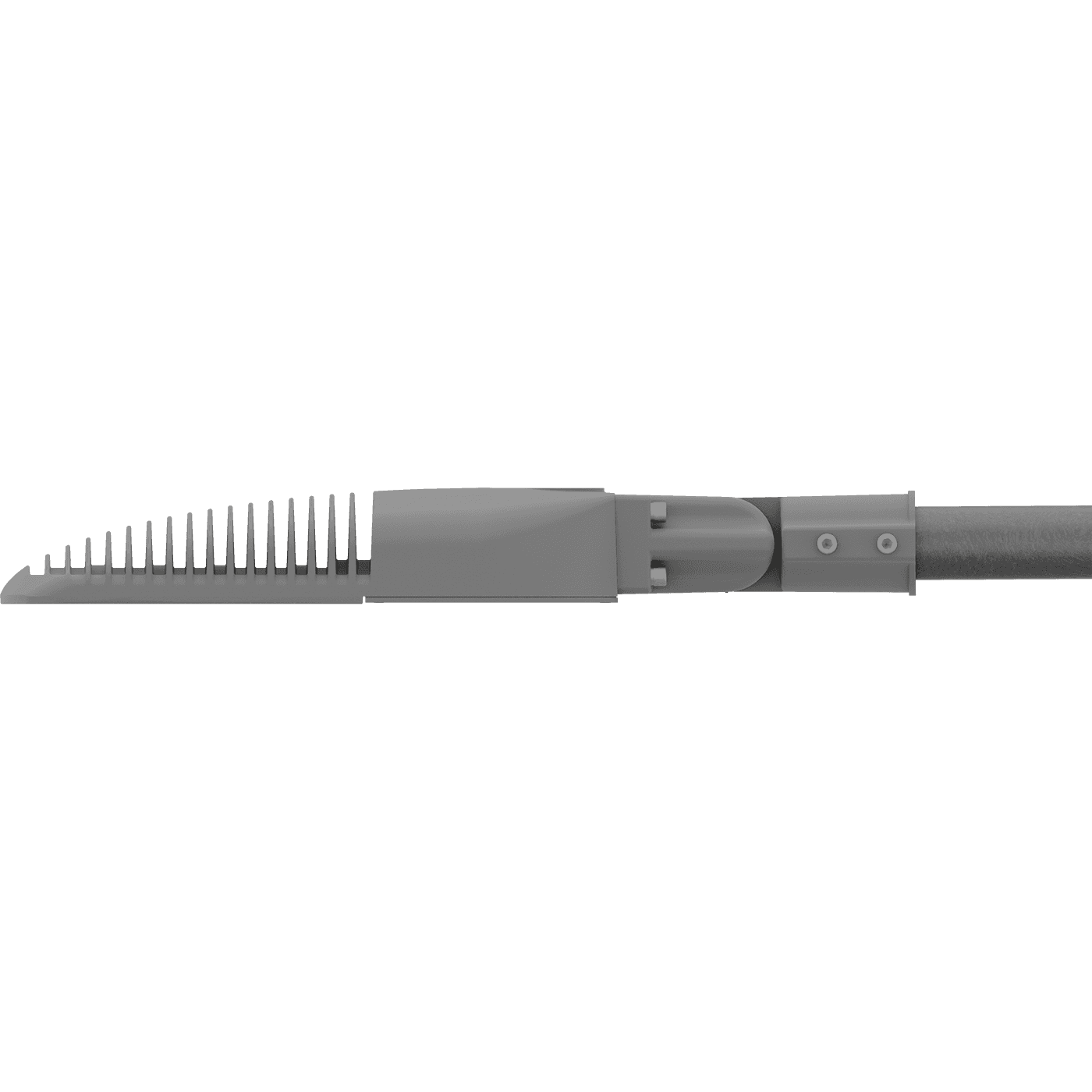

FREGAT LED 55W DW 750 RAL9006
add to favorites
55 Wluminaire power
7400 lmlight flow
135 lm/Wenergy efficiency
code1426000040
beam angleD150/80
color temperature5000
weight10 kg
  1. main page
  2. catalog
  3. by product type
  4. outdoor lighting
  5. console
  6. магистральные
  7. FREGAT LED
  8. FREGAT LED 55W DW 750 RAL9006
options
свернуть все
electricalconstructionalcommonilluminating
starting current
50 A
starting current pulse time, µs
300 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
55 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
electrical
starting current
50 A
starting current pulse time, µs
300 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
55 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІІ
material
Алюминий
weight
10 kg
length, mm
722 mm
width, mm
265 mm
height, mm
91 mm
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK09/10 Дж
installation diameter, mm
60 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1426000040
ETIM class
Светильник для освещения улиц и площадей
warranty
60 month
temperature range
от -40 до +60 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
135 lm/W
color rendition index (CRI)
>70
light flow
7400 lm
flickering factor
<1%
beam angle
D150/80
color temperature
5000
light source type
LED
emission color
Белый
model files
model files
CAD/BIM files
CAD model 3DS531.9 kB
model 3dMax3.1 mB

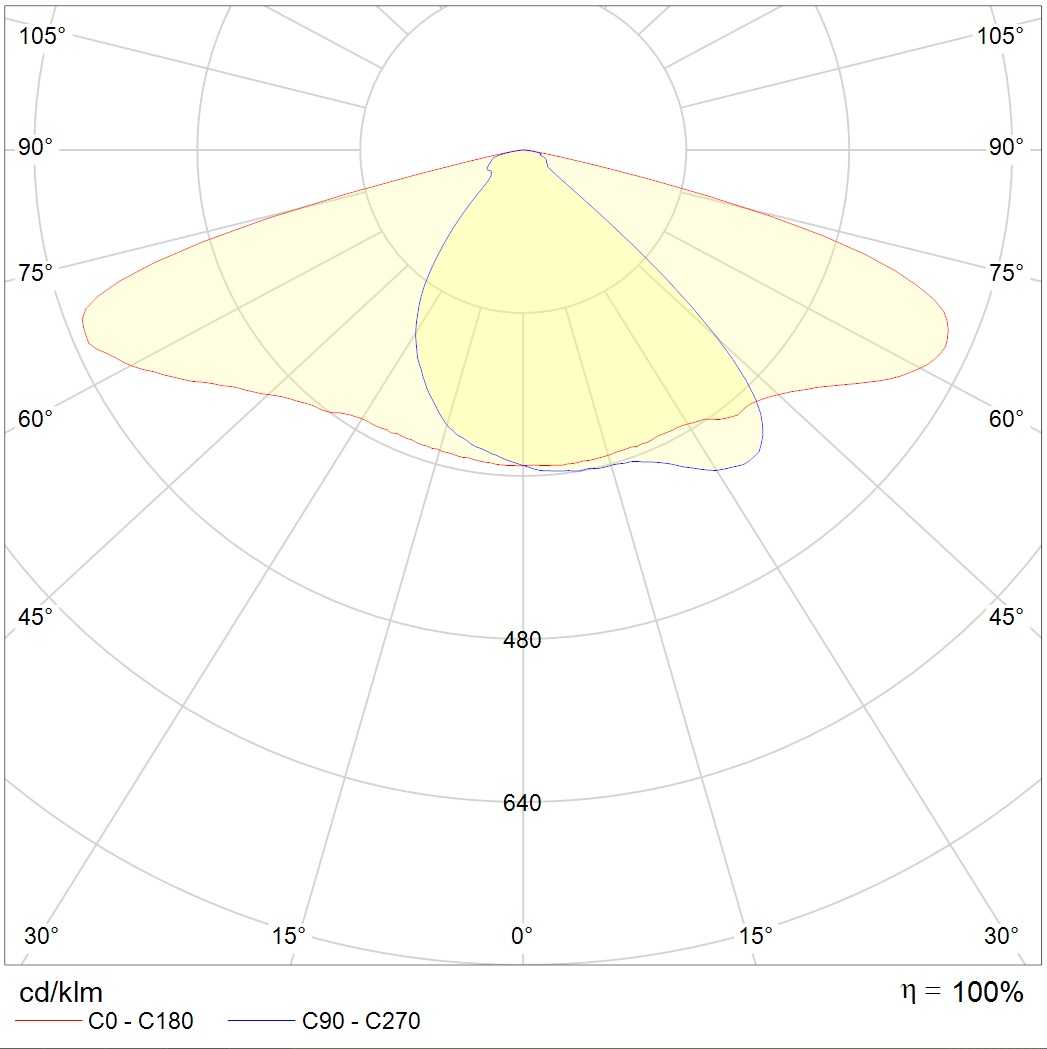

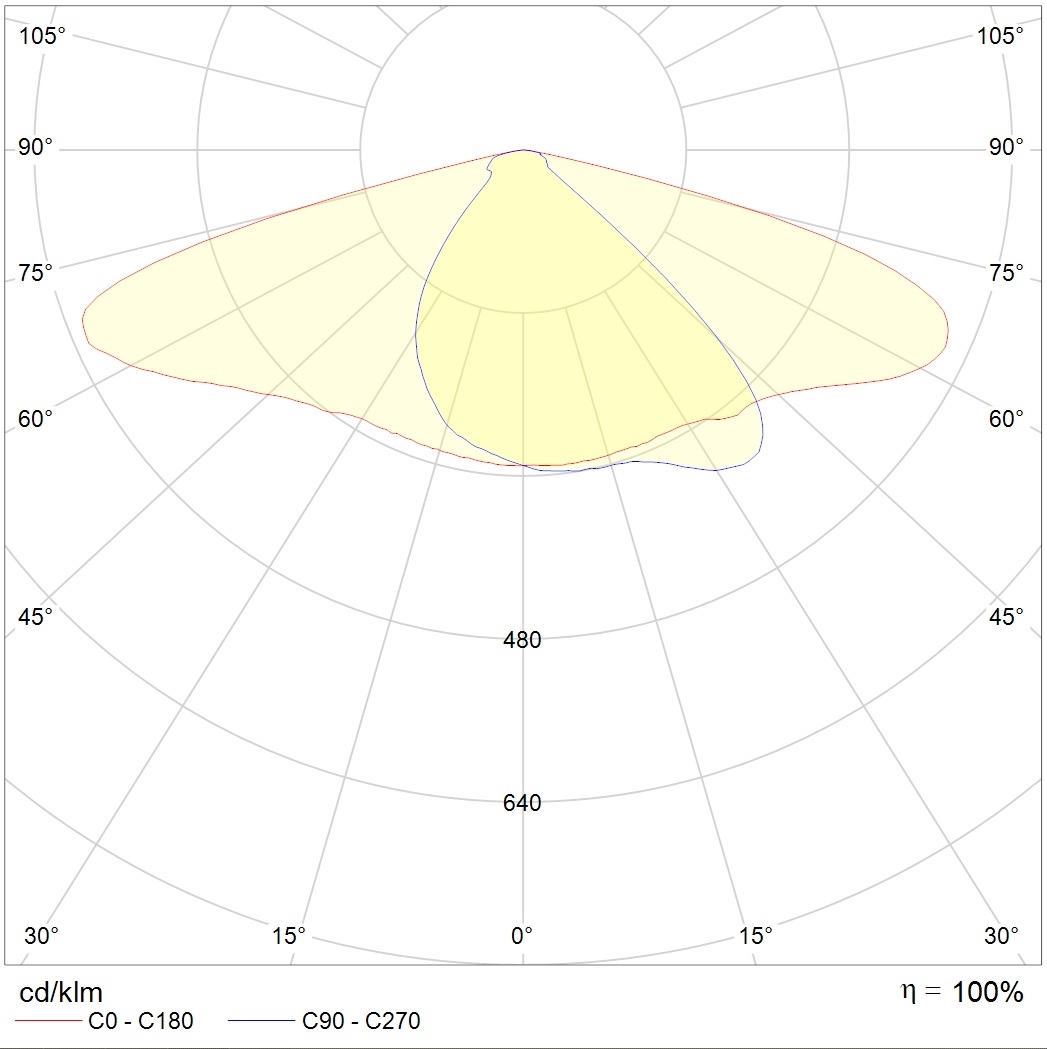

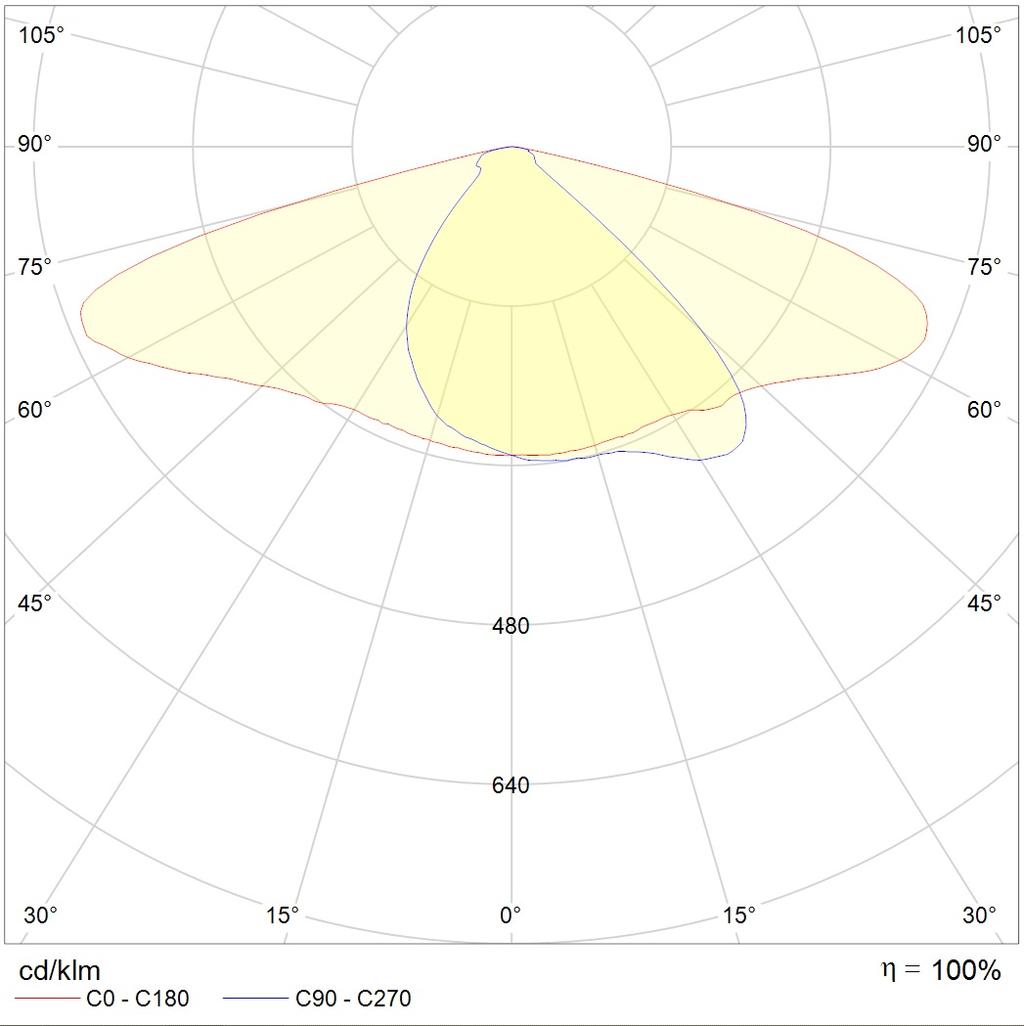

photometric files
ies263.2 kB
jpg119.4 kB
ldt156.9 kB
documents
passport1.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
CAD/BIM files
CAD model 3DS531.9 kB
model 3dMax3.1 mB
photometric files
ies263.2 kB
jpg119.4 kB
ldt156.9 kB
documents
passport1.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
accessories
Wall mounting bracket FREGAT LED (silver)0.635kgarticle: 2426000010
