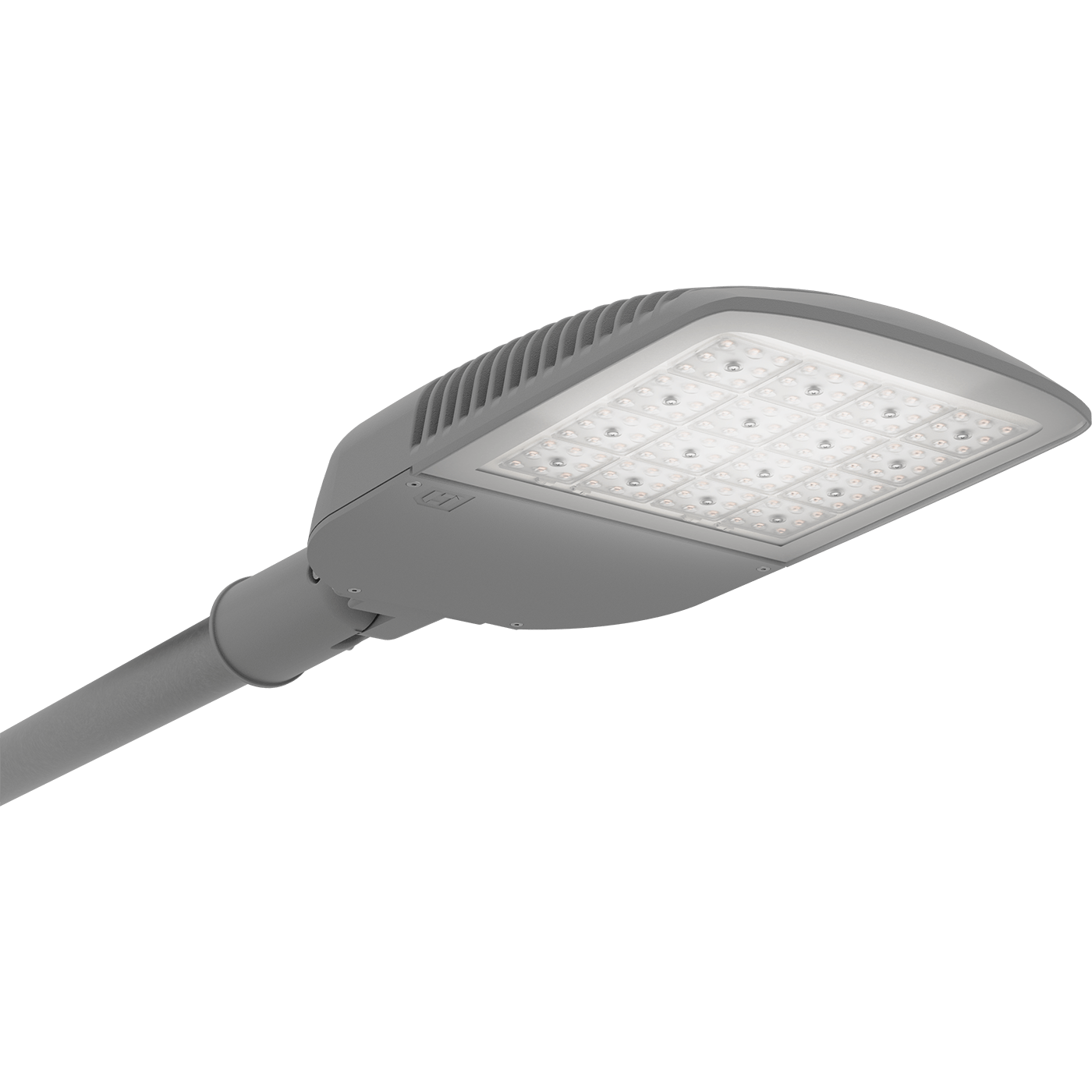

FREGAT LED 140W DW1 740 RAL9006 QUL
FREGAT LED 140W DW1 740 RAL9006 QUL
140 Wluminaire power
21500 lmlight flow
154 lm/Wenergy efficiency
code1426003880
beam angleD140/45
color temperature4000
weight10.7 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
50 Astarting current pulse time, µs
500 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Vluminaire power
140 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
50 A
starting current pulse time, µs
500 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
140 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІІ
material
Алюминий
weight
10.7 kg
length, mm
722 mm
width, mm
265 mm
height, mm
91 mm
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
1.5
shock resistance (IK)
IK09/10 Дж
installation diameter, mm
60 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1426003880
ETIM class
Светильник для освещения улиц и площадей
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
energy efficiency
154 lm/W
color rendition index (CRI)
>70
light flow
21500 lm
flickering factor
<1%

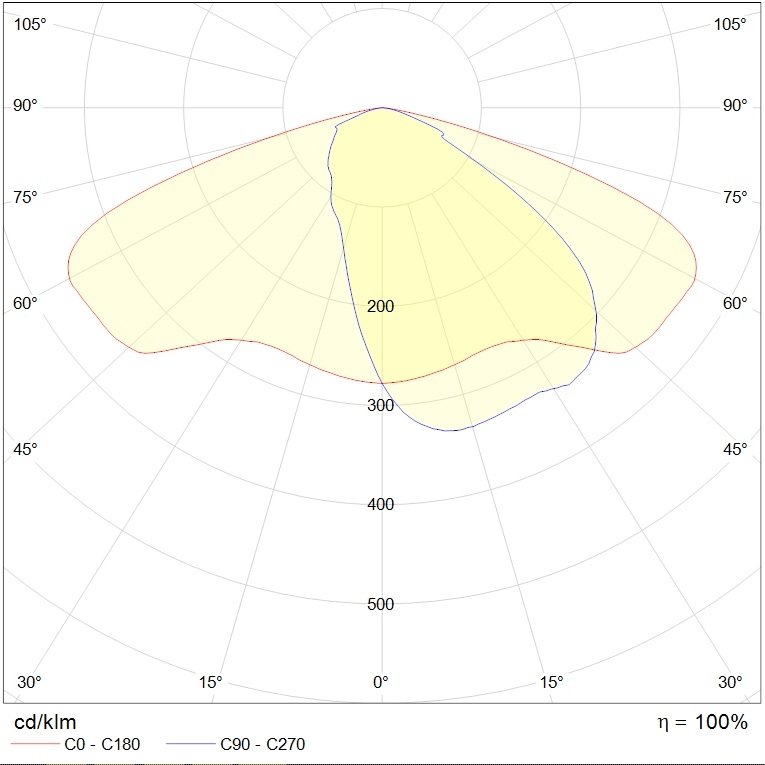

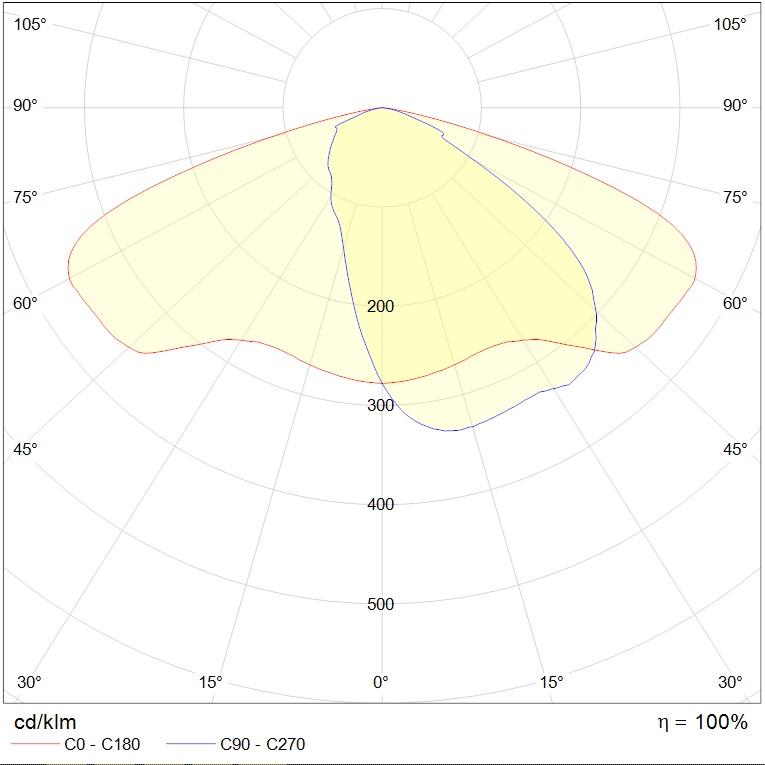

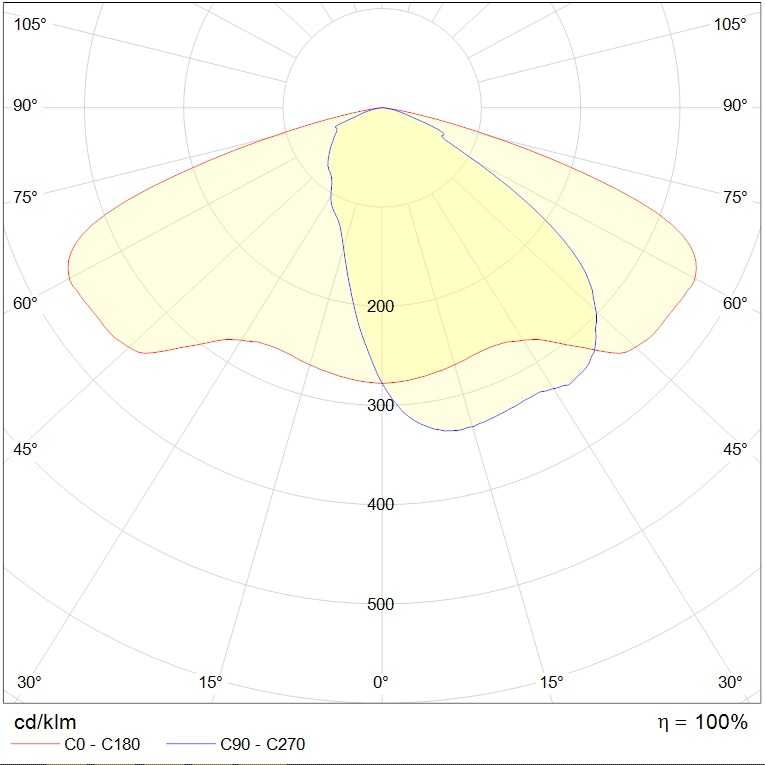

beam angle
D140/45
color temperature
4000
light source type
LED
emission color
Белый
LMS options
dimming
PLC
model files
model files
photometric files
documents
сертификаты
photometric files
ies134.1 kB
jpg84.6 kB
ldt81.7 kB
documents
passport1.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
