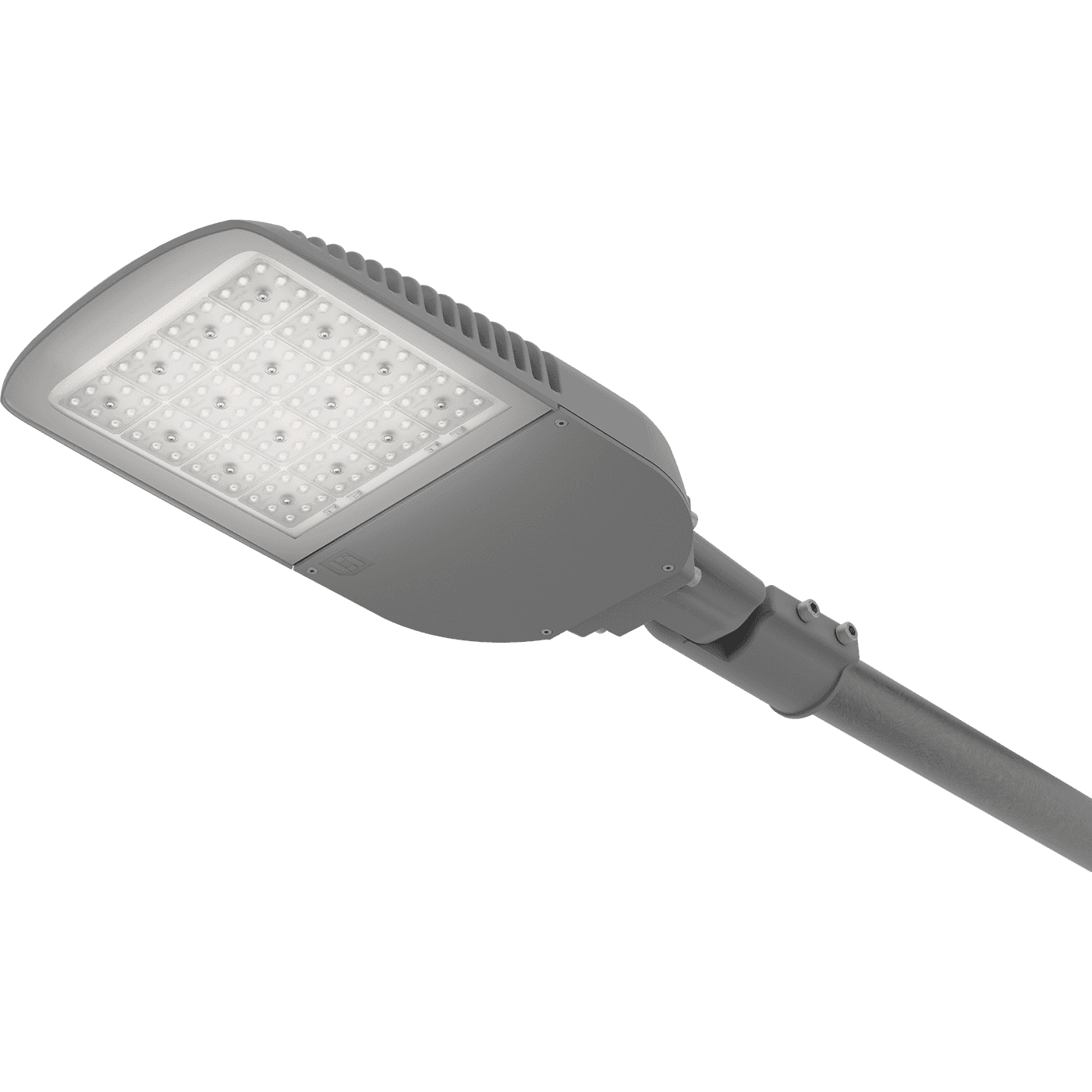

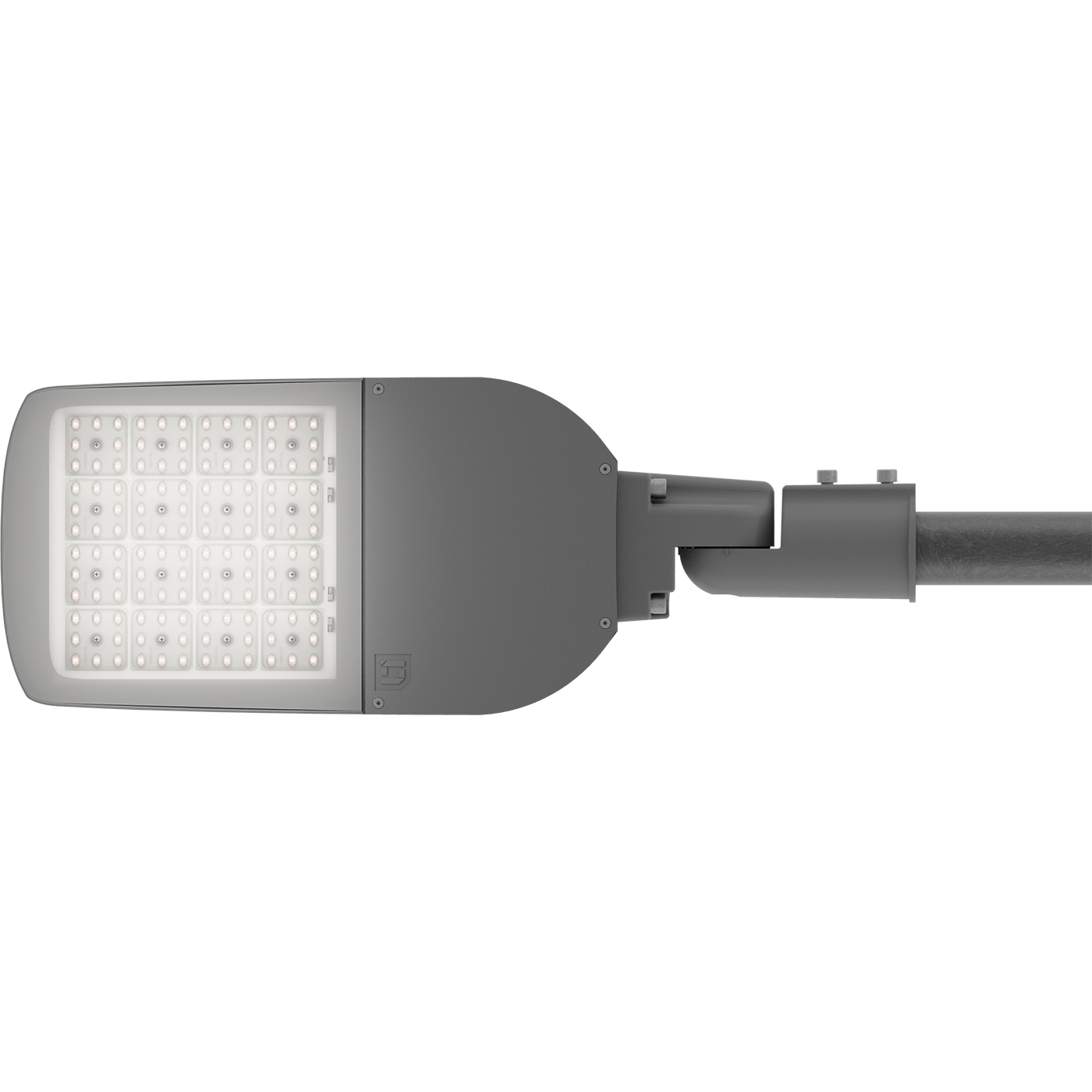

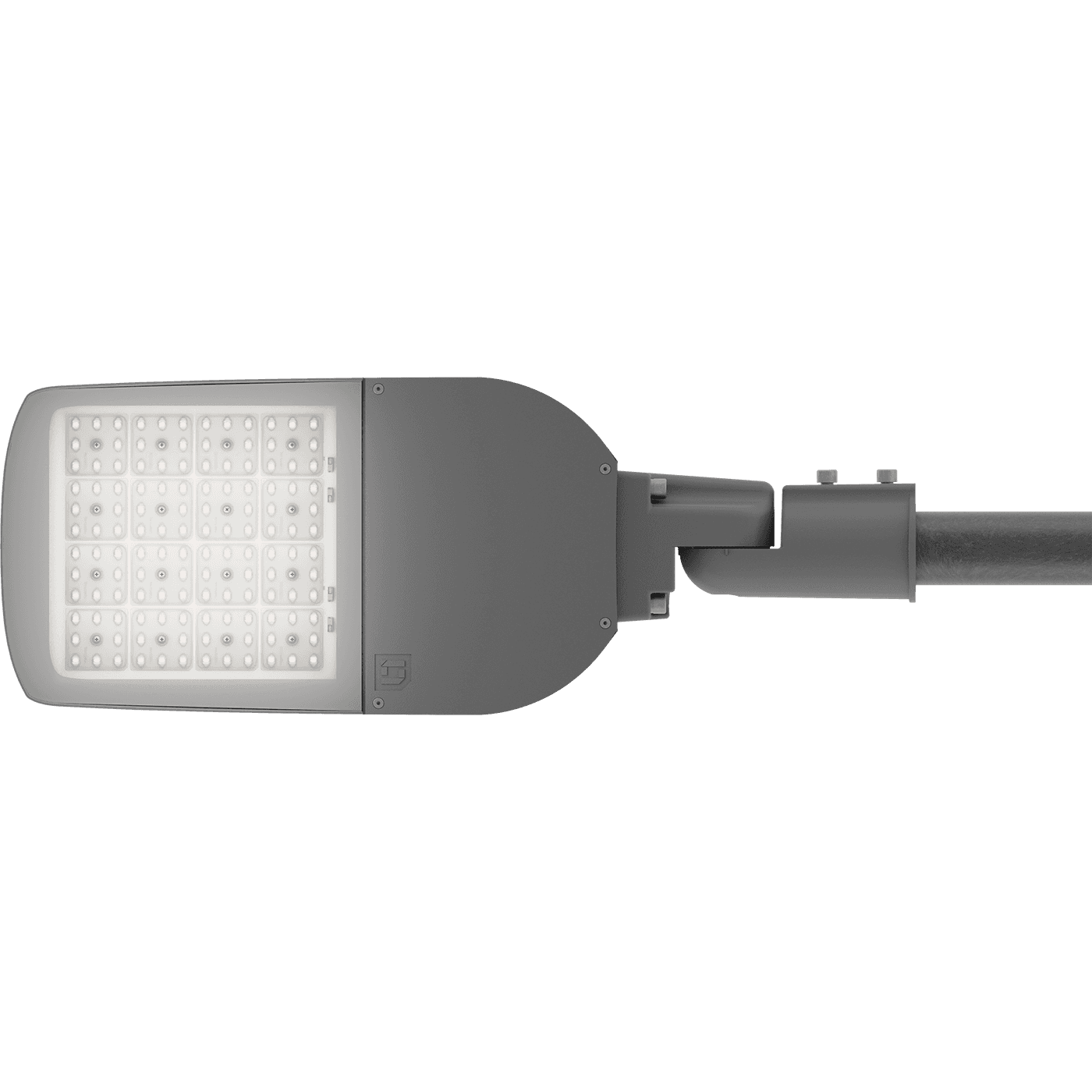

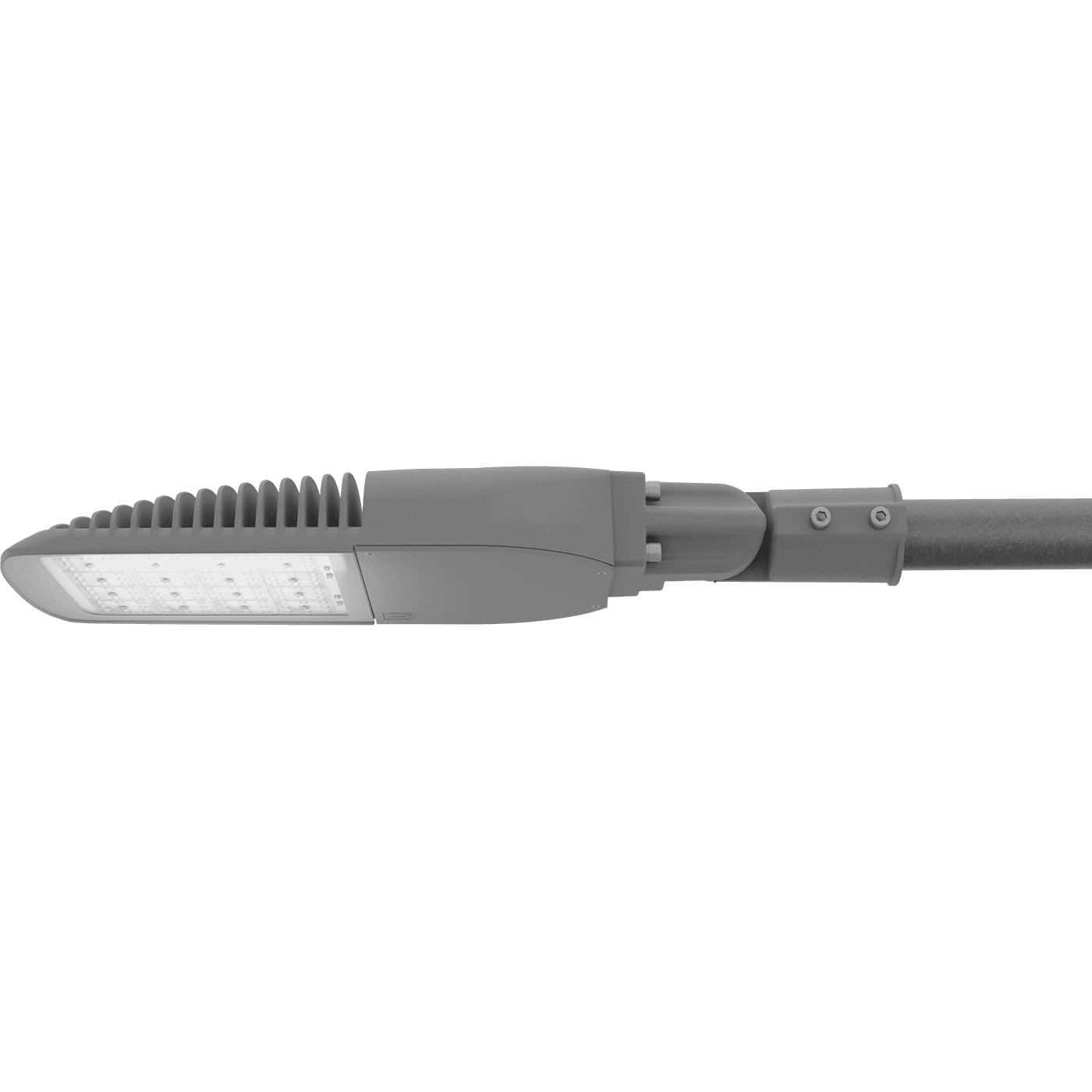

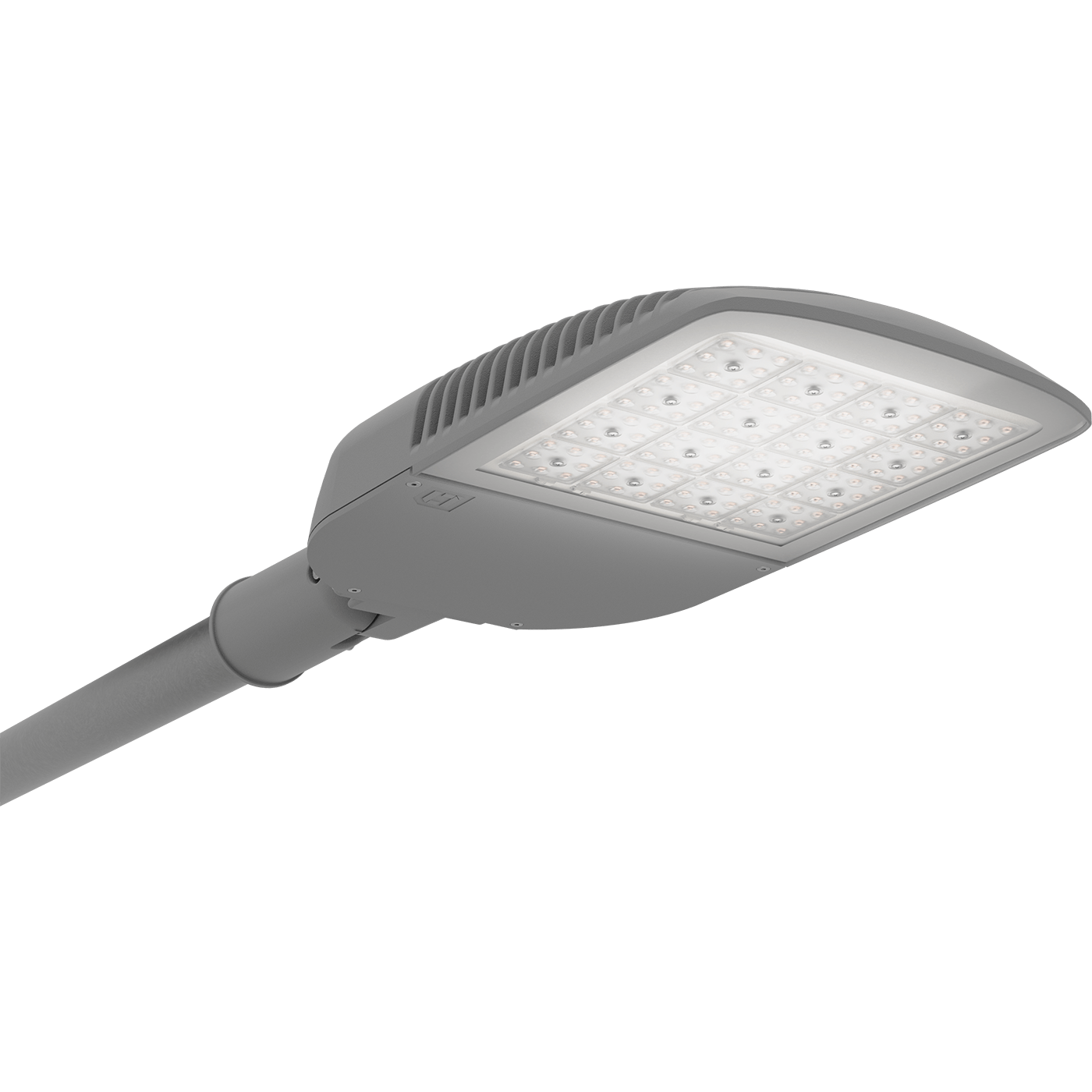

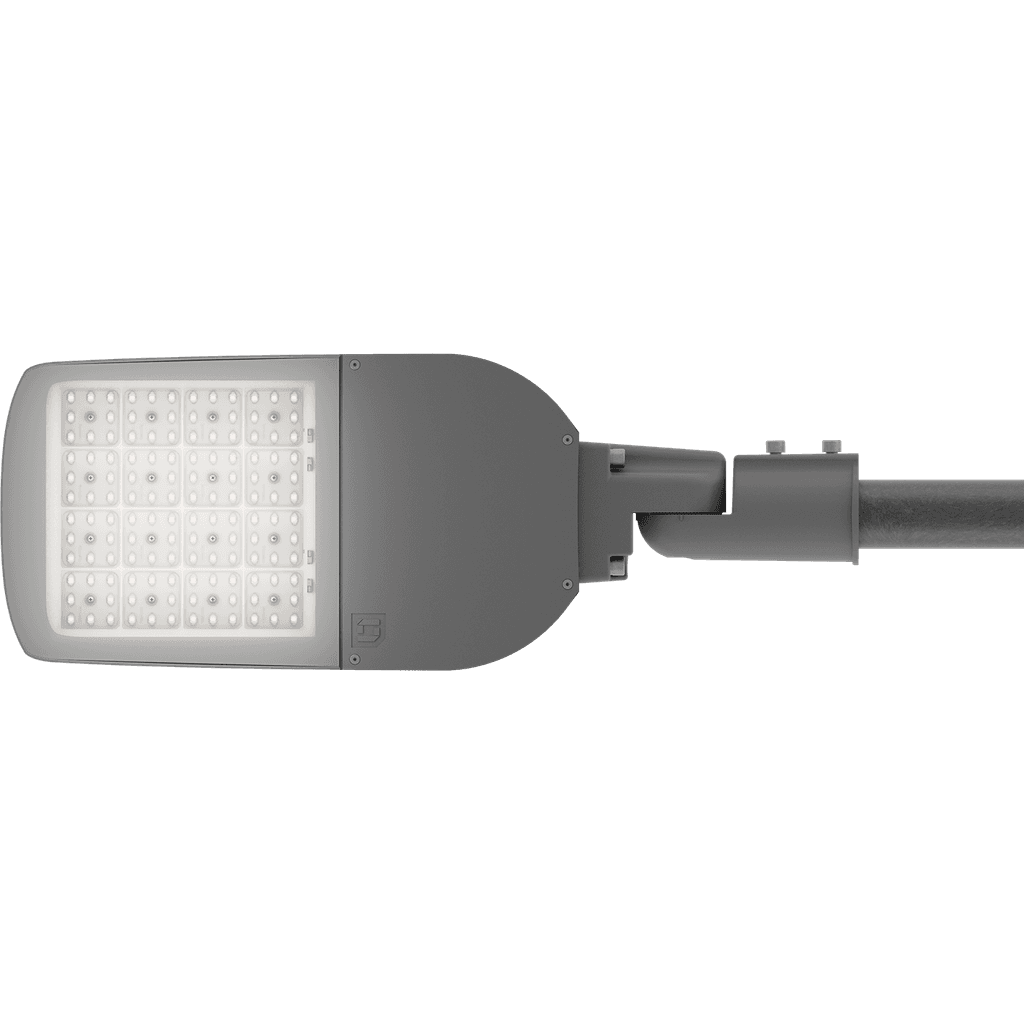

FREGAT LED 110W DW 740 RAL9006 SR
archive
archive
FREGAT LED 110W DW 740 RAL9006 SR
105 Wluminaire power
14400 lmlight flow
137 lm/Wenergy efficiency
code1426002690

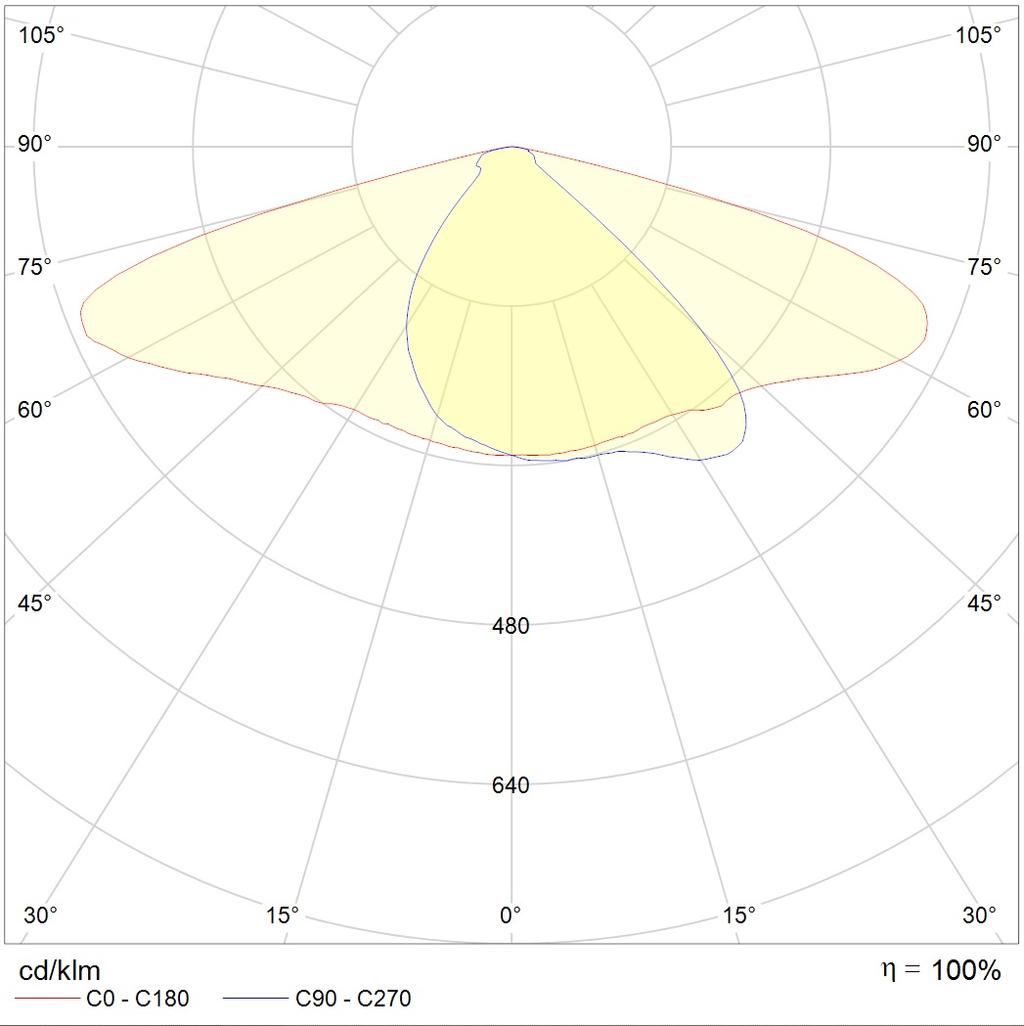

beam angleD150/80
color temperature4000
weight10.7 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
65 Astarting current pulse time, µs
485 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Vluminaire power
105 Welectric shock protection
Ipower factor
> 0,98supply voltage
230 Velectrical
starting current
65 A
starting current pulse time, µs
485 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
105 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІІ
material
Алюминий
weight
10.7 kg
length, mm
722 mm
width, mm
265 mm
height, mm
91 mm
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK09/10 Дж
installation diameter, mm
60 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
code
1426002690
ETIM class
Светильник для освещения улиц и площадей
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
energy efficiency
137 lm/W
color rendition index (CRI)
>70
light flow
14400 lm
flickering factor
<1%
beam angle
D150/80
color temperature
4000
light source type
LED
emission color
Белый
LMS options
dimming
DALI
model files
model files
photometric files
сертификаты

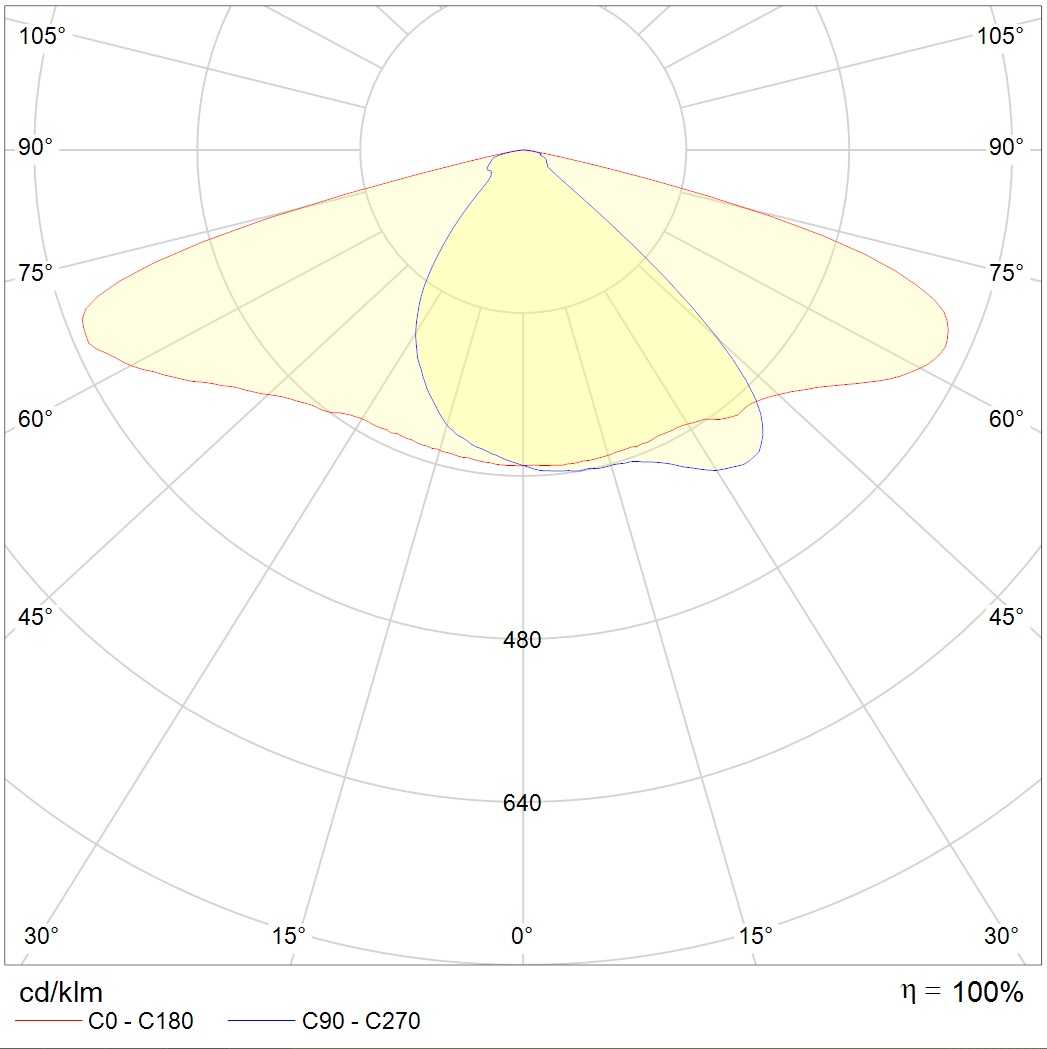

photometric files
ies263.2 kB
jpg119.4 kB
ldt156.9 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
