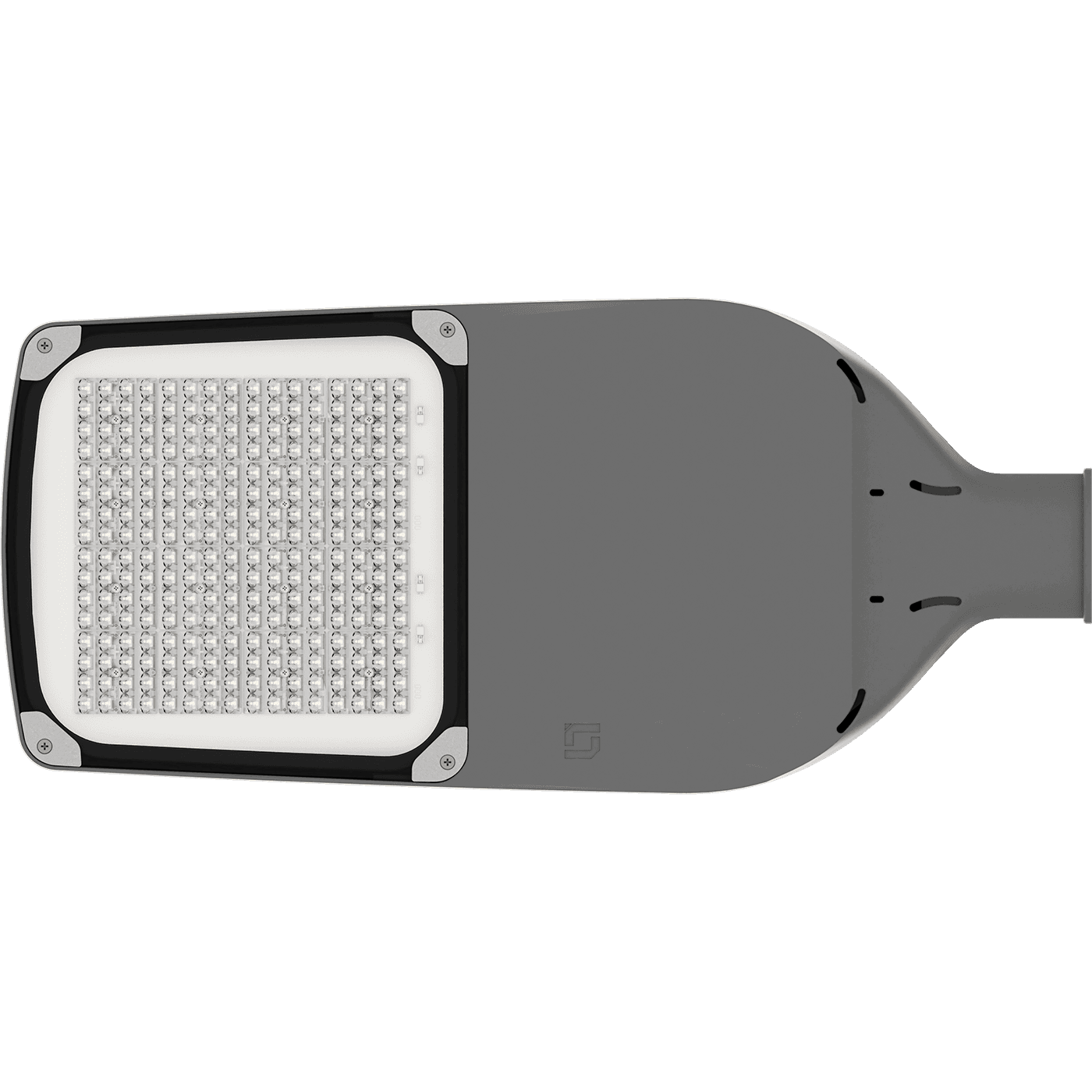

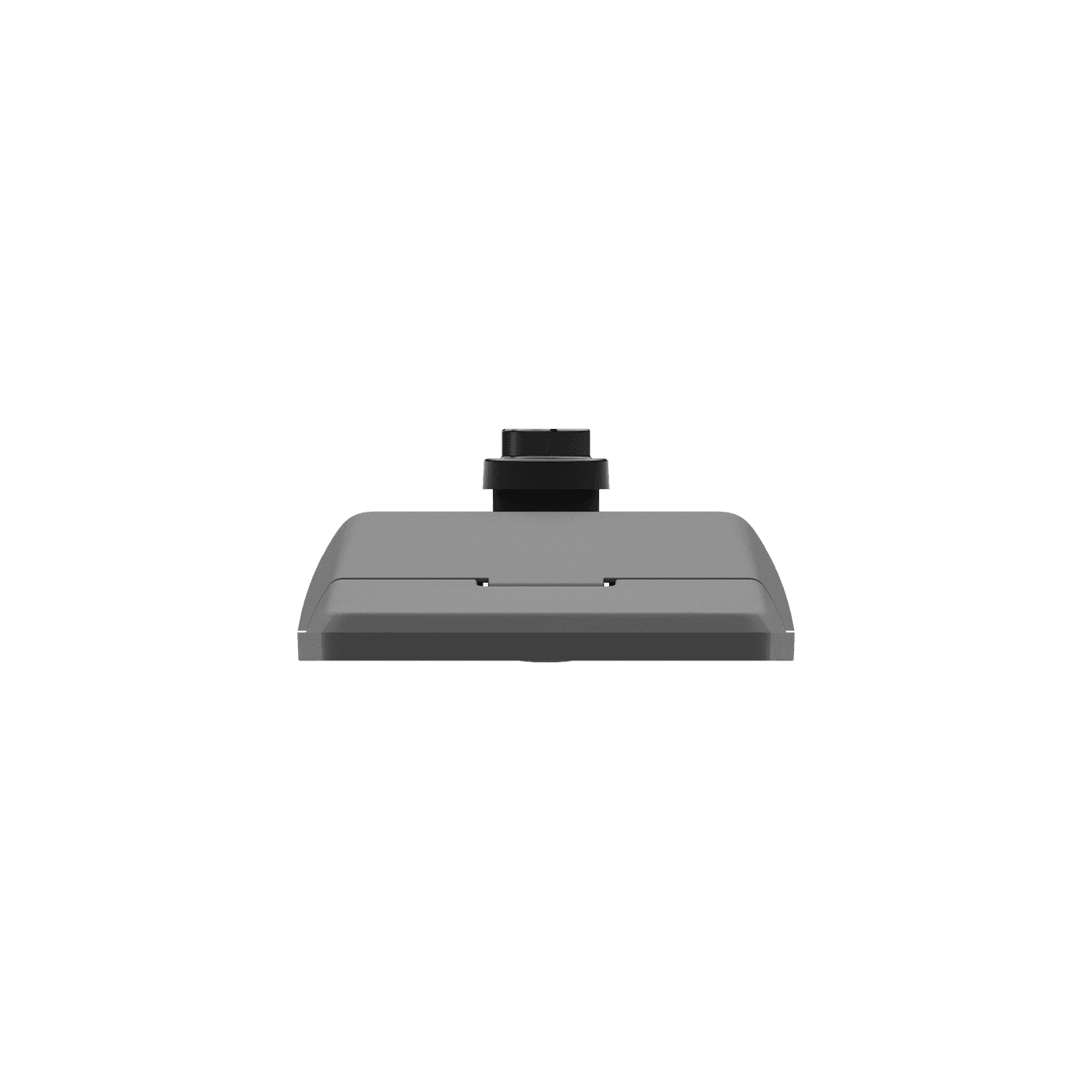

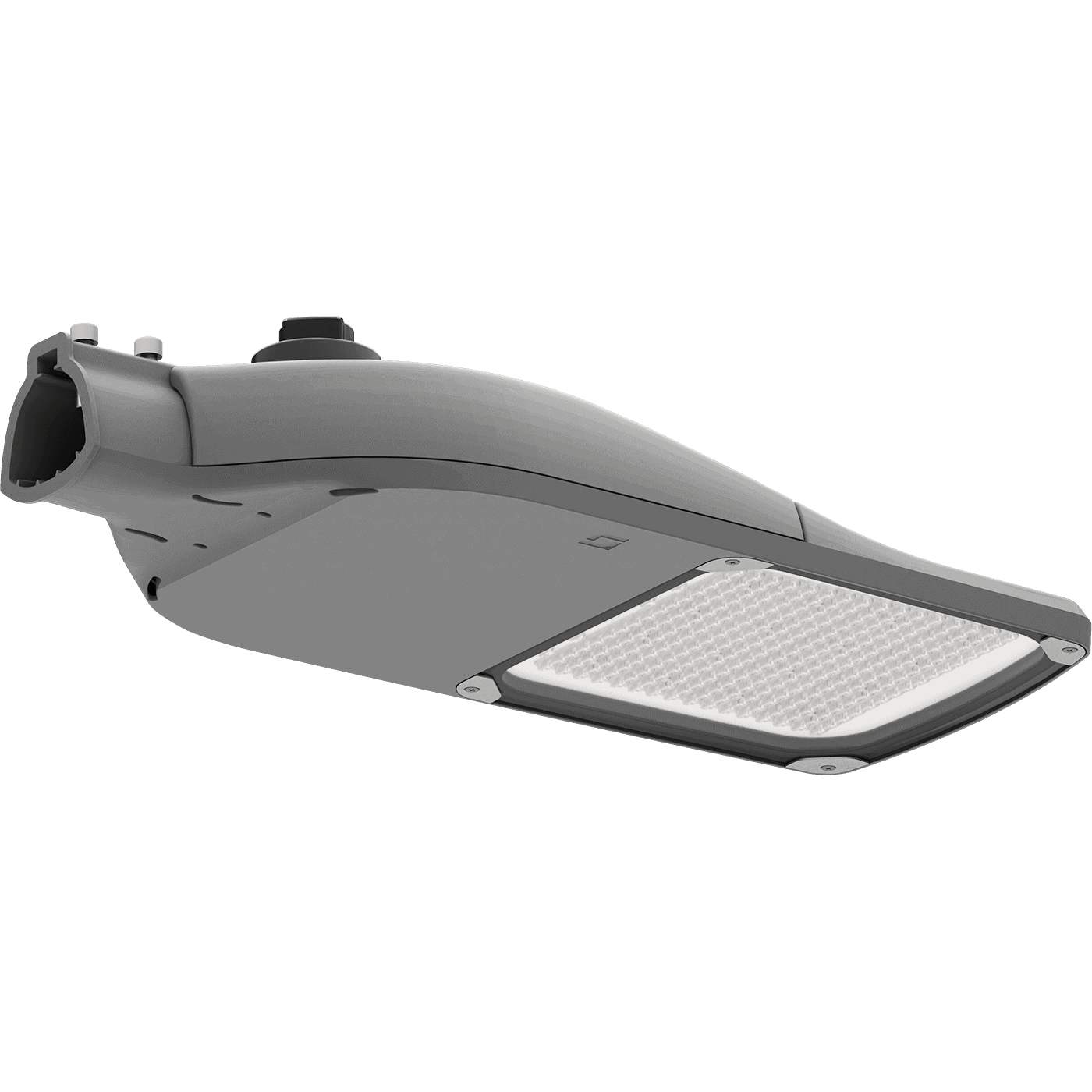

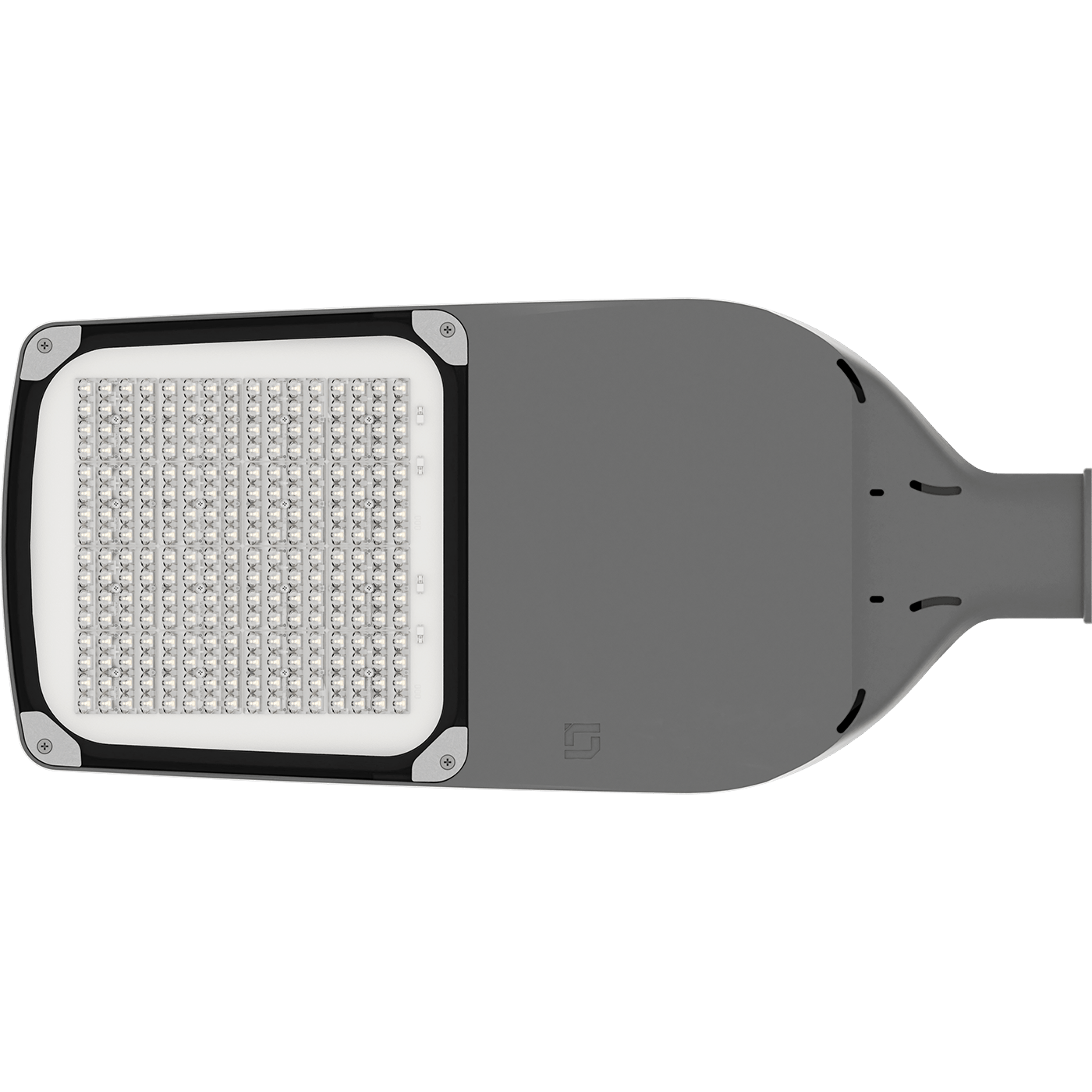

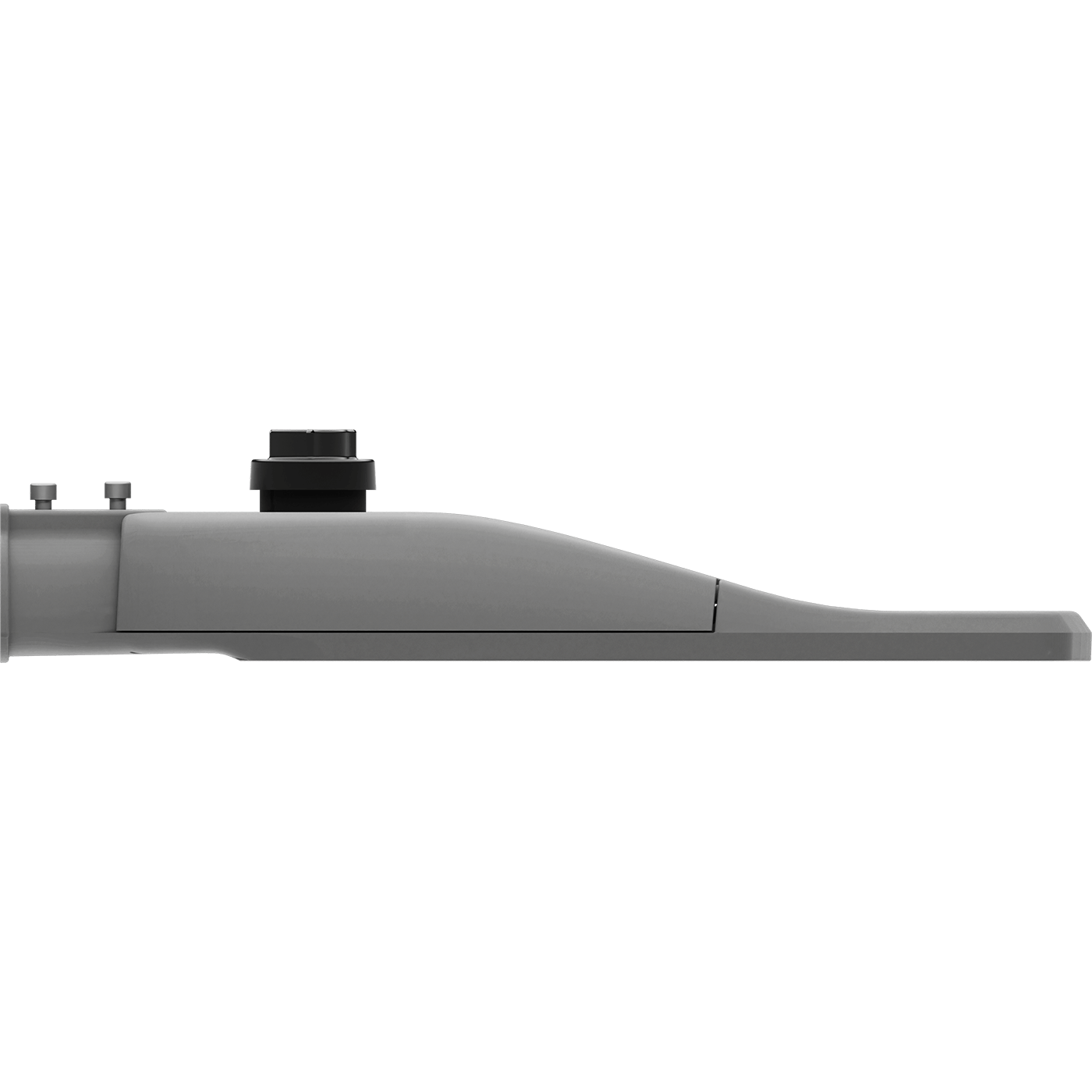

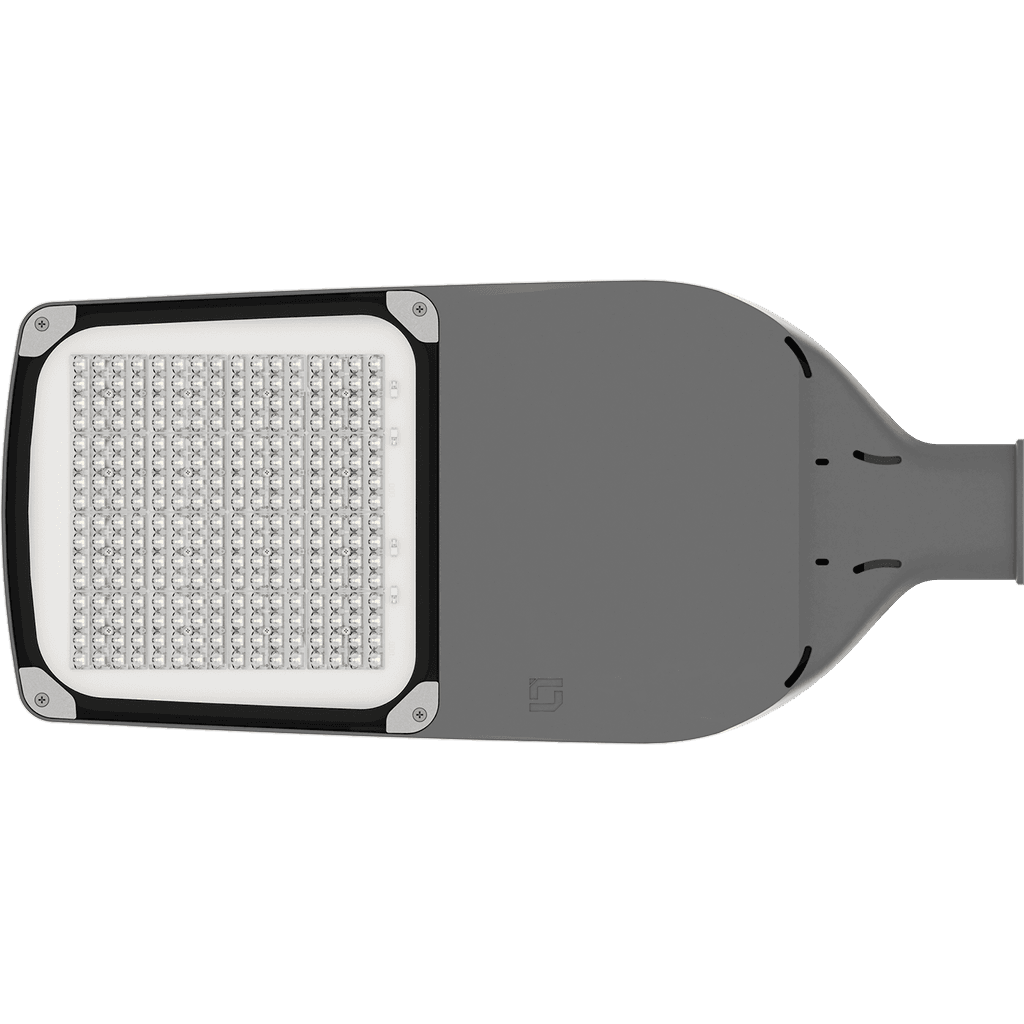

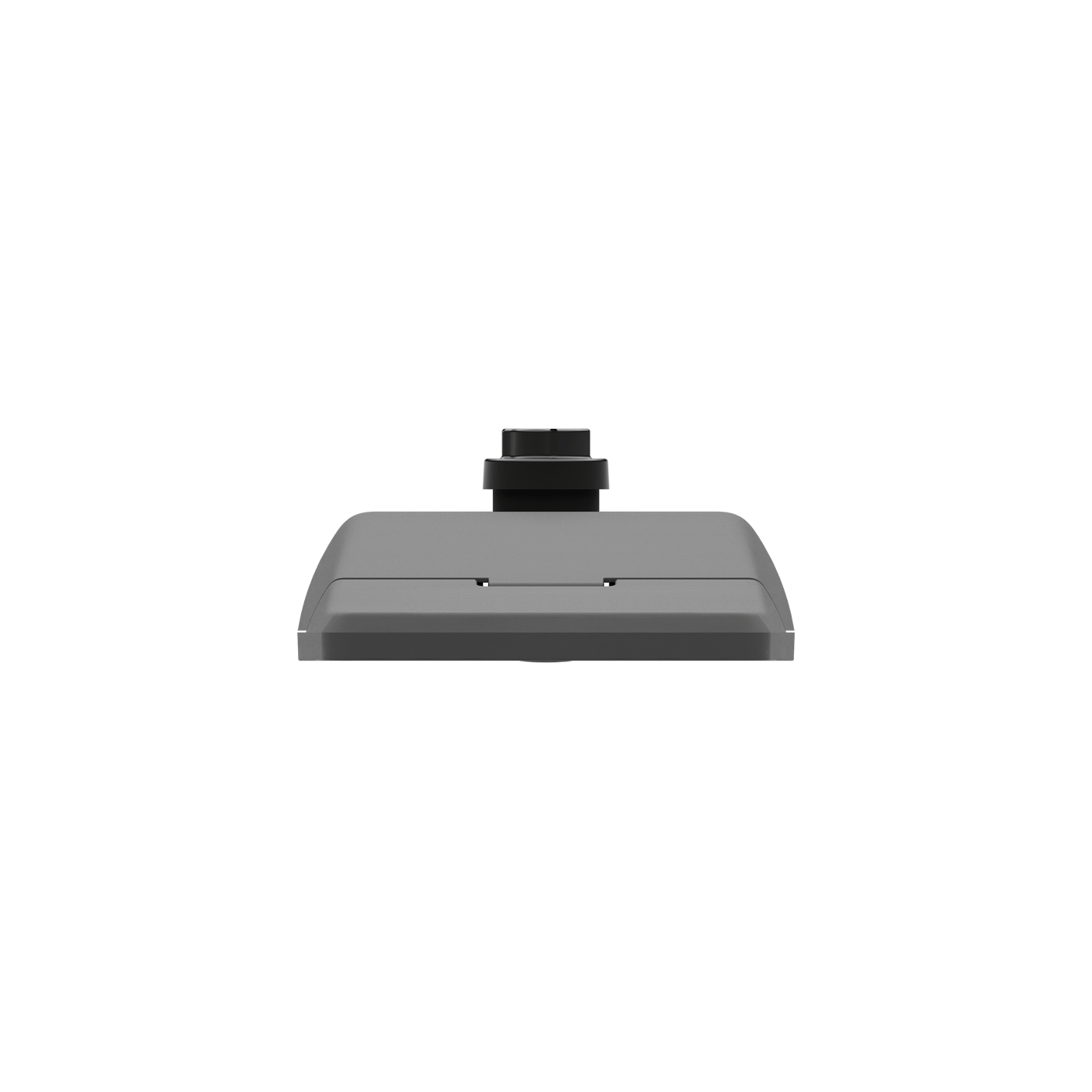

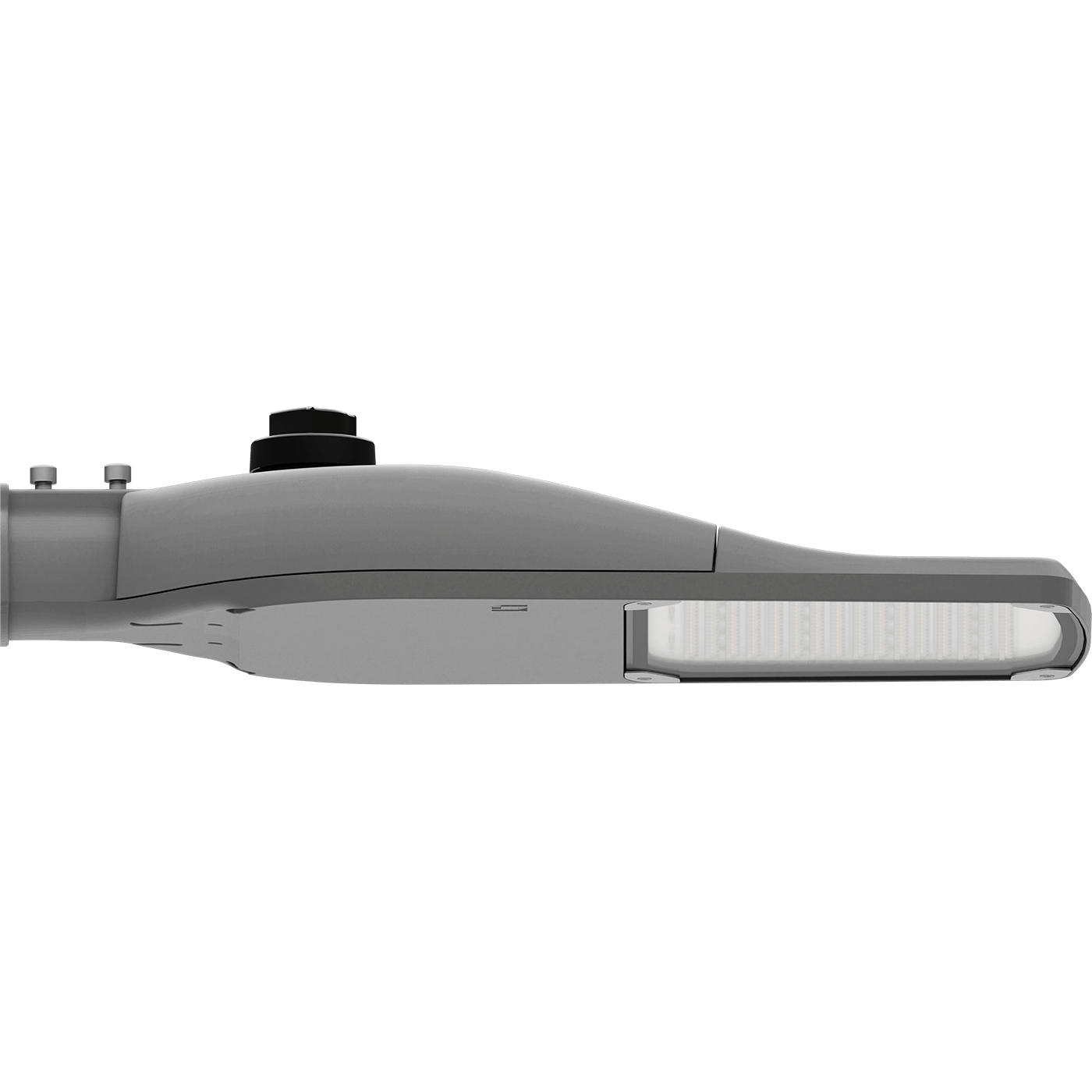

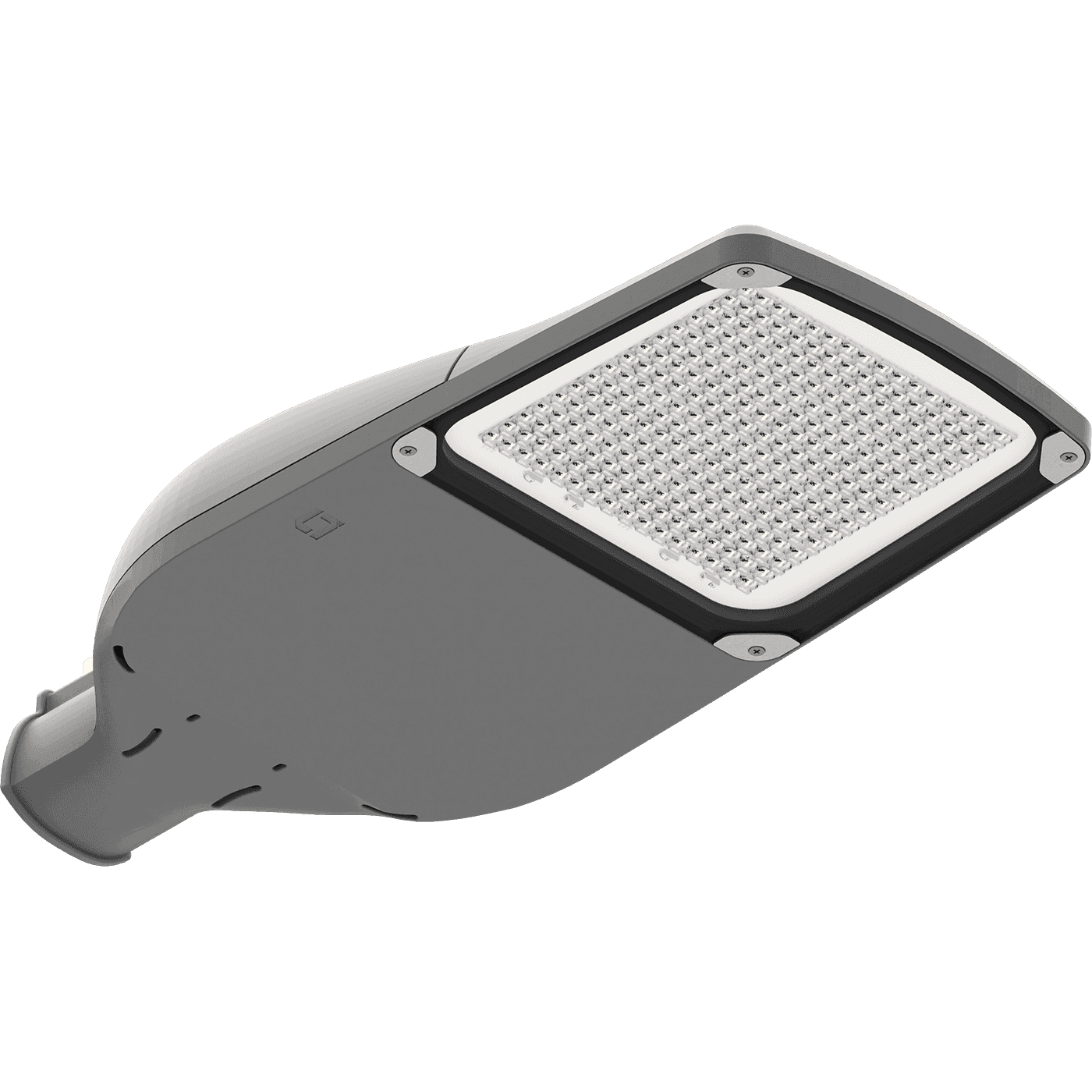

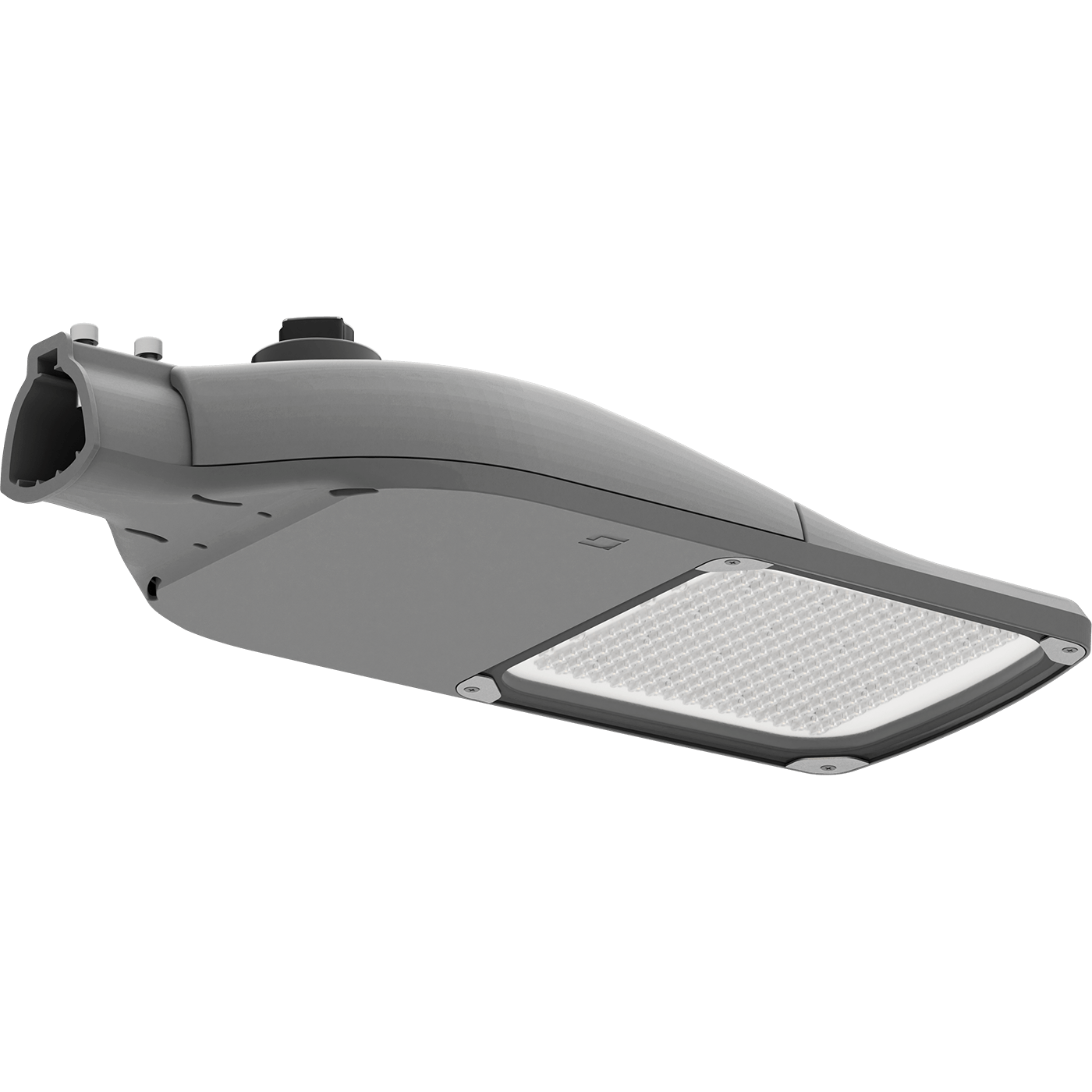

FREGAT LED G2 55W DW2 740 RAL9006 CR
FREGAT LED G2 55W DW2 740 RAL9006 CR
52 Wluminaire power
8400 lmlight flow
162 lm/Wenergy efficiency
code1426004150
beam angleD140/45
color temperature4000 K
weight7.6 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
162 lm/Wcolor rendition index (CRI)
>70light flow
8400 lmflickering factor
<5%beam angle
D140/45color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
162 lm/W
color rendition index (CRI)
>70
light flow
8400 lm
flickering factor
<5%
beam angle
D140/45
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
52 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
1.5 mm2
supply voltage, alternating current
90-305 V
power factor
> 0,98
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІІ
width
300 mm
height
133 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер 0-10В
length
660 mm
material
Алюминий
installation diameter
48-60 mm
ingress protection (IP)
IP66
shock resistance (IK)
IK08/5 Дж
weight
7.6 kg
LMS options
dimming
0-10 V
common
code
1426004150
warranty
60 month
energy efficiency class
A++
temperature range
от -40 до +60 C
service life
50 000 h
ETIM class
Светильник для освещения улиц и площадей
model files
model files

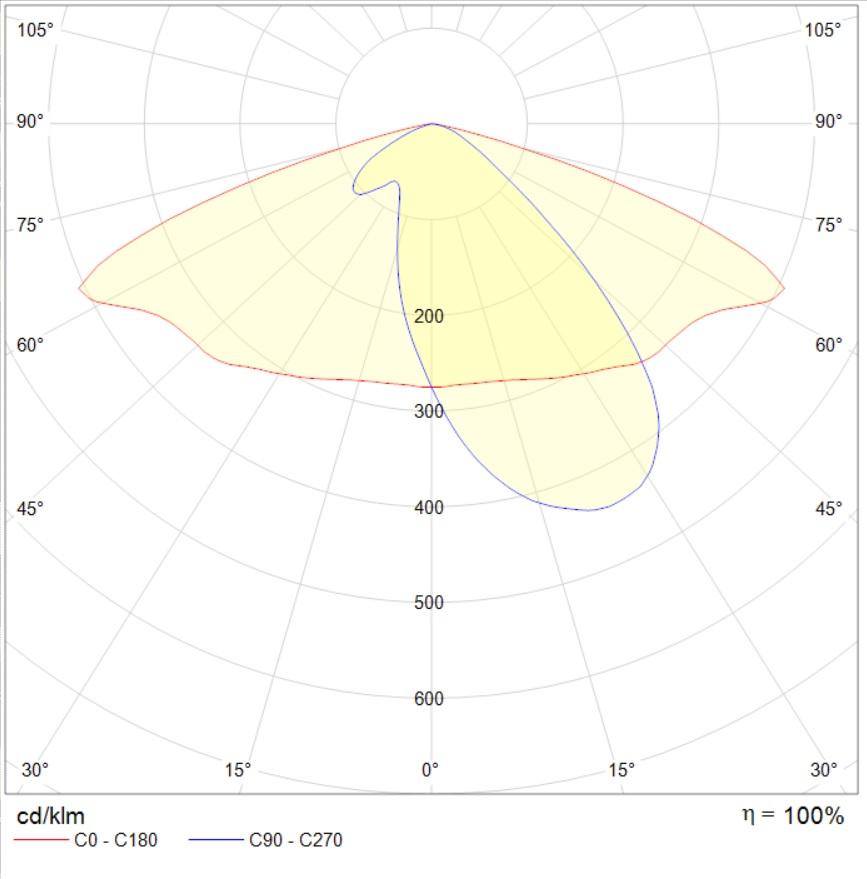

photometric files
сертификаты
photometric files
ies107 kB
jpg88.6 kB
ldt71.1 kB
сертификаты
Certificate of conformity TRTS 014/20119.2 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20119.2 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
