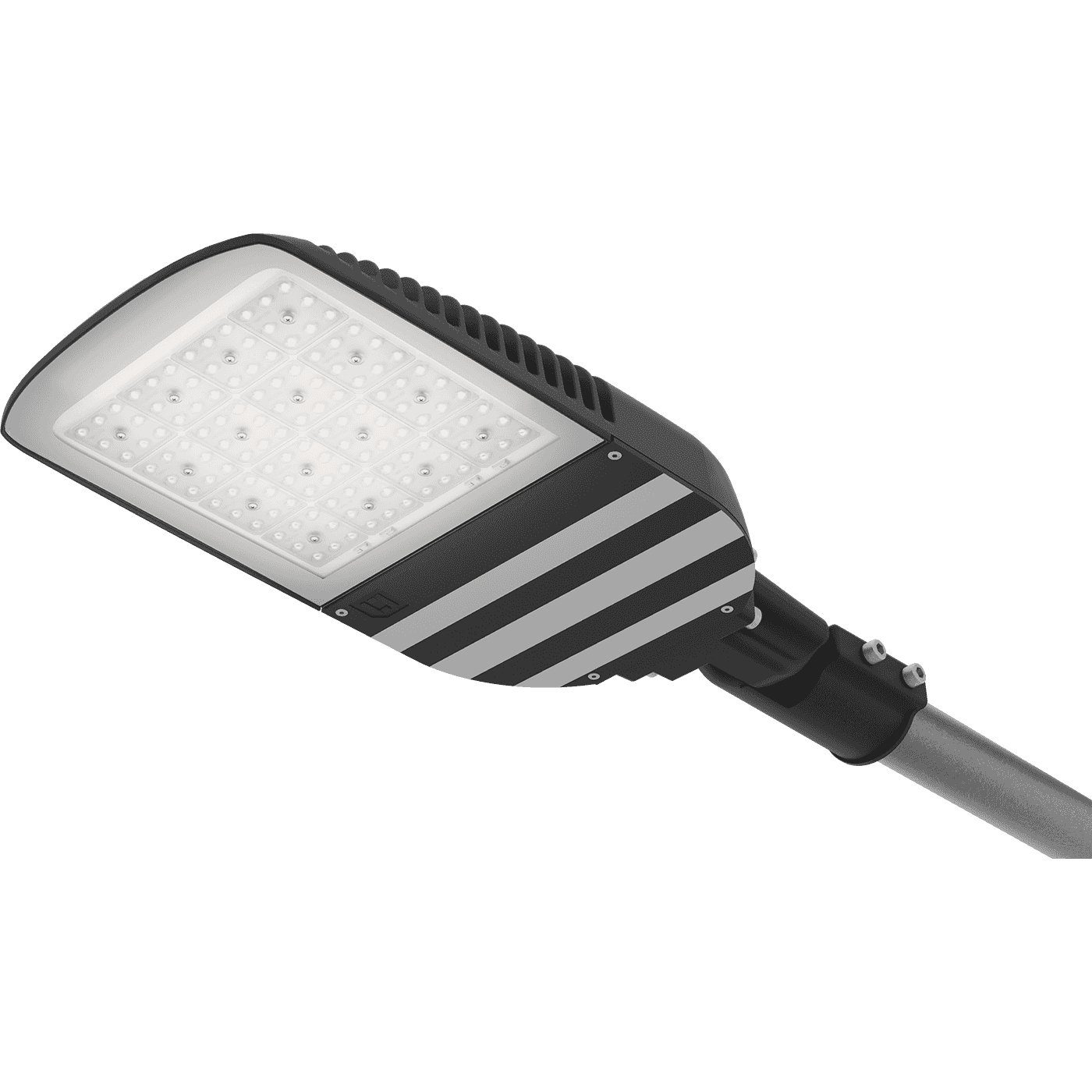

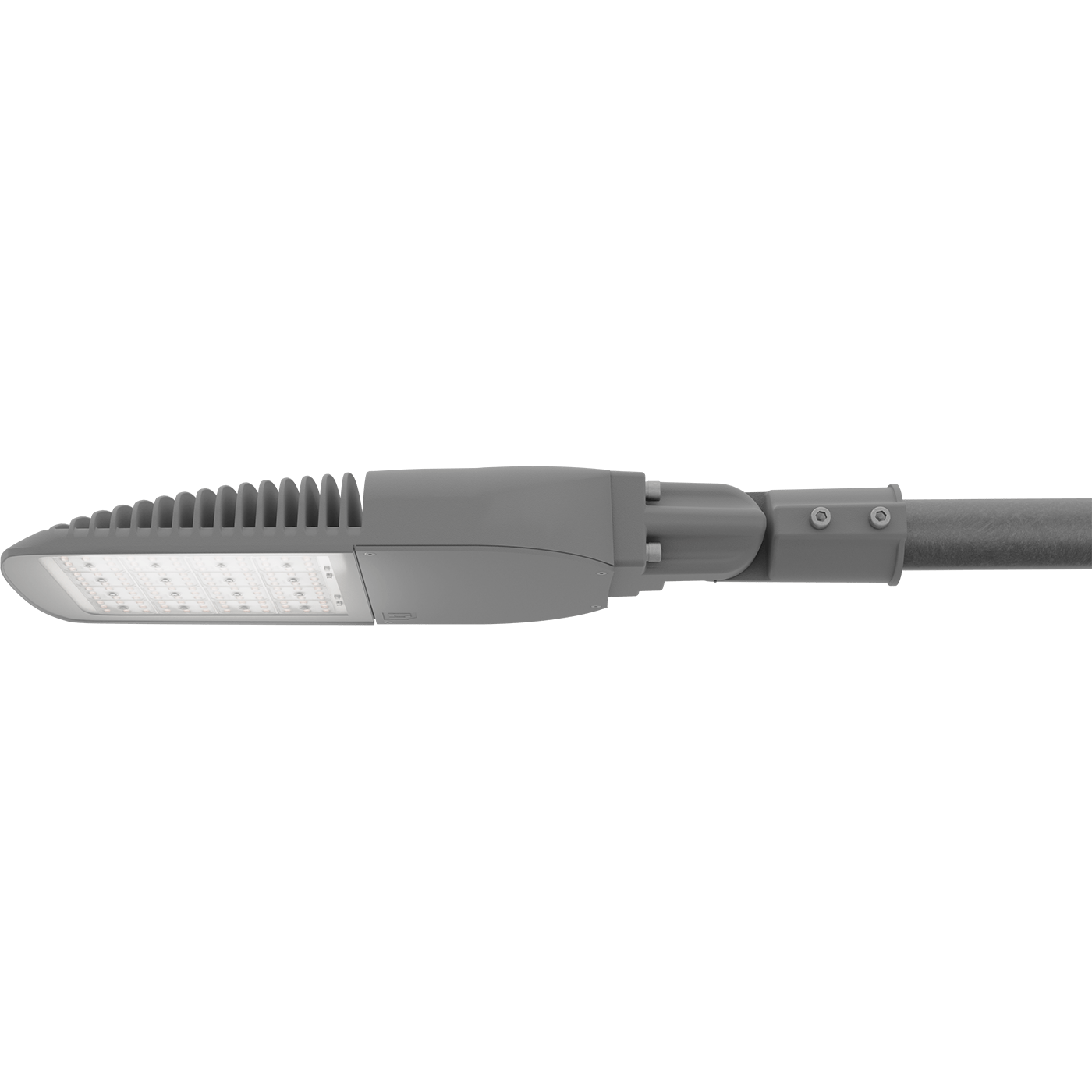

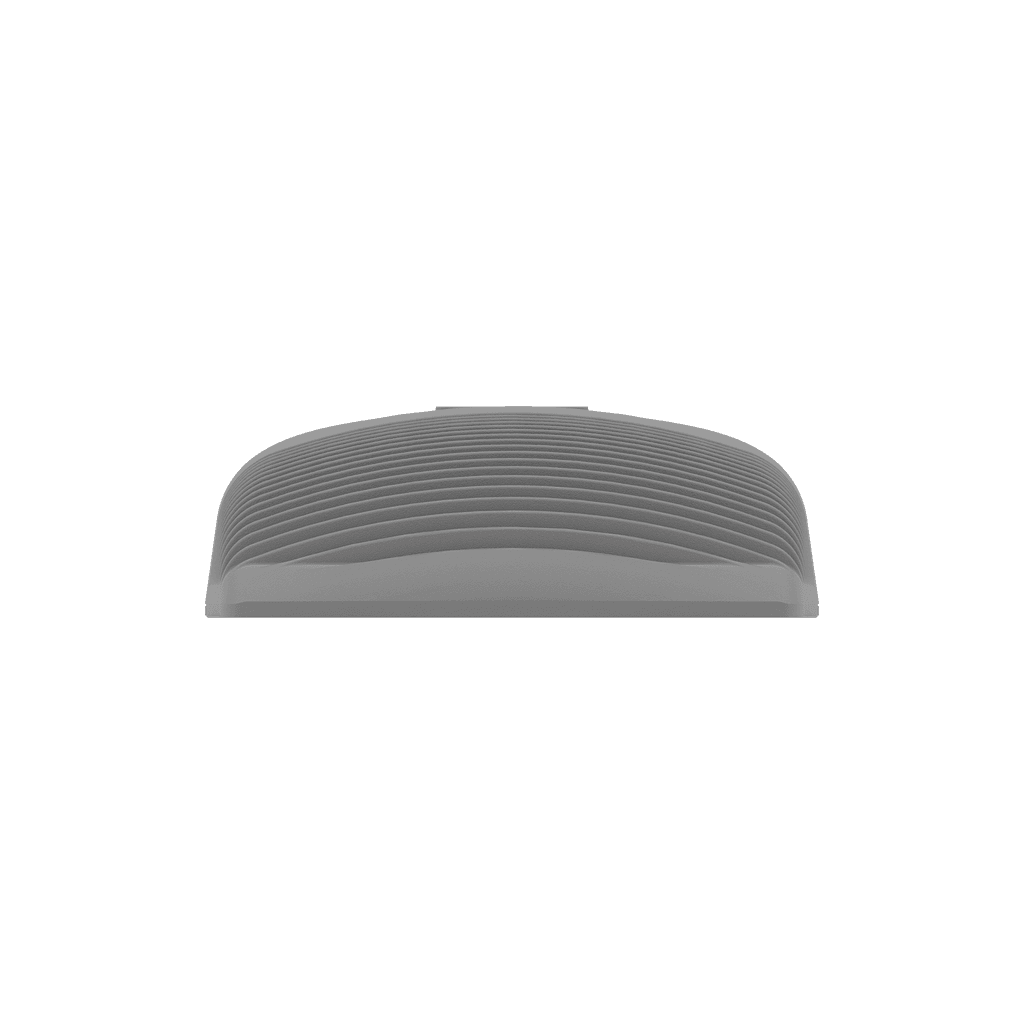

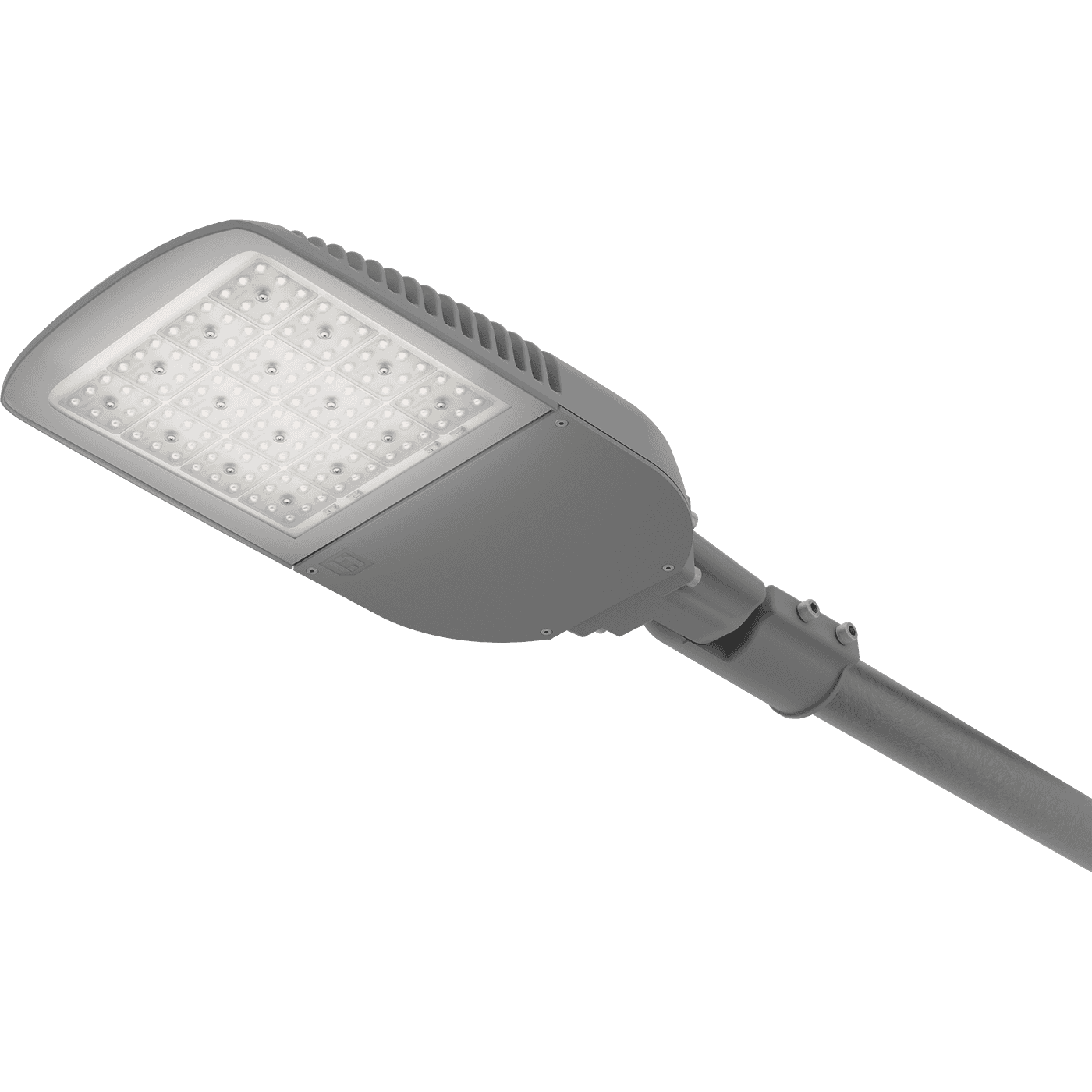

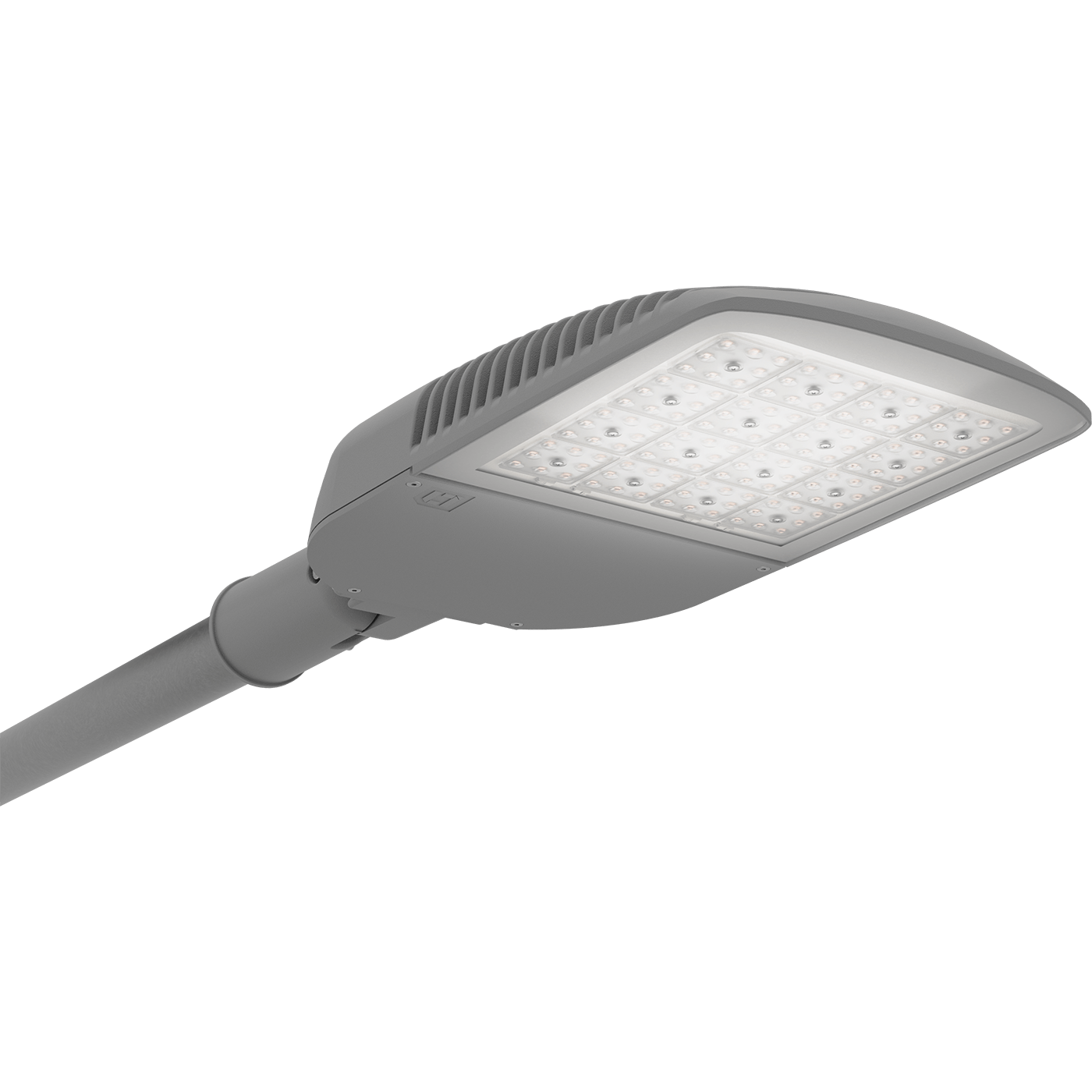

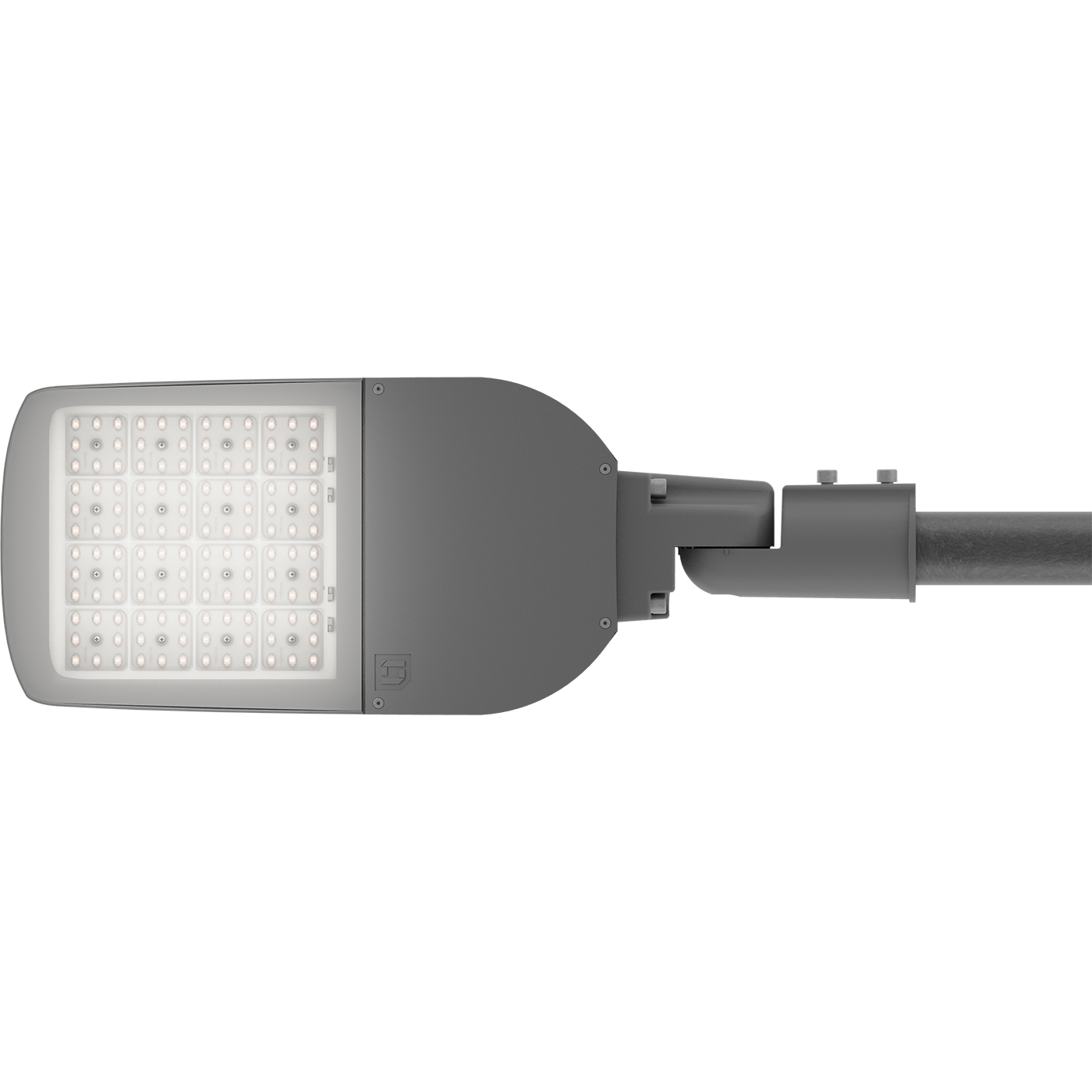

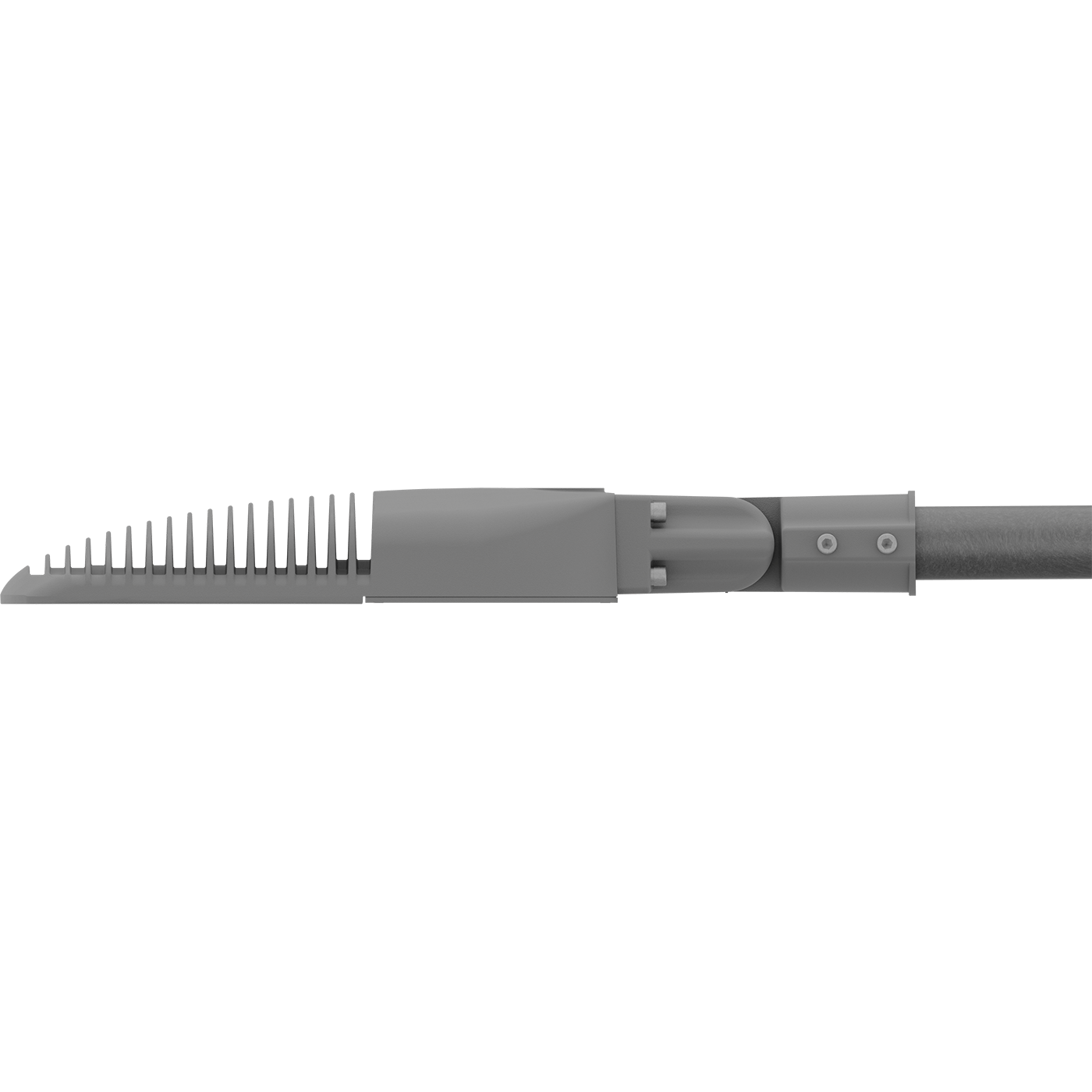

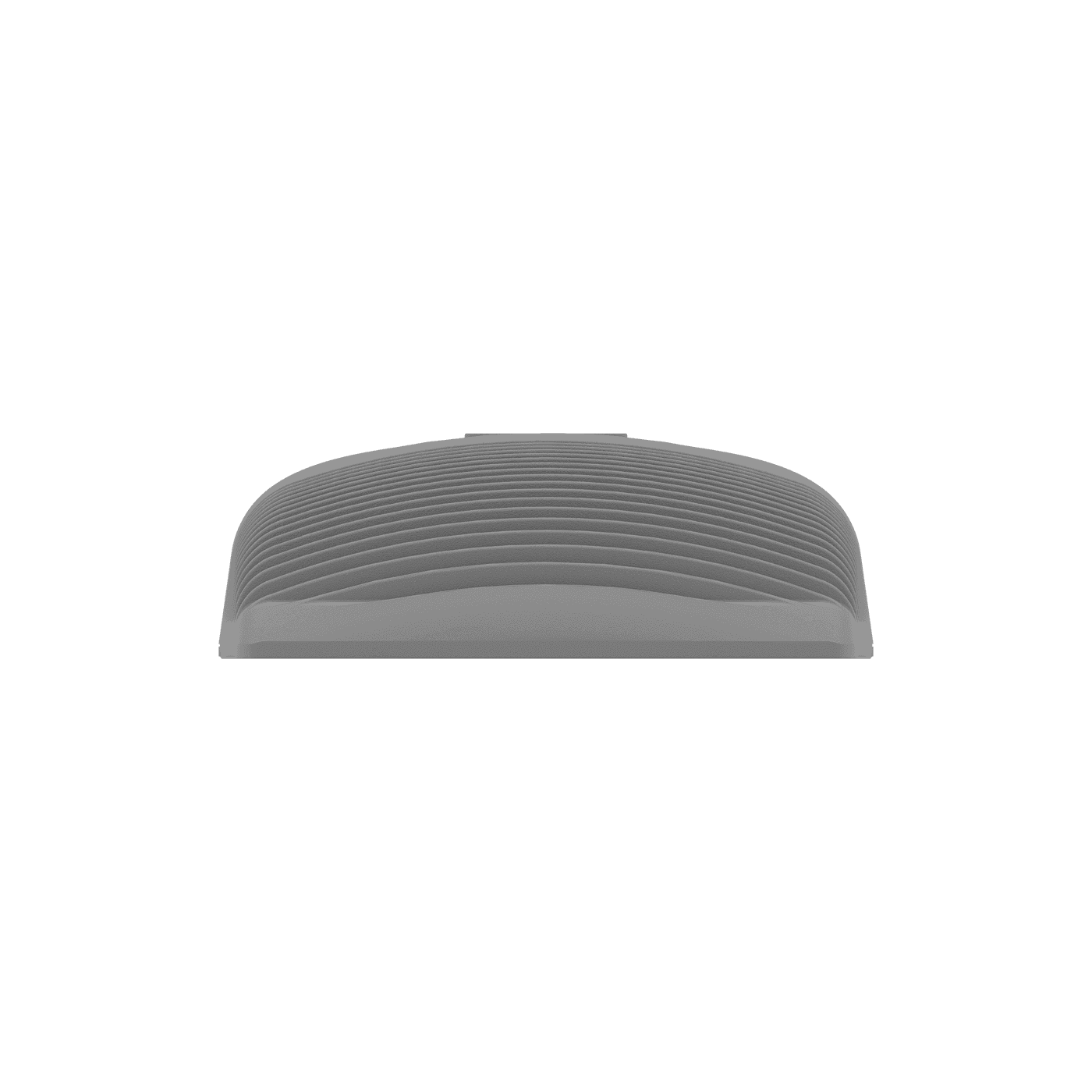

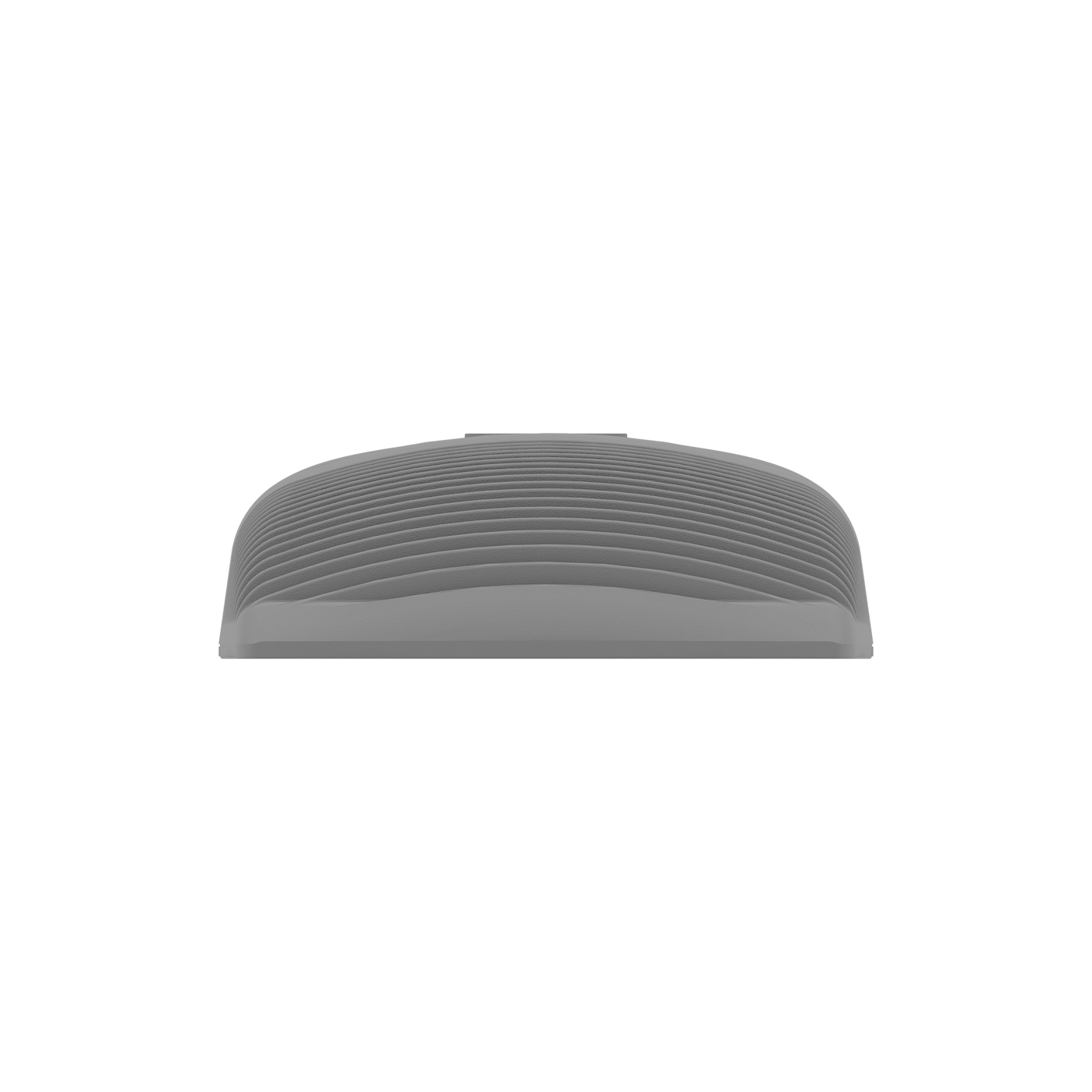

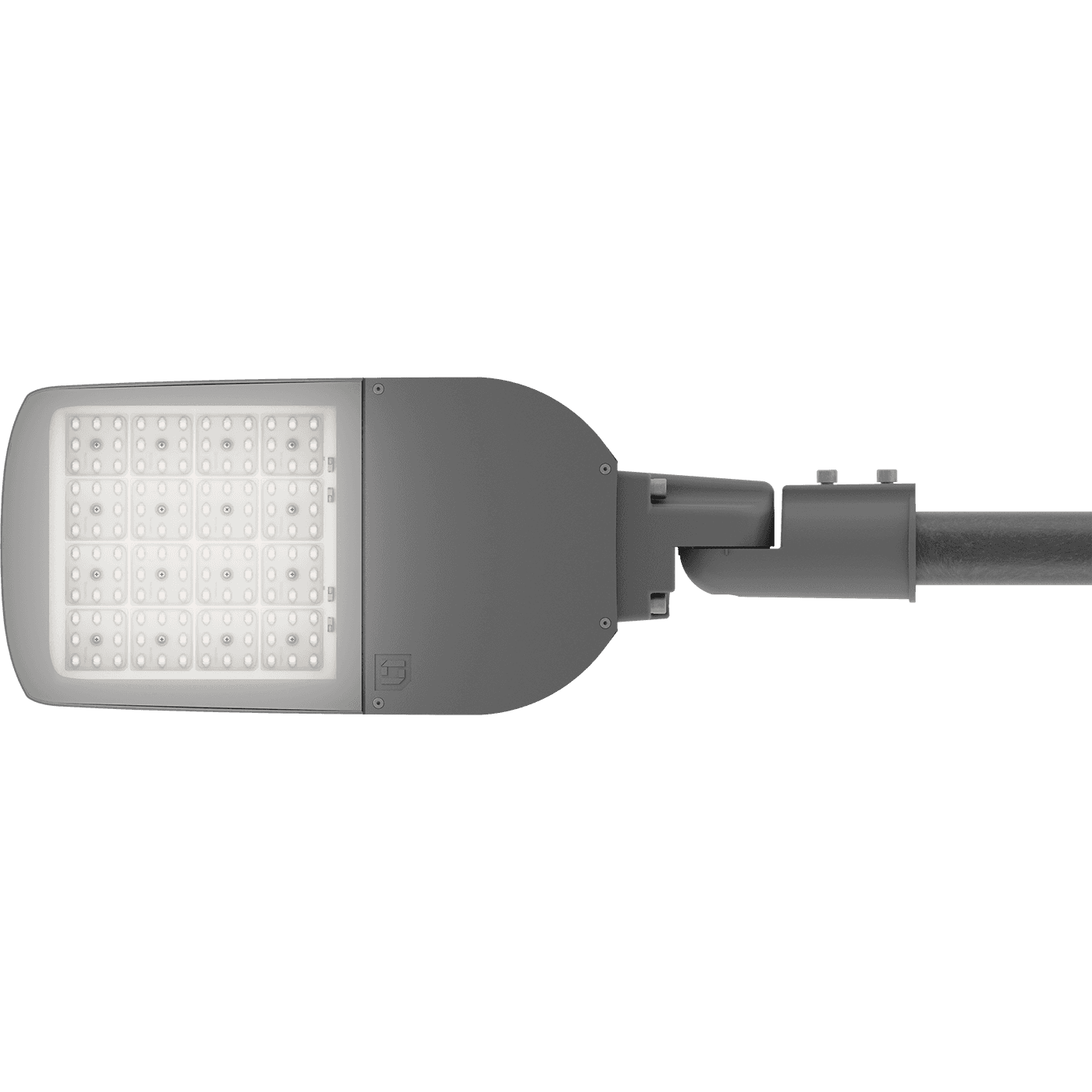

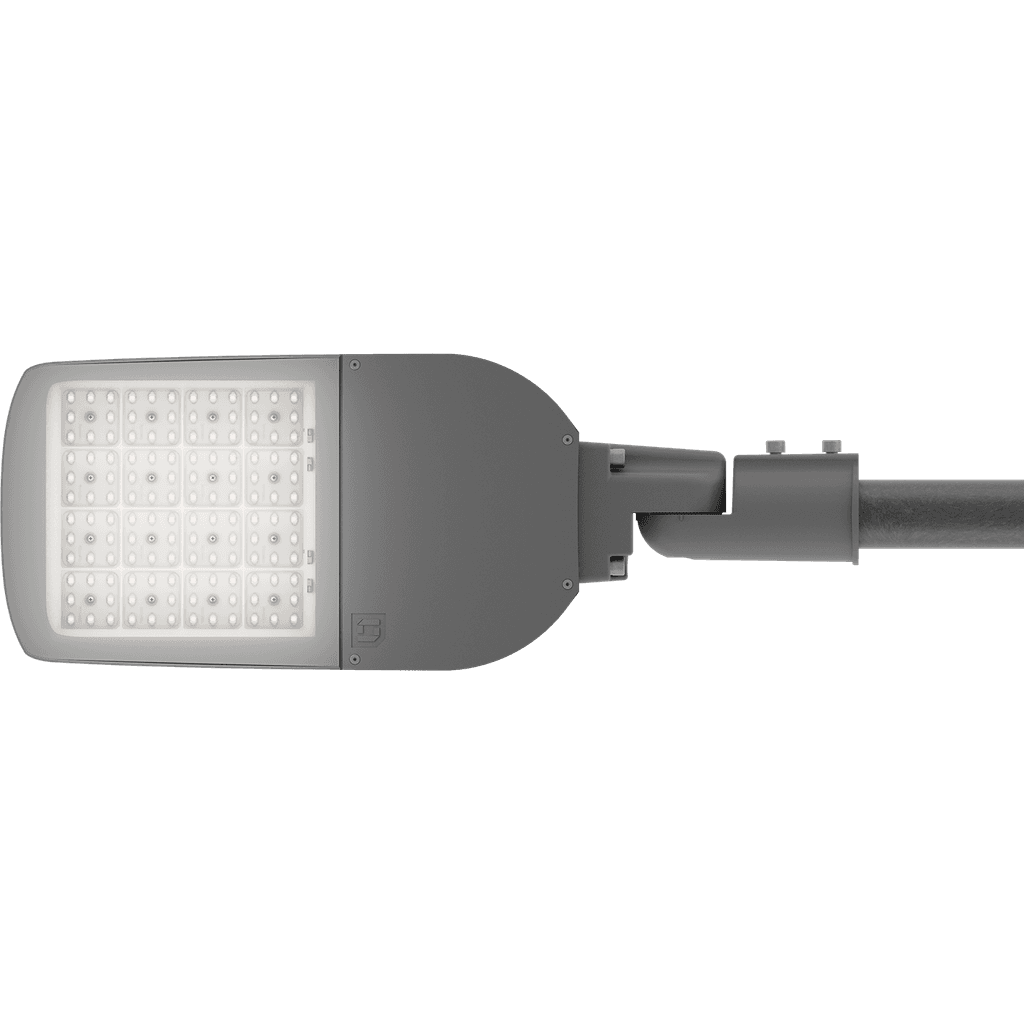

FREGAT LED 35W DW 740 RAL9006 EXTREME
FREGAT LED 35W DW 740 RAL9006 EXTREME
35 Wluminaire power
5100 lmlight flow
146 lm/Wenergy efficiency
code1426000760
beam angleD150/80
color temperature4000 K
weight10 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
146 lm/Wcolor rendition index (CRI)
>70light flow
5100 lmflickering factor
<5%beam angle
D150/80color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
146 lm/W
color rendition index (CRI)
>70
light flow
5100 lm
flickering factor
<5%

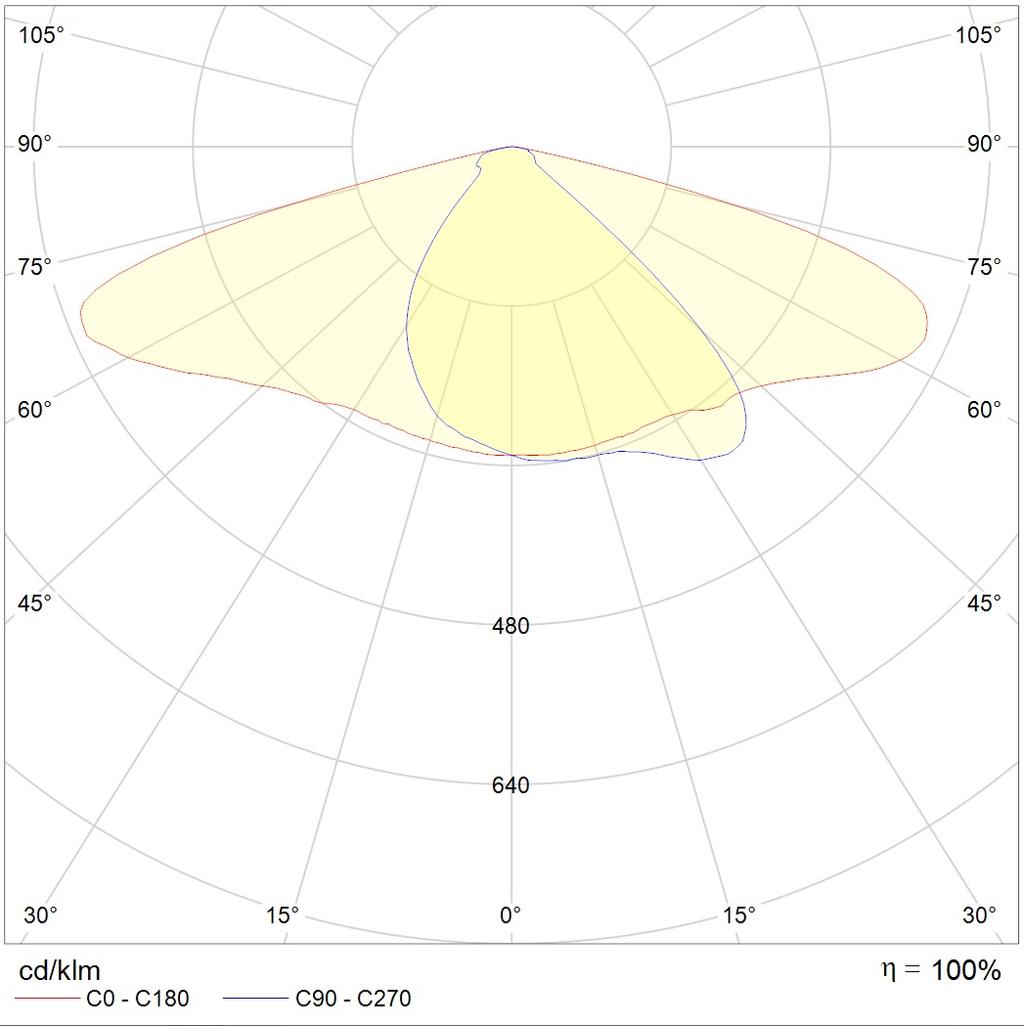

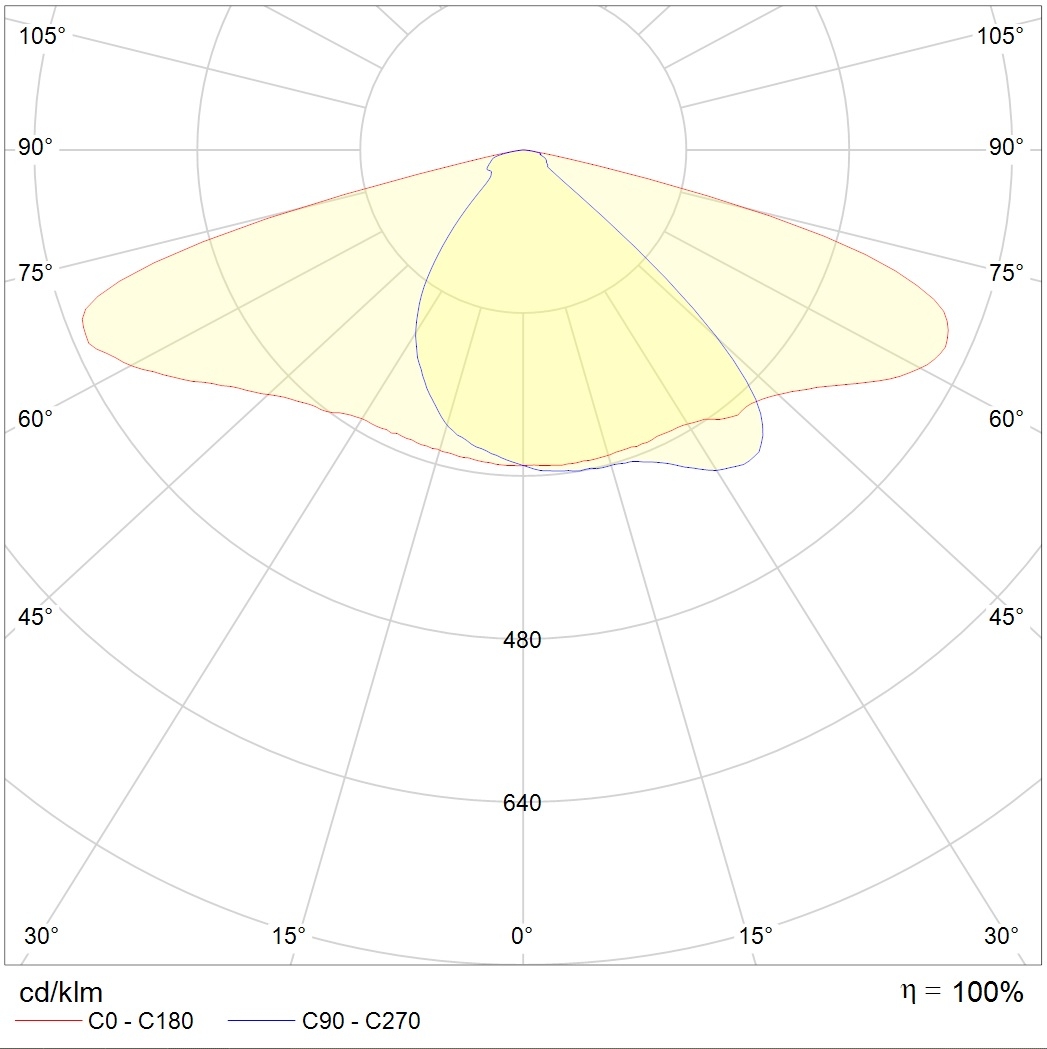

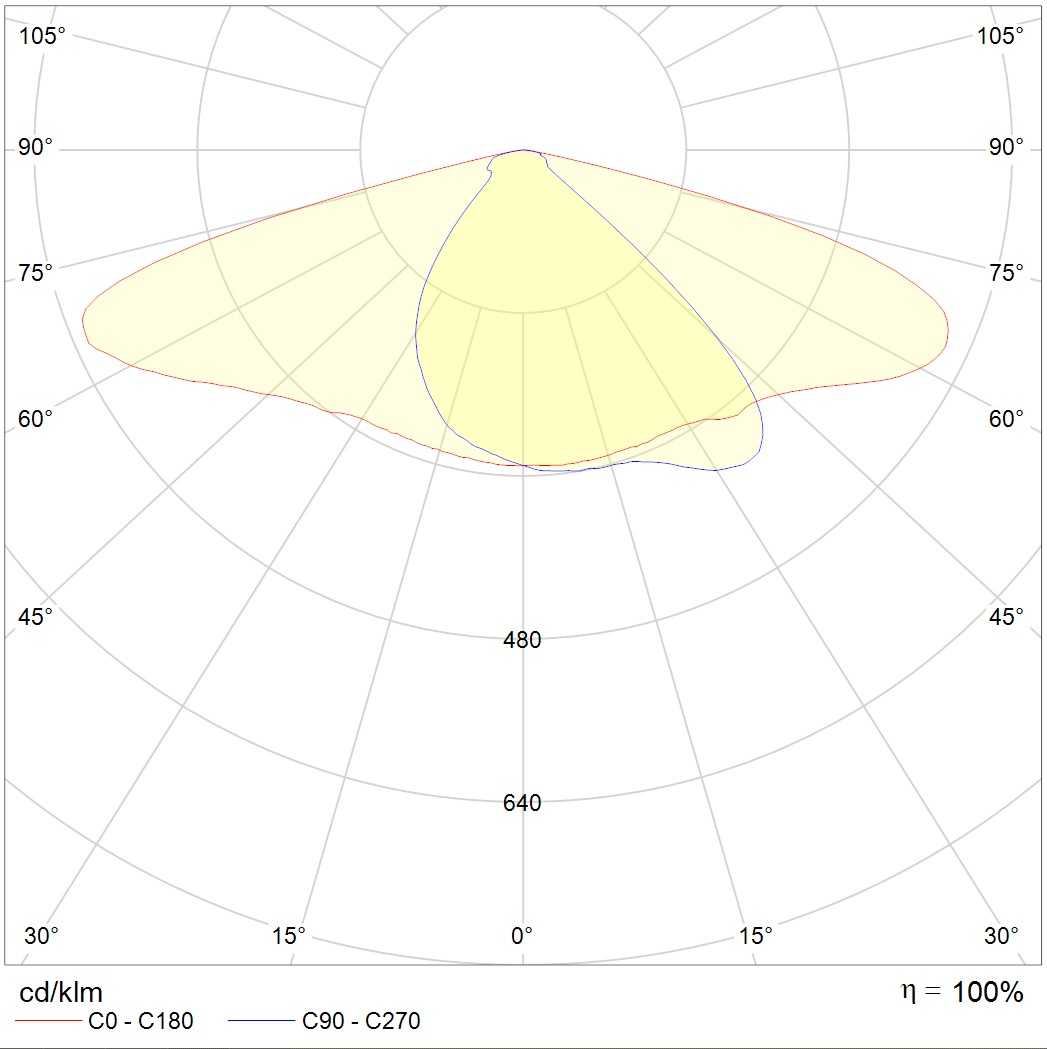

beam angle
D150/80
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
35 W
electric shock protection
I
starting current pulse time
500 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
65 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
220-420 V
supply voltage, alternating current
140-305 V
power factor
> 0,95
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІІ

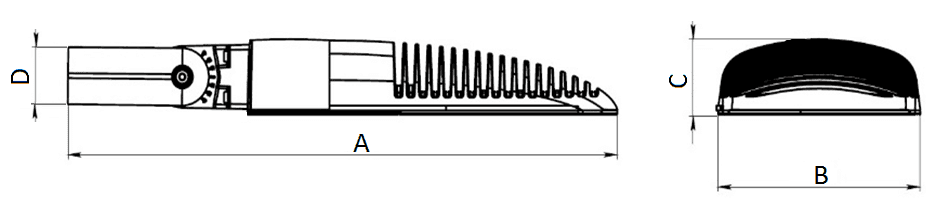

width
265 mm
height
91 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
722 mm
material
Алюминий
installation diameter
48-60 mm
ingress protection (IP)
IP66
shock resistance (IK)
IK09/10 Дж
weight
10 kg
common
code
1426000760
warranty
60 month
energy efficiency class
A++
temperature range
от -60 до +55 C
service life
50 000 h
ETIM class
Светильник для освещения улиц и площадей
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax3.1 mB
photometric files
ies263.2 kB
jpg119.4 kB
ldt156.9 kB
documents
passport1.2 mB
сертификаты
Certificate of conformity TRTS 014/20119.2 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20119.2 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
