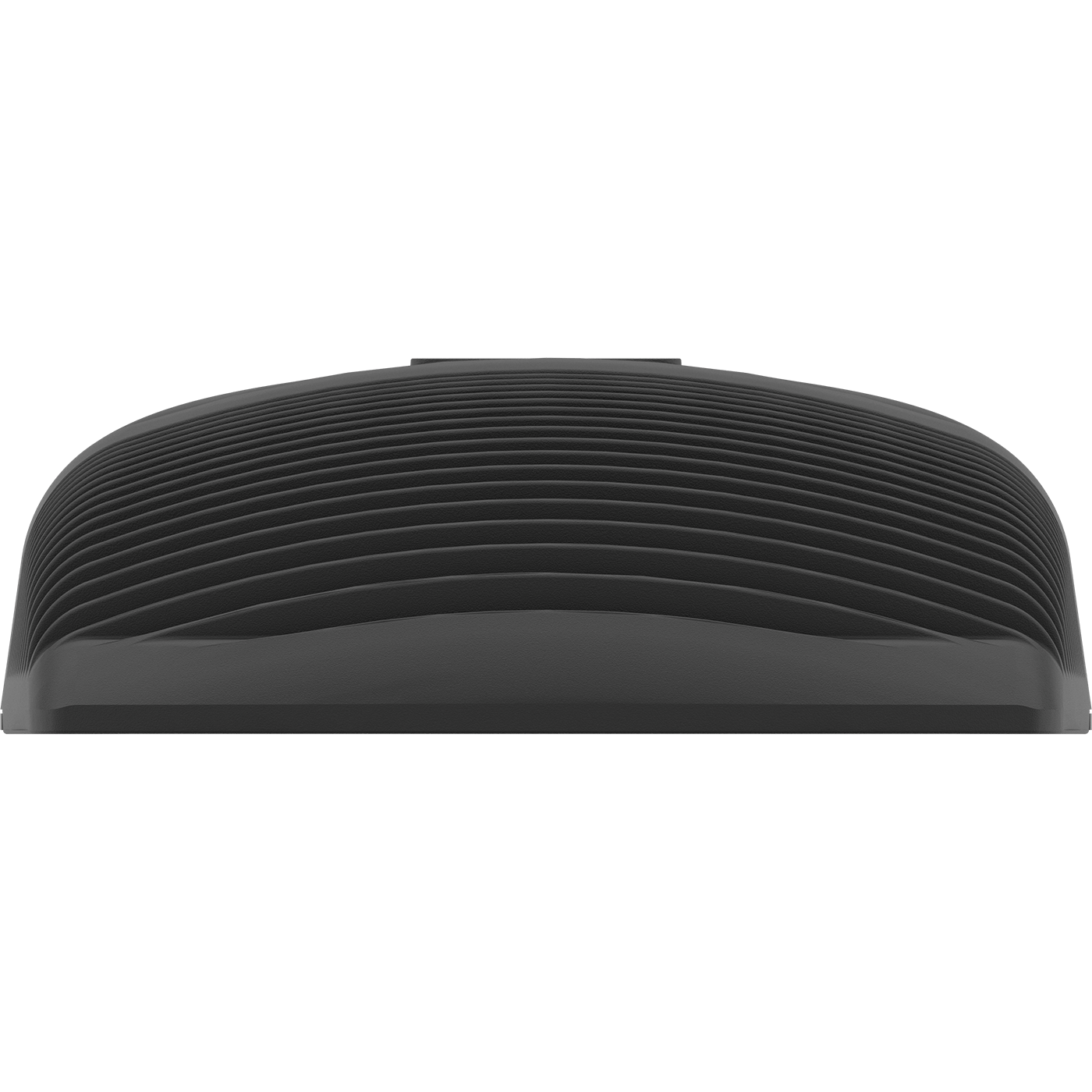

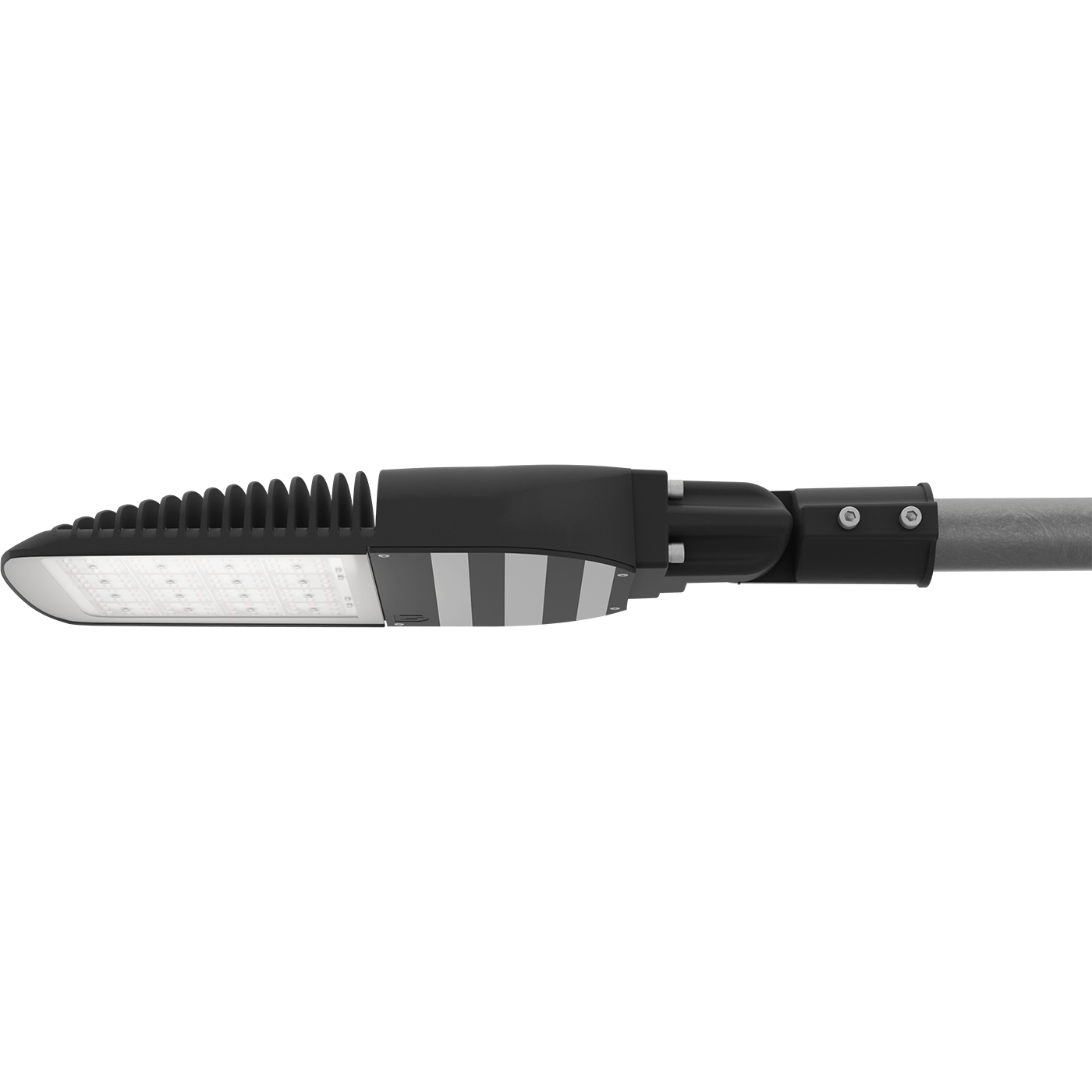

FREGAT CROSSING LED 35W DR 750 RAL9005
archive
archive
FREGAT CROSSING LED 35W DR 750 RAL9005
35 Wluminaire power
4800 lmlight flow
137 lm/Wenergy efficiency
code1426002750
beam angleA20
color temperature5000
weight10.7 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
50 Astarting current pulse time, µs
350 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-305 Vsupply voltage, direct current
142-431 Vluminaire power
35 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
50 A
starting current pulse time, µs
350 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
142-431 V
luminaire power
35 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІІ
material
Алюминий
weight
10.7 kg
length, mm
722 mm
width, mm
265 mm
height, mm
91 mm
housing color
Черный
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
1.5
shock resistance (IK)
IK09/10 Дж
installation diameter, mm
60 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1426002750
ETIM class
Светильник для освещения улиц и площадей
warranty
60 month
temperature range
от -40 до +60 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
energy efficiency
137 lm/W
color rendition index (CRI)
>70
light flow
4800 lm
flickering factor
<1%
beam angle
A20
color temperature
5000
light source type
LED
emission color
Белый
model files
model files

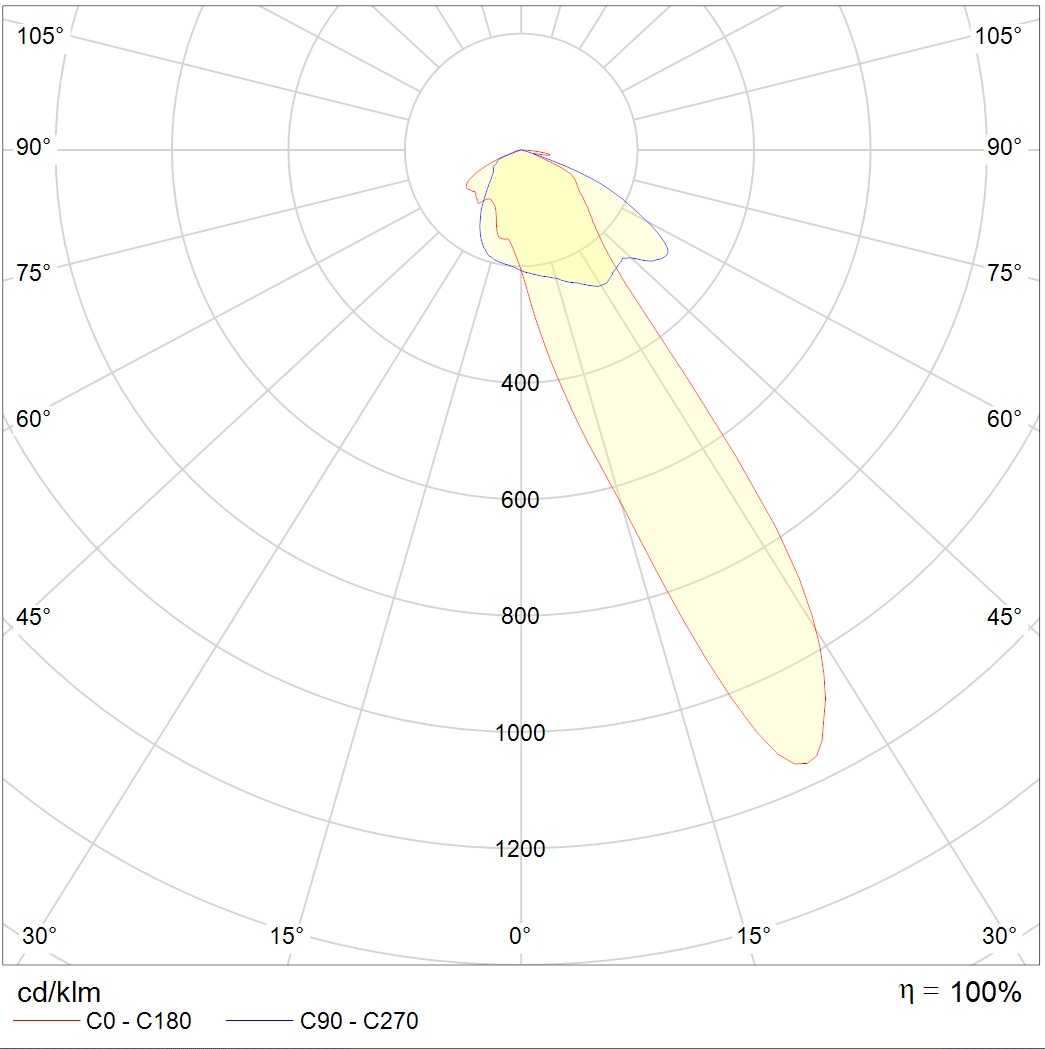

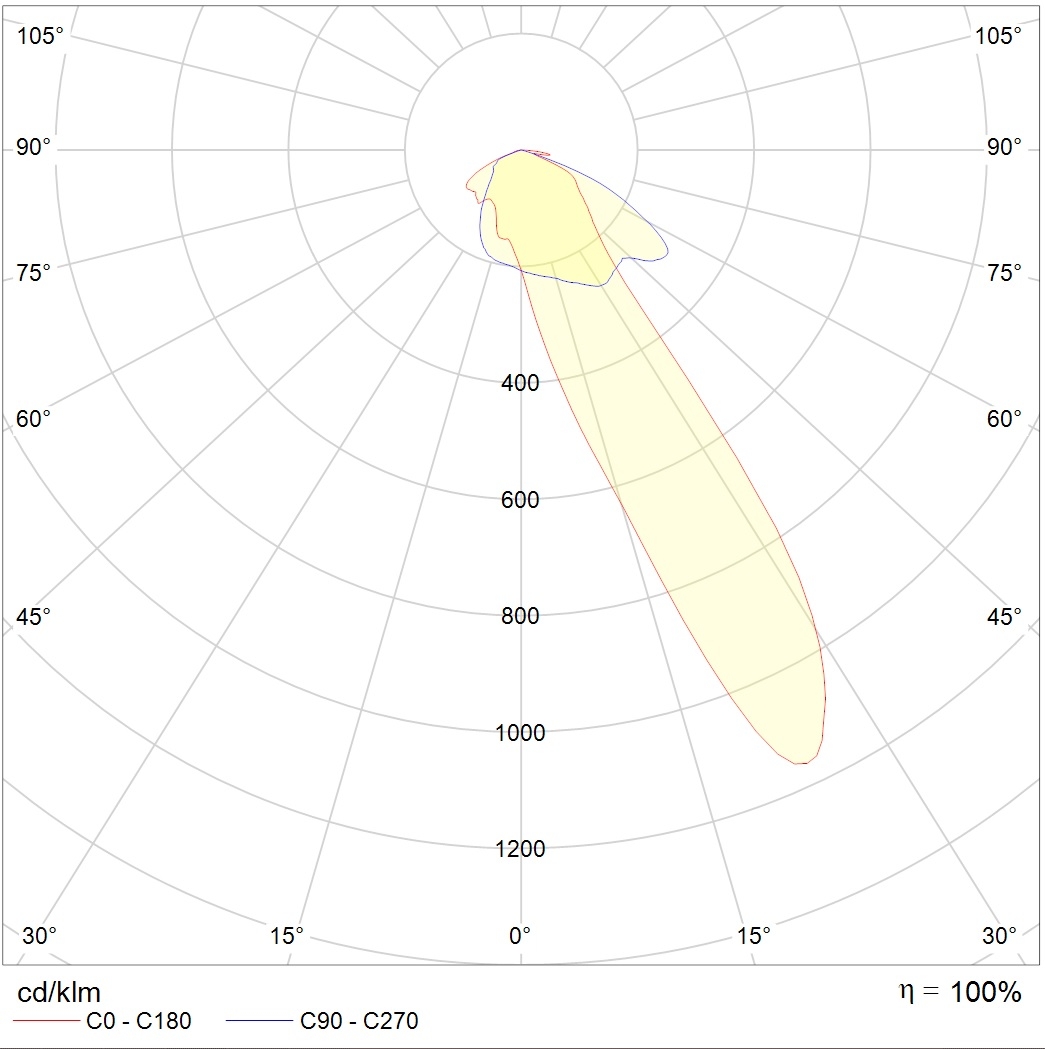

photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg131.1 kB
ldt152.8 kB
documents
passport1.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
