зарегистрирована в реестре российской промышленной продукции

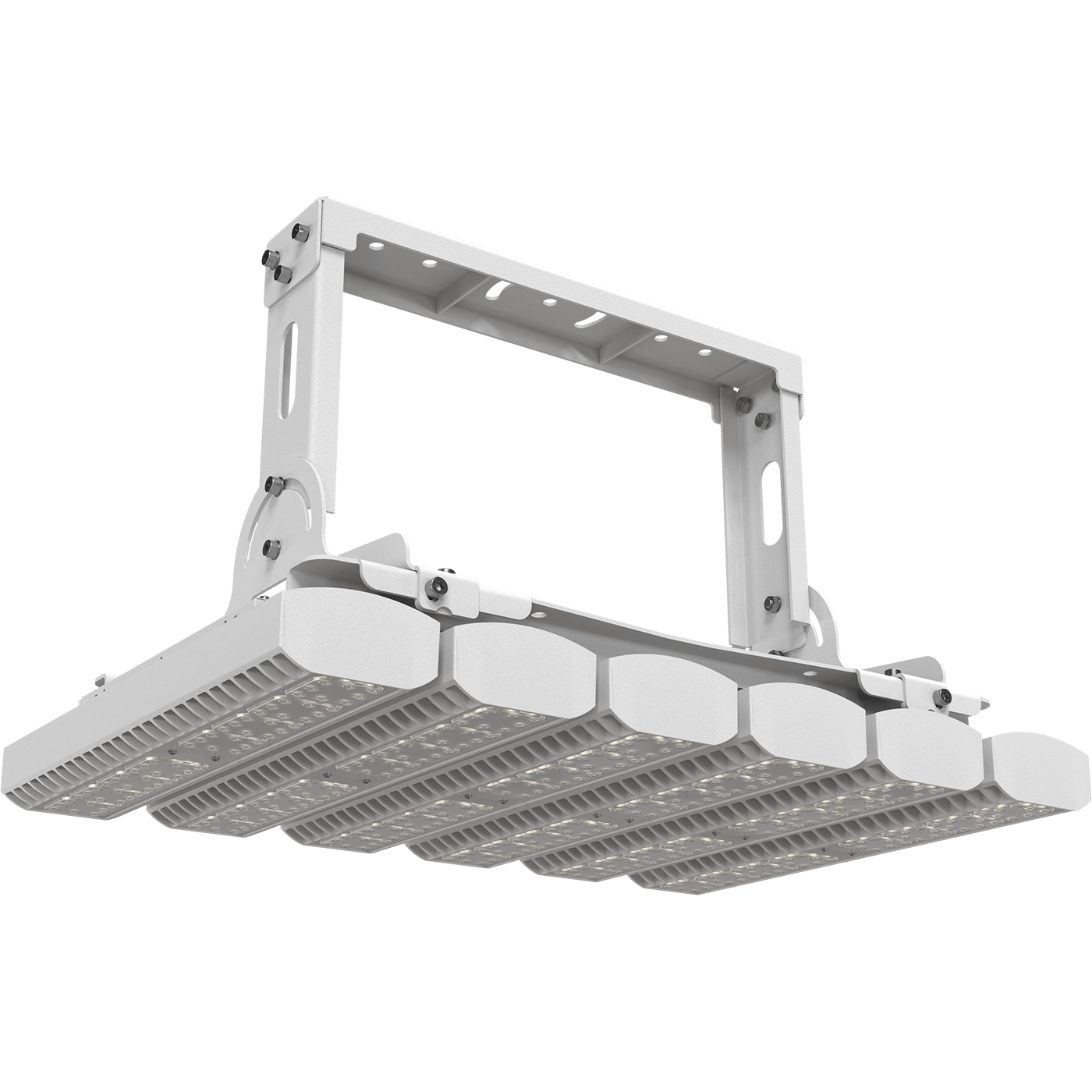

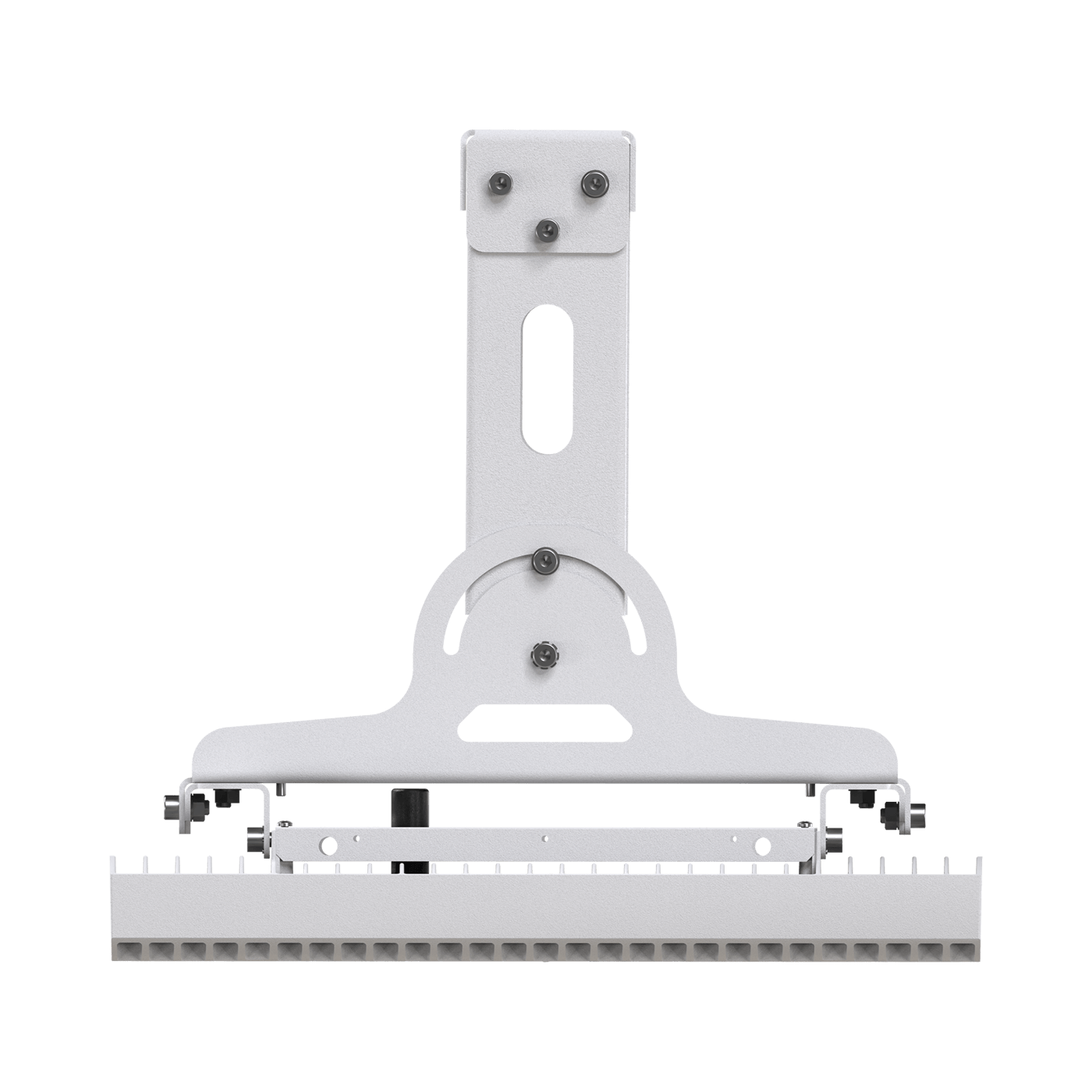

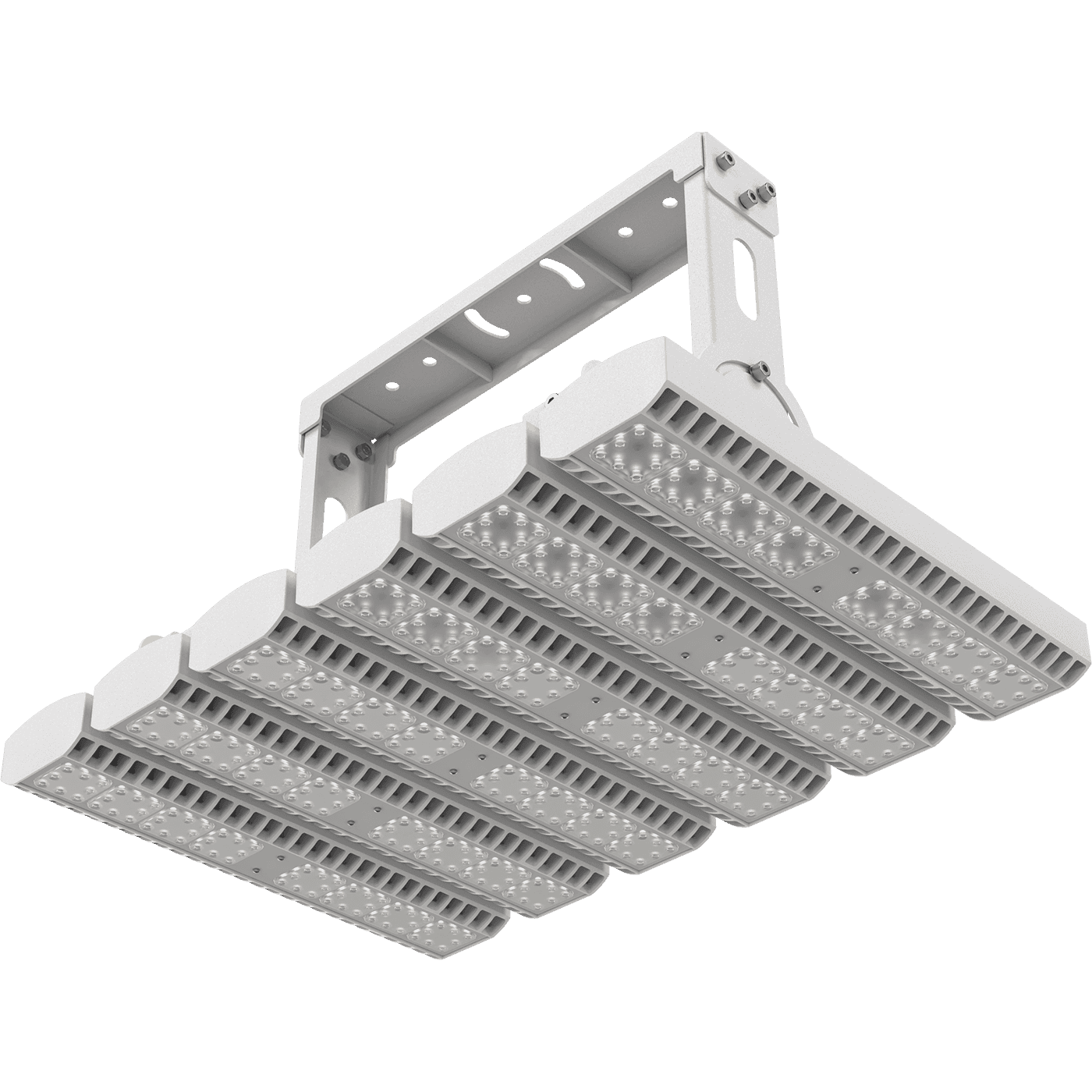

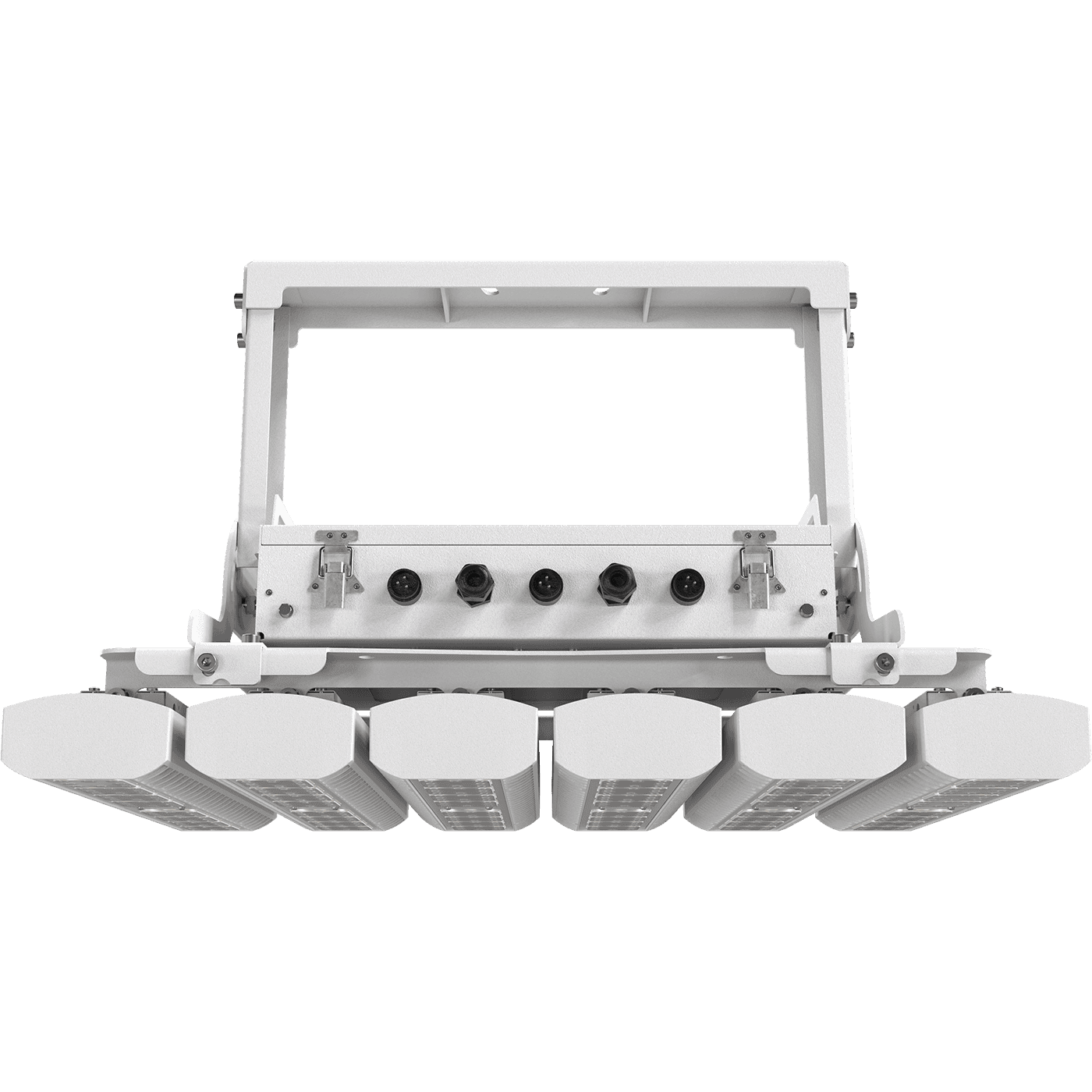

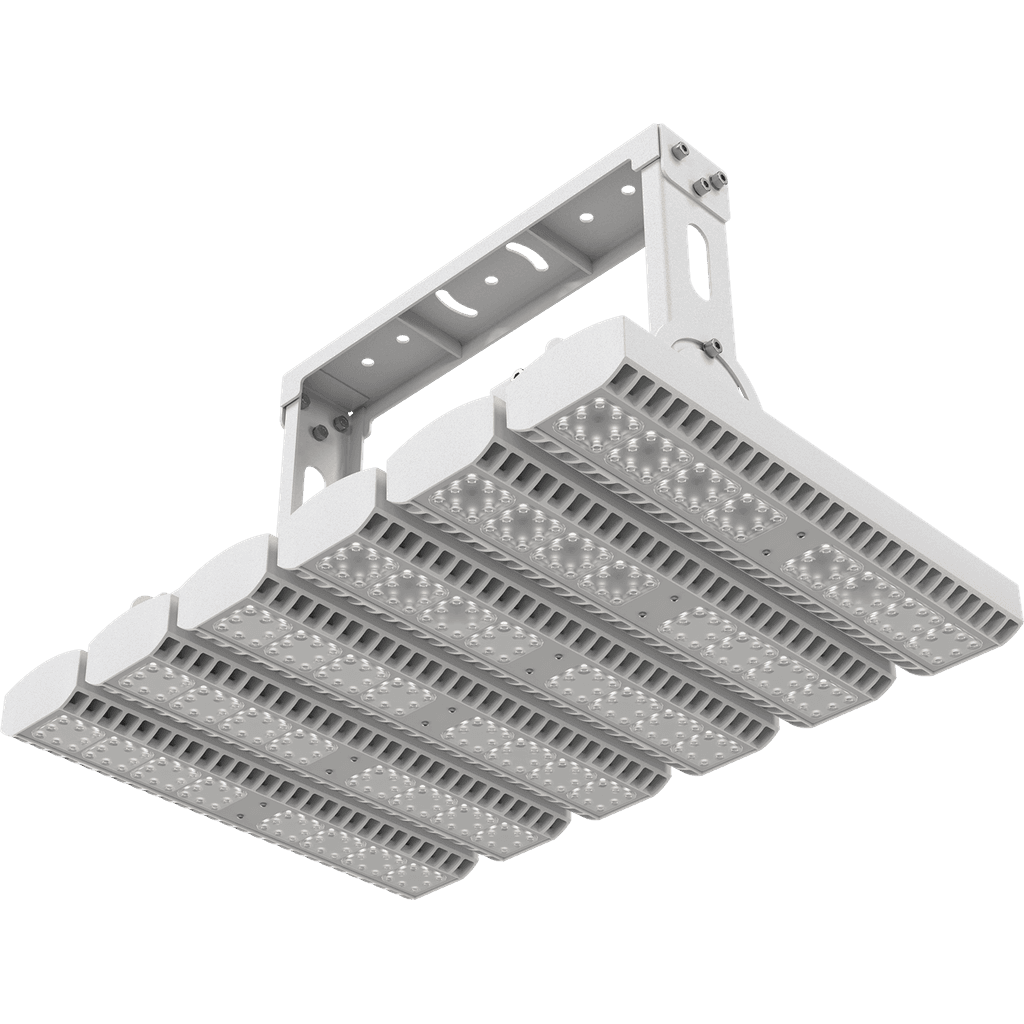

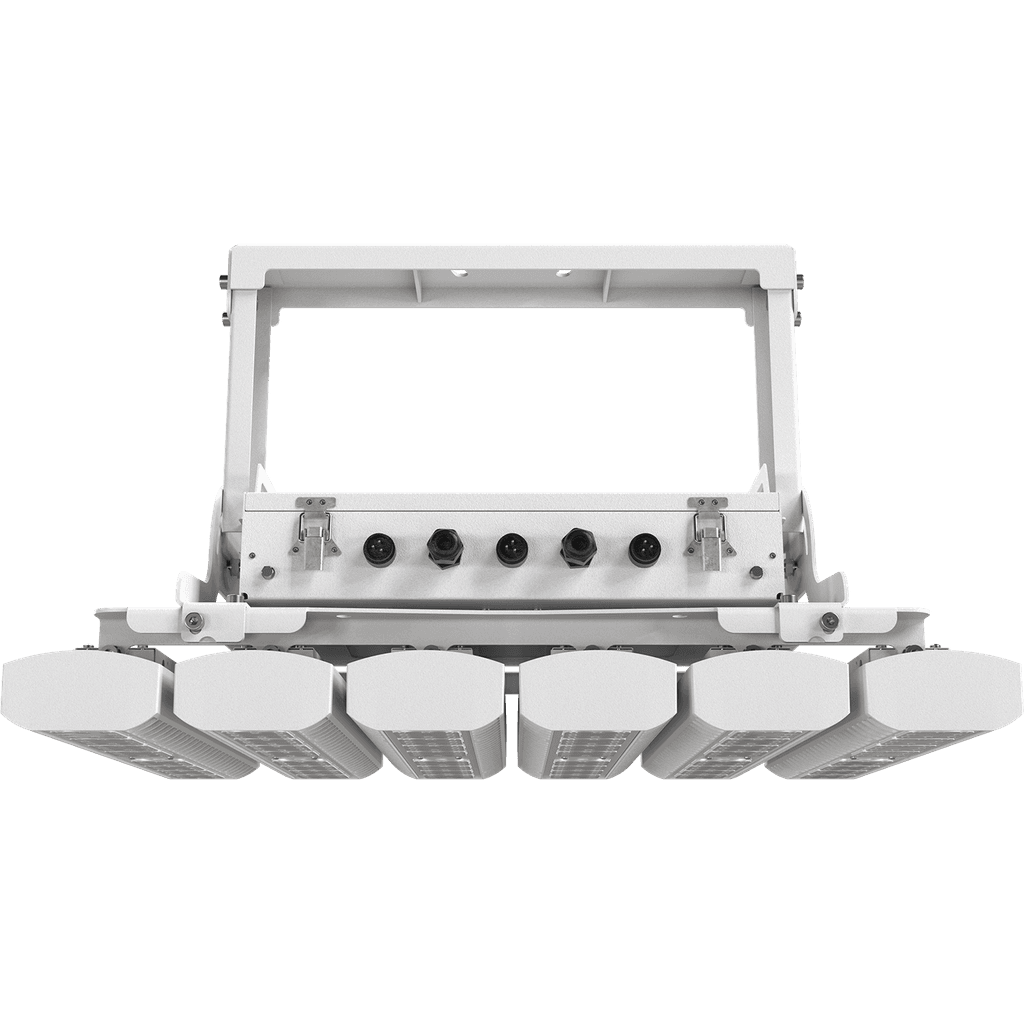

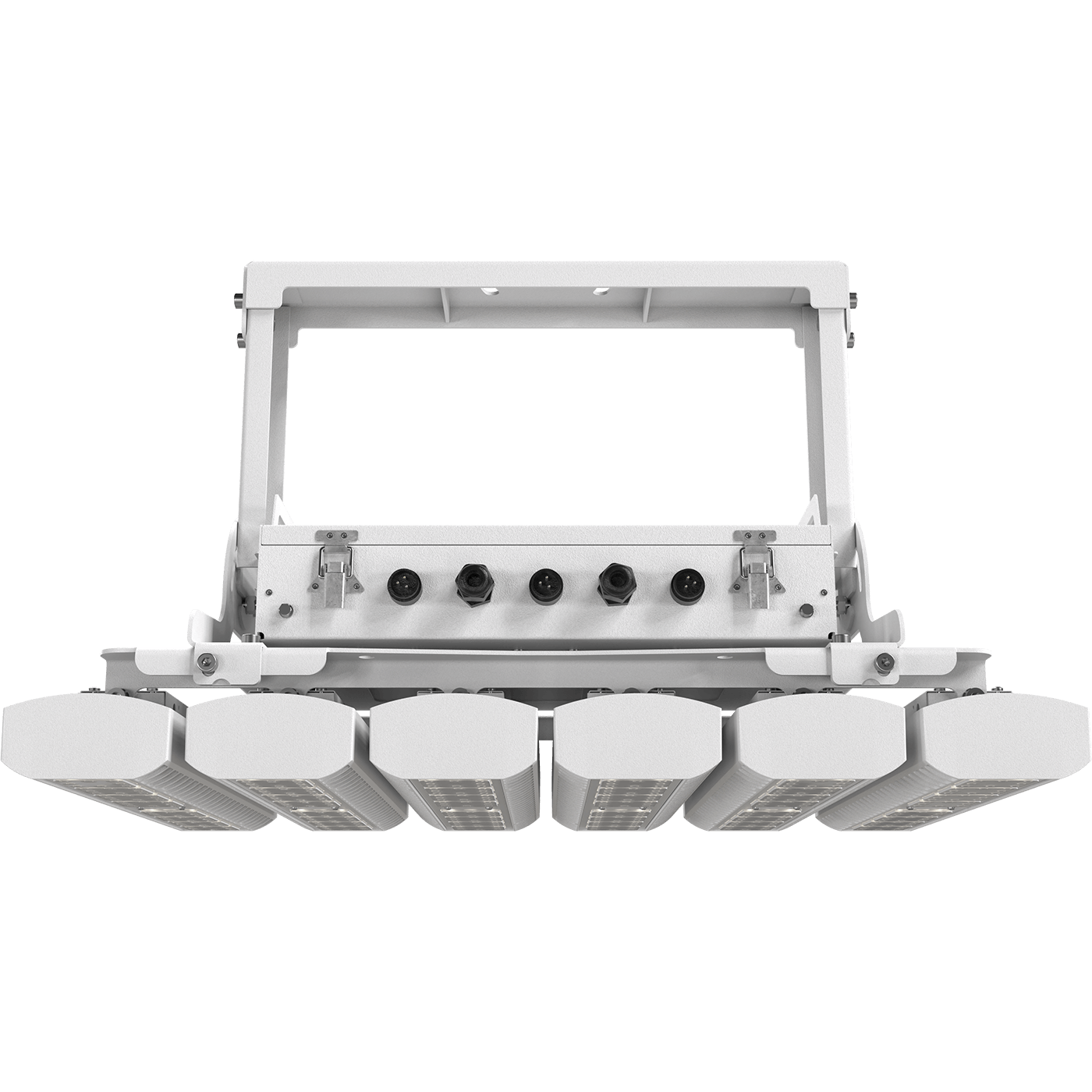

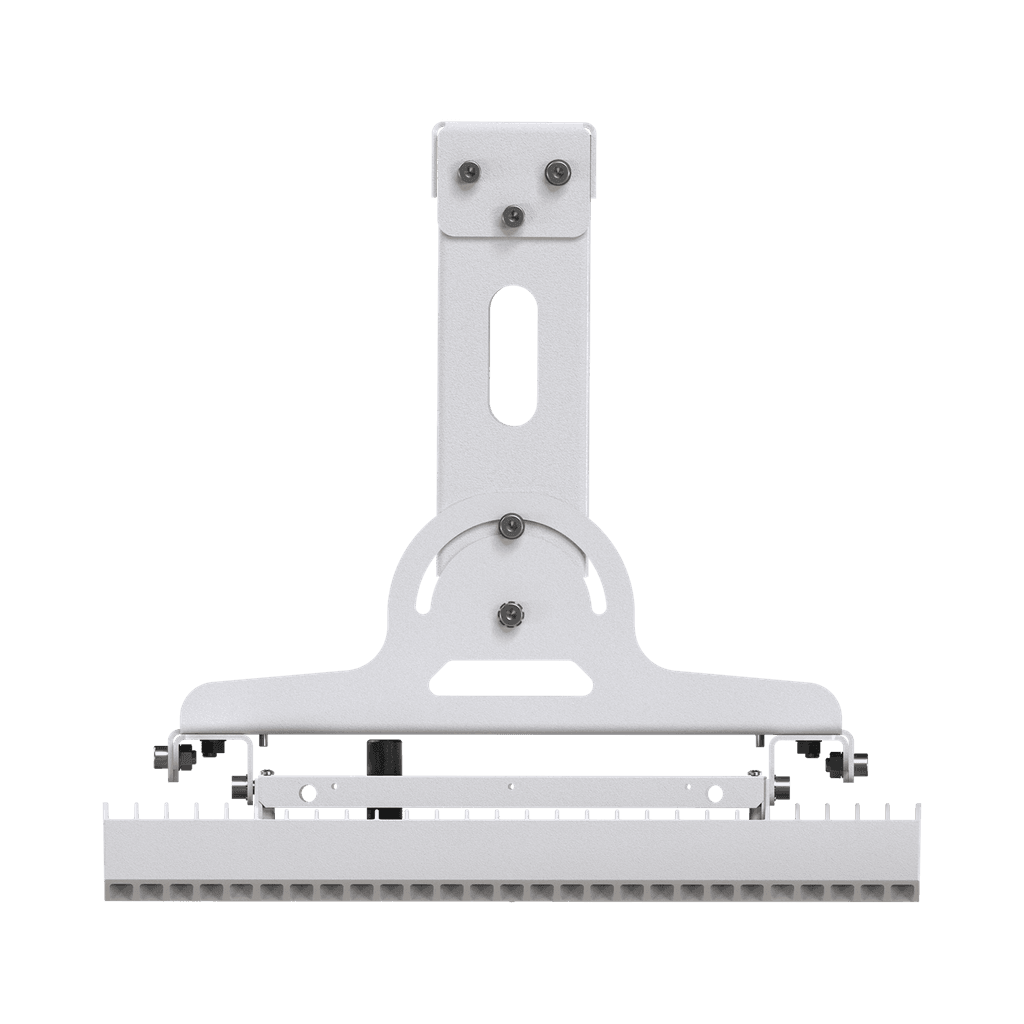

FORWARD 800W D130 857 WH SB
зарегистрирована в реестре российской промышленной продукции
FORWARD 800W D130 857 WH SB
800 Wluminaire power
100600 lmlight flow
126 lm/Wenergy efficiency
code
1864003680
number from the register of Russian industrial products
10815618
beam angle
D130
color temperature
5700 K
weight
28 kg
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
energy efficiency
126 lm/Wcolor rendition index (CRI)
>80light flow
100600 lmflickering factor
<1%beam angle
D130color temperature
5700 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
126 lm/W
color rendition index (CRI)
>80
light flow
100600 lm
flickering factor
<1%
beam angle
D130
color temperature
5700 K
light source type
LED
emission color
Белый
electrical
luminaire power
800 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
power factor
> 0,97
constructional
fire safety class
П-ІІ

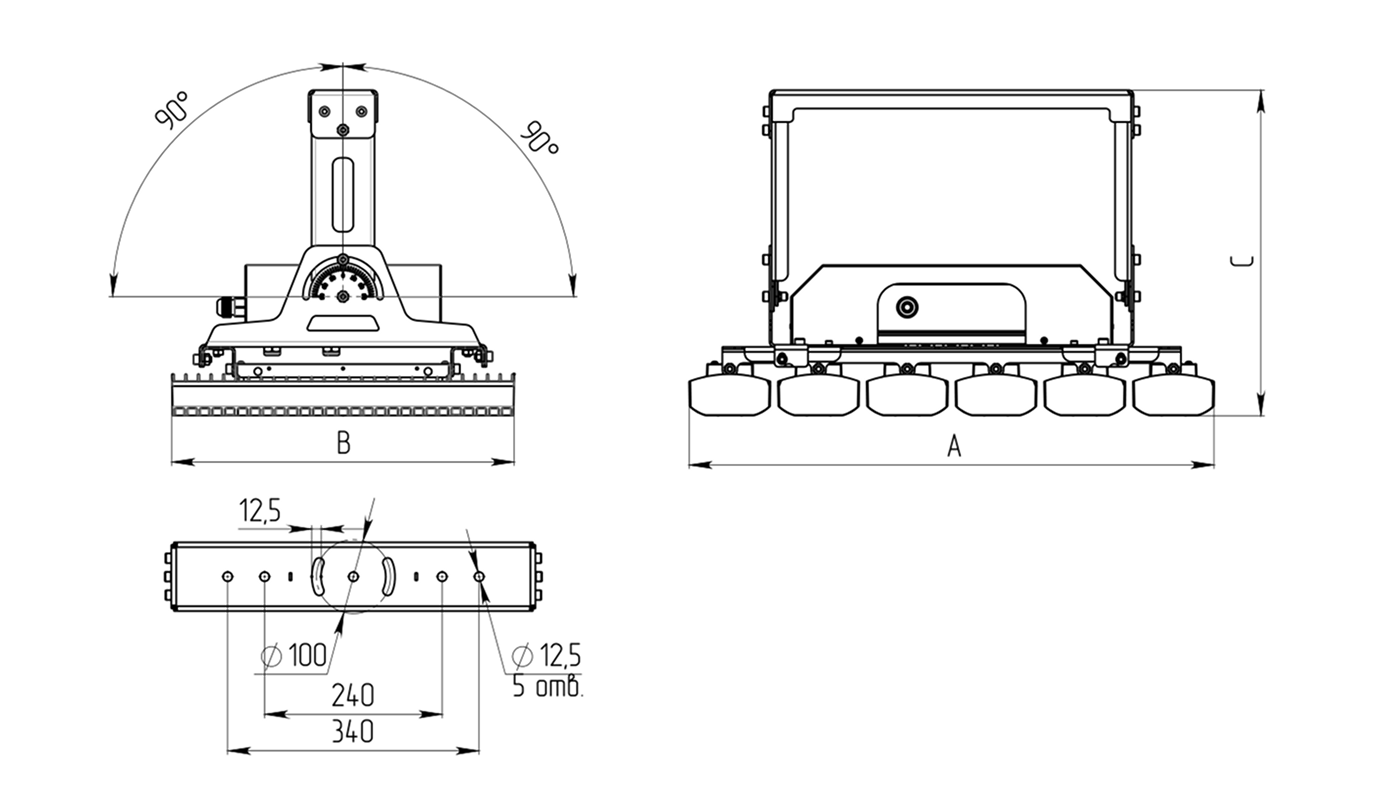

length
710 mm
height
360 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
width
535 mm
material
Алюминий
climatic performance
УХЛ1*
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
28 kg
emergency
emergency power supply
Нет
common
code
1864003680
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files

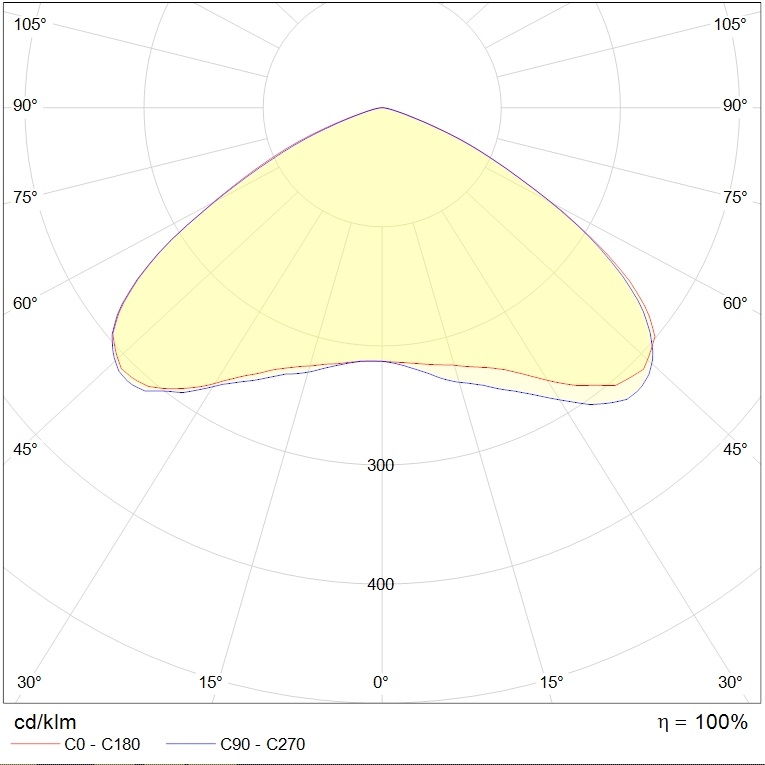

photometric files
сертификаты
photometric files
ies107 kB
jpg77.9 kB
ldt65.5 kB
сертификаты
Russian origin329.7 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.4 mB
Declaration of Conformity EAEU TR 037/2016555.9 kB
