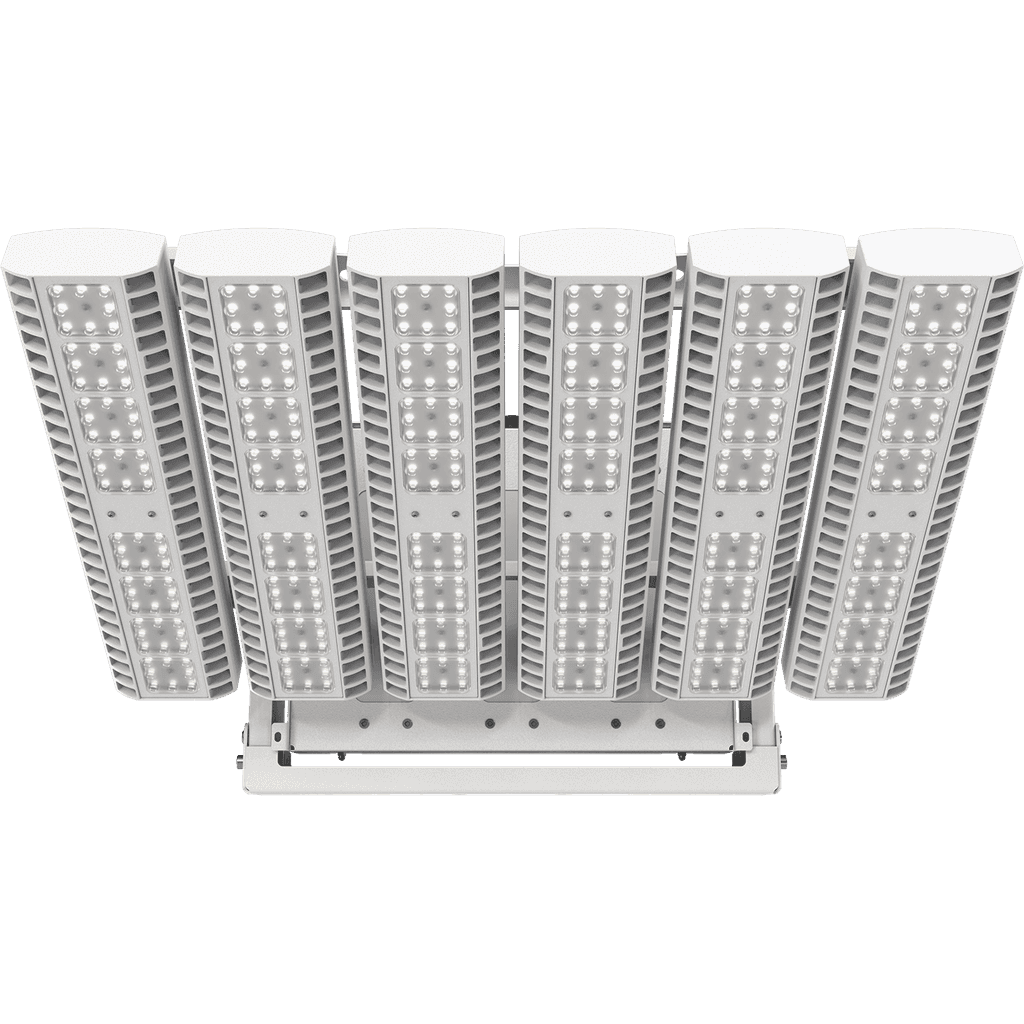

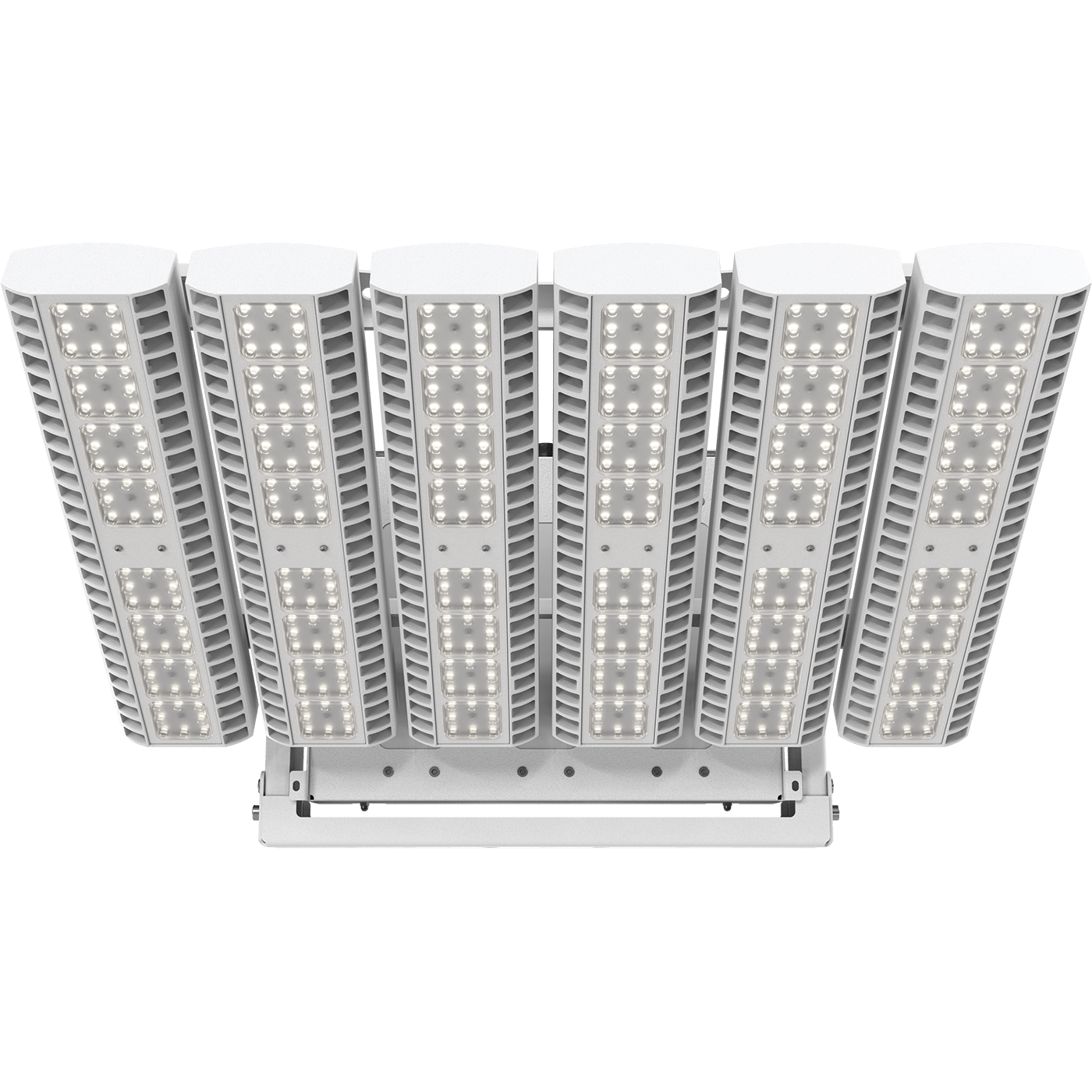

FORWARD 800W D130 857 WH FB
FORWARD 800W D130 857 WH FB
800 Wluminaire power
102400 lmlight flow
128 lm/Wenergy efficiency
code1864003670
beam angleD130
color temperature5700
weight28 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
128 lm/Wcolor rendition index (CRI)
>80light flow
102400 lmflickering factor
<1%beam angle
D130color temperature
5700light source type
LEDemission color
Белыйilluminating
energy efficiency
128 lm/W
color rendition index (CRI)
>80
light flow
102400 lm
flickering factor
<1%
beam angle
D130
color temperature
5700
light source type
LED
emission color
Белый
electrical
luminaire power
800 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,97
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІ
width, mm
620 mm
height, mm
350 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length, mm
710 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
28 kg
common
code
1864003670
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life, hour
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files

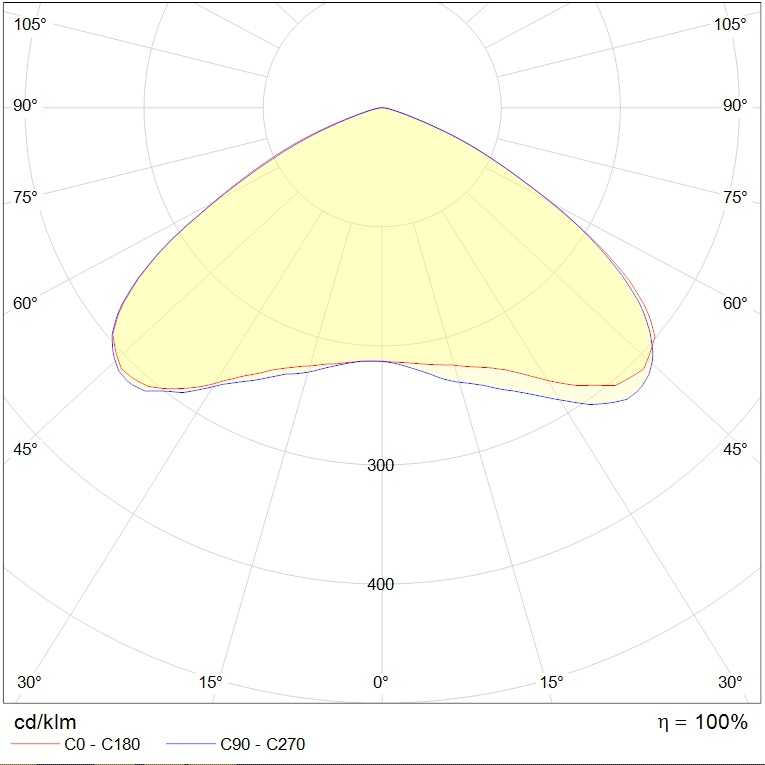

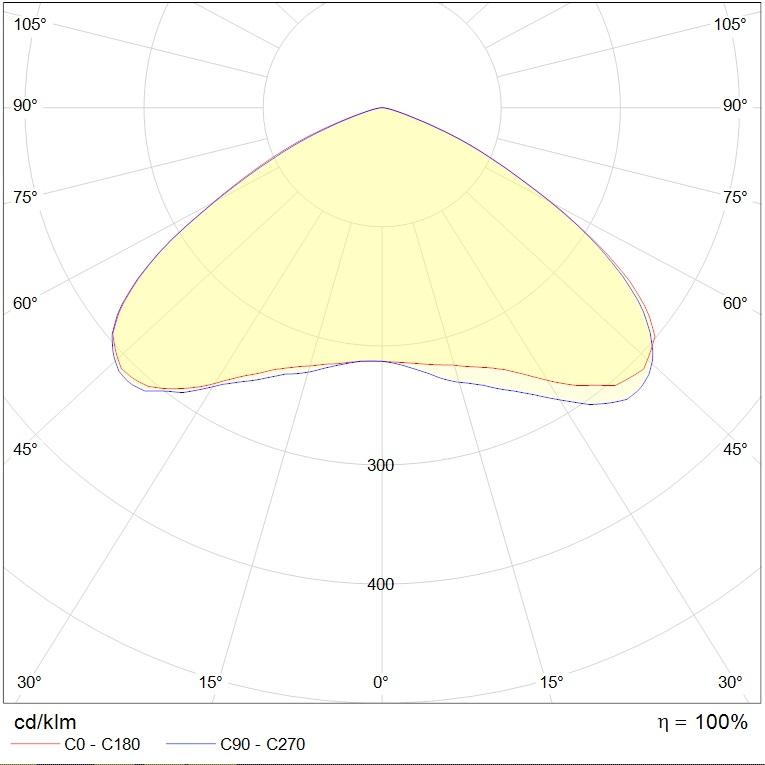

photometric files
сертификаты
photometric files
ies107.1 kB
jpg77.9 kB
ldt65.5 kB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
