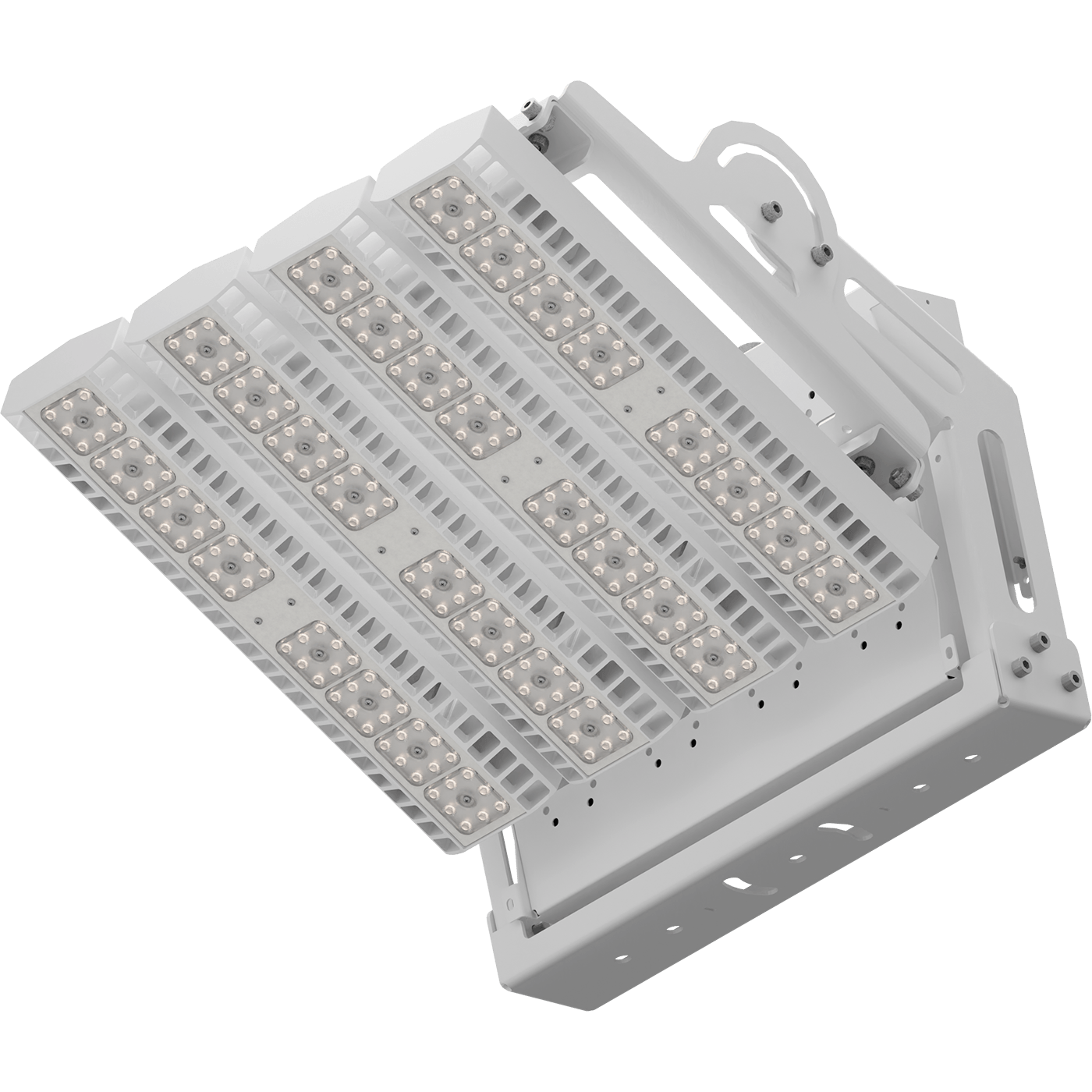

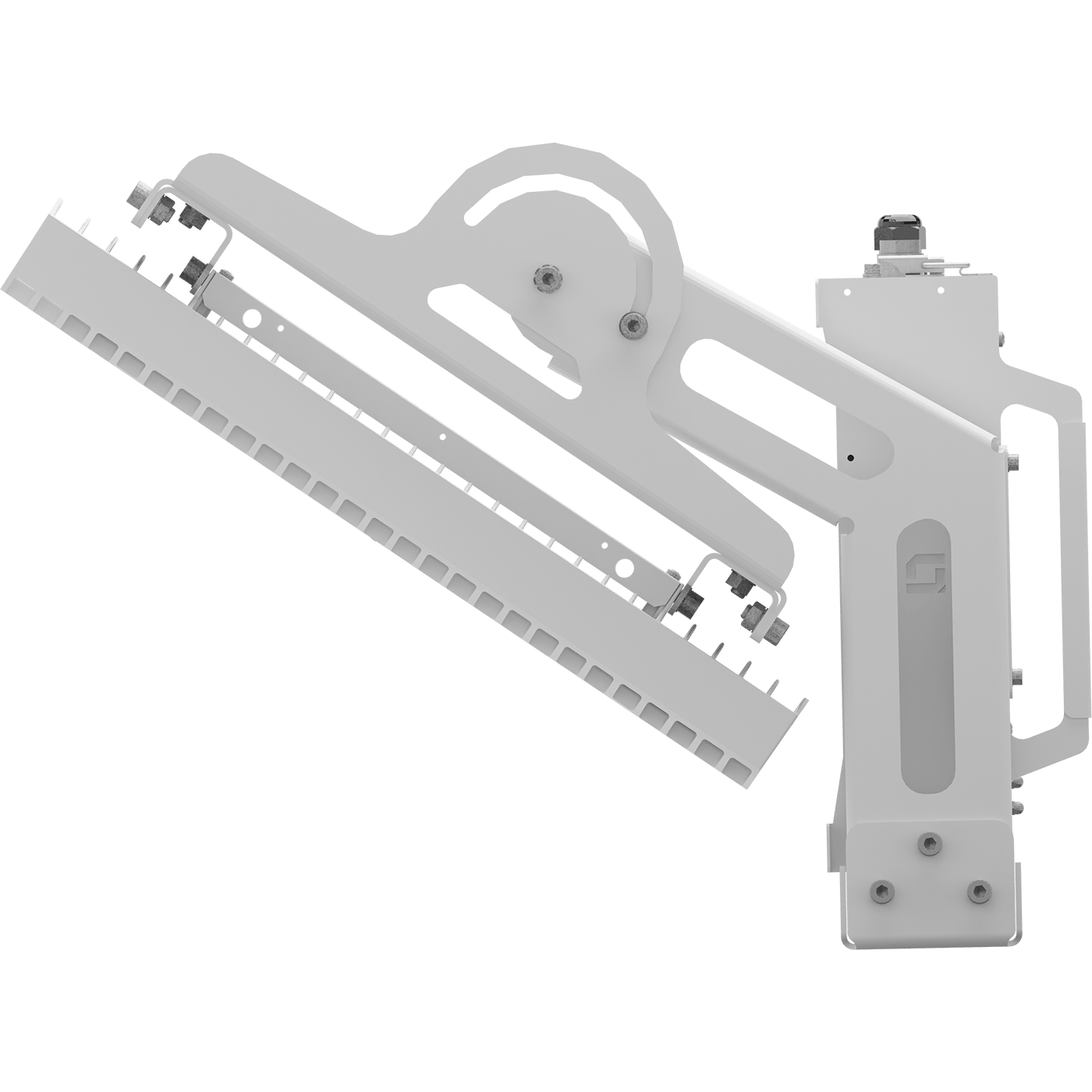

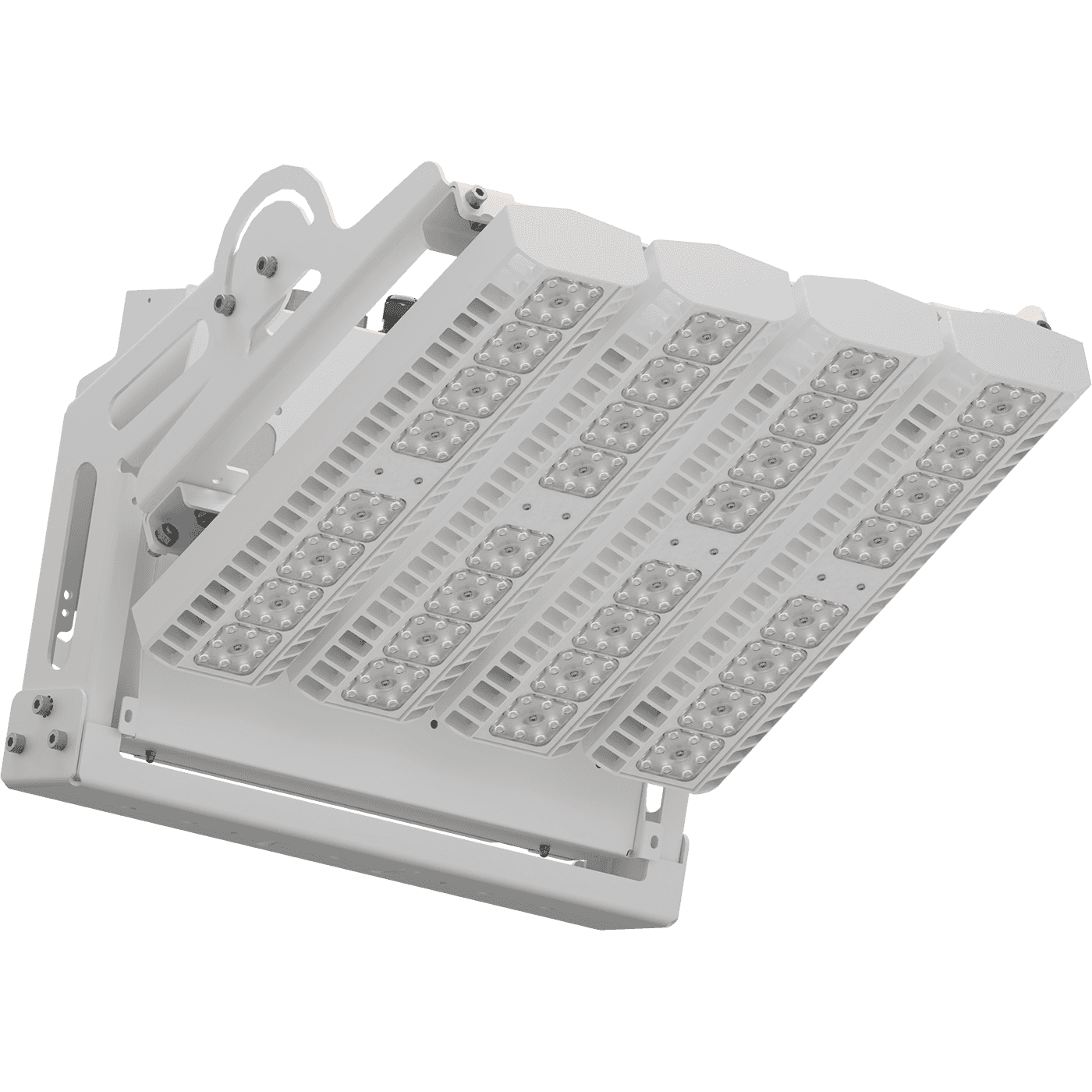

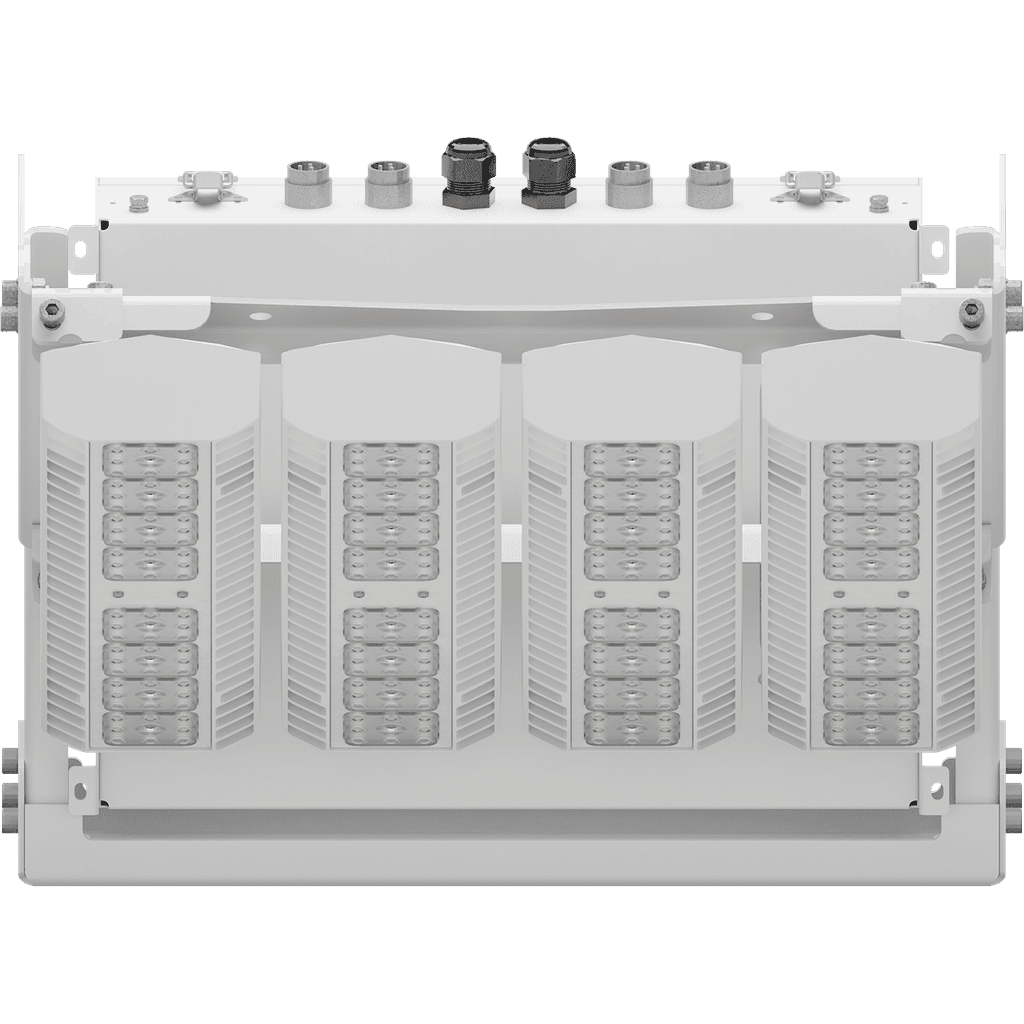

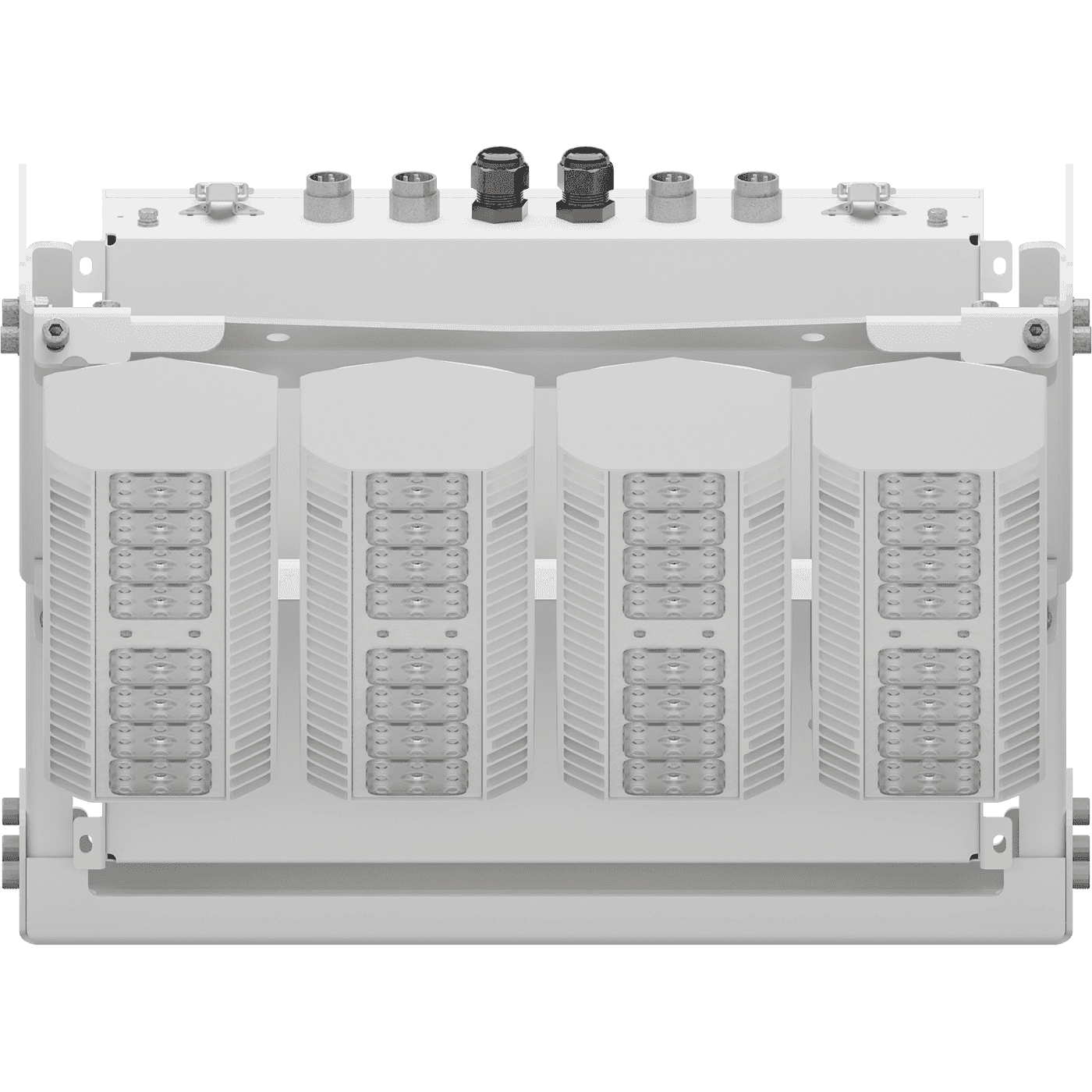

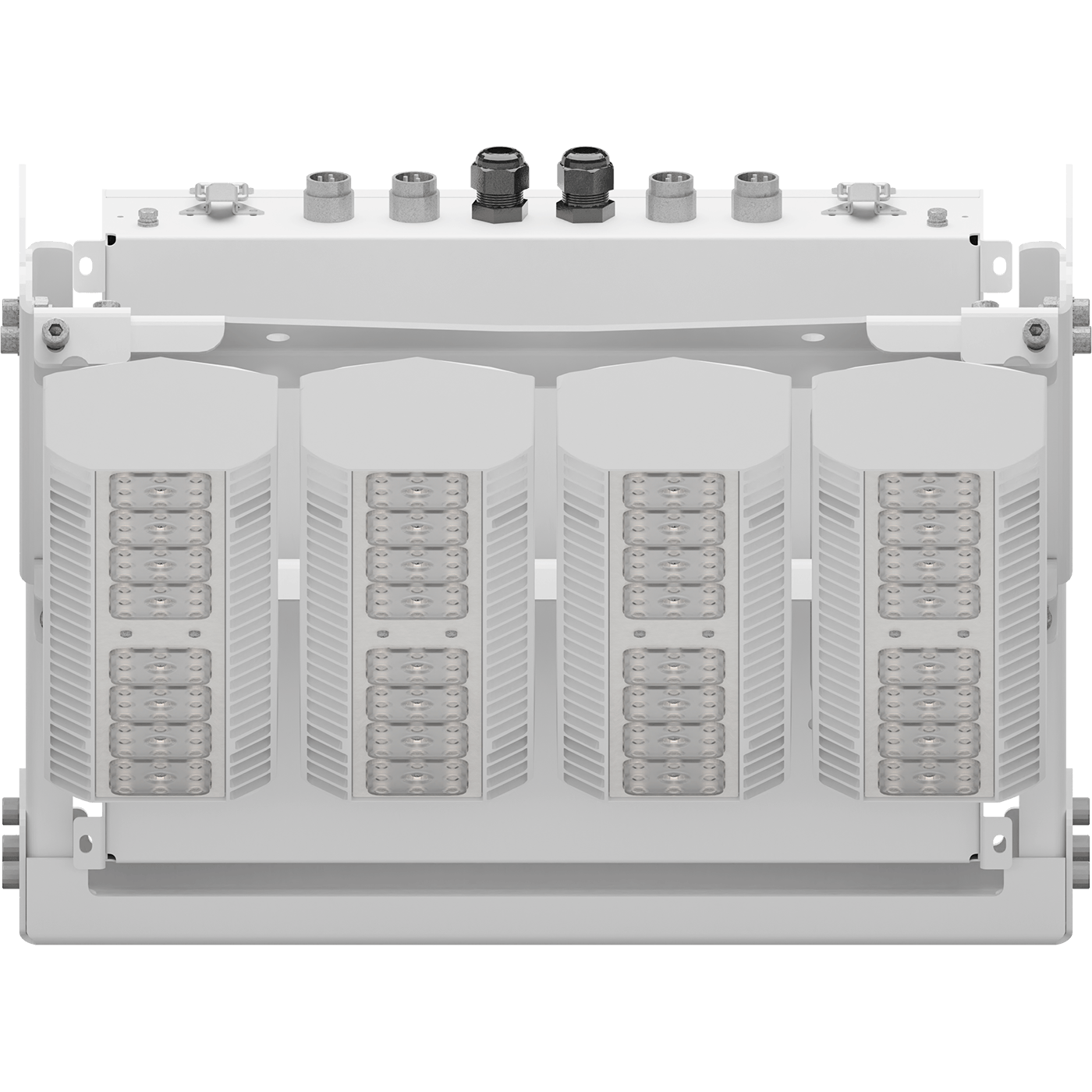

FORWARD 600W D80 957 WH FB
FORWARD 600W D80 957 WH FB
550 Wluminaire power
62600 lmlight flow
114 lm/Wenergy efficiency
code1864002500
beam angleD80
color temperature5700 K
weight21 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
114 lm/Wcolor rendition index (CRI)
>90light flow
62600 lmflickering factor
<1%beam angle
D80color temperature
5700 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
114 lm/W
color rendition index (CRI)
>90
light flow
62600 lm
flickering factor
<1%
beam angle
D80
color temperature
5700 K
light source type
LED
emission color
Белый
electrical
luminaire power
550 W
electric shock protection
I
starting current pulse time
760 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
52 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
127-420 V
supply voltage, alternating current
90-305 V
power factor
> 0,97
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІ
width
535 mm
height
360 mm
installation length
340 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
510 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
21 kg
common
code
1864002500
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files
photometric files
documents
сертификаты

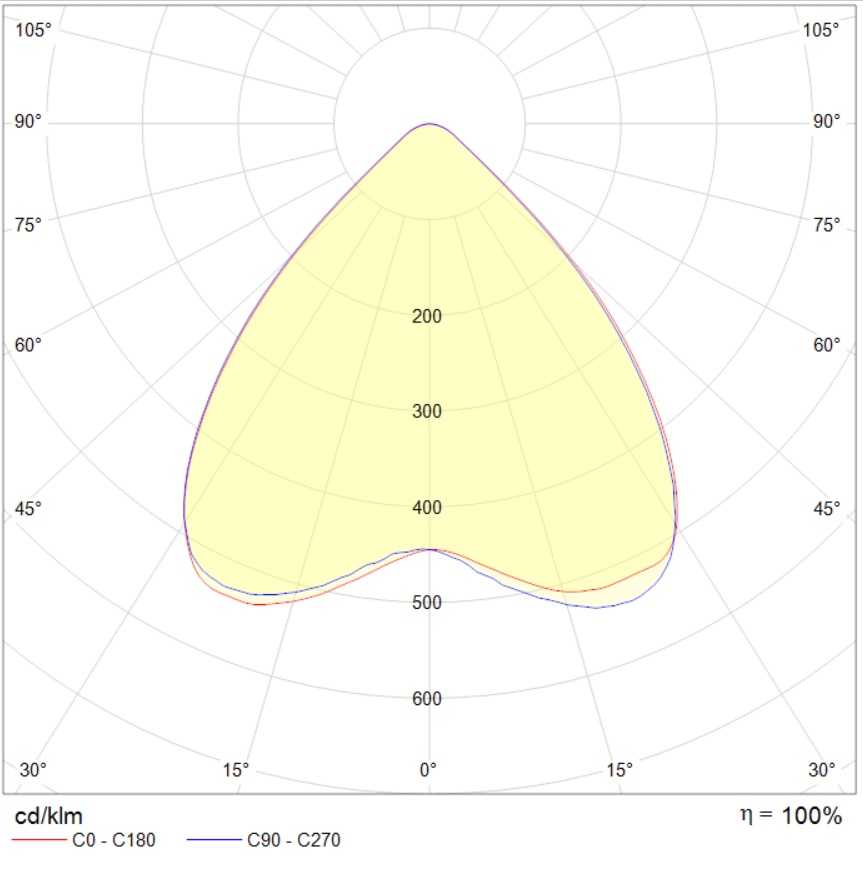

photometric files
ies263.2 kB
jpg87.9 kB
ldt173.9 kB
documents
passport8.3 mB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
