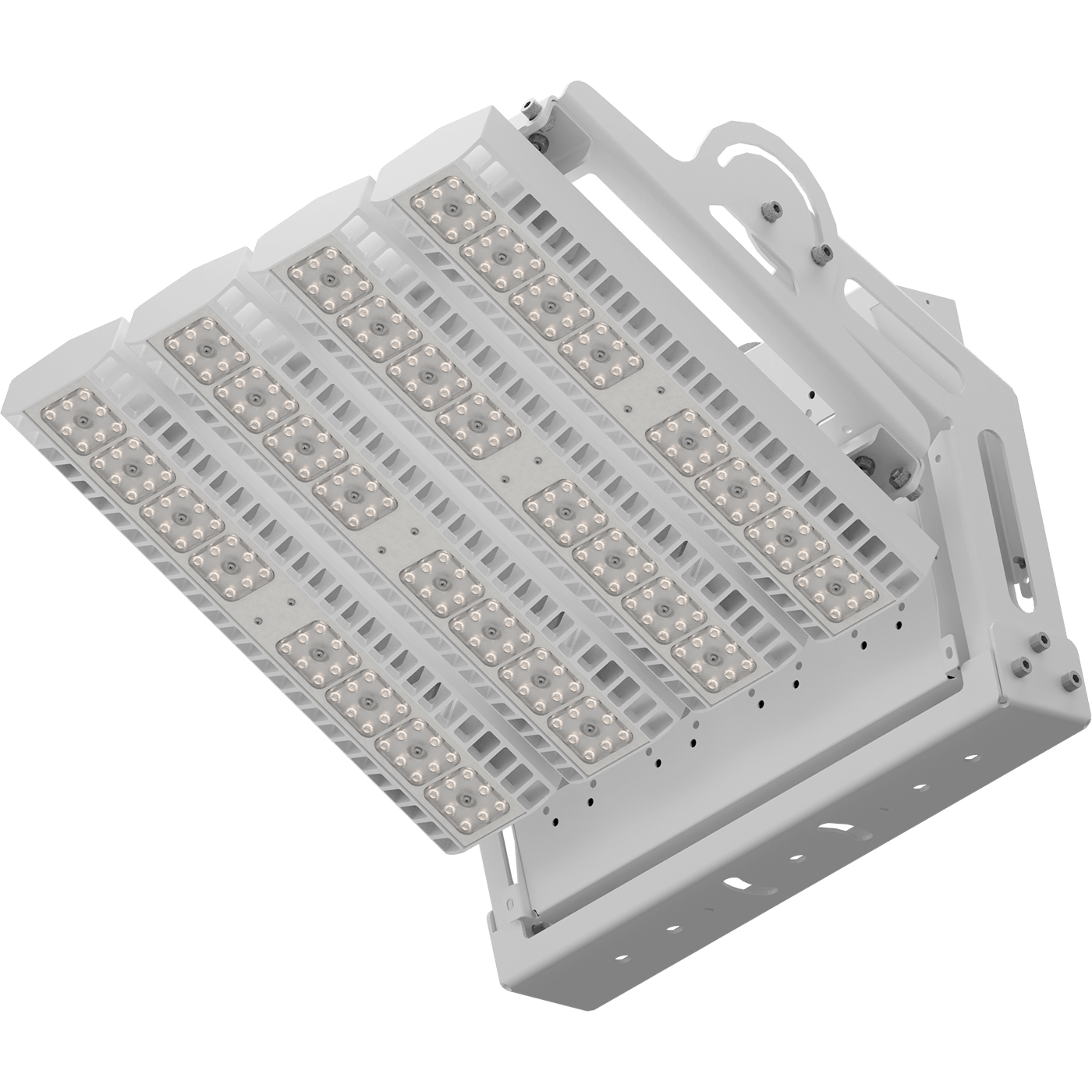

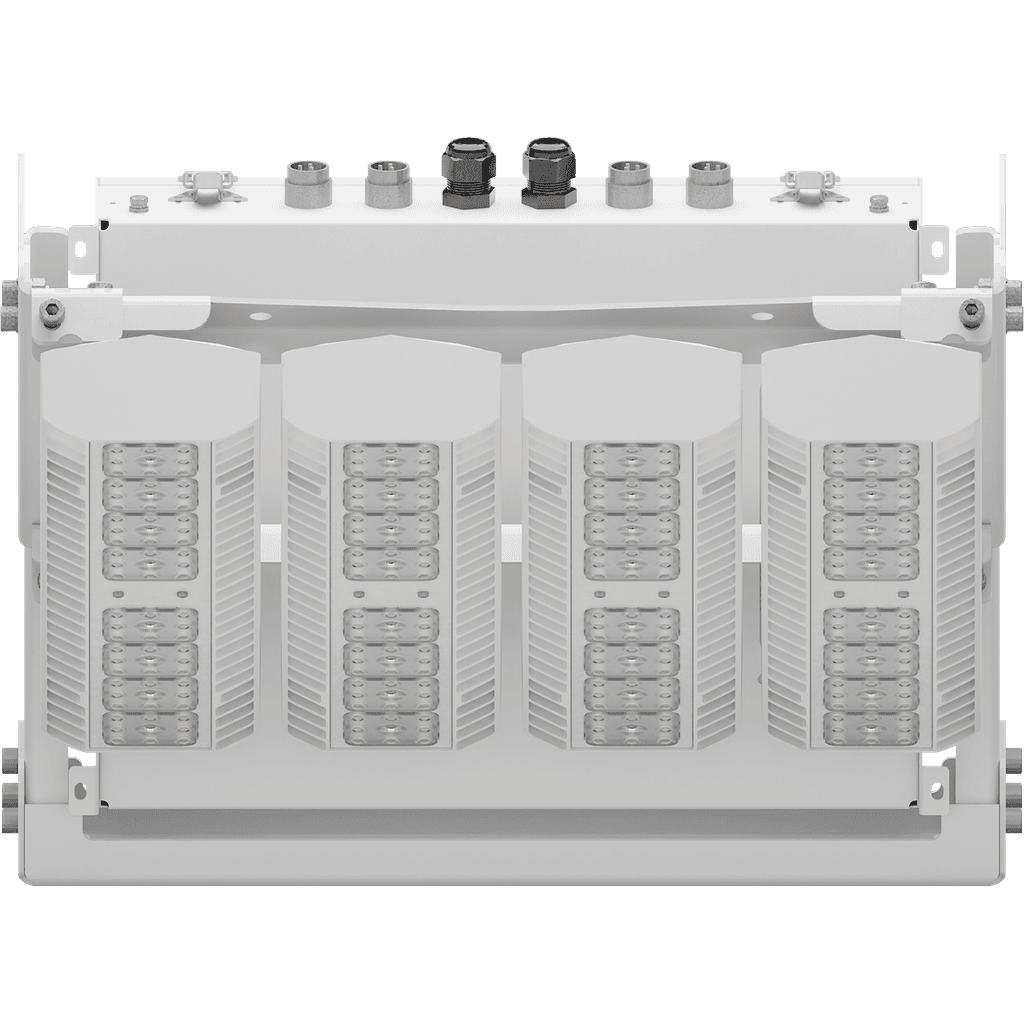

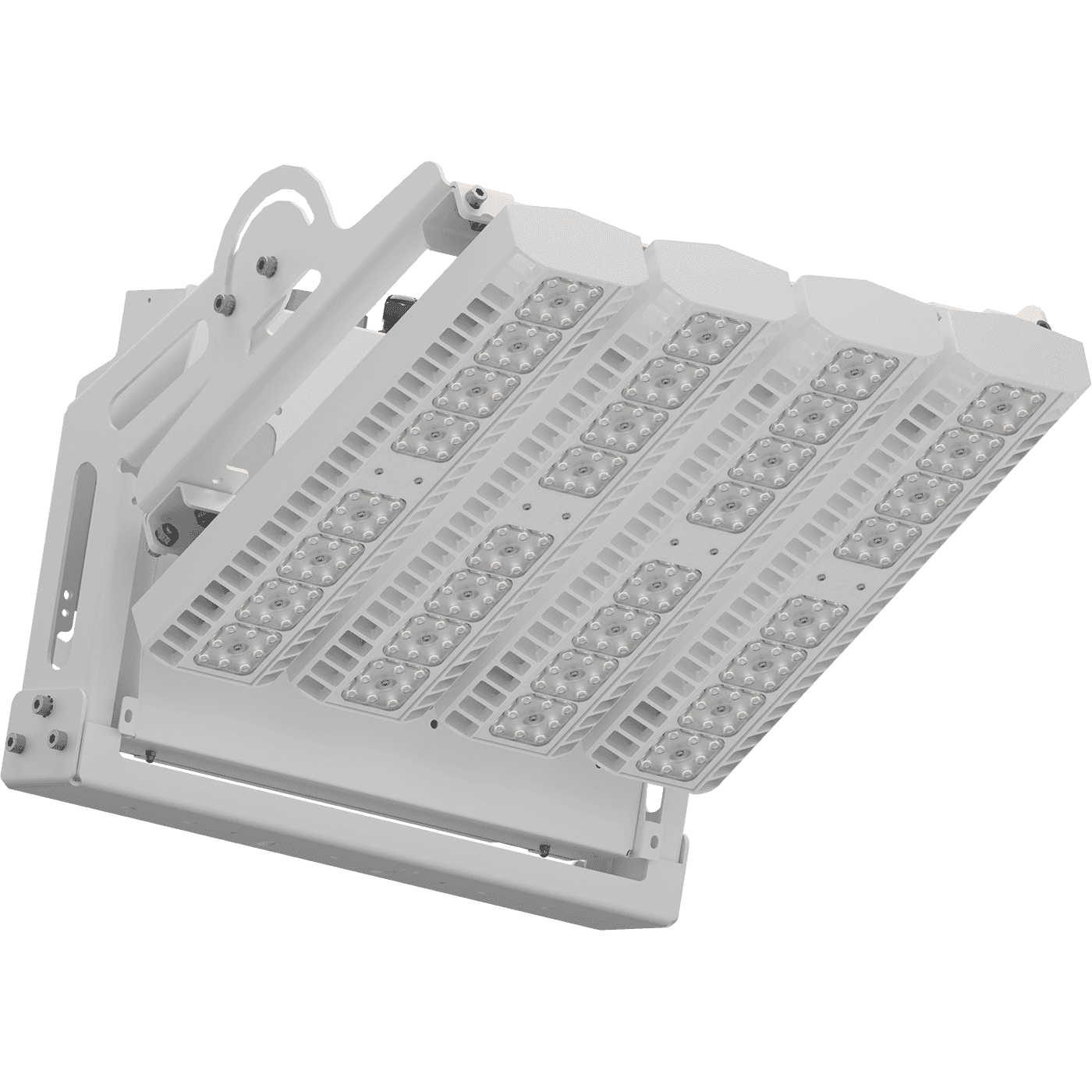

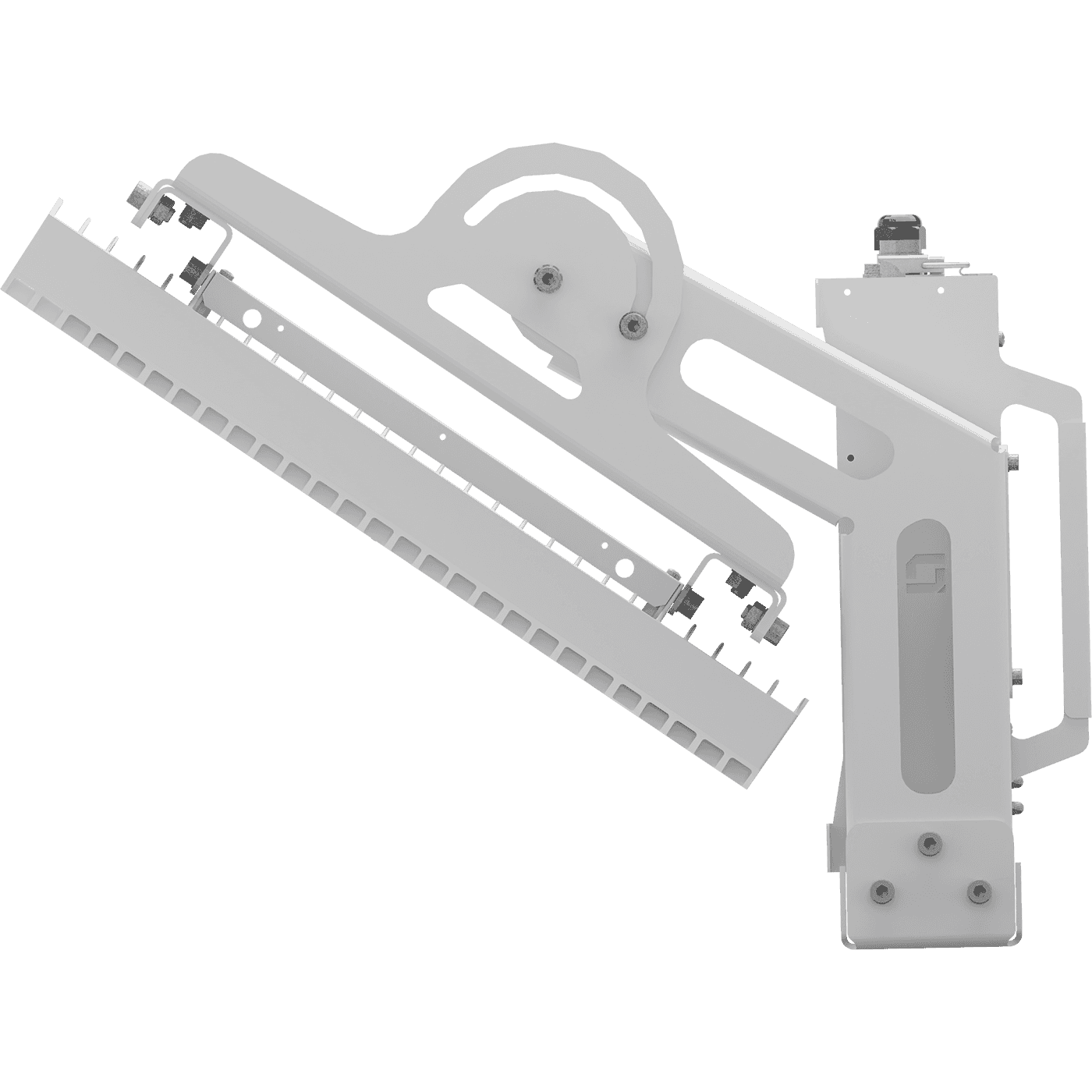

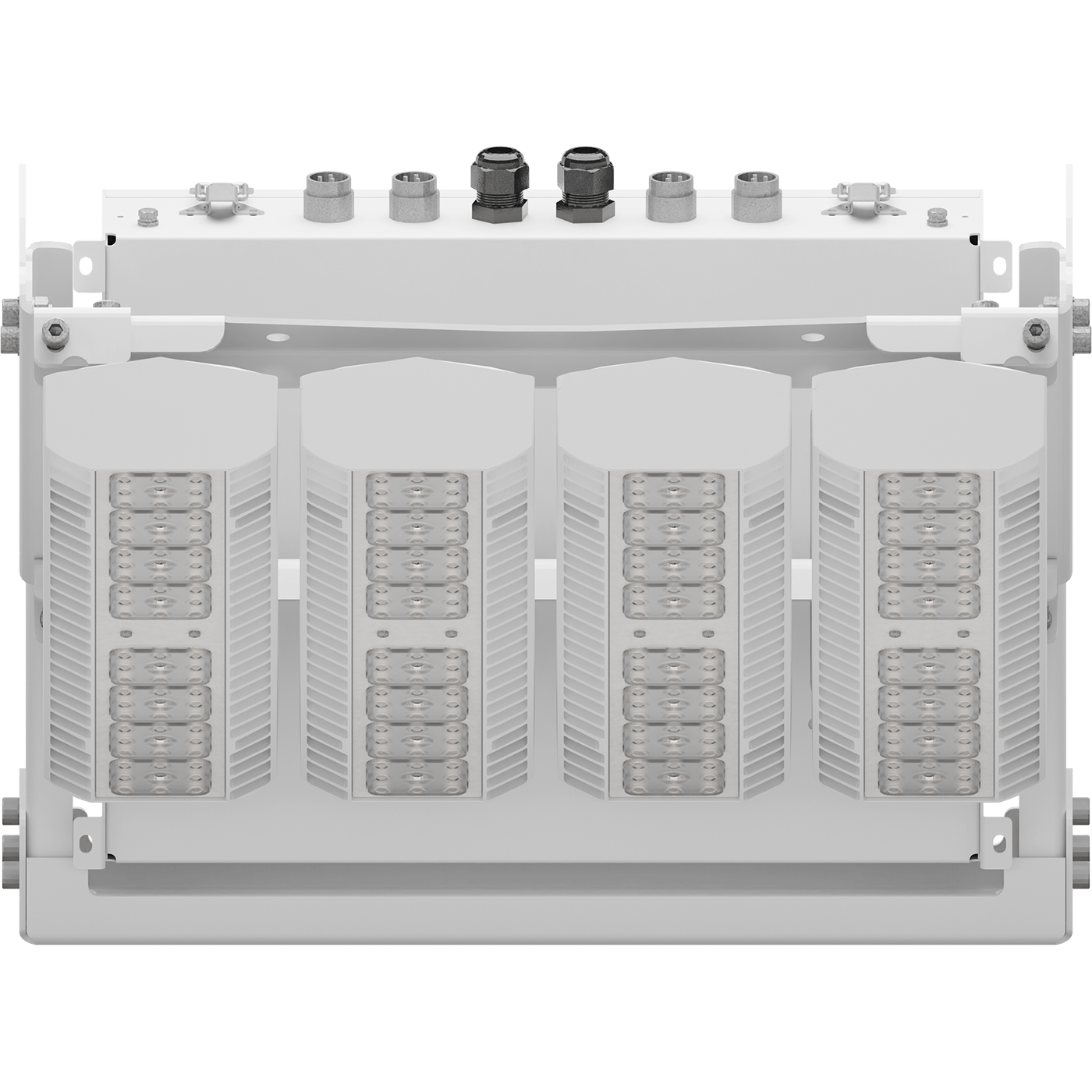

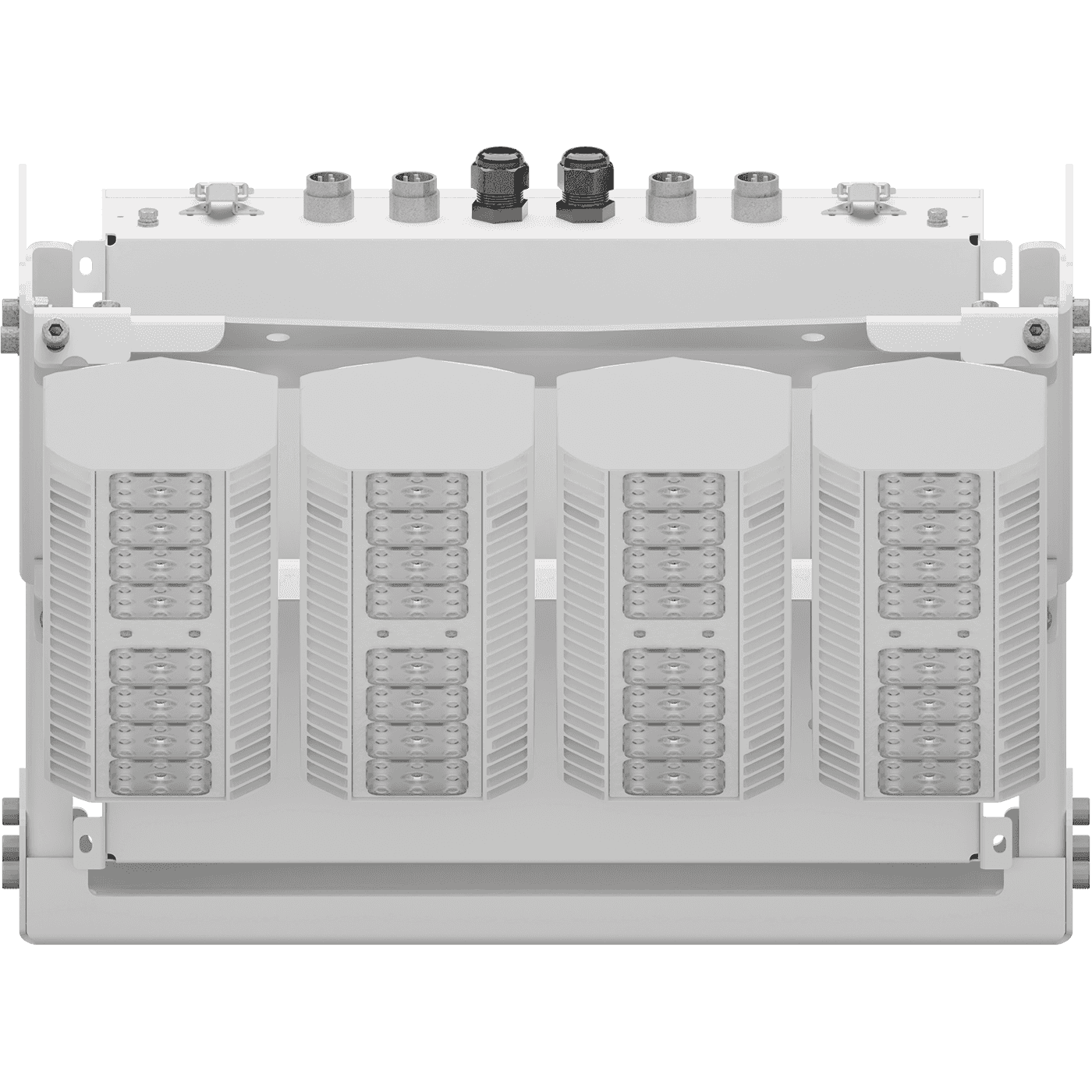

FORWARD 600W D30 850 WH FB
FORWARD 600W D30 850 WH FB
550 Wluminaire power
71600 lmlight flow
130 lm/Wenergy efficiency
code1864001710
beam angleD30
color temperature5000
weight23 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
70 Astarting current pulse time, µs
1200 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-305 Vsupply voltage, direct current
127-431 Vluminaire power
550 Welectric shock protection
Ipower factor
> 0,97supply voltage
230 Velectrical
starting current
70 A
starting current pulse time, µs
1200 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
127-431 V
luminaire power
550 W
electric shock protection
I
power factor
> 0,97
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІ
material
Алюминий
weight
23 kg
length, mm
510 mm
width, mm
535 mm
height, mm
360 mm
housing color
Белый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK07/2 Дж
installation length, mm
340 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1864001710
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
130 lm/W
color rendition index (CRI)
>80
light flow
71600 lm
flickering factor
<1%

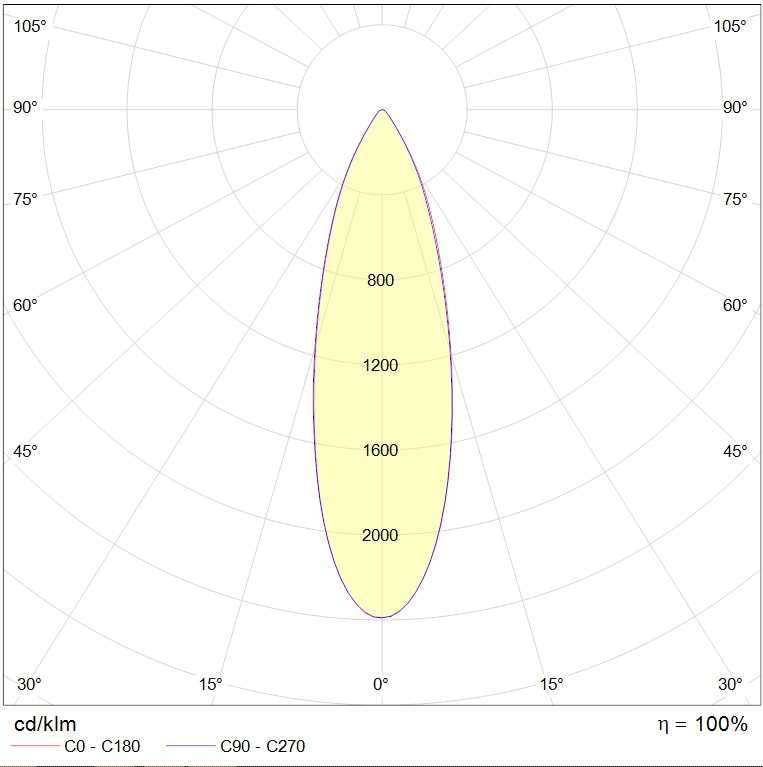

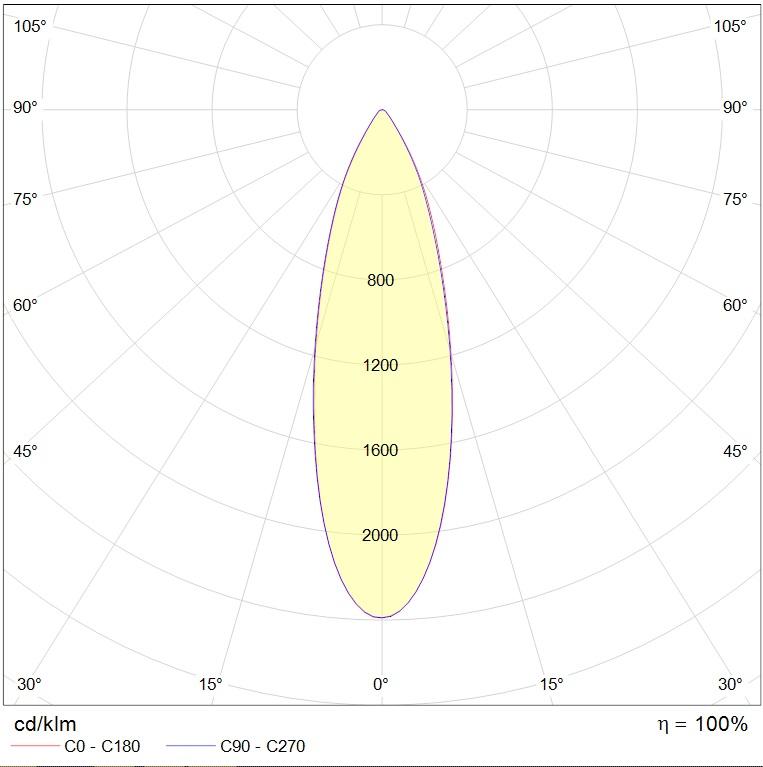

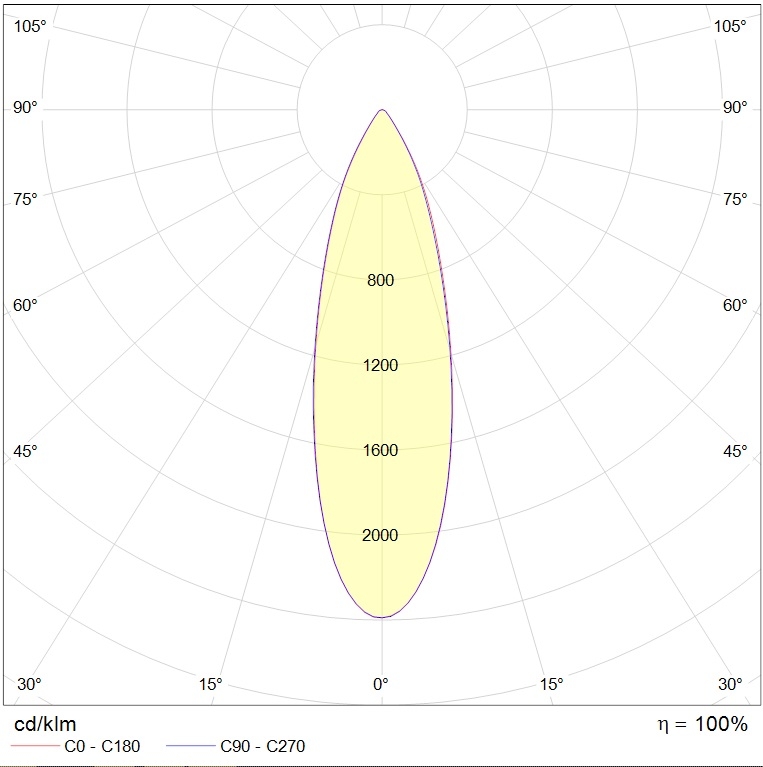

beam angle
D30
color temperature
5000
light source type
LED
emission color
Белый
