зарегистрирована в реестре российской промышленной продукции
FORWARD 600W D130 957 WH SB
зарегистрирована в реестре российской промышленной продукции
FORWARD 600W D130 957 WH SB
550 Wluminaire power
62000 lmlight flow
113 lm/Wenergy efficiency
code1864002610
number from the register of Russian industrial products10815617
beam angleD130
color temperature5700 K
weight21 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
113 lm/Wcolor rendition index (CRI)
>90light flow
62000 lmflickering factor
<1%beam angle
D130color temperature
5700 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
113 lm/W
color rendition index (CRI)
>90
light flow
62000 lm
flickering factor
<1%
beam angle
D130
color temperature
5700 K
light source type
LED
emission color
Белый
electrical
luminaire power
550 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
power factor
> 0,97
constructional
fire safety class
П-ІІ
length
510 mm
height
250 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
width
510 mm
material
Алюминий
climatic performance
УХЛ1*
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
21 kg
common
code
1864002610
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files

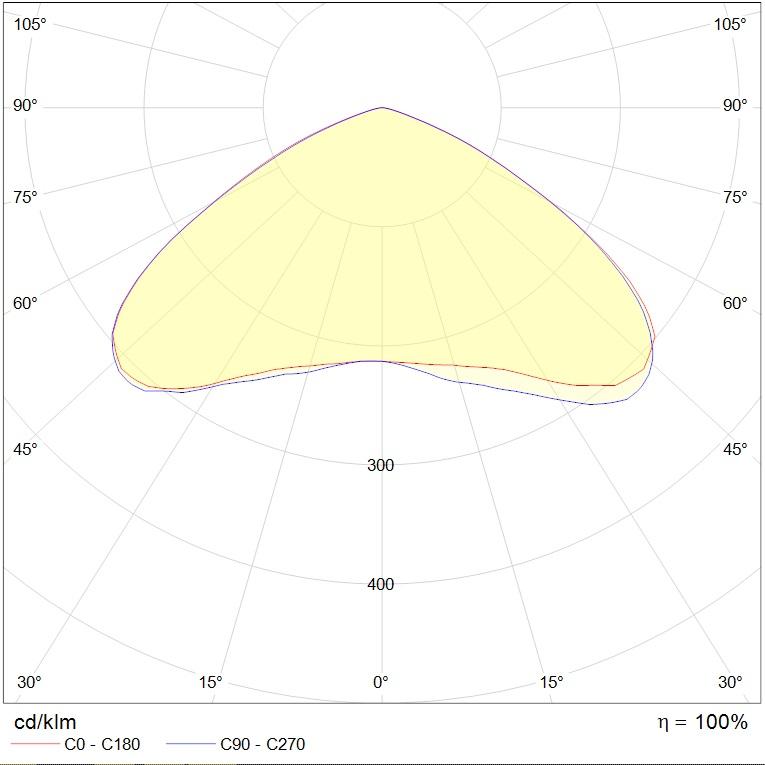

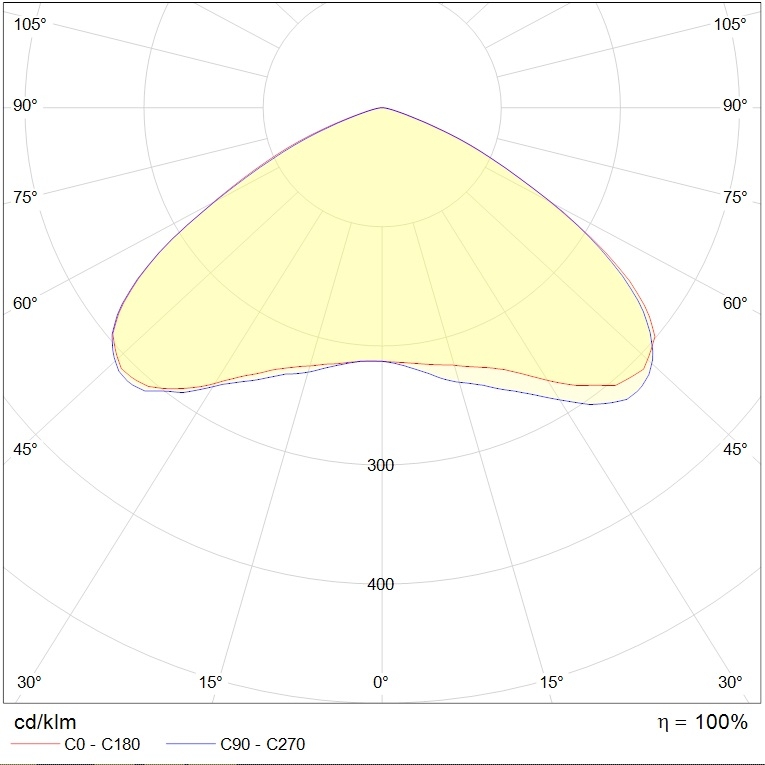

photometric files
сертификаты
photometric files
ies107 kB
jpg77.9 kB
ldt65.5 kB
сертификаты
Russian origin329.7 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.4 mB
Declaration of Conformity EAEU TR 037/2016555.9 kB
