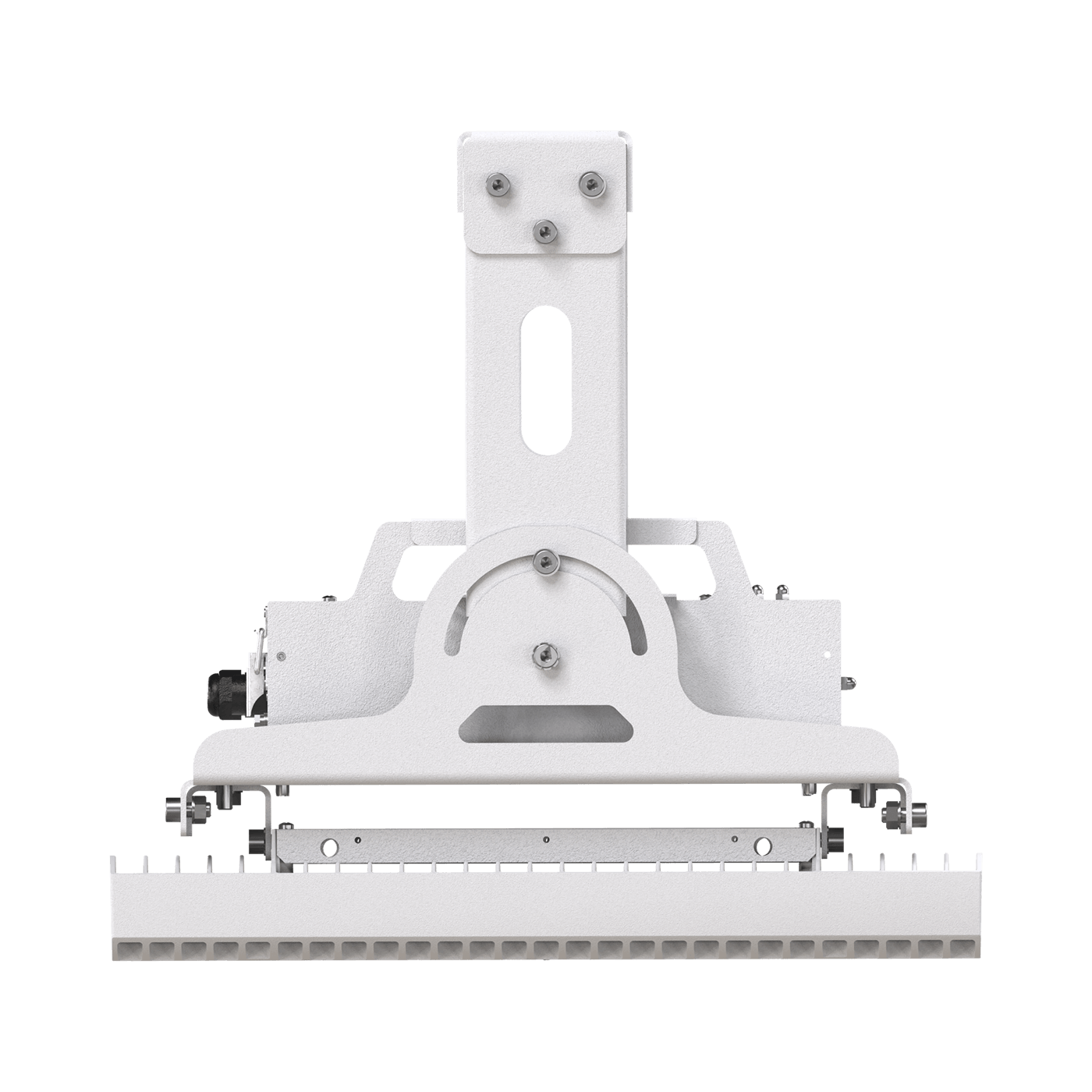

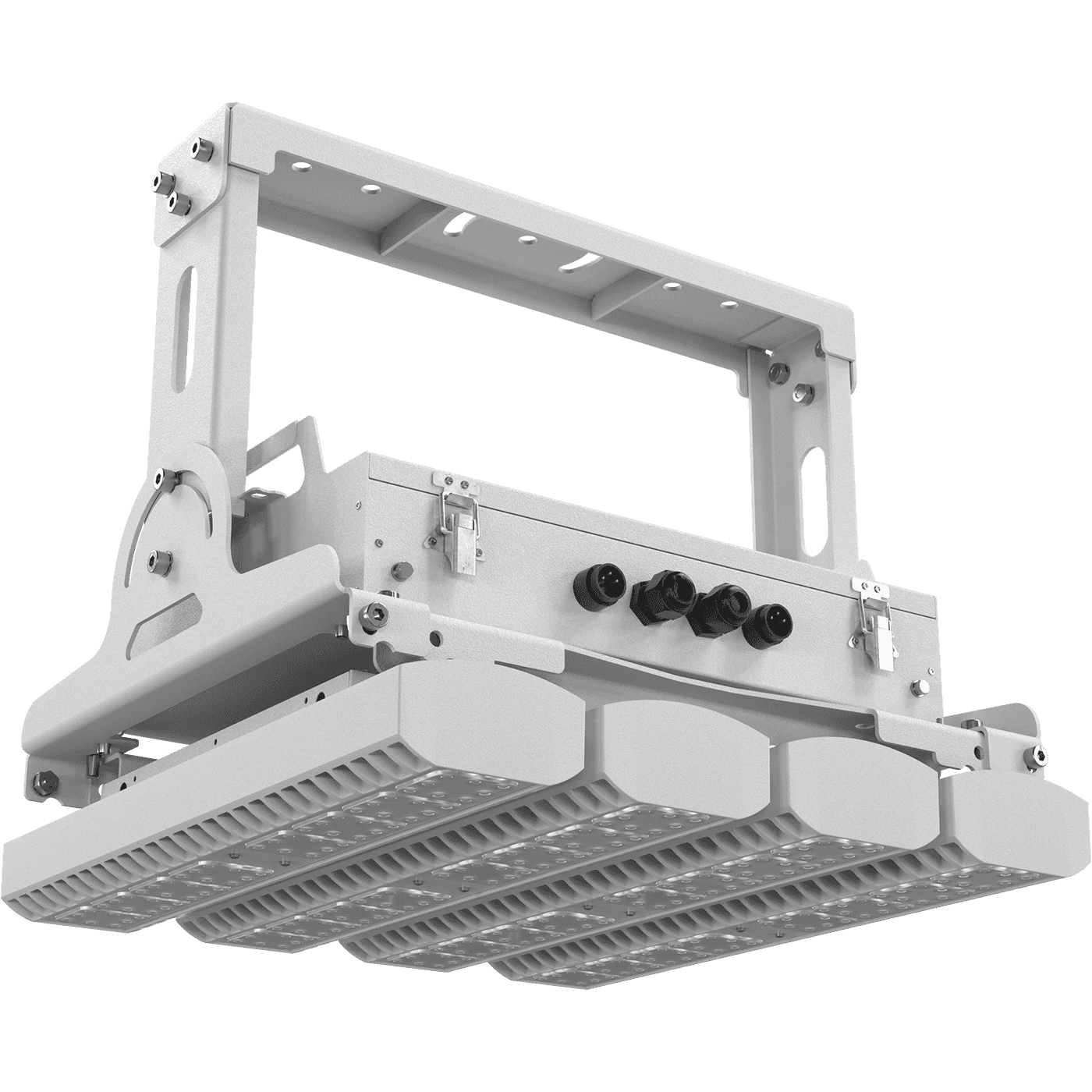

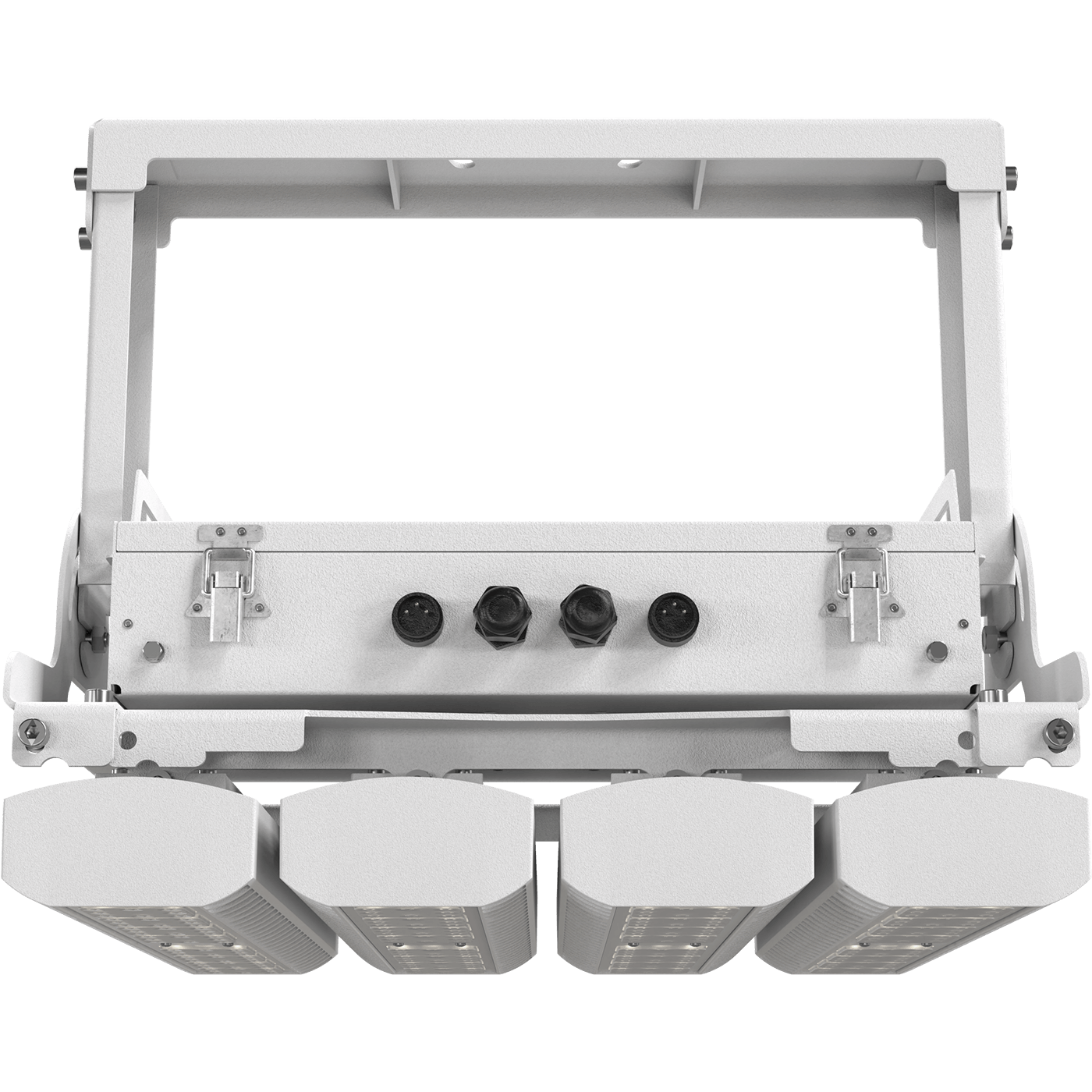

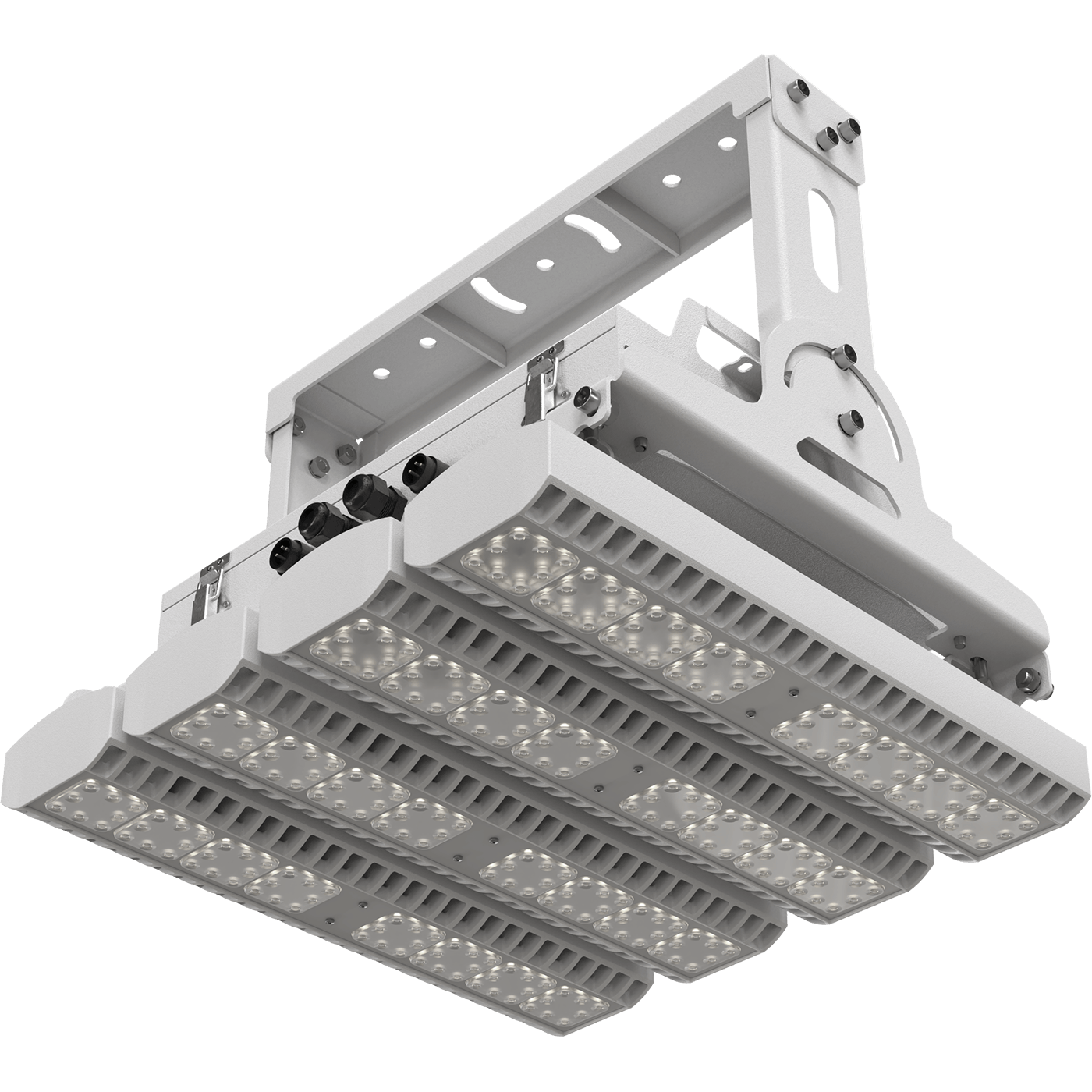

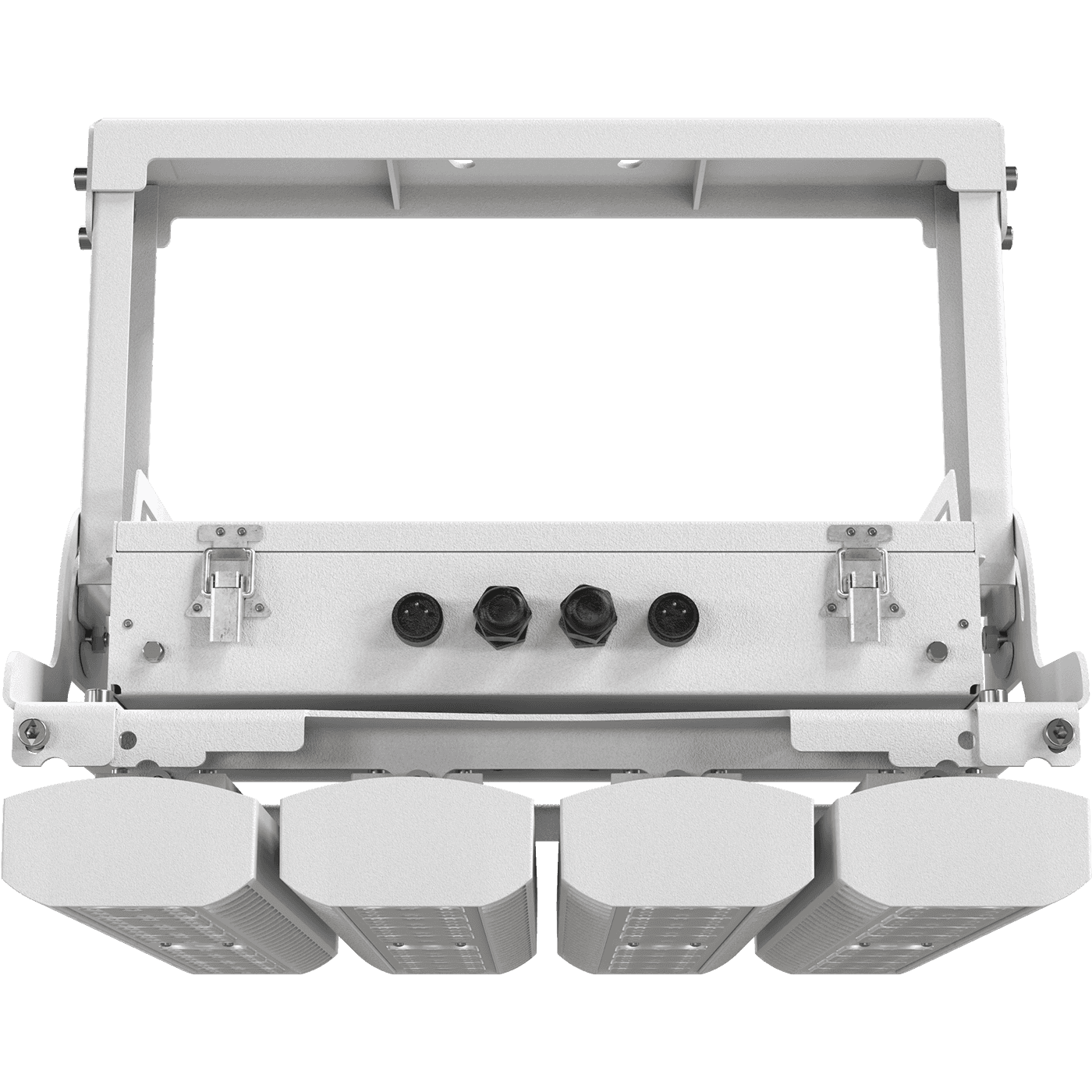

FORWARD 600W D130 857 WH SB
FORWARD 600W D130 857 WH SB
550 Wluminaire power
71600 lmlight flow
130 lm/Wenergy efficiency
code1864002550
beam angleD130
color temperature5700 K
weight21 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
130 lm/Wcolor rendition index (CRI)
>80light flow
71600 lmflickering factor
<1%beam angle
D130color temperature
5700 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
130 lm/W
color rendition index (CRI)
>80
light flow
71600 lm
flickering factor
<1%
beam angle
D130
color temperature
5700 K
light source type
LED
emission color
Белый
electrical
luminaire power
550 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
power factor
> 0,97
constructional
fire safety class
П-ІІ
length
510 mm
height
250 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
width
510 mm
material
Алюминий
climatic performance
УХЛ1*
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
21 kg
common
code
1864002550
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files

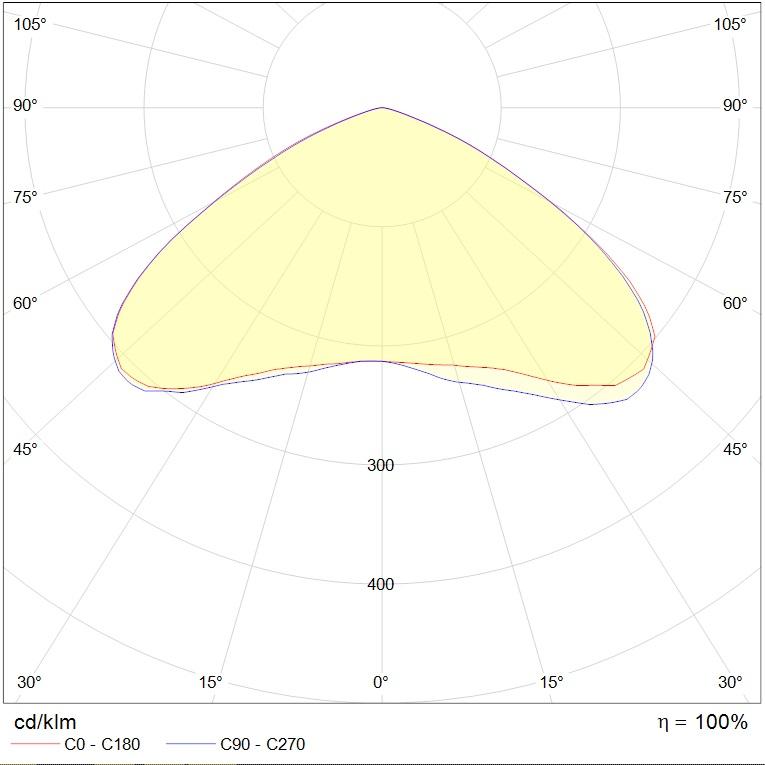

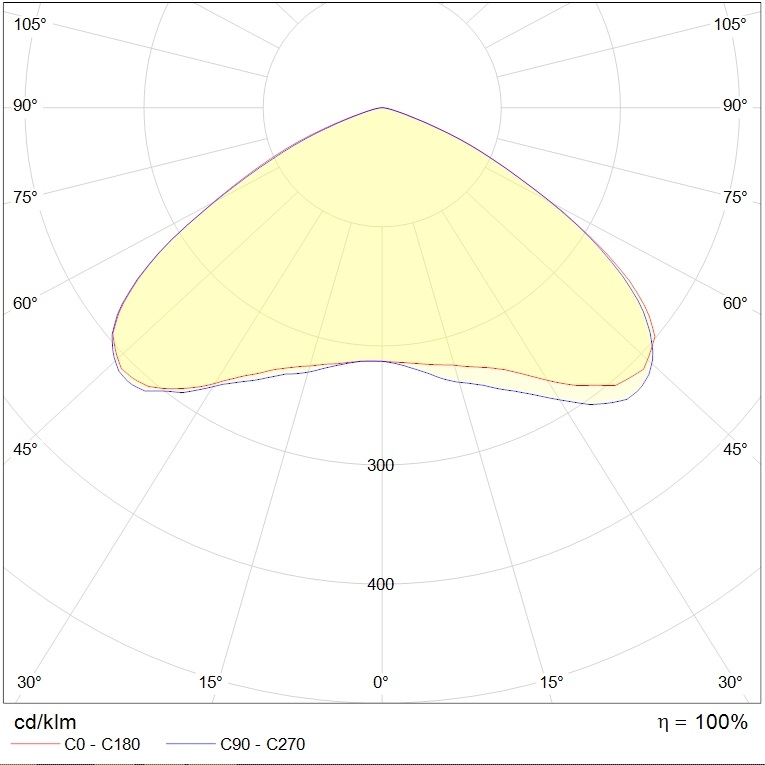

photometric files
сертификаты
photometric files
ies107.1 kB
jpg77.9 kB
ldt65.5 kB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.4 mB
Declaration of Conformity EAEU TR 037/2016555.9 kB
