FORWARD 600W D130 850 WH SB
FORWARD 600W D130 850 WH SB
550 Wluminaire power
71600 lmlight flow
130 lm/Wenergy efficiency
code1864002530
beam angleD130
color temperature5000
weight21 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
130 lm/Wcolor rendition index (CRI)
>80light flow
71600 lmflickering factor
<1%beam angle
D130color temperature
5000light source type
LEDemission color
Белыйilluminating
energy efficiency
130 lm/W
color rendition index (CRI)
>80
light flow
71600 lm
flickering factor
<1%
beam angle
D130
color temperature
5000
light source type
LED
emission color
Белый
electrical
luminaire power
550 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,97
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІ
width, mm
510 mm
height, mm
250 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length, mm
510 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
21 kg
common
code
1864002530
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life, hour
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files

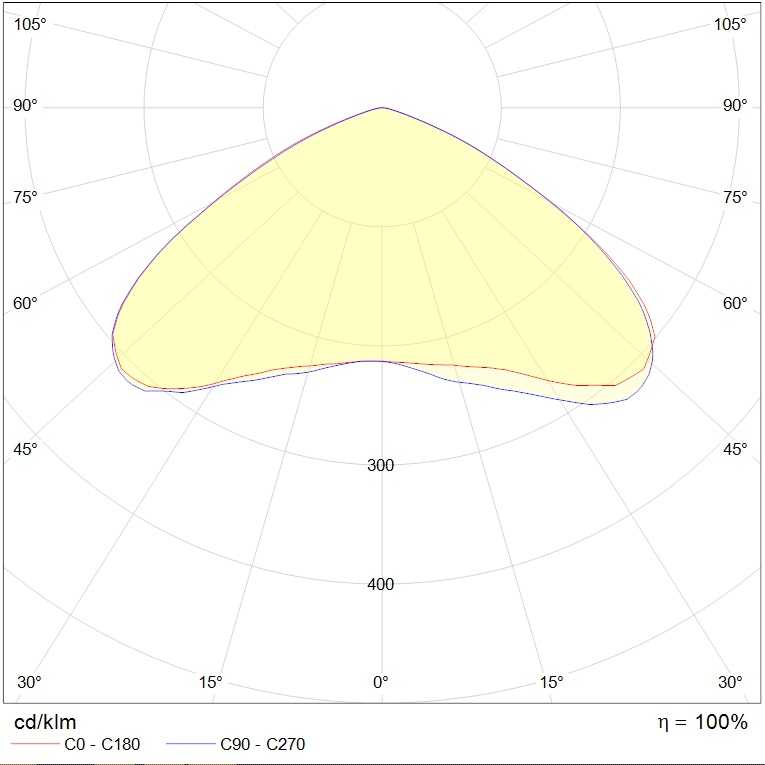

photometric files
сертификаты
photometric files
ies107 kB
jpg77.9 kB
ldt65.5 kB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
