зарегистрирована в реестре российской промышленной продукции
FORWARD 450W D80 957 WH SB
зарегистрирована в реестре российской промышленной продукции
FORWARD 450W D80 957 WH SB
400 Wluminaire power
47400 lmlight flow
119 lm/Wenergy efficiency
code1864003120
number from the register of Russian industrial products10815616
beam angleD80
color temperature5700 K
weight9.7 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
119 lm/Wcolor rendition index (CRI)
>90light flow
47400 lmflickering factor
<1%beam angle
D80color temperature
5700 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
119 lm/W
color rendition index (CRI)
>90
light flow
47400 lm
flickering factor
<1%
beam angle
D80
color temperature
5700 K
light source type
LED
emission color
Белый
electrical
luminaire power
400 W
electric shock protection
I
starting current pulse time
1200 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
65 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
180-300 V
supply voltage, alternating current
176-305 V
power factor
> 0,97
constructional
length
463 mm
height
222 mm
installation length
180 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
width
389 mm
material
Алюминий
climatic performance
УХЛ1*
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
9.7 kg
common
code
1864003120
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +45 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files

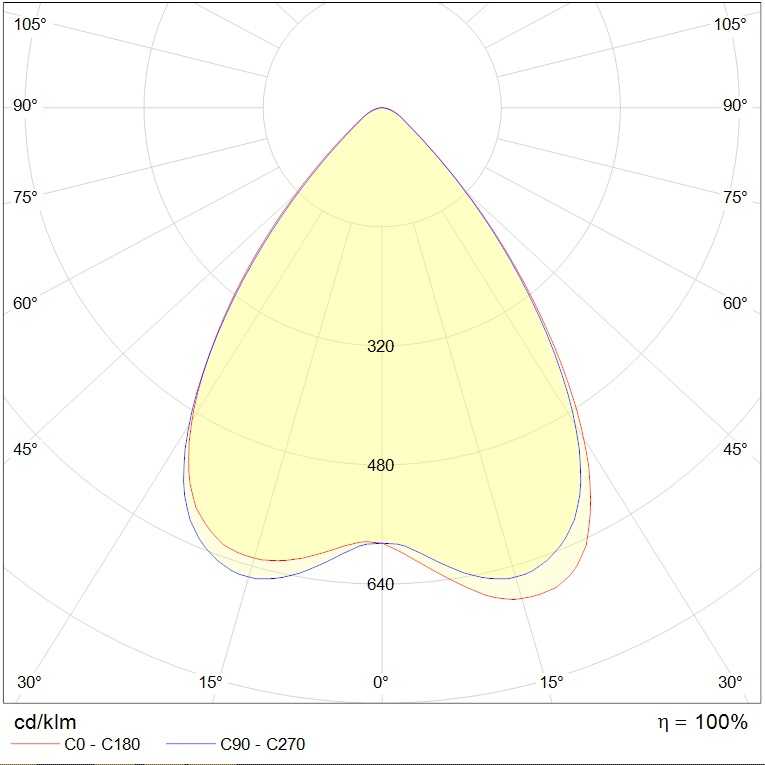

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg80.6 kB
ldt65.6 kB
documents
passport8.6 mB
сертификаты
Russian origin329.7 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.4 mB
Declaration of Conformity EAEU TR 037/2016555.9 kB
