FORWARD 450W D80 857 WH FB
FORWARD 450W D80 857 WH FB
410 Wluminaire power
53000 lmlight flow
129 lm/Wenergy efficiency
code1864002410
beam angleD80
color temperature5700 K
weight12 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
129 lm/Wcolor rendition index (CRI)
>80light flow
53000 lmflickering factor
<1%beam angle
D80color temperature
5700 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
129 lm/W
color rendition index (CRI)
>80
light flow
53000 lm
flickering factor
<1%
beam angle
D80
color temperature
5700 K
light source type
LED
emission color
Белый
electrical
luminaire power
410 W
electric shock protection
I
starting current pulse time
1200 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
65 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
180-300 V
supply voltage, alternating current
176-305 V
power factor
> 0,97
constructional
climatic performance
УХЛ1*
width
389 mm
height
245 mm
installation length
180 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
463 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
12 kg
common
code
1864002410
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +45 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files

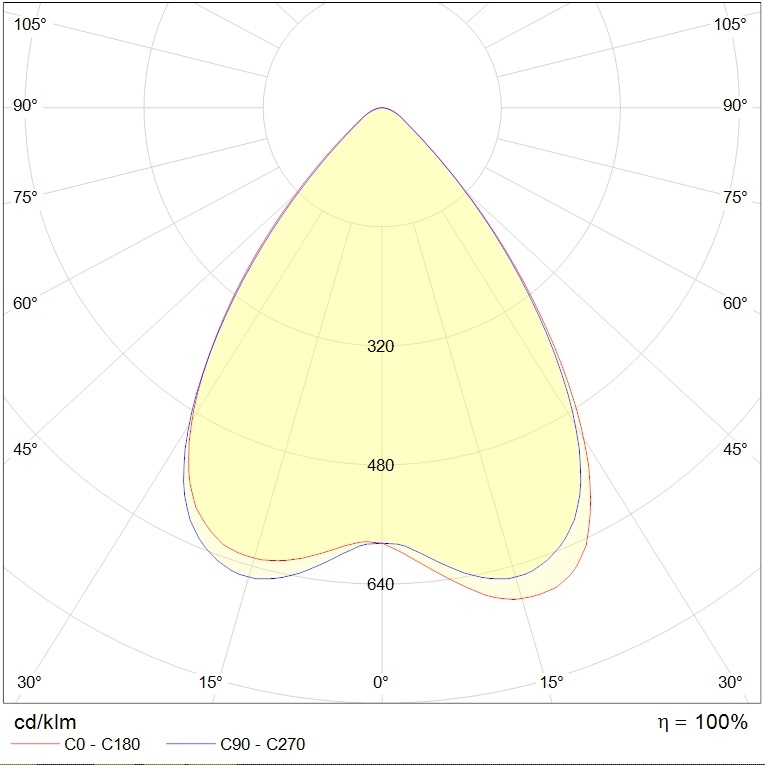

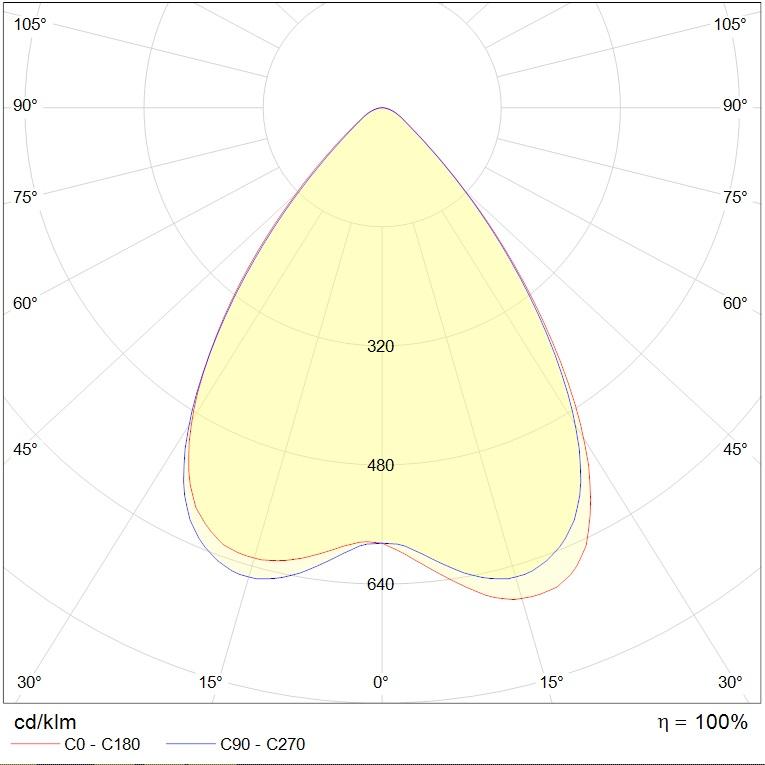

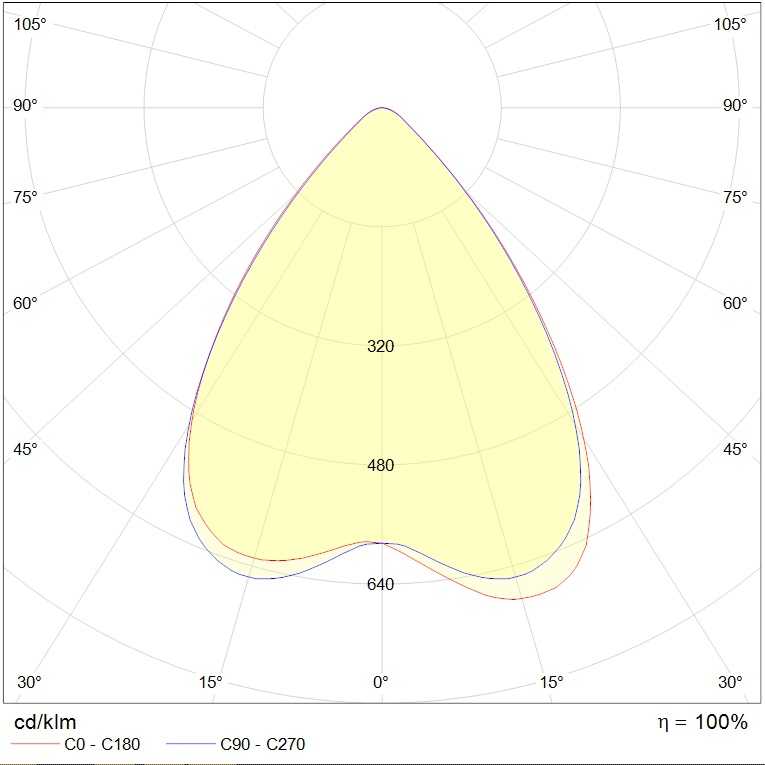

photometric files
documents
сертификаты
photometric files
ies107.1 kB
jpg80.6 kB
ldt65.6 kB
documents
passport8.2 mB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
