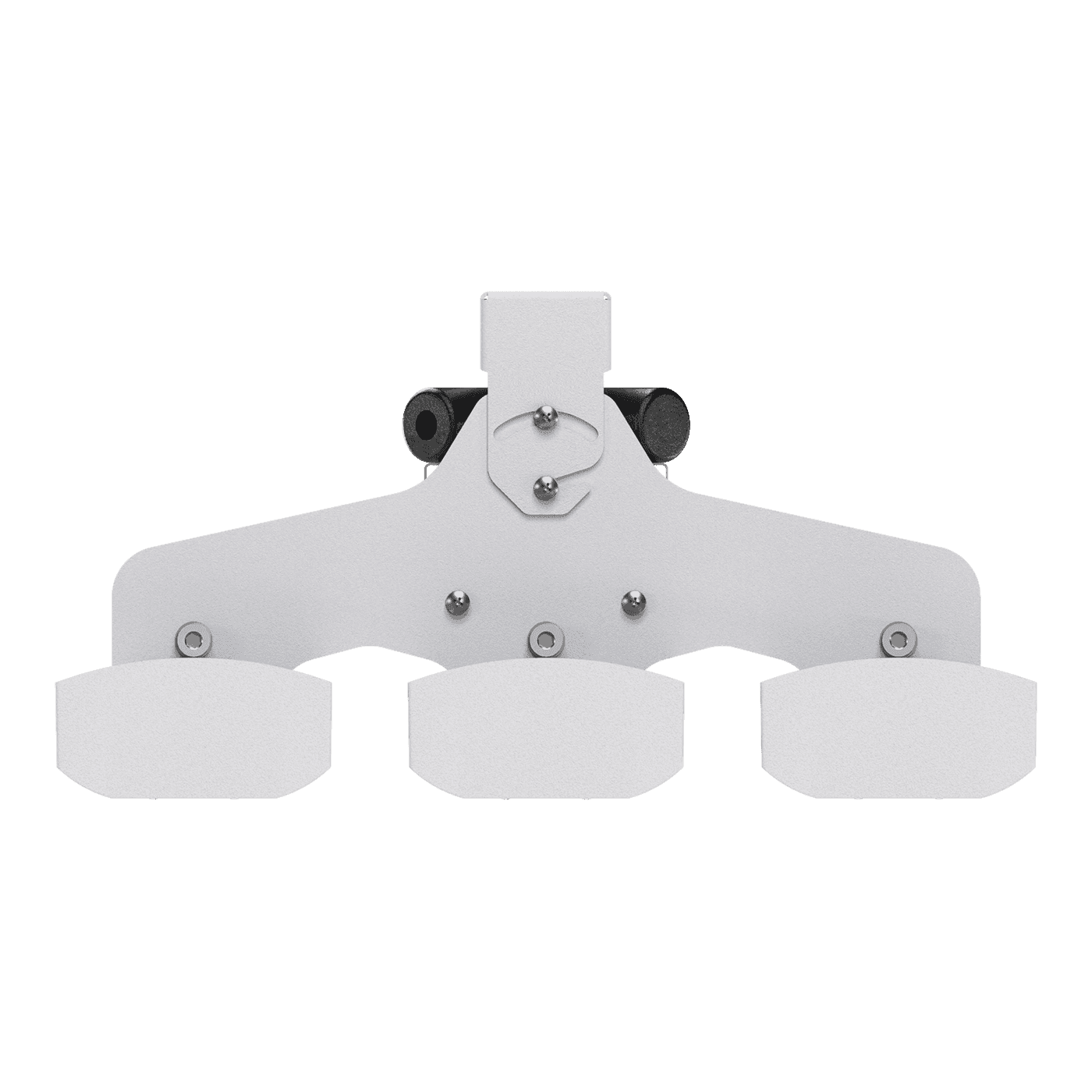

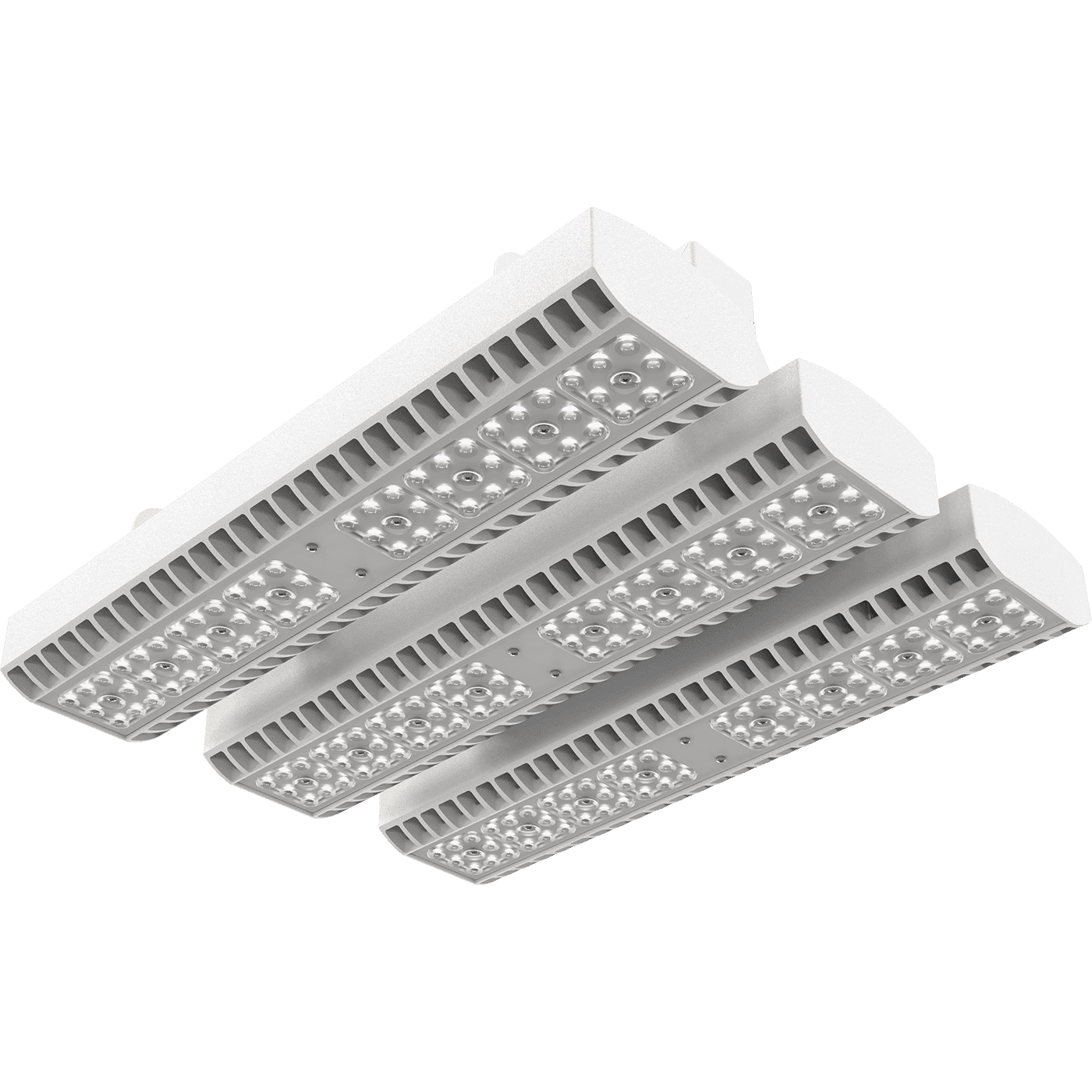

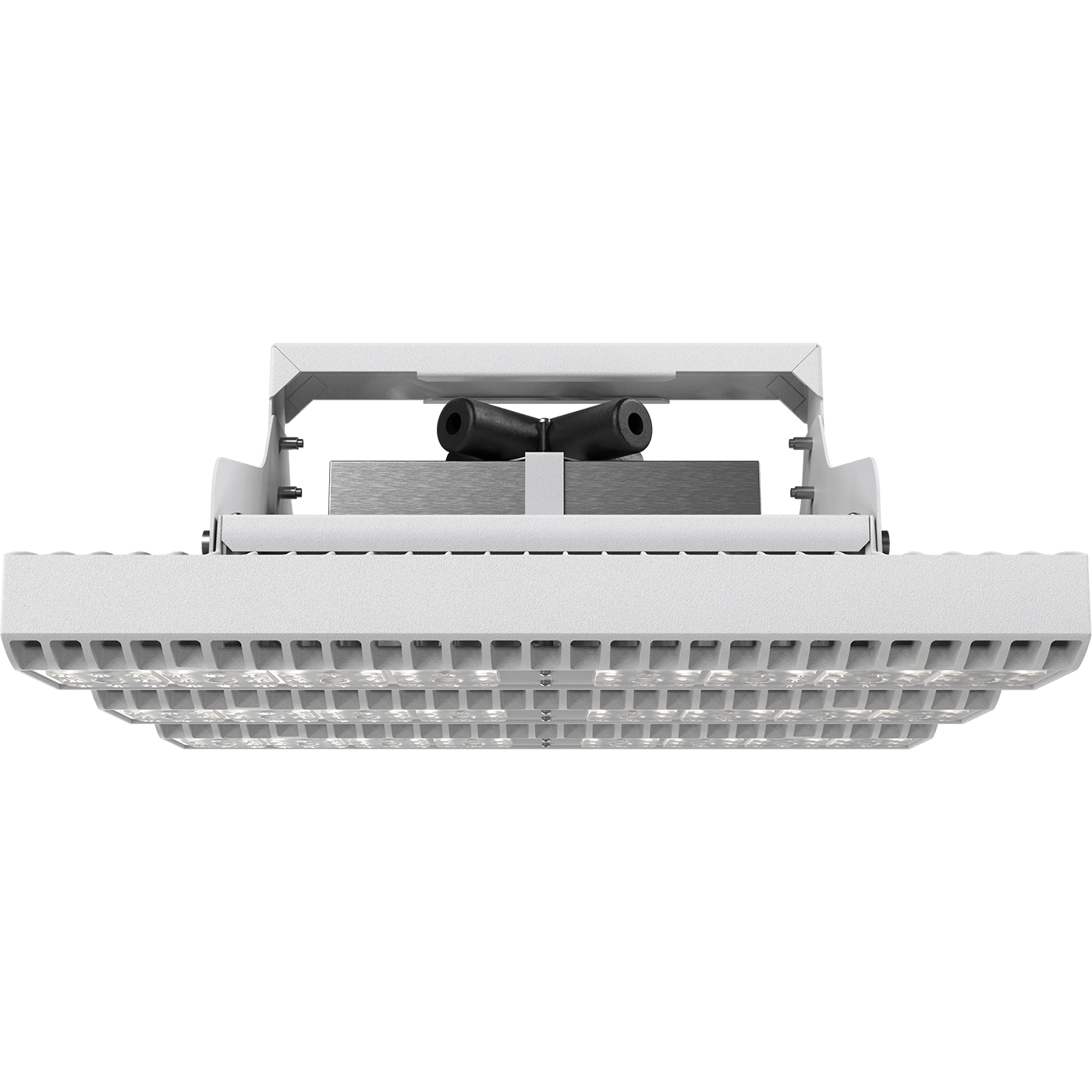

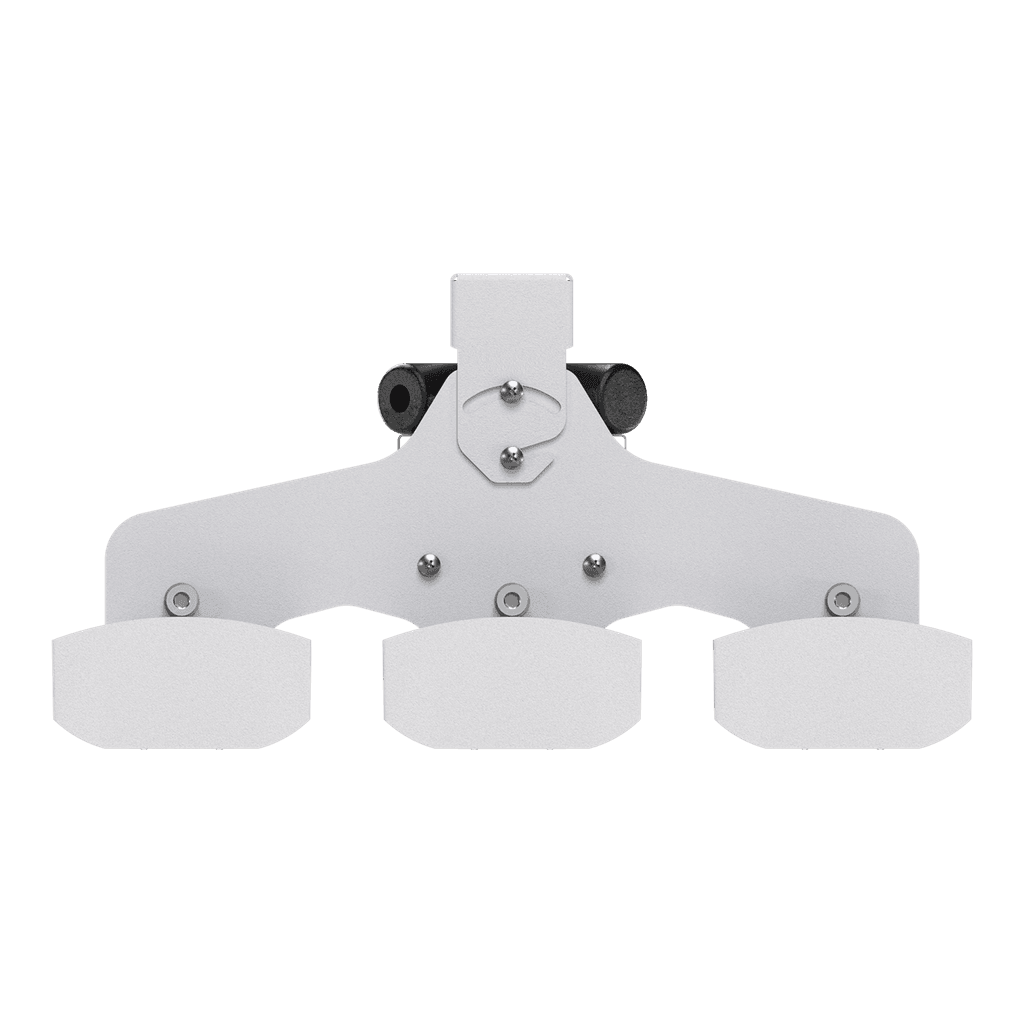

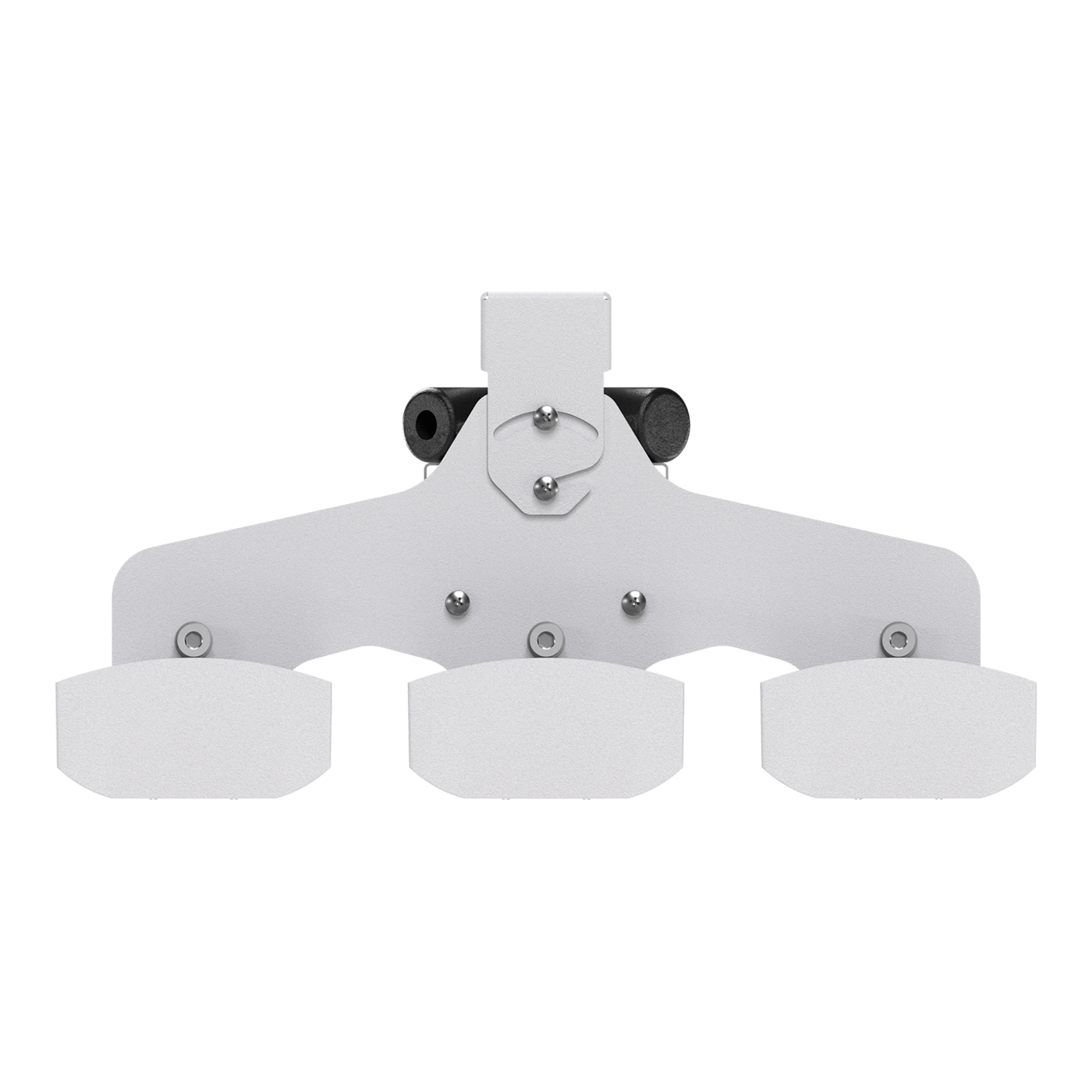

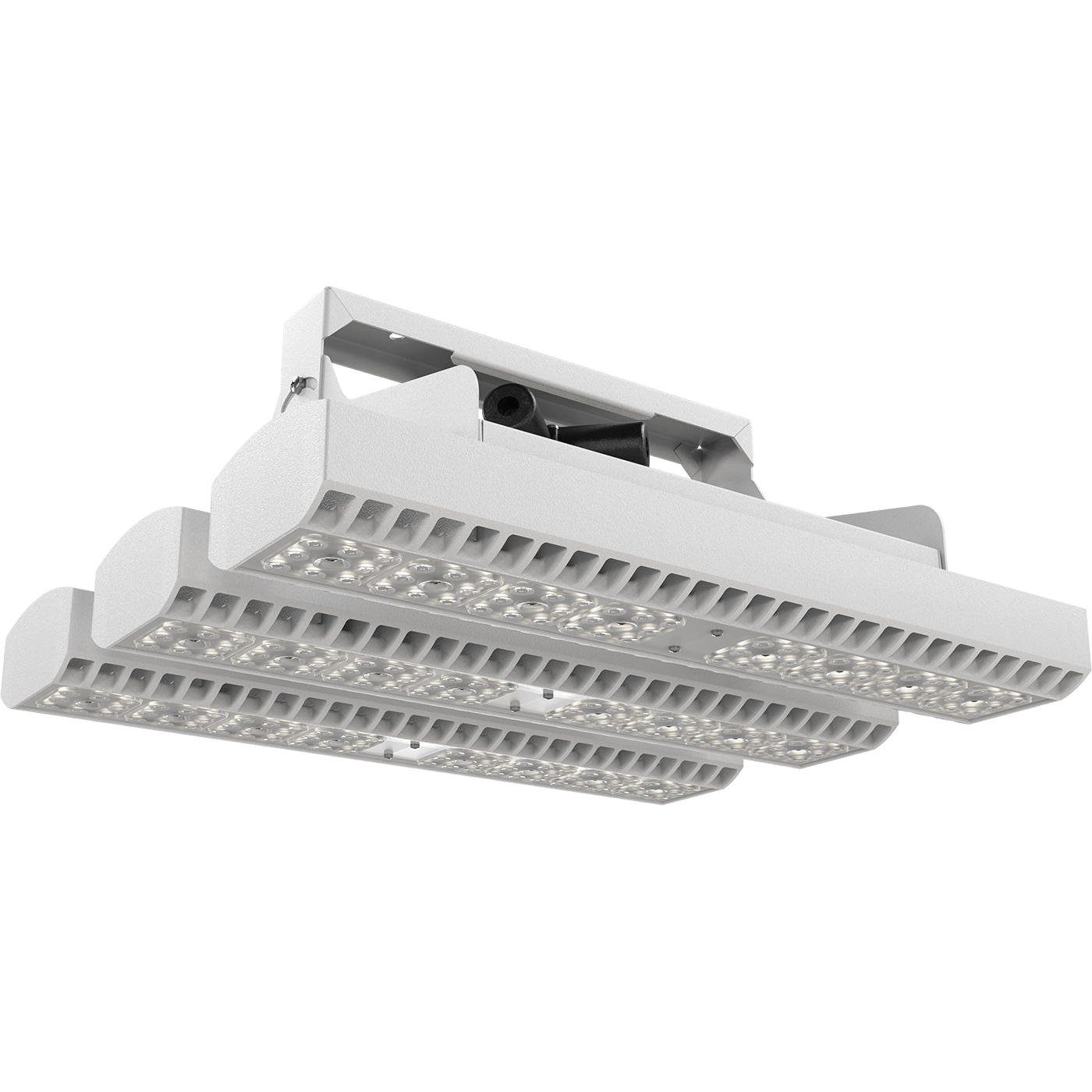

FORWARD 450W D80 850 WH SB

FORWARD 450W D80 850 WH SB
410 Wluminaire power
53000 lmlight flow
129 lm/Wenergy efficiency
code1864002380
beam angleD80
color temperature5000
weight9.7 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
129 lm/W
color rendition index (CRI)
>80
light flow
53000 lm
flickering factor
<1%
beam angle
D80
color temperature
5000
light source type
LED
emission color
Белый
illuminating
energy efficiency
129 lm/W
color rendition index (CRI)
>80
light flow
53000 lm
flickering factor
<1%
beam angle
D80
color temperature
5000
light source type
LED
emission color
Белый
electrical
luminaire power
410 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,97
constructional
climatic performance
УХЛ1*
width, mm
389 mm
height, mm
222 mm
installation length, mm
180 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length, mm
463 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
9.7 kg
common
code
1864002380
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life, hour
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files

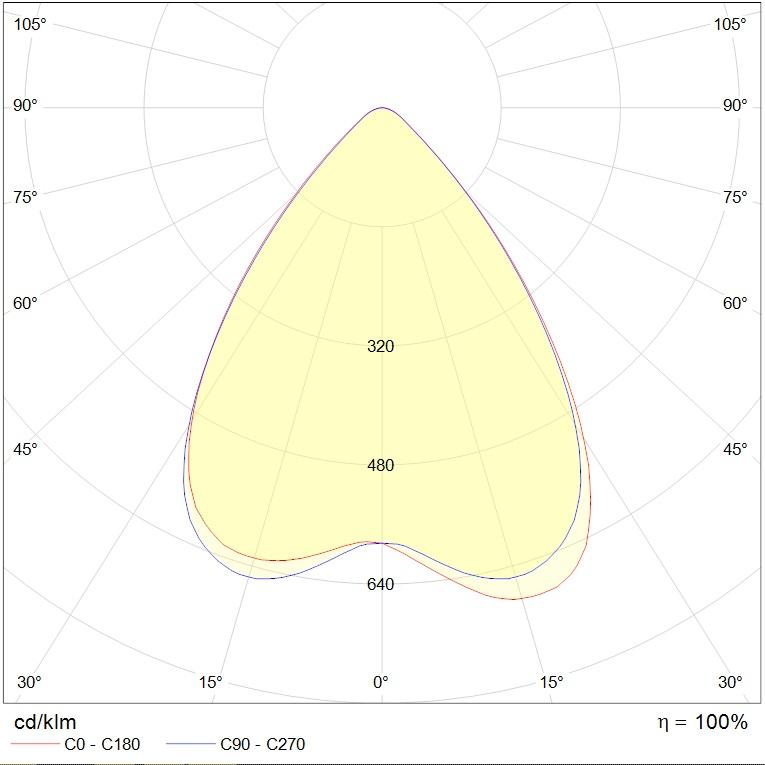

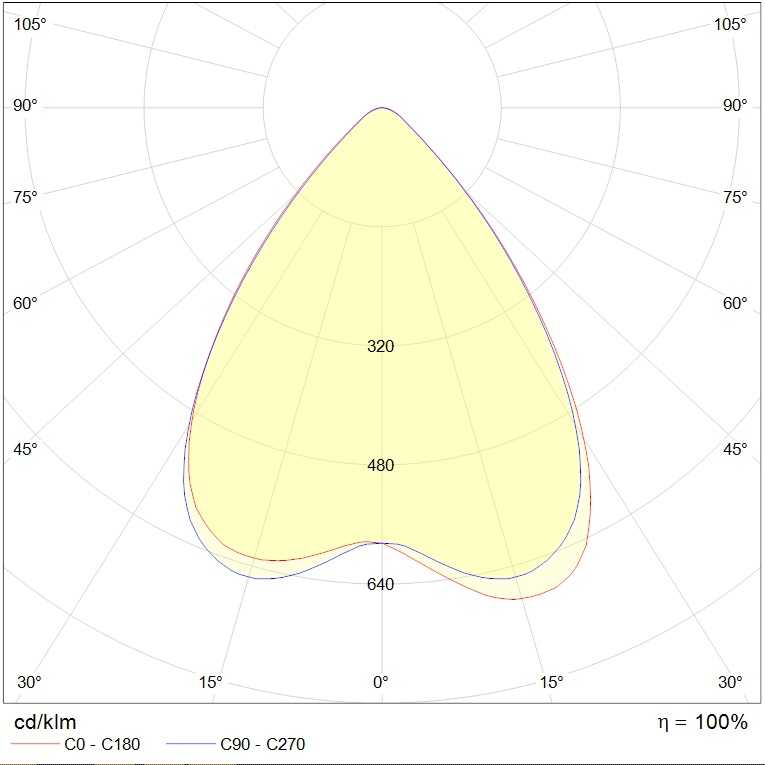

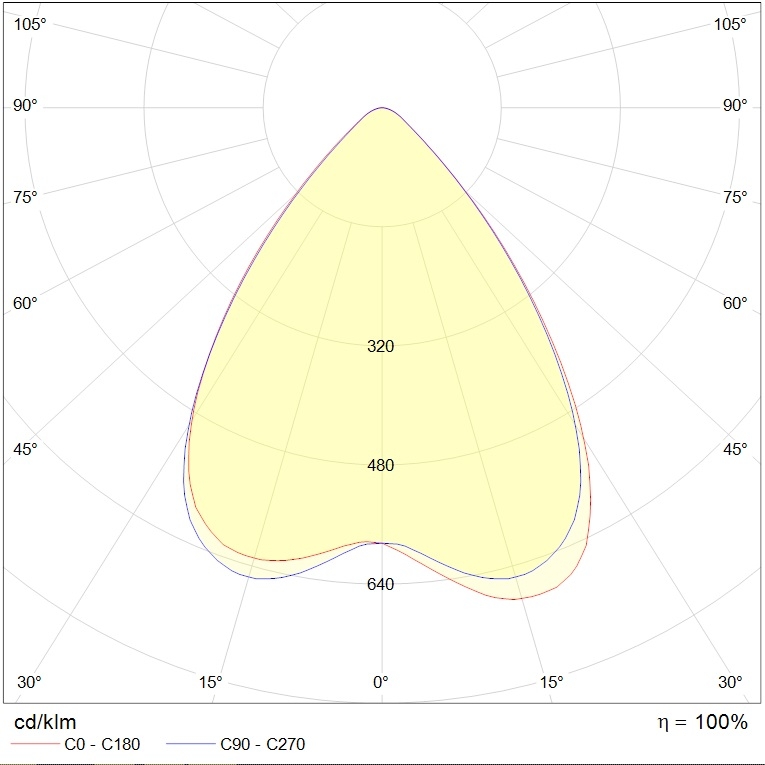

photometric files
ies107.1 kB
jpg80.6 kB
ldt65.6 kB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
photometric files
ies107.1 kB
jpg80.6 kB
ldt65.6 kB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
