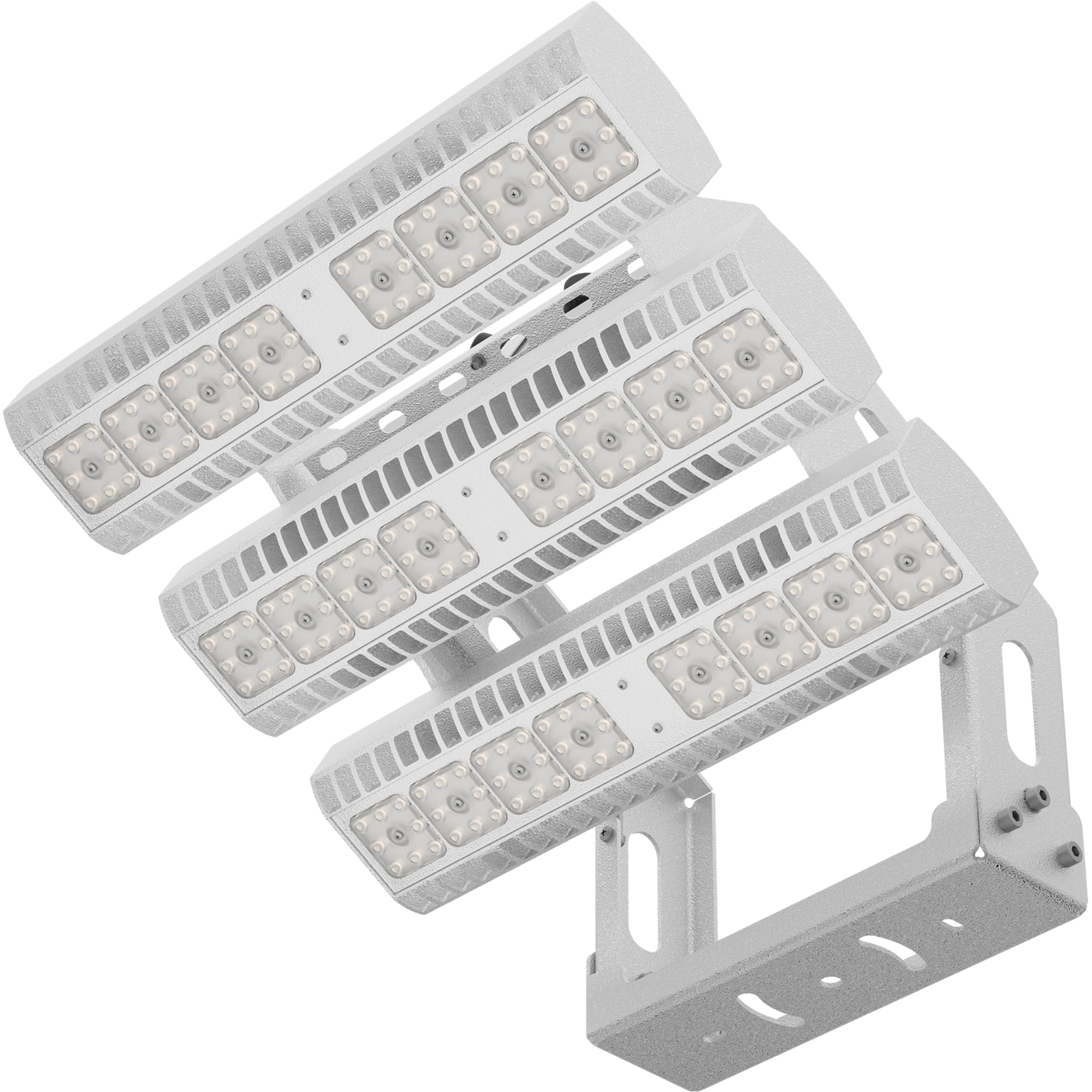

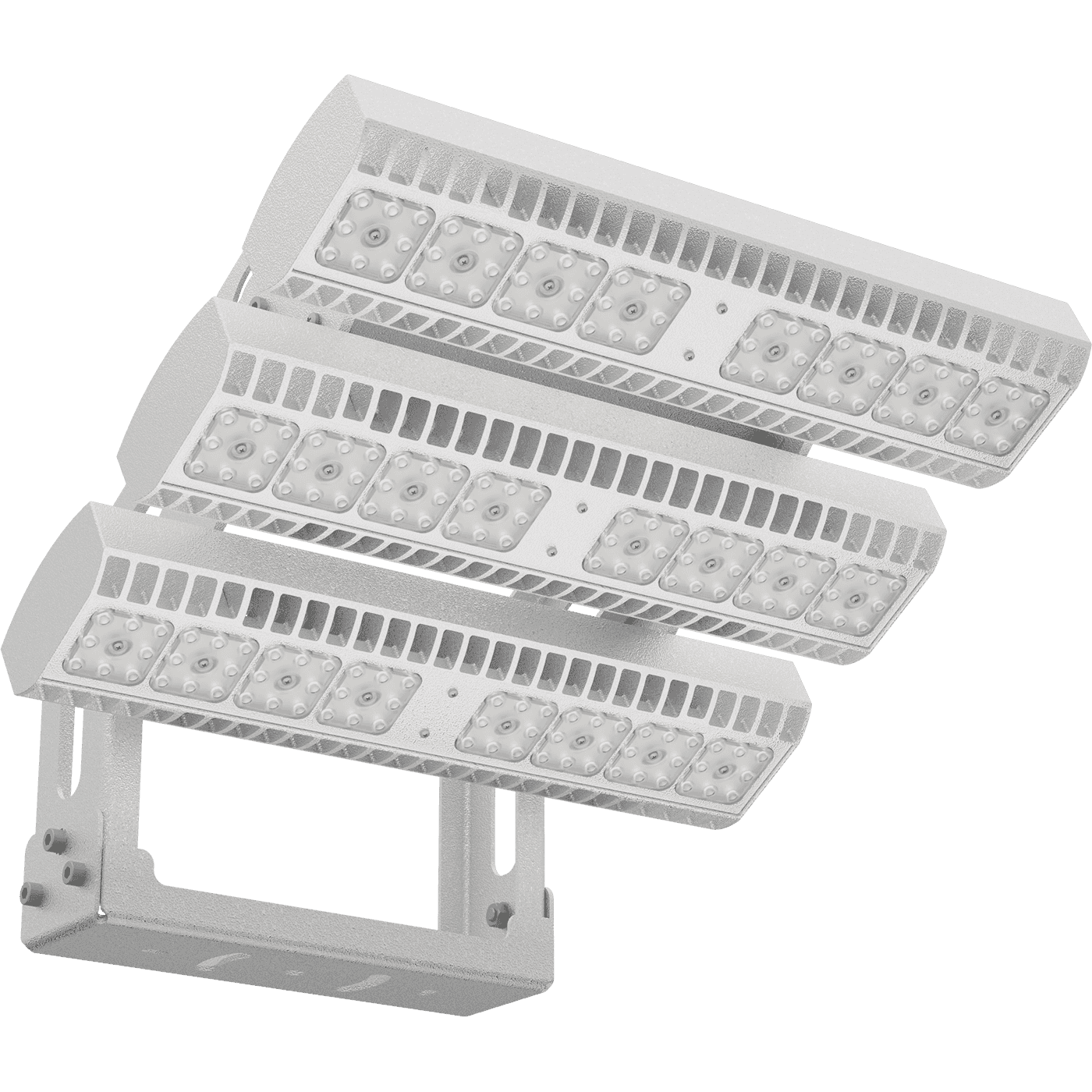

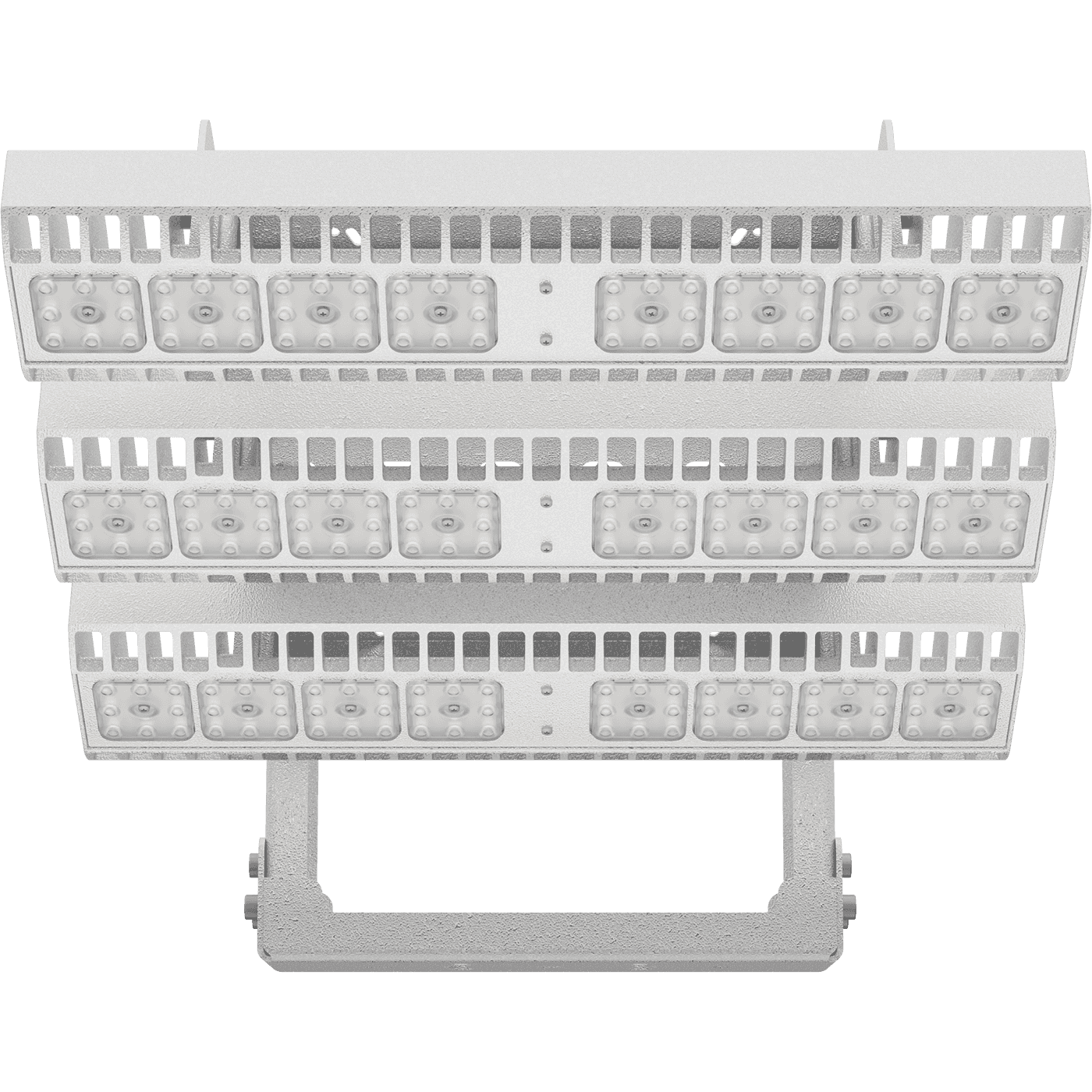

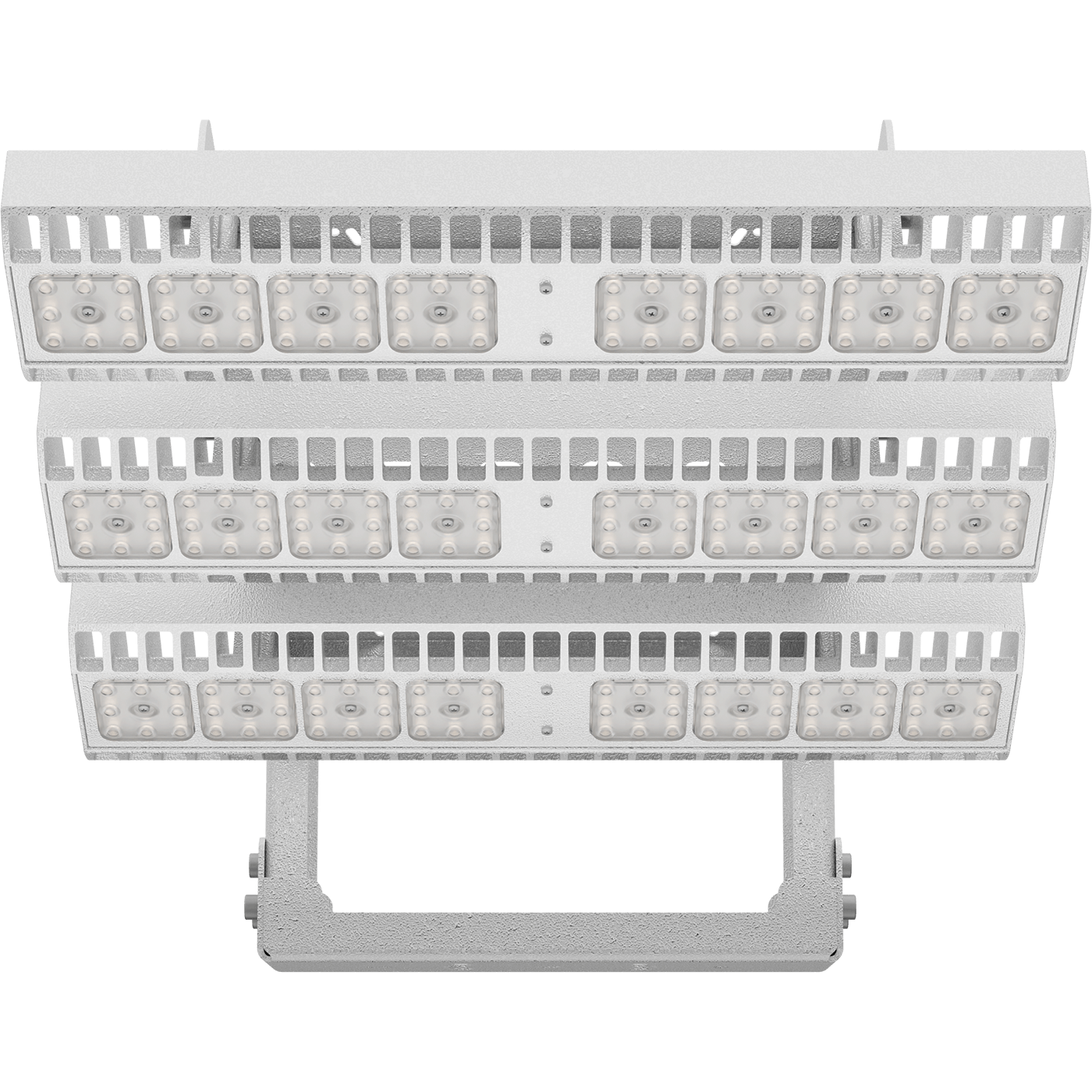

FORWARD 450W D80 840 WH FB
FORWARD 450W D80 840 WH FB
410 Wluminaire power
53000 lmlight flow
129 lm/Wenergy efficiency
code1864002370
beam angleD80
color temperature4000
weight12.5 kg
options
свернуть все
constructionalelectricalcommonilluminating
ingress protection (IP)
IP66housing color
Белыйlength, mm
463 mmwidth, mm
480 mmheight, mm
350 mmweight
12.5 kgclimatic performance
УХЛ1*maximum cross-section of the connected cable, sq. mm
2.5material
Алюминийshock resistance (IK)
IK07/2 Джinstallation length, mm
180 mmlamp socket
LEDnumber of lamps
1ballast
Драйверconstructional
ingress protection (IP)
IP66
housing color
Белый

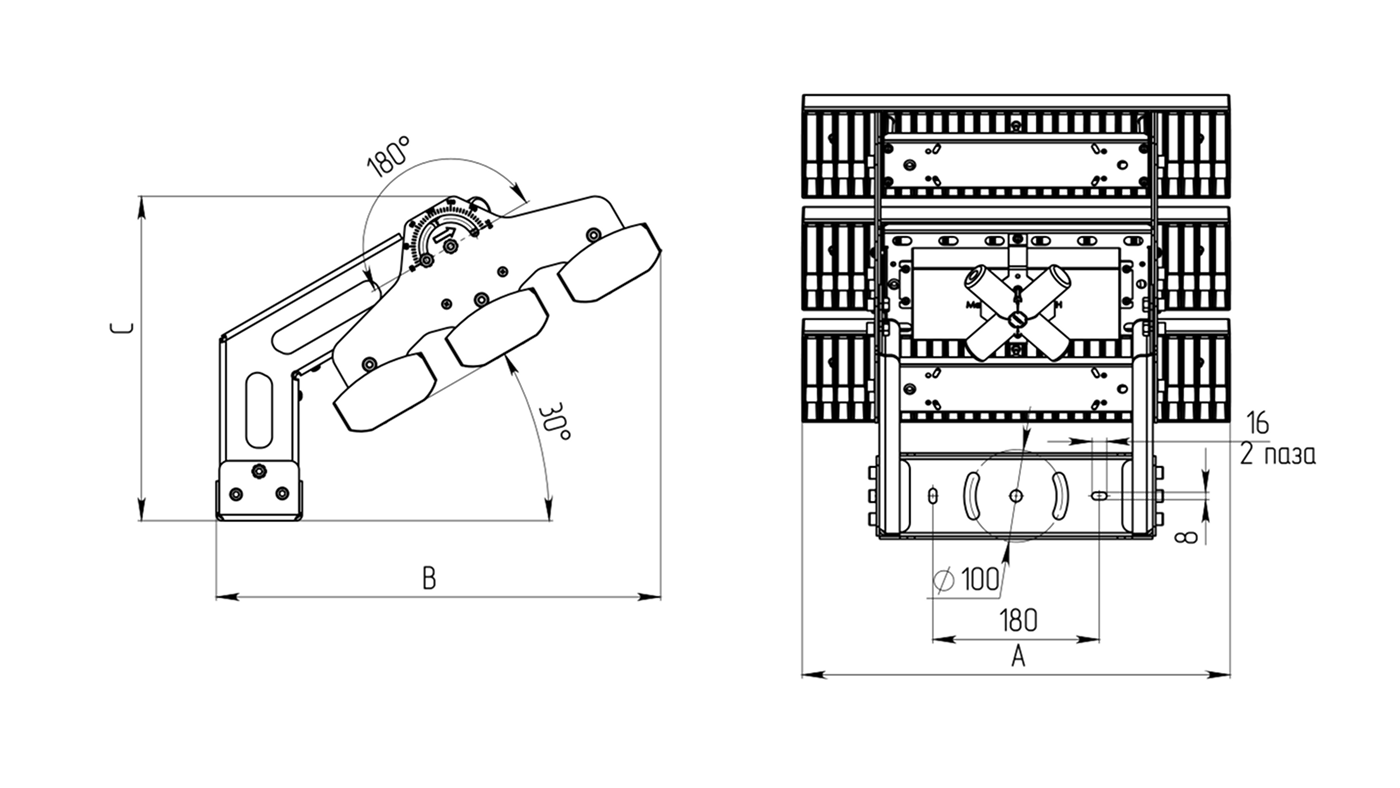

length, mm
463 mm
width, mm
480 mm
height, mm
350 mm
weight
12.5 kg
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
material
Алюминий
shock resistance (IK)
IK07/2 Дж
installation length, mm
180 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
electrical
electric shock protection
I
luminaire power
410 W
power factor
> 0,97
supply voltage
230 V
common
code
1864002370
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>80
light flow
53000 lm
energy efficiency
129 lm/W
flickering factor
<1%
beam angle
D80
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
photometric files
сертификаты

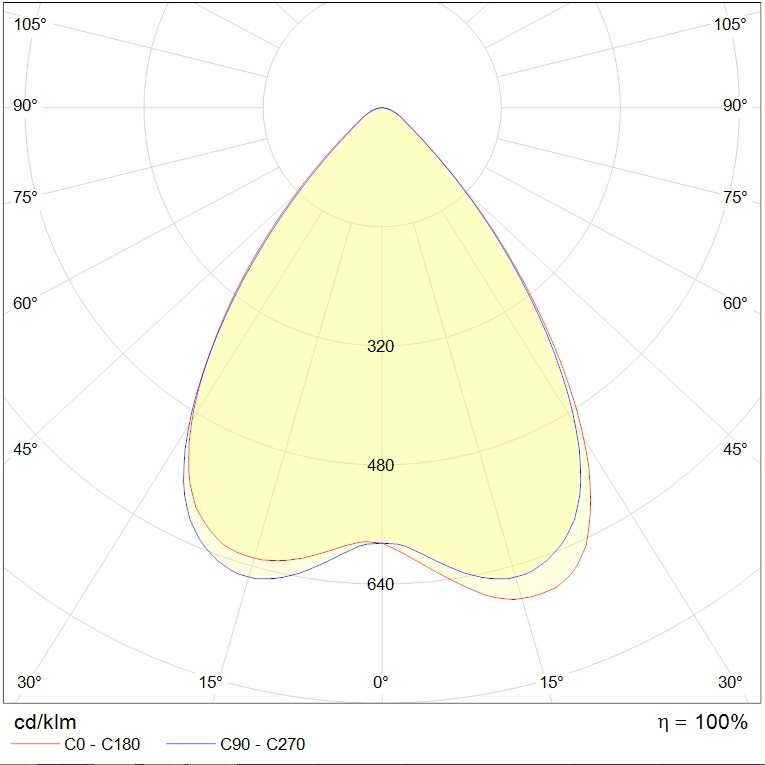

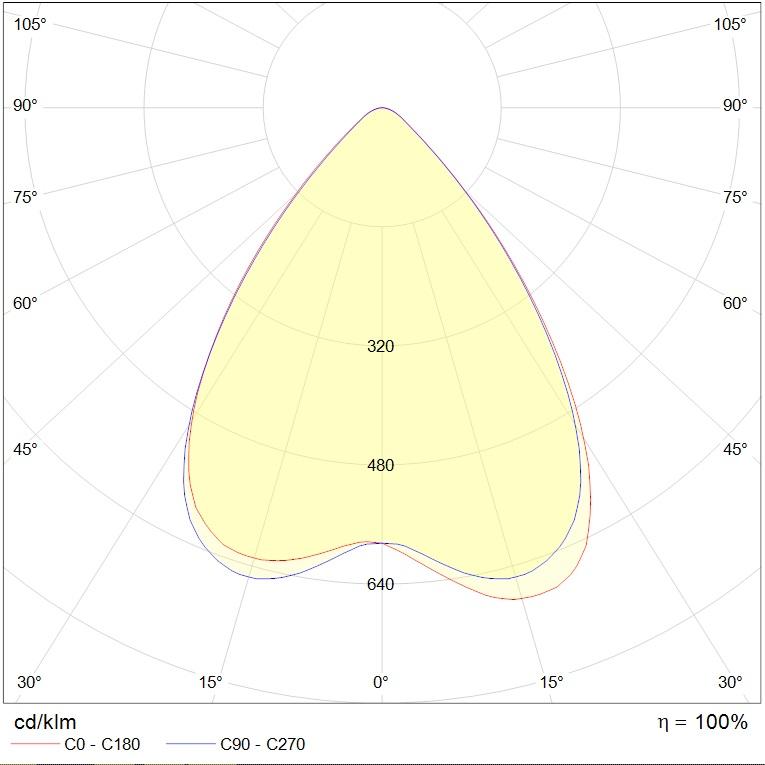

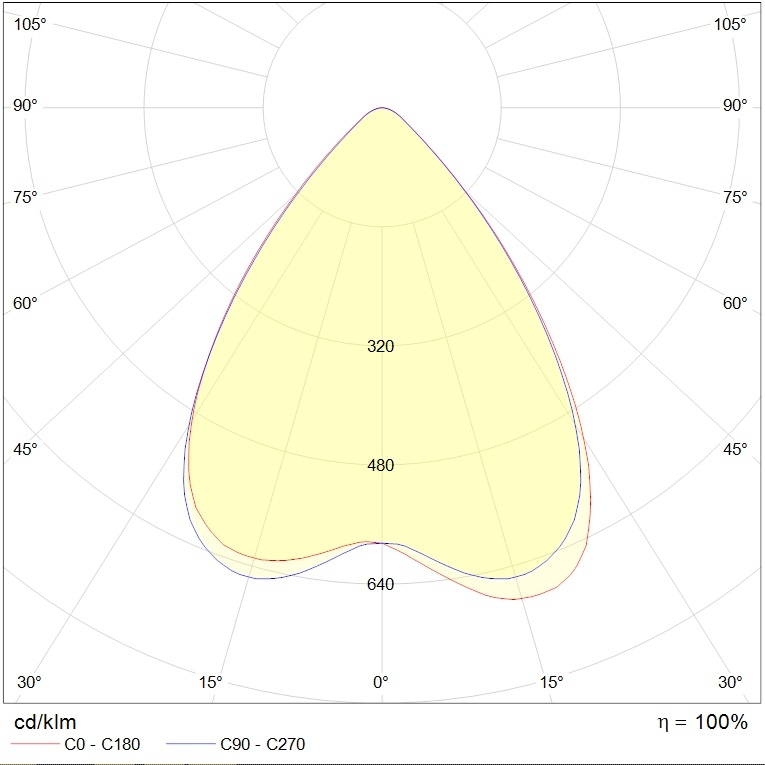

photometric files
ies107 kB
jpg80.6 kB
ldt65.6 kB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
