FORWARD 450W D60 957 WH SB
FORWARD 450W D60 957 WH SB
400 Wluminaire power
49000 lmlight flow
123 lm/Wenergy efficiency
code1864002340
beam angleD60
color temperature5700
weight12 kg
options
свернуть все
constructionalelectricalcommonilluminating
ingress protection (IP)
IP66housing color
Белыйlength, mm
463 mmwidth, mm
389 mmheight, mm
245 mmweight
12 kgclimatic performance
УХЛ1*maximum cross-section of the connected cable, sq. mm
2.5material
Алюминийshock resistance (IK)
IK07/2 Джinstallation length, mm
180 mmlamp socket
LEDnumber of lamps
1ballast
Драйверconstructional
ingress protection (IP)
IP66
housing color
Белый
length, mm
463 mm
width, mm
389 mm
height, mm
245 mm
weight
12 kg
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
material
Алюминий
shock resistance (IK)
IK07/2 Дж
installation length, mm
180 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
electrical
electric shock protection
I
starting current
50 A
starting current pulse time, µs
500 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
400 W
power factor
> 0,97
supply voltage
230 V
common
code
1864002340
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>90
light flow
49000 lm
energy efficiency
123 lm/W
flickering factor
<1%
beam angle
D60
color temperature
5700
light source type
LED
emission color
Белый
model files
model files

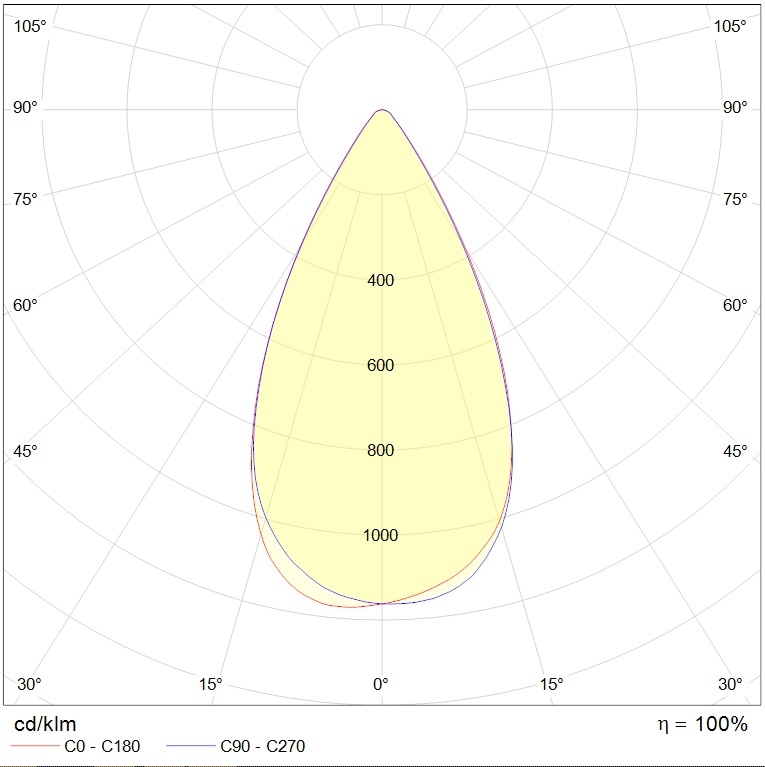

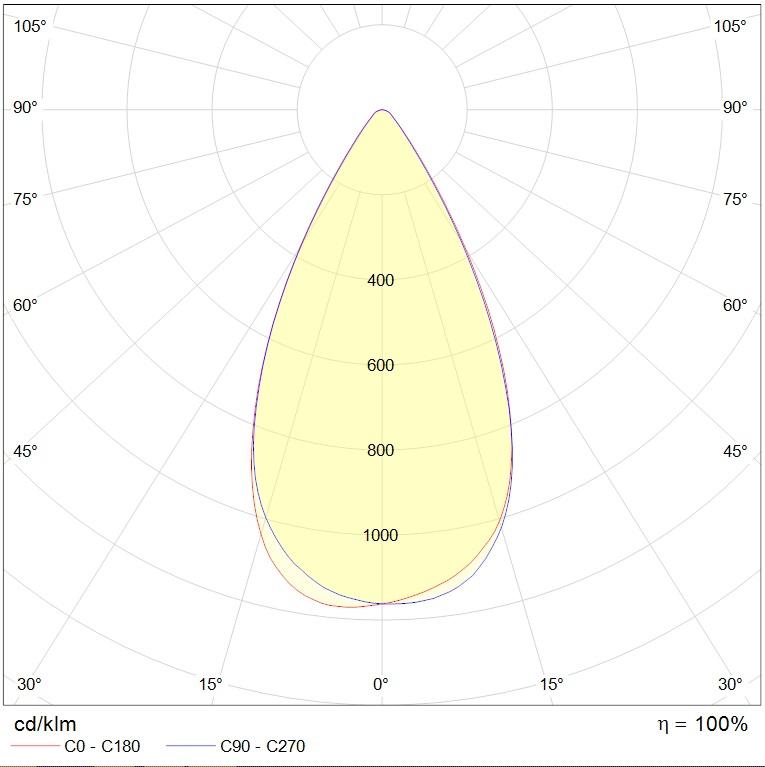

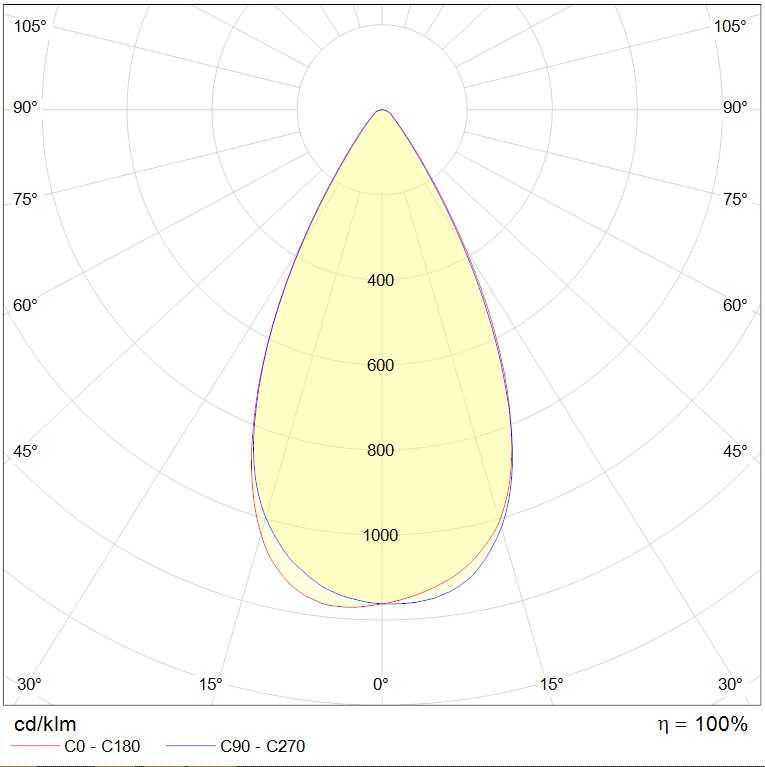

photometric files
documents
сертификаты
photometric files
jpg86.8 kB
ldt168.9 kB
documents
passport7.4 mB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
