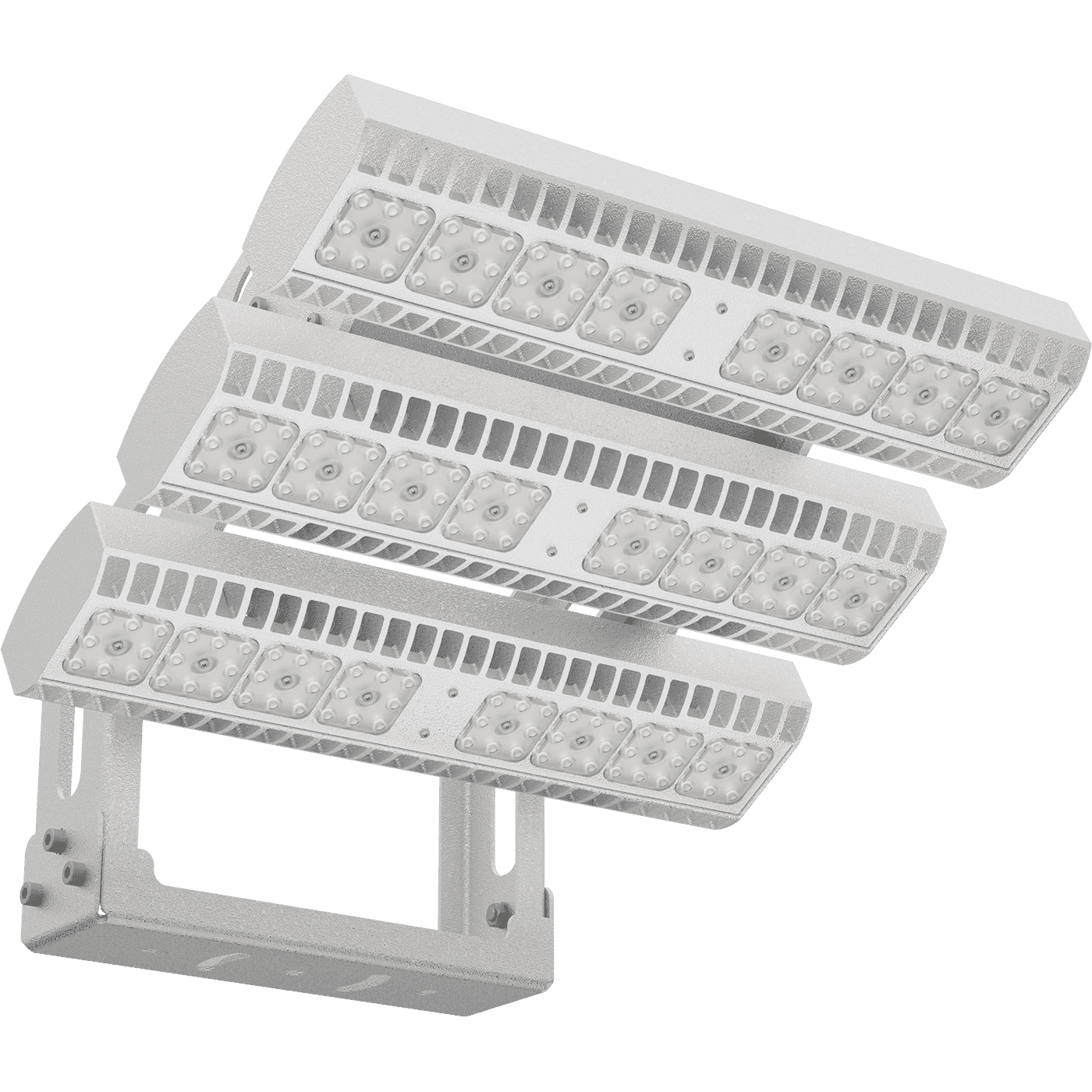

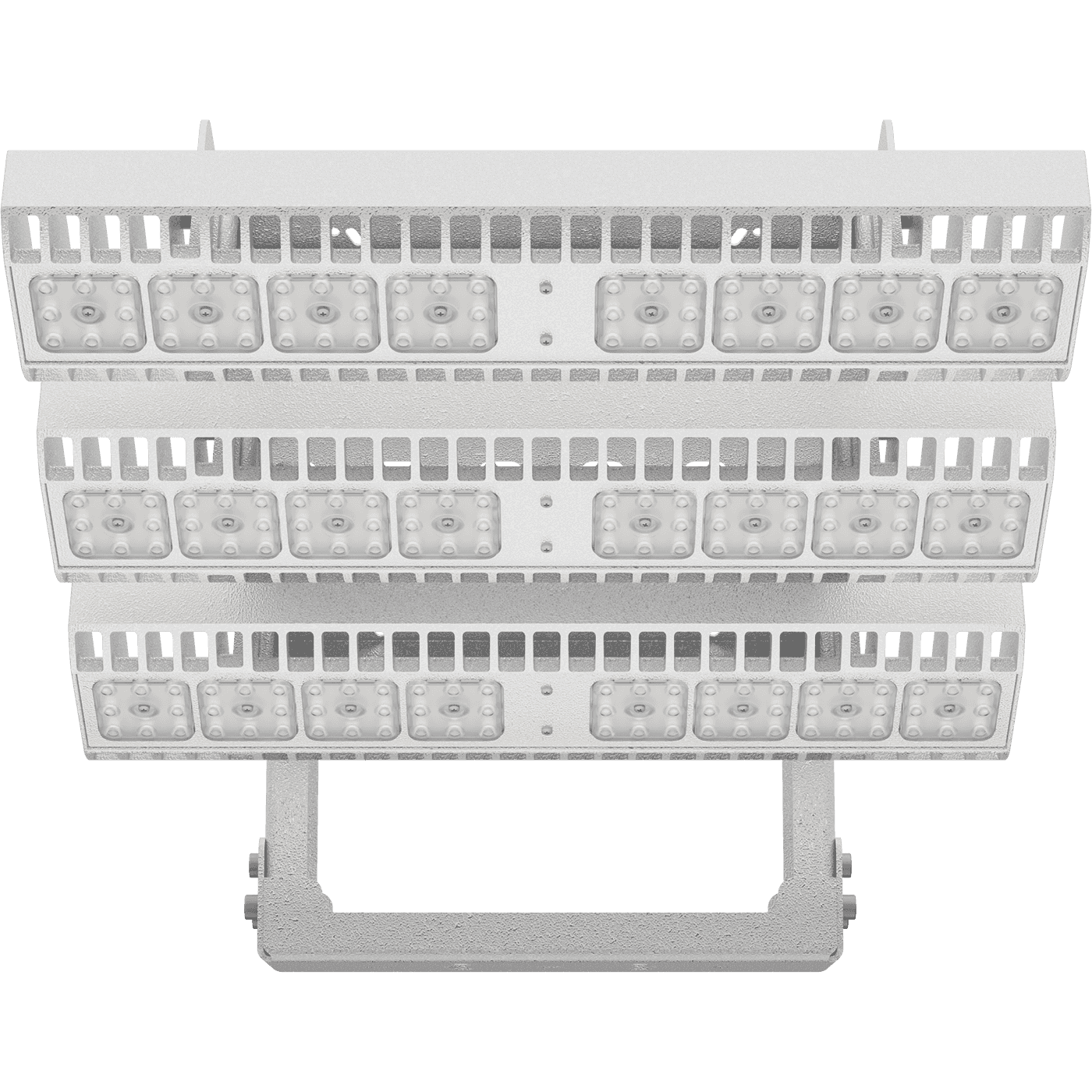

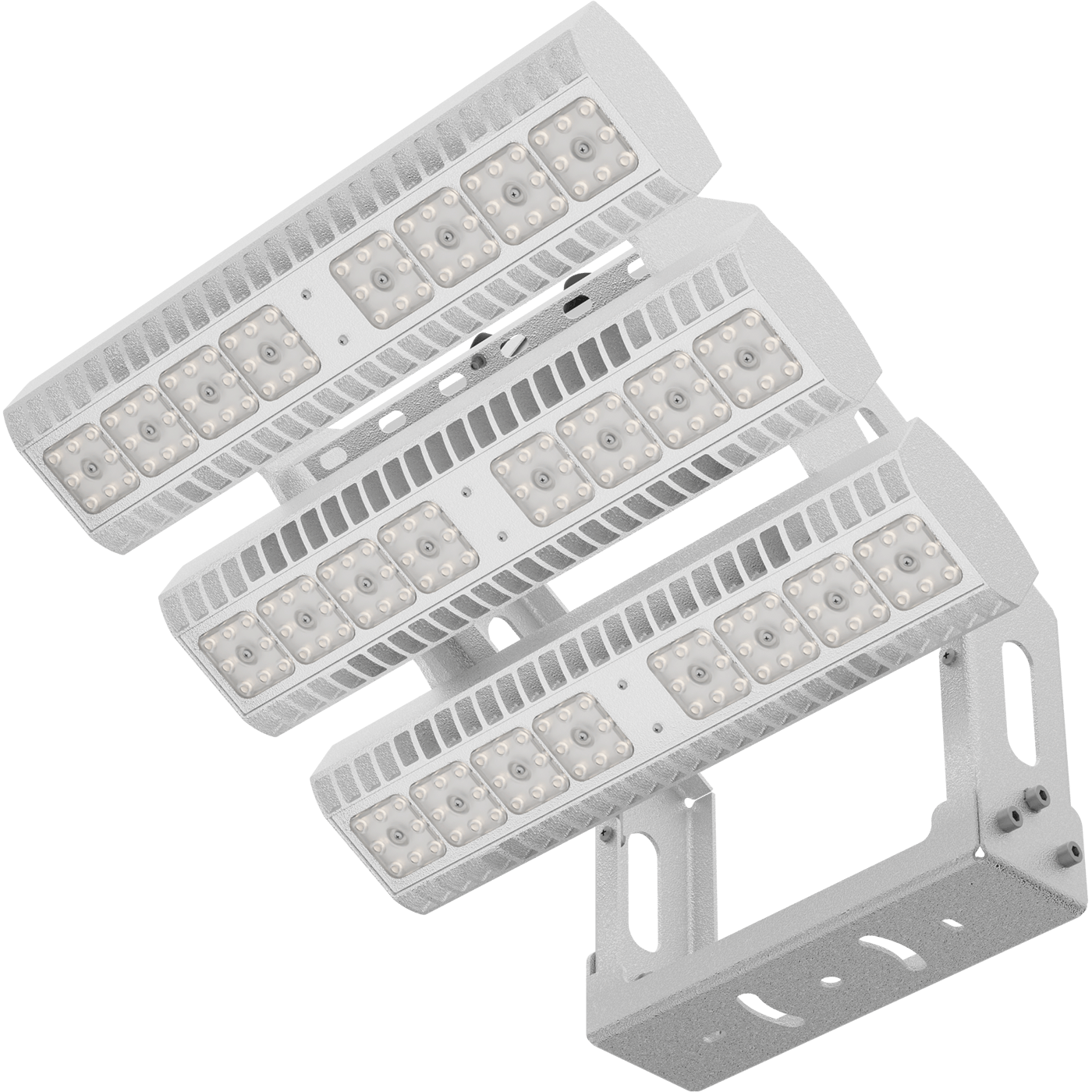

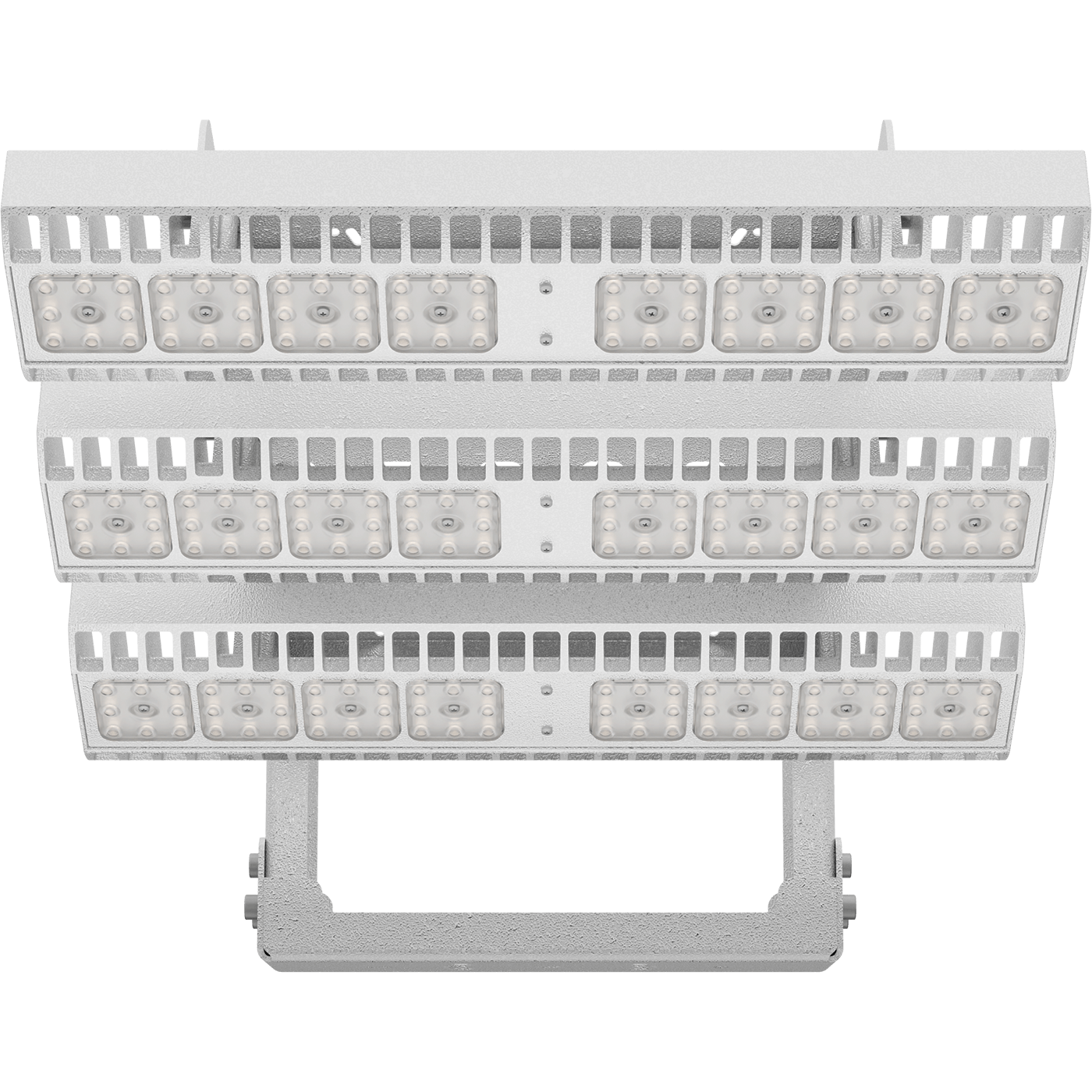

FORWARD 450W D60 957 WH FB
FORWARD 450W D60 957 WH FB
410 Wluminaire power
49000 lmlight flow
120 lm/Wenergy efficiency
code1864002350
beam angleD60
color temperature5700
weight12 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
65 Astarting current pulse time, µs
1200 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-305 Vsupply voltage, direct current
180-300 Vluminaire power
410 Welectric shock protection
Ipower factor
> 0,97supply voltage
230 Velectrical
starting current
65 A
starting current pulse time, µs
1200 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-305 V
supply voltage, direct current
180-300 V
luminaire power
410 W
electric shock protection
I
power factor
> 0,97
supply voltage
230 V
constructional
ingress protection (IP)
IP66
material
Алюминий
weight
12 kg
length, mm
463 mm
width, mm
389 mm
height, mm
245 mm
housing color
Белый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK07/2 Дж
installation length, mm
180 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1864002350
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
120 lm/W
color rendition index (CRI)
>90
light flow
49000 lm
flickering factor
<1%
beam angle
D60
color temperature
5700
light source type
LED
emission color
Белый
model files
model files

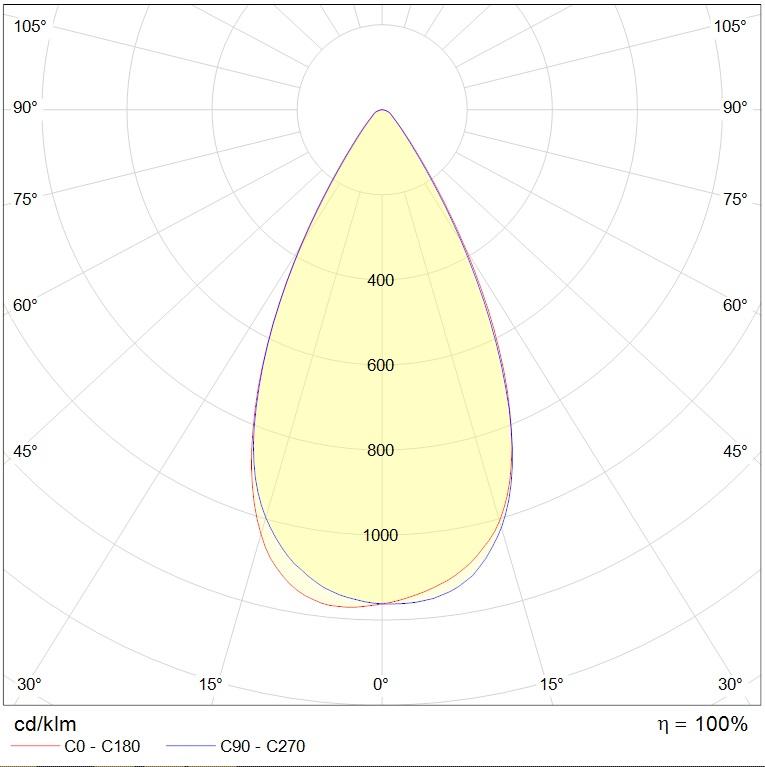

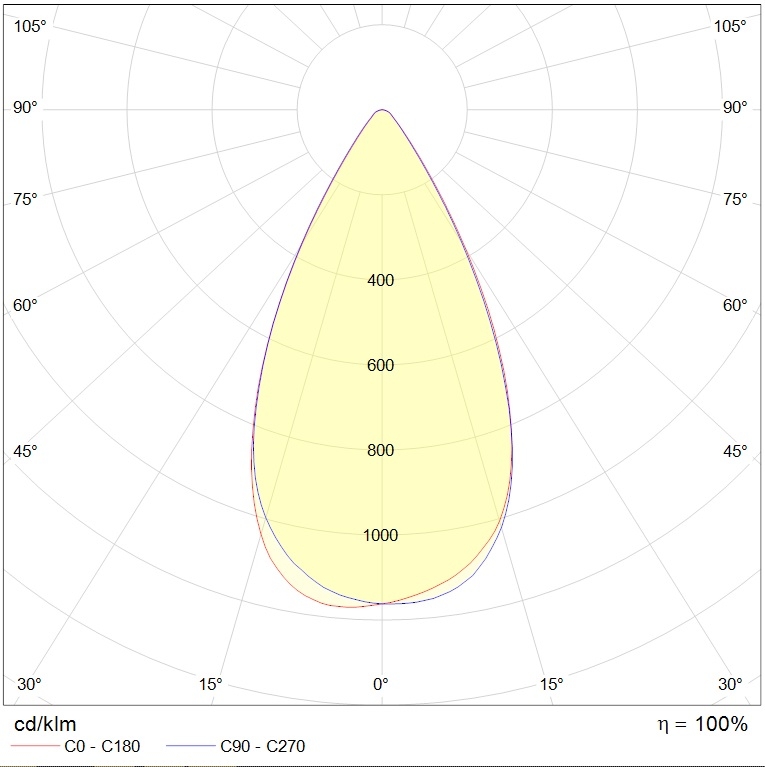

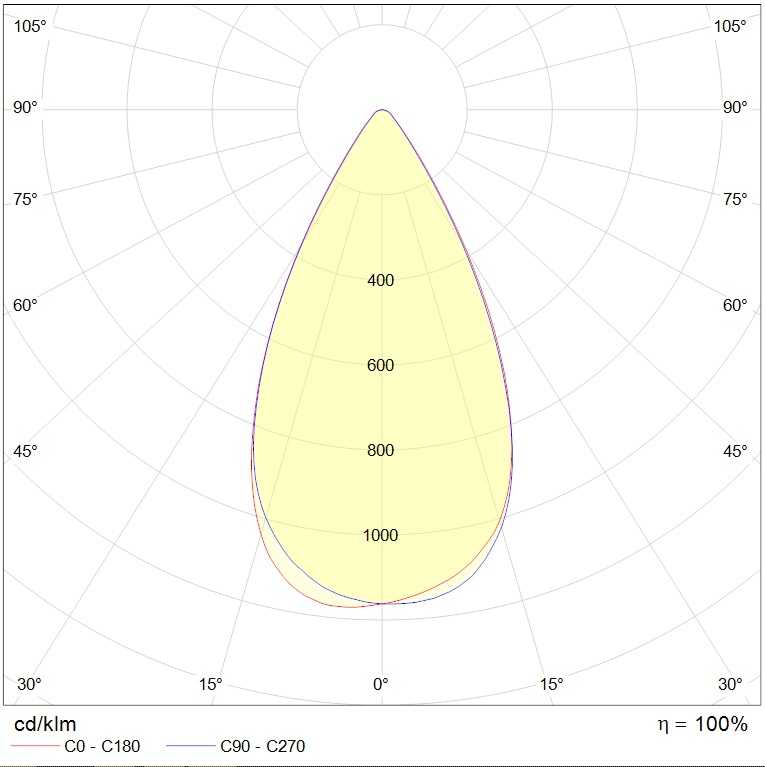

photometric files
documents
сертификаты
photometric files
jpg86.8 kB
ldt168.9 kB
documents
passport7.4 mB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
