FORWARD 450W D130 850 WH SB
FORWARD 450W D130 850 WH SB
410 Wluminaire power
53000 lmlight flow
129 lm/Wenergy efficiency
code1864003080
beam angleD130
color temperature5000
weight9.7 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
65 Astarting current pulse time, µs
1200 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-305 Vsupply voltage, direct current
180-300 Vluminaire power
410 Welectric shock protection
Ipower factor
> 0,97supply voltage
230 Velectrical
starting current
65 A
starting current pulse time, µs
1200 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-305 V
supply voltage, direct current
180-300 V
luminaire power
410 W
electric shock protection
I
power factor
> 0,97
supply voltage
230 V
constructional
ingress protection (IP)
IP66
material
Алюминий
weight
9.7 kg
length, mm
463 mm
width, mm
389 mm
height, mm
222 mm
housing color
Белый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK07/2 Дж
installation length, mm
180 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1864003080
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +45 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
129 lm/W
color rendition index (CRI)
>80
light flow
53000 lm
flickering factor
<1%
beam angle
D130
color temperature
5000
light source type
LED
emission color
Белый
model files
model files

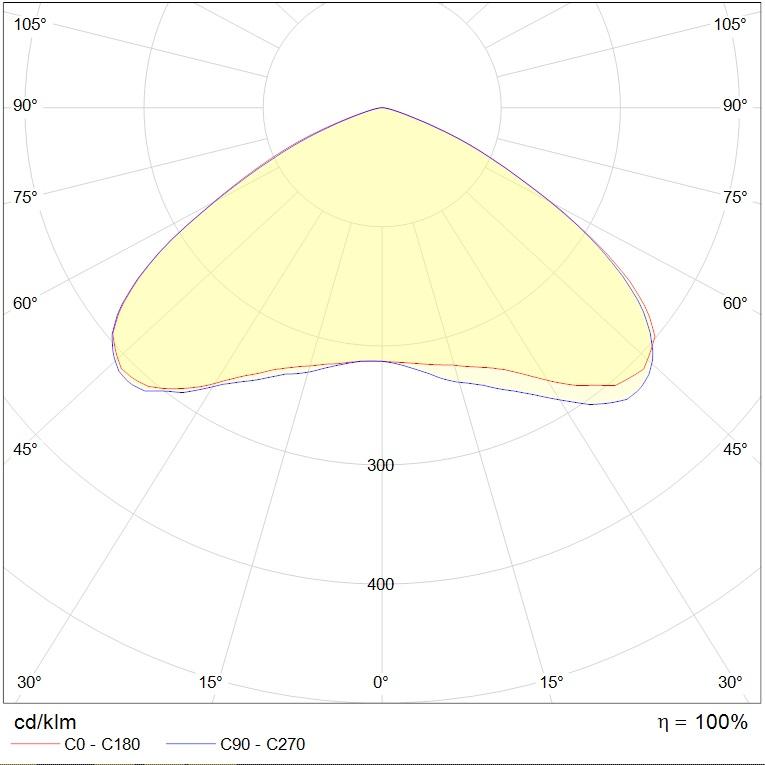

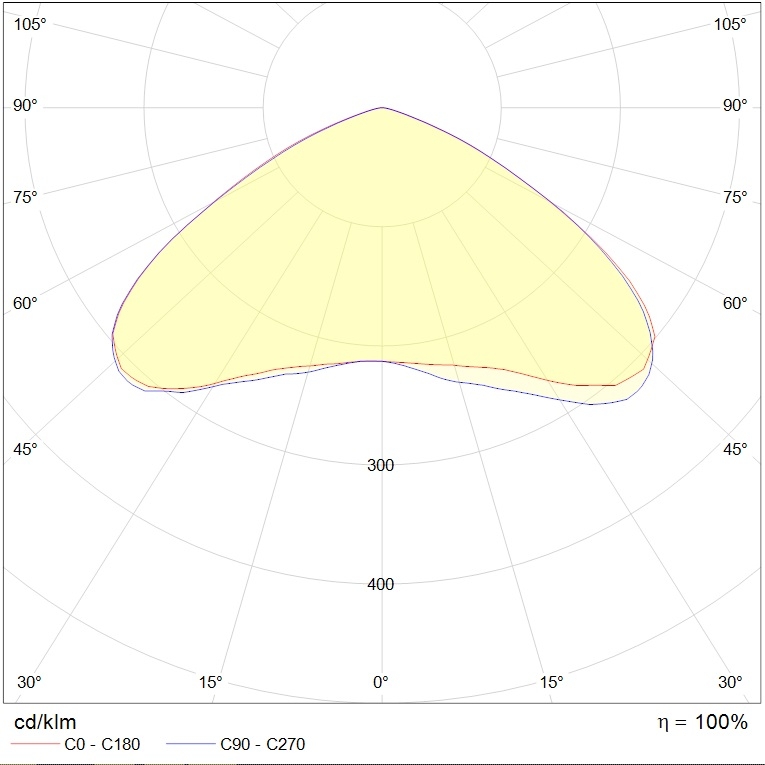

photometric files
documents
сертификаты
photometric files
ies107.1 kB
jpg77.9 kB
ldt65.5 kB
documents
passport7.4 mB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
