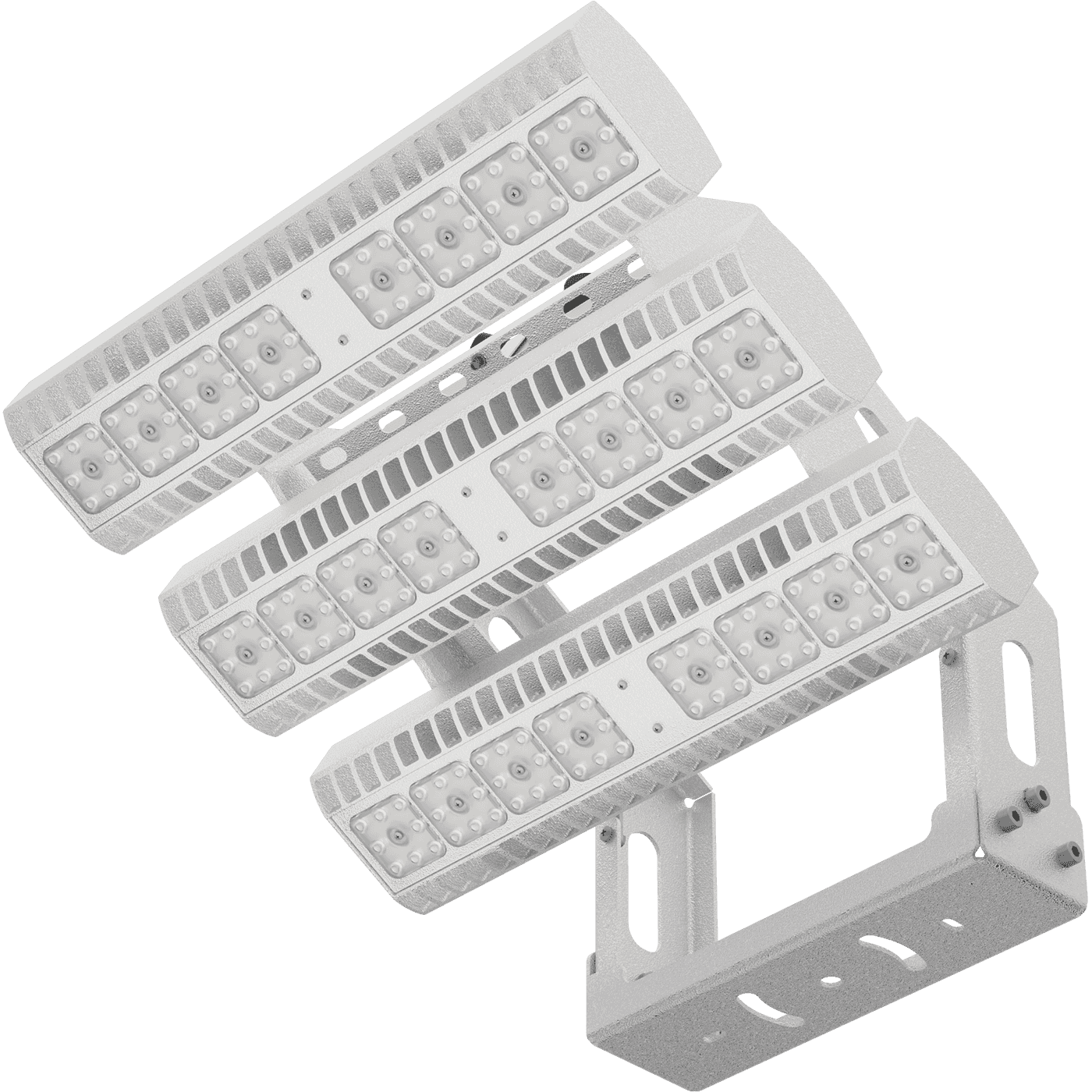

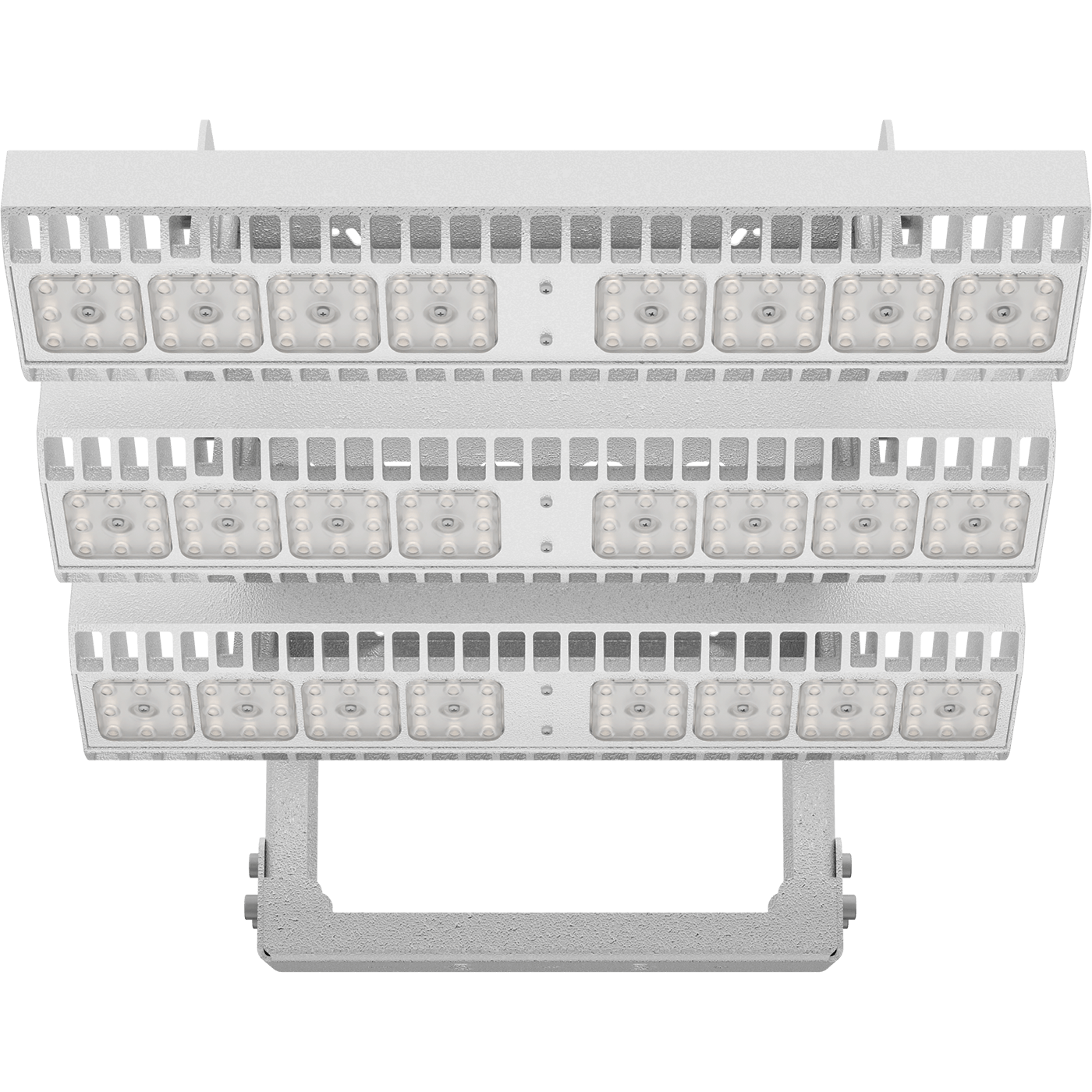

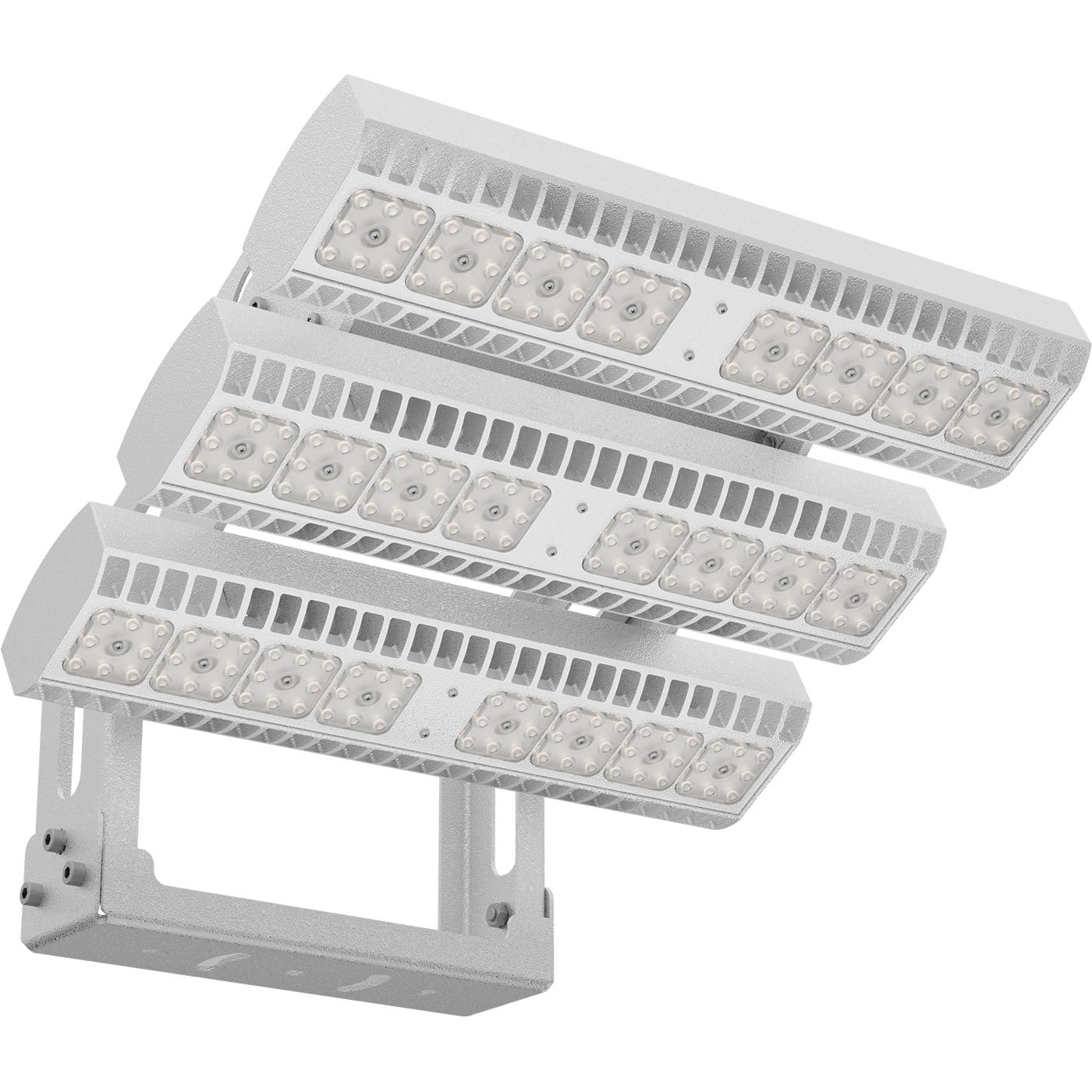

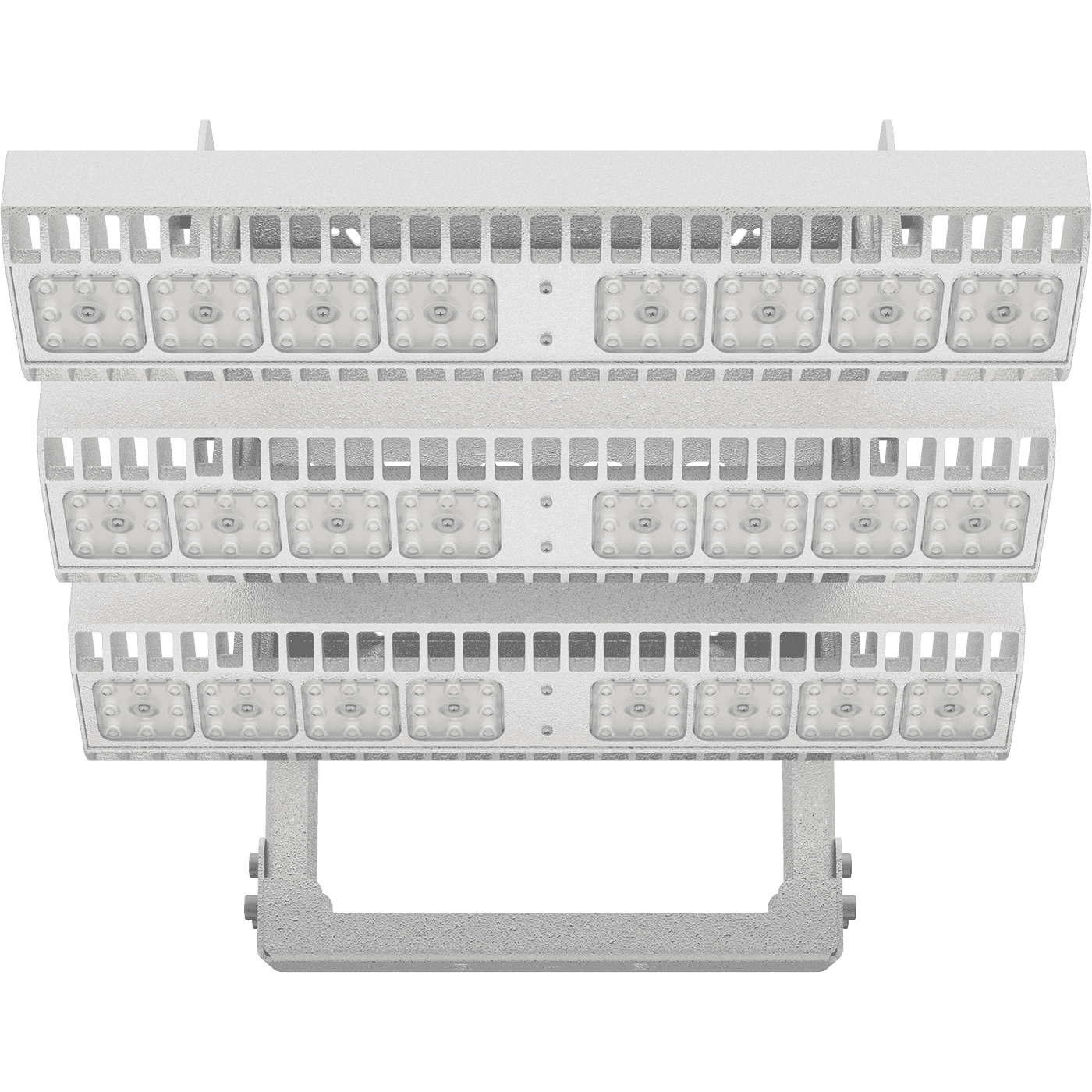

FORWARD 450W D130 840 WH FB

FORWARD 450W D130 840 WH FB
410 Wluminaire power
53000 lmlight flow
129 lm/Wenergy efficiency
code1864003090
beam angleD130
color temperature4000 K
weight12.5 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
129 lm/W
color rendition index (CRI)
>80
light flow
53000 lm
flickering factor
<1%
beam angle
D130
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
129 lm/W
color rendition index (CRI)
>80
light flow
53000 lm
flickering factor
<1%
beam angle
D130
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
410 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
power factor
> 0,97
constructional
climatic performance
УХЛ1*
width
480 mm
height
350 mm
installation length
180 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
463 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
12.5 kg
common
code
1864003090
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files

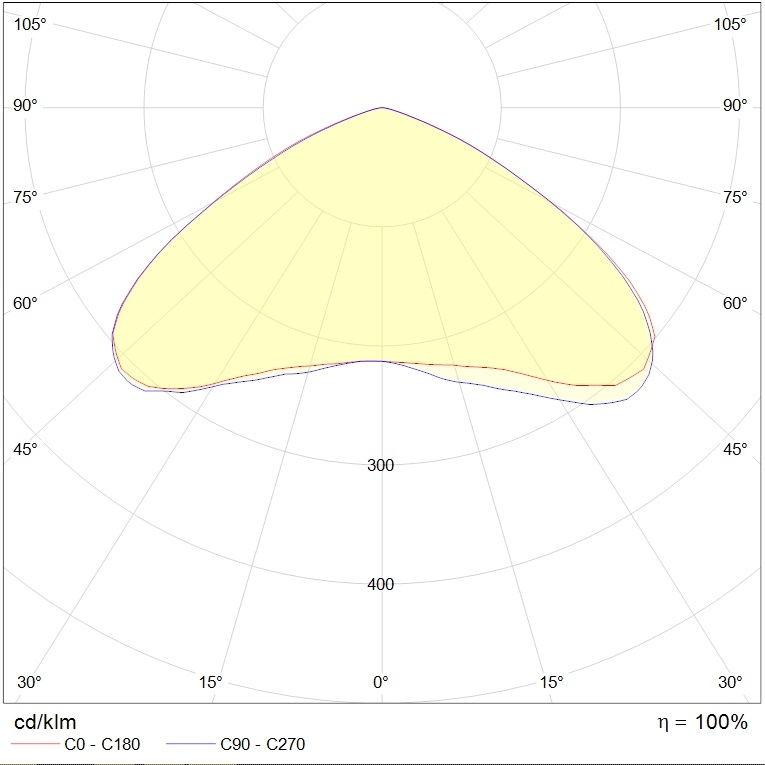

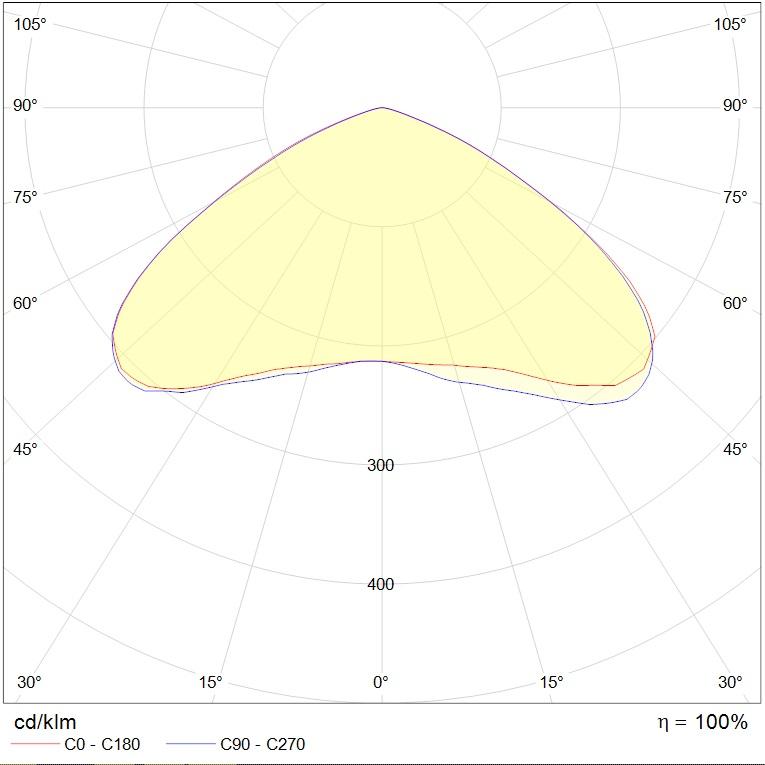

photometric files
