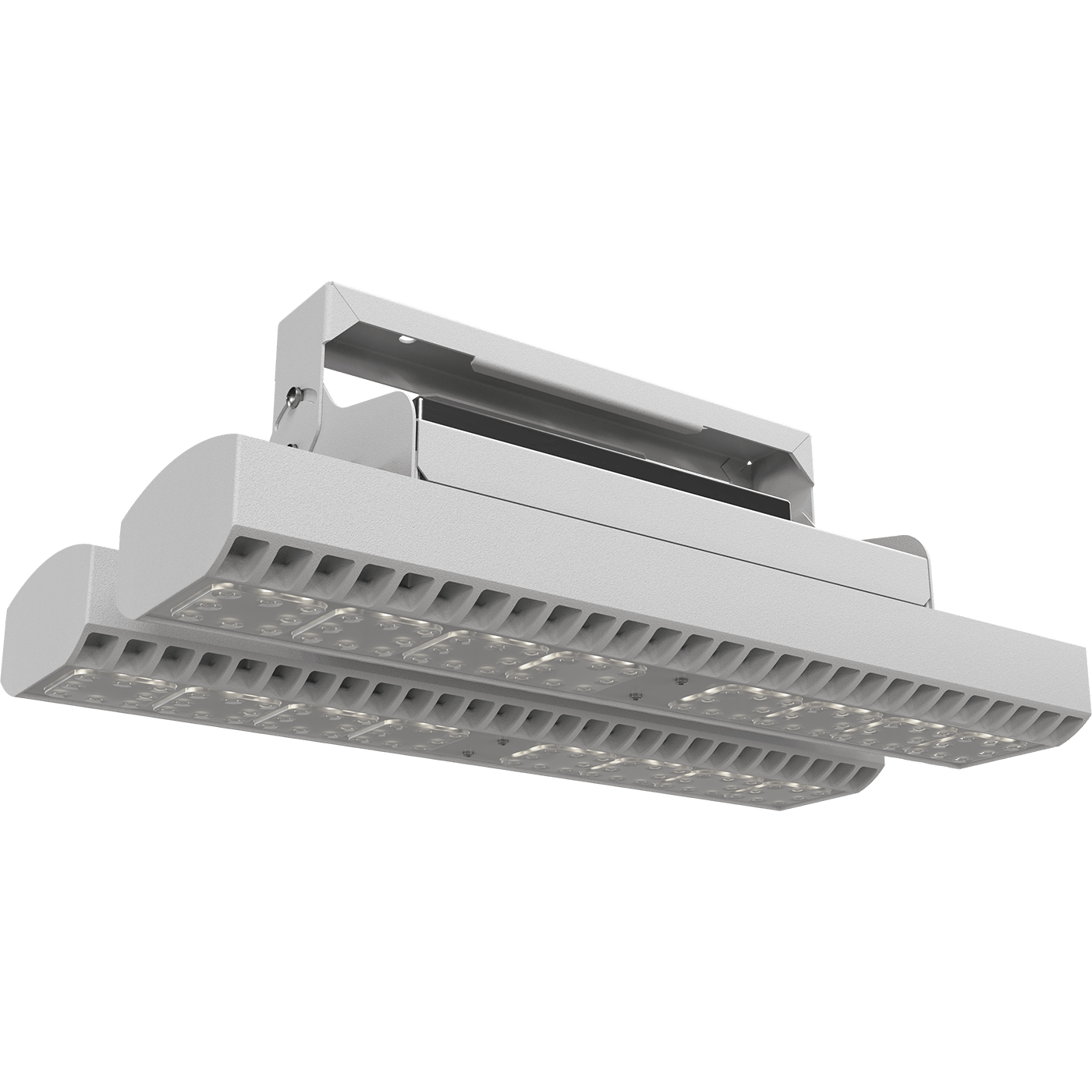

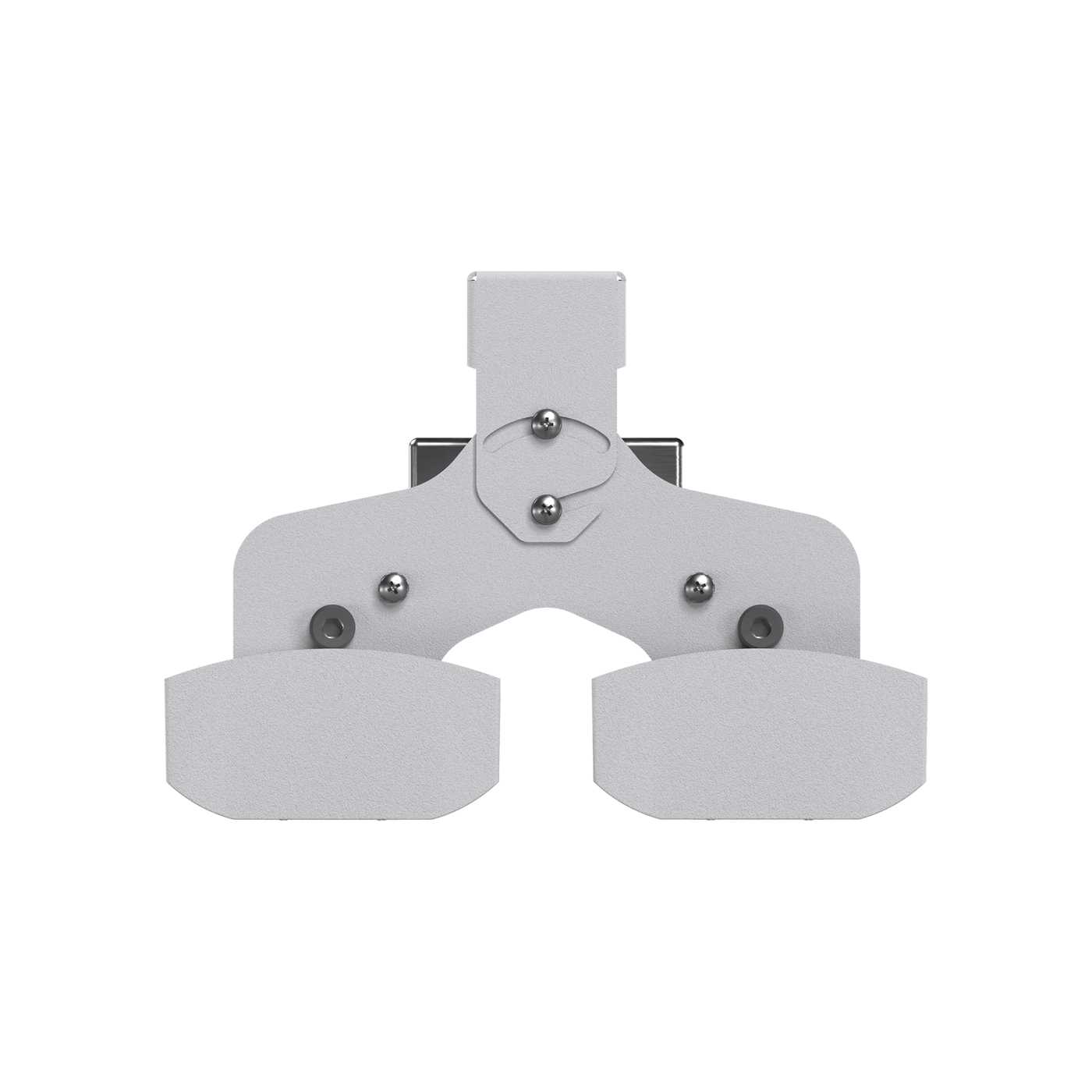

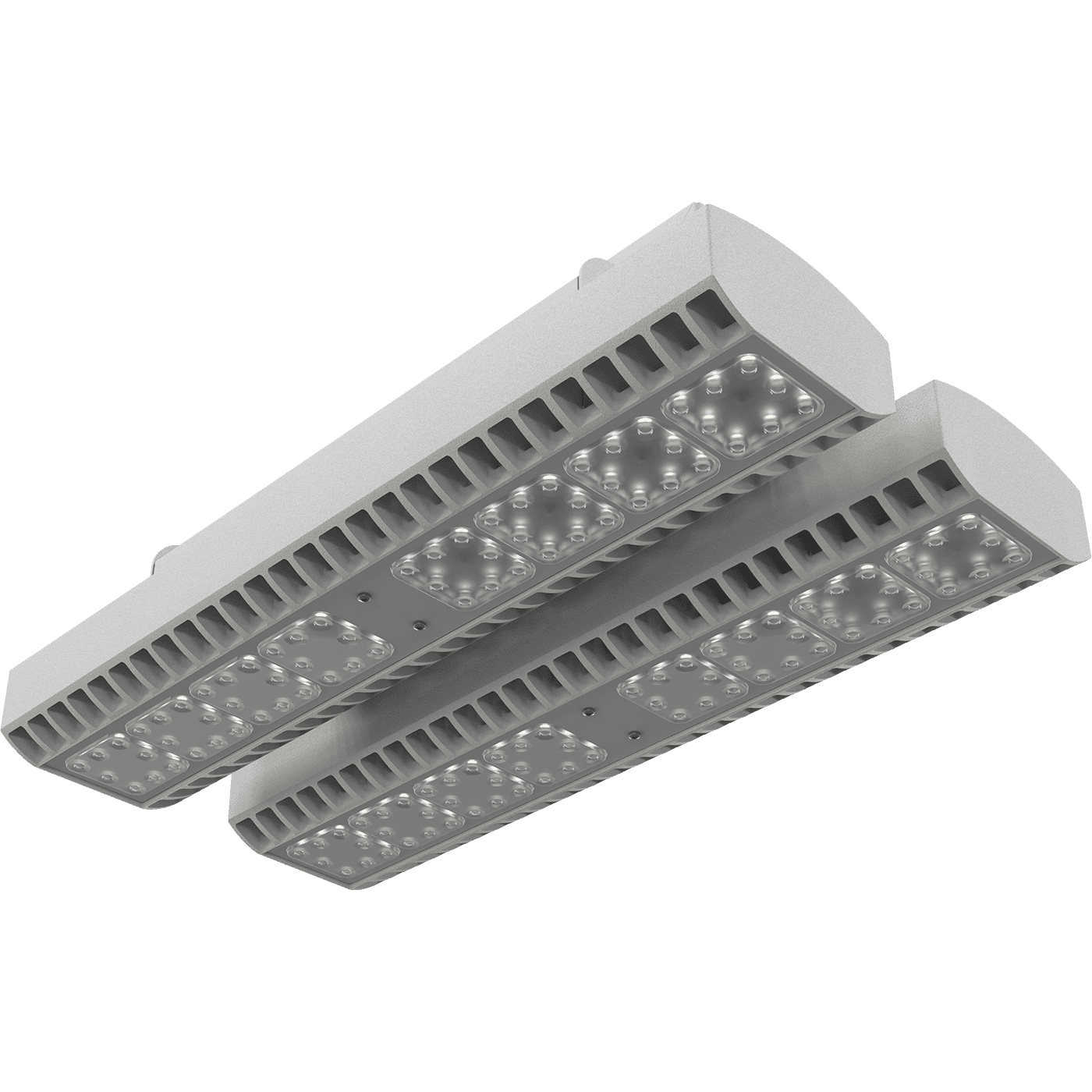

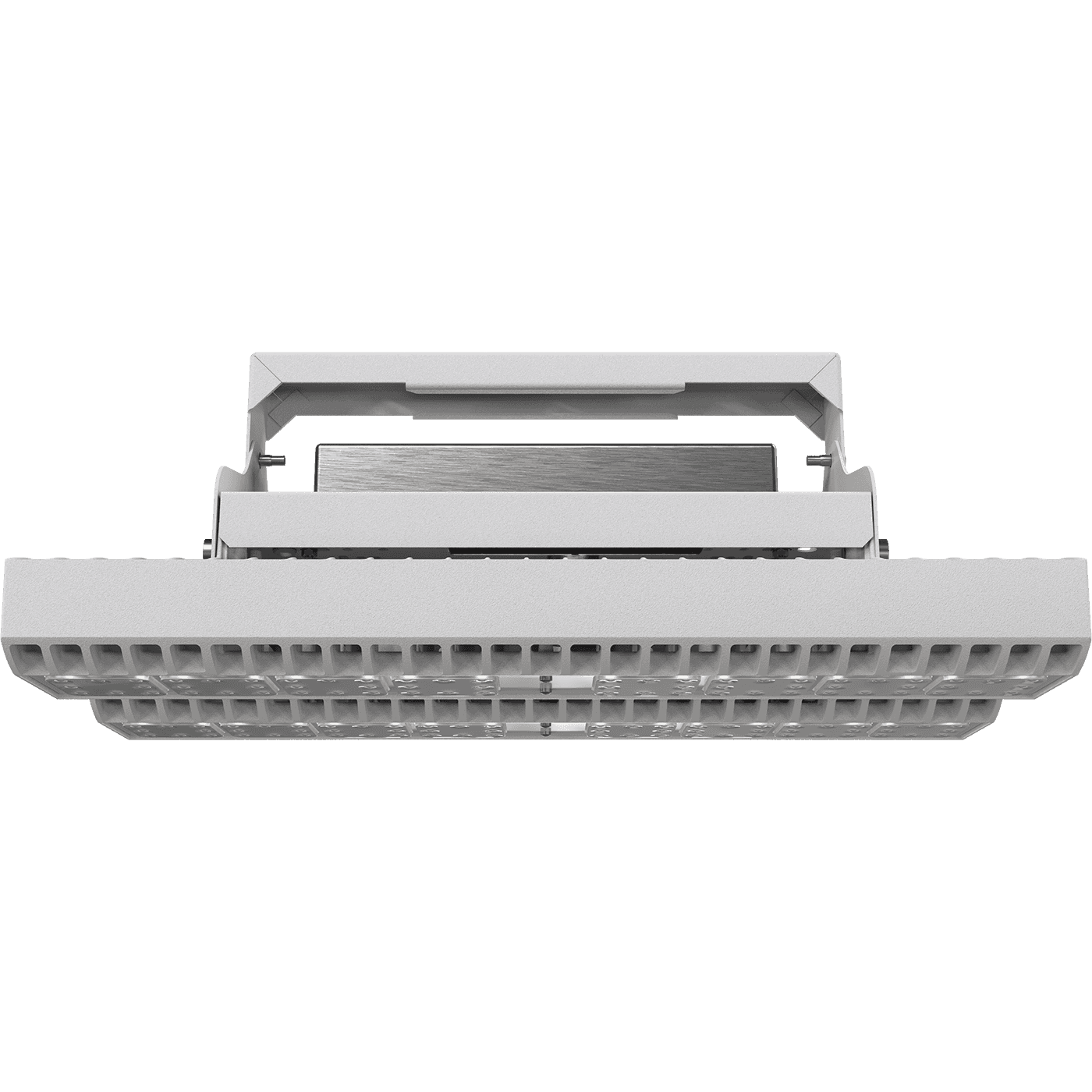

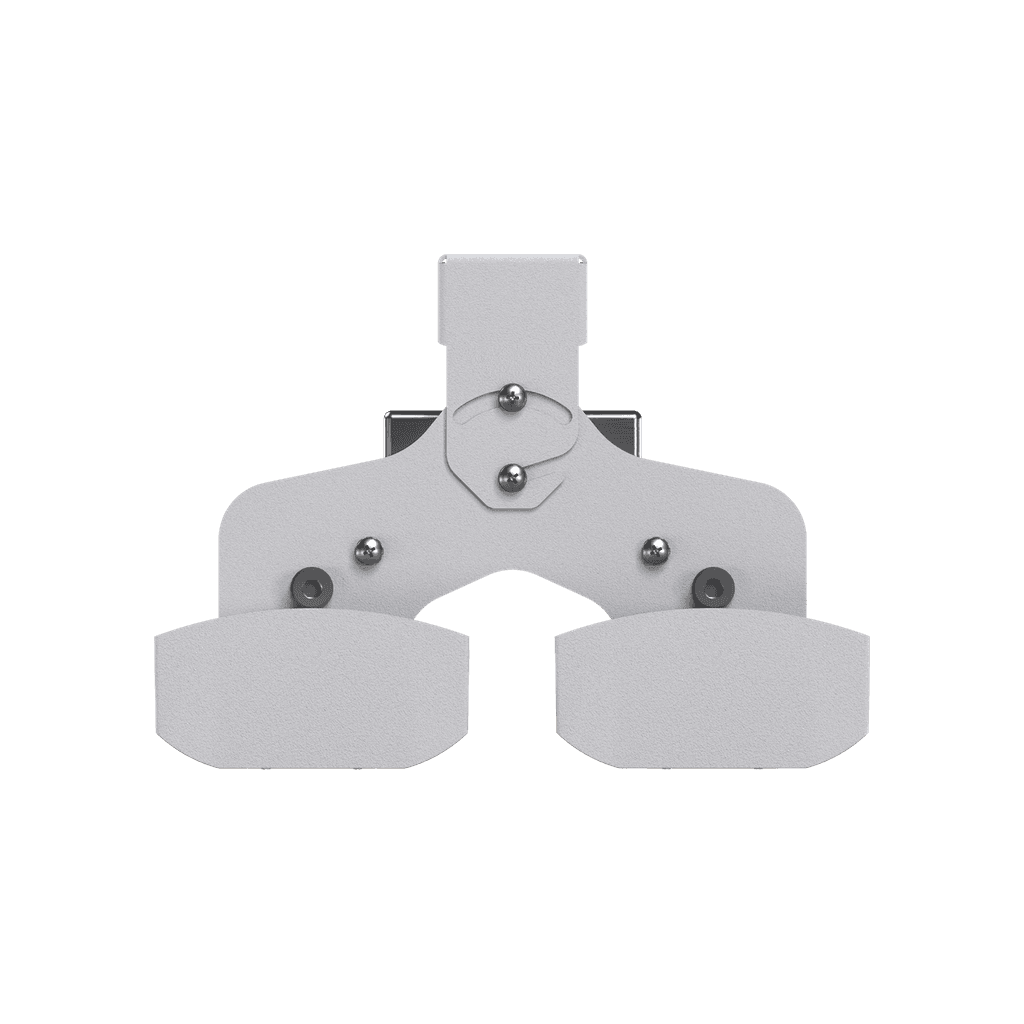

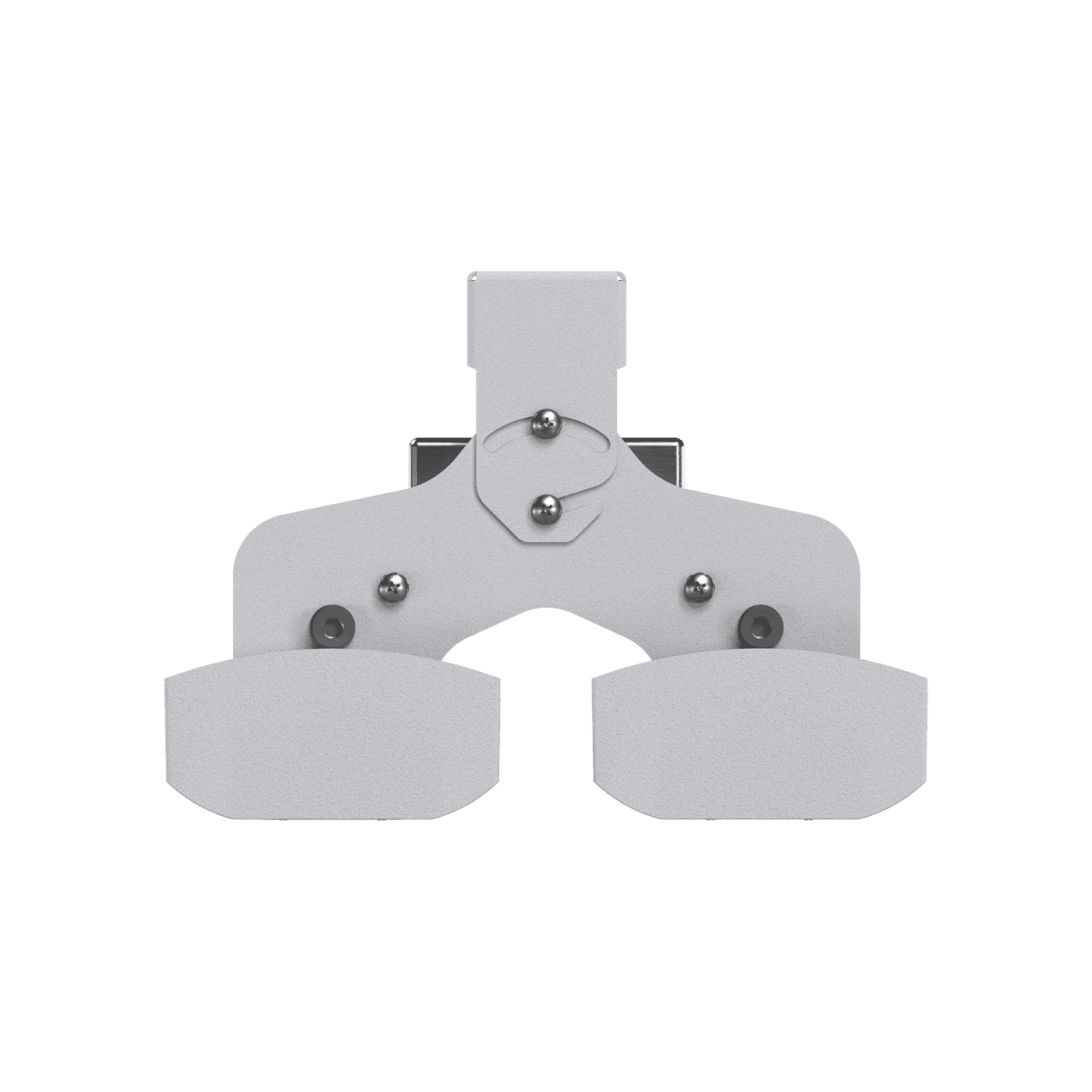

FORWARD 300W D80 957 WH SB
FORWARD 300W D80 957 WH SB
270 Wluminaire power
30000 lmlight flow
111 lm/Wenergy efficiency
code1864001390
beam angleD80
color temperature5700 K
weight7 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
111 lm/Wcolor rendition index (CRI)
>90light flow
30000 lmflickering factor
<1%beam angle
D80color temperature
5700 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
111 lm/W
color rendition index (CRI)
>90
light flow
30000 lm
flickering factor
<1%
beam angle
D80
color temperature
5700 K
light source type
LED
emission color
Белый
electrical
luminaire power
270 W
electric shock protection
I
starting current pulse time
1200 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
127-431 V
supply voltage, alternating current
90-305 V
power factor
> 0,97
constructional
fire safety class
П-ІІ
length
463 mm
height
180 mm
installation length
180 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
width
249 mm
material
Алюминий
climatic performance
УХЛ1*
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
7 kg
common
code
1864001390
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +55 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files

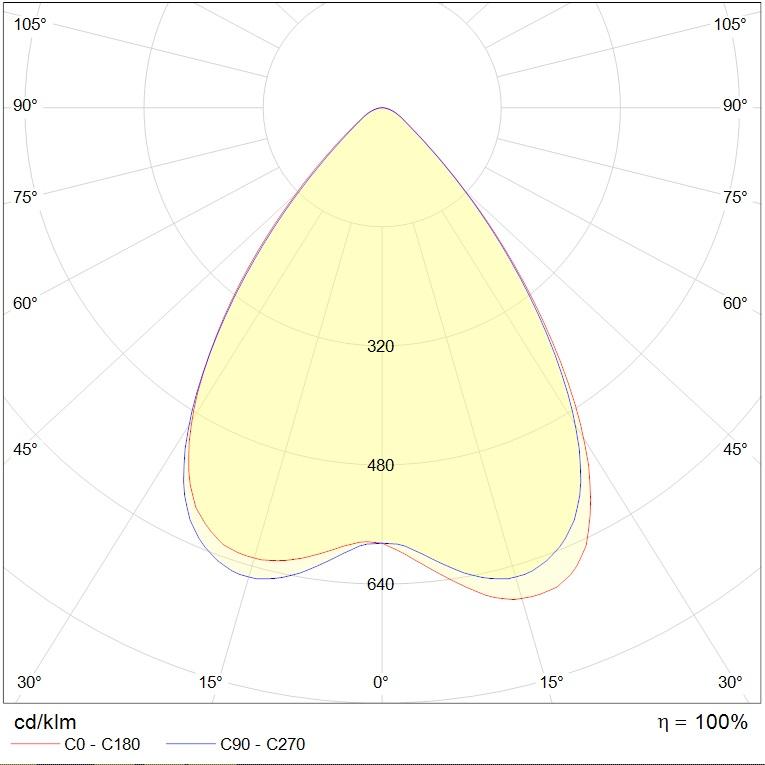

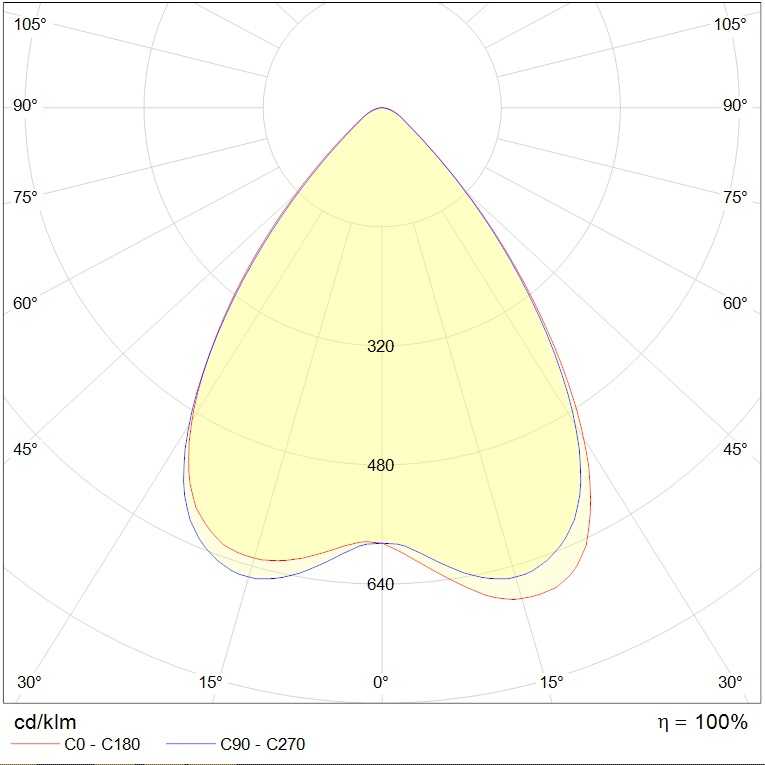

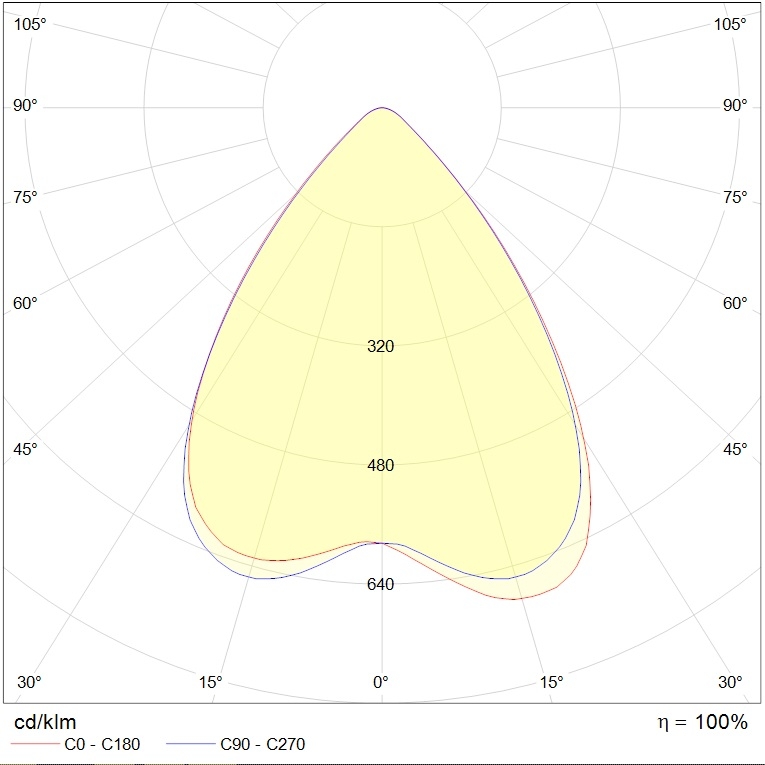

photometric files
сертификаты
photometric files
ies107.1 kB
jpg80.6 kB
ldt65.6 kB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.4 mB
Declaration of Conformity EAEU TR 037/2016555.9 kB
