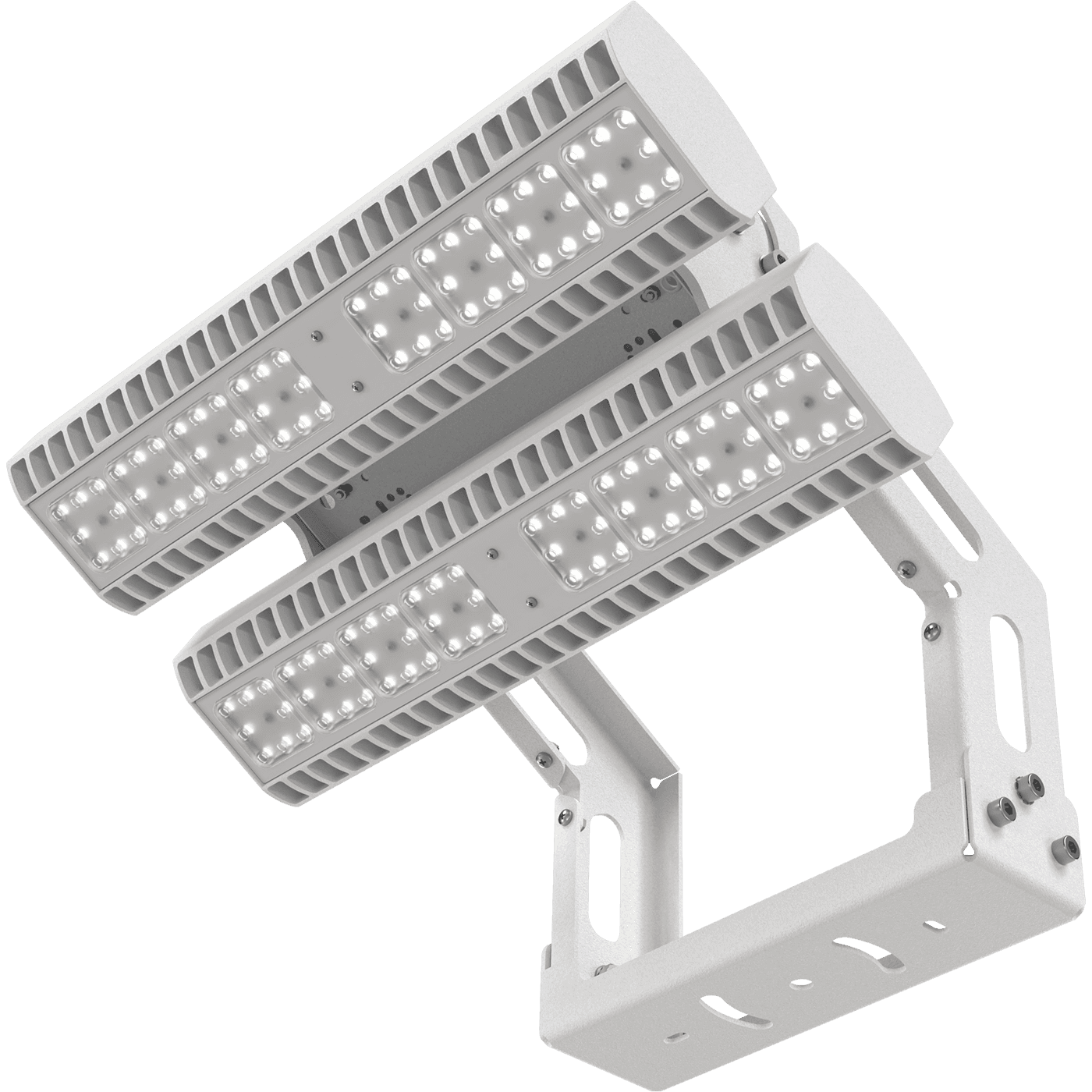

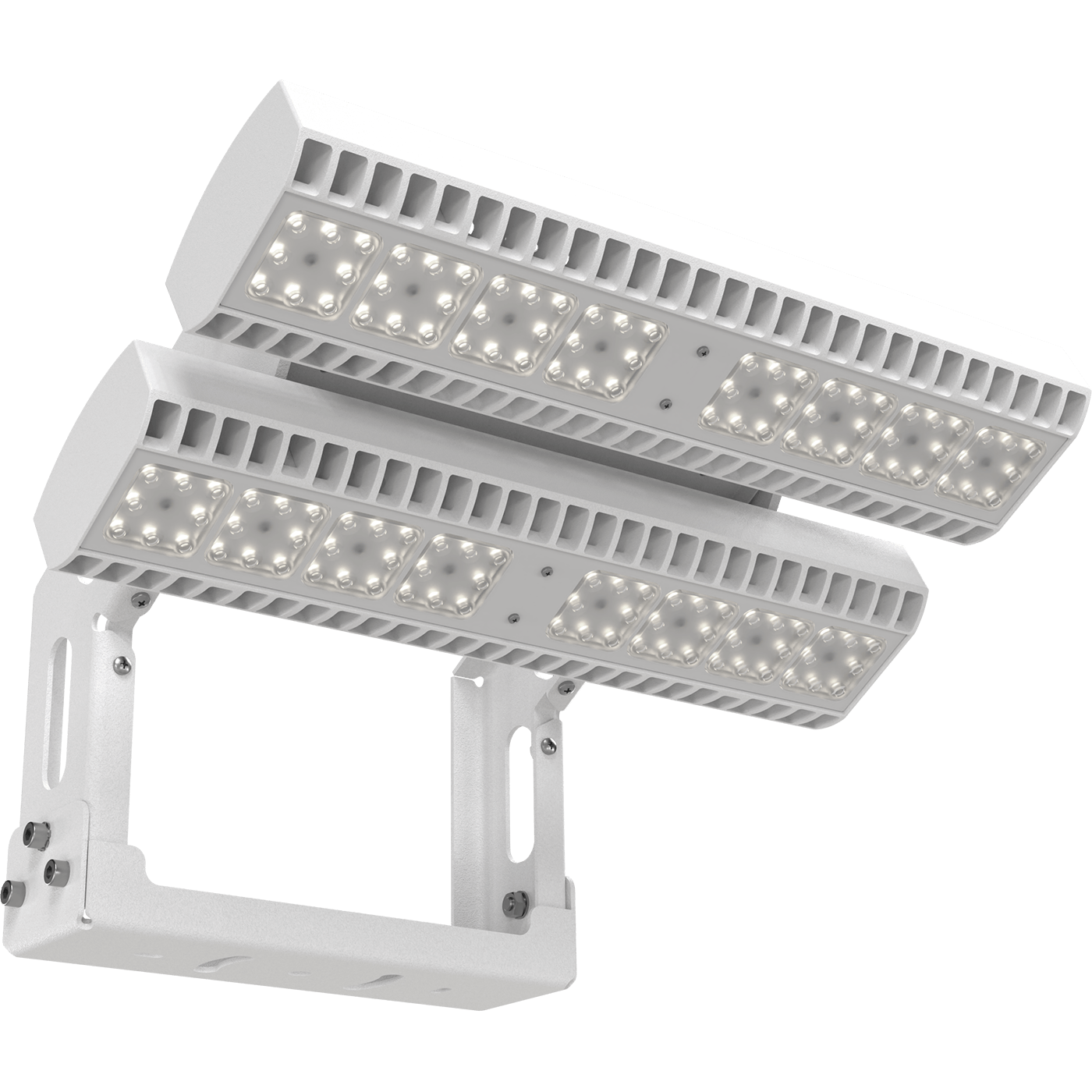

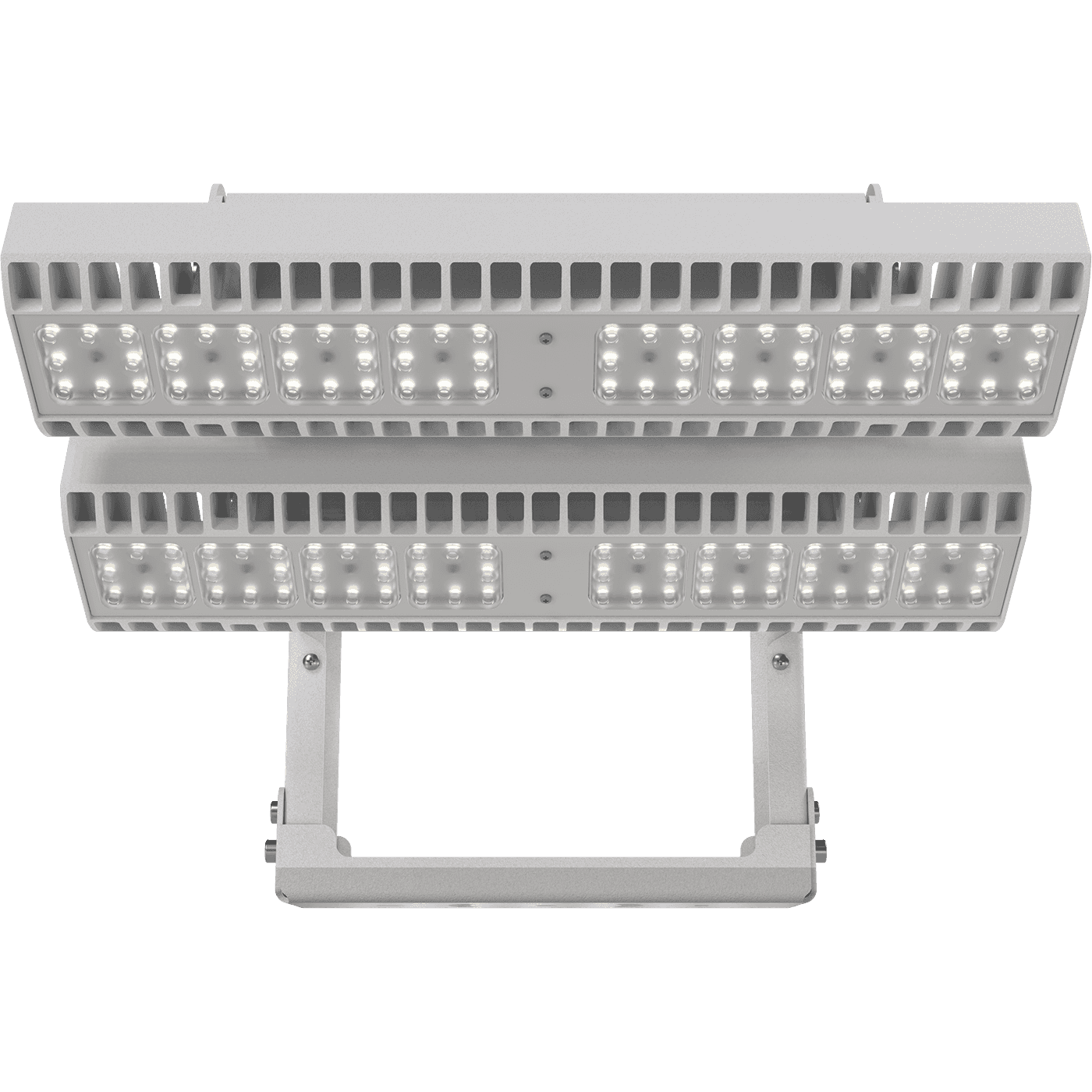

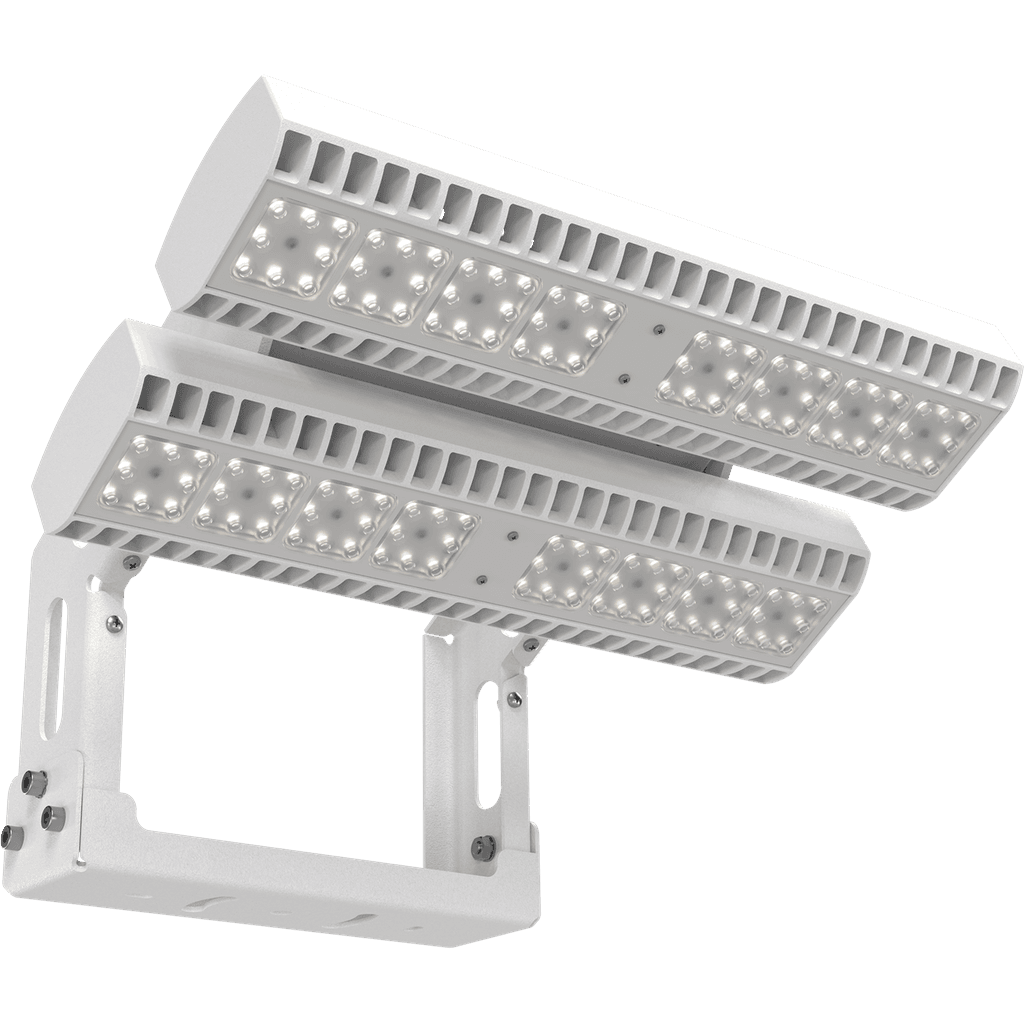

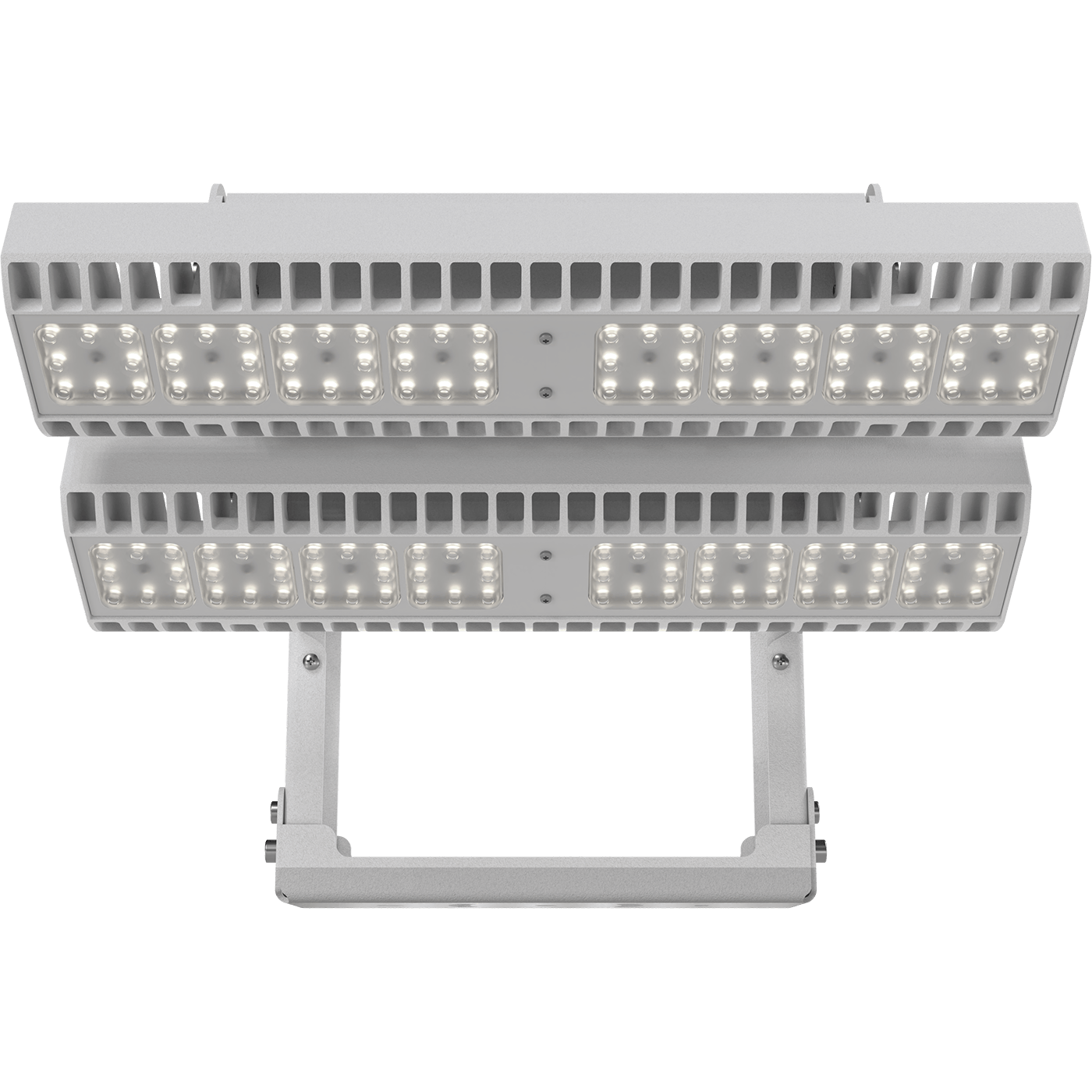

FORWARD 300W D80 857 WH FB
FORWARD 300W D80 857 WH FB
270 Wluminaire power
35400 lmlight flow
131 lm/Wenergy efficiency
code1864001440
beam angleD80
color temperature5700
weight9.8 kg
options
свернуть все
constructionalelectricalcommonilluminating
ingress protection (IP)
IP66housing color
Белыйlength, mm
463 mmwidth, mm
420 mmheight, mm
340 mmweight
9.8 kgfire safety class
П-ІІclimatic performance
УХЛ1*maximum cross-section of the connected cable, sq. mm
2.5material
Алюминийshock resistance (IK)
IK07/2 Джinstallation length, mm
180 mmlamp socket
LEDnumber of lamps
1ballast
Драйверconstructional
ingress protection (IP)
IP66
housing color
Белый
length, mm
463 mm
width, mm
420 mm
height, mm
340 mm
weight
9.8 kg
fire safety class
П-ІІ
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
material
Алюминий
shock resistance (IK)
IK07/2 Дж
installation length, mm
180 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
electrical
electric shock protection
I
luminaire power
270 W
power factor
> 0,97
supply voltage
230 V
common
code
1864001440
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>80
light flow
35400 lm
energy efficiency
131 lm/W
flickering factor
<1%
beam angle
D80
color temperature
5700
light source type
LED
emission color
Белый
model files
model files

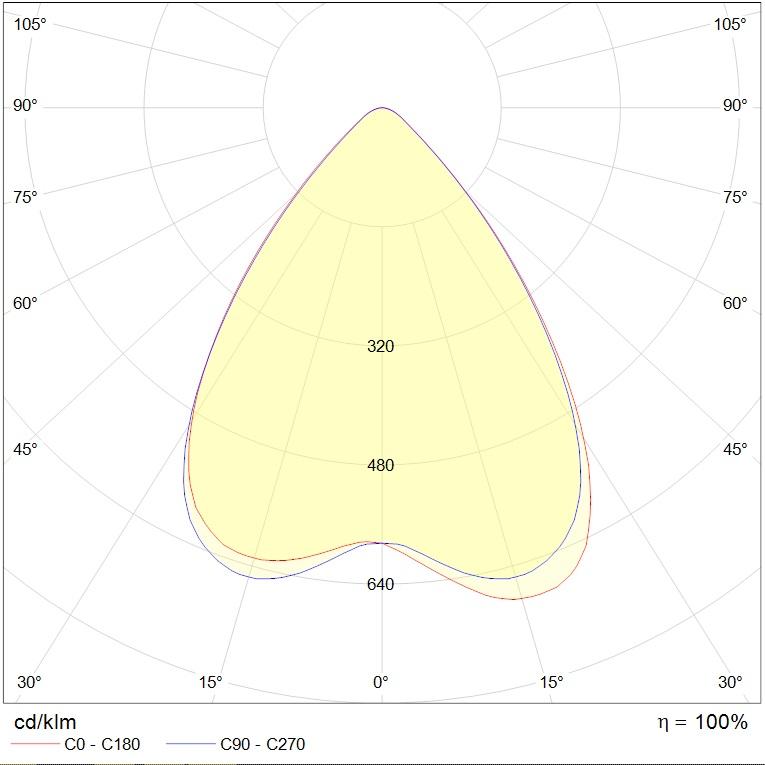

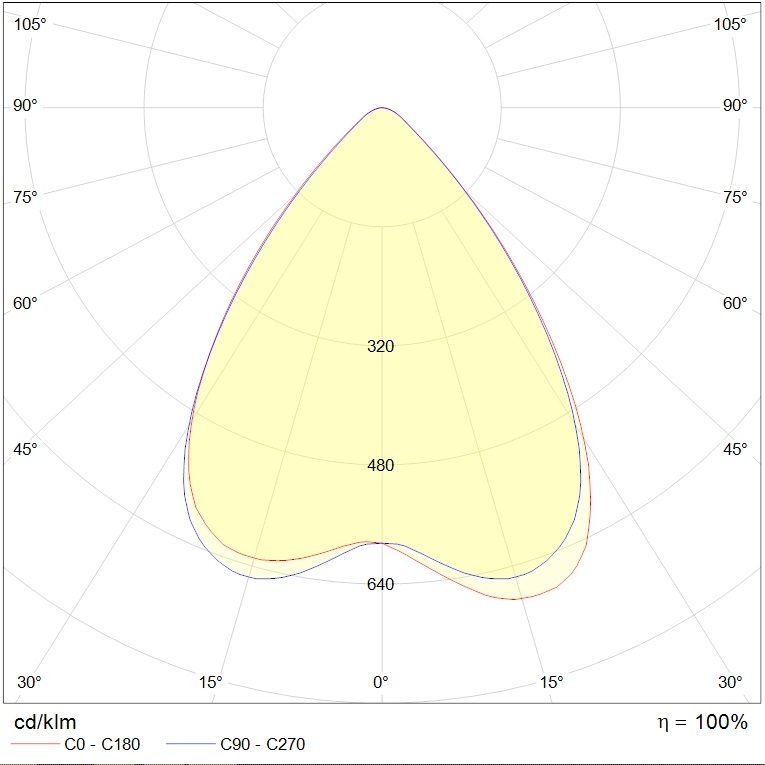

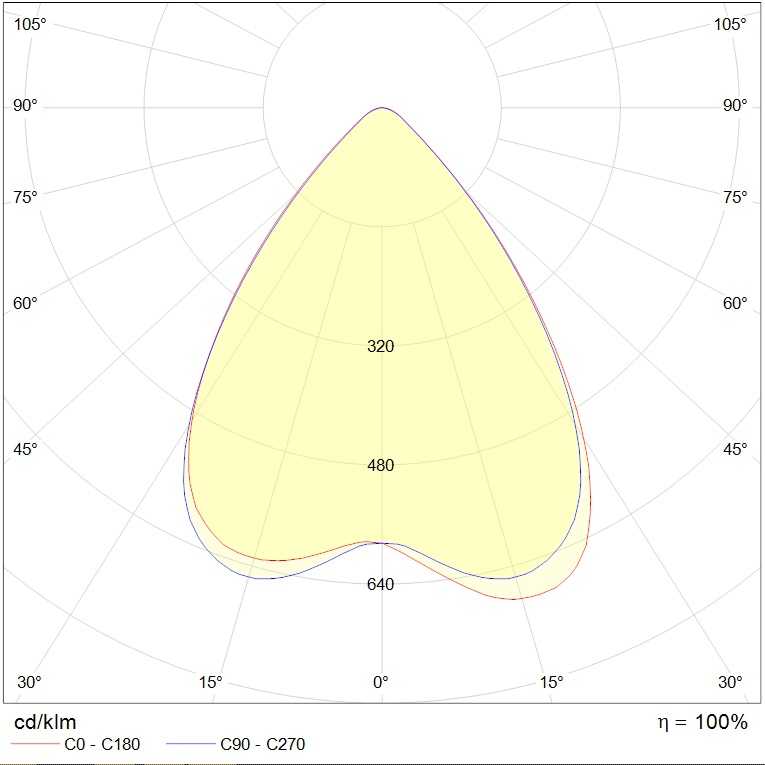

photometric files
сертификаты
photometric files
ies107 kB
jpg80.6 kB
ldt65.6 kB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
