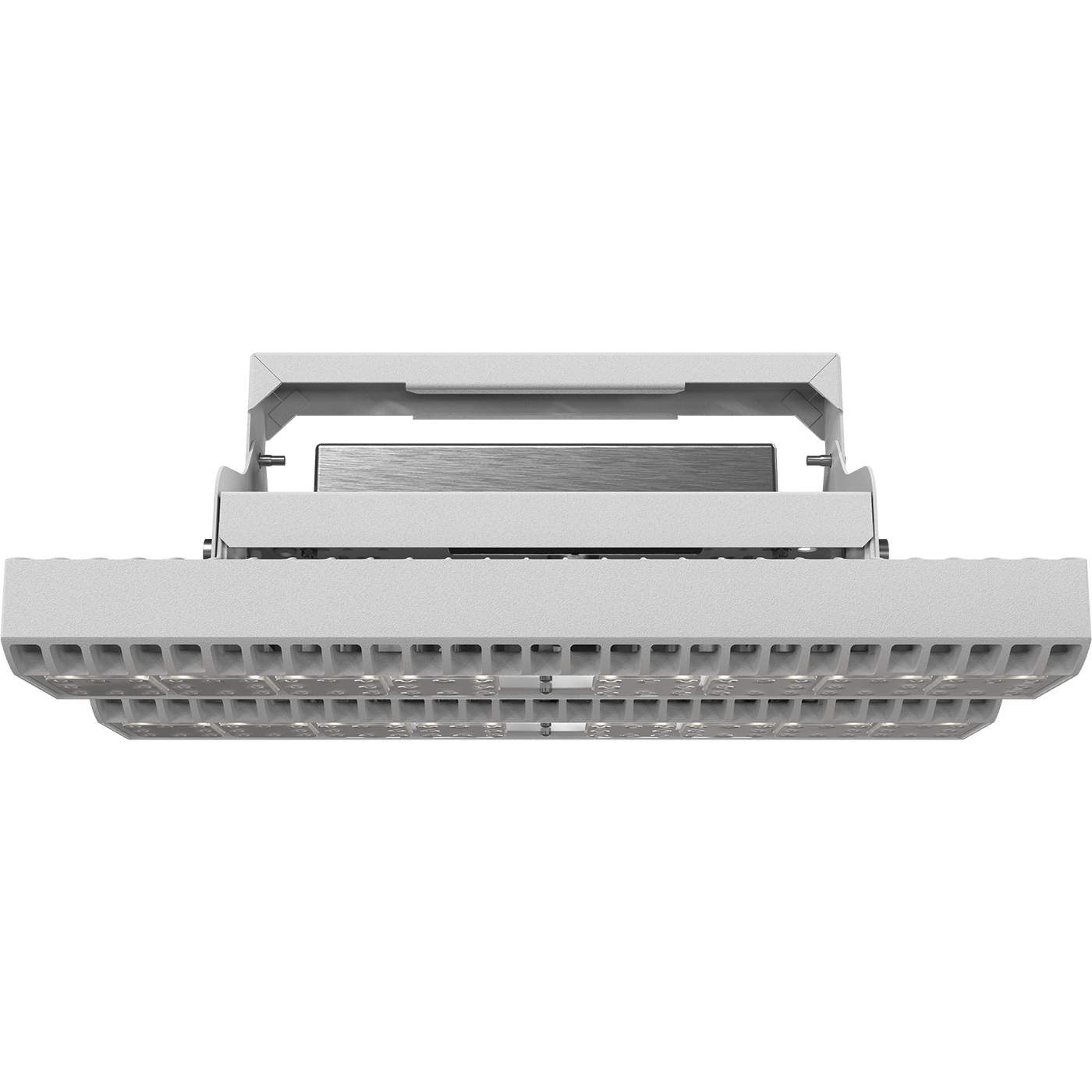

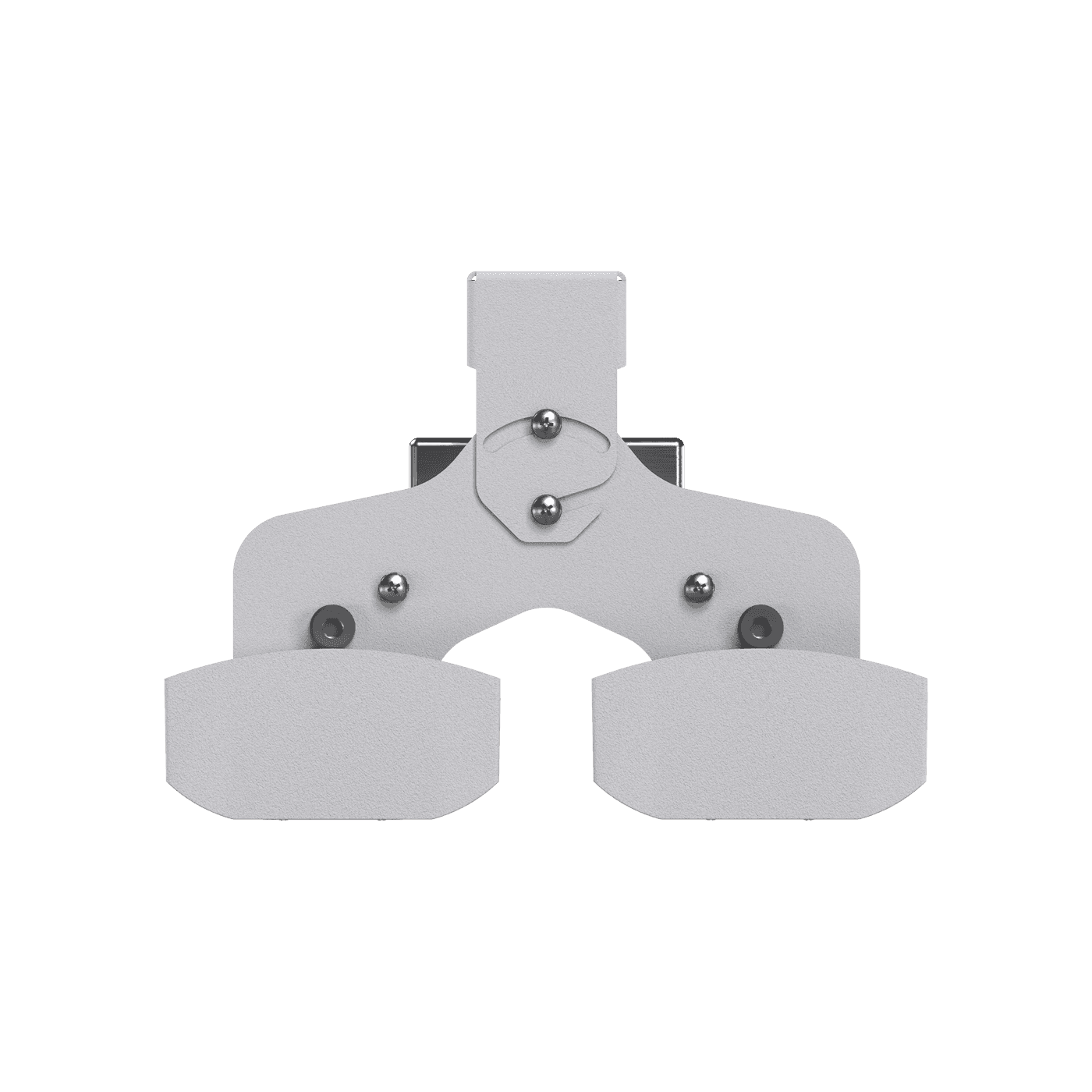

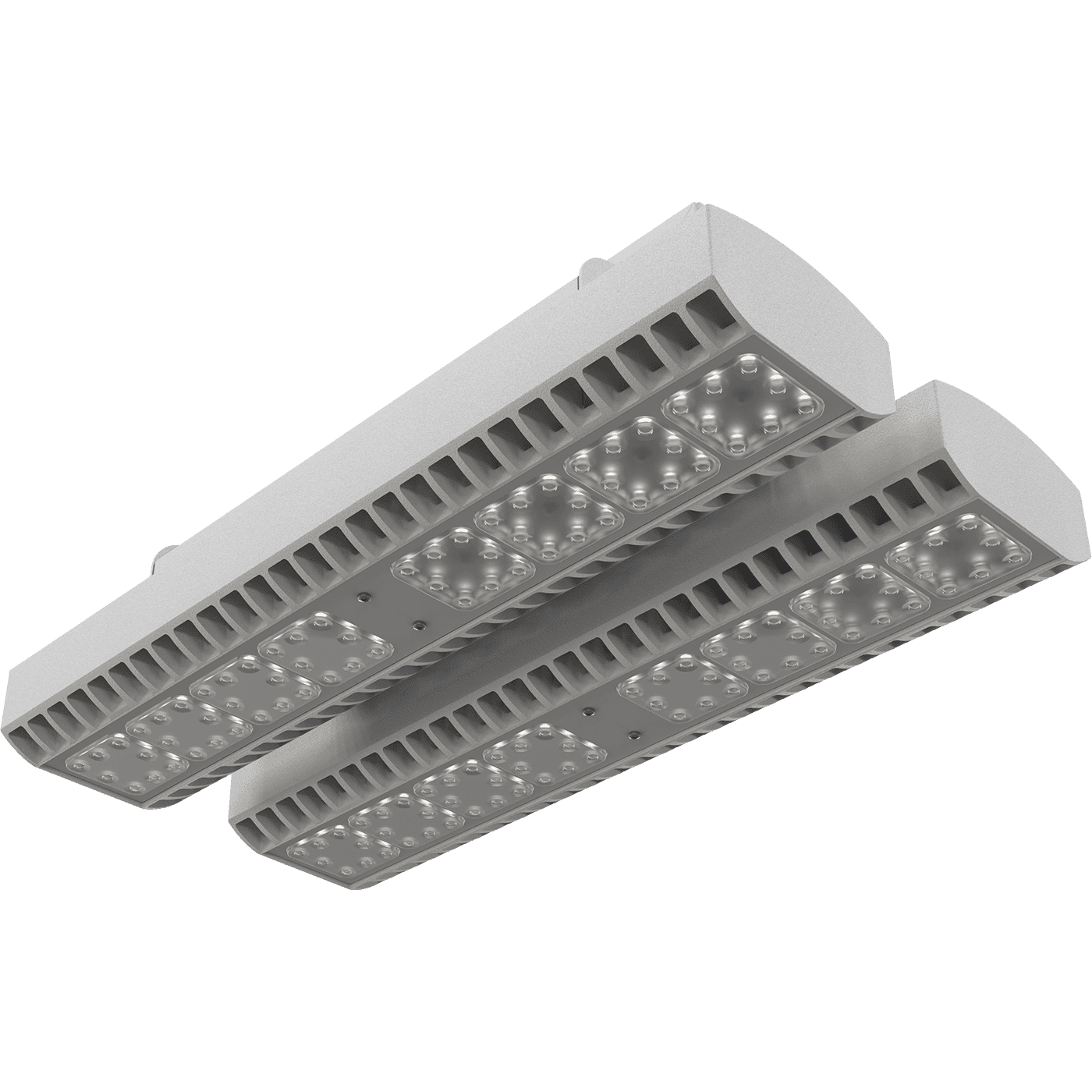

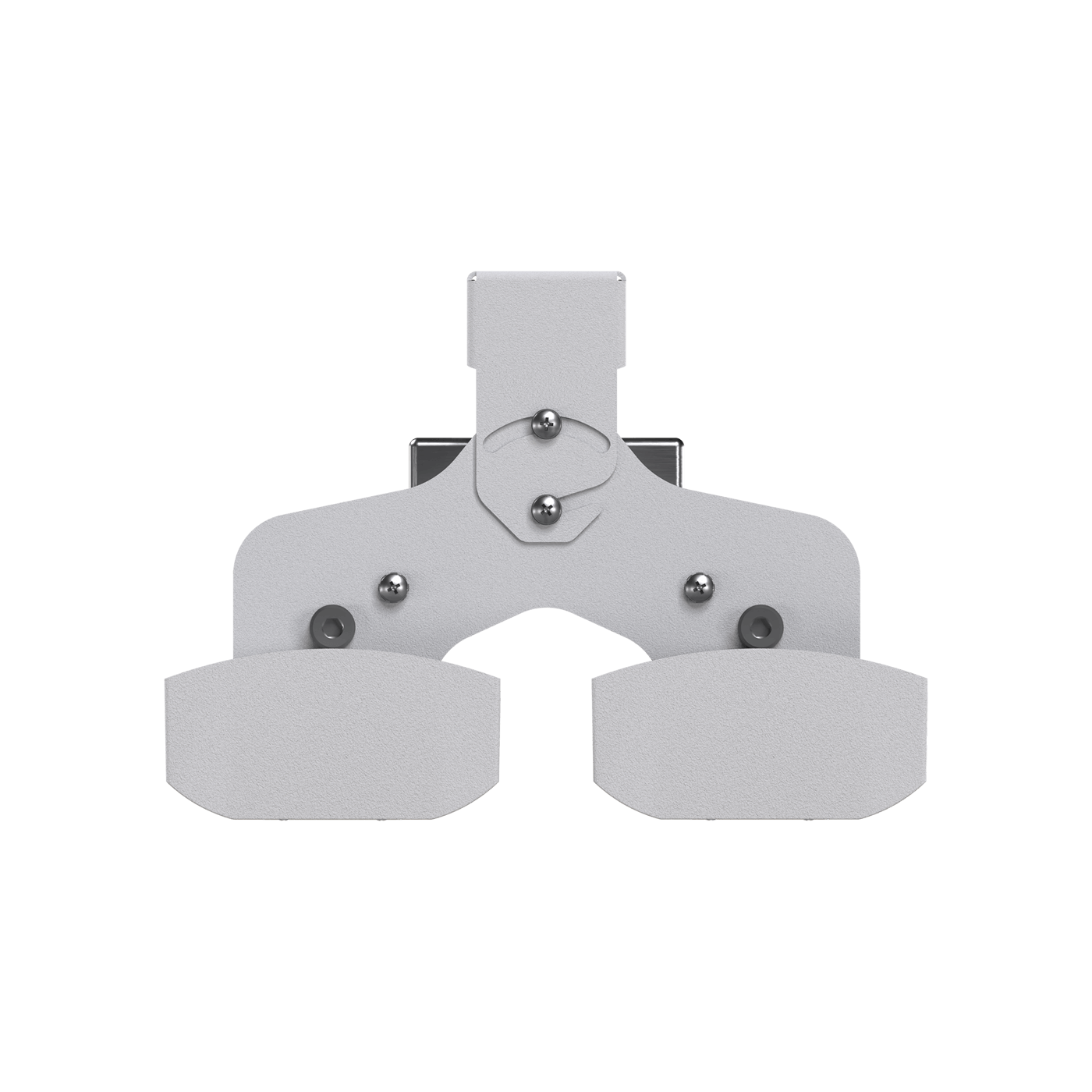

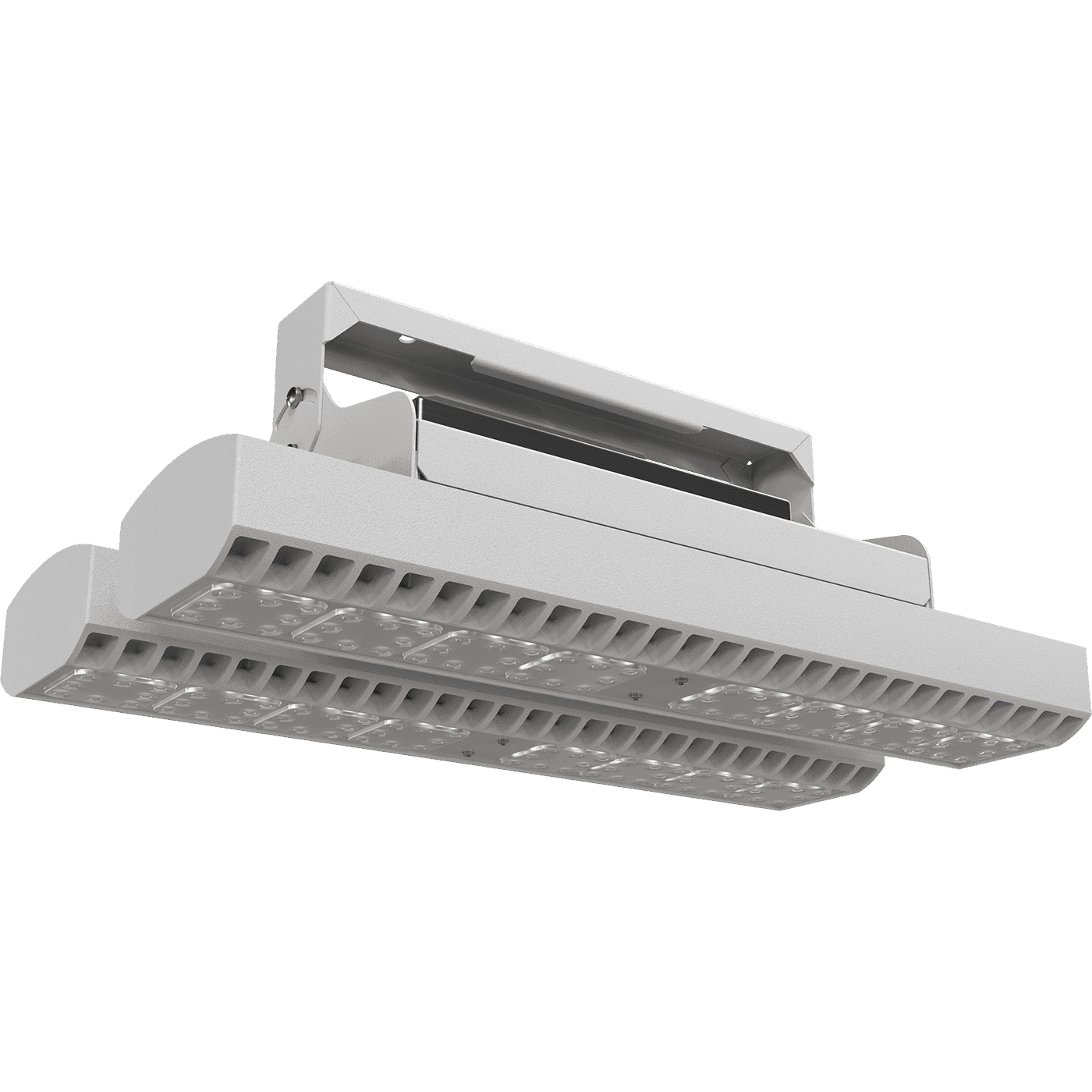

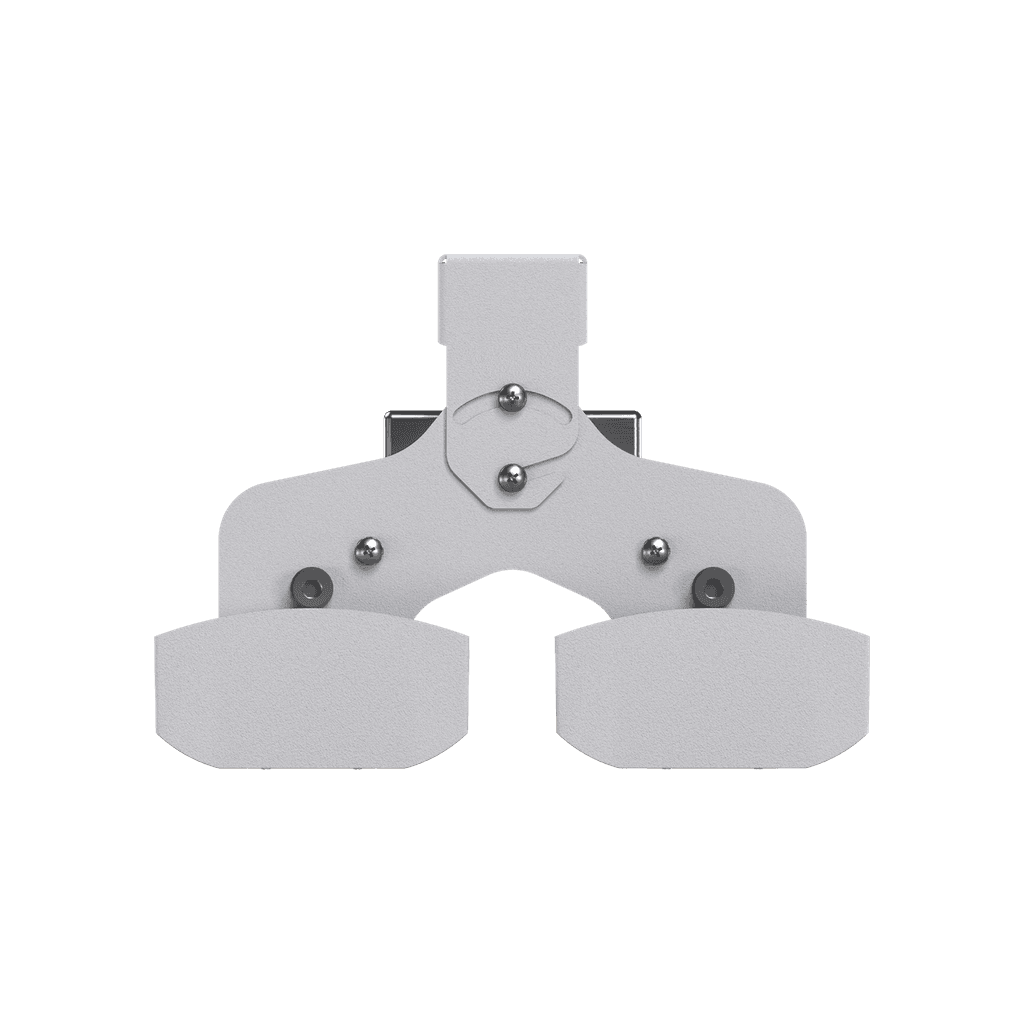

FORWARD 300W D60 957 WH DMX SB
FORWARD 300W D60 957 WH DMX SB
270 Wluminaire power
30000 lmlight flow
111 lm/Wenergy efficiency
code1864004390
beam angleD60
color temperature5700
weight9.66 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
57 Astarting current pulse time, µs
1000 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-305 Vsupply voltage, direct current
100-250 Vluminaire power
270 Welectric shock protection
Ipower factor
> 0,97supply voltage
230 Velectrical
starting current
57 A
starting current pulse time, µs
1000 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
100-250 V
luminaire power
270 W
electric shock protection
I
power factor
> 0,97
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІ
material
Алюминий
weight
9.66 kg
length, mm
463 mm
width, mm
249 mm
height, mm
180 mm
housing color
Белый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK07/2 Дж
installation length, mm
200 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1864004390
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
111 lm/W
color rendition index (CRI)
>90
light flow
30000 lm
flickering factor
<1%
beam angle
D60
color temperature
5700
light source type
LED
emission color
Белый
LMS options
dimming
DMX
model files
model files

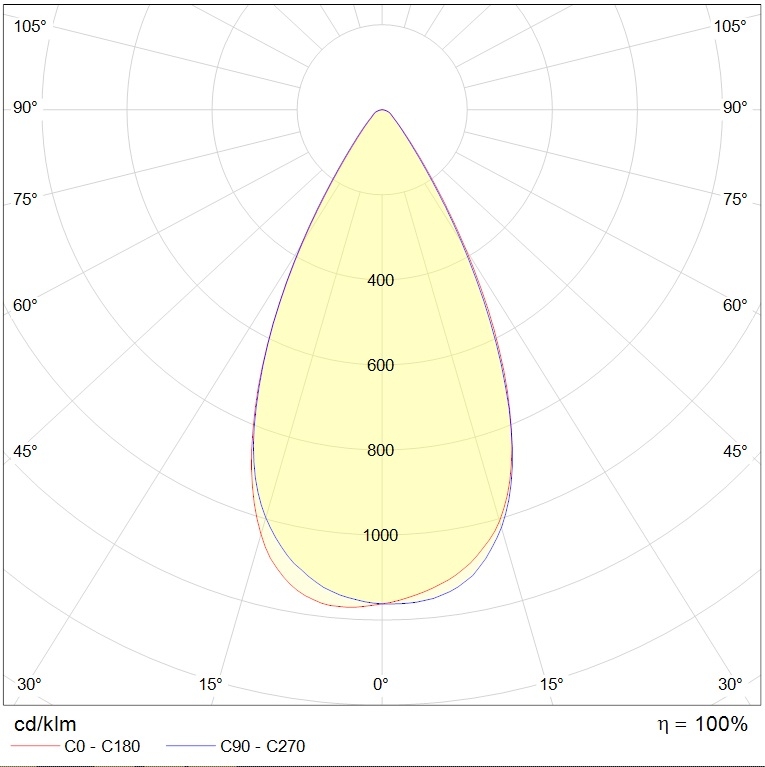

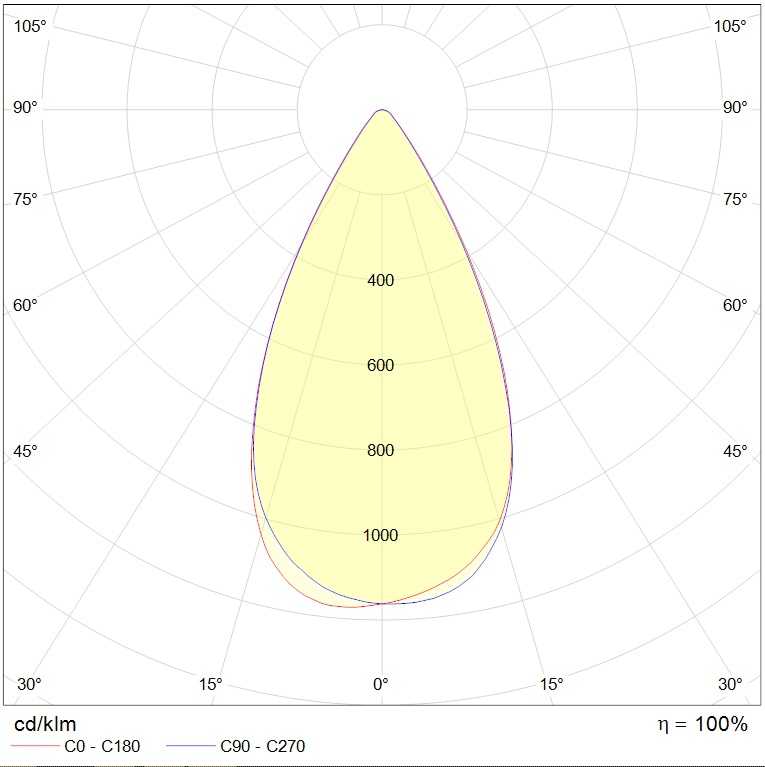

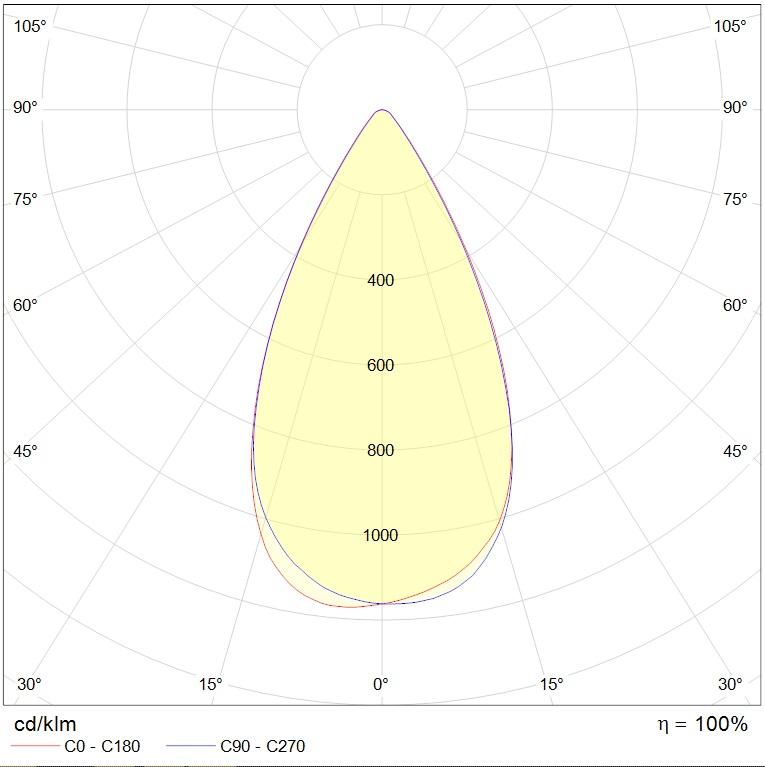

photometric files
сертификаты
photometric files
jpg86.8 kB
ldt168.9 kB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
