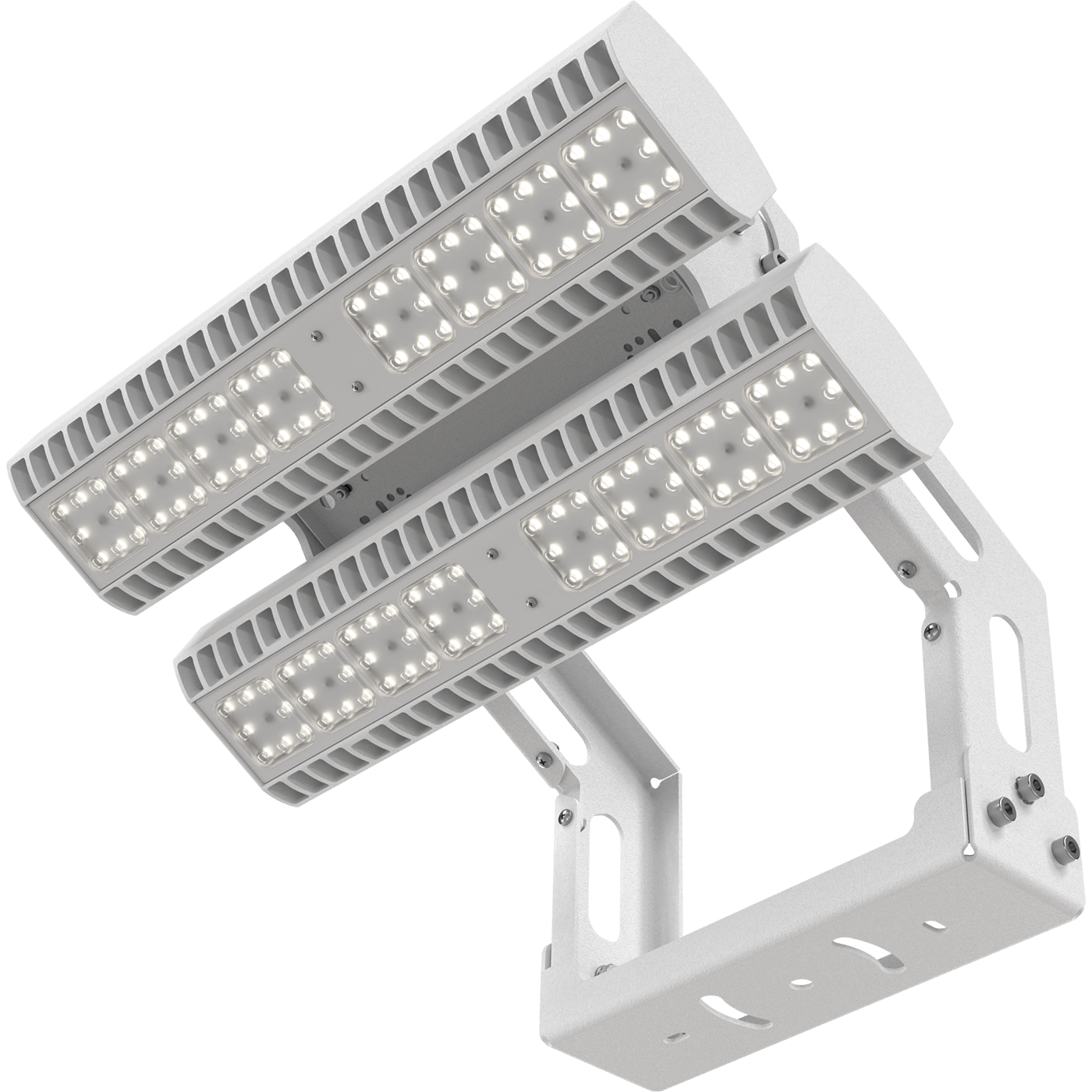

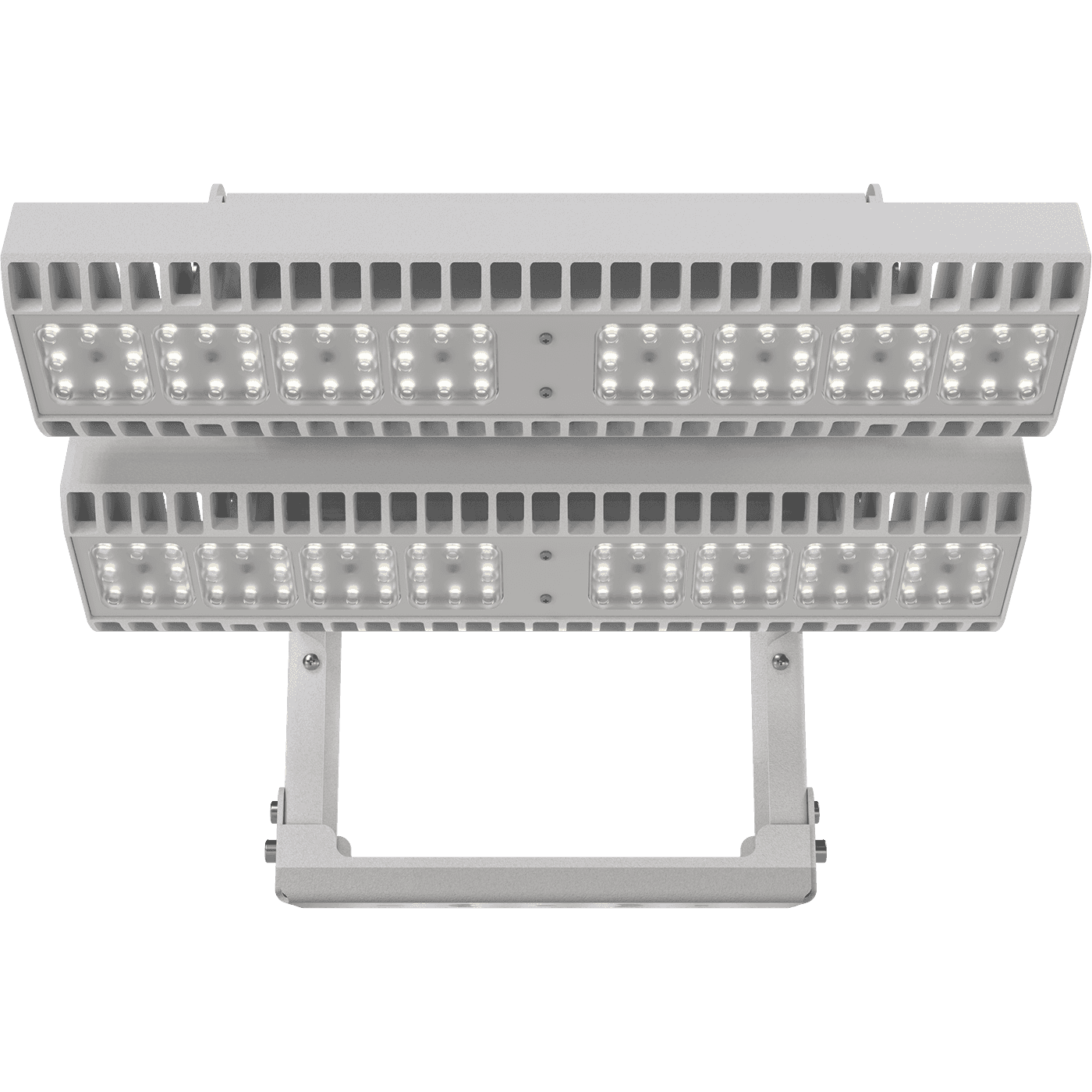

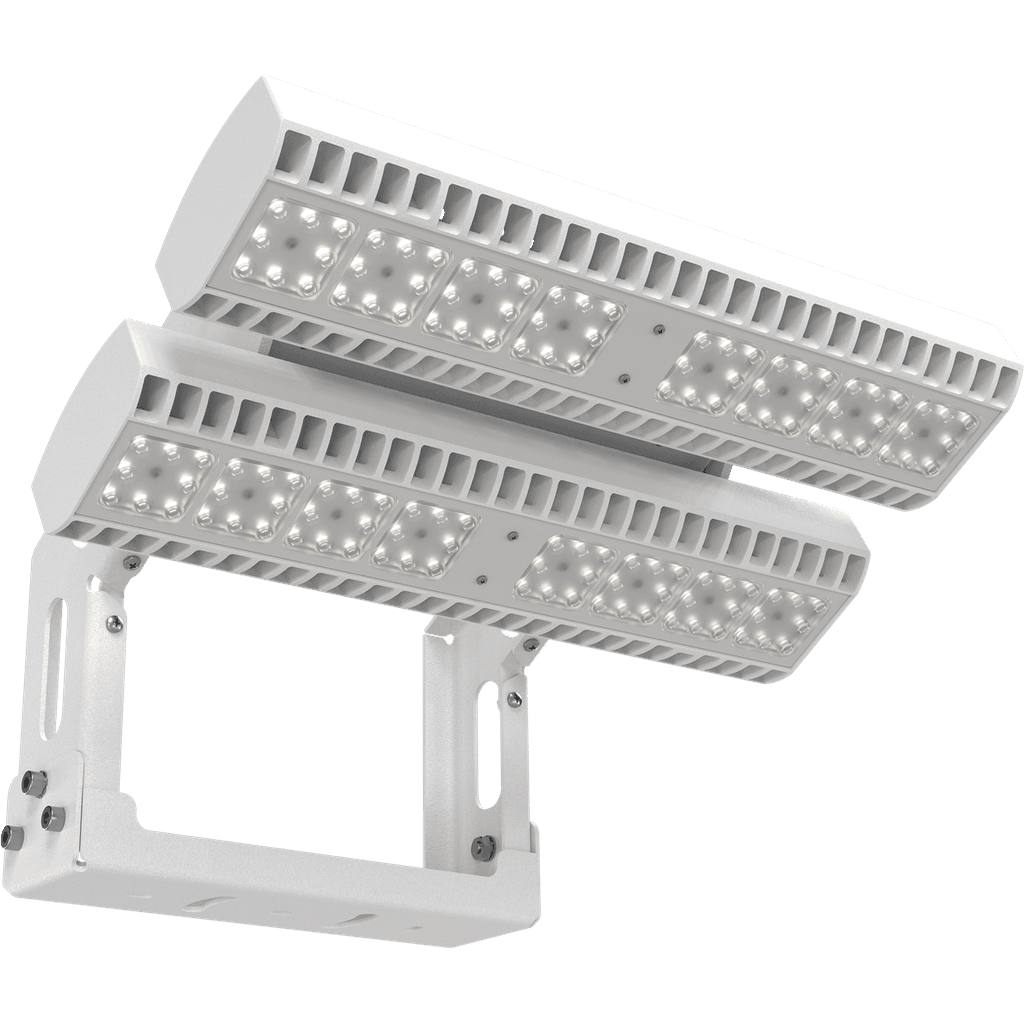

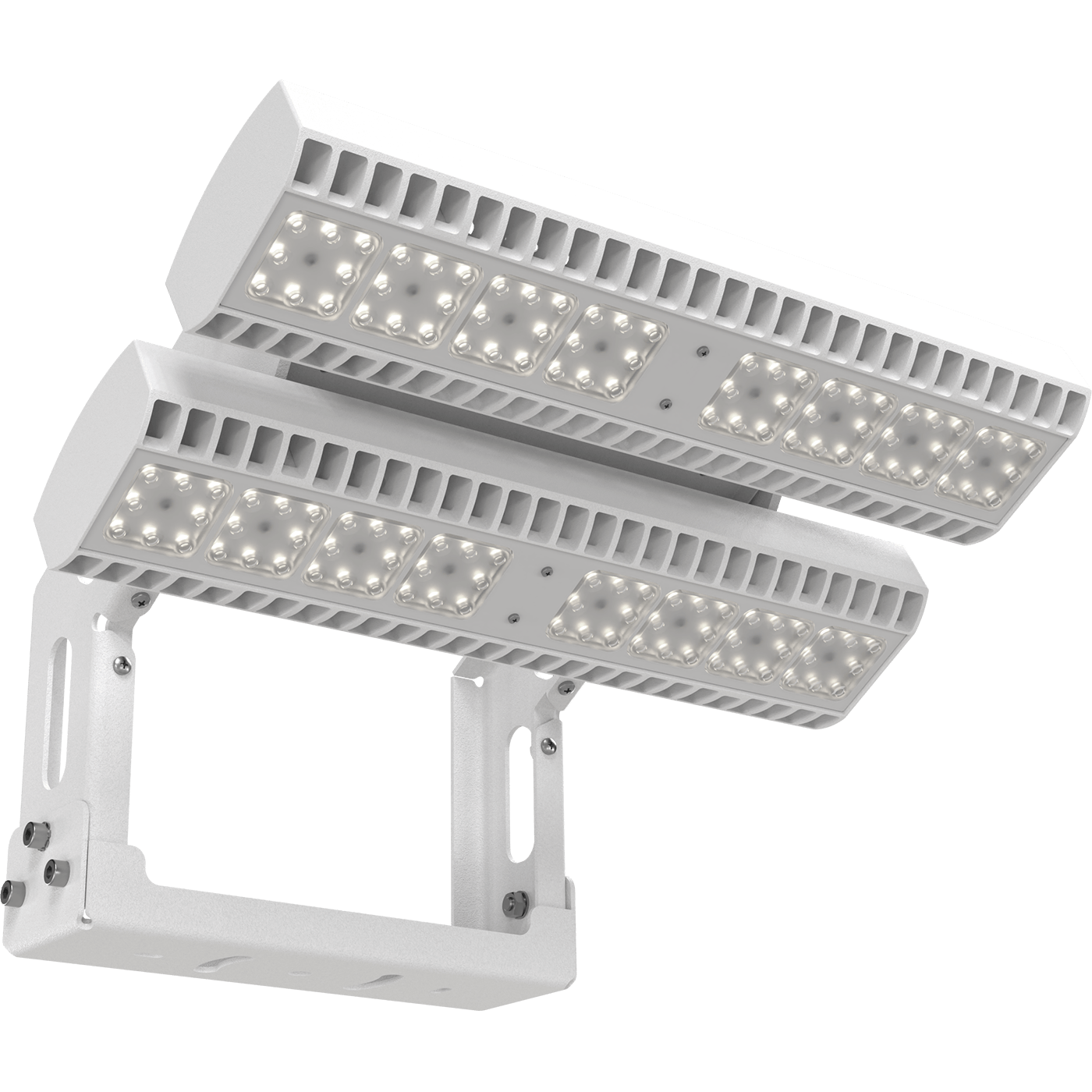

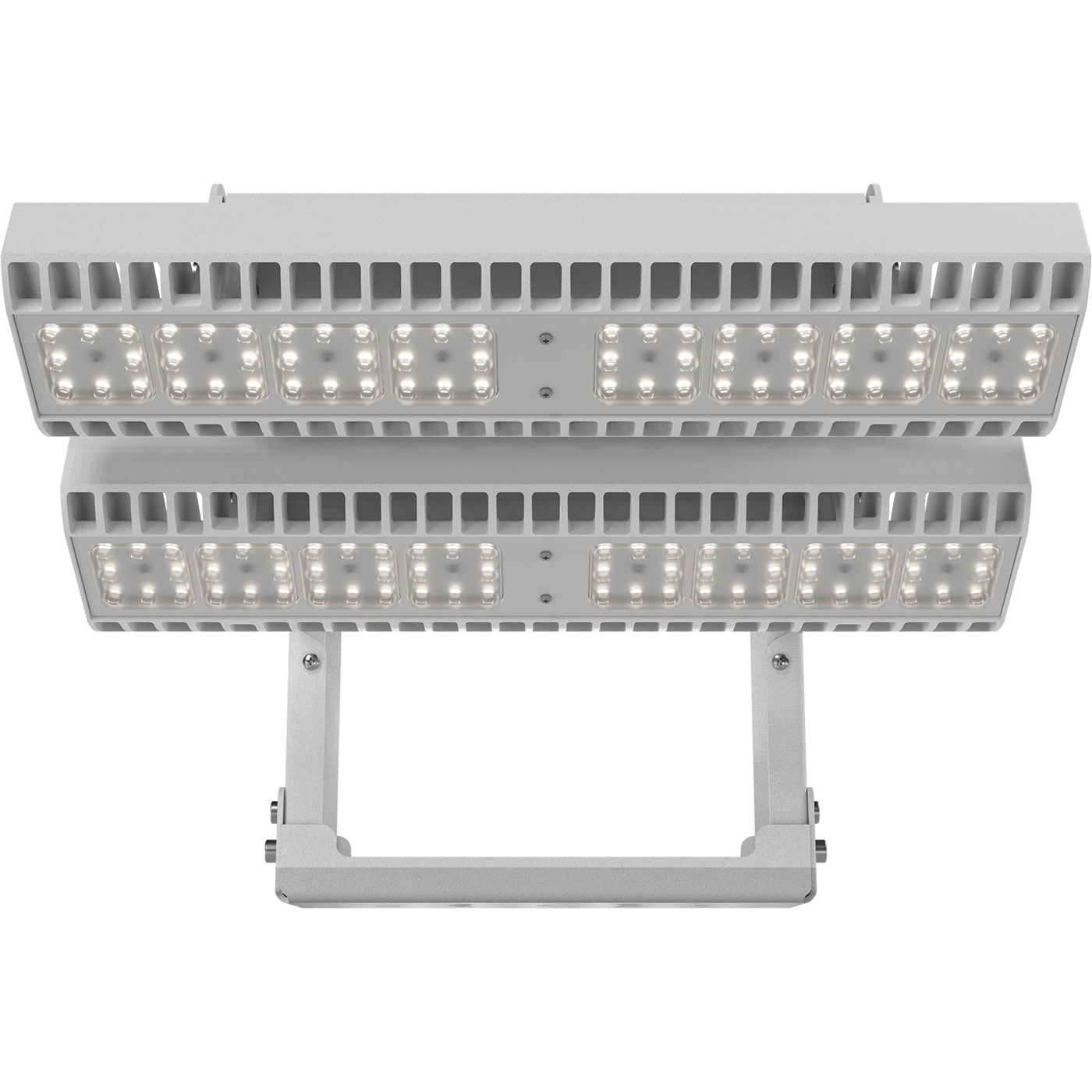

FORWARD 300W D60 840 WH FB
FORWARD 300W D60 840 WH FB
270 Wluminaire power
35400 lmlight flow
131 lm/Wenergy efficiency
code1864000610
beam angleD60
color temperature4000 K
weight9.8 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
131 lm/Wcolor rendition index (CRI)
>80light flow
35400 lmflickering factor
<1%beam angle
D60color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
131 lm/W
color rendition index (CRI)
>80
light flow
35400 lm
flickering factor
<1%
beam angle
D60
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
270 W
electric shock protection
I
starting current pulse time
400 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
100 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
128-431 V
supply voltage, alternating current
90-305 V
power factor
> 0,97
constructional
fire safety class
П-ІІ
length
463 mm
height
340 mm
installation length
180 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
width
420 mm
material
Алюминий
climatic performance
УХЛ1*
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
9.8 kg
common
code
1864000610
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files

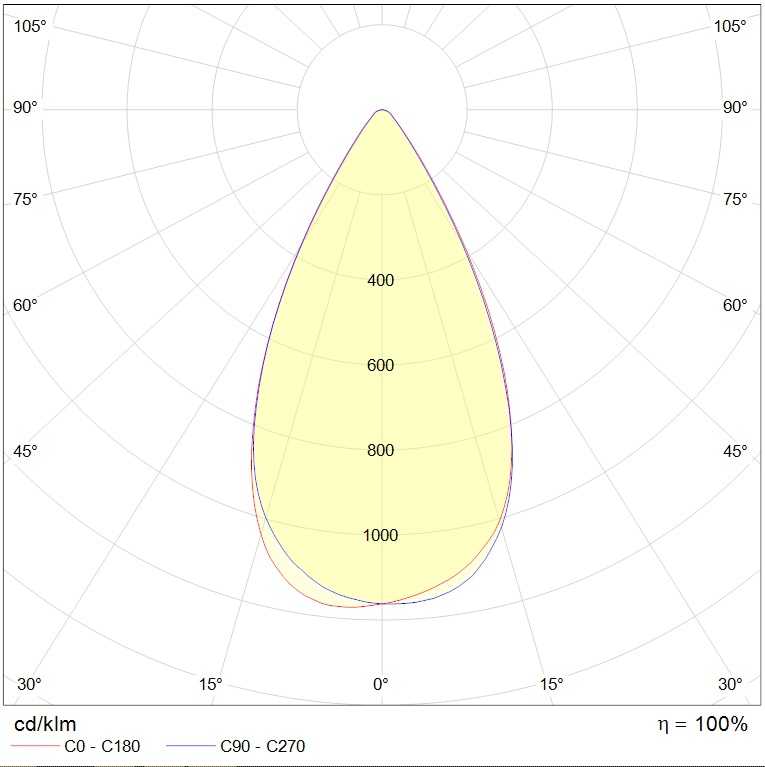

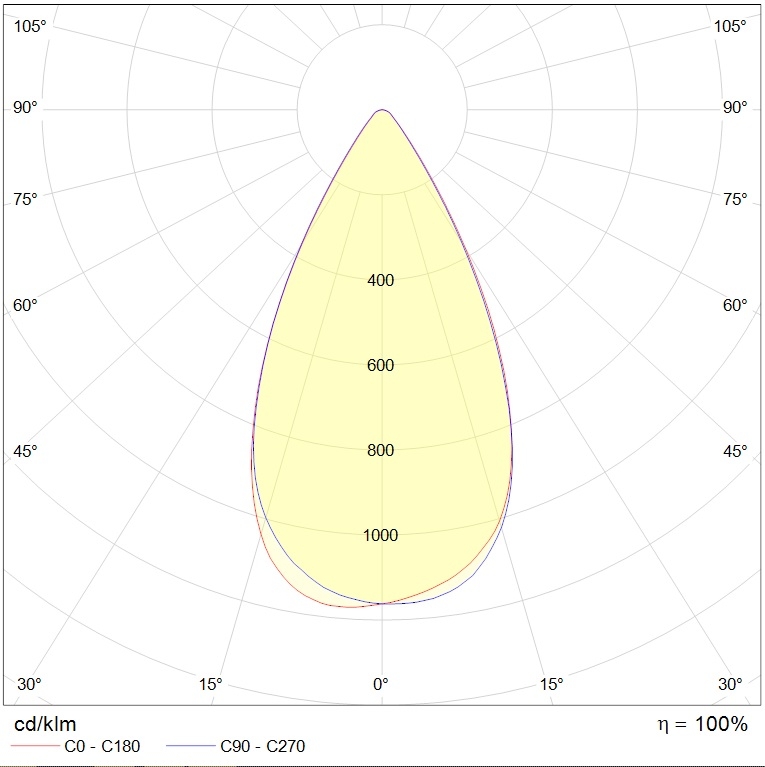

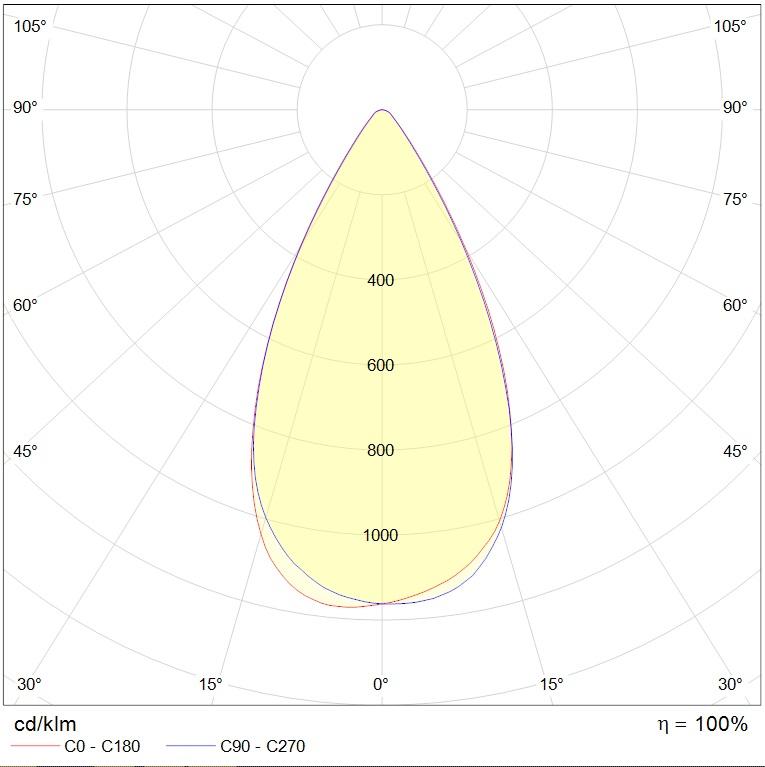

photometric files
documents
сертификаты
photometric files
jpg86.8 kB
ldt168.9 kB
documents
passport8.6 mB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.4 mB
Declaration of Conformity EAEU TR 037/2016555.9 kB
