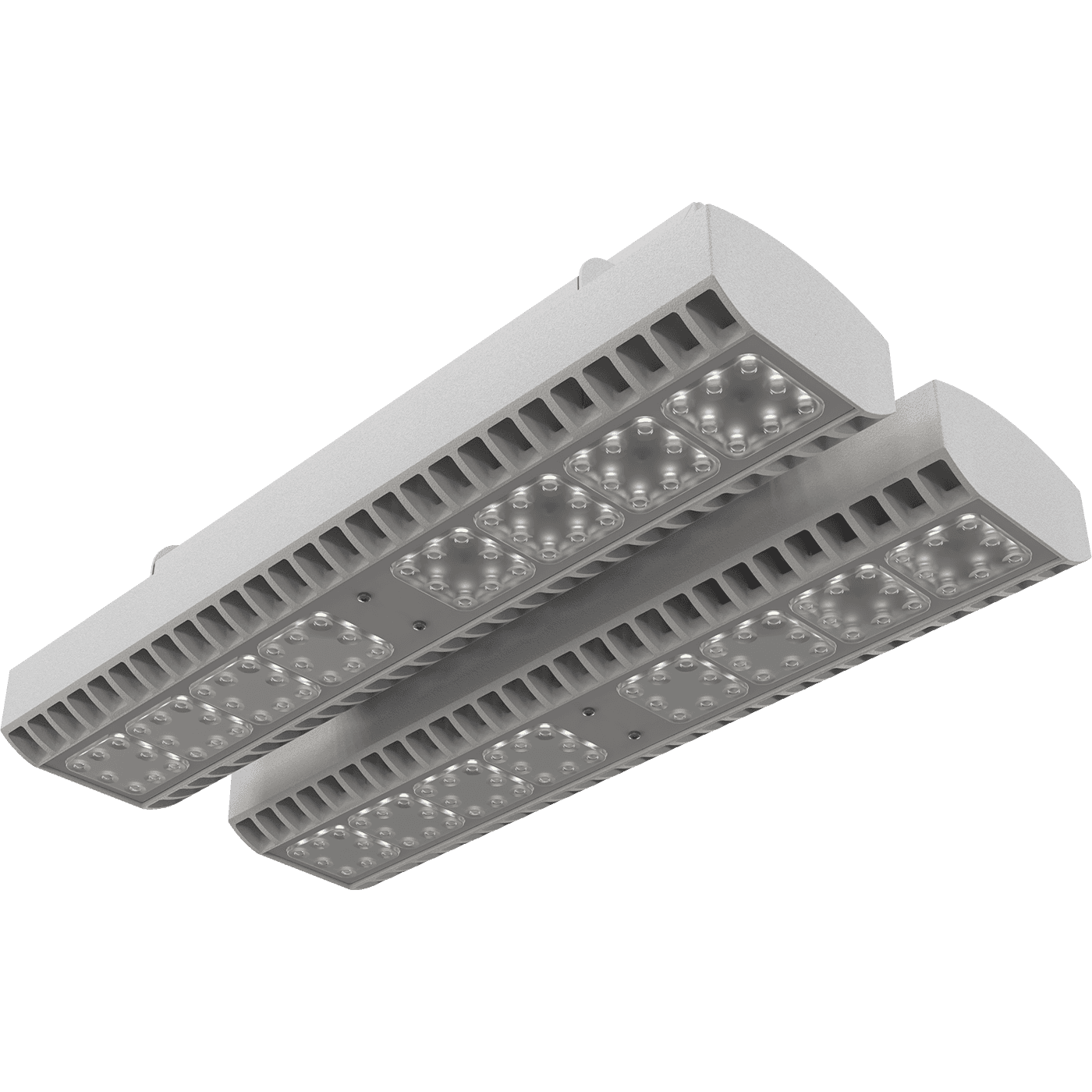

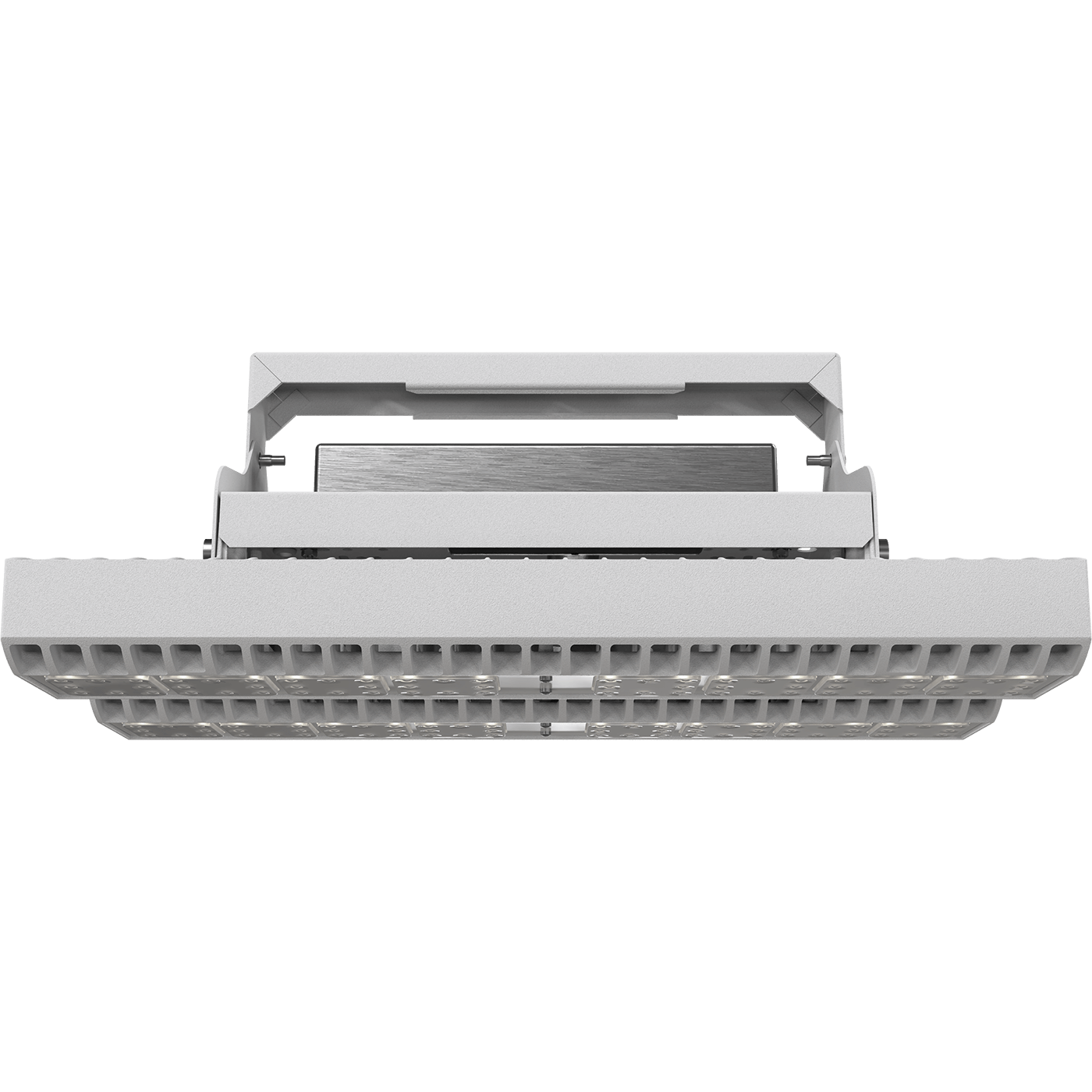

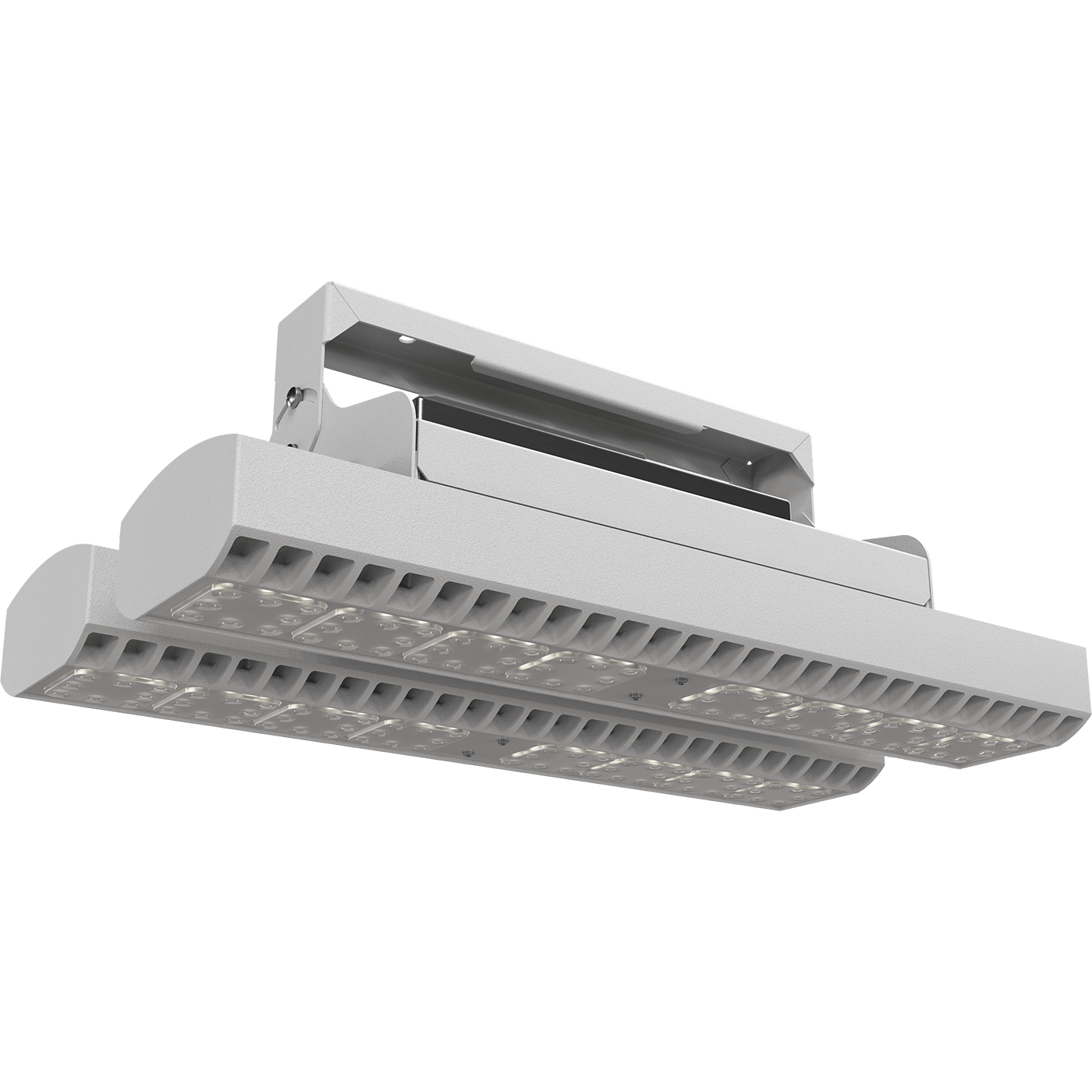

FORWARD 300W D30 850 WH SB
FORWARD 300W D30 850 WH SB
270 Wluminaire power
35400 lmlight flow
131 lm/Wenergy efficiency
code1864000500
beam angleD30
color temperature5000
weight7 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
70 Astarting current pulse time, µs
1200 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-305 Vsupply voltage, direct current
127-431 Vluminaire power
270 Welectric shock protection
Ipower factor
> 0,97supply voltage
230 Velectrical
starting current
70 A
starting current pulse time, µs
1200 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
127-431 V
luminaire power
270 W
electric shock protection
I
power factor
> 0,97
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІ
material
Алюминий
weight
7 kg
length, mm
463 mm
width, mm
249 mm
height, mm
180 mm
housing color
Белый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK07/2 Дж
installation length, mm
180 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1864000500
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
131 lm/W
color rendition index (CRI)
>80
light flow
35400 lm
flickering factor
<1%
beam angle
D30
color temperature
5000
light source type
LED
emission color
Белый
model files
model files
photometric files
documents
сертификаты

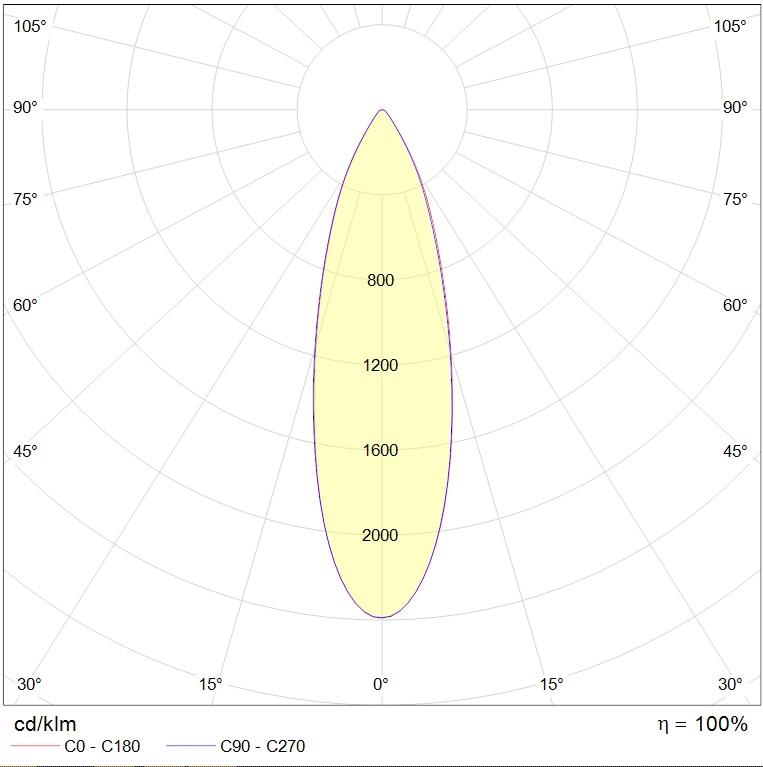

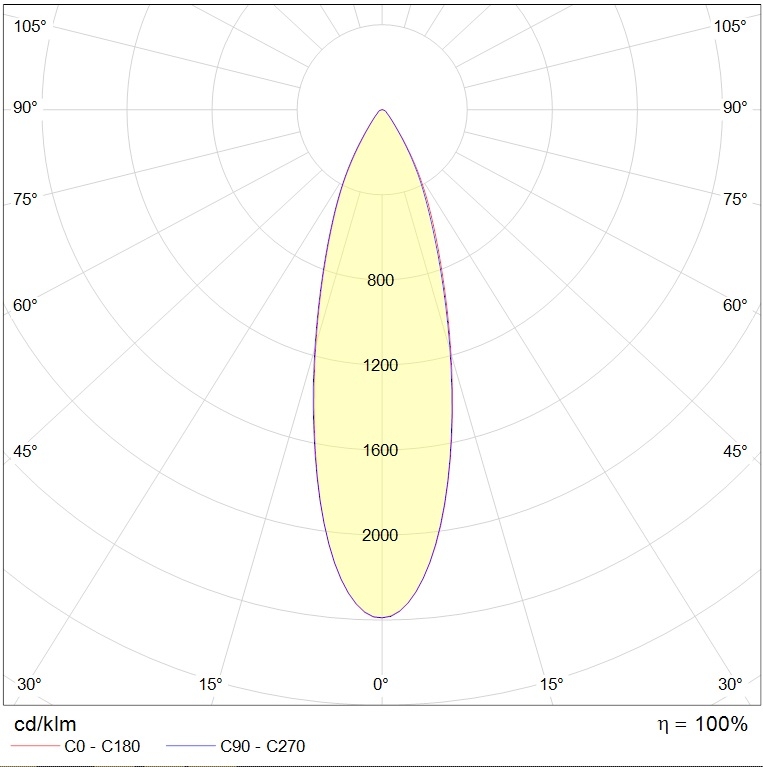

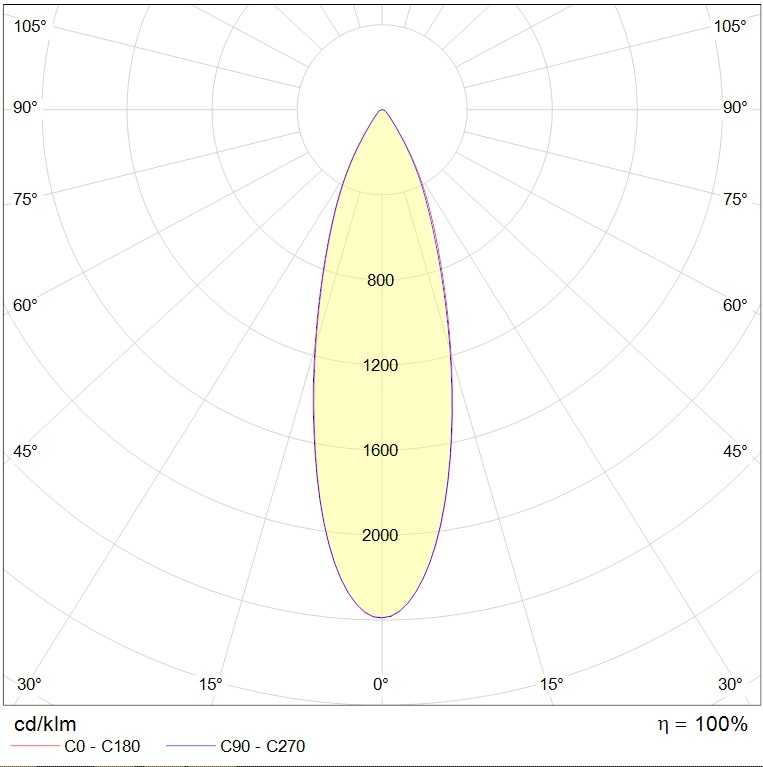

photometric files
jpg84.5 kB
ldt165.5 kB
documents
passport7.4 mB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
