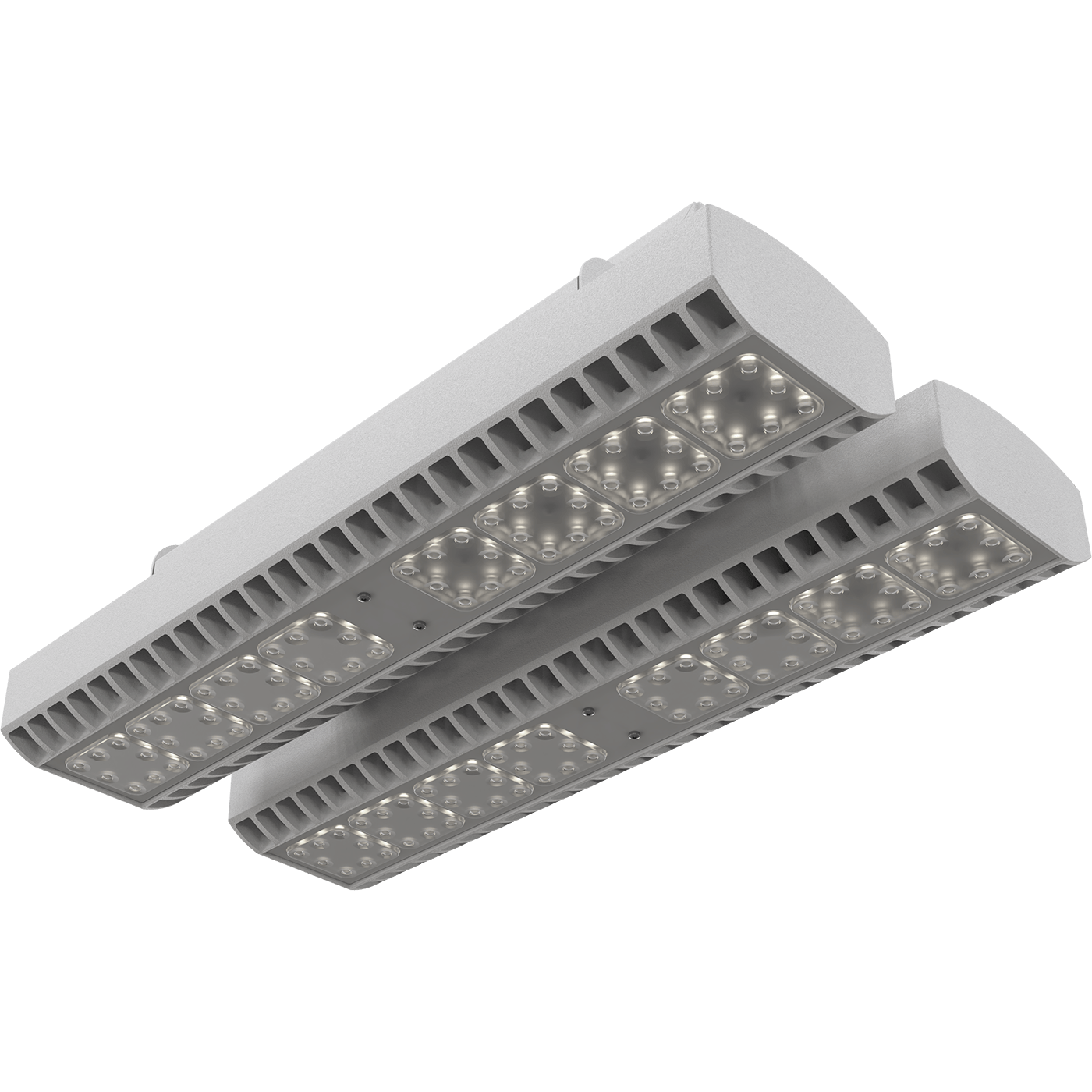

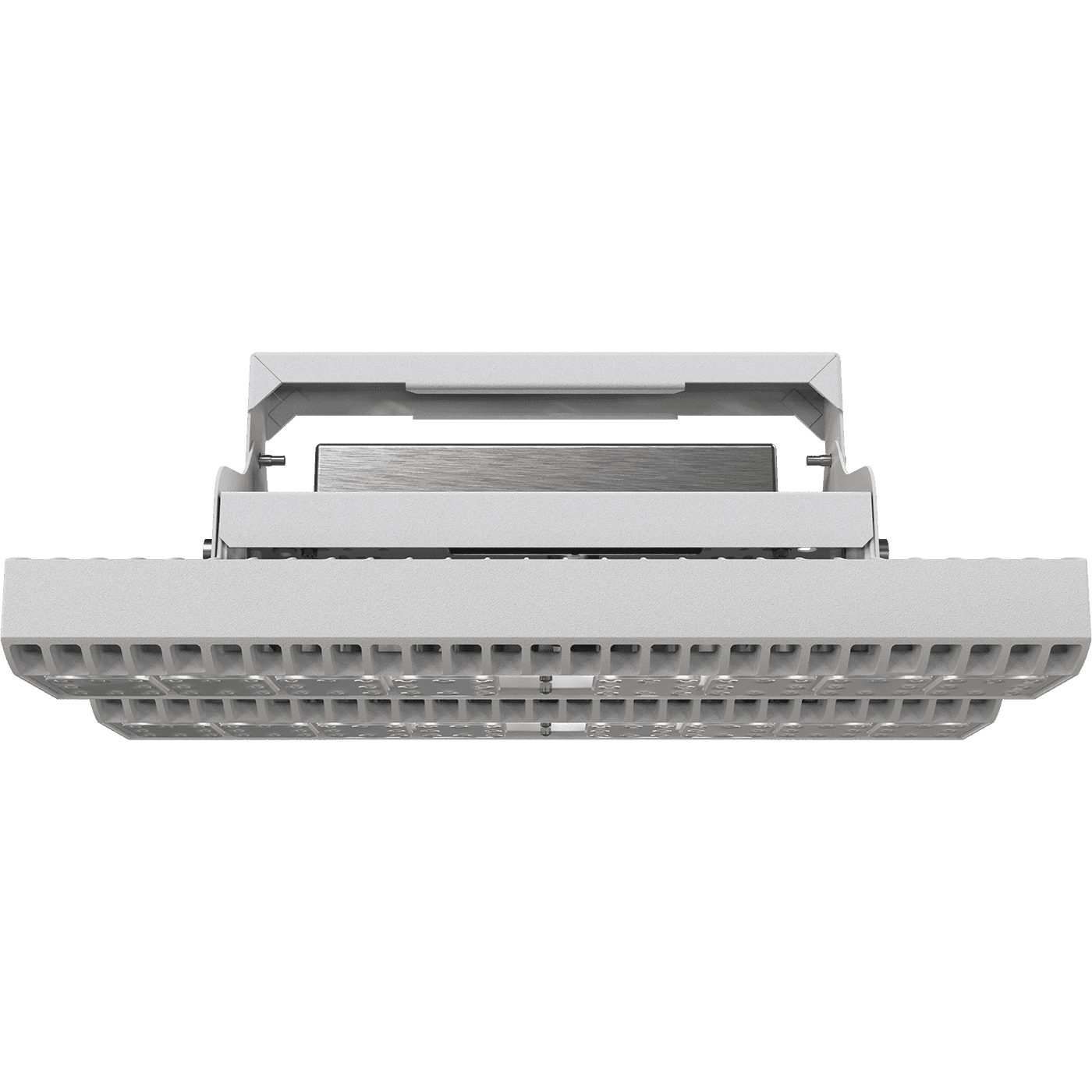

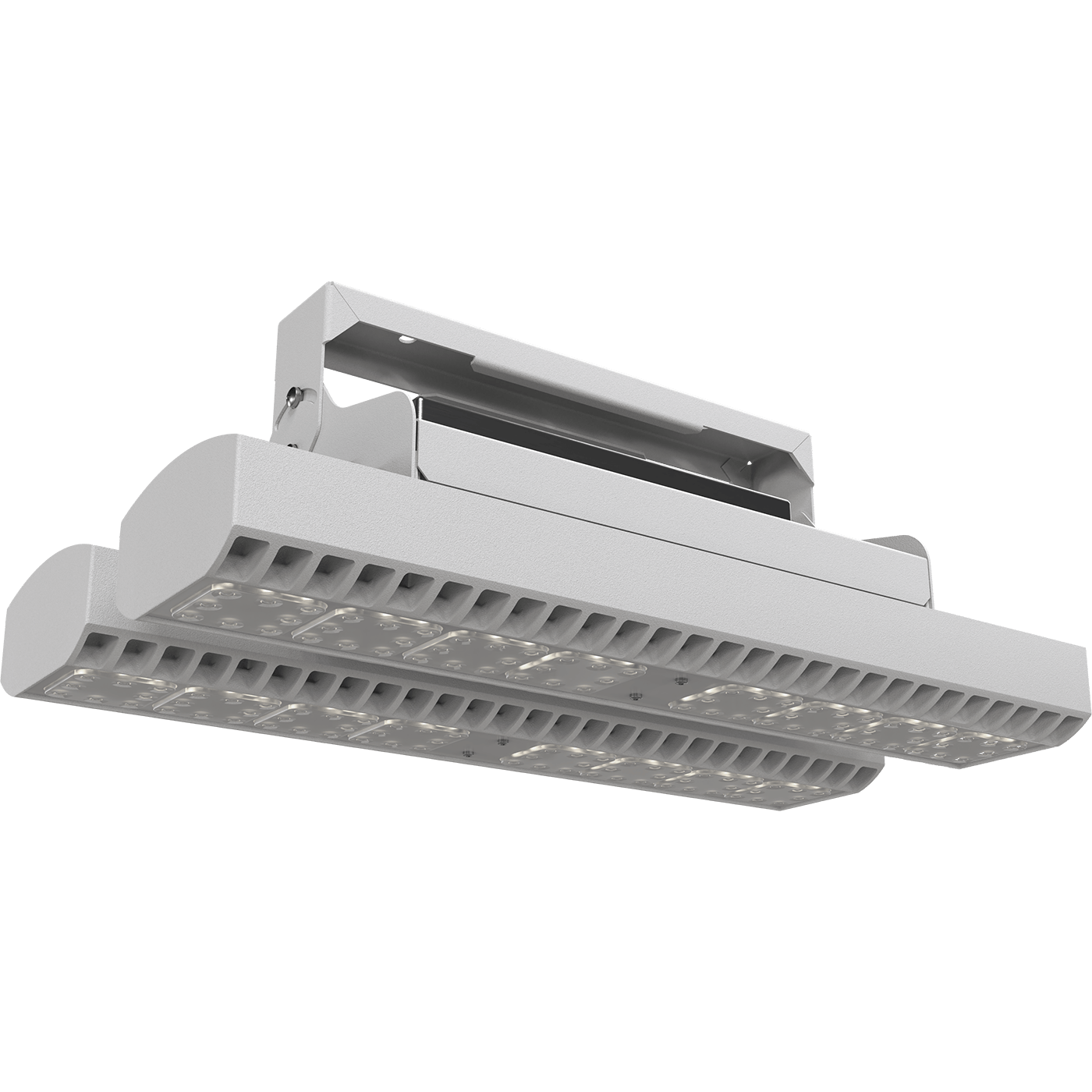

FORWARD 300W D130 840 WH SB
FORWARD 300W D130 840 WH SB
270 Wluminaire power
35400 lmlight flow
131 lm/Wenergy efficiency
code1864001370
beam angleD130
color temperature4000 K
weight7 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
131 lm/Wcolor rendition index (CRI)
>80light flow
35400 lmflickering factor
<1%beam angle
D130color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
131 lm/W
color rendition index (CRI)
>80
light flow
35400 lm
flickering factor
<1%
beam angle
D130
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
270 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
power factor
> 0,97

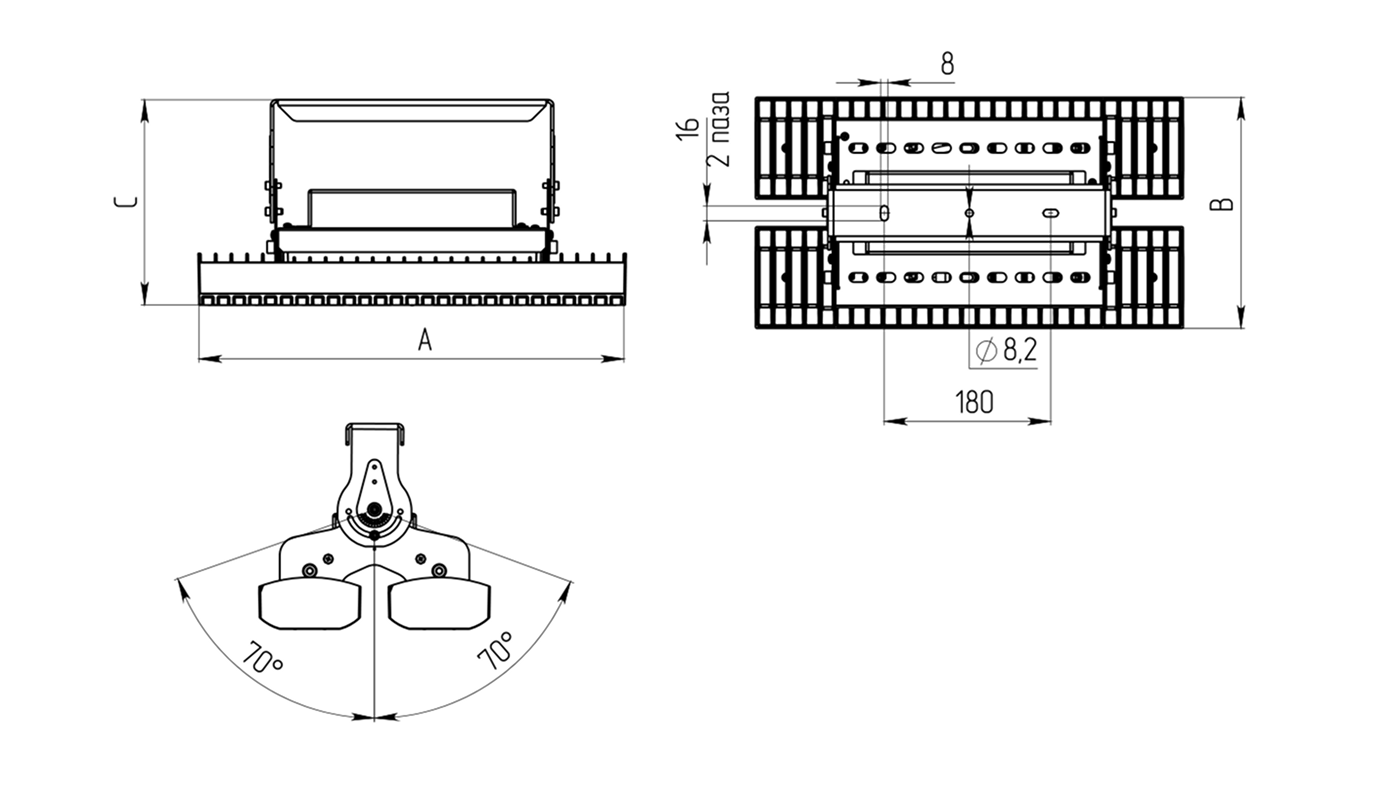

constructional
fire safety class
П-ІІ
length
463 mm
height
180 mm
installation length
180 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
width
249 mm
material
Алюминий
climatic performance
УХЛ1*
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
7 kg
common
code
1864001370
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files

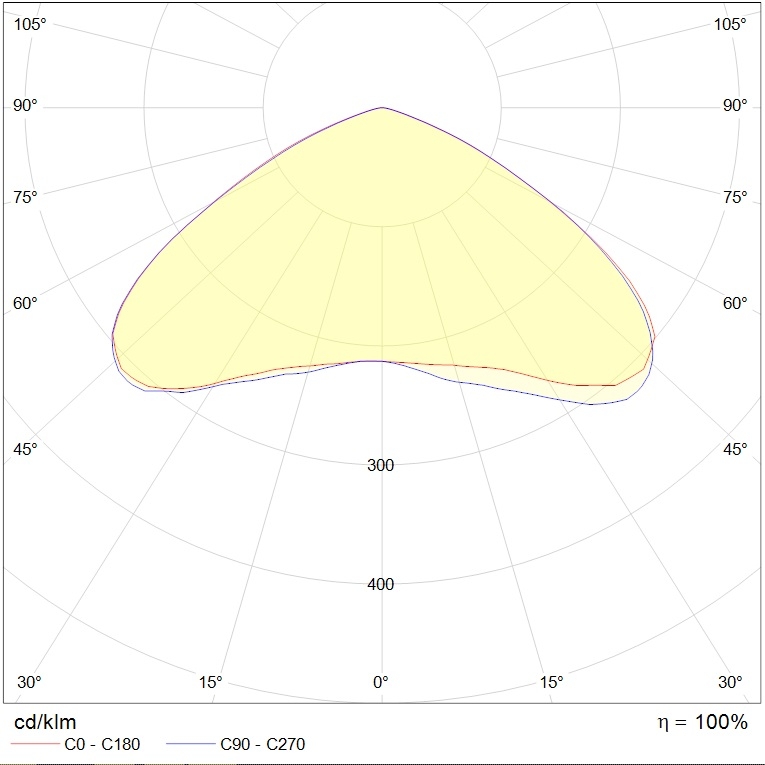

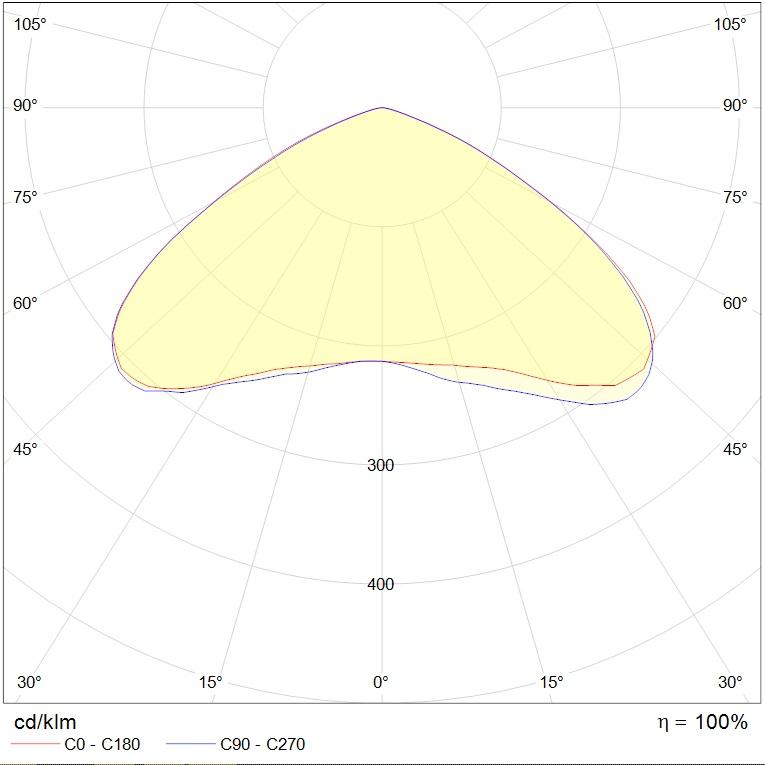

photometric files
сертификаты
photometric files
ies107 kB
jpg77.9 kB
ldt65.5 kB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.4 mB
Declaration of Conformity EAEU TR 037/2016555.9 kB
