FORWARD 150W D130 840 WH SB
FORWARD 150W D130 840 WH SB
140 Wluminaire power
17800 lmlight flow
127 lm/Wenergy efficiency
code1864001140
beam angleD130
color temperature4000 K
weight4 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
127 lm/Wcolor rendition index (CRI)
>80light flow
17800 lmflickering factor
<1%beam angle
D130color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
127 lm/W
color rendition index (CRI)
>80
light flow
17800 lm
flickering factor
<1%
beam angle
D130
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
140 W
electric shock protection
I
supply voltage
230 V
power factor
> 0,97
constructional
fire safety class
П-I,II,ІІІ
length
463 mm
height
155 mm
installation length
180 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
width
110 mm
material
Алюминий
climatic performance
УХЛ1*
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
4 kg
common
code
1864001140
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files

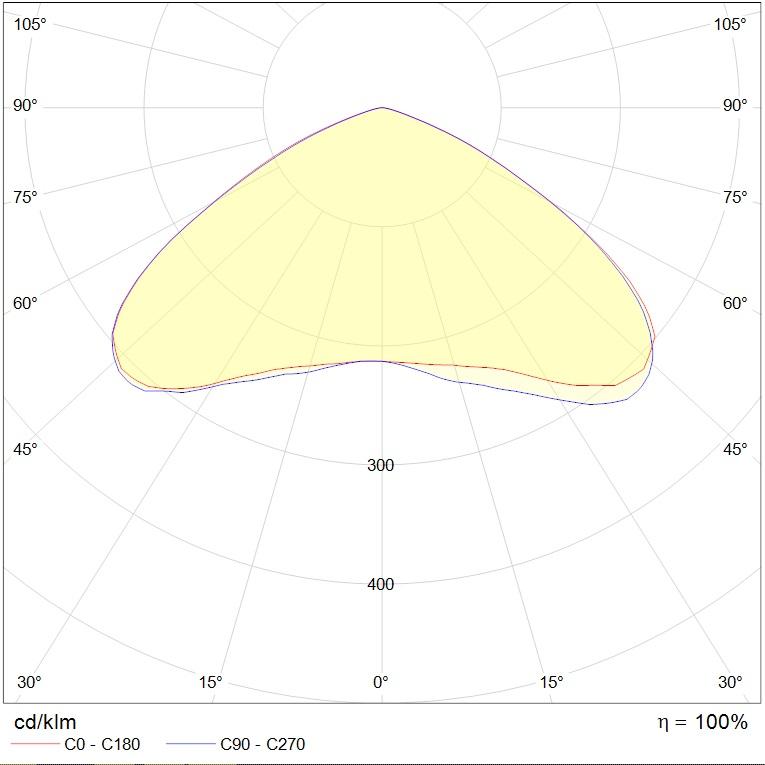

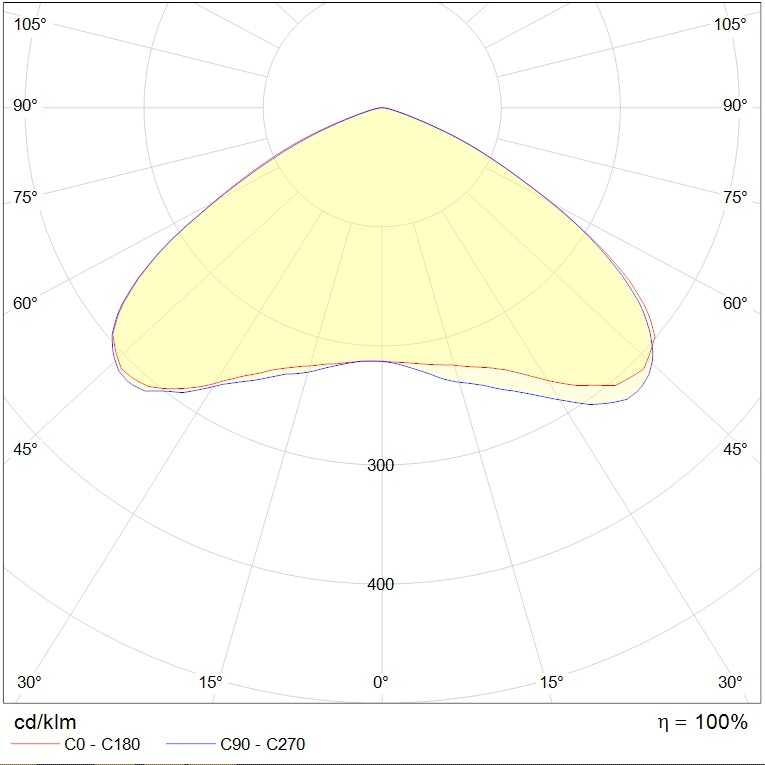

photometric files
сертификаты
photometric files
ies107.1 kB
jpg77.9 kB
ldt65.5 kB
сертификаты
Russian origin329.7 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.4 mB
Declaration of Conformity EAEU TR 037/2016555.9 kB
