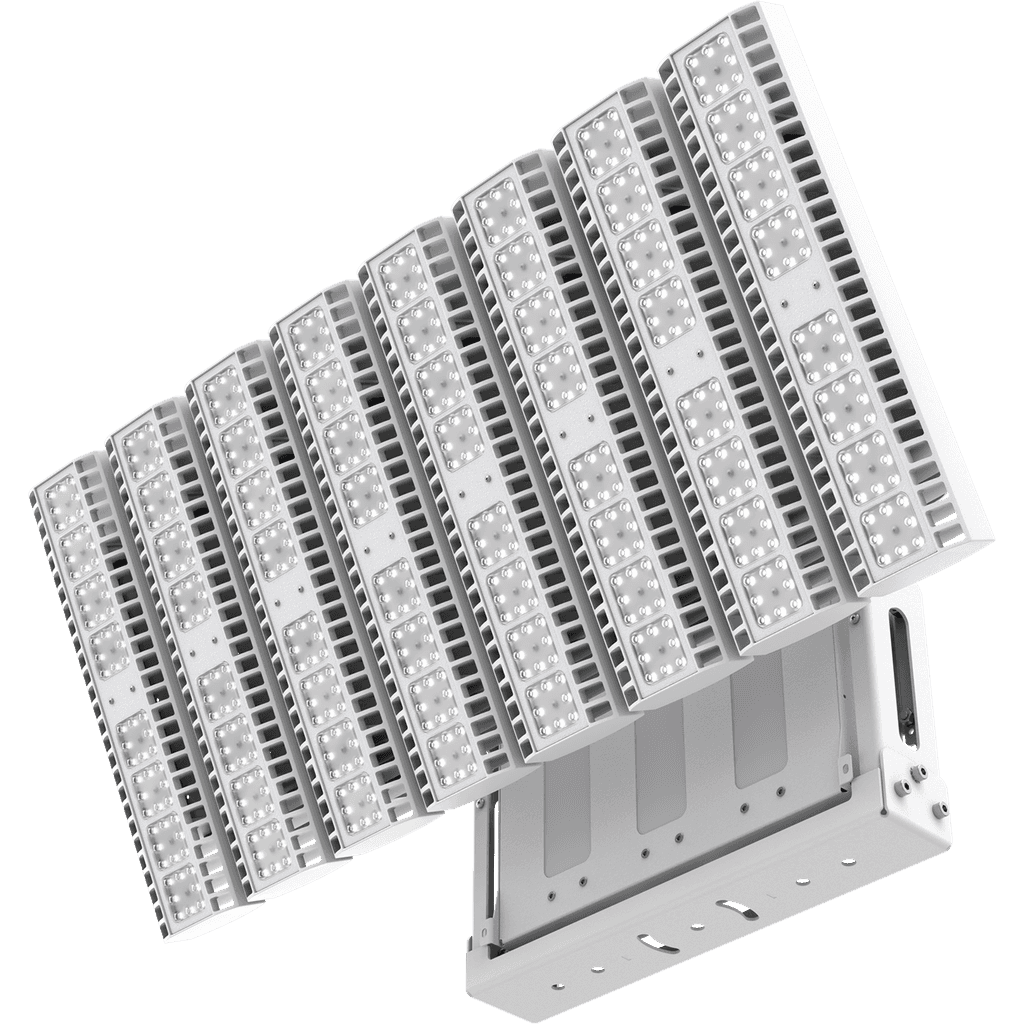

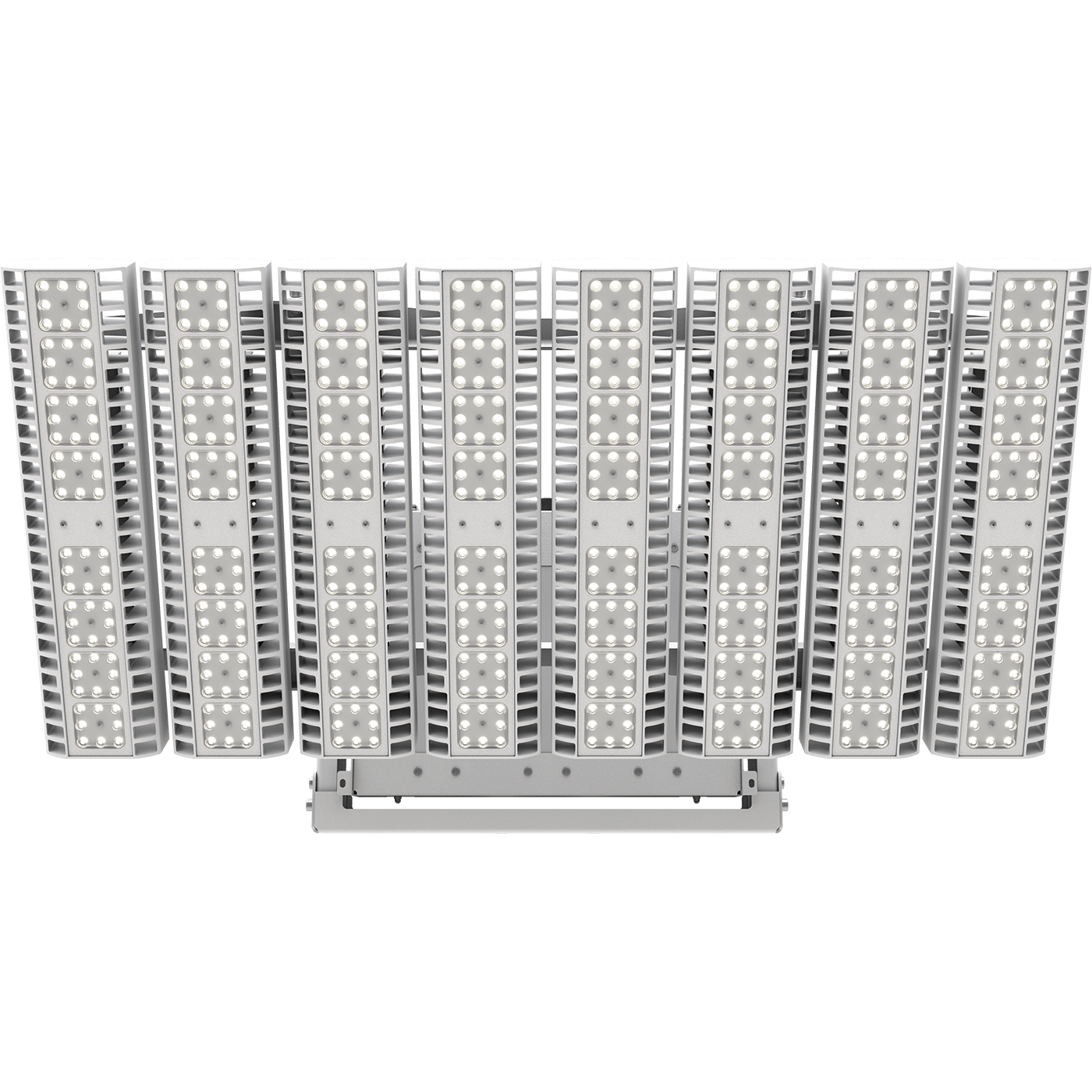

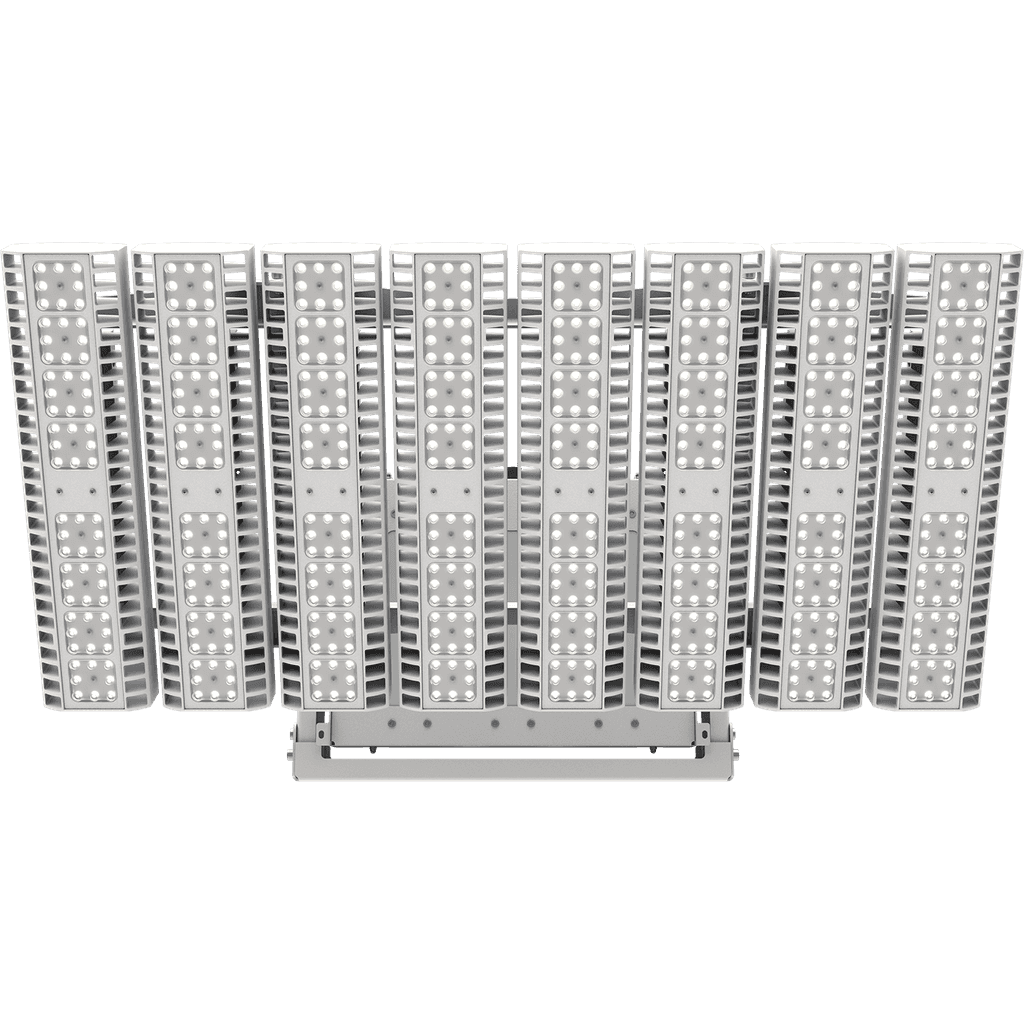

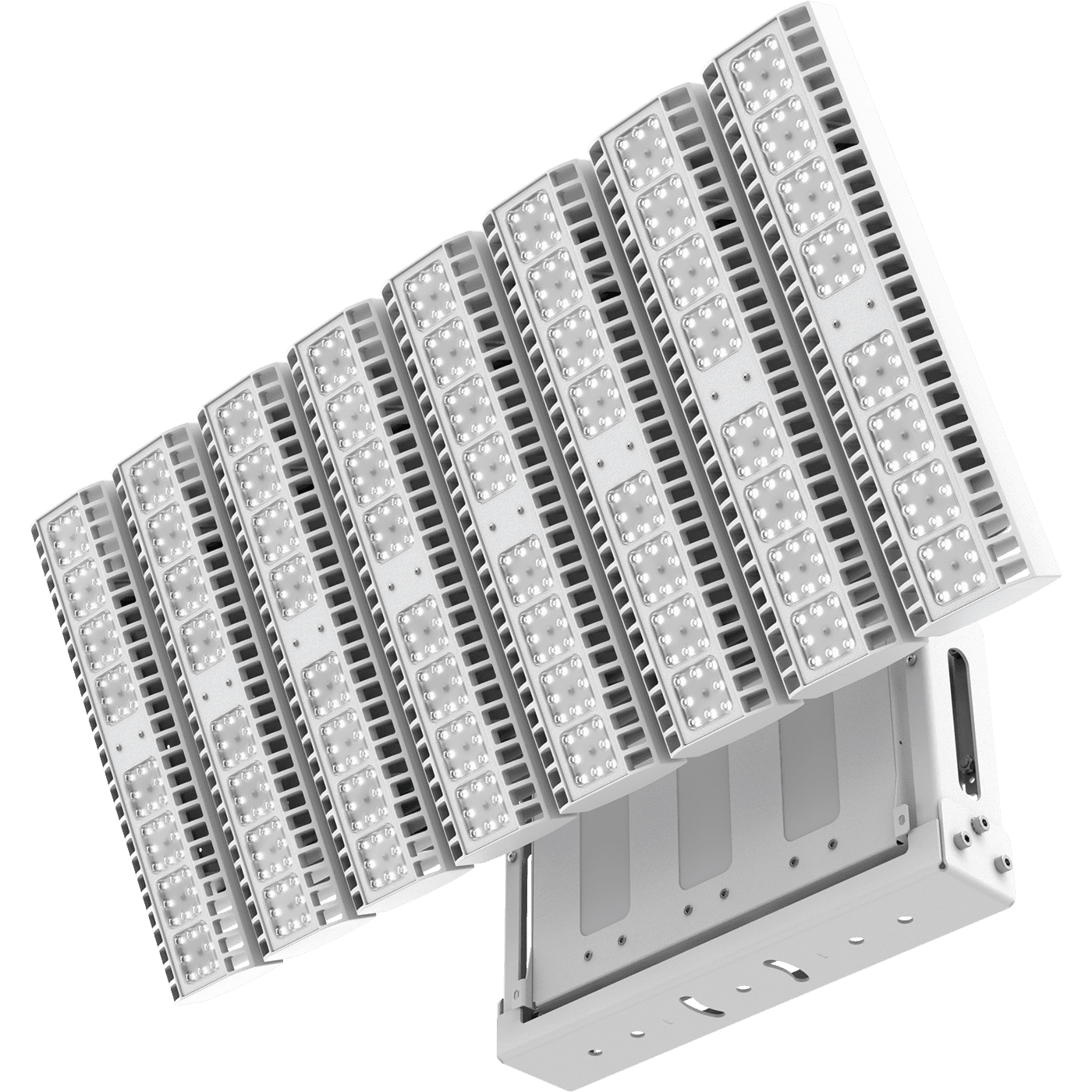

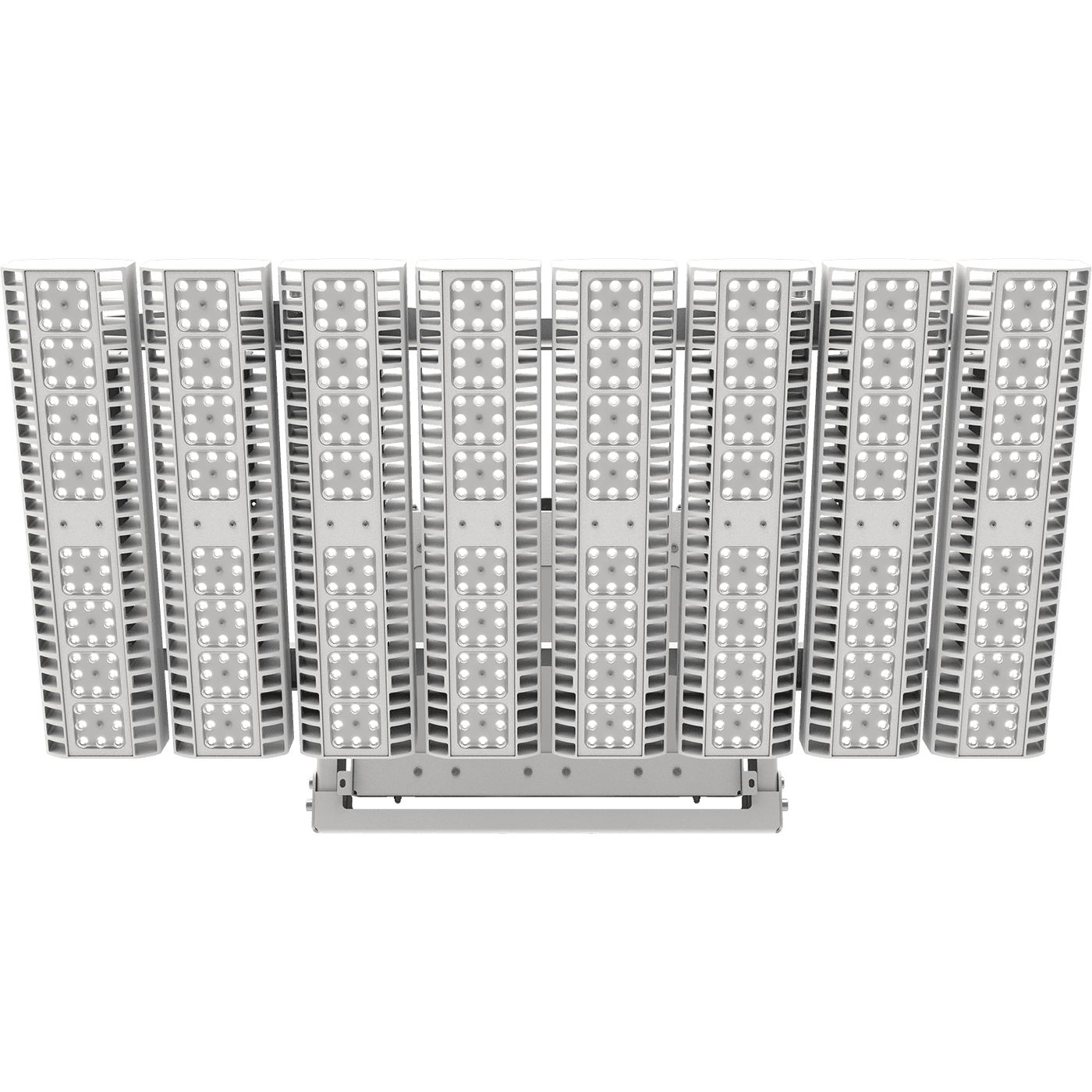

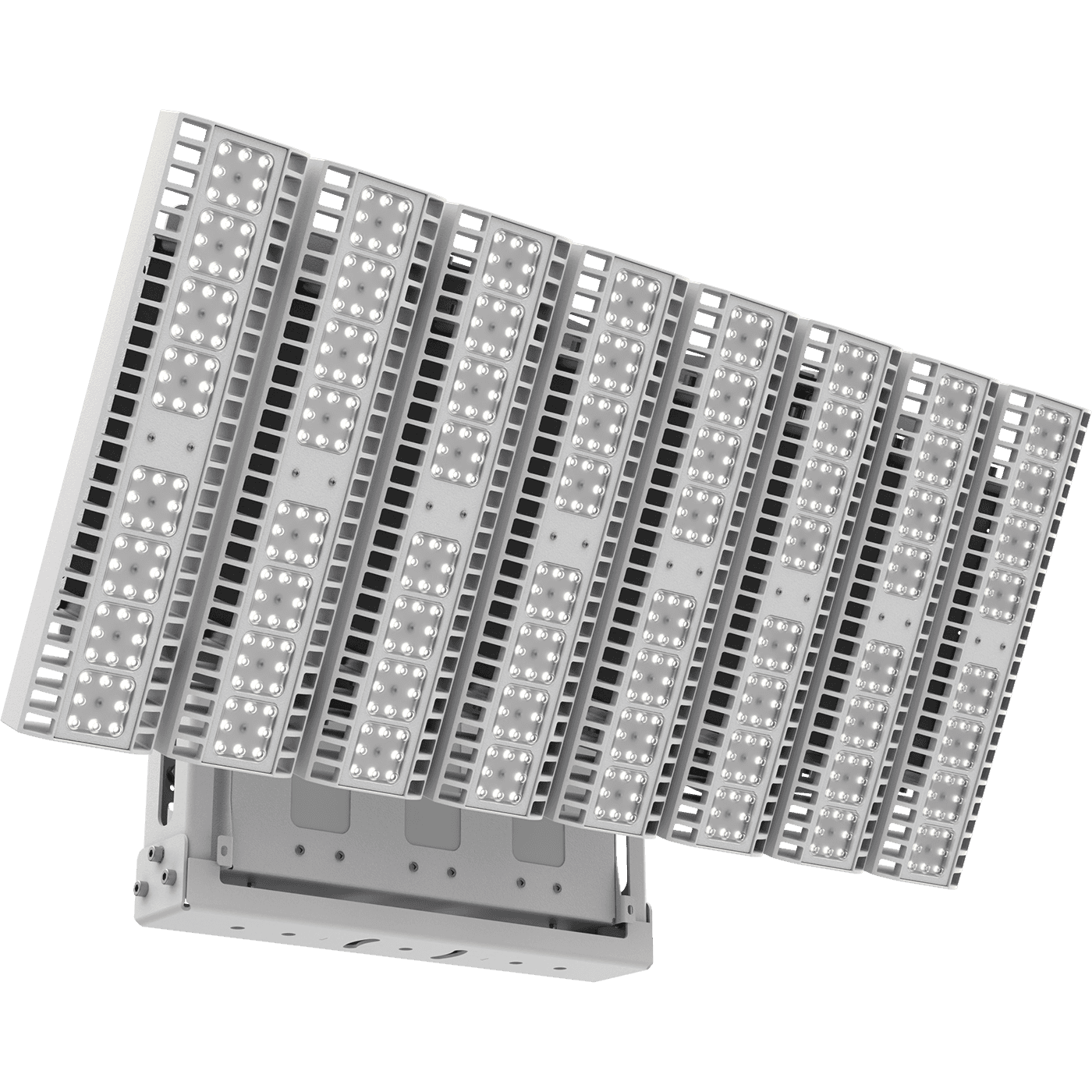

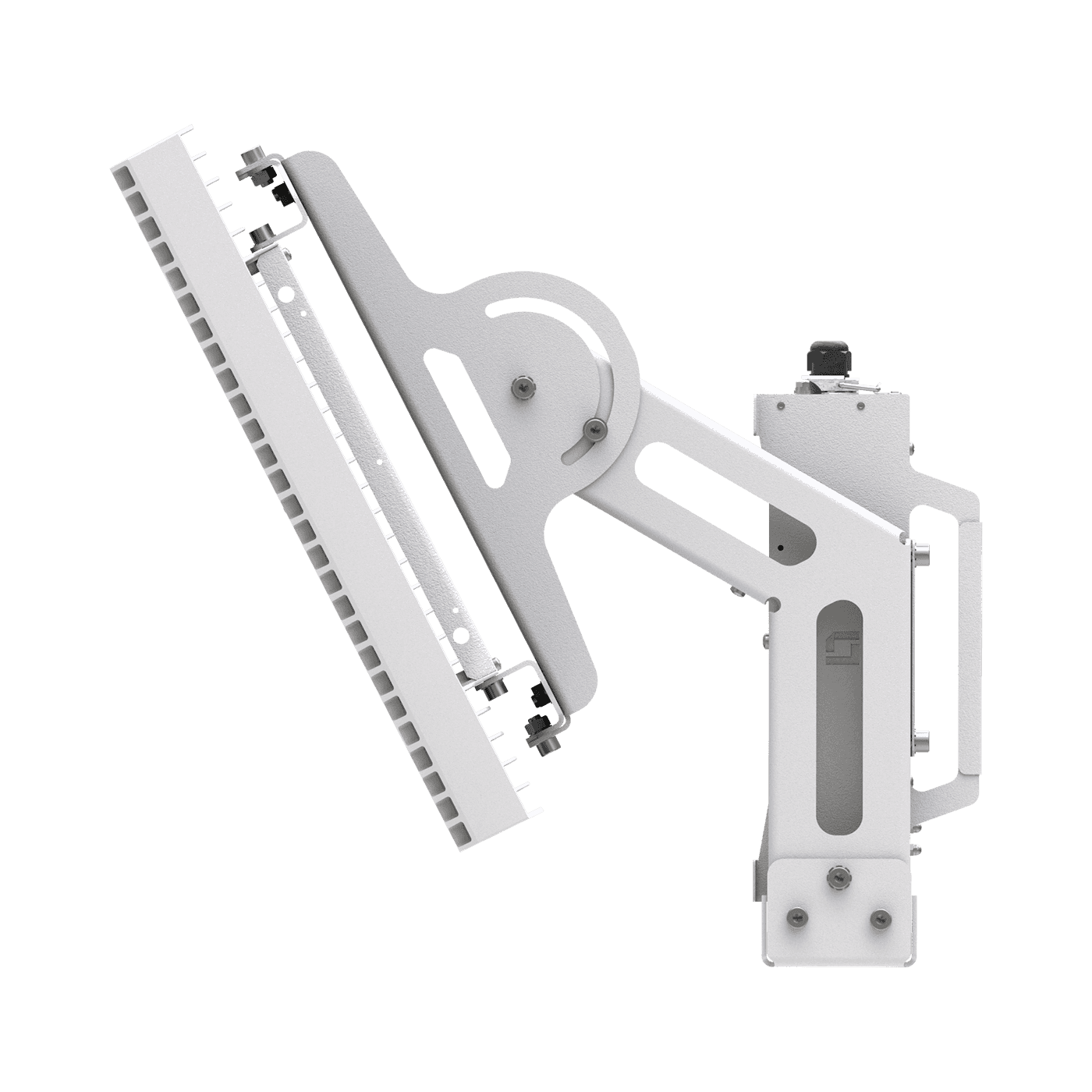

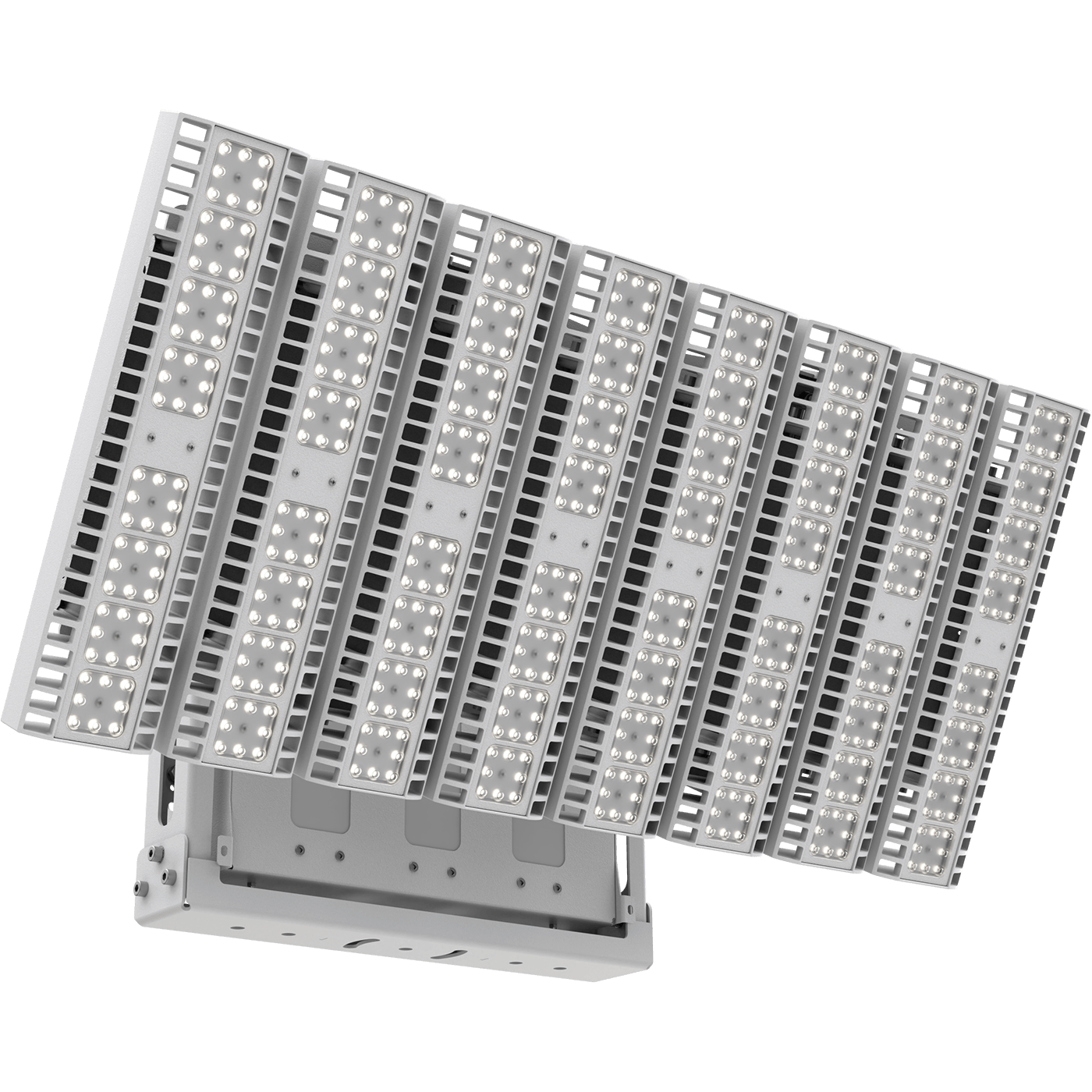

FORWARD 1100W D80 850 WH FB
FORWARD 1100W D80 850 WH FB
1050 Wluminaire power
140000 lmlight flow
133 lm/Wenergy efficiency
code1864003880
beam angleD80
color temperature5000
weight33 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
133 lm/Wcolor rendition index (CRI)
>80light flow
140000 lmflickering factor
<1%beam angle
D80color temperature
5000light source type
LEDemission color
Белыйilluminating
energy efficiency
133 lm/W
color rendition index (CRI)
>80
light flow
140000 lm
flickering factor
<1%
beam angle
D80
color temperature
5000
light source type
LED
emission color
Белый
electrical
luminaire power
1050 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,97
constructional
climatic performance
УХЛ1*
fire safety class
П-I,II,ІІІ
width, mm
535 mm
height, mm
360 mm
installation length, mm
340 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length, mm
950 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
33 kg
common
code
1864003880
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life, hour
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files

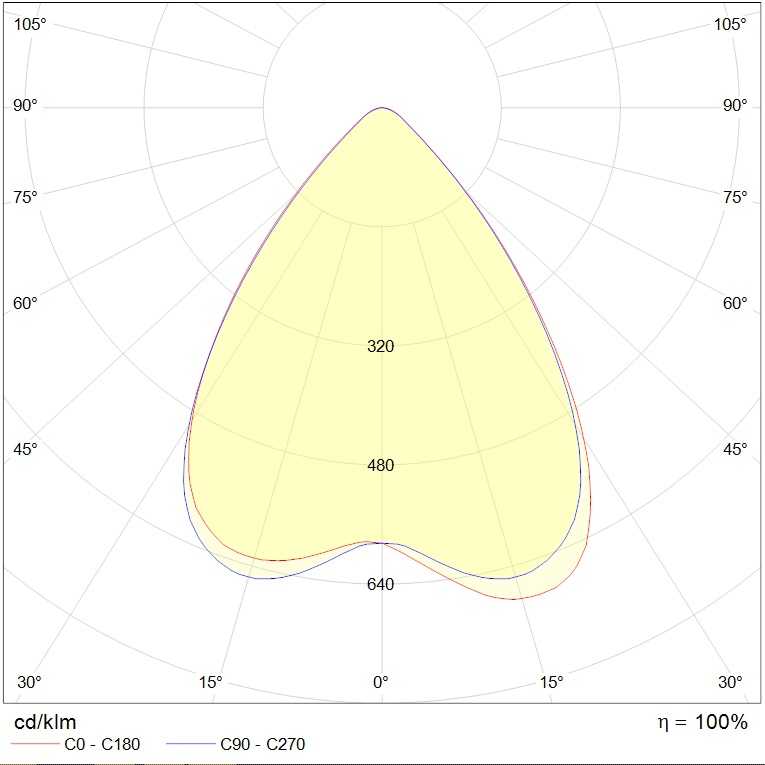

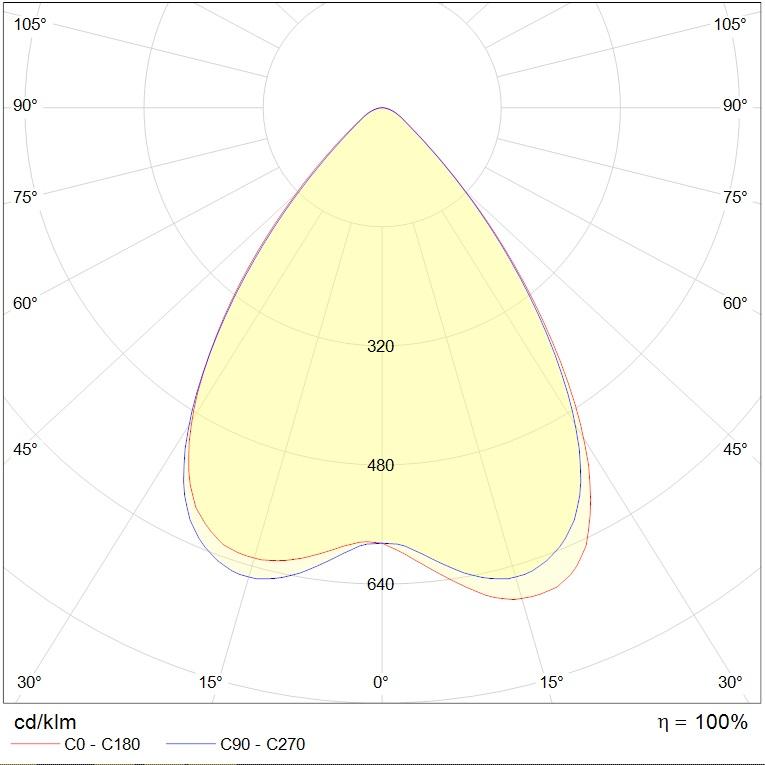

photometric files
сертификаты
photometric files
ies107 kB
jpg80.6 kB
ldt65.6 kB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
