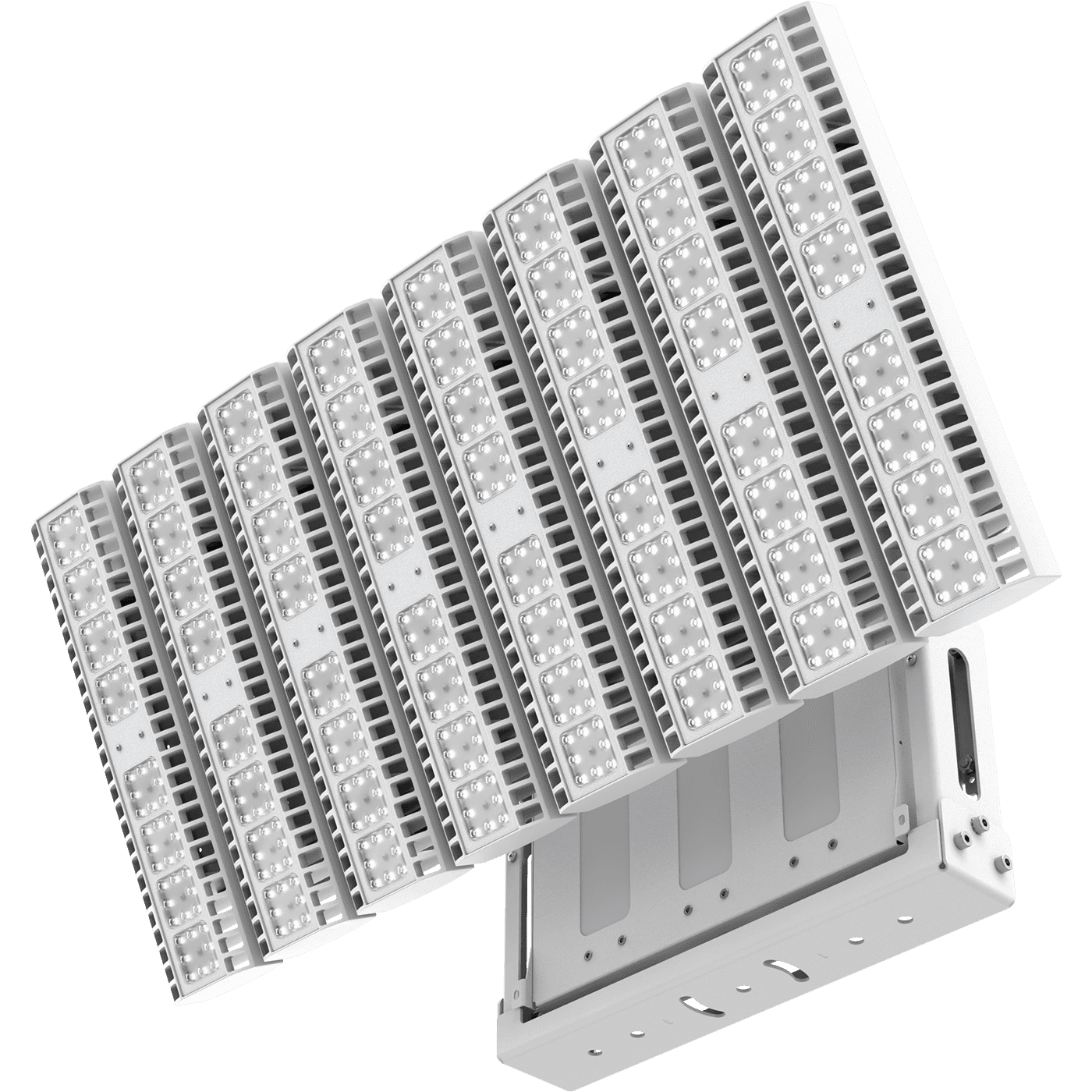

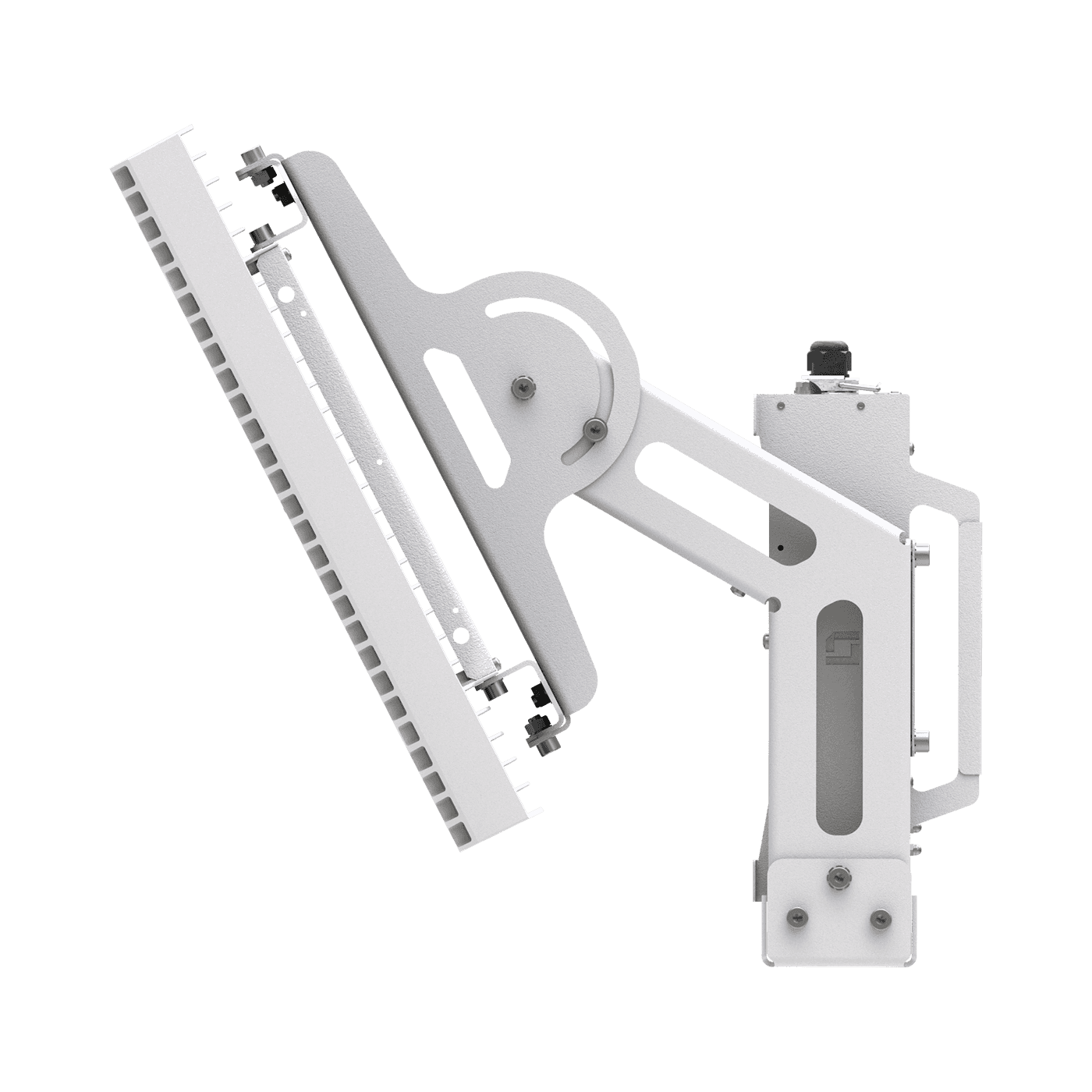

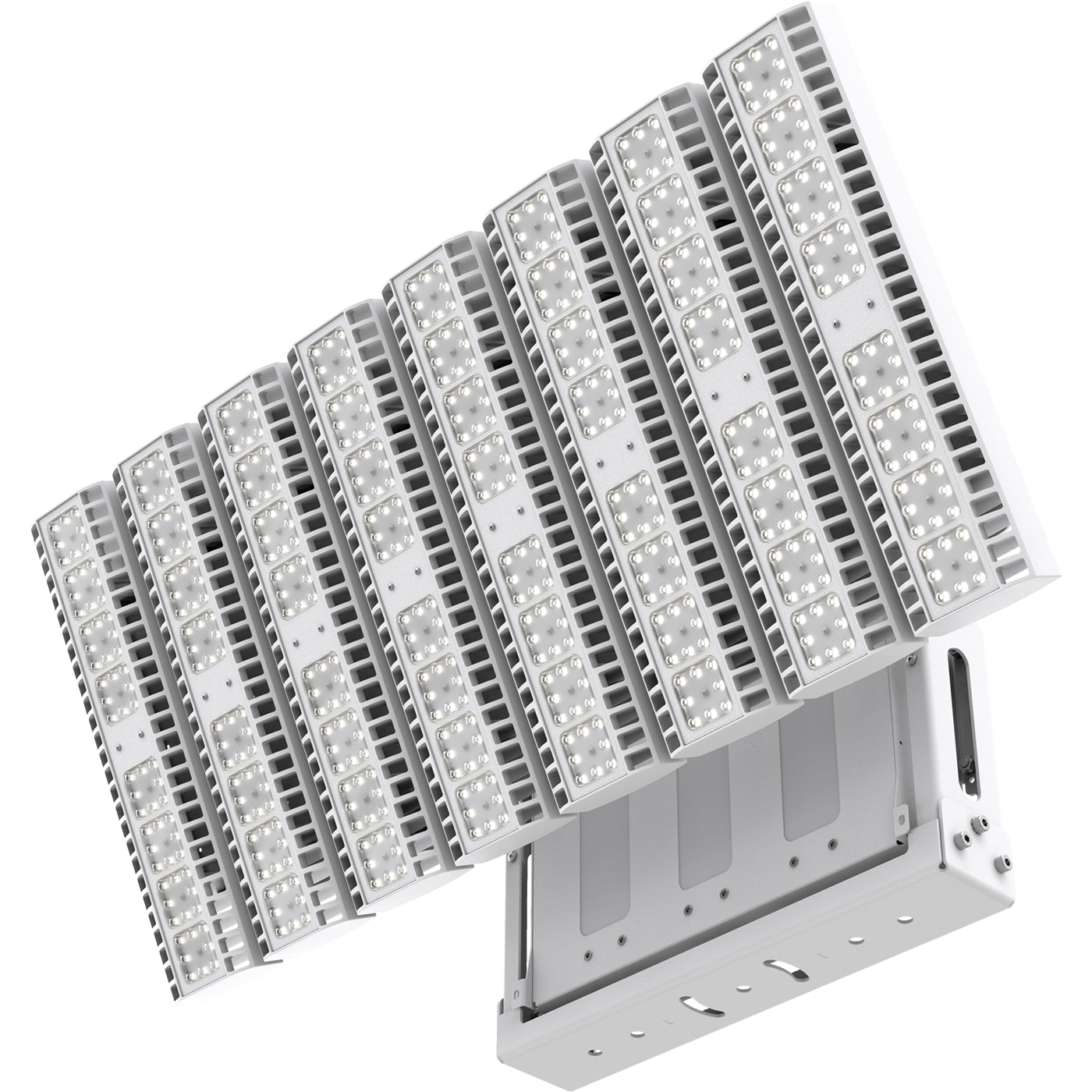

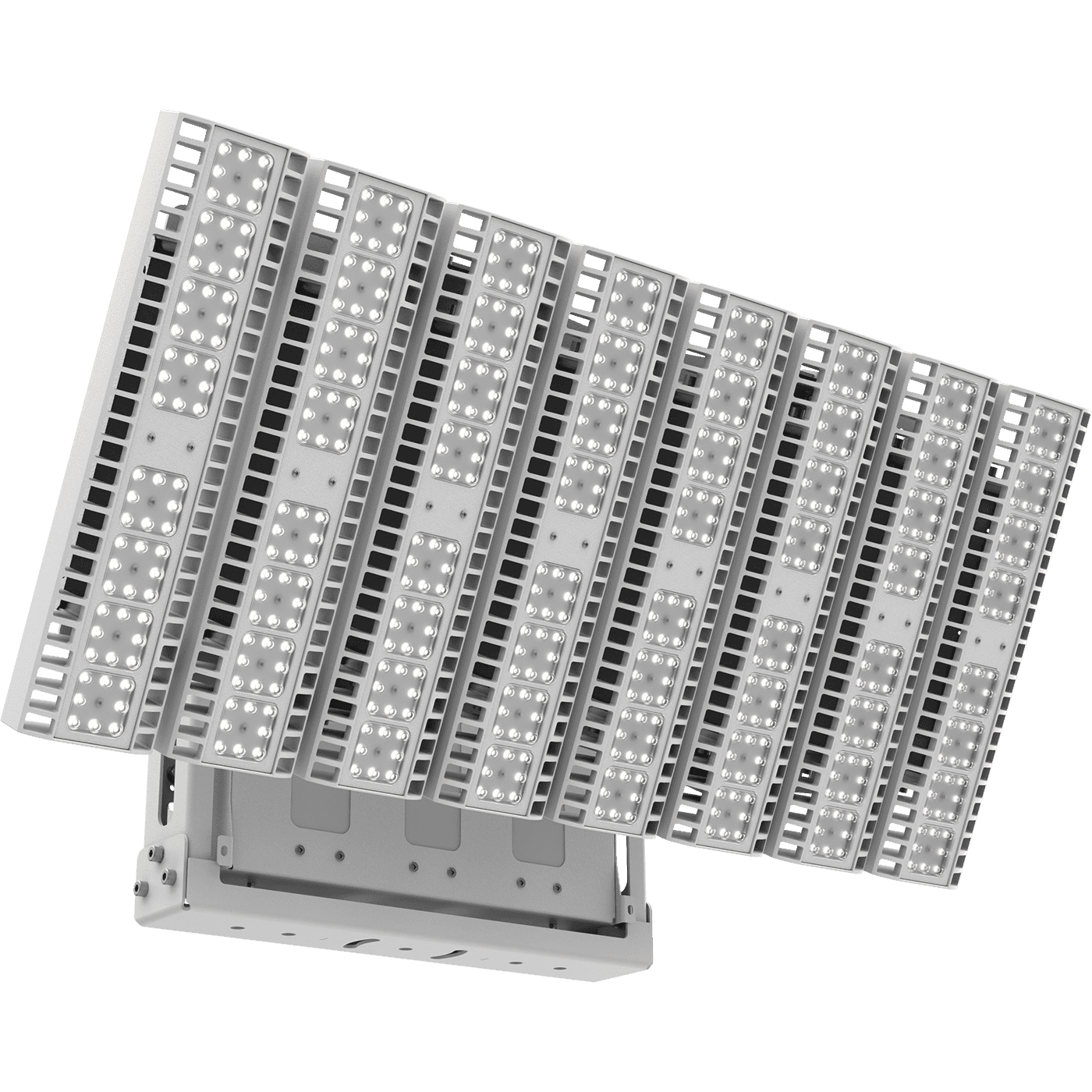

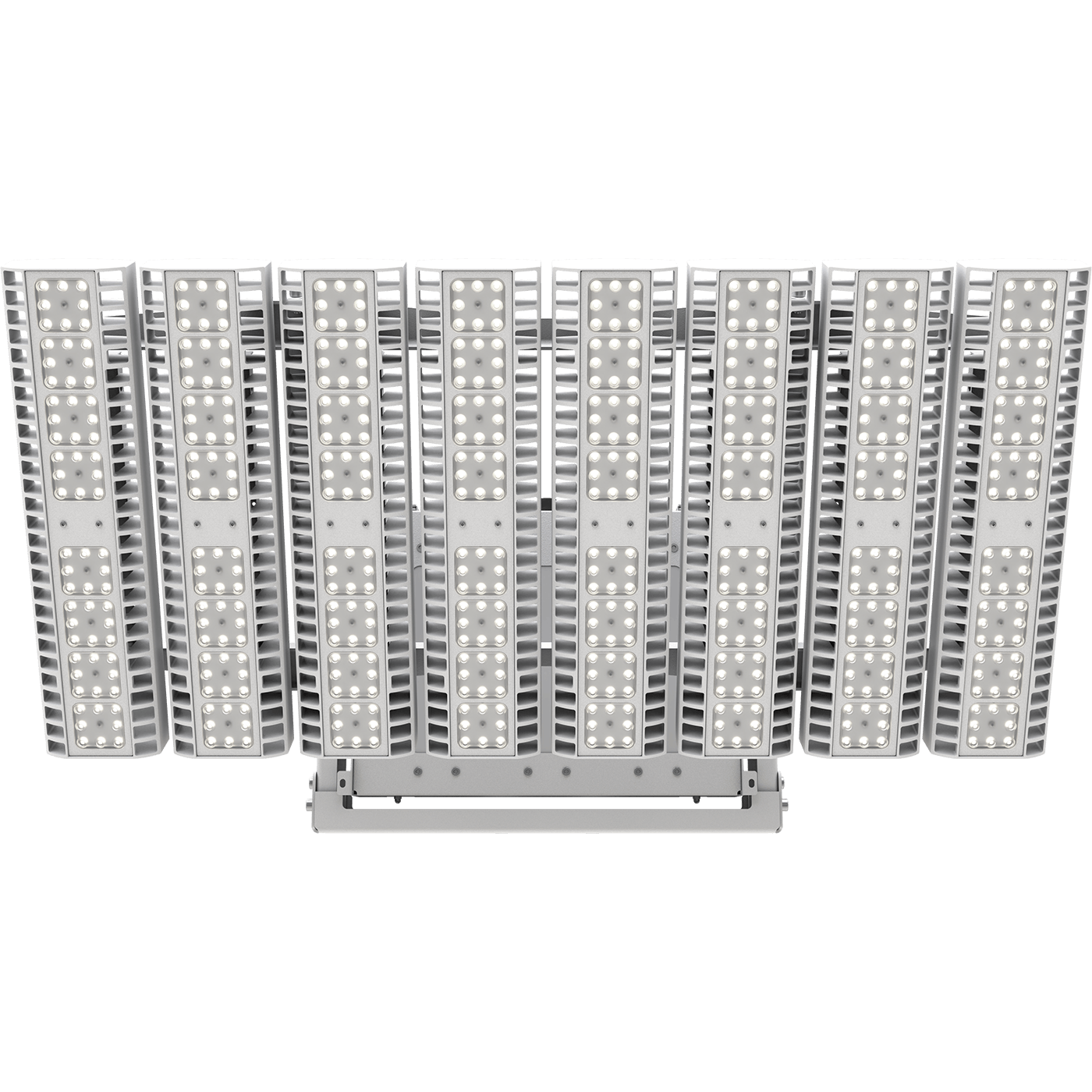

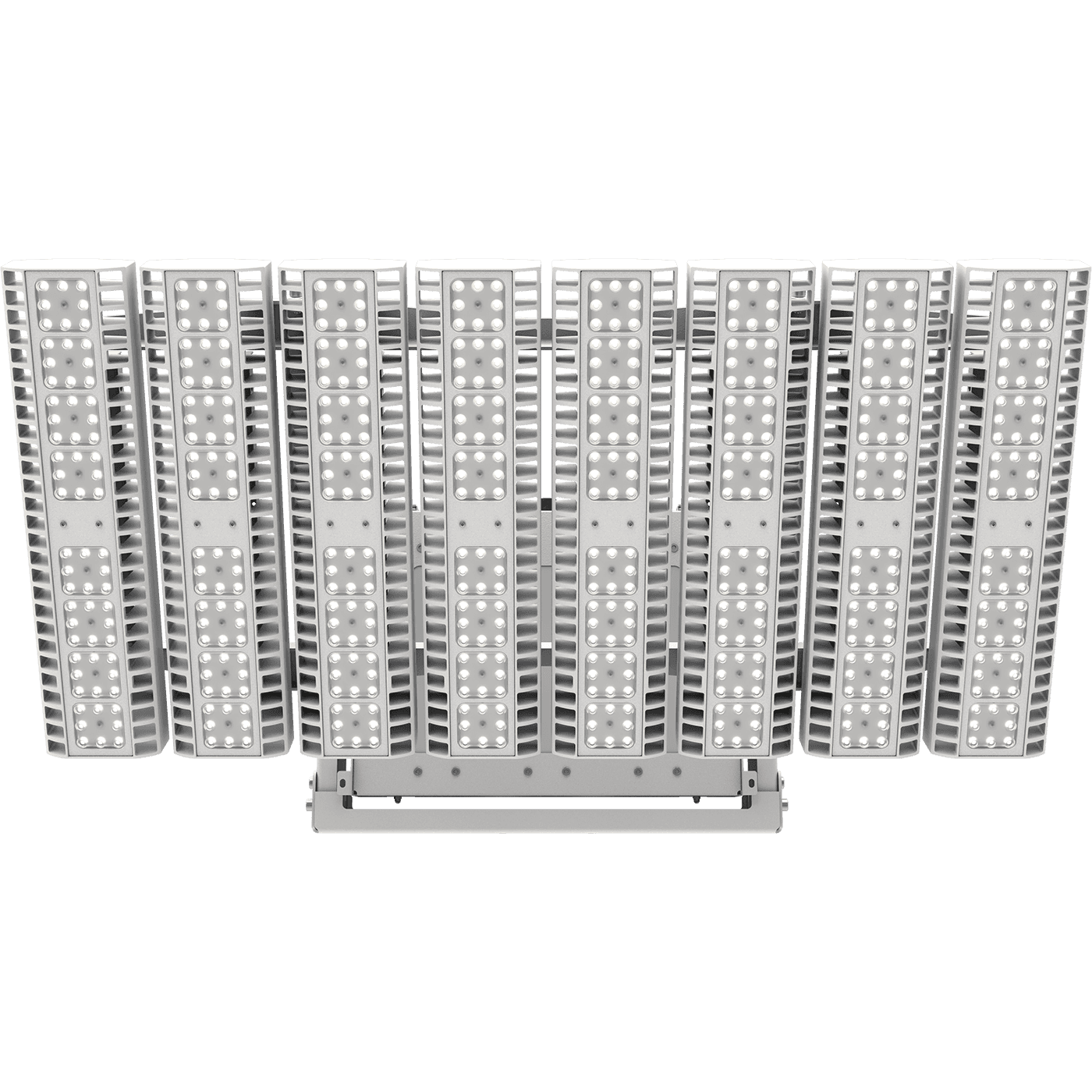

FORWARD 1100W D30 840 WH FB
FORWARD 1100W D30 840 WH FB
1050 Wluminaire power
140000 lmlight flow
133 lm/Wenergy efficiency
code1864003330
beam angleD30
color temperature4000
weight33 kg
options
свернуть все
constructionalelectricalcommonilluminating
ingress protection (IP)
IP66housing color
Белыйlength, mm
950 mmwidth, mm
535 mmheight, mm
360 mmweight
33 kgfire safety class
П-I,II,ІІІclimatic performance
УХЛ1*maximum cross-section of the connected cable, sq. mm
2.5material
Алюминийshock resistance (IK)
IK07/2 Джinstallation length, mm
340 mmlamp socket
LEDnumber of lamps
1ballast
Драйверconstructional
ingress protection (IP)
IP66
housing color
Белый
length, mm
950 mm
width, mm
535 mm
height, mm
360 mm
weight
33 kg
fire safety class
П-I,II,ІІІ
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
material
Алюминий
shock resistance (IK)
IK07/2 Дж
installation length, mm
340 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
electrical
electric shock protection
I
luminaire power
1050 W
power factor
> 0,97
supply voltage
230 V
common
code
1864003330
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>80
light flow
140000 lm
energy efficiency
133 lm/W
flickering factor
<1%
beam angle
D30
color temperature
4000
light source type
LED
emission color
Белый
model files
model files

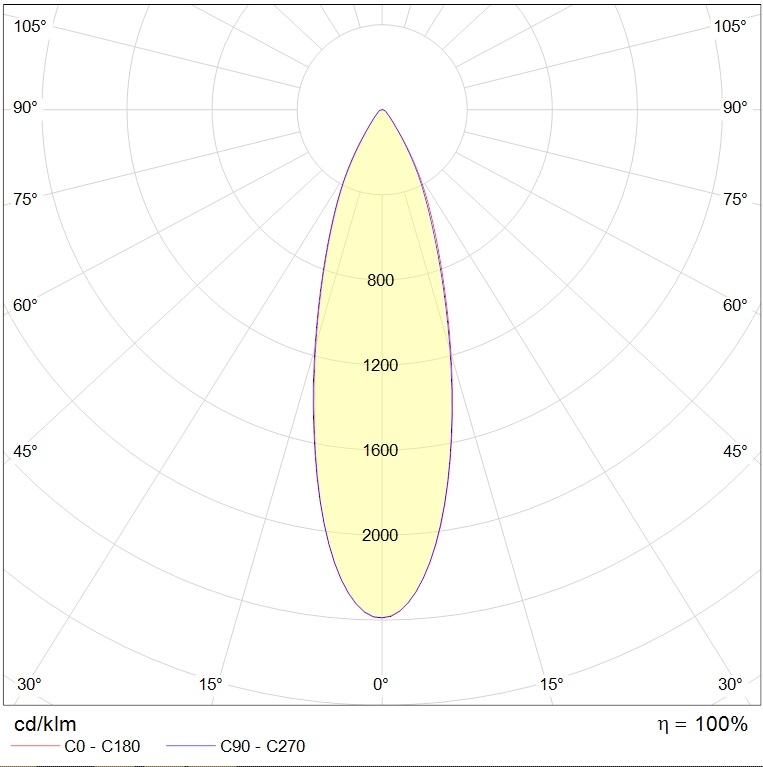

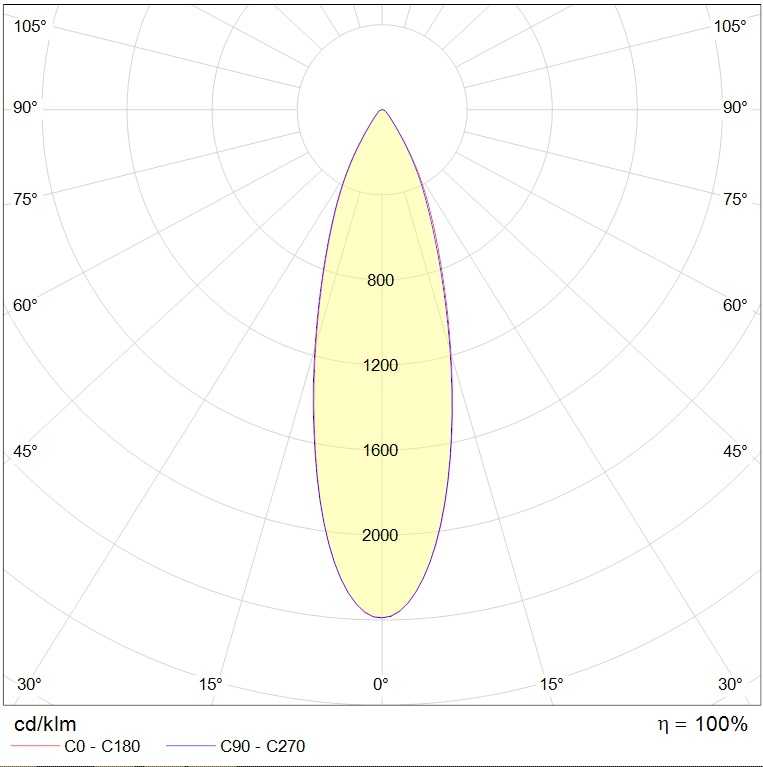

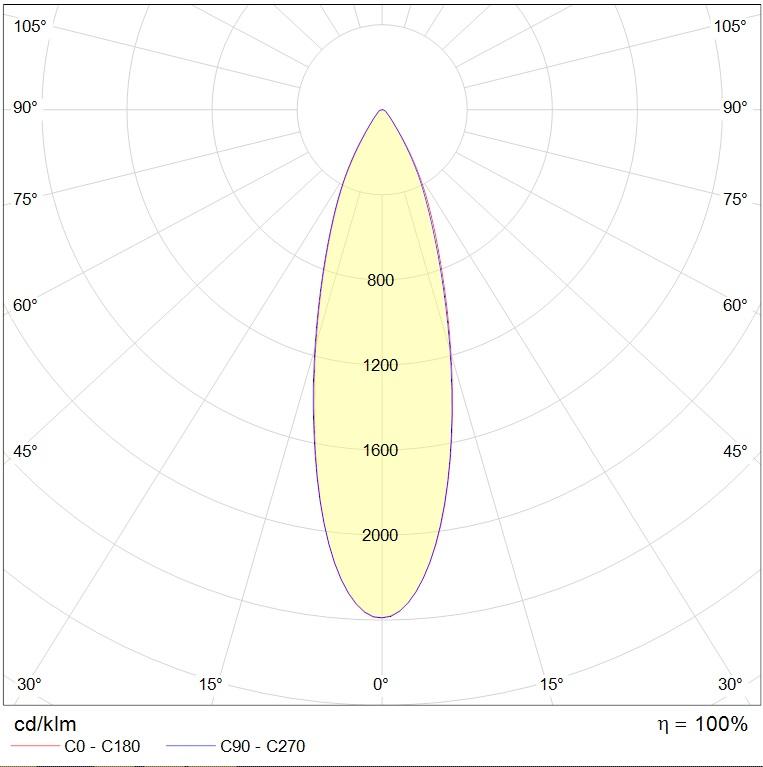

photometric files
сертификаты
photometric files
jpg84.5 kB
ldt165.5 kB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
