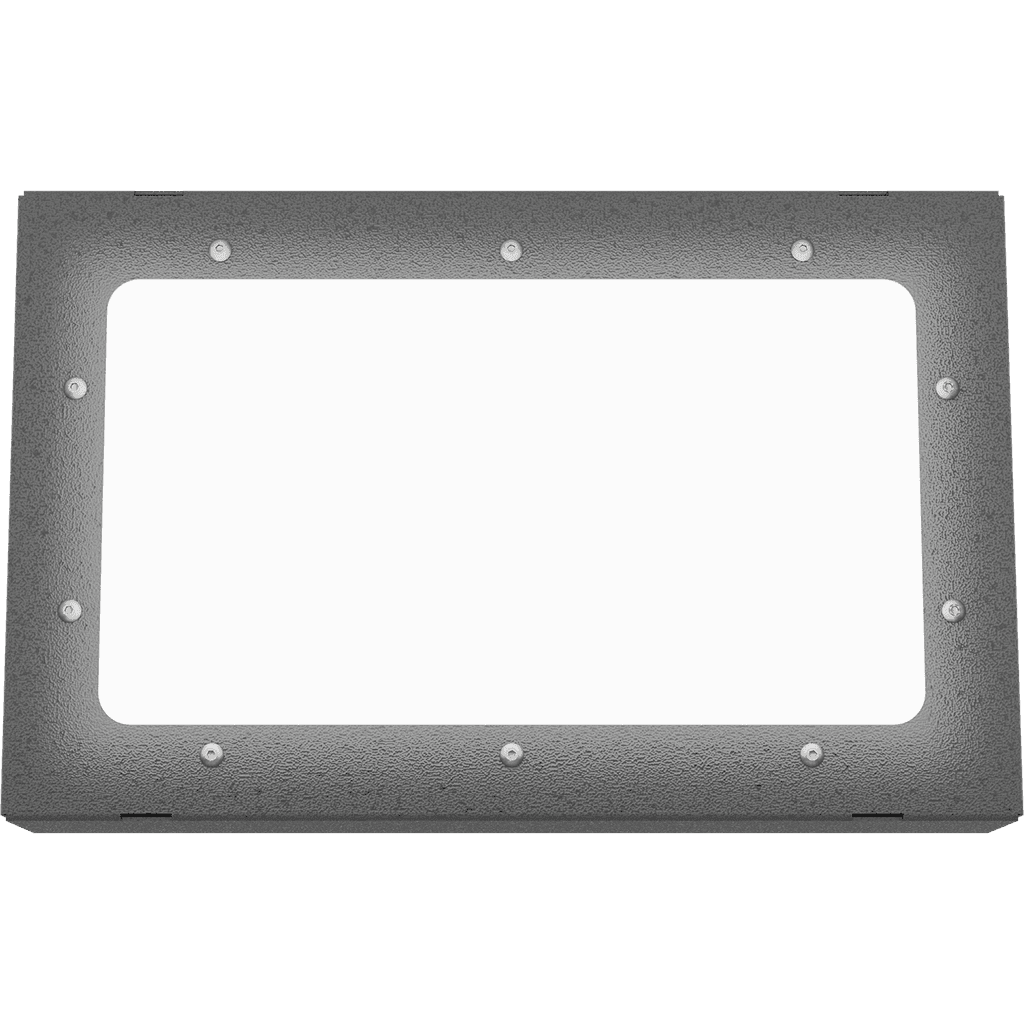

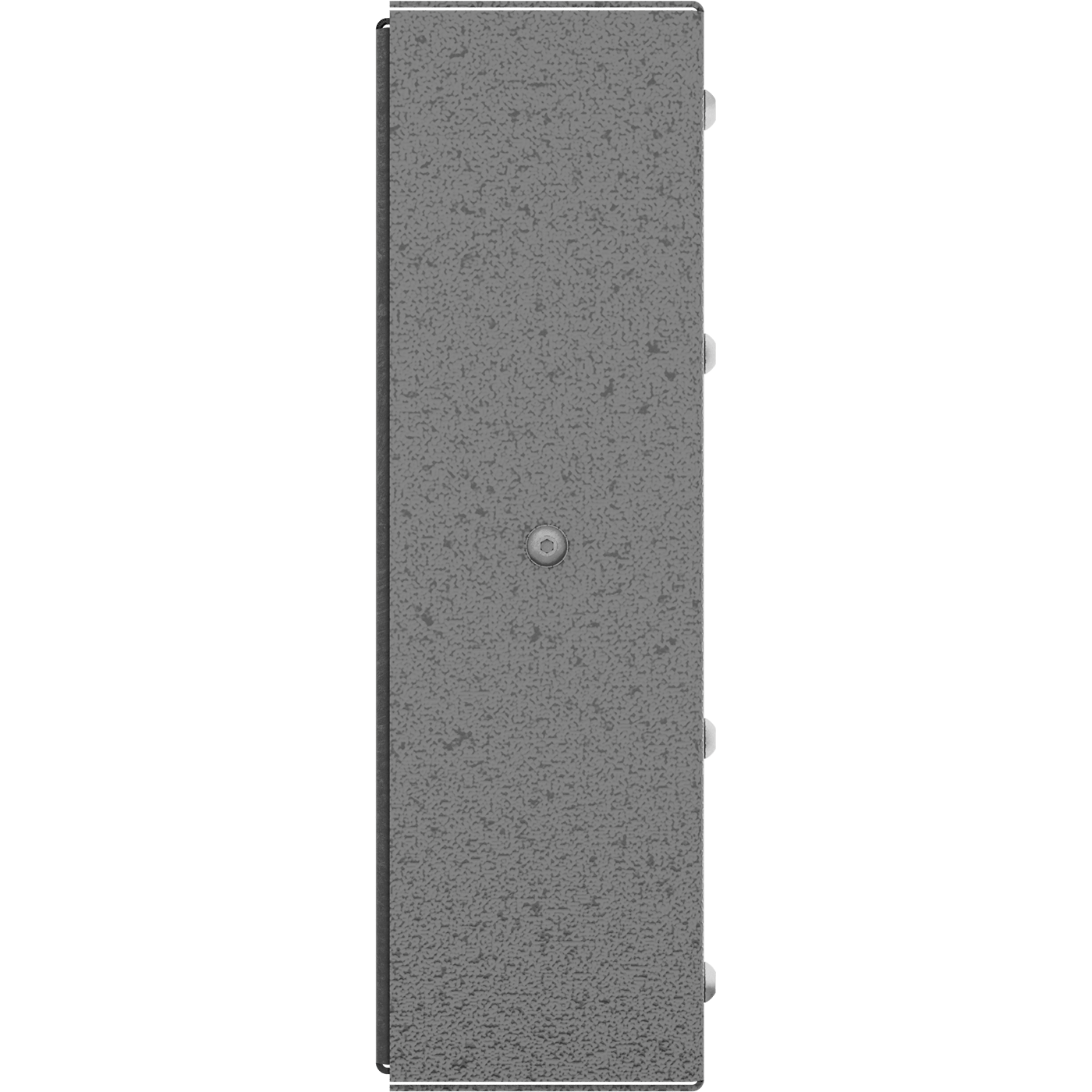

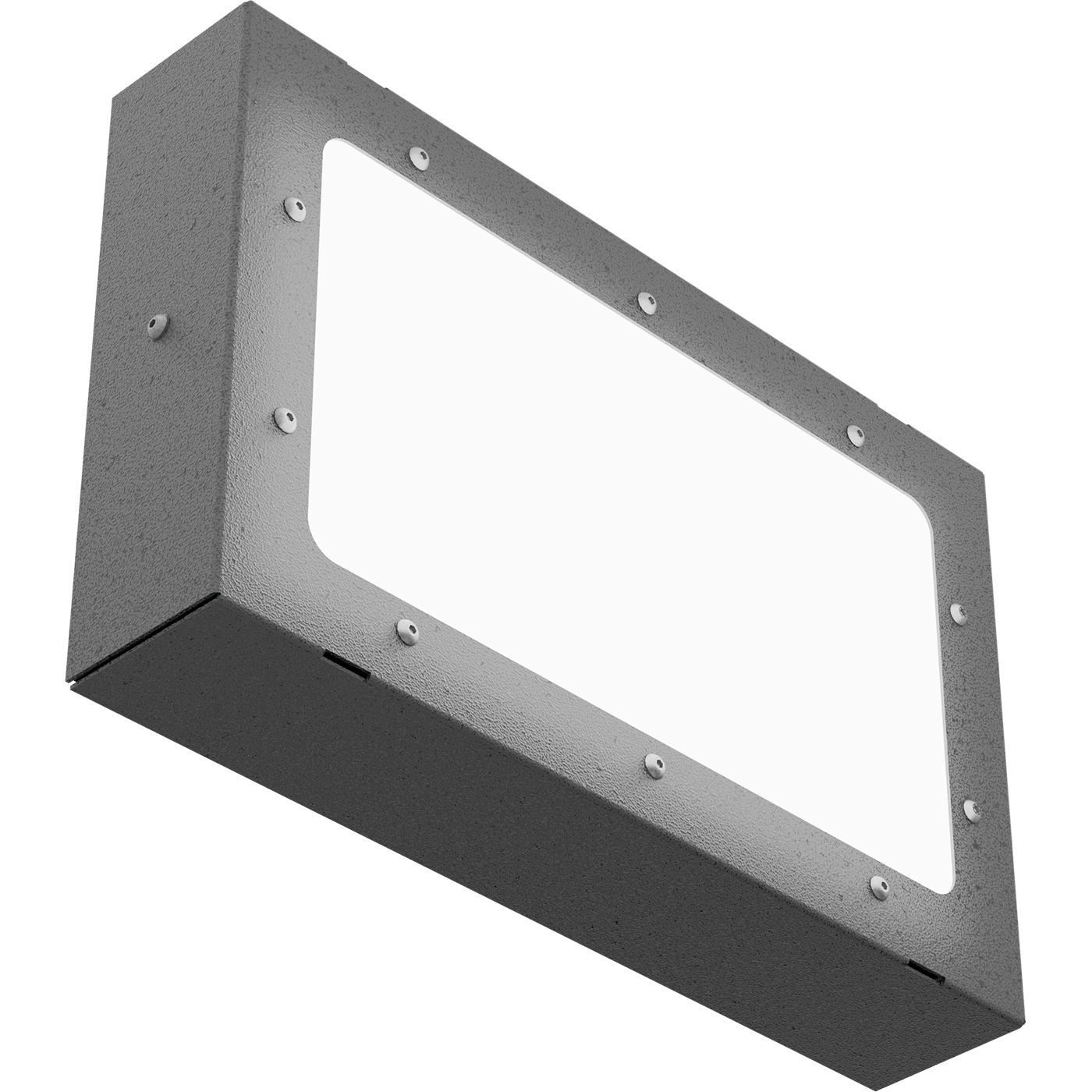

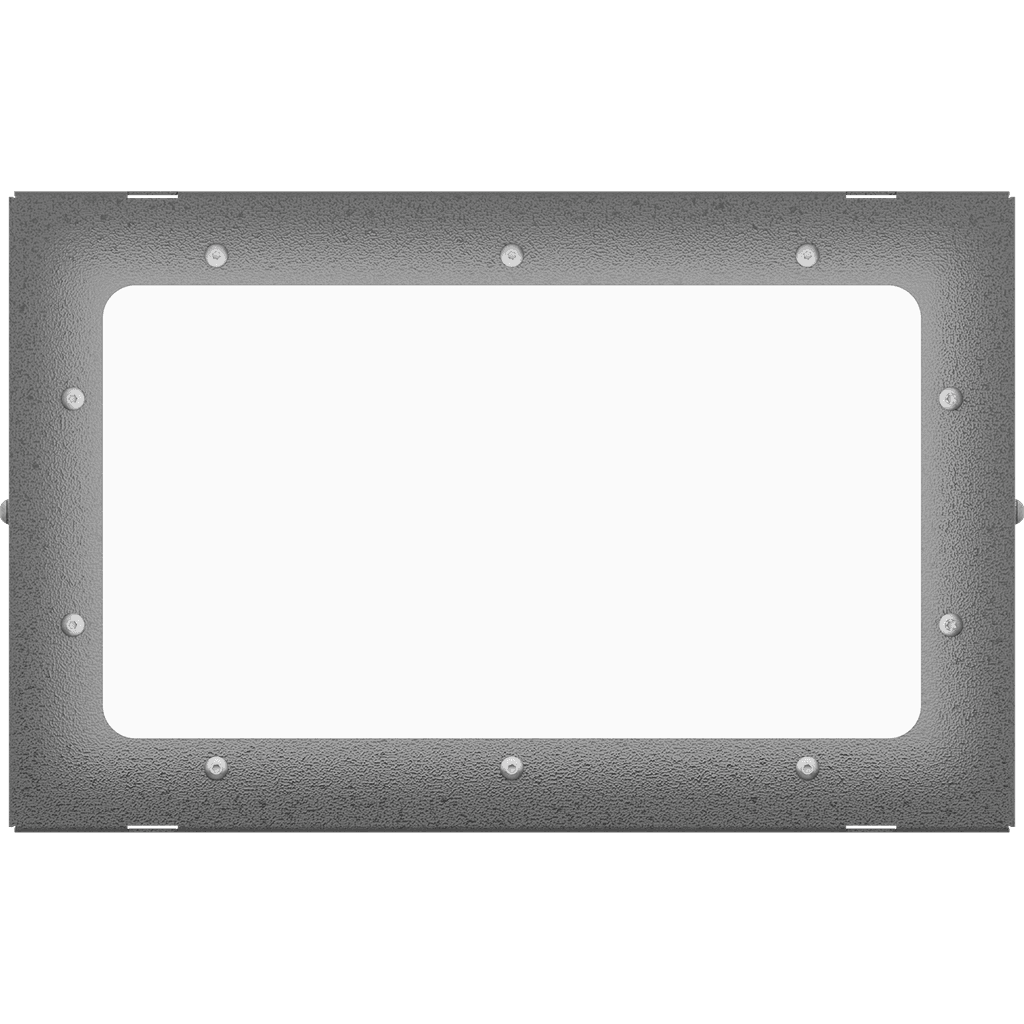

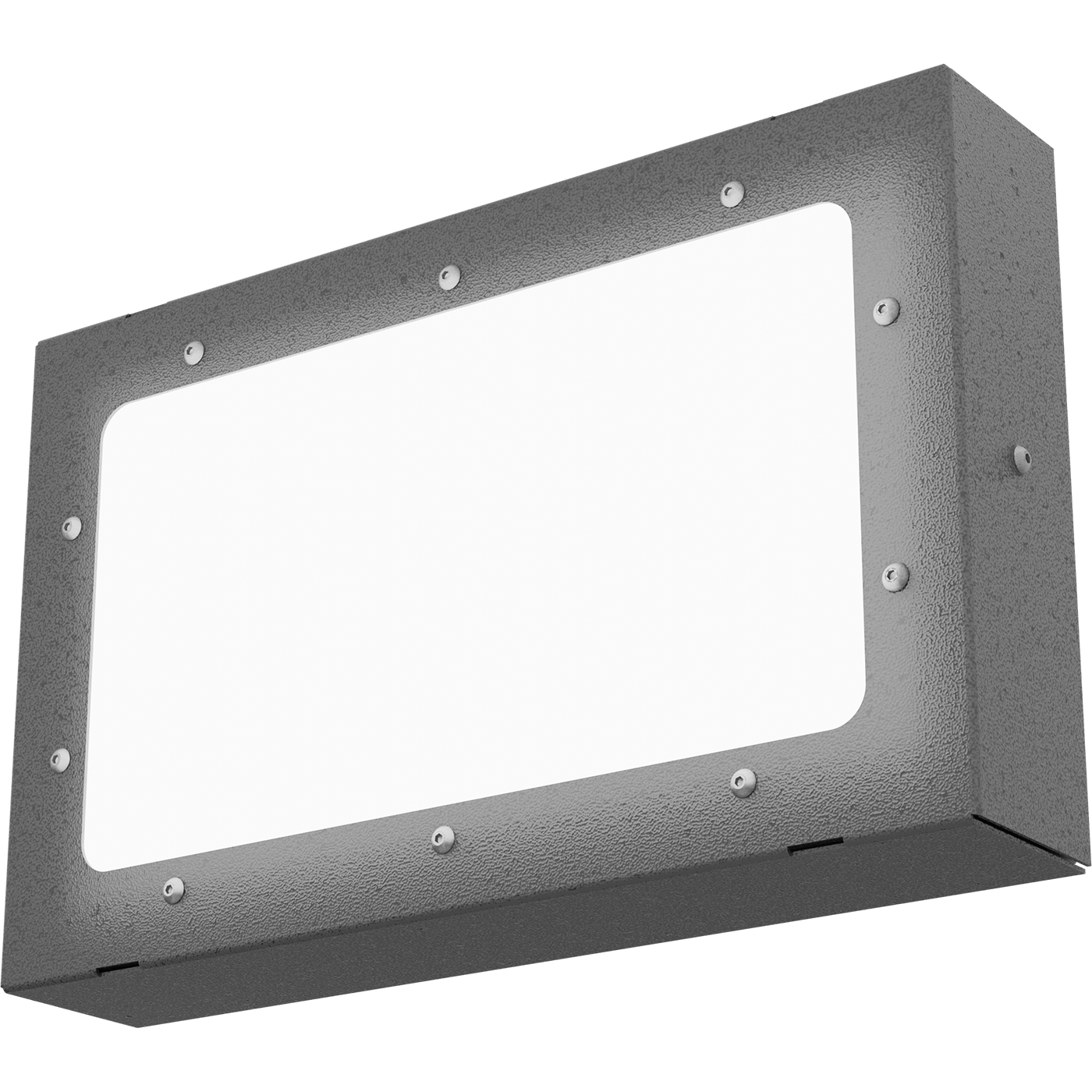

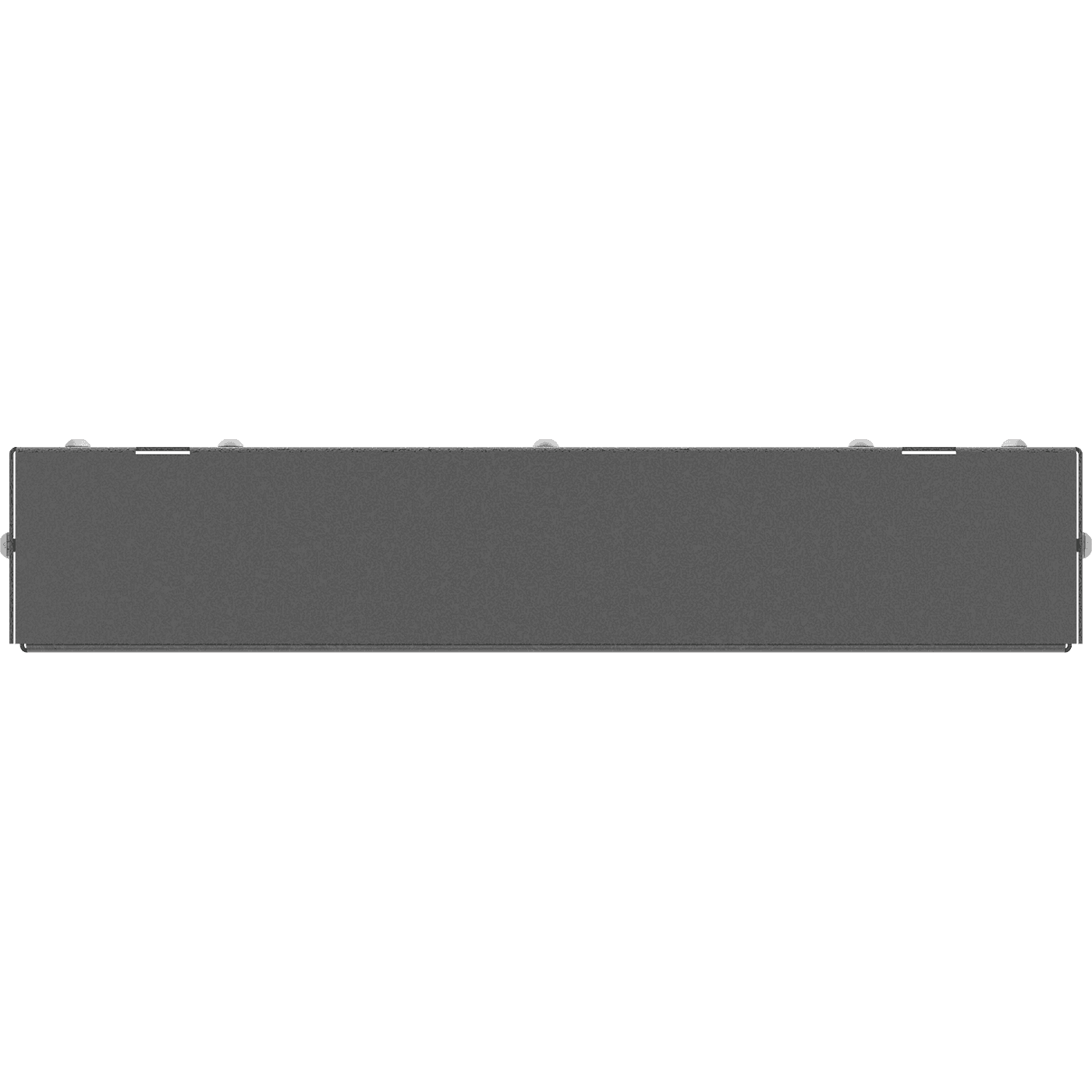

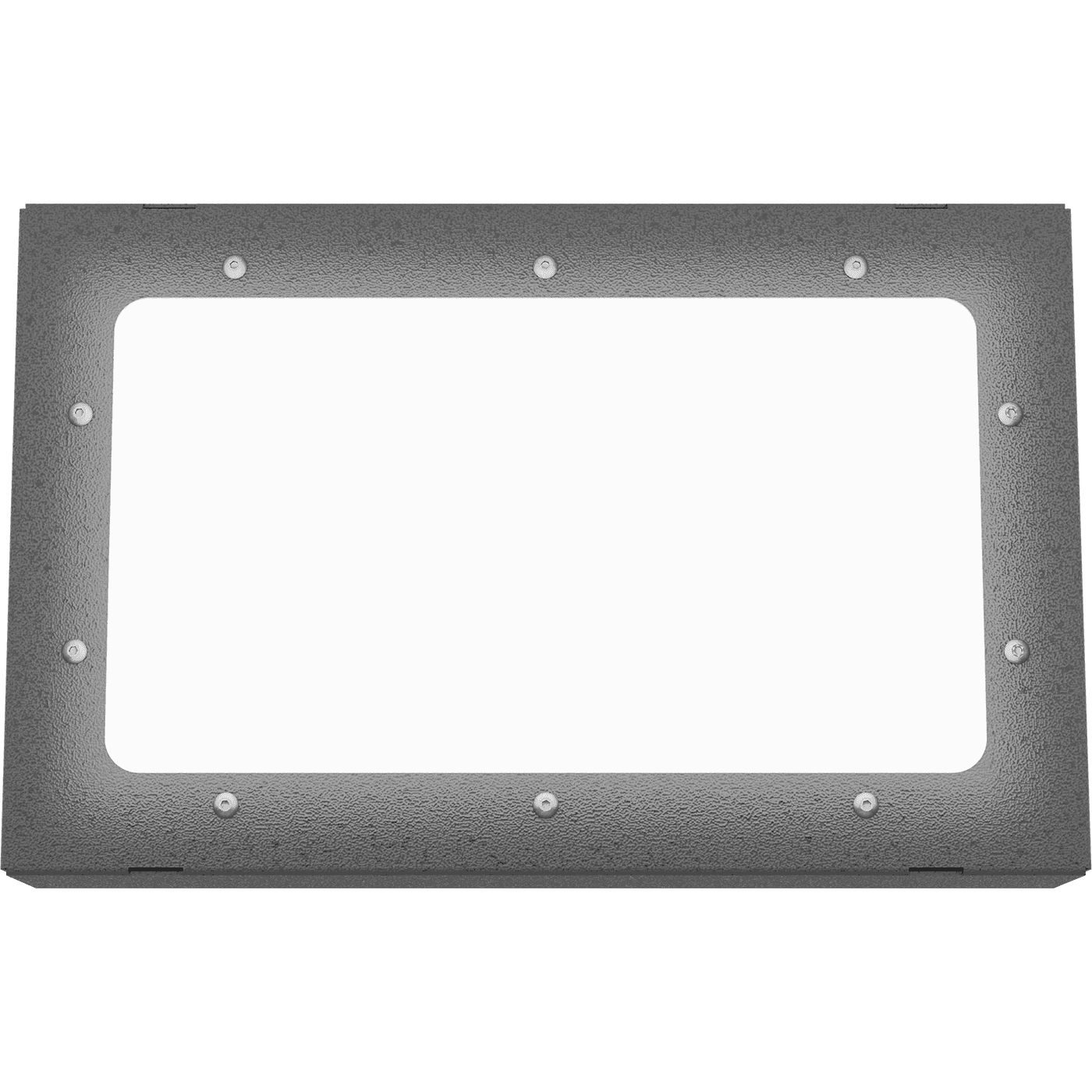

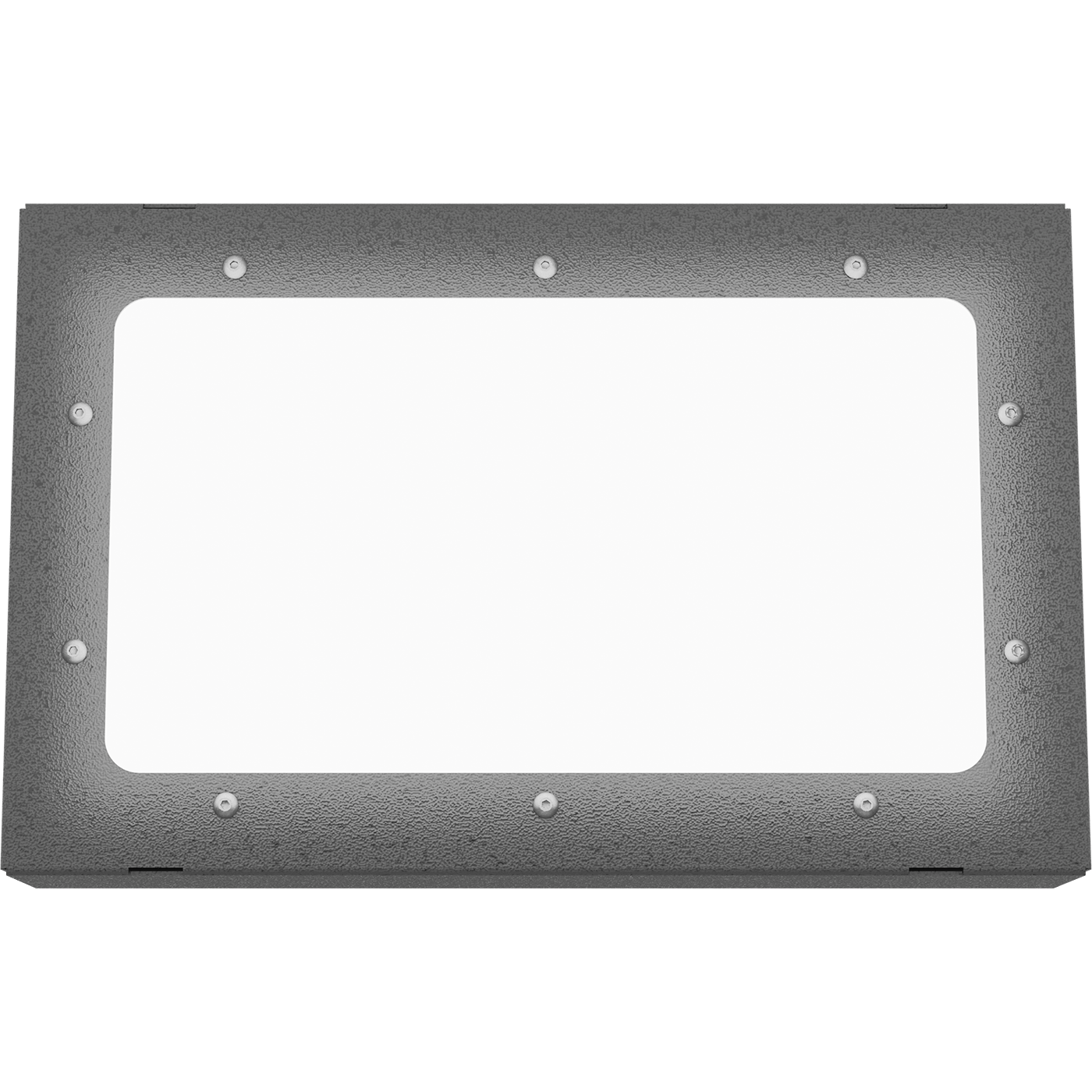

FORTRESS LED 30W 840 HG
FORTRESS LED 30W 840 HG
30 Wluminaire power
3400 lmlight flow
113 lm/Wenergy efficiency
code1784000030
beam angleD120
color temperature4000
weight5.2 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
50 Astarting current pulse time, µs
350 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-305 Vsupply voltage, direct current
142-431 Vluminaire power
30 Welectric shock protection
Ipower factor
> 0,90supply voltage
230 Velectrical
starting current
50 A
starting current pulse time, µs
350 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
142-431 V
luminaire power
30 W
electric shock protection
I
power factor
> 0,90
supply voltage
230 V
constructional
ingress protection (IP)
IP65
material
Сталь
weight
5.2 kg
length, mm
406 mm
width, mm
255 mm
height, mm
78 mm
housing color
Серый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
1
shock resistance (IK)
IK10/20 Дж
installation length, mm
262 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1784000030
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
113 lm/W
color rendition index (CRI)
>80
light flow
3400 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files

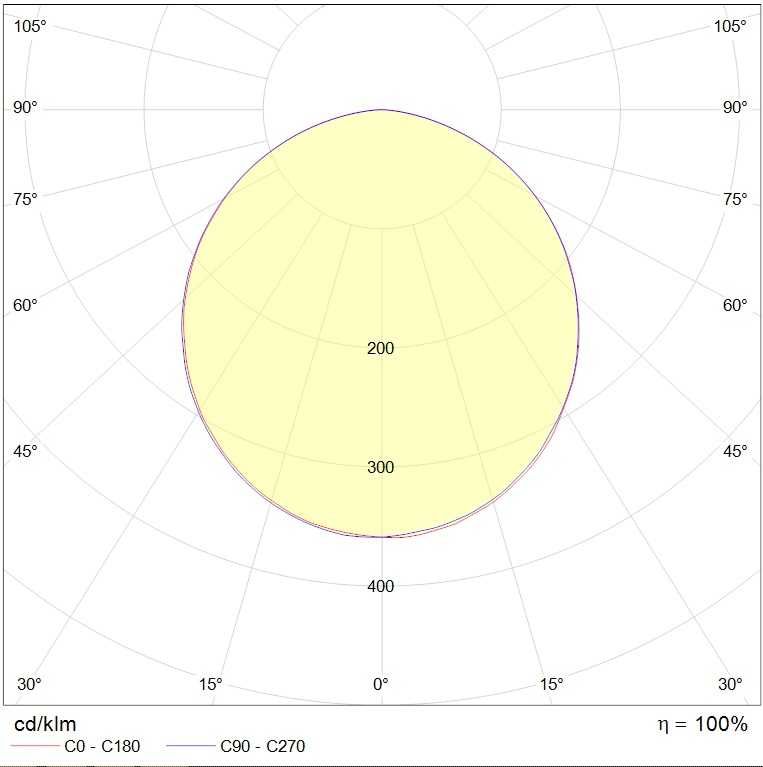

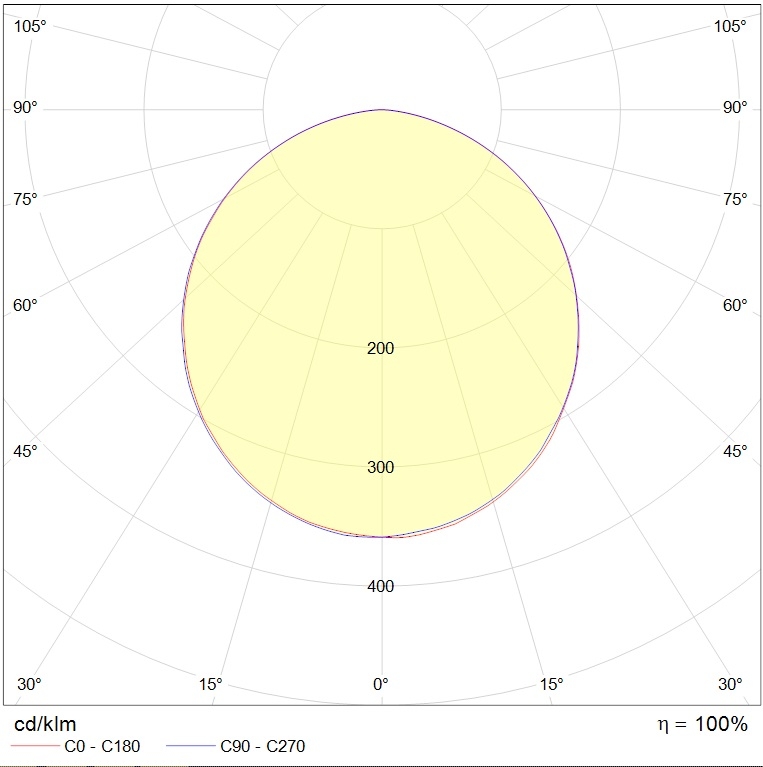

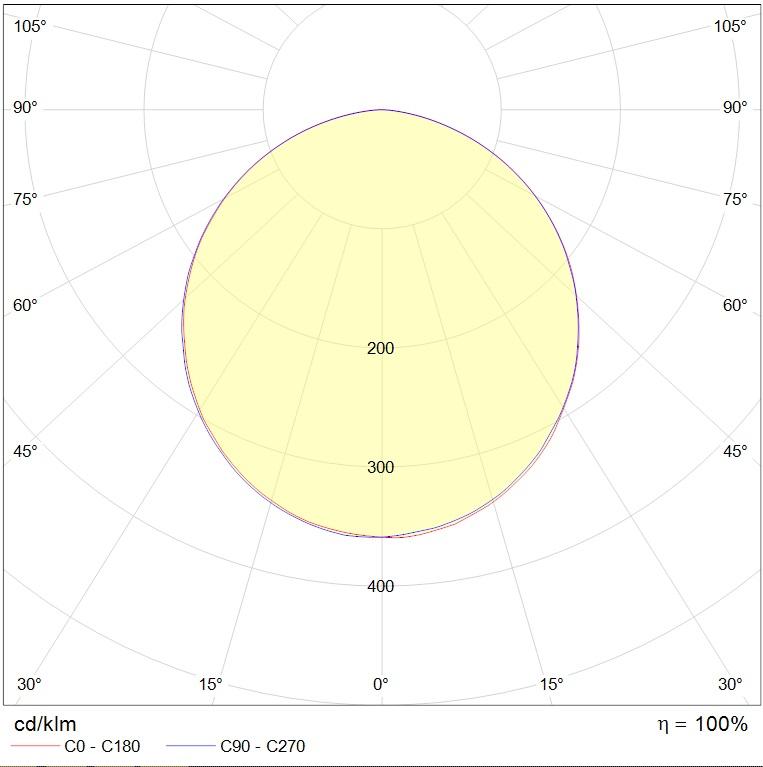

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg78.2 kB
ldt56.5 kB
documents
passport2.1 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
